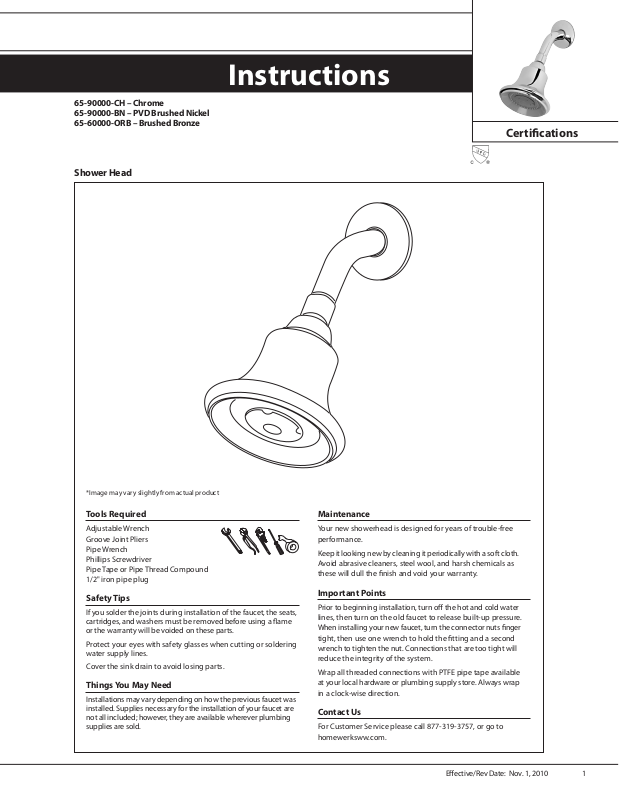

65-90000-CH – Chrome
65-90000-BN – PVD Brushed Nickel
65-60000-ORB – Brushed Bronze
Shower Head
Certications
*Image may vary slightly from actual product
Tools Required
Adjustable Wrench
Groove Joint Pliers
Pipe Wrench
Phillips Screwdriver
Pipe Tape or Pipe Thread Compound
1/2" iron pipe plug
Safety Tips
If you solder the joints during installation of the faucet, the seats,
cartridges, and washers must be removed before using a ame
or the warranty will be voided on these parts.
Protect your eyes with safety glasses when cutting or soldering
water supply lines.
Cover the sink drain to avoid losing parts.
Things You May Need
Installations may vary depending on how the previous faucet was
installed. Supplies necessary for the installation of your faucet are
not all included; however, they are available wherever plumbing
supplies are sold.
Maintenance
Your new showerhead is designed for years of trouble-free
performance.
Keep it looking new by cleaning it periodically with a soft cloth.
Avoid abrasive cleaners, steel wool, and harsh chemicals as
these will dull the nish and void your warranty.
Important Points
Prior to beginning installation, turn o the hot and cold water
lines, then turn on the old faucet to release built-up pressure.
When installing your new faucet, turn the connector nuts nger
tight, then use one wrench to hold the tting and a second
wrench to tighten the nut. Connections that are too tight will
reduce the integrity of the system.
Wrap all threaded connections with PTFE pipe tape available
at your local hardware or plumbing supply store. Always wrap
in a clock-wise direction.
Contact Us
For Customer Service please call 877-319-3757, or go to
homewerksww.com.
Eective/Rev Date: Nov. 1, 2010 1
65-90000-CH – Chrome
65-90000-BN – PVD Brushed Nickel
65-60000-ORB – Brushed Bronze
Shower Head
Preparation and Assembly
1 2
Certications
1
2
3
Locate water supply inlet and shut o water supply valve. Remove old
shower head. Clean and dry surface area where new shower head will be
mounted.
3
Turn on water supply inlet valves.
Insert the long end of the shower arm through the ange (1) then
apply pipe tape or pipe thread compound to both ends of shower
arm (2). Screw the long end of the shower arm into the pipe elbow
inside the wall. Slide the ange (1) tight against the nished wall
surface. Thread the shower head (3) onto the shower arm (2).
Eective/Rev Date: Nov. 1, 2010 2
Physical Characteristics
• Description: Shower Head
Certications
• Traditional design
• Includes matching arm and flange
• Meets ASME A112.18.1/CSA B125 requirements
No. Part Description Material
1 Flange ABS PA727
2 Shower arm ABS PA727
3 Shower head Plastic+Brass
65-90000-CH – Chrome
65-90000-BN – PVD Brushed
Nickel
65-60000-ORB – Brushed Bronze
1
2
3
Eective/Rev Date: Nov. 1, 2010 3
65-90000-CH – Chrome
65-90000-BN – PVD Brushed Nickel
65-60000-ORB – Brushed Bronze
Shower Head
Certications
Eective/Rev Date: Nov. 1, 2010 4
