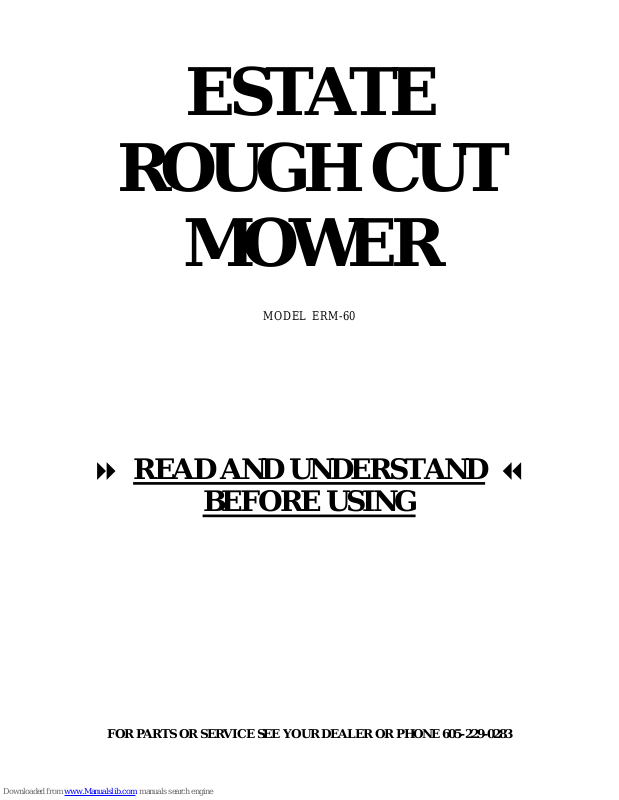

ESTATE
ROUGH CUT
MOWER
MODEL ERM-60
READ AND UNDERSTAND
BEFORE USING
FOR PARTS OR SERVICE SEE YOUR DEALER OR PHONE 605-229-0283
Page 2
WARNING
EYE PROTECTION MUST BE USED AT ALL TIMES
MOWERS ARE CAPABLE OF THROWING DEBRIS
AT HIGH VELOCITY, KEEP BYSTANDERS CLEAR
WEAR PROTECTIVE LOOSE FITTING CLOTHING WHEN
OPERATING THIS MACHINE
STOP ENGINE ALLOW BLADES TO STOP AND
ENGINE TO COOL BEFORE SERVICING, ADJUSTING
OR FUELING
DO NOT APPROACH OR STAND CLOSE TO MACHINE WHEN
BLADES ARE TURNING
DO NOT ATTEMPT TO DISABLE SAFETY FEATURES
REMOVE KEY WHEN NOT IN USE
DO NOT TOW THIS MOWER AT HIGHTER SPEEDS THAN
5 MPH SEVERE INJURY AND DAMAGE MAY RESULT
*HIGHER SPEEDS WILL VOID ALL WARRANTYS*
KEEP BLADES SHARP AND MOWER IN GOOD REPAIR
KEEP ALL GUARDS AND FLAPS IN PLACE AND IN GOOD REPAIR
Page 3
START UP AND OPERATING TIPS
• Recommended battery: U1-240-W wet cell light industrial 12 volt
battery. Fully charge before using. Be sure connectors are clean and
tight.
• Fill oil and gasoline per engine manufacturers recommendations
before attempting to start engine.
• Do not operate unit with a dead or poorly charged battery as clutch
failure could result.
• Keep entire machine and features in good operating condition.
• Service or repair should be done only by qualified persons.
• It is desirable to cut with the front of the mower lower than the rear;
this takes less power, as it does not re-cut the vegetation.
• Maximum towing speed is 5 mph. If towing on rough or uneven
ground or when tongue is offset, slower speeds must be used to
compensate.
• Blade clutch switch must be set to engage before seat switch will be
operative .
• Read and understand safety portion of this manual before operating.
• Grease transport wheels often, failure to lubricate the wheels will
• void bearing warranty.
• If the blade stops during light cutting you may need to tighten the
idler.
• If the engine stops when starting the blades, you may need to increase
the speed of the engine or loosen the idler pressure.
• Check drive belt often, as it is part of the overload protection.
• When transporting on a trailer or truck, lower the unit to rest on the
bed or blocks. When the unit is tied down, or the constant bouncing
of higher speeds can very hard on the lift system.
• Always replace bolts and bushings when replacing blades.
Page 4

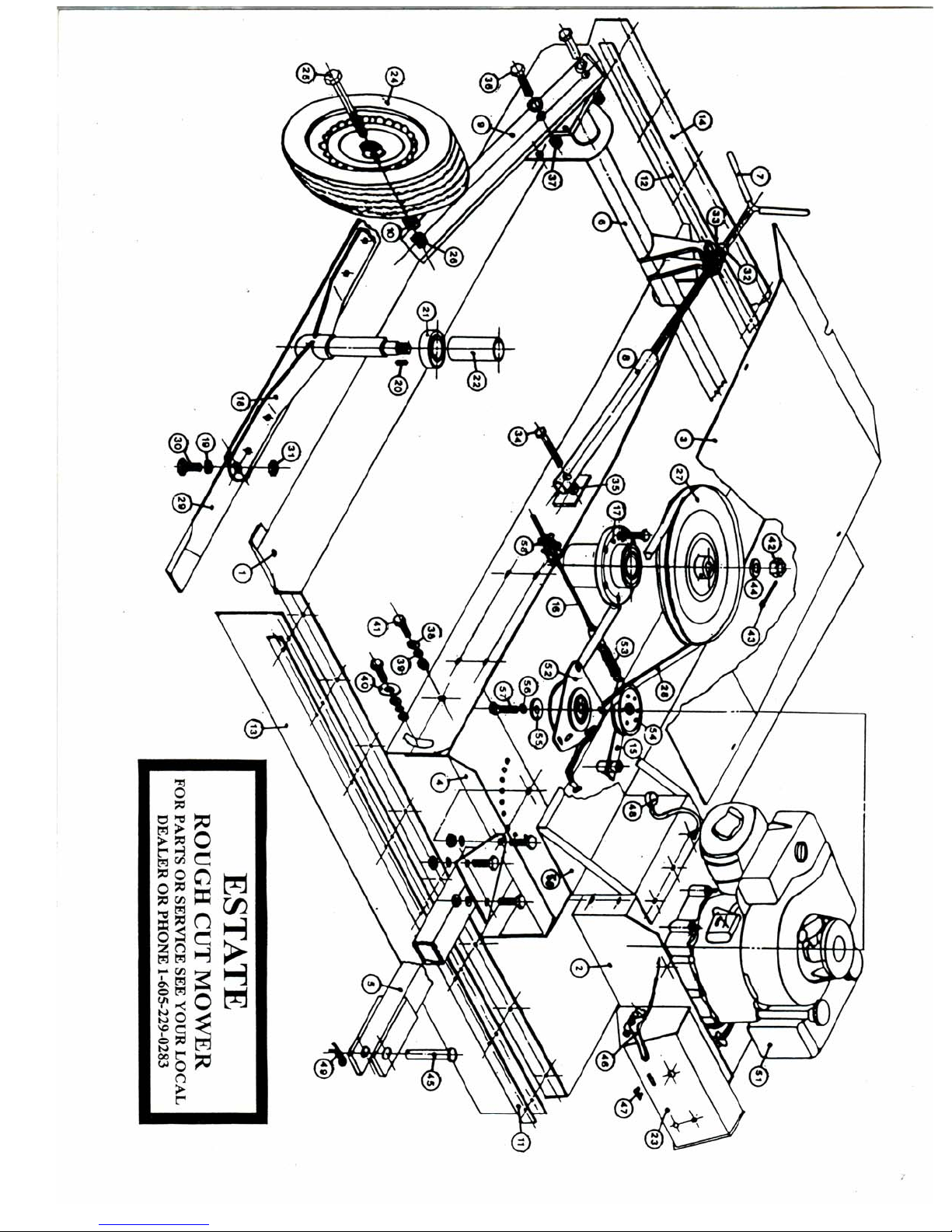

ESTATE ROUGH CUT MOWER PARTS LIST
Key No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Part No.
ERM 601
ERM 602
ERM 603
ERM 604
ERM 605
ERM 606
ERM 607
ERM 608
ERM 609
ERM 6010
ERM 6011
ERM 6012
ERM 6013
ERM 6014
ERM 6015
ERM 6016
ERM 6017
ERM 6018
ERM 6019*
ERM 6020
ERM 6021
ERM 6022
ERM 6023
ERM 6024
ERM 6025
ERM 6026
ERM 6027
ERM 6028
ERM 6081
ERM 6030
ERM 6031
ERM 6032
ERM 6033
ERM 6034
ERM 6035
ERM 6036
ERM 6037
ERM 6038
ERM 6039
ERM 6040
Description
DECK ASSEMBLY
ENGINE BASE
DRIVE COVER
DRAW BAR HOUSING
DRAW BAR
TRANSPORT TUBE
LIFT SCREW
LIFT NUT TUBE
WHEEL ARM
WHEEL SPACER
FRONT GUARD CLAMP STRIP (short)
REAR GUARD CLAMP STRIP (long)
FRONT RUBBER FLAP
REAR RUBBER FLAP
IDLER ARM
IDLER TENSION BOLT
SPINDLE HOUSING
BLADE SPINDLE
BUSHING (KIT ONLY) order #ERM 4882
PULLEY KEY
SPINDLE BEARING
BEARING SPACER
CONTROL PANEL
TRANSPORT WHEEL (16x4)
3/4-10 x 5.5 AXLE BOLT
3/4-10 HEX NUT
DRIVEN PULLEY
DRIVE BELT (6L 610)
BLADE (KIT ONLY)
BLADE BOLT (KIT ONLY)
LOCKING NUT (KIT ONLY)
3/4-10 JAM NUT
3/4 BUSHING WASHERS
1/2-13 x 13 GR 8 BOLT
1/2-13 FLANGE UNIT
1/2-13 x 1 3/4 BOLT
1/2-13 HEX NUT
1/2- WASHER
1/2- LOCK WASHER
1/2- FENDER WASHER
Page 5
ESTATE ROUGH CUT MOWER PARTS LIST
Key No.
41
42
43
44
45
46
47
48
49
*
*
*
*
*
*
*
*
50
51
52
53
54
55
56
57
58
*
Part No. Description
ERM 6041
ERM 6042
ERM 6043
ERM 6044
ERM 6045
ERM 6046
ERM 6047
ERM6048
ERM 6049
ERM 6050
ERM 6052
ERM 6054
ERM 6055
ERM 6056
ERM 6059
ERM 6081
ERM 6082
ALS-RSS-15
ALS-16
ALS-17
EM-5
EM-51
EM-73
EM-67
EM-64
EM-55
EM-56
EM-57
EM-58
NOT SHOWN
1/2-13 x 1 1/2 BOLT
7/8-9 CASTLE NUT
3/16 x 2 1/2 COTTER PIN
7/8 HEAVY WASHER
5/8 x 3 CLEVIS PIN
THROTTLE CABLE
FUSE
GROUND CABLE
1/8 HAIR PIN
CLUTCH SWITCH
STUMP JUMPER
FUEL TANK & BRACKET ASSY
Wires Only for REMOTE SEAT SWITCH
Switch Only for REMOTE SEAT SWITCH
BEARING SHEILD
BLADE KIT PART NUMBER
BLADE BOLTS, NUTS, BUSHINGS
REMOTE SEAT SWITCH
TOGGLE SWITCH (6 PRONGS)
TOGGLE SWITCH (2 PRONGS)
BATTERY BOX
ENGINE
CLUTCH ASSEMBLY
IDLER SPRING
IDLER PULLEY
CLUTCH WASHER
7/16 LOCK WASHER
7/16 20 x 2 GRADE 8 BOLT
STAR KNOB
