EST APC-TF Series User Manual

MODEL

1125-2 Sankyok-dong, Puk-ku, Taegu, KOREA TEL : +82-53-355-3621 A/S : +82-10-3749-9074 FAX : +82-53-957-3622

mail : est-korea@hanmail.net http://cafe.daum.net/EST-KOREA

ACTIVE POWER CONTROLLER USER MANUAL

APC-TF Series

VER_2013.12

- 2 -

ACTIVE POWER CONTROLLER PRECAUTIONS

The installation, configuration, commissioning and maintenance of the power unit should only be carried out by personnel qualified and trained to work with low voltage electrical equipment in an industrial environment.

ATTENTION

SAFETY

EARTH

Controller must be installed in electrical cabinets correctly fan-cooled to ensure that condensation and pollution are

excluded. The units are designed to be used at an ambient

temperature less than 40°C and leave a minimum gap of 5cm between two units placed side by side. Excessive overheating of the controller may lead to incorrect operation of the unit. And this may in turn cause damage to the components.

Overheating at overload driving can be produced. Work after cool enough in case of do checking, full equipment.

DANGER

AND

ATTENTION

DANGER

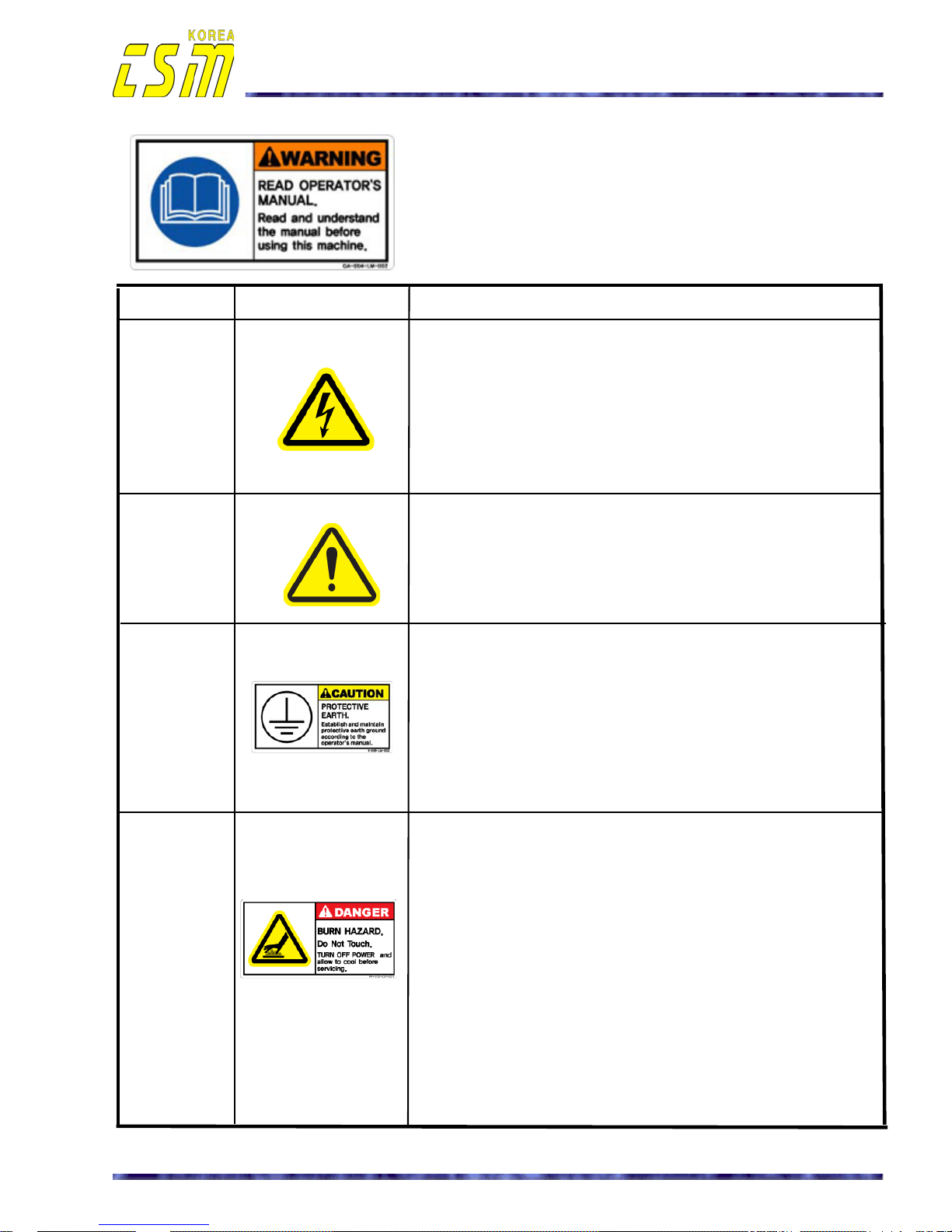

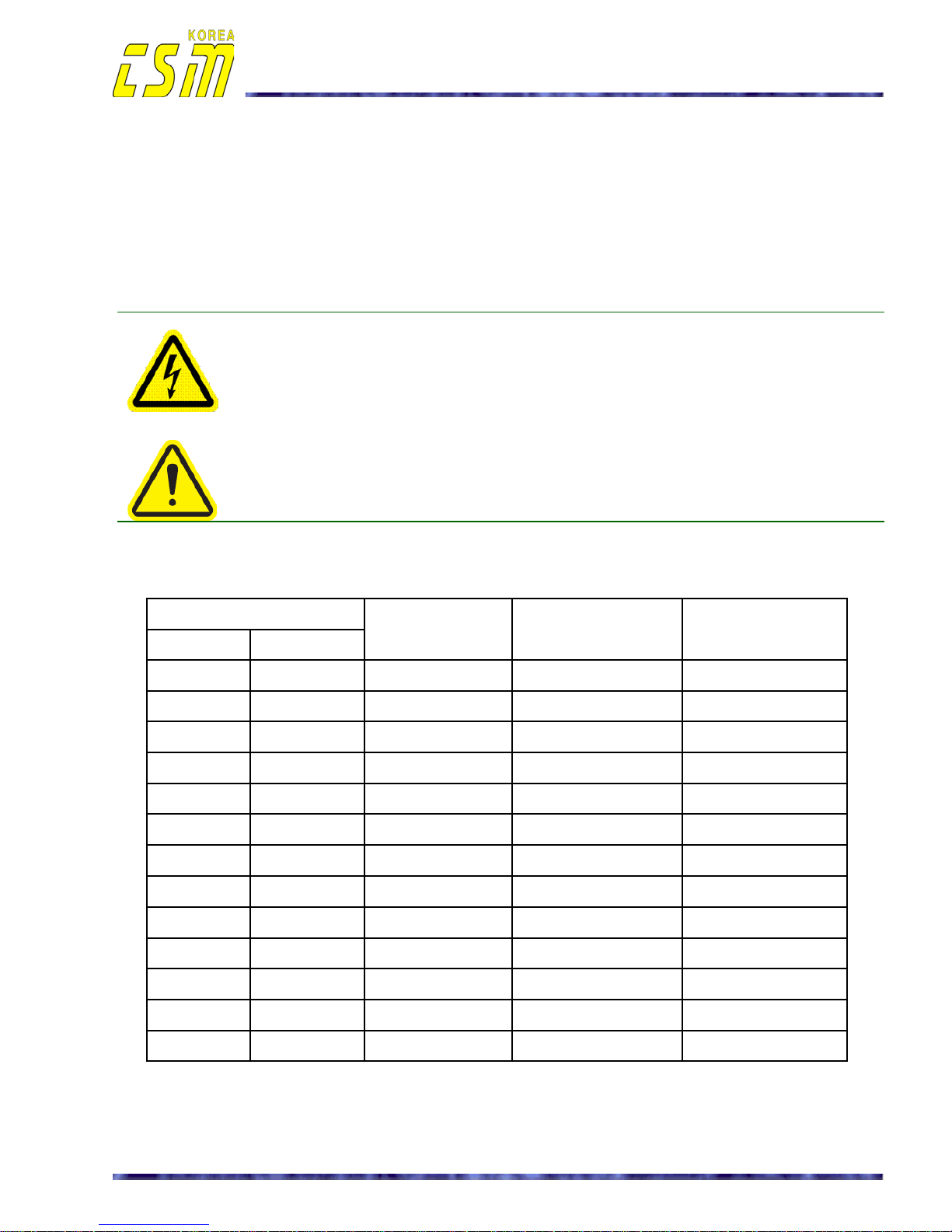

Precautions and description

Safety symbols

Item

This symbol is marking contents about danger (electric shock, electrical impact etc..) that can happen by electric problem.

This product of when repairs, shut off main power of controller, controlled source and cooling - fan's power certainly, and works after is discharged perfectly measuring residual voltage in controller load side according to load's kind

This symbol is marking contents of mistake or failure that can happen serious missing incorrect operation or on sequences for the installation of the power unit.

Please observe guideline of this manual certainly.

Before any connection or disconnection, ensure that power and control cables or leads are isolated from

voltage sources. For safety reasons, the safety earthing cable must be connected before any other connection is made during wiring and it should be the last cable to be disconnected. The safety earth is connected to the screw located on the terminal block of the PCB.:

- 3 -

GENERAL INTRODUCTION TO THE APC-TF SERIES

Warranty of quality and A/S regulation of product

 Confirm ordering product specification and whether agree.  Confirm whether it is no defect to damage or product while transport.  Quality term of guarantee of this product is during 1 year when use normally.

 Being onerous service regulation and item;

- The case not to be a power unit PCB inside failure.

- The failure from the natural disaster is due.

- A failure occurrence as long as is by user's treatment carelessness and wrong repair or nonprofessional repair.

- Damage (exaggeration harmonic inclusive) that occur exceeding rated voltage/rated current

- Due failure which not keep observance of user manual contents.

Observance item of power unit operation environment

 Wrong establishment place becomes factor that generate degradation of product and unstable control. Below, please avoid place correspond to item.

- Place that there are a lot of moistures and air flow does not become well.

- Place that dust or impurities piles.

- Place that surrounding atmosphere temperature is high.

- Place that can mechanical vibration is heavy or deals mechanical impact directly

- Place that corrosive gas, flammable gas happens around.

- Is leaked in ceiling or place that dew forms.

- Place that receive direct influence in water, oil, medicines, stream, salt, iron etc.

- Obstacle by electrical inductive current is large place.

- Place that heat reduced scale by direct ray of light and radiant heat etc. happens.

- 4 -

Understanding SCR Power Controls

When selecting SCR Power Controls, it is important to have a basic understanding of how SCRs work. This will help you select the right SCR for your application.

• How SCR Power Controls Work

A silicon controlled rectifier (SCR) is a solid state switching device which can provide fast, infinitely variable proportional control of electric power. Not only does this give maximum control of your heat process, but it can extend heater life many times over other control methods. Since the SCR is solid state, it can cycle on and off over a billion times, if properly used.

• PHASE ANGLE FIRED

controls proportionally turn on a percentage of each power line half cycle. This gives smooth, infinitely variable application of power to the heaters. Imagine a light dimmer and how it provides power to a light bulb. This method will provide the most precise control of heaters. Phase angle fired SCR's will respond the fastest to load changes and provide maximum heater life. Options including Voltage Limit, Soft Start and Current Limit are only available with Phase Angle Fired SCR's.

• ZERO VOLTAGE SWITCHED ( ZERO VOLTAGE CROSSING)

controls proportionally turn on and off each full cycle of the power line cycle. By varying the number of AC power line cycles, the SCR provides power to the heaters. With a variable time base, the optimum number of cycles turned on/off is achieved. The switching is done at fractions of a second during the zero voltage crossing of the power line cycles. For IR heating with a fast element, you would see the elements flickering. On a ceramic heater, or more massive medium wave heater you can control within very tight tolerances.

• ON/OFF CONTROL

works like a mechanical or mercury relay. When the SCR is turned on it fires full voltage into the heater until the command signal turns it off.

• The advantages of SCR Controls over other temperature control methods

- Improved response time

- Closer process control

- Extended heater life

- Reduced maintenance costs

- Silent operation

- Reduced peak power consumption

Remember, a heating element is made of wire in most cases. If you use a mechanical relay to turn on your heater, it will cycle on or off within 30 seconds or longer. The heater will expand and contract, getting more and more brittle each time. This is called thermal shock. Temperature overshoot may also occur. Relays also arc, spark and will burn out on a regular basis.

- 5 -

POWER CONTROL SELECTION GUIDE

The SCR power control can deliver electrical power to heaters in several ways: phase angle

fired, zero voltage switched and on/off control.

Phase angle fired controls proportionally turn on a percentage of each power line half cycle. This gives smooth, infinitely variable application of power to the heaters. It is the most precise method of control. Phase angle firing can increase heater life

up to seven times depending on

heater type.

Phase angle firing also allows options such as soft start, voltage limit and current

limit. These options are not available with any other means of control.

Zero voltage switching controls proportionally turn on and off each full cycle of the power line. By varying the number of AC power line cycles, the SCR provides power to the heaters. With a variable time base, the optimum number of cycles turned on/off is achieved. This method produces less RFI line noise than phase angle fired SCRs.

On/Off controls function the same way as a mechanical or mercury relay, but with the advantage of much faster cycle times.

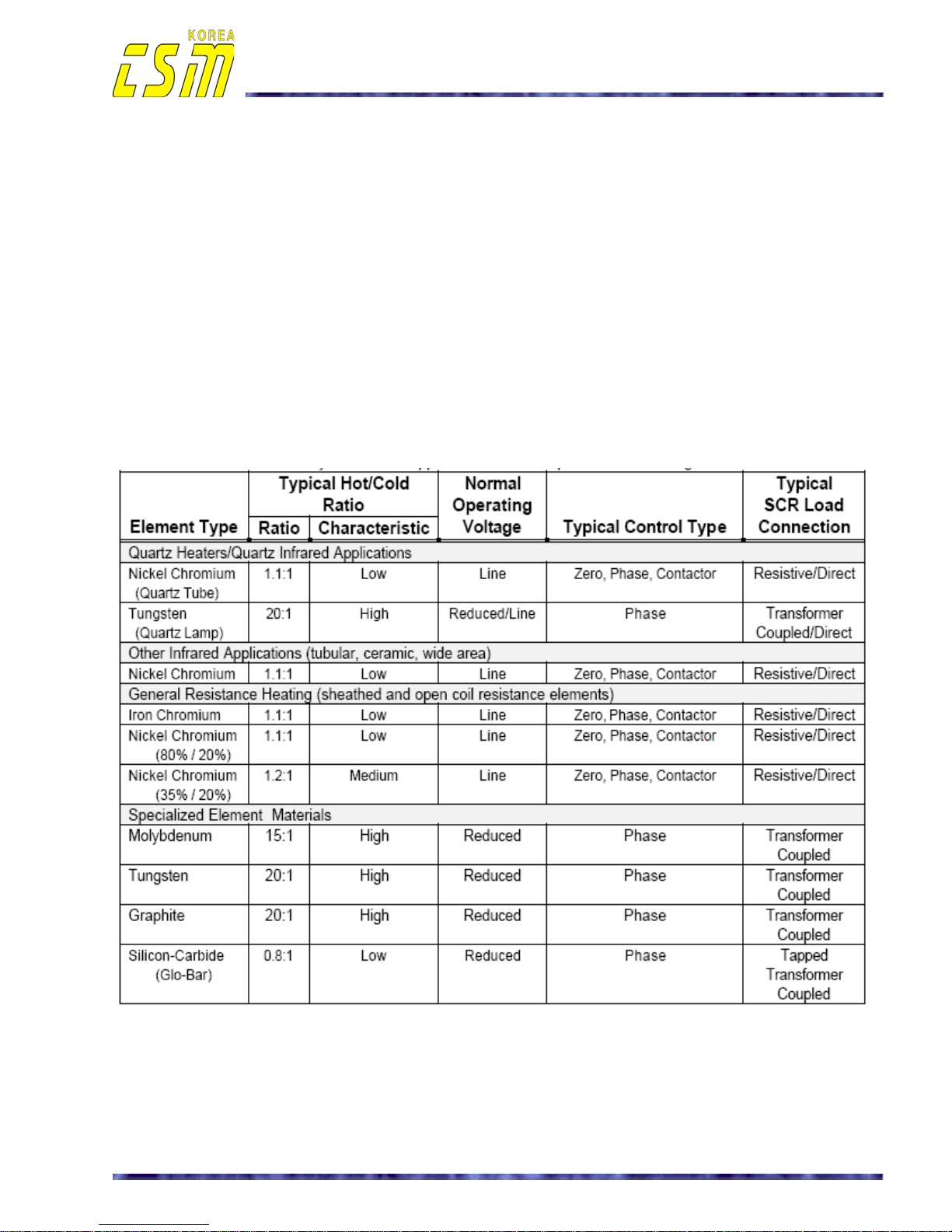

Chart below shows how to best match SCR power control with typical applications.

- 6 -

APC-TF Series TECHNICAL SPECIFICATION

The Model APC-TF Series is a new generation SCR Active Power Controllers for use with resistive, inductive loads. This unit features the optimum conditions heatsinks with remote analog set-point value for precise control. Basic include diagnostic load failure detection, a wide scope fault detection. Fault indicates when a shorted device or an open load is detected.

• APC-TF Series TECHNICAL SPECIFICATION

State items Technical Specification Remarks

Line-to-line voltage

AC 220V / 380V / 440V ±10%

Nominal current

(per phase)

35A – 500A

Less then 70%

External control signal

Analogue voltage 0 to 5V or 1 to 5V; current 0 to 20mA or 4 to 20mA Contact (ON/OFF mode) Potentiometer for manual set-point

(5 V supply available).

Application

Heater control

Controls

• PHASE ANGLE FIRED

• ZERO VOLTAGE SWITCHED ( ZERO VOLTAGE

CROSSING)

• ON/OFF CONTROL

Loads

Inductive load , Resistive load with a low temperature coefficient or short-wave infrared elements

Supply frequency

50Hz and 60Hz (±2Hz) automatic selection

Soft control

Soft Start / Stop , Soft up / down 0 – 10 sec

Output range

0 – 97% of the input line-to-line voltage

Ambient

Temperature

Operating : 0 to +40 ℃(+32 to +104 ℉) Storage : -40 to +80 ℃(-40 to +176 ℉)

Insulation (1 min test)

2000Vac between power and earth and 3600Vac between power and control

Cooling

Natural convection for less then 70A ratings Permanent fan-cooling for more then 90A rating

Alarm functions

- Over current trip

- Heatsinks over temperature detect

- Load failure detect

- Fuse failure detect

- SCR failure detect

- 7 -

APC-TF Series Model identification

①

Application

▷ APC : ACTIVE POWER CONTROLLER ▷ MSC : MOTOR SOFT-START CONTROLLER

②

Phase

▷ S : SINGLE-PHASE AC ▷ T : THREE-PHASE AC

⑥

Controls

▷ P : PHASE-ANGLE CONTROL ▷ Z :

Fixed time base

ZERO-CROSS CONTROL

④

Line-to-line voltage

▷ 2 : 220V AC ▷ 3 : 380V AC ▷ 4 : 440V AC ▷ 6 : 690V AC

⑤

Nominal current (per phase)

▷ 30A/40A/55A/70A/90A/110A/130A/160A/200A/250A/300A/400A/500A

⑦

User option

③

DISPLAY type of outside panel

▷ N : LED information display ▷ F : FND, 7-segment ▷ L : LCD

• APC-TF Series Model identification

APC – TF3 – 100 – P -

① ②③④ ⑤

⑥ ⑦

- 8 -

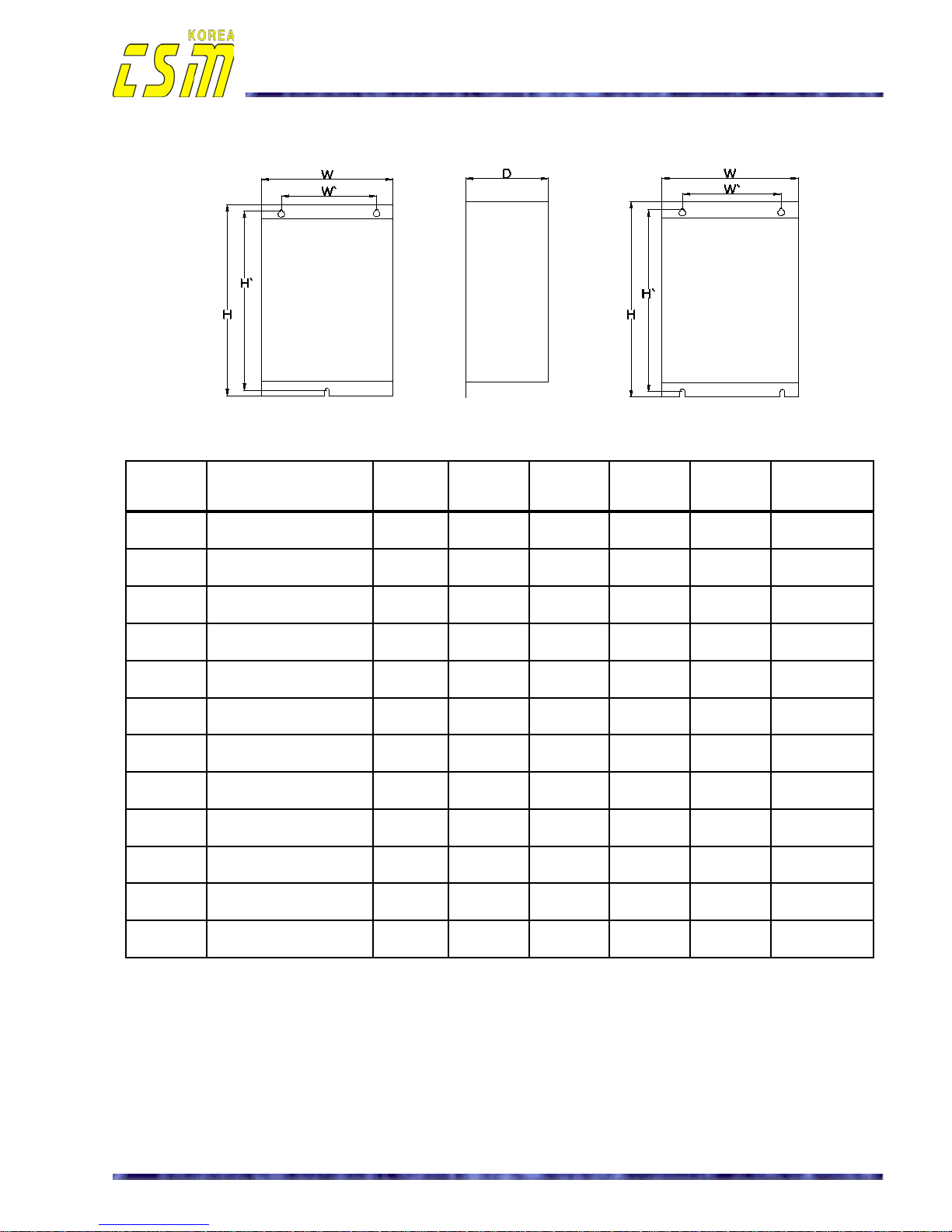

APC-TF Series DIMENSIONAL DETAILS

Single phase

40~90A

Single phase

110~500A and

Three phase

All models

*** More than nominal current 600A at order specification.

*** Dimensions of the upper product could be changed without notification for improving functions.

Model Nominal Current (A) H H` W W` D Mount

SN 25 106 96 75 62 70 M4

SN 40,55 180 170 65 56 126 M4

SF 40,55,70,90 195 181 133 114 148 M5

SF 110,130,160 271 258 123 83 185 M5

SF 200,250,300 300 286 173 130 220 M5

SF 400,500 395 381 173 130 230 M5

TF 30,40,55,70 252 238 173 130 170 M5

TF 90,110 300 286 173 130 220 M5

TF 130,160 395 381 173 130 230 M5

TF 200 415 397 262 200 243 M6

TF 250,300 456 440 262 200 243 M6

TF 400,500 510 485

310 200 260 M6

- 9 -

- R, S, T :

Main power input terminal labels.

- U, V, W :

Load (heater) connection terminal labels.

- 4-20mA (+)(-) : Analogue input line

- Potentiometer for manual set-point : 10KΩ, External

- RUN / STOP : External contact, RUN or STOP

- AUTO/MANUAL : External contact, Automatic or Manual operation

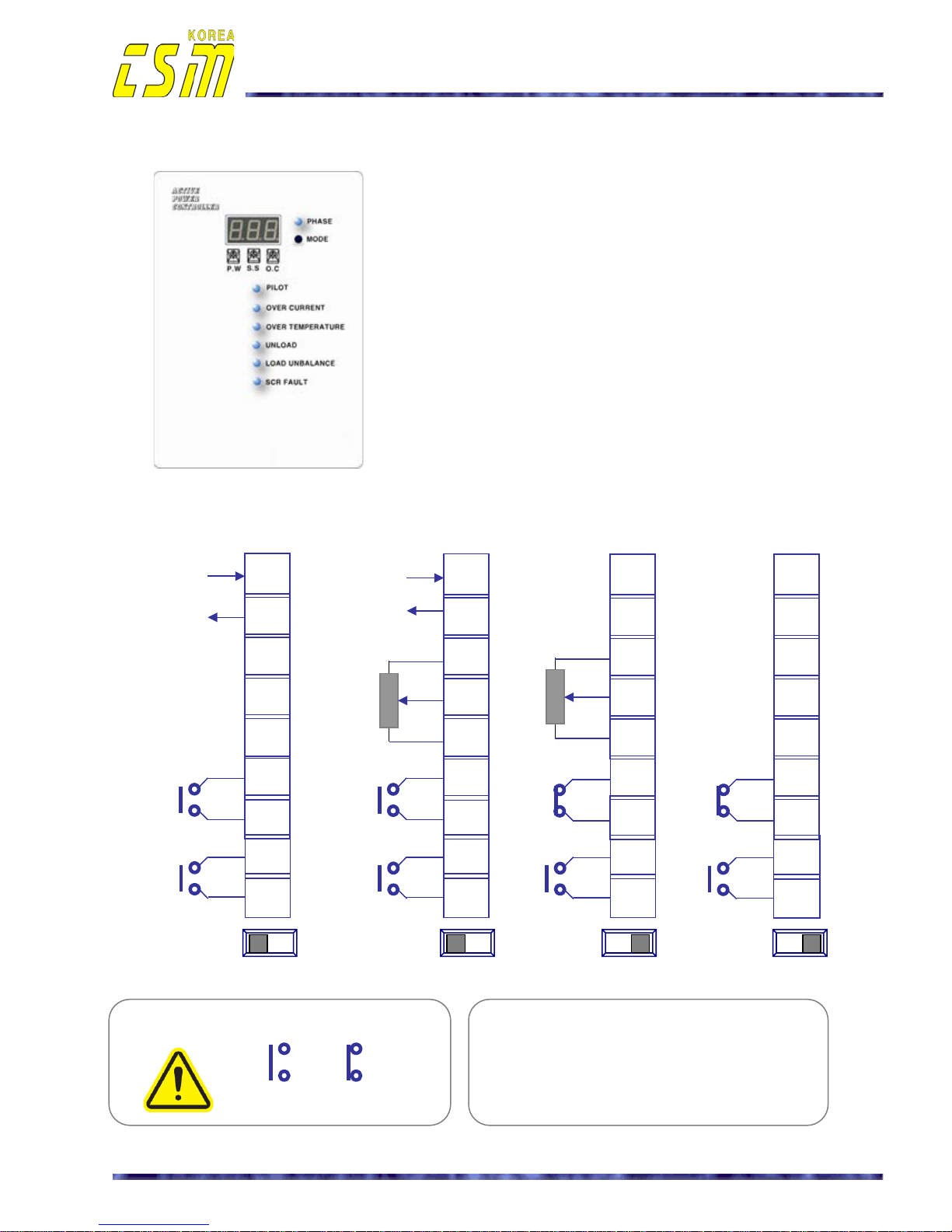

APC-TF Series External form and wiring diagrams

•

Automatic control

① ② ③ ④ ⑤

•

Automatic with remote control by external potentio meter

• Manual operation

• ON/OFF control

•

Product External form and description of the symbols

4-20mA (+)

4-20mA (-)

* The method of the RUN / STOP contact.

STOP RUN

① ② ③ ④ ⑤

4-20mA (+)

4-20mA (-)

10KΩ

External potentio-meter

① ② ③ ④ ⑤

AUTO MANUAL

Operation mode

Switch (PCB)

*

Signal, control cables : Use the shield cable (CVVSB: more then 0.75mm2) * CVVSB : PVC INSULATED, COPPER WIRE BRAID SHIELD AND PVC SHEATHED CONTROL CABLE

•

Manual with remote control by external potentio meter

External potentio meter

10KΩ

AUTO MANUAL

AUTO MANUAL AUTO MANUAL

⑥ ⑦

AUTO/MAN

⑥ ⑦

RUN/STOP

⑧ ⑨

RUN/STOP

⑥ ⑦

AUTO/MAN

⑧ ⑨

RUN/STOP

⑧ ⑨

AUTO/MAN

RUN/STOP

AUTO/MAN

- 10 -

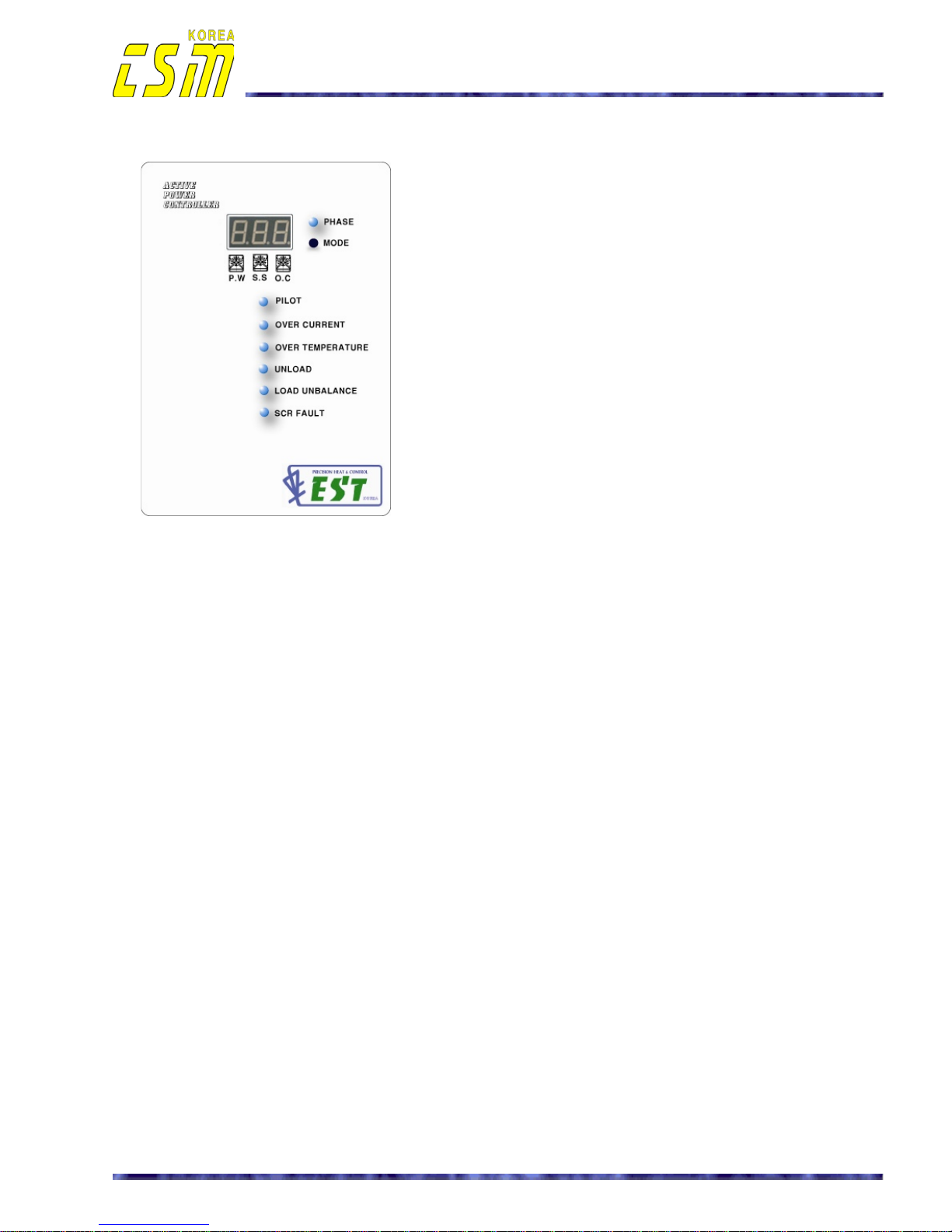

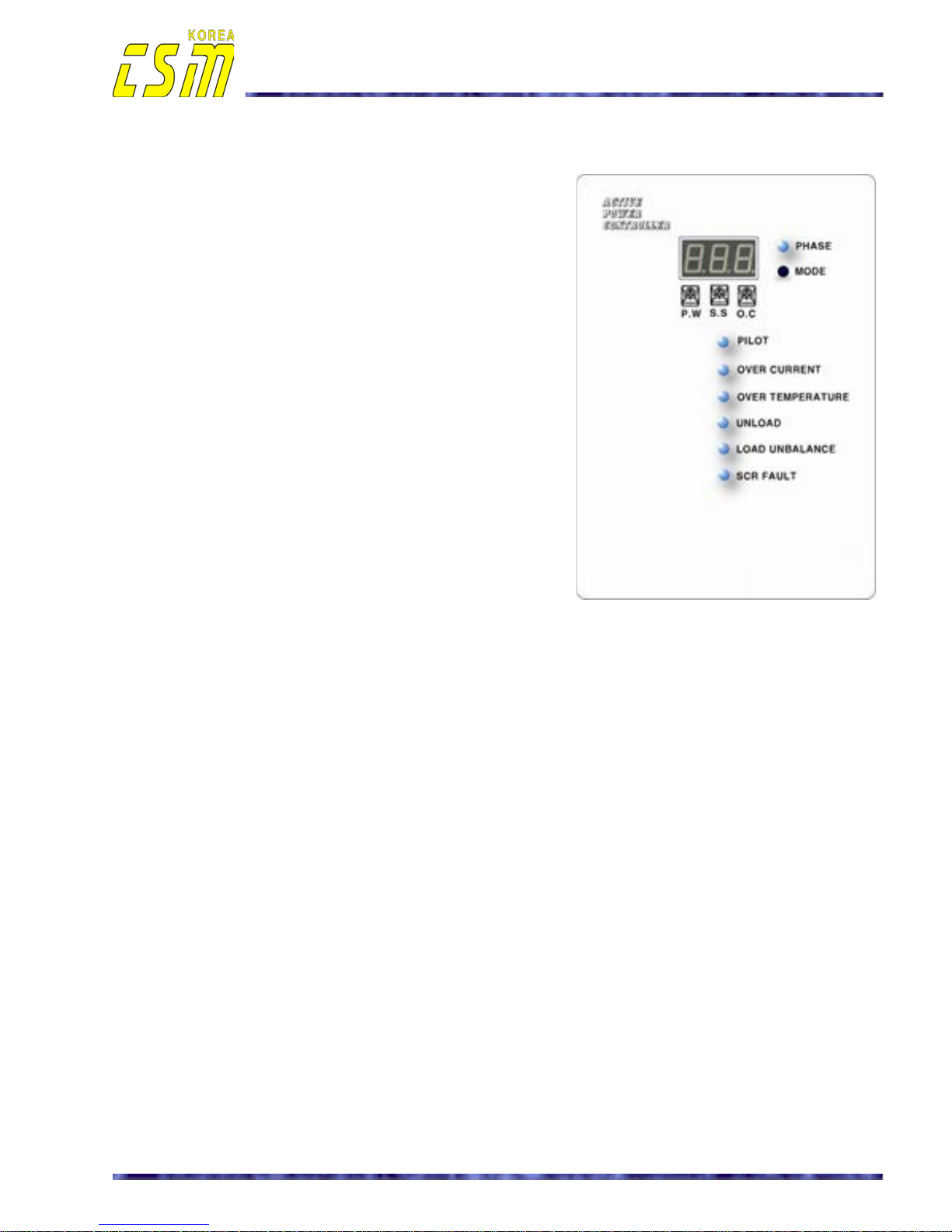

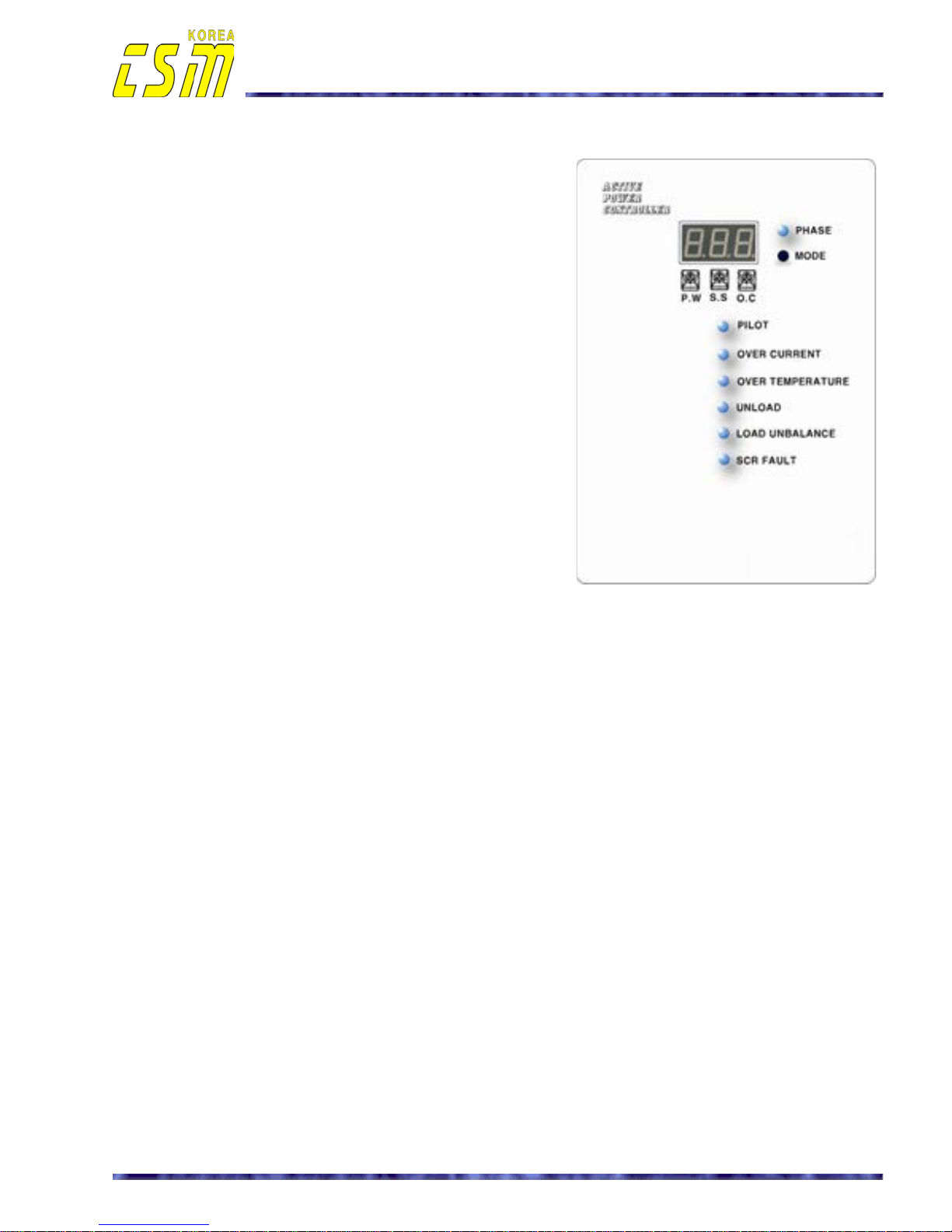

Explanation of product external form, use terminology and function

•

Explanation of product external form, use terminology and function

▷ PHASE :

3 colors Light Emitting Diode, electric current value

indication of each phase.

RED : R-Phase , Yellow : S-Phase, Green : T-Phase White : Average nominal current value

▷ S.S :

The time set for soft start, stop, up, down control.

(1-10 Sec)

▷ MODE : Small type push button switch

that select

value of a phase wanting to FND (7-segment).

▷ P.W :

It uses output voltage, current, conduction angle,

phase-shift and power factor to compute the power. The “PW” potentio meter sets a limit on available power from the power unit. The adjustment range is 0 to 100% of the units rating.

▷ O.C :

Over-current trip is peak current sensing. This is important since the instantaneous peak current

can damage a SCR. The “OC” will shutdown the SCR within a half-cycle of AC current, usually quick enough to protect the SCR. A local or remote reset pushbutton must be pressed or complete removal of power to the SCR Power Control is required to reset. Alarm relay output is available for alarming or shutdown. The adjustment range is 10 to 115% of the unit’s current rating. When set-value less than 10%, do not excess over-current detection.

▷ PL L.E.D : Operation of PL L.E.D

* Running : Over a control output value 0 %, lighting hold Control output value 0 %, lighting off * Stop : Lighting off * An input signal error (4-20mA) : 1 second cycle blinking * P.W value 0 % : 2 second cycle blinking

▷ Error status L.E.D

*

OVER-CURRENT : Red color, lighting hold and alarm relay output is available for alarming or shutdown.

* OVER-TEMPERATURE : Red color, lighting hold and alarm relay output is available for alarming or shutdown. * UNLOAD : Red color, load fault, SCR, FUSE or current transformer defect. During the make an analysis about 10 second the led blinking and after lighting hold, alarm relay output is available for alarming .

* UNBALANCE : Optional function, red color, the load current of an each line-to-line the declination

over the 30%. During the make an analysis about 10 second the led blinking and after lighting hold, alarm relay output is available for alarming . * SCR FAULT : A current detection in a stopping condition, sell to SCR short fault. Lighting hold and alarm relay output is available for alarming or shutdown.

- 11 -

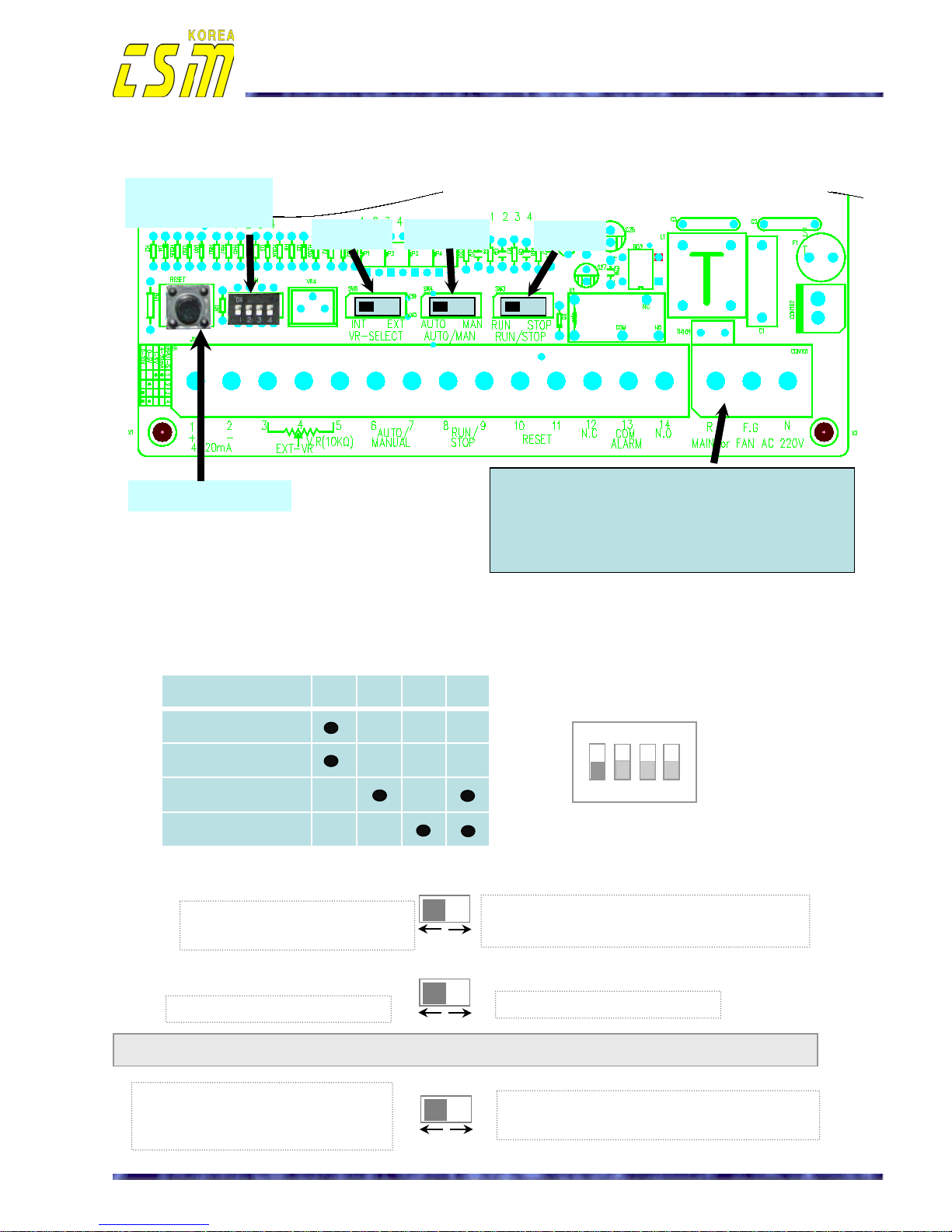

APC-TF Series Mode select on the PCB

SW3 SW4

SW5

controll power terminal block

The fan or power supply of 220V AC must be connected.

3PIN center terminals are F.G terminals.

Signal SELECT

SWITCH

RESET SWITCH

• Place of mode select switch on the PCB

▷

RESET SWITCH

:

System restart and errors, alarm relay output reset

▷

Signal SELECT SWITCH

:

Input signal select (Confirm a input signal surely and set)

▷ SW3 :

Potentio meter select

Internal potentio meter (10KΩ) select

External potentio meter (10KΩ) select REMOTE CONTROL

▷ SW4 :

Operation mode select

Automatic operation select

Manual operation select

▷ SW5 :

RUN / STOP  Use when the liver diagnoses or power controller test !!!

Test running (RUN) The control is impossible to an external of contact.

STOP When Normal operation mode

ON

1 2 3 4

Input Signal 1

2 3 4

4~20mA

1~5V

0~5V

0~10V

- 12 -

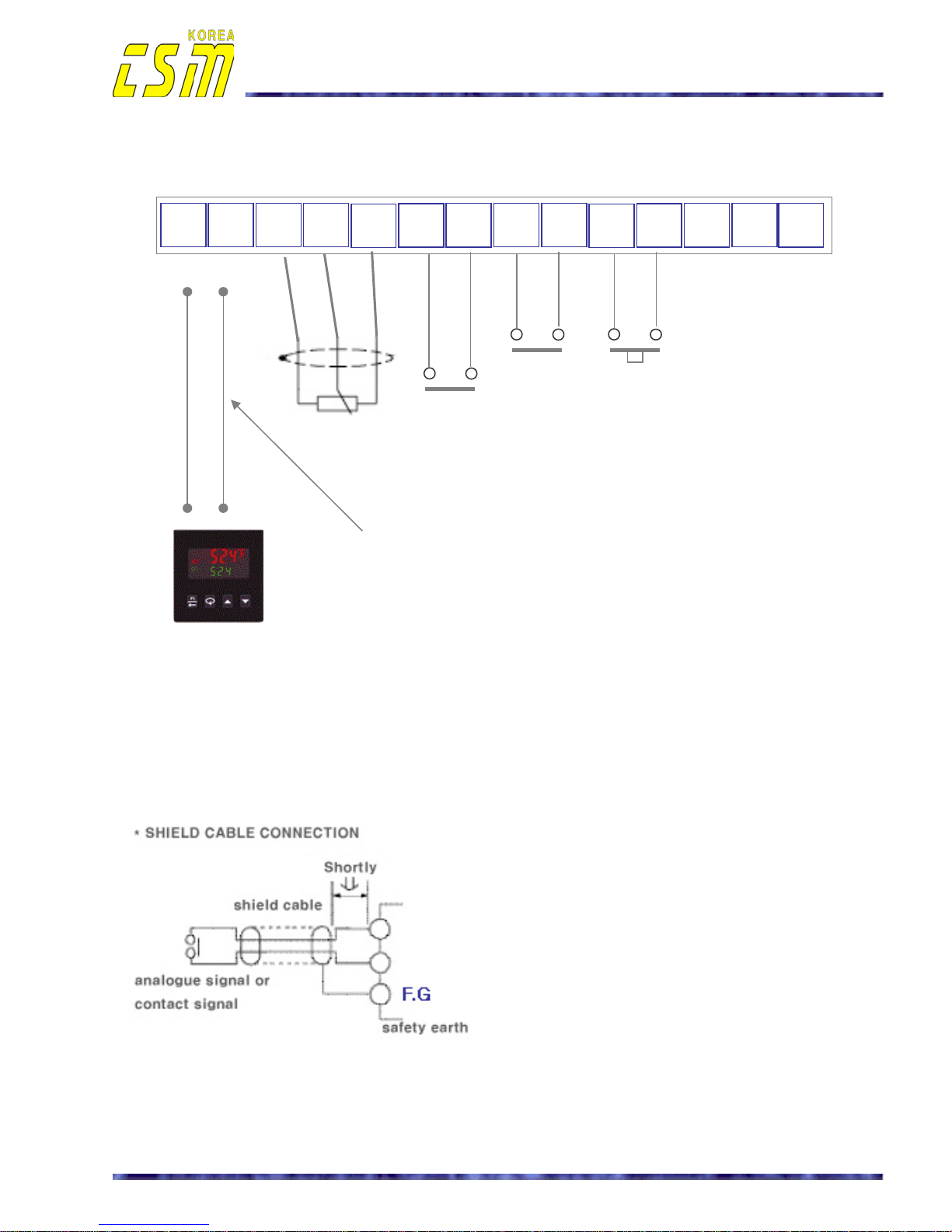

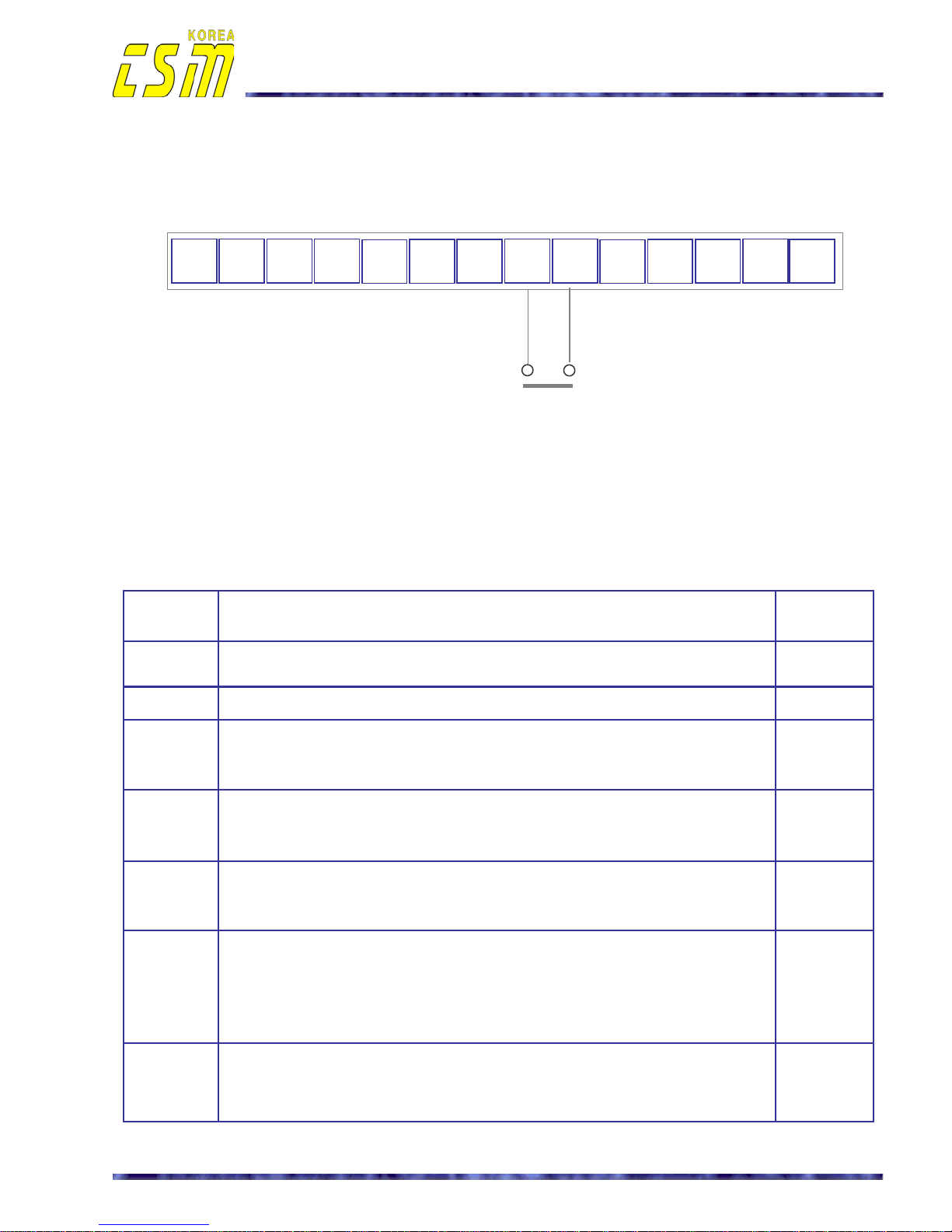

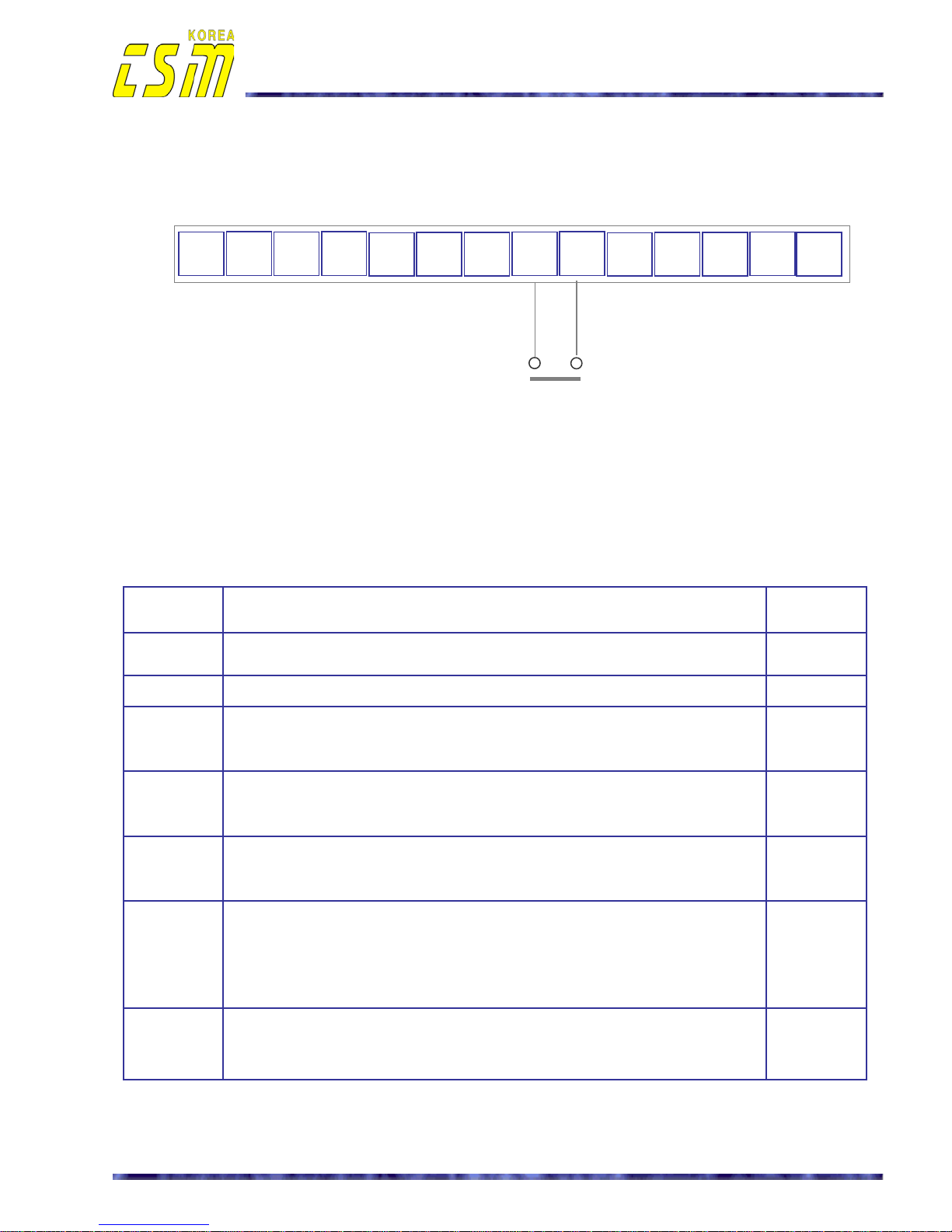

APC-TF Series users terminal block wiring diagrams

①

②

③

④

⑤

⑥

⑦ ⑧

⑨

⑩

⑪

⑫ ⑬ ⑭

＋－

N.C COM N.O

4 – 20mA

Potentio meter AUTO/MANUAL RUN/STOP Reset Alarm relay

TIC : Temperature indicate and controller

+ -

External potentiometer : 10KΩ

OPEN : Automatic mode CLOSE : manual mode

OPEN : Stop CLOSE : Running

Push button switch

* Control cables ;

Use shielded cable necessarily for the protect of a electric noise mixing. wire shortly and to avoid the conduit such as different power line or parallel wiring. For safety reasons, the safety earthing cable must be connected before any other connection is made during wiring and it should be the last cable to be disconnected. The safety earth is connected to the screw located on the terminal block of the PCB.:

[NOTE] Use shielded cable necessarily for the protect of a electric noise mixing and only one side shield line connection to the field ground point.

*

Signal, control cables : Use the shield cable (CVVSB: more then 0.75mm2) [NOTE] CVVSB : PVC INSULATED, COPPER WIRE BRAID SHIELD AND PVC SHEATHED CONTROL CABLE

- 13 -

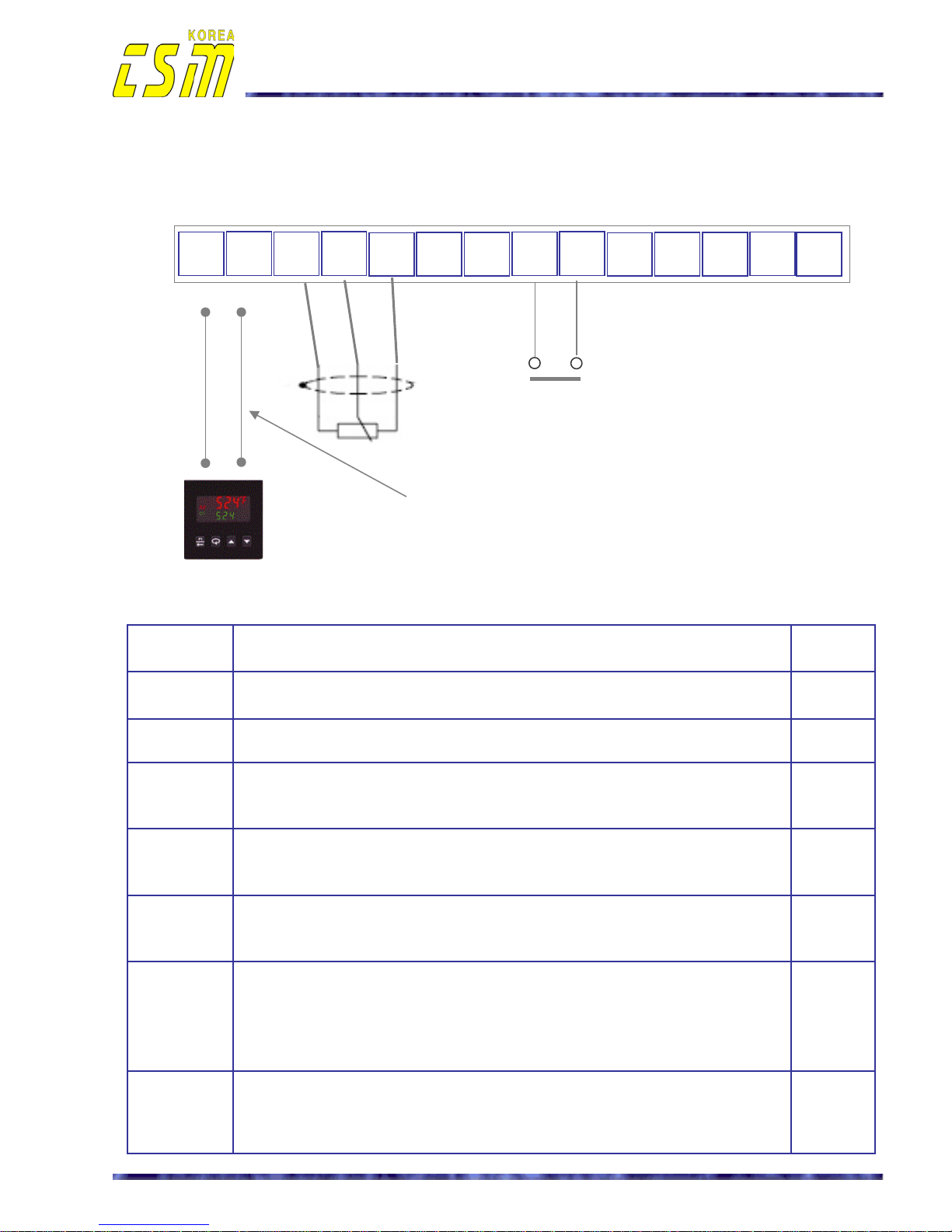

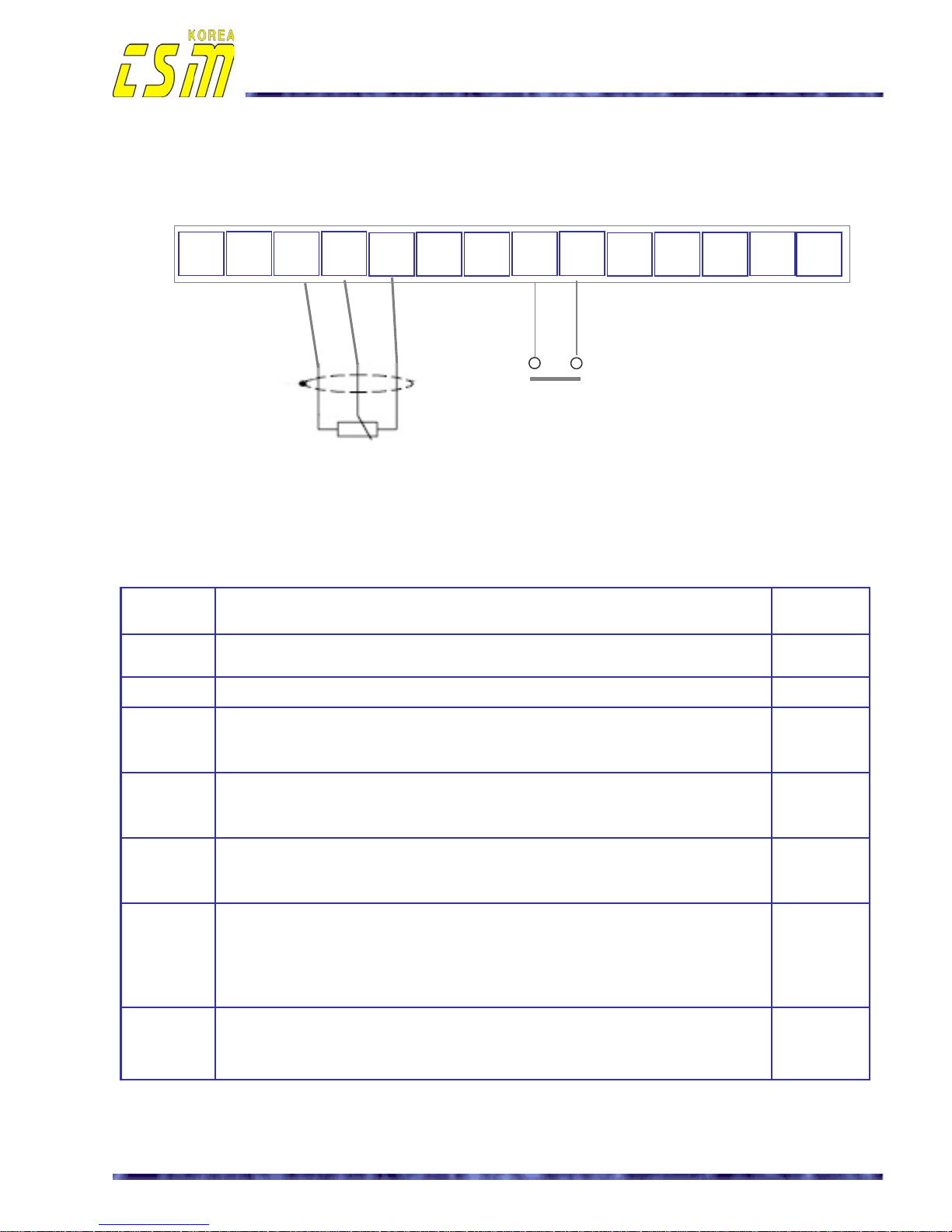

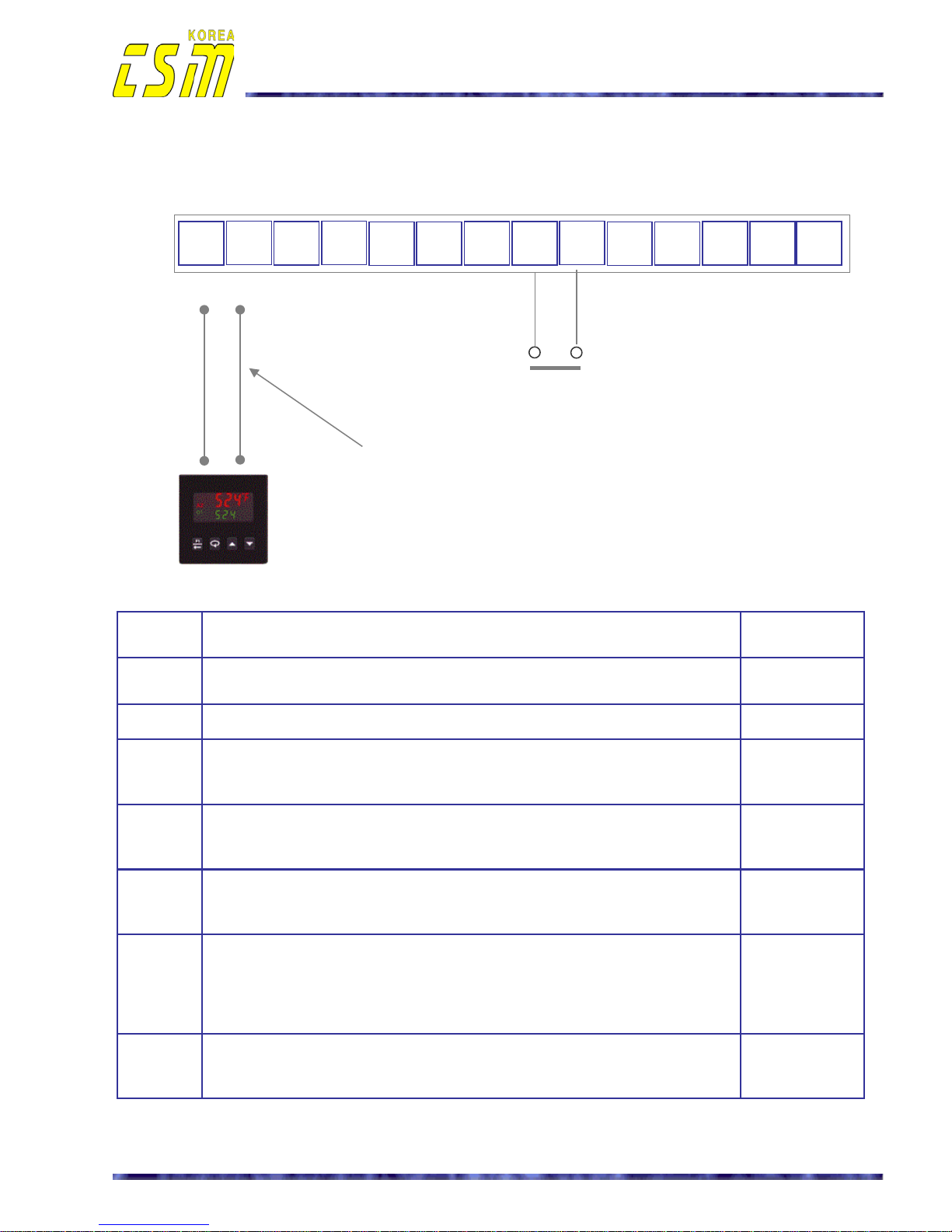

APC-TF Series Automatic operation wiring diagrams

• Automatic operation mode :

External input wiring from TIC

①

②

③

④

⑤

⑥

⑦ ⑧

⑨

⑩

⑪

⑫ ⑬ ⑭

＋－

NC COM NO

+ -

State items

The setting up items and explanation

Default

value

External

signal

The external signal must be connected to the control terminal block between terminal 2 (‘+ Input’) and terminal 3 (‘0V’).

-

SW3 INT MODE : Internal potentio meter select INT MODE

SW4

AUTO MODE : Automatic operation mode select The setting up in the case which the utility does an AUTO/MAN switch in the outside control panel at necessarily select AUTO mode.

AUTO MODE

SW5

STOP MODE

** Use when the liver diagnoses or power controller test. If select of “RUN” mode ,the control is impossible to an external of contact.

STOP MODE

S.S

The time set for soft start, stop, up, down control. (1-10 Sec) The setting up of soft control value for start time, stop time, up time and down time so that it is suitable to the characteristic of the load at 1-10 sec.

3 sec

P.W

It uses output voltage, current, conduction angle, phase-shift and power factor to compute the power. The adjustment range is 0 to 100% of the units rating.

The case of a guidance inductive load, order the increase adjustment clockwise slowly from necessarily 0 % to maximum stability range.

100 %

O.C

Over current setting up. Power controller set in “STOP” situation and set of the load capacity in 120 – 150% range.

Nominal current 115%

*

Signal, control cables : Use the shield cable (CVVSB: more then 0.75mm2) [NOTE] CVVSB : PVC INSULATED, COPPER WIRE BRAID SHIELD AND PVC SHEATHED CONTROL CABLE

OPEN : Stop CLOSE : Running

TIC : Temperature indicate and controller

4 – 20mA

Potentio meter AUTO/MANUAL RUN/STOP Reset Alarm relay

- 14 -

APC-TF Series Automatic with remote control operation wiring diagrams

• Automatic with remote control mode : Control by external input wiring from TIC and

external potentio meter.

①

②

③

④

⑤

⑥ ⑦

⑧

⑨

⑩

⑪ ⑫

⑬

⑭

＋－

NC COM NO

+ -

*

Signal, control cables : Use the shield cable (CVVSB: more then 0.75mm2) [NOTE] CVVSB : PVC INSULATED, COPPER WIRE BRAID SHIELD AND PVC SHEATHED CONTROL CABLE

OPEN : Stop CLOSE : Running

TIC : Temperature indicate and controller

External potentiometer : 10KΩ

State items The setting up items and explanation

Default

value

External

signal

The external signal must be connected to the control terminal block between terminal 2 (‘+ Input’) and terminal 3 (‘0V’).

-

SW3 EXT MODE : External potentio meter select

INT MODE

SW4

AUTO MODE : Automatic operation mode select The setting up in the case which the utility does an AUTO/MAN switch in the outside control panel at necessarily select AUTO mode.

AUTO MODE

SW5

STOP MODE

** Use when the liver diagnoses or power controller test. If select of “RUN” mode ,the control is impossible to an external of contact.

STOP MODE

S.S

The time set for soft start, stop, up, down control. (1-10 Sec) The setting up of soft control value for start time, stop time, up time and down time so that it is suitable to the characteristic of the load at 1-10 sec.

3 sec

P.W

It uses output voltage, current, conduction angle, phase-shift and power factor to compute the power. The adjustment range is 0 to 100% of the units rating.

The case of a guidance inductive load, order the increase adjustment clockwise slowly from necessarily 0 % to maximum stability range.

100 %

O.C

Over current setting up. Power controller set in “STOP” situation and set of the load capacity in 120 – 150% range.

Nominal current 115%

4 – 20mA

Potentio meter AUTO/MANUAL RUN/STOP Reset Alarm relay

- 15 -

APC-TF Series Manual operation wiring diagrams

• Manual operation mode :

The “PW” potentio meter sets a limit on available power from the

SCR Power Controller. The adjustment range is 0 to 100% of the units rating.

①

②

③

④

⑤

⑥ ⑦

⑧

⑨

⑩

⑪ ⑫

⑬

⑭

NC COM NO

OPEN : Stop CLOSE : Running

State items

The setting up items and explanation

Default

value

External

signal

Not used.

SW3 INT MODE : Internal potentio meter select INT MODE

SW4

MANUAL MODE : Manual operation mode select The setting up in the case which the utility does an AUTO/MAN switch in the outside control panel at necessarily select AUTO mode.

AUTO MODE

SW5

STOP MODE

** Use when the liver diagnoses or power controller test. If select of “RUN” mode ,the control is impossible to an external of contact.

STOP MODE

S.S

The time set for soft start, stop, up, down control. (1-10 Sec) The setting up of soft control value for start time, stop time, up time and down time so that it is suitable to the characteristic of the load at 1-10 sec.

3 sec

P.W

It uses output voltage, current, conduction angle, phase-shift and power factor to compute the power. The adjustment range is 0 to 100% of the units rating.

The case of a guidance inductive load, order the increase adjustment clockwise slowly from necessarily 0 % to maximum stability range.

100 %

O.C

Over current setting up. Power controller set in “STOP” situation and set of the load capacity in 120 – 150% range.

Nominal current 115%

4 – 20mA

Potentio meter AUTO/MANUAL RUN/STOP Reset Alarm relay

- 16 -

APC-TF Series Manual with remote control operation wiring diagrams

•Manual with remote control mode : Control by external potentio meter set-point value with “P.W” potentio meter setting up value.

①

②

③

④

⑤

⑥ ⑦

⑧

⑨

⑩

⑪ ⑫

⑬

⑭

NC COM NO

OPEN : Stop CLOSE : Running

External potentiometer : 10KΩ

State items

The setting up items and explanation

Default

value

External

signal

Not used.

SW3 EXT MODE :External potentio meter select INT MODE

SW4

MANUAL MODE : Manual operation mode select The setting up in the case which the utility does an AUTO/MAN switch in the outside control panel at necessarily select AUTO mode.

AUTO MODE

SW5

STOP MODE

** Use when the liver diagnoses or power controller test. If select of “RUN” mode ,the control is impossible to an external of contact.

STOP MODE

S.S

The time set for soft start, stop, up, down control. (1-10 Sec) The setting up of soft control value for start time, stop time, up time and down time so that it is suitable to the characteristic of the load at 1-10 sec.

3 sec

P.W

It uses output voltage, current, conduction angle, phase-shift and power factor to compute the power. The adjustment range is 0 to 100% of the units rating.

The case of a guidance inductive load, order the increase adjustment clockwise slowly from necessarily 0 % to maximum stability range.

100 %

O.C

Over current setting up. Power controller set in “STOP” situation and set of the load capacity in 120 – 150% range.

Nominal current 115%

4 – 20mA Potentio meter AUTO/MANUAL RUN/STOP Reset Alarm relay

- 17 -

APC-TF Series ON/OFF control operation wiring diagrams

State

items

The setting up items and explanation

Default

value

External

signal

Not used.

SW3 INT MODE :Internal potentio meter select INT MODE

SW4

MANUAL MODE : Manual operation mode select The setting up in the case which the utility does an AUTO/MAN switch in the outside control panel at necessarily select AUTO mode.

AUTO MODE

SW5

STOP MODE

** Use when the liver diagnoses or power controller test. If select of “RUN” mode ,the control is impossible to an external of contact.

STOP MODE

S.S

The time set for soft start, stop, up, down control. (1-10 Sec) The setting up of soft control value for start time, stop time, up time and down time so that it is suitable to the characteristic of the load at 1-10 sec.

3 sec

P.W

It uses output voltage, current, conduction angle, phase-shift and power factor to compute the power. The adjustment range is 0 to 100% of the units rating.

The case of a guidance inductive load, order the increase adjustment clockwise slowly from necessarily 0 % to maximum stability range.

100 %

O.C

Over current setting up. Power controller set in “STOP” situation and set of the load capacity in 120 – 150% range.

Nominal current 115%

•ON/OFF control mode :

The “PW” potentio meter sets a limit on available power from the

SCR Power Controller. The adjustment range is 0 to 100% of the units rating.

①

②

③

④

⑤

⑥ ⑦

⑧

⑨

⑩

⑪ ⑫

⑬

⑭

NC COM NO

4 – 20mA Potentio meter AUTO/MANUAL RUN/STOP Reset Alarm relay

OPEN : Stop CLOSE : Running

- 18 -

APC-TF Series COMMISSIONING PROCEDURE

⊙ CHECKING THE CHARACTERISTICS AND WIRING

① Confirm so that all wiring is suitable to an utility purpose electing normally by final vote. ② Before connection to the load as following ;

- measurement of the load impedance

- measurement of the Insulation between power and earth , between power and control ③ “P.W” potentio meter set to “0”. ④ Operation “STOP” :

- The external potentio meter must be connected to the control terminal block between terminal no 8 and terminal no 9 and makes open contact.

- SW5 : “STOP” MODE

** Use when the liver diagnoses or power controller test. If select of “RUN” mode ,the control is impossible to an external of contact.

⑤ Fan power terminal block : Check out the fan power supply of 220V AC must be connected.

⊙ POWER UP THE CONTROLLER

APC-TP series controllers are ready to operate correctly immediately after installation and wiring in

accordance with this user manual. After checking that the nominal parameters of the controller (voltages, currents, input signal and load configuration) are compatible with those of the installation, apply volts to the controller.

① “S.S” : The setting up of soft control value for suitable to the characteristic of the load

at 1-10 sec. ② “O.C” : Over current setting up.

Power controller set in “STOP” situation and set of the load capacity in 120 – 150% range. ③ Check that the current in each phase of the controller is equal to 0 in the absence of the

control signal. Make sure that the r.m.s. current in each phase does not exceed the nominal controller rating when the set-point is at maximum.

- The nominal current capacity is display on the FND (about 3 second) and 2 second cycle lighting blink

- The FND value becomes 0. ④ “RESET” : Power controller reset and checking status ;

- The nominal current capacity is display on the FND (about 3 second) and 2 second cycle lighting blink

- The FND becomes 0. ⑤ SW5 : “STOP” MODE

** Use when the liver diagnoses or power controller test. If select of “RUN” mode ,the control is impossible to an external of contact.

Read this chapter carefully before commissioning the controller COMMISSIONING PROCEDURE - SAFETY

- 19 -

APC-TF Series Operation and L.E.D information

• PILOT LED : Green color

• OVER CURRENT LED : Red color

- White : Normal running condition

- Lighting : Over-current trip is peak current sensing

① Power controller make the stopping ② Alarm relay output ③ The color appeared peak current sensing phase.

④ Over current value display on the FND.

- Factor

① At the loads caused by a short between phase ② An earth between the phase and case.

③ An electromagnetic interference and to happen.

• OVER TEMPERATURE : Red color

- White : Normal running condition

- Lighting : A heat sink surface temperature is over the 85℃ ① Power controller make the stopping

② Alarm relay output

- Factor ① Cooling fan defect ② Ambient temperature is over the 40℃

Attention! The units are designed to be used at an ambient temperature less than or equal to 40°C. Leave a minimum gap of 5cm between two units placed side by side. Excessive overheating of the controller may lead to incorrect operation of the unit. This may in turn cause damage to the components.

- Restart : Necessarily examine an over current reason closely and after make “RESET”.

* Running : Over a control output value 0 %, lighting hold Control output value 0 %, lighting off * Stop : Lighting off * Input signal error (4-20mA) : 1 second cycle lighting blink * P.W value 0 % : 2 second cycle lighting blink

•

PHASE :

3 color L.E.D, Nominal current (per phase) index

of an each load. RED : R-Phase, Yellow : S-Phase, Green : T-Phase White : Average nominal current value

•

MODE : Small type push button switch, selectable

load phase for display on the FND.

- 20 -

APC-TF Series Operation and L.E.D information

• SCR FAULT : Red color

- White : Normal running condition

- Lighting : A current detection in a stopping condition, sell to SCR short fault. ① Power controller make the stopping ② Alarm relay output ③ The color appeared peak current sensing phase. ④ The load current value display on the FND.

- Factor ① The heat element at short.

② The parallel SCR case which one becomes the breaking among two.

③ The C.T (current transformer) defect

• UNLOAD LED : Red color

- White : Normal running condition

- Blinking : Unload (heat element be cut or at short) sensing

and during the make an analysis

about 10 second.

- Lighting : Unload determination

①

Alarm relay output

②

The color appeared unload sensing phase.

③

The FND value becomes ‘0’.

- Factor

①

The heat element be cut.

② The heat element at short.

③ The fuse be cut or defect of the SCR.

②

The color appeared sensing of the unbalance load phase.

③

The load current value display on the FND.

- Factor

①

The heating element case which one becomes the breaking among many.

②

The C.T (current transformer) defect

③ The defect one among a parallel SCR.

• UNBALANCE LOAD LED : Red color, Optional function.

- White : Normal running condition

- Blinking : The sensing load current value of an each line-to-line the declination over the 30%, during the make an analysis about 10 second.

- Lighting : Unbalance determination ① Alarm relay output

- Restart : Necessarily examine an over current reason closely and after make “RESET”.

- 21 -

APC-TF Series MAINTENANCE - Fuses

DANGER!

The controller must be maintained by personnel qualified and trained to work with low voltage electrical equipment in an industrial environment.

The user’s installation must be protected upstream (non high-speed fuses, thermal or electromagnetic circuit breaker, suitable fuse-isolator) and must comply with current standards.

FUSES

Protection of auxiliary voltage connection

Protection fuses for both the fan connection (90A nominal current unit) and separate electronics supply must be installed in each conductor connected to a supply phase.

Auxiliary voltage (max.)

1A T-TYPE fuse

5.0 x 20 mm

Remarks

250V fuse PCB_type

* Recommended fuse for auxiliary voltage connection

- 22 -

APC-TF Series MAINTENANCE Thyristor protection

Thyristor protection

The thyristors in the APC-TF series controllers are protected in the following way:

· external high speed fuses against over-currents (except for short-wave infrared applications)

· RC snubbers and MOVs (varistors) protect against over-fast voltage variations and transient

over-voltages when the thyristors are not conducting.

*** MOVs (varistors) install : Optional

Nominal current

MODEL

Dimensions

H, L, W (mm)

Compatible Maker

Controller Fuse

30A 32A JR-61

40A 55A JR-61

55A 63A JR-61

70A 80A JR-61

90A 100A JR-61

110A 125A 660GH-125

130A 160A 660GH-160

160A 200A 660GH-160

200A 250A 660GH-200

250A 250A NH00-315

300A 300A NH00-350

400A 400A A50P400

500A 500A A50P500

* Recommended high-speed fuses for thyristor protection

DANGER!

High-speed fuses are used only for the protection of thyristors against large amplitude overloads. Under no circumstances should these high-speed fuses be used to protect the installation.

Attention!

For the use of high-speed fuses in short-wave infrared applications,

Please contact

CSM

Controls.

To protect the thyristors in the APC-TF series, 3 fuses and bus-bar must be used. Details of these are given in the following table.

Maximum operating voltage for fuses: 500V to 660V (line-to-line).

- 23 -

APC-TF Series MAINTENANCE Thyristor protection

Thyristor protection

The thyristors in the APC-TF series controllers are protected in the following way:

· external high speed fuses against over-currents (except for short-wave infrared applications)

· RC snubbers and MOVs (varistors) protect against over-fast voltage variations and transient

over-voltages when the thyristors are not conducting.

*** MOVs (varistors) install : Optional

Nominal current Compatible Maker Remarks

30A IXYS, SEMIKRON

40,55A IXYS, SEMIKRON

70A IXYS, SEMIKRON

90A IXYS, SEMIKRON

110A IXYS, SEMIKRON

130A IXYS, SEMIKRON

160A IXYS, SEMIKRON

200A IXYS, SEMIKRON

250A IXYS, SEMIKRON

300A IXYS, SEMIKRON

400A POWEREX, SEMIKRON

500A POWEREX, SEMIKRON

* Recommended for compatible makers

DANGER!

If failure happens of the SCR, must be change to compatible maker’s.

To control the thyristors in the APC-TF series, 3 SCRs and bus-bar must be used. Details of these are given in the following table for compatible maker.

Maximum operating voltage for THYSISTOR : 1600V (line-to-line).

- 24 -

APC-TF Series SERVICING

APC-TF Series controllers must be mounted with the heatsink positioned vertically, with no obstructions above or below which could inhibit or impede airflow.

Attention!

If several units are mounted in the same cabinet, they should be arranged in such a way that air expelled from one

cannot be drawn into the unit located above it.

In order to ensure correct cooling of the unit, users are advised, depending on the degree of environmental pollution, to regularly clean the heatsink and (for 90A rating units) the protective fan guard.

DANGER!

Cleaning should only be carried out when the controller supply is disconnected and at least 15 minutes after it has ceased operating.

Every

six months check that the screws of the power and safety earth cables are

correctly tightened.

EST APC-TF Series User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
