ICON MIRROR
ASSEMBLY INSTRUCTIONS
ASSEMBLING INSTRUCTION
for mod. DREAM - LIVE
ATTACHING ICON MIRROR TO ICON DOUBLE DRESSER
REAR VIEW
To fit the screws
use a screwdriver
SIDE VIEW
use these holes
180
81
662mm - 26,1 inch
MIRROR
BACK PANEL
DON'T USE
DRESSER TOP
1382.4
DRESSER
BACK PANEL
1,8 inch
3,9 "
30,2 inch
****don't use the lower
hole for Dream
Live Mirror
MIRROR
DRESSER
SIZE SCREW:
TSP 3,5x35mm
DRESSER
BOTTOM
STAR INTERNATIONAL FURNITURE, INC.
19511 PAULING, FOOTHILL RANCH, CA 92610 USA
WWW.STARINTERNATIONALFURNITURE.COM
TEL: 949.858.2100 | FAX: 949.858. 2044
MIRROR ASSEMBLING MANUAL

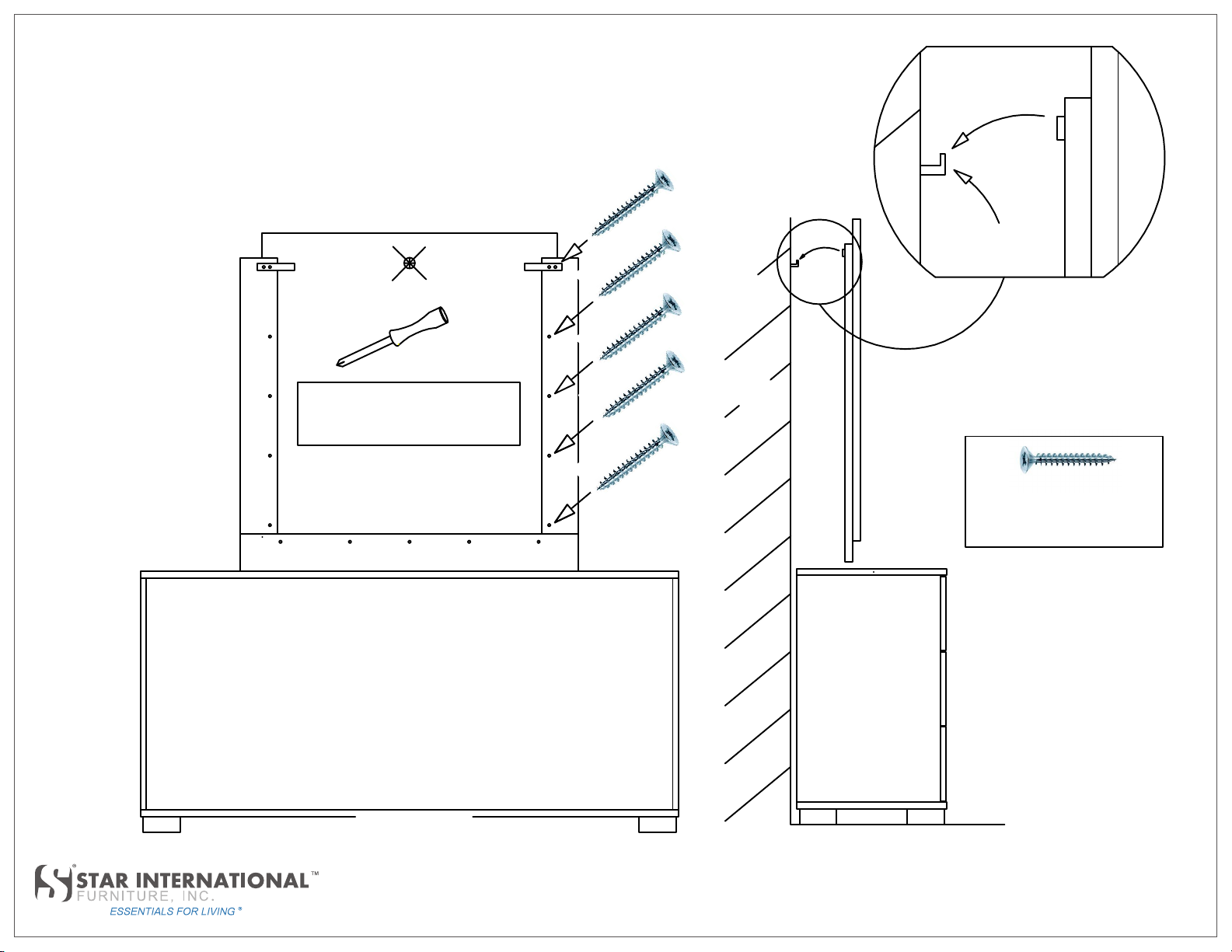

ATTACHING ICON MIRROR TO A WALL
mod.
DREAM - LIVE
REAR VIEW
no use
use this use this
To fit the screws
use a screwdriver
wall
MIRROR
hook not
included
MIRROR
wall
SIZE SCREW:
TSP 3,5x30mm included
DRESSER
BOTTOM
DRESSER
SIDE VIEW
DRESSER
BACK PANEL
