Essence HDACC II-4K Operation Manual

DCT-37

UHD Audio Center

Operation Manual

Operation Manual

HDACC II-4K

DISCLAIMERS

The information in this manual has been carefully checked and
is believed to be accurate. Essence For Hi Res Audio assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.

Essence assumes no responsibility for any inaccuracies that may be
contained in this document. Essence also makes no commitment to
update or to keep current the information contained in this document.

Essence For Hi Res Audio reserves the right to make improvements to
this document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Essence For Hi Res Audio.

© Copyright 2015 by Essence For Hi Res Audio.

All Rights Reserved.

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

CONTENTS

1. Introduction ............................................ 1

2. Applications ........................................... 1

3. Package Contents ................................ 1

4. System Requirements ............................ 2

5. Features .................................................. 2

6. Operation Controls and Functions ....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel .........................................4

6.3 Top Panel ..........................................5

6.4 Remote Control ................................ 6

6.5 OLED Menu .......................................7

7. Connection Diagram ............................ 9

8. Specifi cations ......................................10

8.1 Technical Specifi cations ...............10

8.2 Audio Specifi cations ...................... 11

1

1. INTRODUCTION

The Essence HDACC II-4K is designed to allow multiple analog/digital
audio sources to be controlled, switched and output to a variety of
analog/digital audio components. With video support up to 6G at
4K2K and audio sampling rate converter up to 384KHz this device has

an array of unbeatable features you can’t nd in any other product

on the market. Also it supports 2CH LPCM audio, HDMI, USB Audio 2.0,

Optical and Coaxial input/output with both ADC and DAC functions.

USB supports Native DSD playback (Direct Stream Digital) and DOP
(DSD over PCM) decoding, with high sampling frequency to perform
high quality conversion and lower the probability of distortion.

For professional applications, the headphone output with built-

in amplier and XLR (Low noise Professional Balance) output offer

unparalleled audio quality. Traditional 3.5mm earphone jack analog
input and stereo RCA output with a highly accurate PLL and low jitter
reduction clock system enables users with total improvement over
the original sound. OLED display of sample rates with on-panel and IR

remote control provide users with on-the-y adjustment capability.

Note: USB DSD format of this unit supports Native DSD 2.8 MHz (DSD64)
and DSD 5.6 MHz (DSD128).

2. APPLICATIONS

• Audio format conversion and sampling upgrade

• Professional audio display

• PC audio display onto professional speakers/headphone

• Analog to digital or digital to analog audio conversion

3. PACKAGE CONTENTS

• 1×HDACC II-4K

• 1×Remote Control (with Battery)

• 1×USB Driver Disc

• 1×6.3mm to 3.5mm Phone Jack Cable

• 1×5 V/3 A Power Adaptor

• 1×Operation Manual

2

4. SYSTEM REQUIREMENTS

Input source equipment such as CD /DVD /Blu-ray Standard and 4K
player or computer via HDMI, USB, Optical or Analog stereo output to

amplier or speaker with analog stereo input.

5. FEATURES

Digital

• Supports Coaxial, Optical, USB and 4 HDMI v2.0a inputs

• Supports HDMI, Coaxial and Optical outputs

• Supports digital audio signal input and conversion into analog

stereo

• Supports HDMI Audio output: can either output the incoming

embedded HDMI (Bypass Mode) or insert the selected audio

signal (Ext Audio Mode)

• HDMI video always bypassed to HDMI output

• Supports HDMI video resolutions up to 4K2K

(3840×2160@24/25/30/50/60Hz & 4096×2160@24/25/30/50/60Hz)

• Supports HDMI data rate up to 6Gbps and Deep Color up to 4K

36bit

• Support Coaxial Input/ output and USB input sampling rate up to

384 KHz / 32bits.

• Coaxial and Optical input support DOP (DSD over PCM) decoding

to PCM

• HDMI audio embedding or de-embedding

• Supports Sampling Rate Conversion, all inputs can be SRC to 44.1,

48, 88.2, 96, 176.4, 192 and 384 KHz via DSP Engine

Analog

• Supports L/R in/output, XLR and 6.3mm headphone outputs

• Supports analog audio signal input converting into digital signal

output

• Supports Headphone output Volume Control

• Headphone output volume control over main control dial or remote

control

• Headphone output fades in after system is muted

3

• 6.3mm headphone output

Misc

• Control by remote control and on-panel wheel

• Direct power and mute button on unit

• High viewing angle OLED display

• Free Run: Auto 720P Colorbar Pattern Output when no video source

is connected.

6. OPERATION CONTROLS AND FUNCTIONS

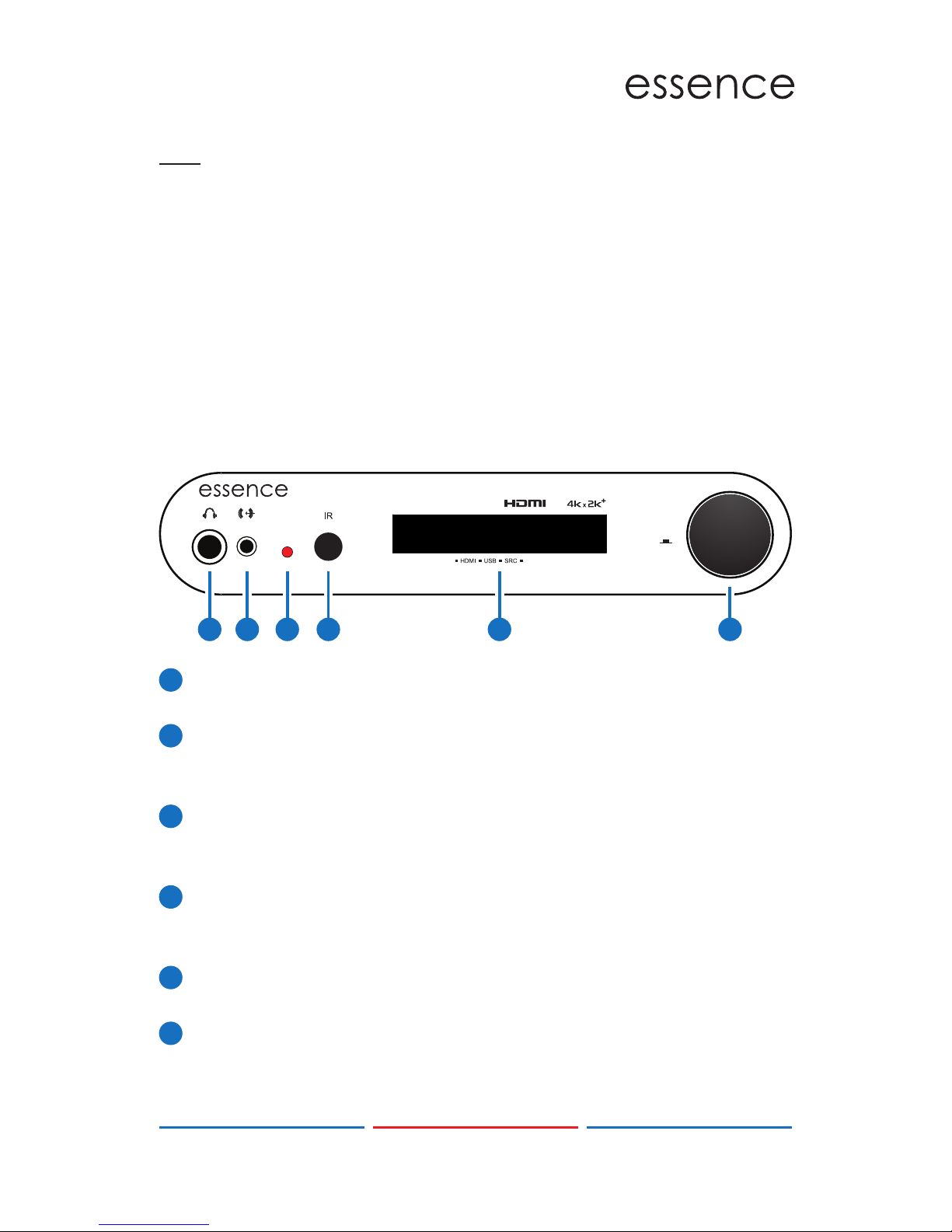

6.1 Front Panel

MENU

UHD Audio Center

384/32

HDACC II-4K

Coaxial

44.1KIn->

-20.0 dB

44.1K

1 2 3 4 5 6

1

6.3mm HEADPHONE OUT: This jack is to connect with 6.3mm (1/4”)
professional headphone so user can enjoy personal listening.

2

3.5mm LINE IN: This is to connect a 3.5mm headphone jack cable
from any Smartphone, Digital Audio Player (DAP) or other audio

equipment for stereo line in analog audio signal.

3

POWER LED: The LED will illuminate red when the device is

connected with power supply (standby), and will turn green when
you turn on the device.

4

IR WINDOW: This is the IR receiver window that accepts IR signal

from the remote control of this device that is included in the
package.

5

OLED: This OLED displays the in/output selection with volume

setting, sampling rate and audio channels.

6

MENU/VOLUME CONTROL: Press this control knob to enter into the

menu selection or rotate to adjust the volume.

4

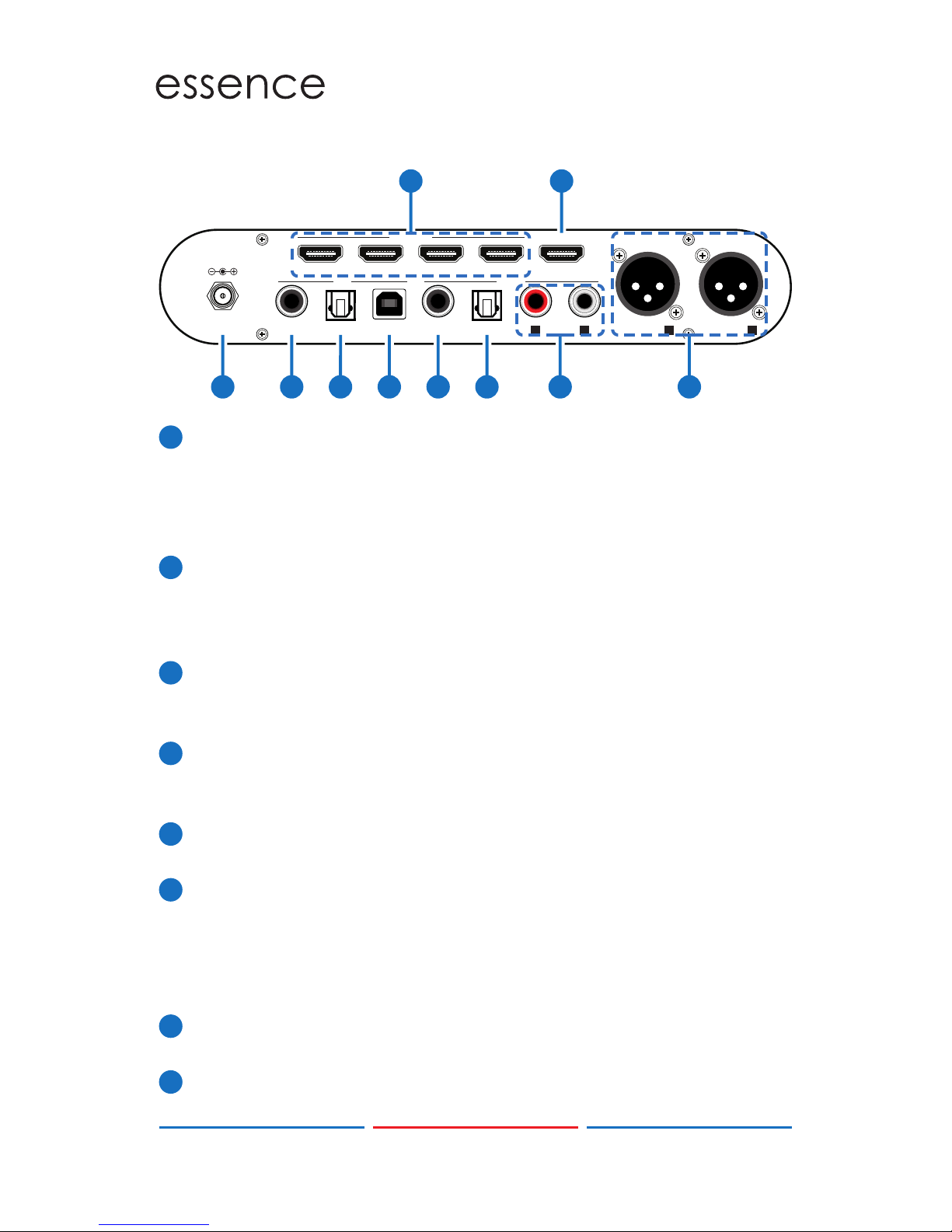

6.2 Rear Panel

DC 5V

USB

COAX. COAX.

OPT. OPT.

L

R

XLR OUT

XLR OUT

R

L

IN

OUT

1 234

HDMI IN

HDMI OUT

1

32

4 5

6

7 8 9 10

1

DC 5V: Plug the 5V DC power adaptor included in the package

into the unit and connect the adaptor to an AC outlet for power
supply. The adapter is automatic and universal, working on all
voltages worldwide and comes with 4 adapter plugs to suit any
required connection.

2

HDMI IN 1~4: Connect up up to 4 HDMI sources such as DVD/ Blu-

ray Standard / Blu-ray 4K player with 6G HDMI signal transmission
over high speed HDMI cable. 6G signals are supported on all 4
ports.

3

HDMI OUT: Connect to UHD 4K HDTV/monitor for output image

display with 6G HDMI signal transmission from high speed HDMI
cables.

4

COAX. IN: Connect input source equipment such as Cable

Broadcast or Satellite Set-Top- Box , PS3, CD for input audio signal
transmitted over Coaxial cable.

5

OPT. IN: Connect input source equipment such as DVD/Blu-ray

player for input audio signal transmitted via Optical cable.

6

USB IN: This slot is to connect with PC/Portable digital players

and server sources for USB audio signal input. This slot is also for

rmware upgrades.

Note: USB input need to install drivers and applications from the

disc which contained on package.

7

COAX. OUT: Connect to amplier or active speaker with coaxial

cable.

8

OPT. OUT: Connect to amplier or active speaker with optical

cable.

5

9

L/R OUT: Connect to amplier or active speaker with RCA jack

cable.

10

XLR (L/R) Balanced OUT: These slots are to connect to amplier

or directly to professional active speakers with XLR cables, allows
for the use of long cables while reducing susceptibility to external

noise.

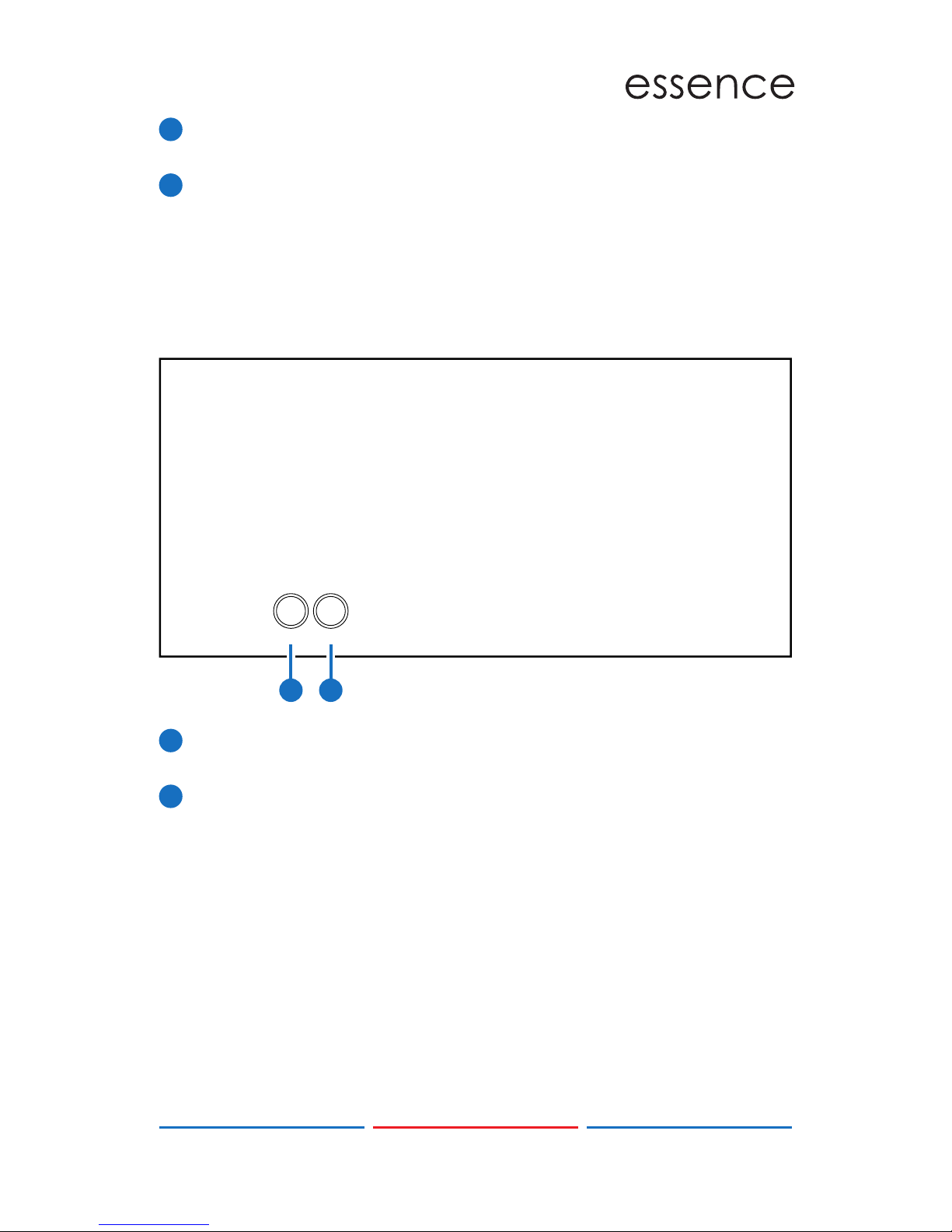

6.3 Top Panel

POWER

MUTE

1 2

1

POWER: Press this button to switch on the device or turn it to

standby mode.

2

MUTE: Press this button to mute all volume instantly.

6

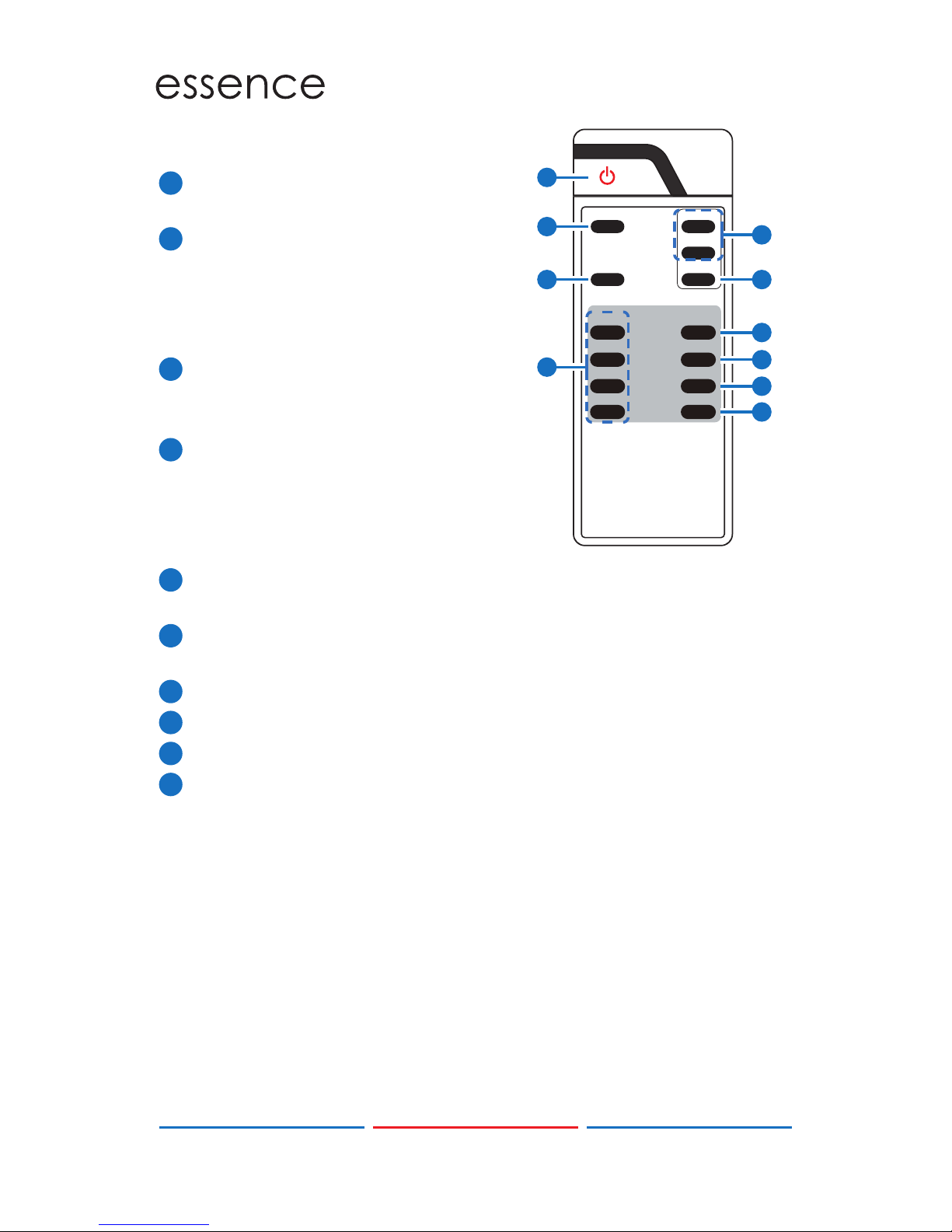

6.4 Remote Control

1

POWER: Press to turn the unit power

on or set to standby mode.

2

MENU: Press the key to enter

OSD menu, use V+/V- to go up
and down between the menu
selections, press again to enter
submenu.

3

RETURN: When in the menu, press

this to go back upper layer or exit
from menu selections.

4

VOLUME +/-: Press V+ / V- to

control output volume up and

down. When press MENU key into
menu selections, use V+ / V- to go
up and down menu selections.

5

MUTE: Press this button to mute all audio volume, press again to

unmute.

6

HDMI 1~4: Press these hot keys to select HDMI input sources from

1~4.

7

COAX.: Press this hot key to switch input source to Coaxial input.

8

OPT.: Press to select Optical input.

9

USB: Press to select USB input.

10

LINE: Press to select LINE input.

LINE

MENU

VOLUME

SOURCE

V+

V-

MUTE

RETURN

COAX.

OPT.

HDMI 4

HDMI 1

HDMI 2

HDMI 3

USB

CR-162

1

4

5

7

8

9

10

2

3

6

7

6.5 OLED Menu

MAIN MENU SUB MENU DESCRIPTION DEFAULT

AUTO POWER
ON

OFF Set Auto power

on staus

OFF

ON

Last State

Return

Source In HDMI 1 In Input selection. HDMI 1

HDMI 2 In

HDMI 3 In

HDMI 4 In

Coaxial In

Optical In

USB In

Line In

Return

SRC Set Bypass Set output SRC

frequency

Bypass

384 kHz

192 kHz

176.4 kHz

96 kHz

88.2 kHz

48 kHz

44.1 kHz

Return

8

MAIN MENU SUB MENU DESCRIPTION DEFAULT

HDMI TX Set

Video

HDMI 1 Set HDMI input

and Audio

N/A

HDMI 2

HDMI 3

HDMI 4

Return

Audio

Bypass

Ext Audio

Return

Return

Display Set Timeout 5s Set LCM display

time

Timeout 15s

Timeout 10s

Timeout 15s

Return

Headphone Vol
Set

Fix Level Set headphone

volume mode

Volume Level

Volume Level

Return

Firmware Version Show fi rmware

version

N/A

Update? Update

fi rmware

Return

Reset to Default

Return

9

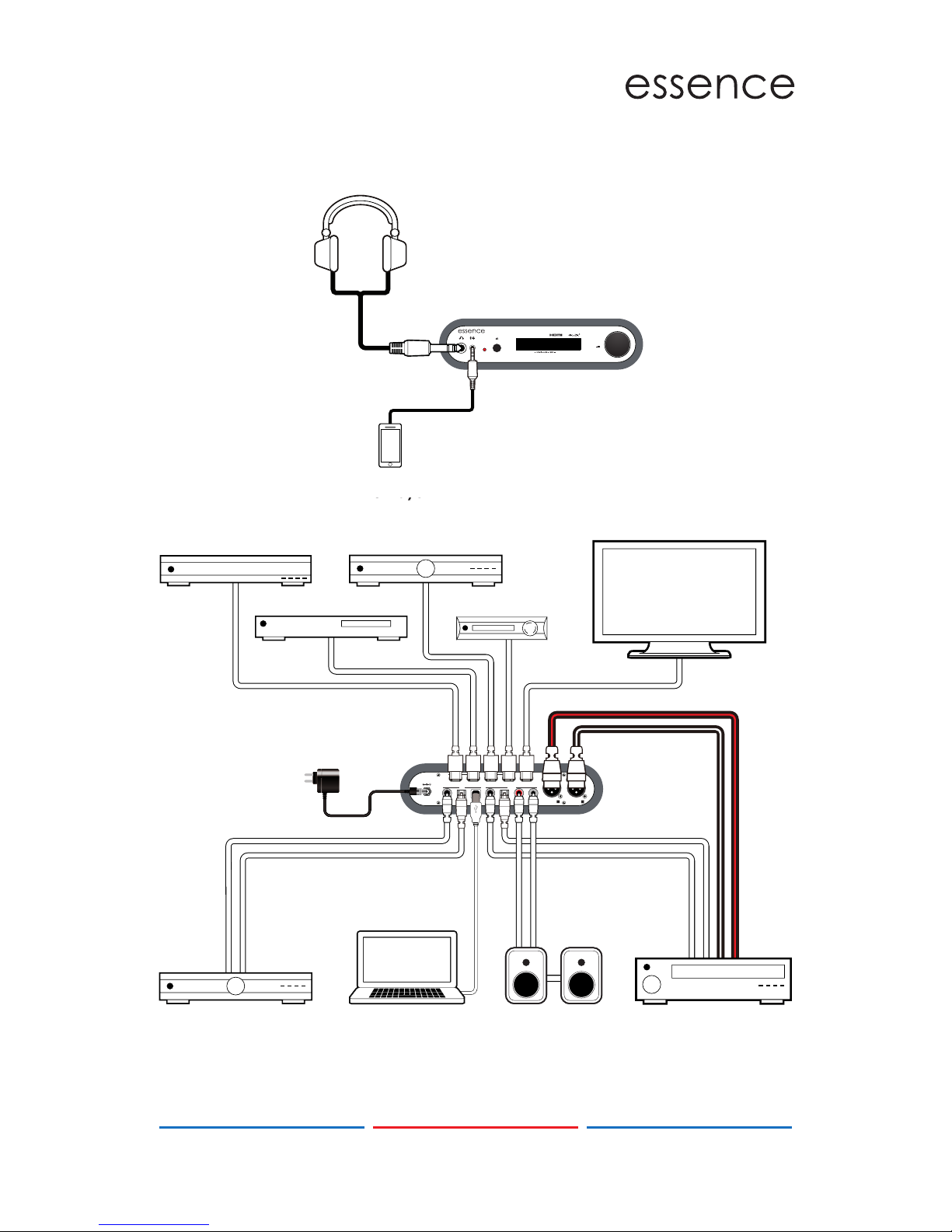

7. CONNECTION DIAGRAM

MENUMENU

Coaxial

44.1KIn->

-20.0 dB

44.1K

UHD Audio Center

384/32

Headphones

Headphones

Output

Line-level
Input

Smartphone or

MP3 Player

DC 5V

USB

COAX. COAX.

OPT. OPT.

L

R

XLR OUT

XLR OUT

R

L

IN

OUT

1 234

HDMI IN

HDMI OUT

UHDTV

Games ConsoleBlu-ray Player

HDMI

Inputs

Digital
Audio
Inputs

Digital

Audio

Outputs

Analog
Audio
Output

USB

Input

HDMI
Output

XLR Balanced

Audio Output

Set-top Box

Set-top Box PC/Laptop AV ReceiverActive Speakers

Power

Supply

Satellite Receiver

MENU

UHD Audio Center

384/32

HDACC II-4K

Coaxial

44.1KIn->

-20.0 dB

44.1K

Headphones

Headphones

Output

Line-level
Input

Smartphone or

MP3 Player

10

8. SPECIFICATIONS

8.1 Technical Specications

Video Bandwidth 600 MHz/18 Gbps

Input Ports 4×HDMI, 1×Coaxial, 1×Optical, 1×USB

(Type B), 1×3.5 mm Smartphone
Headphone Jack (Analog Line-in)

Output Ports 1×HDMI, 1×Coaxial, 1×Optical, 2×RCA

(Analog Stereo), 1×XLR (Balanced Audio),

1×6.3 mm Phone Jack (Headphone)

HDMI Resolutions VGA~WUXGA (RB), 408i~1080p@24/50/60,

4K@24/25/30, 4K@50/60 (YUV420)

Digital Audio I/O Format LPCM 2CH

XLR Balanced Audio I/O
Level

4Vrms±0.2

Headphone Impedance 16Ω~600Ω

Power Supply 5 V/3 A DC (US/EU standards, CE/FCC/UL

certied)

ESD Protection Human body model: ±8 kV (air-gap

discharge) ±4 kV (contact discharge)

Dimensions 8.9”(223 mm) W × 5.5” (145 mm) D

× 2” (50 mm) H

Weight 886 g (2 lbs)

Chassis Material Aluminum

Color Black

Operating Temperature 0˚C~40˚C/32˚F~104˚F

Storage Temperature −20˚C~60˚C/−4˚F~140˚F

Relative Humidity 20~90% RH (non-condensing)

Power Consumption 14.5 W

11

8.2 Audio Specifi cation

Input

Level/Freq. Output

Output

Level THD+N

Frequency

Response

SNR

>90dB

Crosstalk

<-90dB

HDMI

2Vrms*/1kHz

Optical

2Vrms*/1kHz

Coaxial

2Vrms*/1kHz

Analog Line

2Vrms*/1kHz

USB

2Vrms*/1kHz

HDMI -0.000 0.00001% ±1 dBFS >141dB <-110dB

Optical -0.000 0.00001% ±1 dBFS >141dB <-164dB

Coaxial -0.000 0.00001% ±1 dBFS >141dB <-163dB

Analog(L/R) 1.864 0.001% ±1 dBFS >110dB <-164dB

Analog(XL/XR) 3.922 0.001% ±1 dBFS >111dB <-118dB

www.essenceelectrostatic.com
