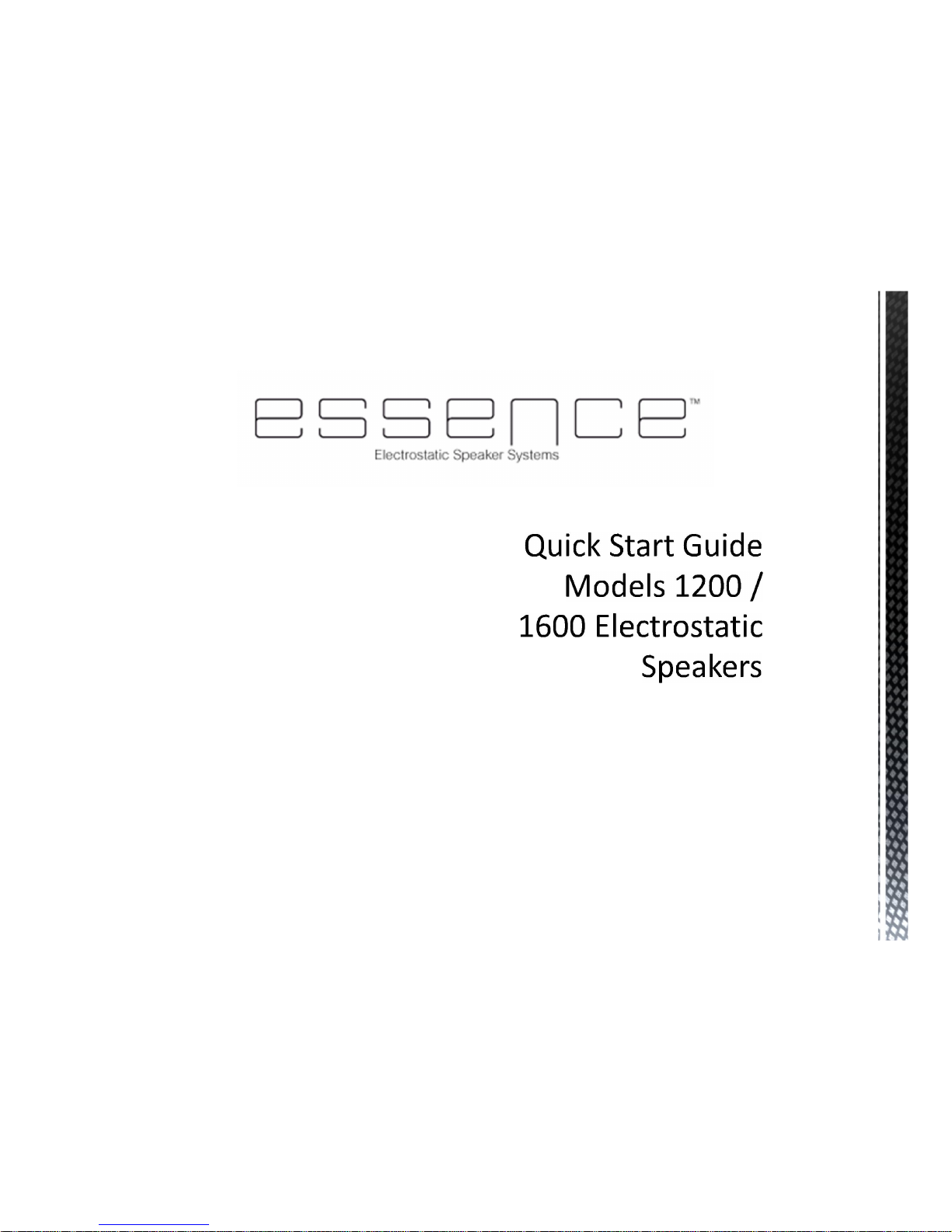

Essence 1200, 1600 Quick Start Manual

[email protected]

[email protected]

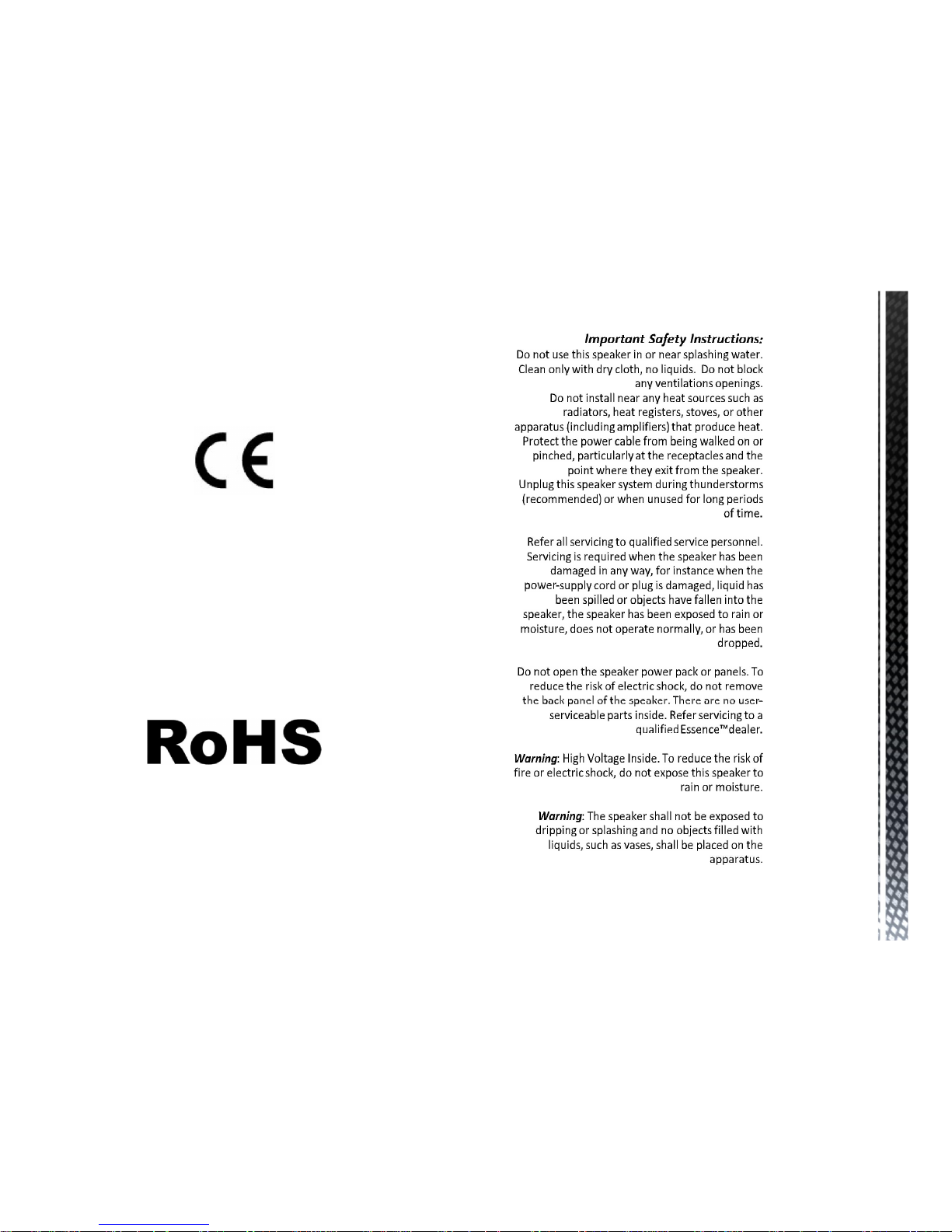

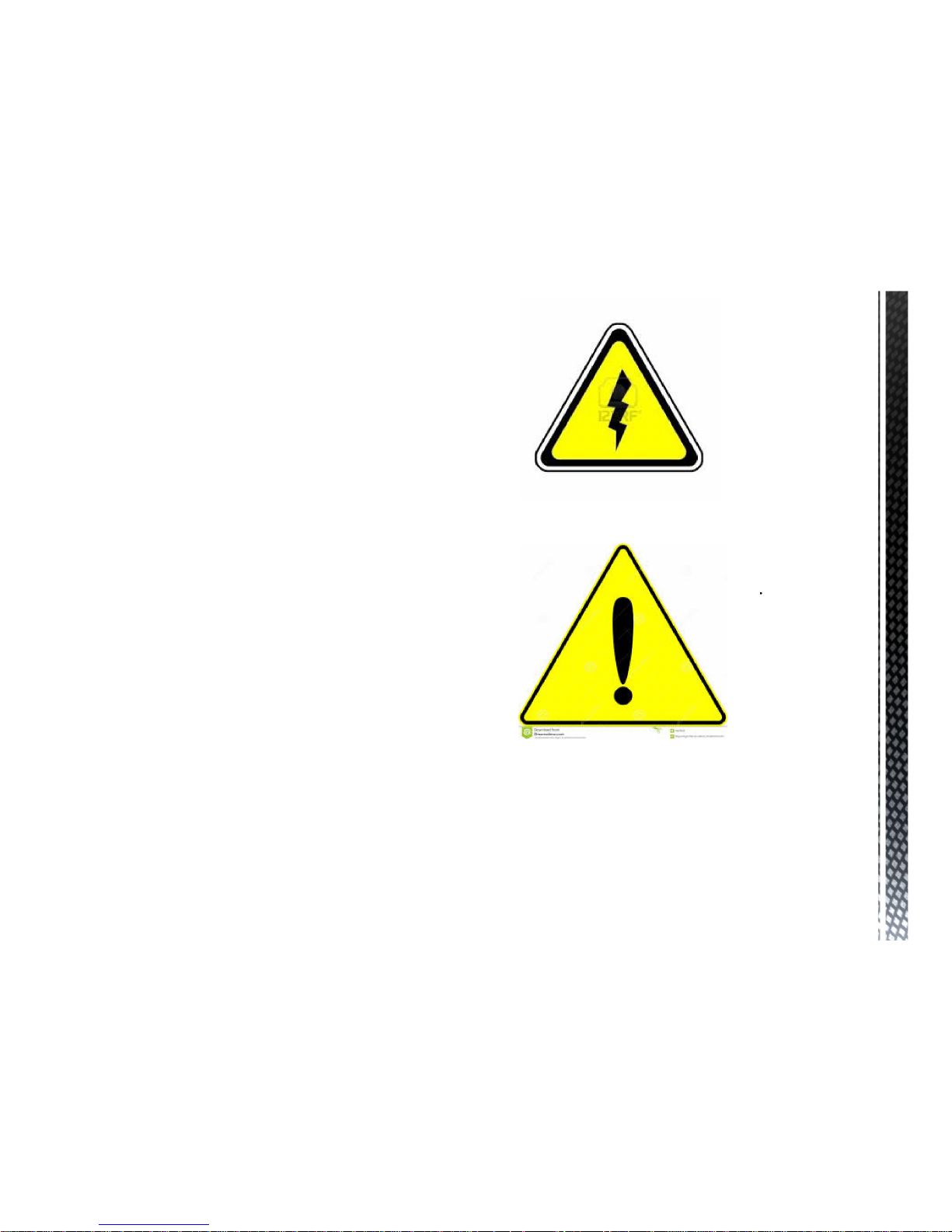

 This flash symbol indicates that the

outlet carrying this symbol is carrying
a dangerous voltage. This flash
symbol indicates that the outlet
carrying this symbol is carrying a
dangerous voltage.

The exclamation mark indicates that
special attention has to be given to the
indicated remark. It means pay
attention to the marked connector, be
sure its properly connected.

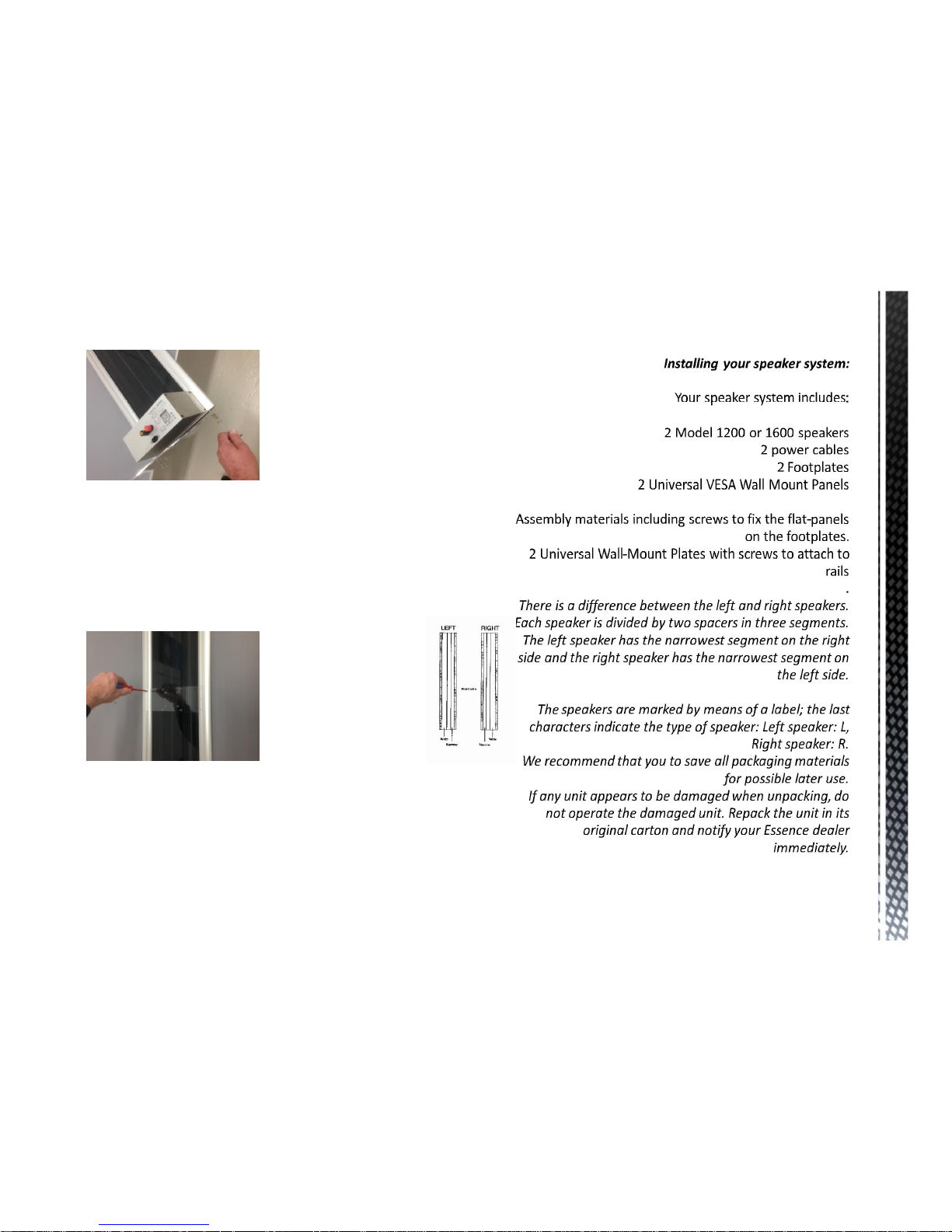

For Floor Standing Installations

: Attach footplate for
floor-standing installations by laying speaker on a flat
surface. Leave poly bag in place except for bottom, this is
where the footplate is attached to the rails with 4 hex
screws. The footplate has small rubber feet to raise the

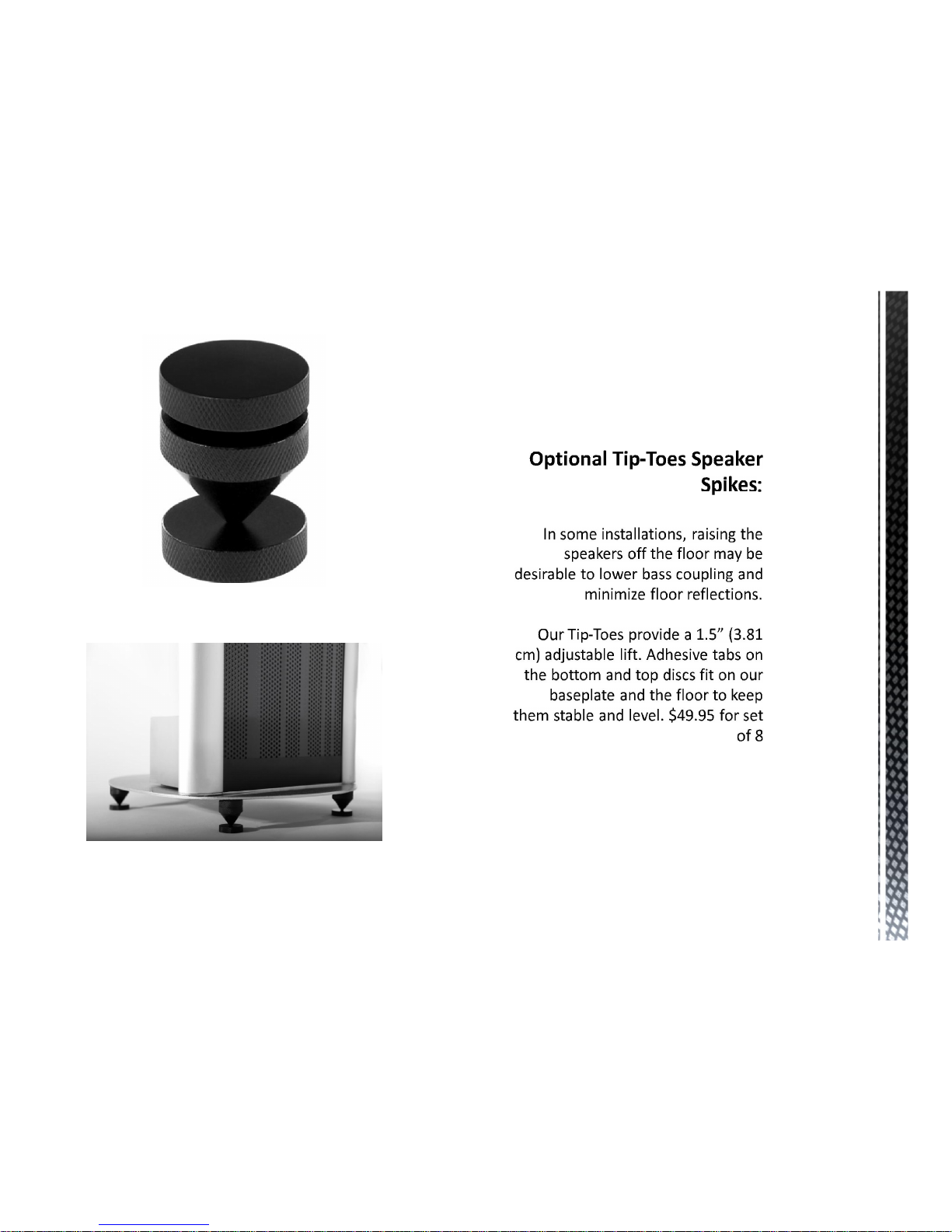

base off the floor ¼” (.63 cm). For optional Tip-Toes, see
below.

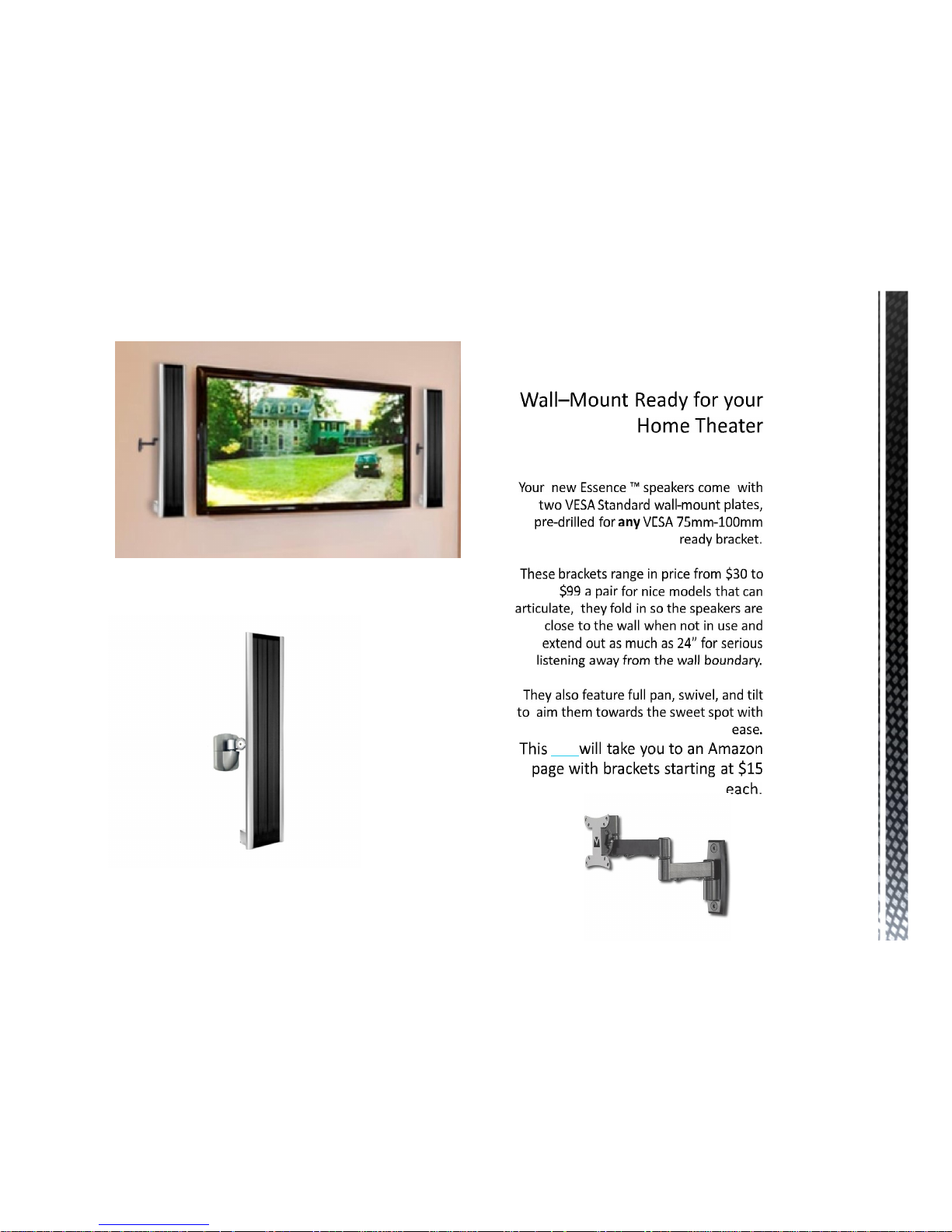

For Wall-Mount Installations

, attach
Universal VESA Standard Wall-Mount Plate
with holes pre-drilled for the 100mm or 75mm
hole pattern. The side rails are pre-drilled and
attachment screws are provided in the kit.

 There is no on/off switch, plugging them in

turns them on and they are meant to
remain on. Leave them on full time, they
draw less than 2 watts and are safe.

 The speaker is safe to touch but don’t stick

tools or other sharp tools into them, there
is high voltage on the inside and you don’t
want to get shocked.

 Reminder: keep them dust free with Dust-

Off, sold in spray-cans everywhere. Use
stainless steel polish on the rails and a
lightly damp soft cotton cloth on the acrylic
stators. Do not spray any liquid or polish on
the stators.

 Run in time is approx. 72 hours. Thanks for

following these instructions, the full
manual will be posted at our site soon..

link

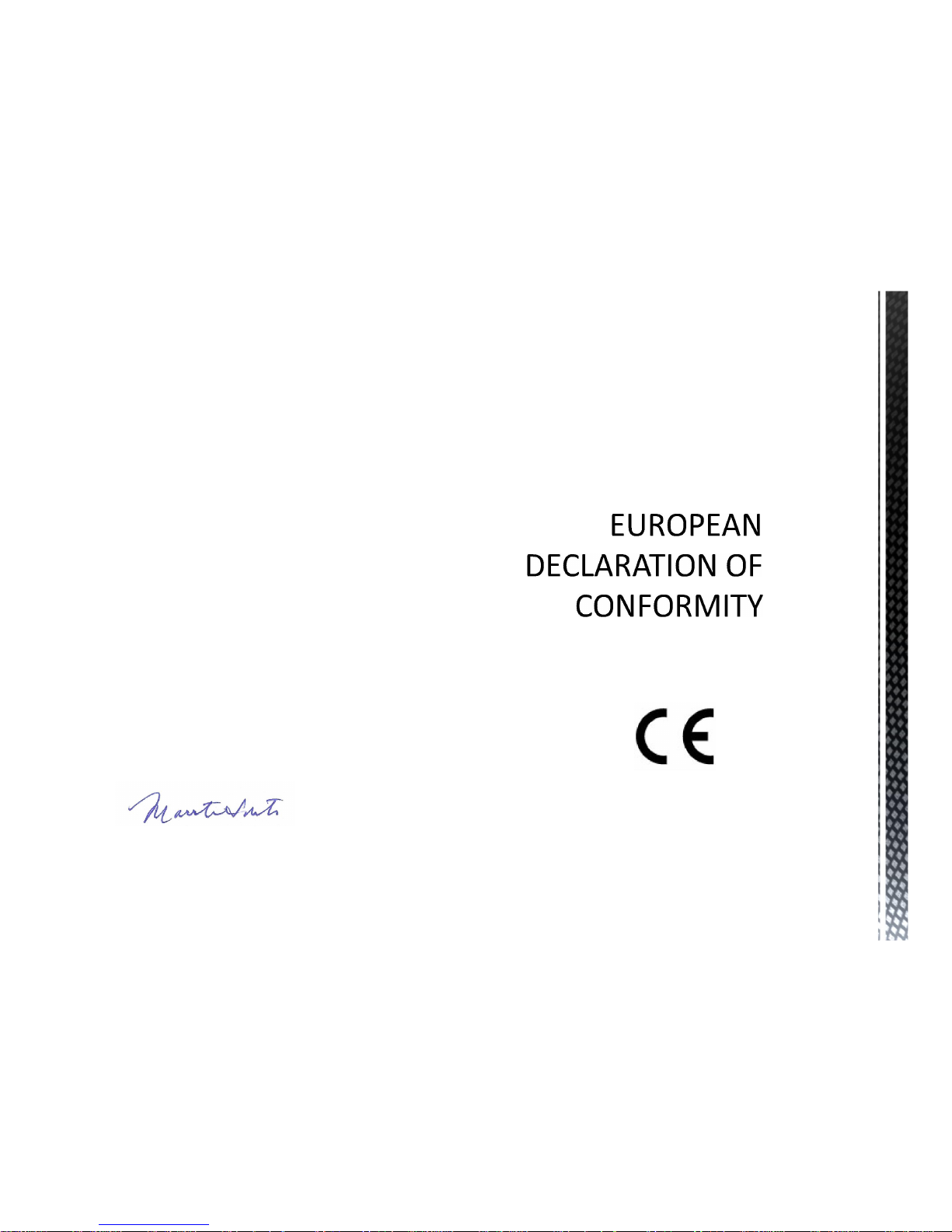

 We, Essence Electrostatic LLC , Schipholweg 939, 2143 CE

Boesingheliede, Netherlands, 0031 023 555 18 61 declare
under our sole responsibility that the products known as

 Essense™ Electrostatic Speakers Models 1200, 1600,

1900, and 600 to which this declaration relates are in
conformity with the following standard(s) or other
normative document(s)

 Council Directive 2006/42/EC (May 17, 2006) on the

Approximation of the Laws of the Member States Relating
to Machinery;

 Council Directive 2004/108/EC (December 15, 2004) on

Electromagnetic Compatibility;

 List European standards used
 Council Directive 2006/95/EC (December 12, 2006) on

Low Voltage Equipment Safety;

 List European standards used
 Council Directive 2000/14/EEC amended by Directive

2005/88/EC (June 17, 2006) about noise limits and
labelling requirements machines intended for use
outdoors.

 The Technical Construction File required by this Directive

is maintained at the corporate headquarters of Essence
Electrostatic LLC, Schipholweg 939, 2143 CE
Boesingheliede, Netherlands, 0031 023 555 18 61

 The authorized representative located within the

Community is:

 Maarten Smits, Westerhoutstraat 2, 2012JR Haarlem,

Netherlands,


 Date of issue: January 15, 2014
 Place of issue: Boesingheliede , Netherlands

 x

 Maarten Smits, CEO & Chief Engineer, Essence

Electrostatic LLC.

Schipholweg 939
2143 CE
Boesingheliede
Netherlands
0031 620362270

[email protected]

Sales and Marketing Office USA
Bob Rapoport, 727-580-4393

[email protected]
