Ironheart
Models EW & EWB
Wood Fired Cooking Stove
THIS APPLIANCE MUST BE COMMISSIONED BY A HETAS REGISTERED ENGINEER
THE WARRANTY CARD MUST BE RETURNED TO ENSURE GUARANTEE VALIDITY
Page 2
Page 2
EW-I02-070319
Table of Contents
OPERATING INSTRUCTIONS ............................................................................... 3
INTRODUCTION .............................................................................................. 3
BEFORE USING YOUR COOKING STOVE .......................................................... 3
YOUR COOKING STOVE .................................................................................. 4
LIGHTING AND CONTROLLING THE FIRE ......................................................... 6
NOTES ON WOODBURNING ......................................................................... 10
LONG TERM SHUTDOWN ............................................................................. 11
FIREWOOD AND THE WOODBURNING PROCESS.......................................... 11
COOKING WITH THE COOK STOVE ............................................................... 16
EXTENDED WOODBURNING ......................................................................... 18
CLEANING AND MAINTAINANCE .................................................................. 19
CONDITIONS OF GUARANTEE ...................................................................... 21
EXCLUSIONS ................................................................................................. 21
CUSTOMER CARE ......................................................................................... 22
SAFETY NOTES .............................................................................................. 22
INSTALLATION INSTRUCTIONS ......................................................................... 24
GENERAL SAFETY INFORMATION ................................................................. 24
THE CLEAN AIR ACT 1993 AND SMOKE CONTROLLED AREAS ....................... 25
DIMENSIONS AND CLEARANCES .................................................................. 26
CHIMNEY AND FLUE INFORMATION ............................................................ 28
INSTALLING THE APPLIANCE ........................................................................ 31
HOT WATER SYSTEM (EWB MODELS ONLY) ................................................. 33
COMMISSIONING THE APPLIANCE ............................................................... 35
REPLACEMENT PARTS .................................................................................. 36
COMMISSIONING CHECKLIST ....................................................................... 38
TECHNICAL INFORMATION........................................................................... 39
Page 3
Page 3
EW-I02-070319
Ironheart
OPERATING INSTRUCTIONS
INTRODUCTION
Thank you for choosing an ESSE cooking stove. Please read these instructions
carefully to ensure your safety and enjoyment whilst using this product.
Correctly installed and operated, your ESSE cooking stove will provide faithful
service indefinitely. We feel certain that like countless ESSE owners since 1854,
you will be truly satisfied by the warmth and comfort it will provide and the taste
of your food cooked within its oven.
BEFORE USING YOUR COOKING STOVE
Ensure that any protective packaging used to protect surfaces has been
removed. The hotplate has been oiled at the factory to prevent rusting and
therefore will require wiping with a damp cloth and drying with a tea towel or
kitchen roll.
During the first few operations of the cook stove there may be some ticking and
fumes emitted. This is normal and part of the initial expansion & material curing
process.
Page 4
Page 4
EW-I02-070319
YOUR COOKING STOVE
Figure 1 Ironheart Cooking Stove
Figure 1 show the cooking stove and it’s controls. The fire is loaded, refuelled,
and emptied through the large glass fire door.
A flue damper is fitted in the bottom of the flue box and is in the open position
when lever is pointing to rear of cooker. This is used on initial light up and also
gives a cooler oven temperature when open. It can also help to control excessive
flue draught. This is done by pointing the lever to the front of the cooker.
The controls are operated in the following ways:
Primary Air Control
Slide LEFT to open
Secondary Air Control
Slide LEFT to open
Oven Damper
Turn ANTI-CLOCKWISE to open
Flue Damper
PUSH back to open
Page 5
Page 5
EW-I02-070319
Included inside your cooking stove is a multi-purpose Operating Tool – for
adjusting the air supply and operating the door. A glove is also provided to
protect the user’s hand. (Figure 2)
WARNING
Do not place towels on the handrail, keep pets and children away and ensure
that any curtains near the appliance cannot ignite even when displaced.
Surfaces will be hot when in use.
An extractor fan MUST NOT be fitted in the same room as the appliance.
Figure 2 Operating Tool and Glove
Page 6
Page 6
EW-I02-070319
LIGHTING AND CONTROLLING THE FIRE
Figure 3 Multi-fuel Grate Firebox Parts
Figure 4 Wood Burning Firebox Parts
Page 7
Page 7
EW-I02-070319
Before lighting the fire ensure that all parts are in the correct position. For multi
fuel use see Figure 3.
The Ironheart may be configured to a wood burning only specification by
removing the grate and ashpan and substituting a steel wood burning box (see
Figure 4). This increases the firebox volume and by facilitating an ash bed can
extend reloading intervals.
Ensure both air controls are in the open position by moving the controls to the
LEFT, the oven damper is opened by rotating the control ANTI-CLOCKWISE, and
the flue damper opened by pushing the lever tot the REAR of the cooker.
Open the fire door and lay two logs along the base of the fire box forming a
space between them.
Figure 5 Logs Laid in Fire Box
Page 8
Page 8
EW-I02-070319
Place a firelighter in the space and surround with a small amount of kindling.
Figure 6 Fire Lighter and Kindling in Place
Lay a third log over the top of the space perpendicular to the other logs.
Figure 7 Final Log in Position
When you are ready to light the fire all that needs to be done is light the
firelighter.
Once the fire has been lit leave the door partially open to allow additional
airflow until the fire has become established. When the fire is established the
fire door can be fully closed. The air controls can be moved towards the closed
position once the sooting has burnt off the brickwork. To control the fire when
burning wood the secondary air control should be used, the primary air control
should be kept closed. The primary air control should be used when burning
smokeless fuels with the secondary control kept open where possible to prevent
the window sooting up.
Page 9
Page 9
EW-I02-070319
Figure 8 Oven Damper Controls
Once the fire has been established the oven damper control may be used to
regulate the oven temperatures along with the burning rate of the cookstove.
WARNING
When the cooking stove is running ALL HANDLES become hot and the
operating tool or glove provided should be used to open or close the doors
(Figure 2)
The burning rate of the stove can now be regulated by the rate at which fuel is
added and use of the air control. The maximum amount of fuel to be loaded
during normal operation is 2kg per hour in order to achieve nominal heat output.
NOTE
This appliance is not an incinerator and only dry well seasoned wood or
approved fuel should be used.
If the cook stove is being used primarily to heat the room it is recommended
that the bolster lid is kept in the raised position to allow heat from the hotplate
to radiate into the room.
Page 10
Page 10
EW-I02-070319
When refuelling the cook stove it is recommended that the logs are placed
running front to back as in Figure 5 as this leads to the cleanest combustion.
Before lighting a full fire in the cook stove for the first time it is recommended
that 3 smaller fires are lit first to ensure that any moisture is driven out.
WARNING
EWB MODEL ONLY: Do not light the cook stove if there is a possibility that
any part of the boiler loop is frozen.
NOTES ON WOODBURNING
Wood burns most efficiently when the air for combustion is supplied from above
the fire bed. This air supplies the oxygen necessary for the volatile gasses given
off by the wood as it is heated to combust which increases efficiency and
reduces heat being wasted up the chimney.
Running the cooking stove with the air control open will provide oxygen for the
wood to burn on the fire bed and should be used to control the fire when lighting
or refuelling. The cooking stove should ideally be run with the air control in the
closed position for the majority of the time in use. If the fire appears to die down
too low then opening the air control slightly for a short period can help revive it.
To get the best results from your cooking stove it is recommended that a wood
stove thermometer be fitted to the flue pipe above the cooking stove. This
allows you to monitor the temperature of the flue gasses leaving the cook stove.
Below 115oC
This is below the condensation point of wood gasses and may cause the buildup of tar in the chimney, dirty the fire door glass and result in the inefficient
burning of fuel.
115oC – 260oC
The flue gasses should be in this temperature band for the safest, most efficient
operation of your cooking stove.
Page 11
Page 11
EW-I02-070319
Above 260oC
Too hot. Heat will be wasted up the chimney. Excess heat may damage the
cooking stove or ignite an existing accumulation of tar resulting in a chimney
fire. In the event of a fire, close the air controls on the appliance and call the fire
brigade for assistance.
LONG TERM SHUTDOWN
If the cooking stove is to be shut down for long periods i.e. during summer
months or if the appliance is in a second home that is not used all the time,
precautions should be taken to avoid damage from condensation and corrosion.
First ensure that the cooking stove is fully cleaned and all ash removed. The
ovens and hotplate can then be treated with a light coating of flax oil to help
prevent moisture damaging the surfaces. The air control is to be left in the open
position (Error! Reference source not found.), the doors slightly ajar, and the
bolster lid left raised to allow for ventilation.
FIREWOOD AND THE WOODBURNING PROCESS
Seasoning and Storing Firewood
Wood, which has recently been cut and is still full of sap and water is known as
"green" wood.
Green wood will generally burn poorly and inefficiently, because it can have over
50% water in its cells. It may be hard to light, smoulder, not put out any heat
and cause more than the usual amount of creosote to build up in your chimney.
So your aim should be to dry the wood out to below 20% moisture content, this
process is called seasoning. As the name implies, you should store your wood
for a season or so, while it dries, but there are things you can do to speed up
seasoning by cutting the wood now rather than just before you use it.
Page 12
Page 12
EW-I02-070319
Wood is composed of bundles of microscopic tubes that were used to transport
water from the roots of the tree to the leaves. These tubes will stay full of water
for years even after a tree is dead. This is why it is so important to have your
firewood cut to length for 6 months or more before you burn it, it gives this
water a chance to evaporate since the tube ends are finally open and the water
only has to migrate a small distance to escape. Splitting the wood helps too by
exposing more surface area to the sun and wind, but cutting the wood to shorter
lengths is of primary importance.
Here’s how you can tell whether your wood is ready or not: Well seasoned
firewood generally has darkened ends with cracks or splits visible, it is relatively
lightweight, and makes a clear "clunk" when two pieces are struck together.
Green wood on the other hand is very heavy, the ends look fresher, and it tends
to make a dull "thud" when struck.
Another thing you can do to help is store your wood properly. Store it off the
ground by building the pile on some longer logs (or whatever method you can
devise). A shed or shelter with an open side makes an ideal storage place, as the
air can circulate around the logs and help to dry them out. Unventilated spaces
or plastic tarps, which never get taken off will prevent the drying and
evaporation process and cause moulds and rot. So, if a tarp is your only option,
take it off frequently to air the wood on fine days. And remember to put it back
on again. Seasoned firewood will reabsorb large amounts of water if exposed to
rain, snow and excessive dew, which is liable to make it rot and be unfit for
making a good fire.
When you build up a store of firewood, remember that the wood may start to
deteriorate after 4 to 5 years, although this is of course variable and depending
on storage conditions and species involved.
What Type of Wood is Best?
The difference between 'hard' and 'soft' woods is the density of their cells or
fibres.
As a general rule, the deciduous trees (those that loose their leaves in the
autumn) are usually thought of as hardwoods and the evergreen trees (such as
pines, firs and larches) as the softwoods. But generalisations are of course
always subject to many exceptions. Some evergreens may well be harder than
Page 13
Page 13
EW-I02-070319
some deciduous trees. Birch, for example, is not very hard at all. So we should
understand that there is a whole range of densities amongst our tree species,
including medium dense woods, which cannot be satisfactorily classed as hard
or soft.
Firewood tends to be sold by volume rather than weight. Assuming that the
wood is reasonably dry, the weight of a square metre of good hardwood may be
double of that of a square metre of softwood. This means that the same volume
of hardwood will provide you with more fuel to burn than an equal amount of
softwood, simply because it contains more substance.
(N.B. The price of hardwood will normally not be double that of softwood,
because it took the same amount of labour to prepare. So, if a trailer full of
hardwood costs more than the same size trailer full of softwood, the more
expensive option may well be the most economical.)
The other advantage of good hard firewoods are that the cooker does not need
to be fed as often and the charcoal-beds made by the glowing wood may burn
more easily overnight.
However, the ideal situation would be to have a store of both hard and soft
woods, because the softer woods also have distinct advantages. They light more
easily than the slower burning hardwoods and if the softwoods are dry, they
create a hotter, more intense fire. The draught created by the hotter fire moves
the air up the chimney faster.
After reading the notes opposite about the burning process, you will understand
that means less pollution in the form of smoke and less creosote condensation
in your chimney.
The denser hardwoods tend to smoulder more easily when the fire is first lit, so
their flue gas temperature will be much cooler.
Because softwoods like pine and larch contain a lot of resins and pitch, a popular
misconception is that they will fur up the chimney with creosote more easily
than a hardwood like oak. This is not necessarily true at all. It is not the pitch
that is the problem, it's the water IN the pitch. Once the water in the wood has
evaporated, that pitch becomes high octane fuel. When dry, softwoods burn
extremely hot.
Page 14
Page 14
EW-I02-070319
There is also the matter of seasoning to be considered. When you buy wood, it
will usually have been cut in the winter of the year you buy it. Hard woods tend
to take longer than softwoods to fully dry out.
Softwoods cut in the previous winter should, with proper storage, be ready to
burn the next autumn, whereas many hardwoods may take a bit longer than
that. Oak, for example, is very slow to dry out and ideally left for two years. It is
also possible to purchase pre seasoned wood or kiln dried wood.
Summarising we can say that it is always sensible to buy this year for next years
fuel supply and that it is very handy to have both soft and hardwoods. You can
use the softwoods to start a good fire and you will have additional control over
the fire (in addition to the cookers controls) by adding slower burning wood to
fast ones if you want to leave the cooker without tending it for a while.
Alternatively you can add some fast burning softwood logs to the slower
hardwood logs to instantly revive a fire, which has been neglected.
The Wood Burning Process
Understanding what happens when wood is burnt will enable you to burn wood
in a more environmentally friendly way, reduce the maintenance required for
your chimney and get more out of your wood. There are 3 stages in the woodburning process:
Evaporation
When you light the cooker a lot of energy will be needed at first to boil away any
moisture, which is left in the wood. Using energy to drive off excess water in
firewood robs the cooker of energy needed for an efficient and clean burn. Also,
much of the energy wasted in evaporating water is energy that could have
heated the hotplate and oven. This is a waste of wood, money and effort. The
presence of all that moisture tends to keep "putting out" the fire, and therefore
making it burn very poorly, which tends to produce a lot of creosote and
pollution.
Emissions
As the heat of the fire intensifies, waste-gases (smoke) are released from the
wood.
Unburned smoke is emitted into the air either as pollution, or condensed in the
chimney causing creosote build-up. It takes time for the air in your chimney to
heat up. When it is still cold you get an effect similar to the condensation of hot
Page 15
Page 15
EW-I02-070319
breath on a colder window or mirror. So when the by-products of combustion
(smoke in the form of gases) exit the cooker, and flow up into the relatively
cooler chimney, condensation occurs.
The resulting residue that sticks to the inner walls of the chimney is called
creosote. Creosote is formed by unburned, flammable particulates present in
the smoke. It is black or brown in appearance. It can be crusty and flaky, tar-like,
drippy and sticky or shiny and hardened. Quite often, all forms will occur in one
chimney system.
If the wood you are using is water logged, or green, the fire will tend to smoulder
and not warm the chimney sufficiently. Wet wood causes the whole system to
be cool, and inefficient. In contrast: dry wood means a hot fire, which results in
a hot flue, and a hot flue means much less creosote clogging up your chimney.
The cooker’s firebox is designed to operate at very high temperatures to burn
the gases and particles released from the wood, which means less air-pollution.
Charcoal
When most of the tar and gasses have burned the remaining substance is
charcoal (ash in it’s finer form). A hot bed of charcoals and ash can enhance the
combustion process when burning larger pieces of wood. Start with a small fire
to develop a bed of glowing embers. As the charcoal bed develops and the
cooker heats up, slowly add larger and larger pieces of wood. It takes time to
build a good charcoal bed, but it is well worth the effort. Only empty excess ash
periodically and always leave a bed of ash on which to light the next fire. When
wood burns it gives off volatile gases which contain calorific heat value.
Peat
Peat is a fuel conveniently available in some areas and should be burned in the
same manner as wood.
Ash Removal
Wood burns best on its own ash and a manageable layer of ash on the grate is a
benefit to the efficient running of your cooking stove. To empty the ashes from
the ash pan below the grate, open the door at the bottom left of the cooking
stove using the Operating Tool by connecting the tool to the door handle and
turning anti-clockwise. Insert the tool into the slot on the ash pan and pull
forwards and lift to remove. Care should be taken when disposing of ashes that
Page 16
Page 16
EW-I02-070319
are still warm. They should not be put into a plastic receptacle or anything that
might melt in contact with heat.
Always use the Operating Tool to open the ash door and remove the ash pan.
Use the Operating Tool to securely lock the door and ensure the door is closed
properly.
NOTE
The above text is a guide only. The ideal operation of your cooking stove
depends on a number of factors which vary with each installation. Gaining
experience on your cooking stove is the only way to learn its best operation.
COOKING WITH THE COOK STOVE
The oven and hotplate are heated directly by the fire. In order to heat up the
oven and hotplate, the fire should be lit as described on page 7.
The temperature of the hob is graduated from left to right. The left side is hotter
and so is used for boiling and the right side for simmering. The oven door and
the fire door are opened by lifting the handle either manually or using the
Operating Tool provided.
The oven and hob are heated directly by the fire. In order to heat up the oven
and hob the fire should be lit as described above. Once the fire is established
the oven damper should turned clockwise to close. This will allow the hot fumes
from the fire to circulate around the inner cavity between the cooking stove and
the oven thus heating up both the hob and the oven.
The hob lids can be left down when the hob is not being used in order to keep
the hotplates warm. In the up position they will allow more heat into the room.
To reduce the heat going to the oven when the cooking stove is up and
running, the oven damper knob can be turned anti clockwise. This will allow
the hot fumes to escape directly up the chimney via the boiling side of the
hotplate, thus reducing the heat to the oven but maintaining a hot hotplate.
To maintain a good cooking temperature in the oven the cooking stove requires
only a small amount of fuel. With the multi-fuel grate, to reduce the effective
size of the firebox, the fuel bar can be moved towards the back and thus used
Page 17
Page 17
EW-I02-070319
to hold a smaller amount of fuel at the rear of the firebox. This also has the
advantage of reducing the heat radiated through the window, making life easier
for the cook. Also the fire guard can be slid in front of the fire door in order to
reduce the heat through the glass and protect the operator whilst cooking.
The temperature gauge on the oven door provides an indication of the oven
temperature. It should be noted however that since the gauge is attached to
the door, the indicated temperature will drop if the door is left open for any
prolonged period, in which case, the oven may be hotter than it is indicated on
the dial. Once the door is closed again, the gauge will come back to
temperature.

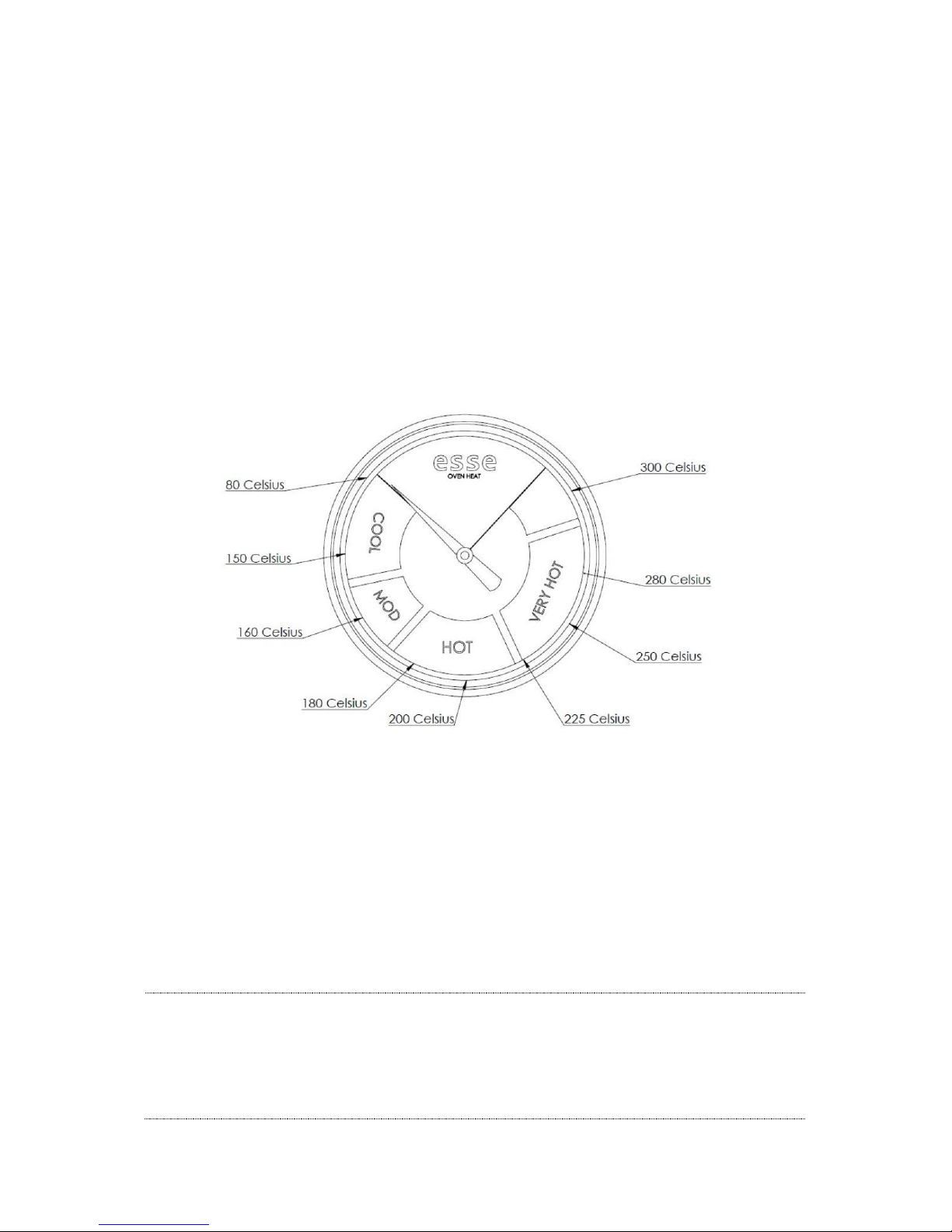

Figure 9 Temperature Guage Temperature Guide
The oven is equipped with a wire shelf which can be set to the desired height.
The shelf has anti-pull out stops to prevent it from being pulled out
inadvertently; to remove a shelf, pull forward until the stop is reached, then lift
at the front and pull out of the oven. Use reverse procedure to refit. If the
shelves pull straight out then they are in back to front!
WARNING
If any part of the stove begins to glow it is being over fired. Stop use
immediately and allow to cool. If this occurs it is recommended that the
cooker is cleaned and inspected before further use and any warped baffles
straightened.
Page 18
Page 18
EW-I02-070319
EXTENDED WOODBURNING
This appliance has not been certified as a slow combustion stove. Loading a large
amount of wood into the cooking stove all at once will reduce the temperature
inside. If the temperature is too low, the gases given off from the wood will be
too low to combust, resulting in a lot of smoke which will cover the inside of the
cooking stove, including the glass, with soot.
In order to avoid adverse combustion conditions it is a good idea to increase the
temperature of the cooking stove before loading more wood by further opening
the air control. Load the wood and leave the air control open until the moisture
is driven out of the wood and the cooking stove is up to an efficient operating
temperature. The air control and the bolster lid can then be closed to hold the
temperature of the cooking stove.
The cooking stove can be set up to burn overnight if desired.
Page 19
Page 19
EW-I02-070319
CLEANING AND MAINTAINANCE
The successful operation of your cook stove is entirely dependent on the
adequate performance (pull) of the chimney or flue to which it is connected. The
following maintenance guidelines will be pointless unless the flue is also
maintained and cleaned regularly. How often it needs cleaning will depend on
the quality and moisture content of the wood you burn but an annual clean is
recommended. A partially blocked or dirty flue can have disastrous implications
for an otherwise perfectly installed cooker.
A healthy flue draught should read between 12 – 25 pascals. A flue draught
reading below this value will result in poor smoky performance
Always carry out cleaning procedures when the cook stove is unlit and has been
allowed to cool sufficiently to avoid burns. With time and experience you will be
able to gauge the intervals between cleaning more accurately. It will vary
depending on the quality of your firewood and performance of your flue. Take
time to get to know your cooker and inspect it at regular intervals for the first 6
months.
As the cooking stove top is used for cooking, normal wear and tear will occur.
Spills should be mopped up immediately with a damp cloth, but oven cleaners
should not be used on the hob surface.
The oven and hotplate will rust if surface moisture is left on. Remember to
always light the cooker to warm and dry these after cleaning. To season the oven
or hotplate, we recommend a light vegetable oil spray is used. Remove any
stubborn stains with the wire brush.
To clean the glass of any built up residue, special cleaning solutions can be used,
or a ball of newspaper dampened and passed through the ash can be used. Do
not use abrasive or chemically aggressive cleaning products on the glass as this
can weaken or stain it.
If any of the chromed components become blue due to excess heat they can be
restored using a chrome cleaner.
The exterior of the cooking stove is painted with high temperature resistant
cooking stove paint and from time to time it may become necessary to renovate
Page 20
Page 20
EW-I02-070319
the exterior by repainting. The surface must be prepared by rubbing down with
a wire brush. The cooking stove paint will not key to the surface if there are fat
deposits or food particles on the area to be resprayed. High temperature
resistant cooking stove paints are available in aerosol form from your cooking
stove dealer, or from www.esse.com/spareparts/. Do not use this paint until the
cooking stove is completely cold and always follow the instructions on the
container before starting to paint. The usual precautions should be taken, such
as covering adjoining surfaces and protecting the hob lids.
The hob lids are made of chromed steel. The lids can be wiped clean with a damp
cloth and proprietary chrome cleaners may be used.
When de-ashing the cooking stove only remove small amounts of ash leaving
ideally 30mm depth of ash in the bottom for best performance.
To clean the flue way of the cook stove the hotplate must be removed. With the
hotplate removed the flue brush can be used to brush around the ovens and
beneath the top. Once the exterior of the ovens has been brushed the flue
access plate behind the lower right door can be removed and any loose debris
can be raked out using the flue rake. A vacuum can also be used for this process.
All panels should be replaced after cleaning.
Cleaning the Flue
It is recommended that the flue is cleaned at least every 12 months to maintain
a suitable flue draught and prevent poor performance of the cooking stove. It is
essential to maintain the integrity and cleanliness of the flue to ensure that your
cooker continues to perform at its best. When your cooker was installed the
main flue should have been equipped with an inspection hatch. These hatches
are designed to allow periodic access to the flue for inspection & cleaning.
If the chimney was previously used for an open fire, ensure any obstructions or
dampers are removed or locked open. The cooking stove operates at higher flue
gas temperatures, deposits of soot and debris that were firmly adhered to the
inside of the chimney, when it was used with an open fire, can loosen and cause
a blockage. We recommend that in such a situation a second sweeping of the
chimney should be carried out within one month of regular use of the cooking
stove after installation.
Page 21
Page 21
EW-I02-070319
CONDITIONS OF GUARANTEE
Your ESSE is guaranteed against defects arising from faulty manufacture for
2 years when supplied by an ESSE Specialist.
Upon registration of the warranty, ESSE will extend the guarantee period to
5 years from purchase. Your details must be registered with us by either
returning the completed warranty card or by completing registration on-line
at www.esse.com. The warranty must be registered within 1 month of
installation to qualify for the 5 year warranty.
The appliance must be only used for normal domestic purposes and in
accordance with our instructions, be correctly installed and serviced.
EXCLUSIONS
This guarantee does not cover:
o Installation
o Wear & tear
o Parts deemed to be replaceable in the normal usage of the cooker. These
parts are listed herewith: all firebricks, woodburning box, oven
accessories, hotplate and door seals, door glass.
This guarantee is personal to the original purchaser and not transferable.
Any stove or defective part replaced shall become the Company’s property.
Page 22
Page 22
EW-I02-070319
CUSTOMER CARE
In the event you should require spare parts, please order through your ESSE
dealer or by contacting Esse via telephone (01282 813235) or our website,
www.esse.com.
Should you have cause for dissatisfaction with your cooker, you should
contact your ESSE dealer, who will, in most instances, be able to offer you
immediate assistance. You will be required to give the following details.
o Your name, address and postcode.
o Your telephone/contact details.
o Clear and concise details of the fault.
o Model and serial number of the cooker (found on panel at rear).
o Purchase date (please note that a valid purchase receipt or guarantee
documentation is required for in-guarantee service calls).
We will then check that we have an accurately completed warranty card, if
not then any work carried out may be charged.
We will assess the nature of the complaint and either send replacement parts
for your dealer to fit, send an engineer to inspect & report, or send an
engineer to repair. If the fault is not actually due to faulty workmanship but
some other cause such as misuse or failure to install correctly, a charge will
be made to cover the cost of the visit and any new parts required, even
during the warranty period. Home visits are made between 08.30-1700 hrs
Monday to Friday, and are arranged for either a morning or afternoon
appointment.
SAFETY NOTES
o Properly installed, operated and maintained, this appliance will not emit
fumes into the dwelling. However, occasional fumes from de-ashing and
re-fuelling may occur.
o Persistent fume emission is potentially dangerous and must not be
tolerated. If fume emission does persist, open doors and windows to
Page 23
Page 23
EW-I02-070319
ventilate the room. Let the fire burn out or eject and safely dispose of fuel
from the appliance. Once the fire is cold, check the flue and chimney for
blockages and clean if required. Do not attempt to relight the fire until the
cause of the fume emission has been identified and corrected.
o Seek expert advice if necessary.
o An adequate air supply for combustion and ventilation is essential. Air
openings provided for this purpose must not be restricted.
o Should it be likely that children, aged, or infirm people approach the
appliance whilst the fire door is open, then a fireguard manufactured in
accordance with BS 6539 should be used. Also warn children not to sit or
stand on the appliance or use it as a ‘step-stool’ for access to cupboards
or shelves etc. above the appliance.
o Avoid the use of aerosol sprays in the vicinity of the cooking stove when
it is in operation and do not heat any unopened airtight containers.
o Ensure that precautions are taken when deep fat frying, never leave the
appliance unattended and ensure you have fire safety equipment
available, such as a fire blanket, in case of emergency.
o When operating the cooking stove use the tools provided and follow
these instructions carefully.
o In the UK, the installer has a responsibility under the Health and Safety
at Work Act 1974 to provide for the safety of persons carrying out the
installation.
o Attention is drawn to the fact that fire cement is caustic and hands must
be washed thoroughly after use.
o The appliance is heavy and care must be taken during handling.
o Although the appliance does not contain asbestos products, it is possible
that asbestos may be disturbed in existing installations and every
precaution must be taken.
o These instructions give a guide for the installation of the appliance but in
no way absolve the installer from responsibilities to conform to British
Standards, in particular BS8303 and BS6461, relating to the installation
of solid fuel appliances. All local regulations including those referring to
national and European standards need to be complied with, when
installing this appliance.
o Outside of the UK, the installer must comply with all local, national &
European standards that apply.
Page 24
Page 24
EW-I02-070319
Ironheart
INSTALLATION INSTRUCTIONS
GENERAL SAFETY INFORMATION
In the UK, the installer has a responsibility under the Health and Safety at Work
Act 1974 to provide for the safety of persons carrying out the installation.
Attention is drawn to the fact that fire cement is caustic and hands must be
washed thoroughly after use. The appliance is heavy and care must be taken
during handling. Although the appliance does not contain asbestos products, it
is possible that asbestos may be disturbed in existing installations and every
precaution must be taken.
These instructions give a guide for the installation of the appliance but in no way
absolve the installer from responsibilities to conform to British Standards, in
particular BS8303 and BS6461, relating to the installation of solid fuel
appliances. All local regulations including those referring to national and
European standards need to be complied with, when installing this appliance.
Outside of the UK, the installer must comply with all local, national & European
standards that apply.
It is also recommended that a smoke alarm and appropriate fire safety
equipment such as a fire extinguisher and fire blanket are installed in the kitchen
as a safety precaution and also a carbon monoxide detector.
An adequate air supply for combustion and ventilation is required. A purpose
provided air vent maybe necessary. Air openings provided for this purpose must
not be restricted. An external air kit is available.
Page 25
Page 25
EW-I02-070319
THE CLEAN AIR ACT 1993 AND SMOKE CONTROLLED
AREAS
Under the Clean Air Act local authorities may declare the whole or part of the
district of the authority to be a smoke control area. It is an offence to emit smoke
from a chimney of a building, from a furnace or from any fixed boiler if located
in a designated smoke control area. It is also an offence to acquire an
"unauthorised fuel" for use within a smoke control area unless it is used in an
"exempt" appliance ("exempted" from the controls which generally apply in the
smoke control area).
The Secretary of State for The Department of Environment, Food and Rural
Affairs (DEFRA) has powers under the Act to authorise smokeless fuels or
exempt appliances for use in smoke control areas in England. In Scotland and
Wales this power rests with Ministers in the devolved administrations for those
countries. Separate legislation, the Clean Air (Northern Ireland) Order 1981,
applies in Northern Ireland.
Cut your logs to the approximate size shown in Figure 10 to minimise the need
for refuelling.
Figure 10 Approximate Size of Logs
Therefore it is a requirement that fuels burnt or obtained for use in smoke
control areas have been "authorised" in Regulations and that appliances used to
burn solid fuel in those areas (other than "authorised" fuels) have been
exempted by an Order made and signed by the Secretary of State or Minister in
the devolved administrations.
Further information on the requirements of the Clean Air Act can be found here:
http://smokecontrol.defra.gov.uk/
Page 26
Page 26
EW-I02-070319
Your local authority is responsible for implementing the Clean Air Act 1993
including designation and supervision of smoke control areas and you can
contact them for details of Clean Air Act requirements
“The ESSE Ironheart Cooking Stove has been recommended as suitable for use
in smoke control areas when burning dry wood logs”
DIMENSIONS AND CLEARANCES

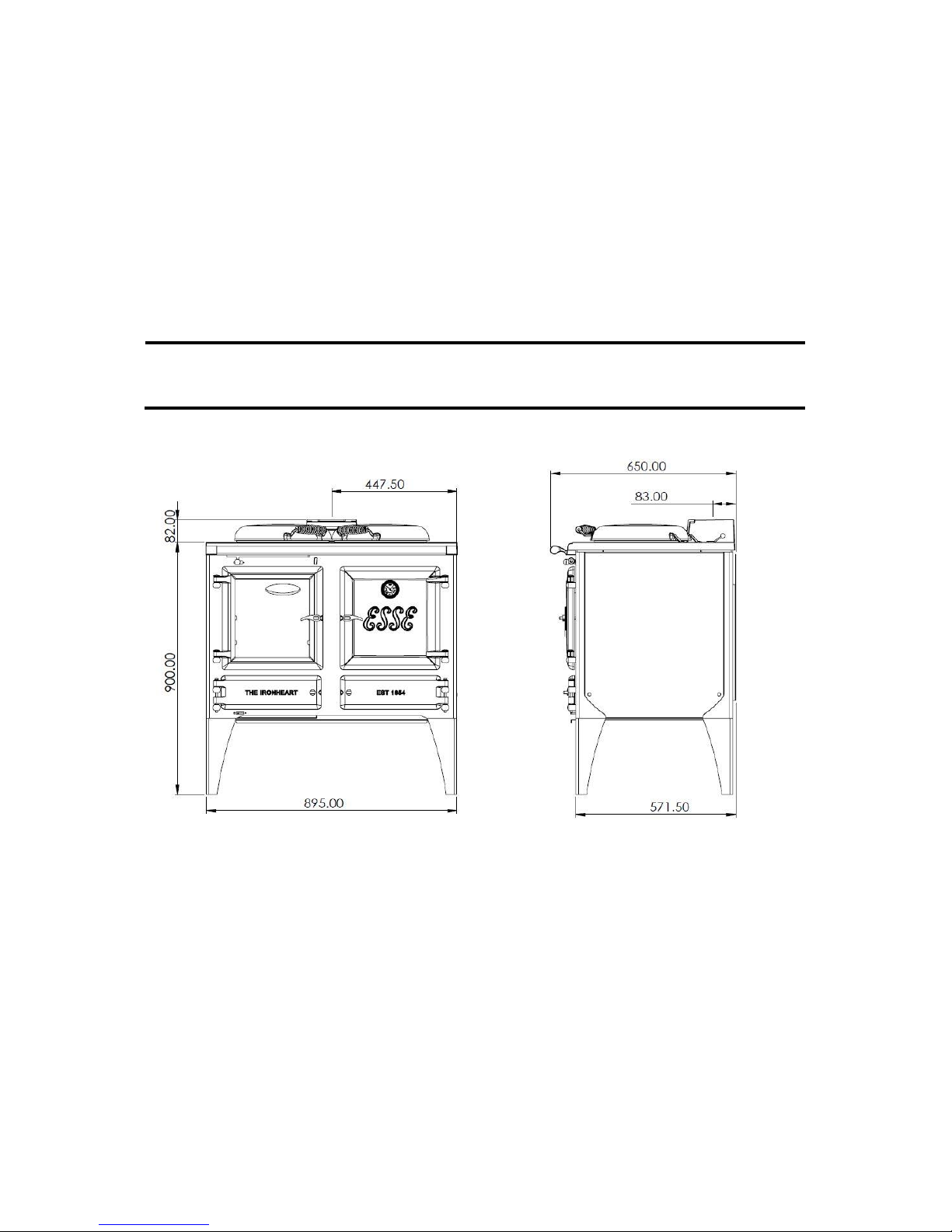

Figure 11 Ironheart Dimensions
Page 27
Page 27
EW-I02-070319

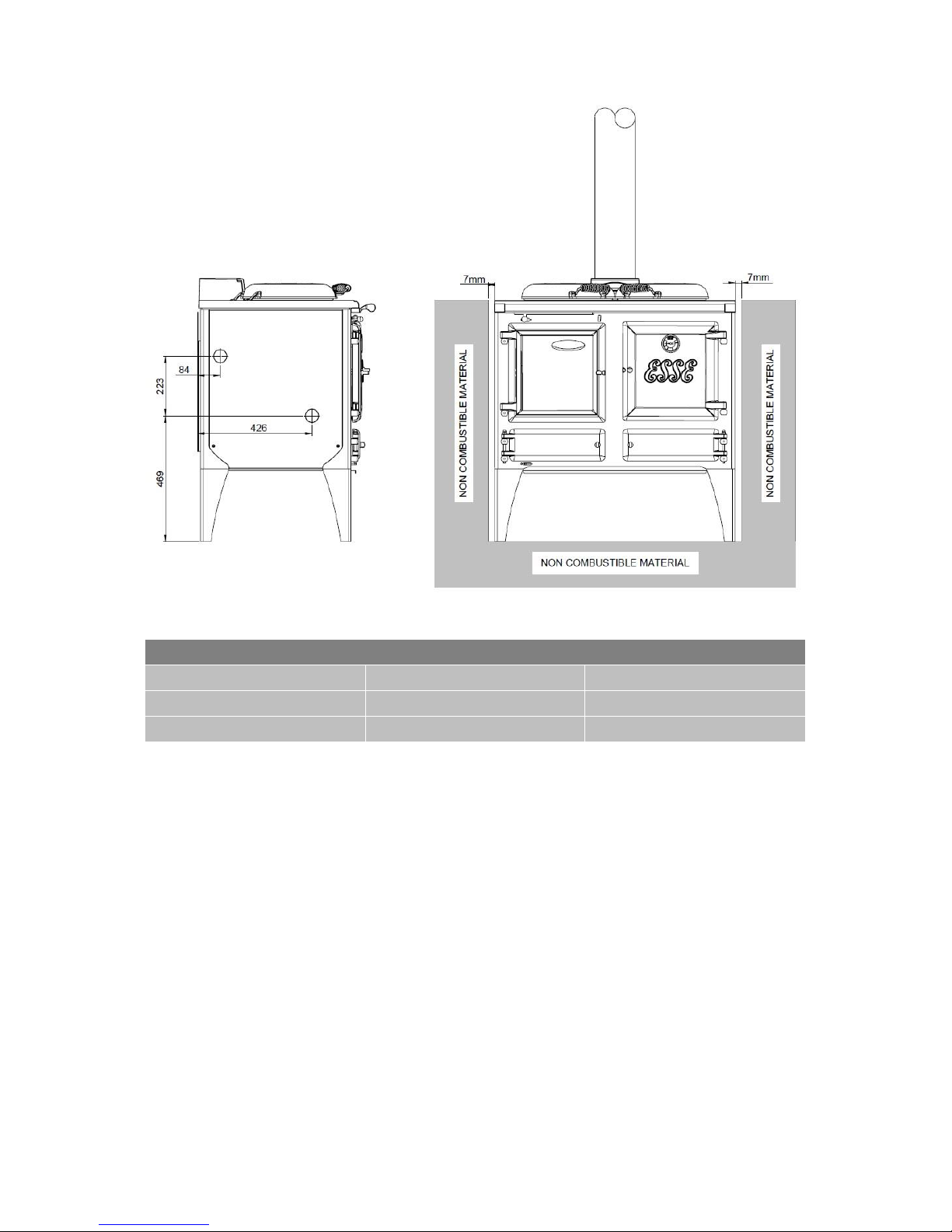

Figure 12 Boiler Tapping Locations & Minimum Clearances to None Combustibles
Clearances From Combustibles
EW
EWB
Sides
300
200
Back
500
400
Any adjacent combustible material should be far enough away from the cooking
stove so as not to rise 60°C above the room temperature when the cooking stove
is in operation. If necessary, any adjoining walls should be protected from the
effects of heat.
Due to the hand crafted nature of the products all dimensions are ±2mm
Page 28
Page 28
EW-I02-070319
CHIMNEY AND FLUE INFORMATION
The successful operation of the cooking appliance relies on the adequate
performance of the chimney to which it is connected. The following chimney
guidelines must be followed:
o It should have an internal cross section of no less than 320cm2 (200mm
dia.) (If a flue liner is used, it should be 150mm (6’’) diameter and be made
of suitable material for burning wood). A Flue with a diameter of 150mm
(6’’), is required to connect to the cooker.
o Voids in the chimney should be avoided, as these will prevent a steady
flue draught. The appliance flue pipe should pass beyond the narrowing
of the chimney.
o Terminate at least 1m above roof level so that the chimney does not
terminate in a pressure zone.
o If the appliance is installed as a freestanding appliance, it should not
support any part of the chimney.
o Be free from cracks, severe bends, voids, and obstructions.
o Be connected to this one appliance only.
o New chimneys must be in accordance with local regulations.
o The chimney must be capped to prevent ingress of rain.
o A flue/chimney access point is required so that the state of the chimney
can be checked and any fallen soot removed.
o External flues must be insulated to prevent heat loss.
o Do not fit an extractor fan in the same room as the appliance.
o Be a minimum 4.6m high from top of the cooker to the chimney pot.
o It is recommended that an inspection hatch is fitted to the chimney as
this will make future cleaning easier.
o A single wall starter length with a single to twin wall adapter will be
needed to use twin wall insulated flue. The stove will need to be moved
away from the wall to accommodate use of twin wall flue.
Page 29
Page 29
EW-I02-070319
NOTE
The chimney/flue to which this appliance is being connected must be swept
and examined for soundness prior to installation. Remedial action should be
taken if required, seeking expert advice if necessary. Where the chimney is
believed to have served an open fire installation it is possible that a higher
flue gas temperature from a closed appliance may loosen deposits that were
firmly adhered, with the consequent risk of flue blockage. It is therefore
recommended that the chimney be swept a second time within a month of
regular use after installation.
Flue Draught
The chimney can be checked before the appliance is installed with a smoke
match. If the chimney doesn’t pull the smoke, it may suggest the chimney needs
attention.
This test is only a guide as an apparently poor flue may improve once the
appliance is installed, lit and the flue is warmed. Once the appliance is installed
a flue draught reading should be taken as detailed below.
Two flue draught readings should be taken, one with the appliance at minimum
burning rate and one at maximum burning rate. The flue draught can be
measured behind the flue box door on the top of the cooker.
Minimum reading: The appliance should be lit and allowed to warm the flue
thoroughly. Close the air controls, and ensure firebox door is fully closed. Allow
the burning rate to become steady. The flue draught reading should now be
taken; the minimum required is 12 Pascals [Pa] (0.05’’ w.g.).
Maximum reading: The air controls can now be opened to allow the appliance
to burn at maximum rate. Take a flue draught reading.
Ideally, the flue draught readings should range between 12Pa, 0.12mm (0.05’’
w.g.) and 25Pa, 2.5mm (0.1’’ w.g.). Any readings significantly outside this range
may indicate the need for remedial action. Low flue draught symptoms: difficult
to light and smoke coming into the room. High flue draught symptoms: fuel
burns away very quickly, overfiring which may damage the appliance &
invalidate the warranty.
A flue stabiliser can be fitted to reduce the draught through the appliance if the
draught may exceed 25Pa. The flue stabiliser should be fitted in the same room
Page 30
Page 30
EW-I02-070319
as the appliance and be the same size as the flue pipe. Consult building
regulations regarding additional ventilation.
A fan flue booster can also be fitted if the flue draught is poor. This should be
fitted according to the instructions supplied with the booster. An electrical
supply will be needed.
Table 1 Flue Draught Trouble Shoothing Guide
Low flue draught symptoms: difficult to light and smoke coming into room
CAUSE
REMEDY
Cold chimney
Line the Chimney
Chimney too short
Extend the chimney
Down draught
Relocate/extend chimney terminal. Fit an
anti-down draught cowl
Chimney diameter too large
Line the chimney
Chimney obstruction
Clear/sweep the chimney
Restricted air supply
Check for competing draughts (other
chimneys, extractor hoods/fans). Fit an air
vent if the room is sealed.
High flue draught symptoms: fire difficult to control, fuel will not last, stove
too hot, stove damage, chimney fire
CAUSE
REMEDY
External wind conditions
combined with chimney
terminal
Fit stabiliser cowl
Fit flue draught stabiliser
Page 31
Page 31
EW-I02-070319

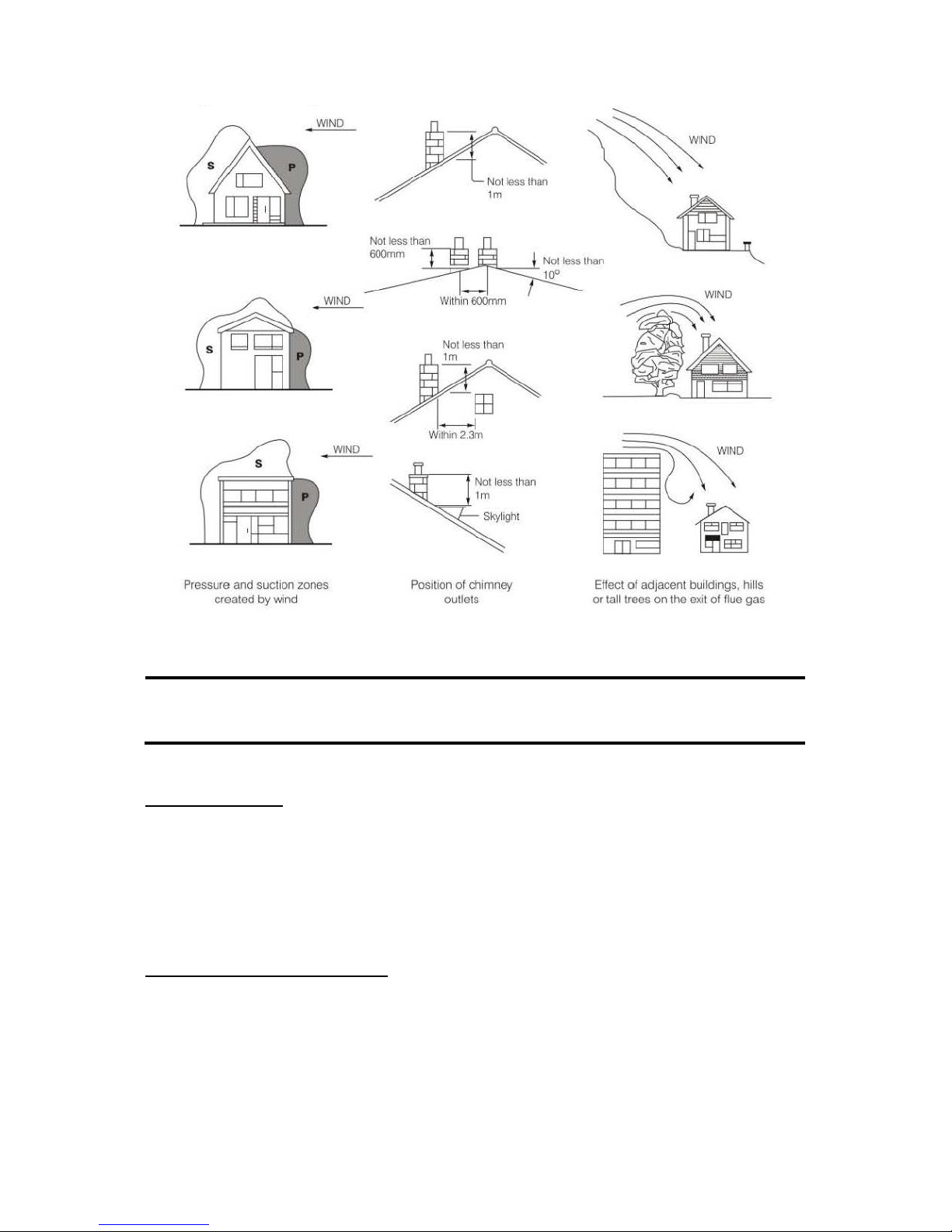

Figure 13 Chimney Location and Flue Performance
INSTALLING THE APPLIANCE
Flue Connection
The flue pipe used to connect the appliance to the chimney is 6’’ (150mm) in
diameter. (The flue connection is on the top of the appliance, in the centre at
the back.)
Important Installation Notes
o The installation must allow access for adequate chimney sweeping and
flue cleaning.
o Avoid using bends greater than 45º to the vertical. All flue pipe sections
should be as close to the vertical as possible.
o All joints in the flue system must be effectively sealed.
Page 32
Page 32
EW-I02-070319
o All flue sockets must face upwards. On completing the installation of the
appliance, the chimney, hearth and walls adjacent to the cooker must
conform to local or national regulations currently in force. In the United
Kingdom, the appropriate sections of the Building Regulations must be
conformed to.
o Air inlet grilles should be positioned so that they are not liable to blockage.
o An air extraction device shall not be used in the same room as the
appliance unless adequate additional ventilation is provided.
o A flue cleaning hatch should be fitted to provide access for cleaning the
flue and chimney.
o Check the appliance for soundness of seals between main components
and that all supplied parts and fittings are correctly fitted.
o Upon successful installation, using a 5mm Allen key, remove the two M6
transit socket screws in the hotplate. Using a 4mm Allen key, insert the
two M8x8 grub screws supplied with the cooker into the holes in the
hotplate and adjust until the head of the grub screw is level with the
surface of the hotplate. These grub screws can be removed and re-fitted
during and after cleaning of the appliance.
o Ensure the appliance is left operational, the domestic hot water system is
connected properly if applicable and hand over the operating instructions
and operating tools supplied.
o Before leaving the installation demonstrate the operation of the
appliance to the user. Explain all controls and flue way access for cleaning.
Page 33
Page 33
EW-I02-070319
HOT WATER SYSTEM (EWB MODELS ONLY)
There are two connections, both 1" BSP Female on the left hand side. Follow
general notes below:
The EWB or DE-LUXE boiler is plain mild steel and capable of running a radiator
in addition to domestic hot water.
General Notes on Water System:-
o The cooking stove will produce hot water at differing rates depending on
how it is operated. Heating control is manual, no thermostat is fitted.
o The system must be designed to cope with loads between the maximum
and minimum output. The gravity load must absorb 2.6kW for periods
when the oven is being used for cooking, e.g. domestic hot water plus
gravity operated radiator.
o An indirect storage cylinder is essential for domestic hot water supply,
irrespective of whether the water supply is hard or soft. Minimum
capacity 30 gallons. Cylinder should be as close to cooker as possible.
o The primary domestic supply must be gravity operated
o The layout must follow established heating engineering practice. To avoid
trapping air in the boiler a 1" BSP connection must be used on the flow
and return pipes, and any reduction in pipe size thereafter being made on
a vertical rising pipe.
o The cooker must be level when fitted and the flow pipe must rise from
the boiler. A drain cock must be fitted on the lowest point of the return
pipe and a vent to atmosphere at the highest point of each circuit.
o The cylinder and pipe work should be lagged to avoid heat loss.
o The static head must not exceed 60 feet of water.
o The total water capacity of the boiler is 4 litres.
o A heat leak radiator should be fitted to absorb any excess heat that may
be produced.
o The system must be properly vented.
Page 34
Page 34
EW-I02-070319

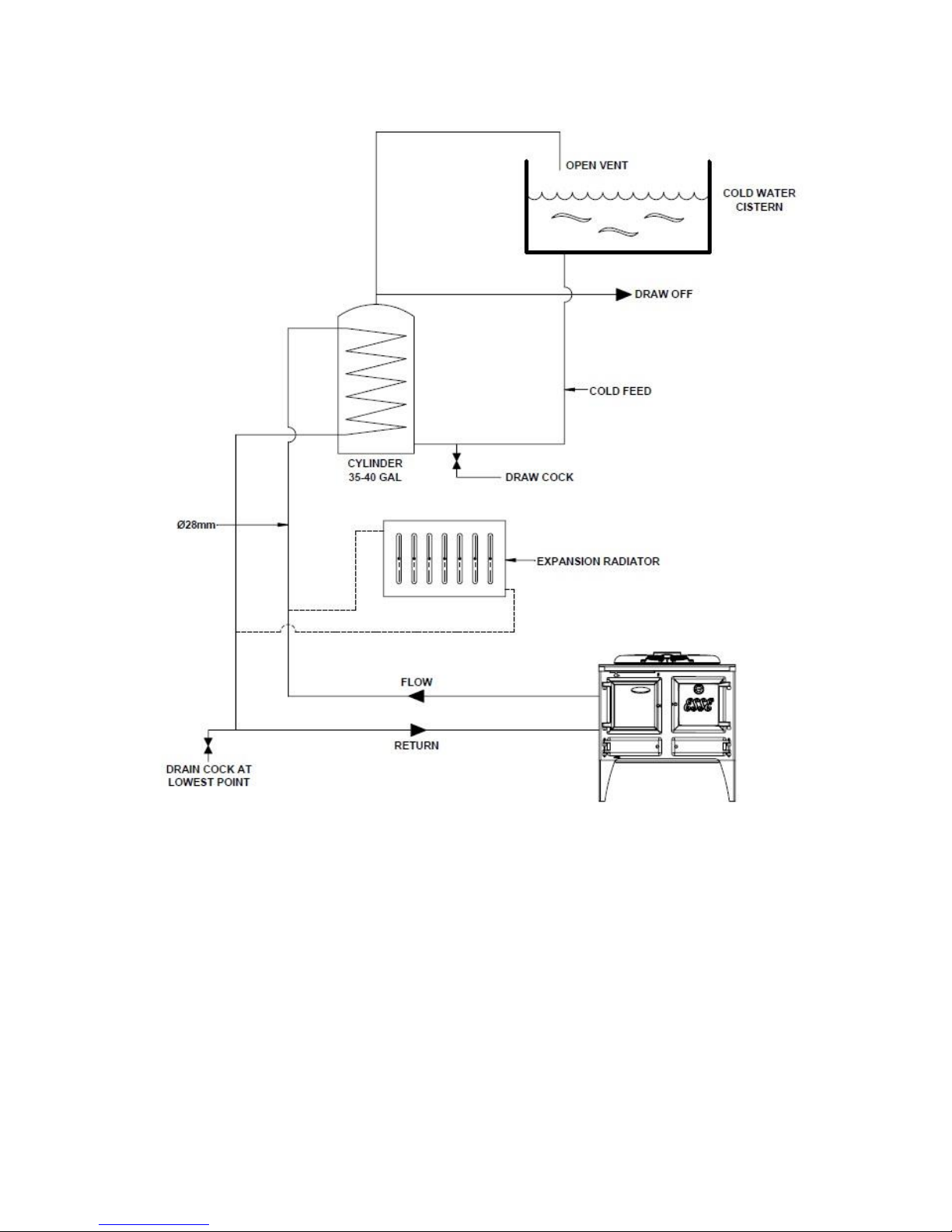

Figure 14 Typical DHW Gravity System
Page 35
Page 35
EW-I02-070319
COMMISSIONING THE APPLIANCE
o Measure and record flue draught
o Check ventilation
o If applicable check plumbing circuit
o Check no extractor fan, other appliance or other flue interferes
o Complete commissioning card and return to ESSE to validate warranty
Page 36
Page 36
EW-I02-070319

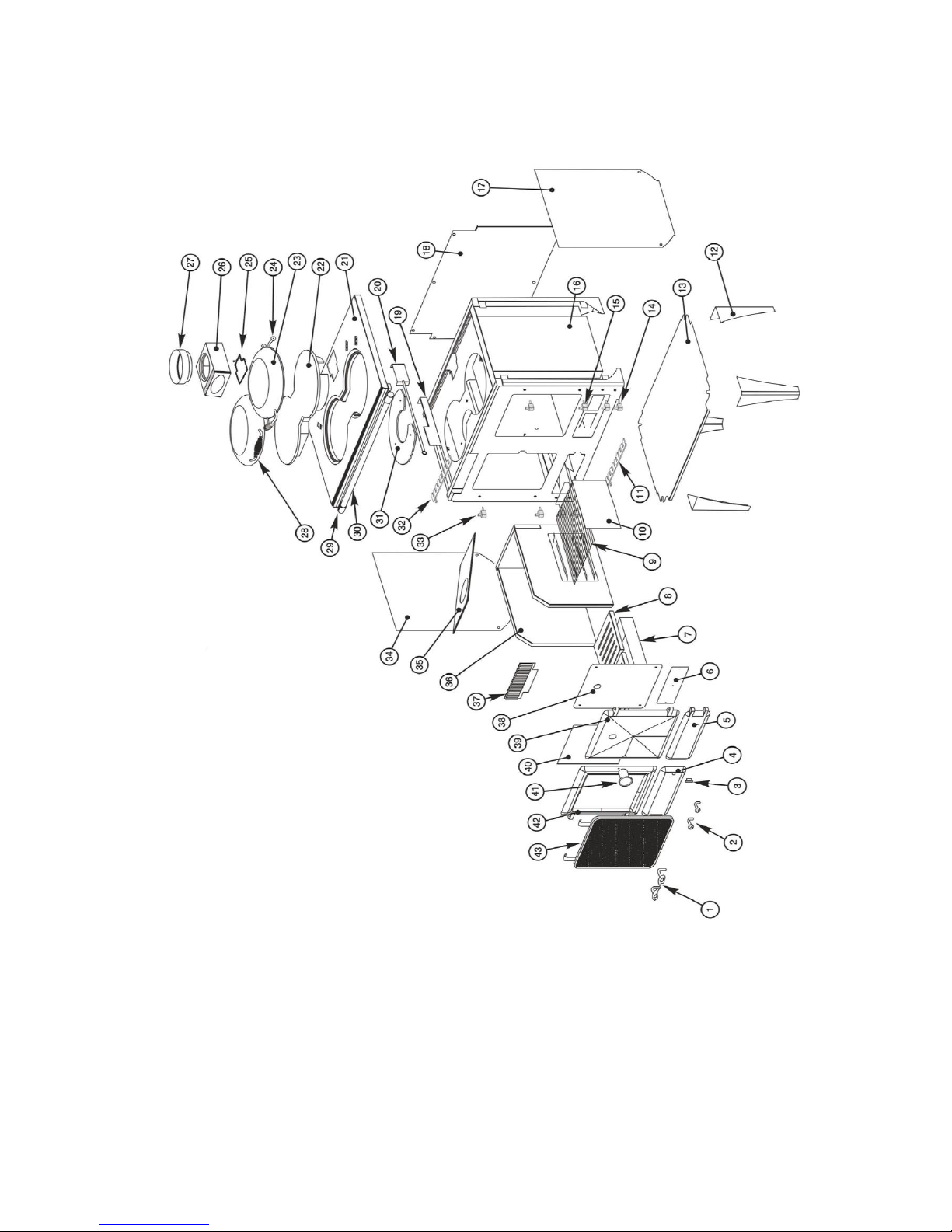

REPLACEMENT PARTS
1.
Upper Door Handles
EW-062
23.
Bolster Lid Assembly
WCKLIDSET-
002
2.
Lower Door Handles
ES-006
24.
Hinge Assembly
CENT-022
3.
Magnet Catch
EW-042
25.
Flue Damper
EW-048
4.
Ash Door
EW-005
26.
Cast Iron Flue Box
EW-036
5.
Flue Access Door
EW-009
27.
5" to 6" Flue Adaptor
VIA50CG
6.
Flue Access Plate
EW-013
28.
Bolster Lid Handle
2023-814X BO
CH
7.
Ash Pan
EW-014
29.
Towel Rail Bracket
LHTRB or
RHTRB
8.
Cast Iron Grates
WC BG1
30.
Towel Rail
CENT-090 BO
9.
Wire Shelf
EW-020
31.
Flue Heat Shield
EW-023
10.
Oven Shelf Support
LHTOSR or
RHTOSR
32.
Upper Air Slider
EW-022
11.
Lower Air Slider
EW-017
33.
Fire Door Hinge
ECS00572
12.
Legs
EW-033
34.
L/H Side Panel
EW-026R
13.
Bottom Heat Shield
EW-032
35.
Baffle Plate
FC-012
14.
Lower Door Hinge
EW-064
36.
Fire Brick Set
EW-100
15.
Oven Door Hinge
EW-064A
37.
Fuel Guard
FC FG
16.
Stove Body
EW-031A
38.
Oven Door Liner
EW-010
17.
R/H Side Panel
EW-026R
39.
Cast Oven Door
EW-040
18.
Rear Heat Shield
EW-034
40.
Glass Window
FC-045
19.
Flue Restrictor
Guide
EW-035
41.
Thermometer Dial
x812/C BO CH
20.
Flue Restrictor
FC-023Q
42.
Cast Fire Door
EW-004
21.
Cast Iron Top
EW-029 FA
43.
Fire Guard
EW-003F
22.
Hotplate
CENT-073 F
Page 37
Page 37
EW-I02-070319
Page 38
Page 38
EW-I02-070319
COMMISSIONING CHECKLIST
To assist with any potential guarantee claim please complete the following
information:-
To be completed by the installer.
Dealer the appliance was purchased from:
Name:
Address:
Telephone No:
ESSENTIAL information:
Date Installed
Model Description:
Serial No:
Installation Engineer:
Company Name:
Address:
Telephone No:
Commissioning Checks – to be completed and signed:
Has the use of the appliance,
operation and controls been
explained?
Yes No
Instruction book handed to the
customer?
Yes No
Signature:………………………………………………..
Print Name:…………………………………………………
Page 39
Page 39
EW-I02-070319
TECHNICAL INFORMATION
EW
EWB
Nominal Heat Output (kW)
9.7
10.5
Boiler Heat Output (kW)
--
2.6
Combustion Air Requirements (m3/h)
40
55
Air Vent Size (cm2)
30
50
Weight of Appliance (kg)
370
375
Minimum Chimney Draught (Pa)
12
12
Mean Flue Gas Temperature (oC)
250
255
Flue Gas Mass Flow (g/s)
18.5
13.7
Page 40
ESSE Engineering Limited, Ouzledale Foundry, Long Ing, Barnoldswick, Lancashire
BB18 6BJ
Tel. 01282 813 235, Fax: 01282 816 876
Website and On-line Store http://www.esse.com
Loading...
