Warming/Slow Cooking
Oven
Unpacking your New
Cooker
Please read these operating instructions carefully for full information on
the safe installation, use and care of your new Esse appliance.
This appliance must be correctly installed in accordance with these
instructions by a suitably qualified person.
We cannot accept responsibility for damage to persons or items due to
poor or incorrect installation of this appliance.
Make sure that the voltage and frequency of the supply correspond to
the details on the cooker data plate which is located on the inside of the
Lower compartment door.
Maintenance and servicing work must only be carried out after the
power supply has been disconnected by switching off at the socket and
removal of the plug or if the Plus-500 IT then switching off at the
isolation socket.
Due to our policy of continuous innovation, we reserve the right to
adjust or modify our product without prior notification.

Page 3
PLUS-500-I03-160617
Do not let children near the oven during use to avoid the danger of
burns or injury. Use of the appliance by the elderly or infirm should be
supervised.
The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching
heating elements. Children less than 8 years of age shall
be kept away unless continuously supervised.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be carried out by children without supervision.
Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire, NEVER try to
extinguish a fire with water, instead switch off the
appliance, cover the flame with a lid or use a fire
blanket.
Danger of fire: do not store items on cooking surfaces.
If the Induction zone glass is cracked or broken the
cooker MUST NOT BE CONNECTED and no part of it
may be used. Switch off and unplug the appliance
to avoid possibility of electric shock.
Metallic objects such as knives, forks, spoons and lids should not be placed on
the hob surface since they can get hot.
Do not use steam cleaners to clean any part of this appliance.
If any of the supply cords are damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard.

Page 4
PLUS-500-I03-160617
Induction Zone: After use, switch off the hob element by its control and do
not rely on the pan detector.
During cooking, food naturally produces steam, which is vented away to
prevent excessive build-up within the ovens. As steam can condense to
water droplets on the cooler outer trim of the oven, it may be necessary
during cooking to wipe away any moisture with a soft cloth. This will
also help to prevent soiling and discolouration of the oven exterior by
cooking vapours.

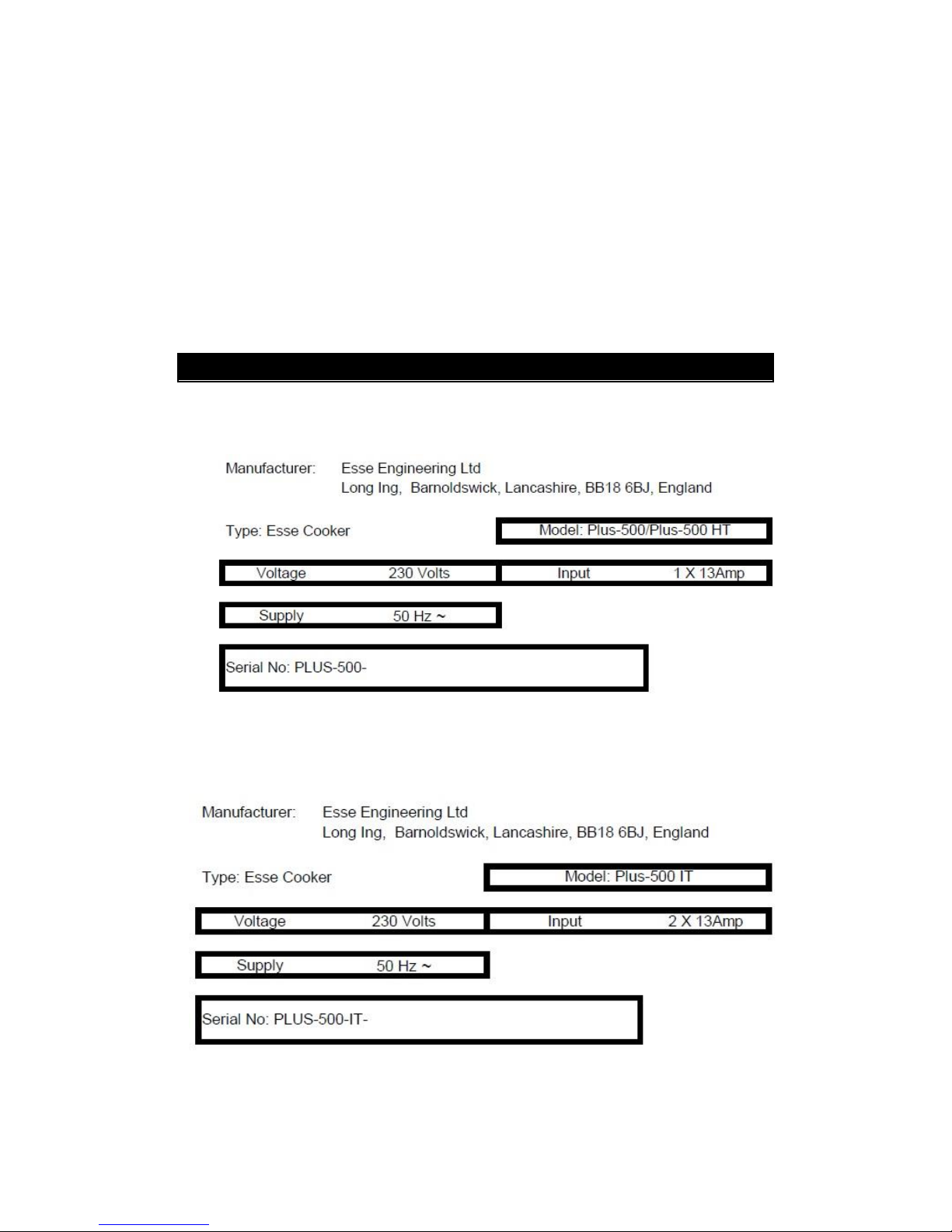

Fig.1a Plus-500 & Plus-500 HT cooker data plate
Fig.1a Plus-500 IT
The cooker data plate is located on the inner door panel of the lower
compartment door.

Page 5
PLUS-500-I03-160617
The Esse Plus-500 has a 400watt element which heats the Top and lower
warming/slow cooking compartments and it thermostatically controlled
to between 85°C and 90°C. There are 3 specification options with regard
to the Plus 500 top. An unheated anodised aluminium top (Plus-500), a
heated aluminium top (Plus-500 HT) which heats up to around 45°C and
a 3 zone induction hob (Plus-500 IT).

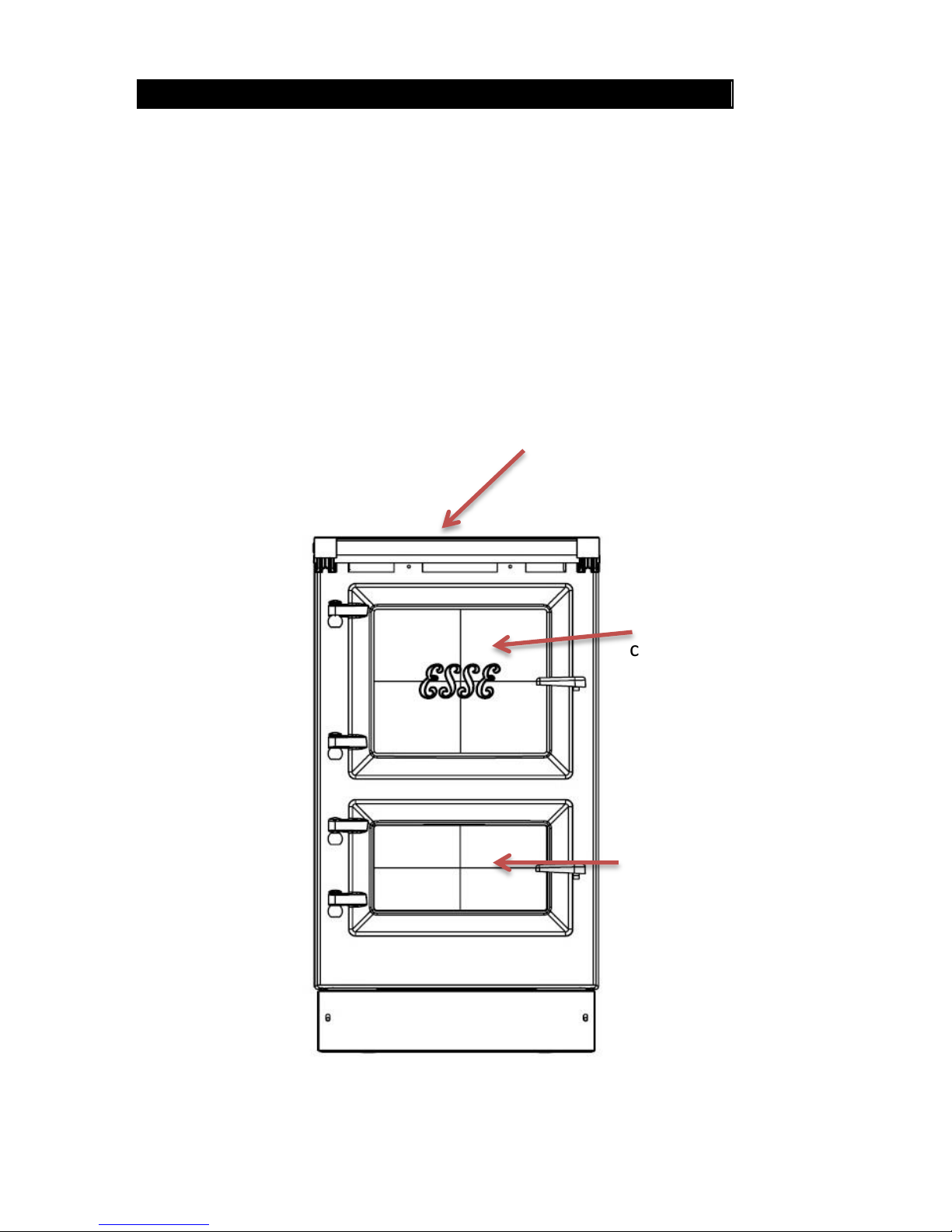

Fig.2 Plus 500
Top warming/slow
cooking compartment
Lower warming/slow
cooking compartment
Standard Aluminium top/
Heated Aluminium top/
3 zone induction top.

Page 6
PLUS-500-I03-160617
UNPACKAGING YOUR NEW COOKER.
Unpack your new Esse Cooker, removing all of the outer packing and
accessories from the top and bottom ovens, including protective film on
the door liners. At this time please examine the cooker for any damage
to the enamel finish and hob glass.
Any damage to the cooker or anything missing, please contact your
supplier for advice.
We ask that you dispose of any packaging in a safe, responsible manner
and recycle where possible.
You must be aware of the following safety requirements & regulations:
This appliance shall be installed in accordance with the regulations in
force.
Read the instructions before installing or using this appliance.
The cooker must be installed in accordance with: All relevant British
Standards / Codes of Practice and the relevant Building / IEE regulations
Location of the Oven
This appliance is designed for domestic cooking only. Use for any other
purpose could invalidate any warranty or liability claim.

Page 7
PLUS-500-I03-160617
For your own safety we recommend that a competent person installs
your cooker.
Connecting the Plus-500, Plus-500 HT & Plus-500 IT
The Plus-500, Plus-500 HT & Plus-500 IT cookers are designed to be
installed using a standard 13 Amp plugs. A qualified electrician is not
required.
Electrical connection
Ovens with a three-pole power supply cable are designed to operate
with alternated current at the supply frequency and voltage indicated on
the data plate (located on the inner door panel of the control
compartment).
Connecting the power supply cable to the mains:
The appliance is supplied fitted with a 1.5 metre cable and normalized
13 amp plug which correspond to the load indicated on the data plate.
Before making the connections check that: the circuit breakers or fuses
of the home system can support the appliance load (see data plate); the
power supply system has a sufficient earth connection which complies
with the provisions of current regulations and the law; there is easy
access to the socket. Do not use reducers or adapters as these could
cause heating or burning.
Connecting the Plus-500 IT
The appliance is supplied fitted with two 1.5 metre cables and
normalized 13 amp plugs which correspond to the load indicated on the
data plate. Before making the connections check that: the circuit
breakers or fuses of the home system can support the appliance load
(see data plate); the power supply system has a sufficient earth
connection which complies with the provisions of current regulations
and the law; there is easy access to the socket. Do not use reducers or
adapters as these could cause heating or burning.

Page 8
PLUS-500-I03-160617

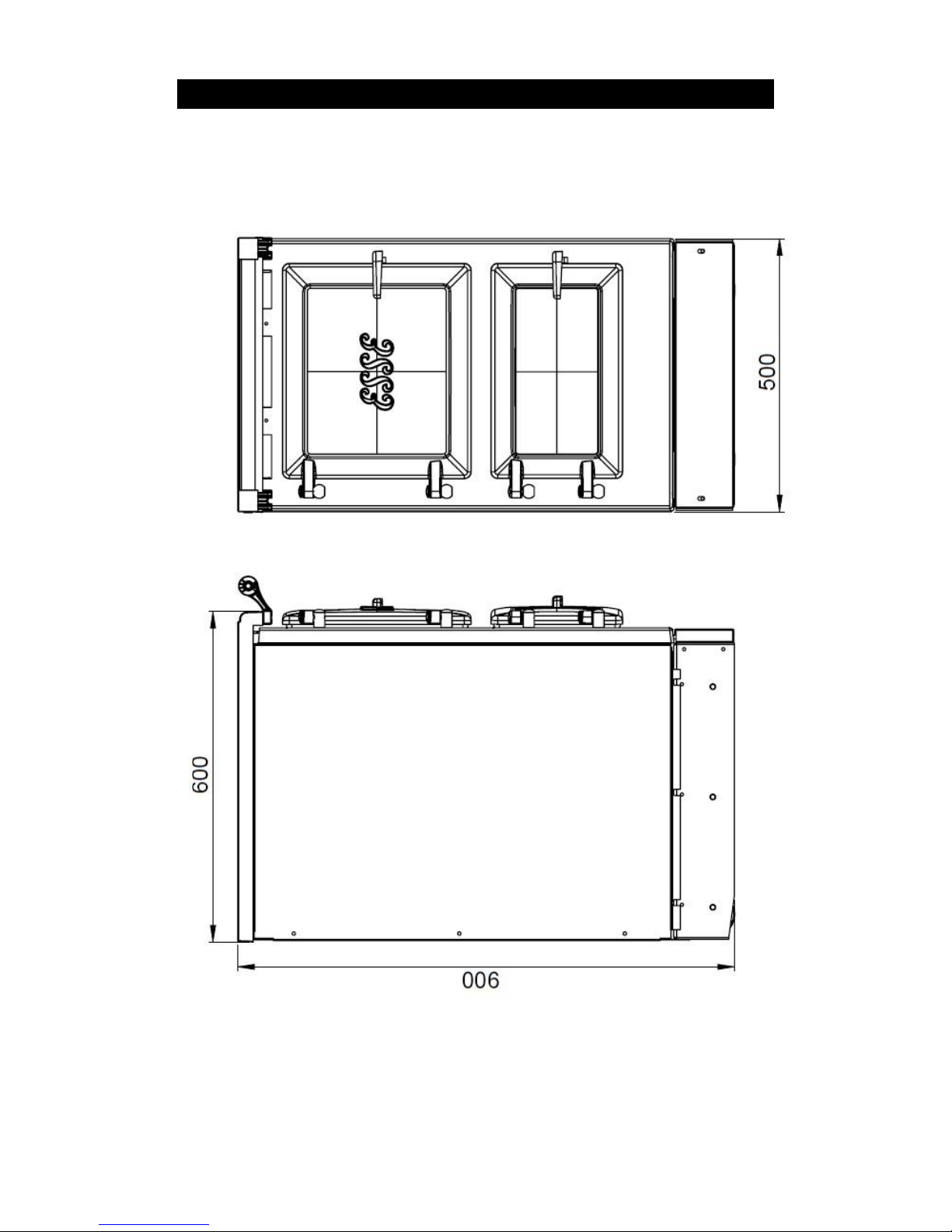

Fig. 3 Plus-500 Cooker Dimensions

Page 9
PLUS-500-I03-160617
The cooker is not to be grouted or sealed at the back or sides of the
worktop as if any maintenance is required the cooker will have to be
pulled away from the wall at the rear. This is to allow the cooker top to
be lifted.
The cooker weighs 99kg and so the floor must be capable of
withstanding the load.
Make sure the cooker is level, use packing pieces if necessary.
We ask that a 3mm gap is provided between the cooker top plate any
adjoining non-combustible work surfaces that may be fitted, this is to
allow for the safe removal of the top plate should this be required at a
later date. If the adjoining work surfaces are combustible, a 20mm gap is
required.
It is not recommended that any wall cupboards are fitted above the
cooker as steam may cause damage.
Before using your cooker remove plastic protective
covers from inner door panels; lift up lids and hinge
covers.

Page 10
PLUS-500-I03-160617
To assist with any potential guarantee claim please complete the following
information:-
To be completed by the installer.
Dealer the appliance was purchased from:
Commissioning Checks – to be completed and signed:
Has the use of the appliance, operation and controls
been explained?
Yes No
Instruction book handed to the customer?
Signature:………………………………………………..
Print Name:…………………………………………………

Page 11
PLUS-500-I03-160617

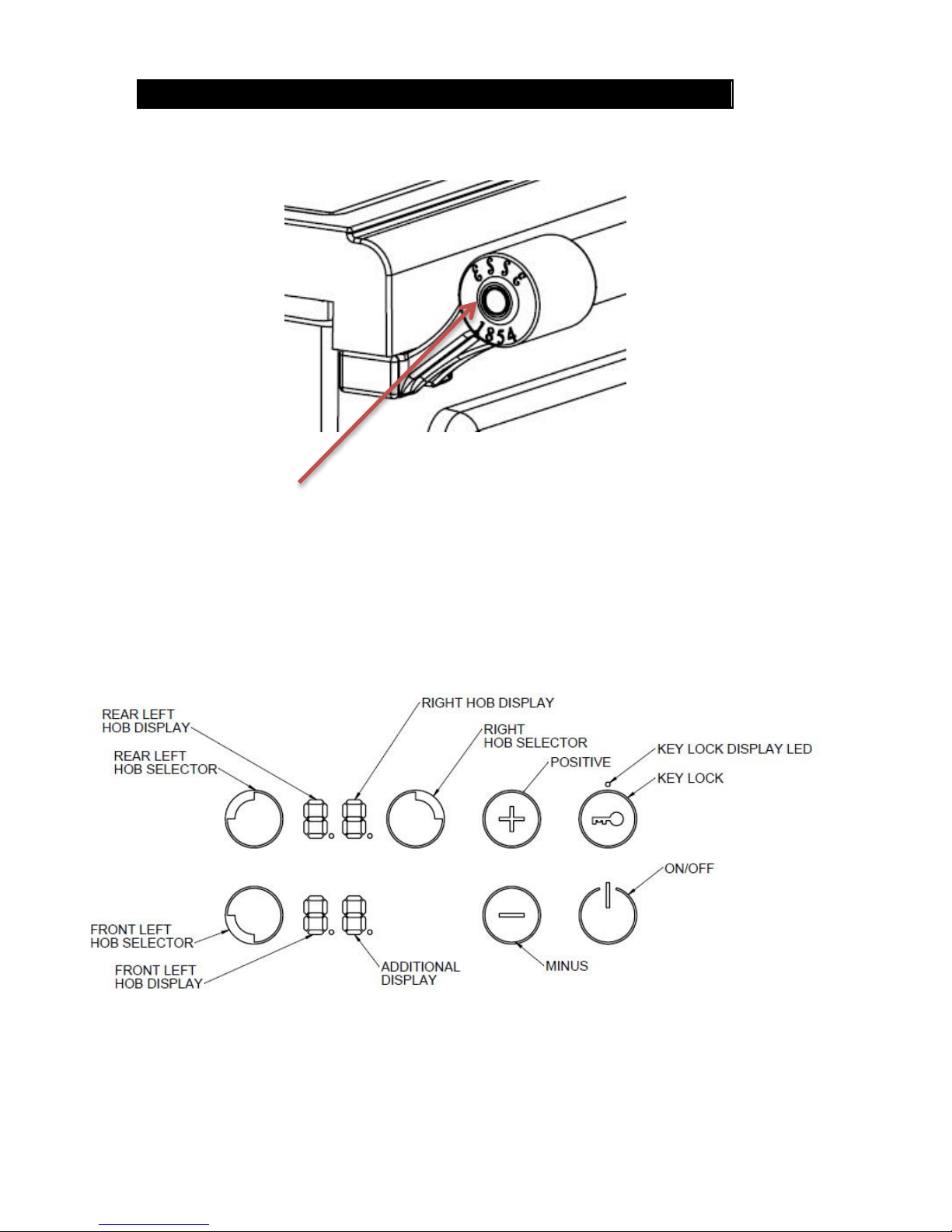

Fig.4: Plus-500 Warming/Slow Cook control.

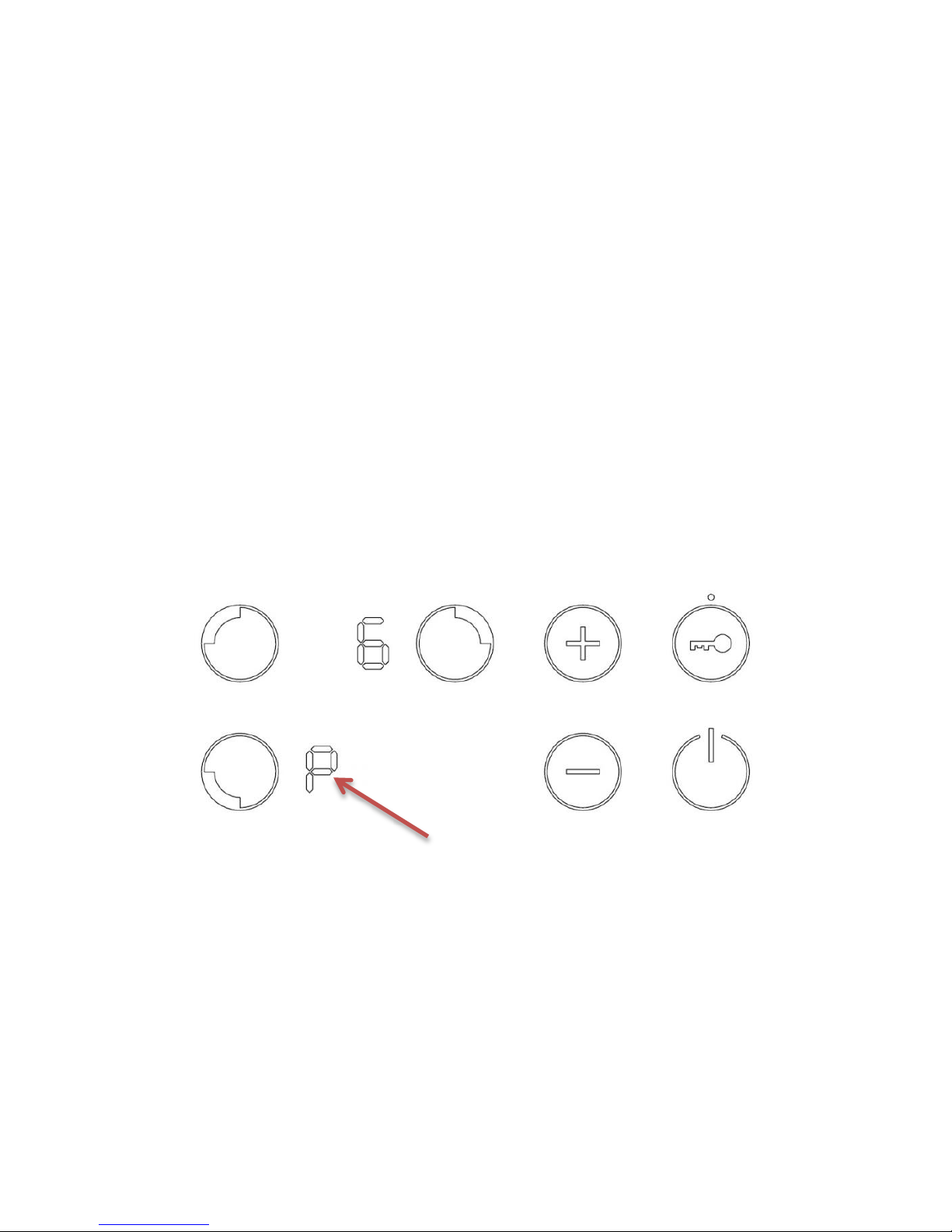

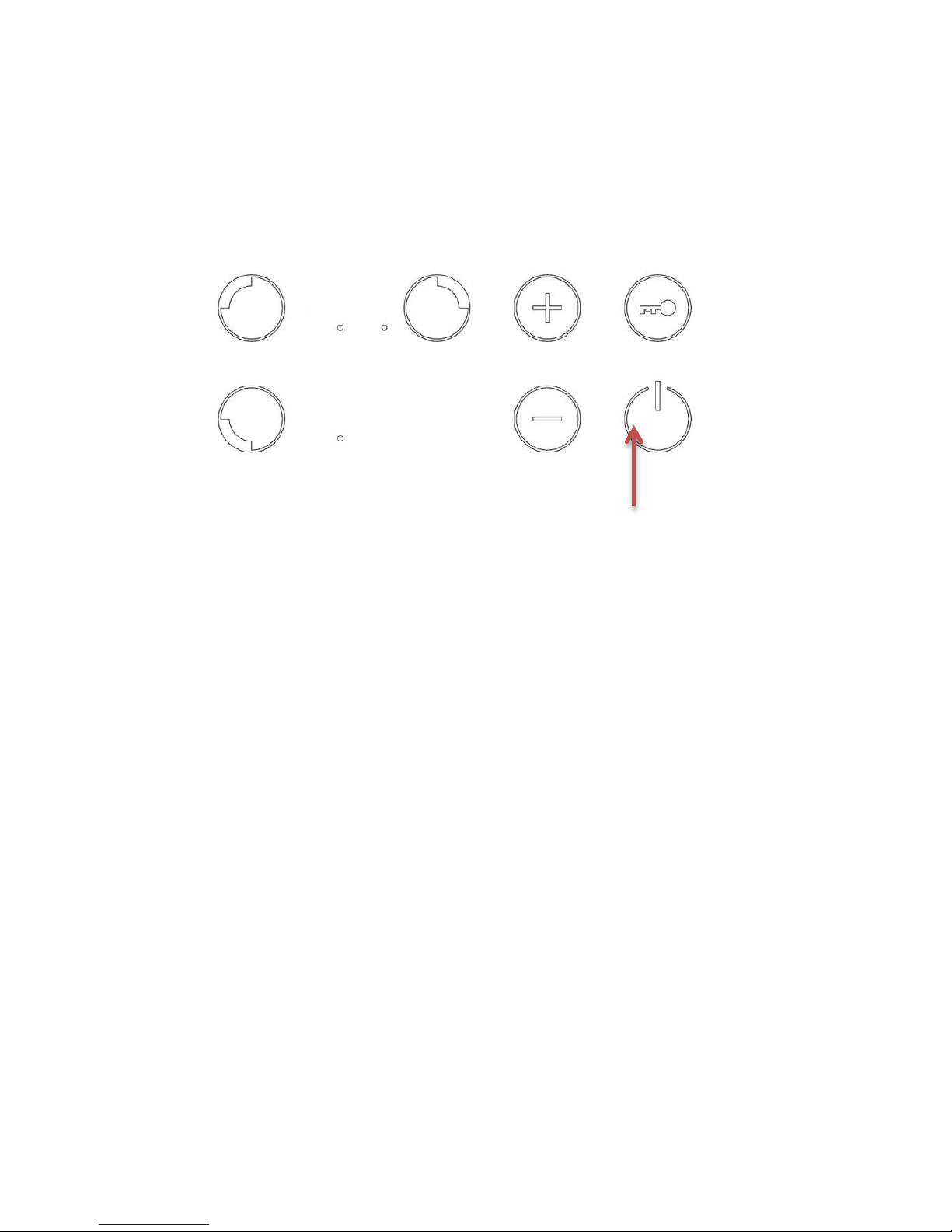

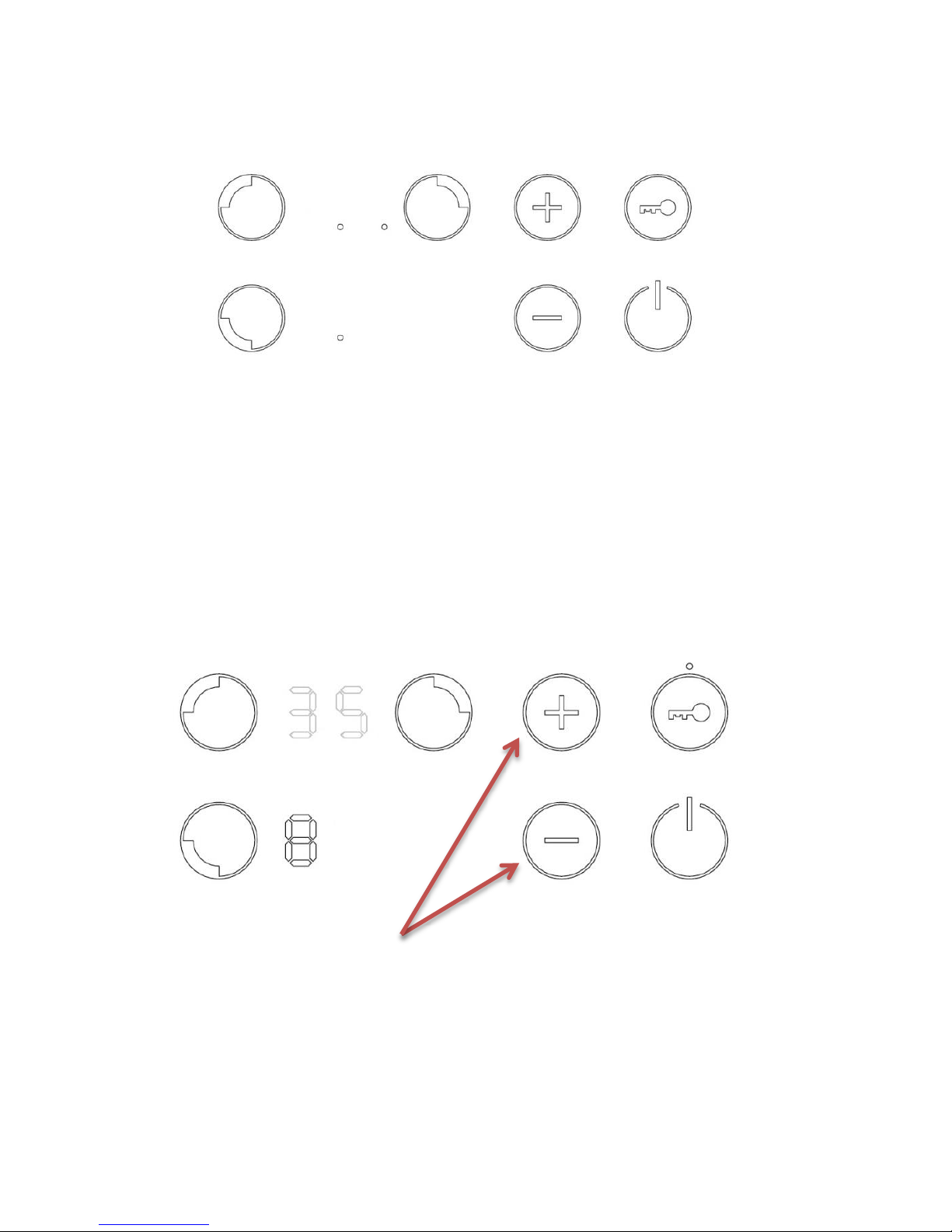

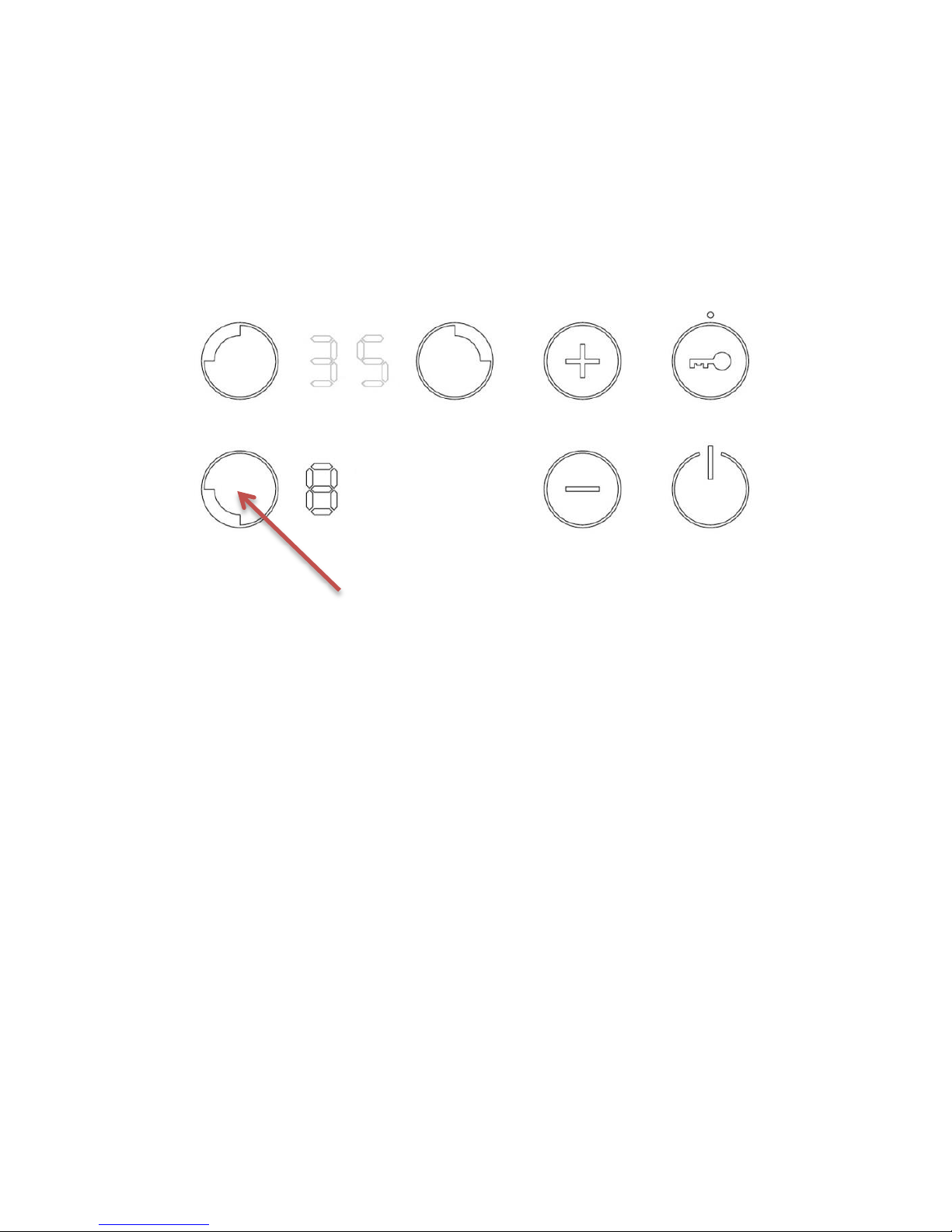

Fig.5: Plus-500 IT Induction User Interface (UI)
ON/OFF Switch
LED lights up RED
when on.

Page 12
PLUS-500-I03-160617
The oven works with a simple on/off switch with one element heating
both the top and bottom chamber.
When the Plus-500 HT (Hot Top) specification is selected, a 50 watt stick
on element is attached to the underside of the aluminium plate. This is
wired in to the Warming/Slow cooking element and is activated and deactivated at the same time as the oven element.
When fitting oven shelves, ensure that the shelf is orientated as shown
in fig 6. The oven shelf has two raise loops at the back that act as a stop
so as to prevent the shelf from accidentally tipping when partially
extended.

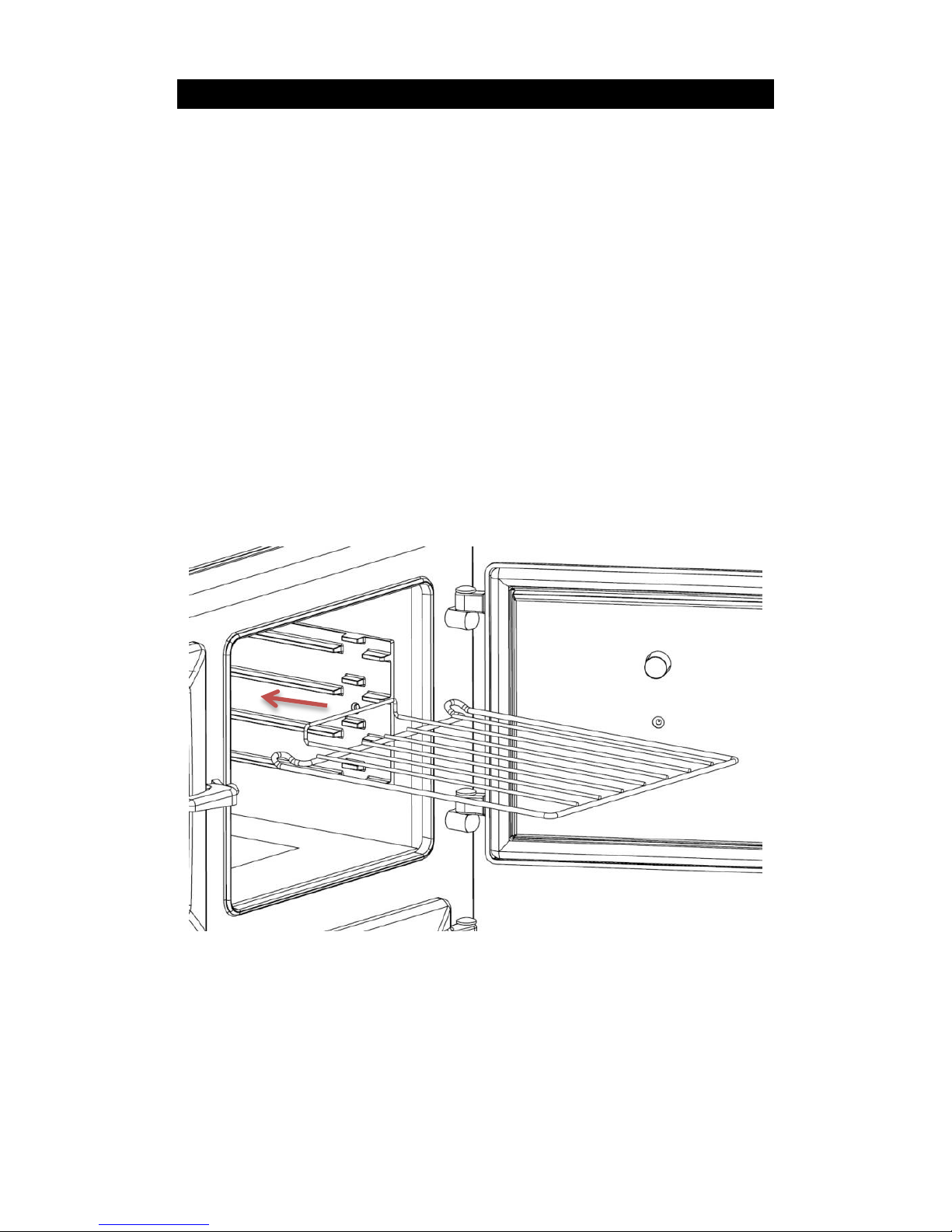

Fig 6: Fitting an oven shelf
The slow cook oven is intended for slow cooking items such as
casseroles, joints of meat, etc. Your slow cook oven is capable of cooking
a complete meal; for instance – casserole, rice pudding and jacket
potatoes – or just warming the dishes (use only heat resistant dishes).

Page 13
PLUS-500-I03-160617
Points to remember when slow-cooking:
• Preheat the oven before starting to cook.
• Do not allow dishes to touch the heating elements either side of the
oven.
• Bring casseroles, soups etc. to the boil on the hob before placing into a
suitable casserole dish for slow cooking.
• Make sure that casseroles have sufficient liquid, particularly when
cooking over a long period.
• Use lids on casseroles or foil to cover food whilst it is cooking to retain
moisture.
• Make sure all dishes will fit into the oven before preparing the food.
• Wrap washed and pricked jacket potatoes in foil before cooking.
• Make sure that meat and poultry reach a safe temperature before
eating.
• Always thaw frozen food completely before cooking.
Your slow cook oven is also useful for warming plates and serving dishes
(use only heat resistant dishes).
You can cook a fruitcake in the slow cook oven (if perhaps your other
ovens are in use).
You can also produce crisp, white meringues cooked in the slow cook
oven.
Timings for cooking in the slow cook oven will depend upon the quantity
and type of dish you are cooking.
Keep an eye on the food until you are familiar with the oven.

Page 14
PLUS-500-I03-160617
Induction cooking is a safe, efficient and economical cooking method. It
works by electromagnetic vibrations generating heat directly in the pan,
rather than traditional electric hob technologies that indirectly heat
though a glass surface or metal plate. As a result of the induction
technology, the glass surface only heats up due to heat transfer from the
pan.

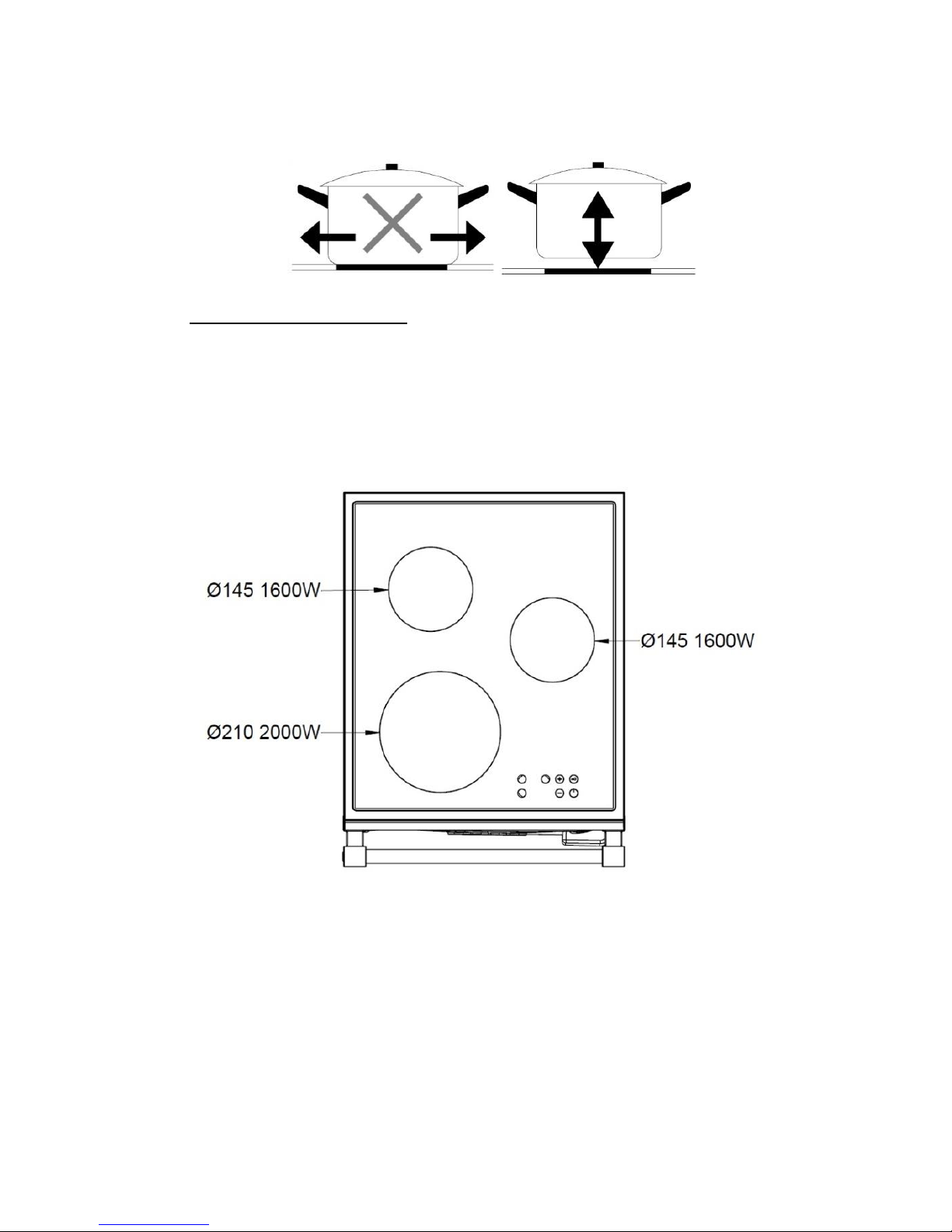

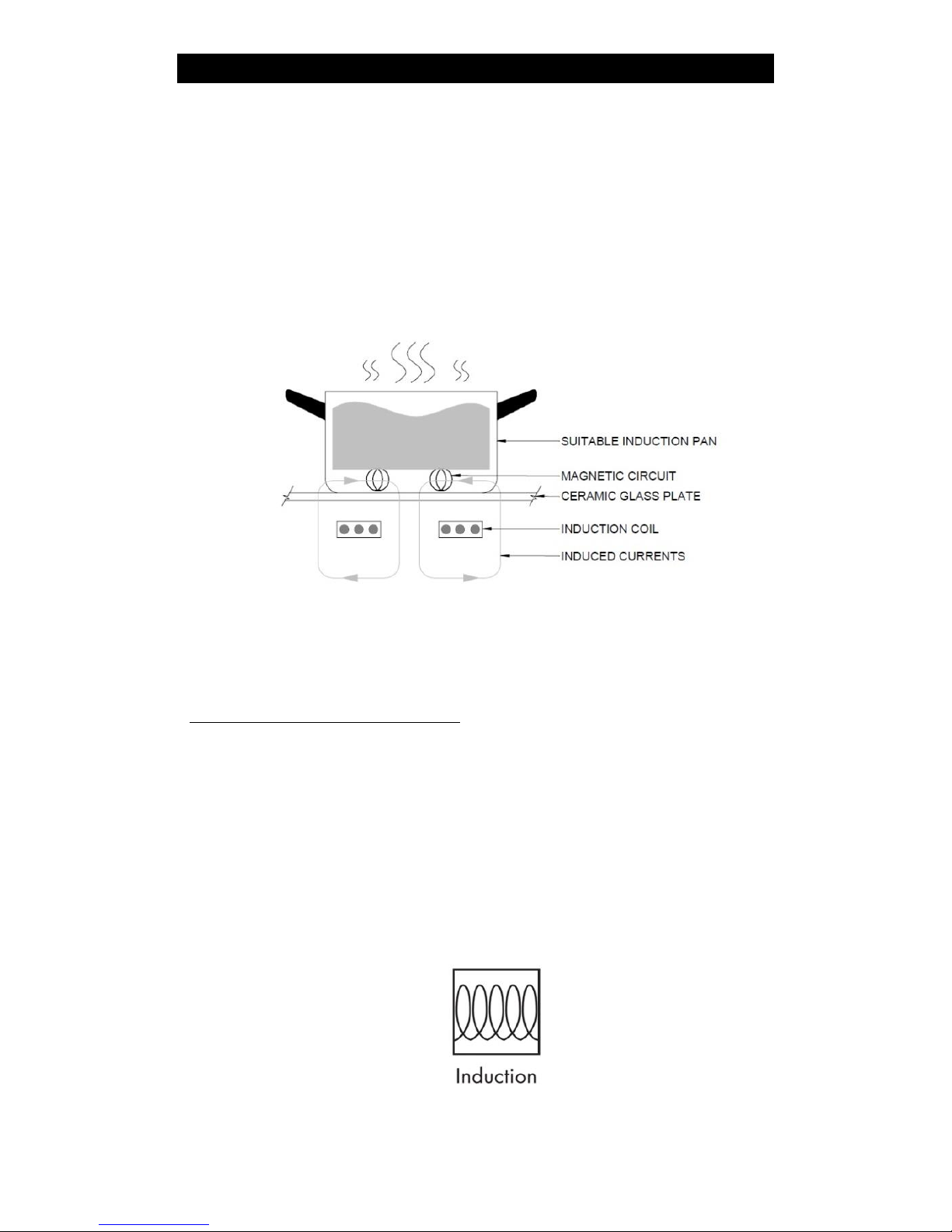

Fig 7 Induction Cooking
Before using the induction zone, read this guide, taking special note of
the ‘safety warnings’ section.
Choosing compatible Cookware

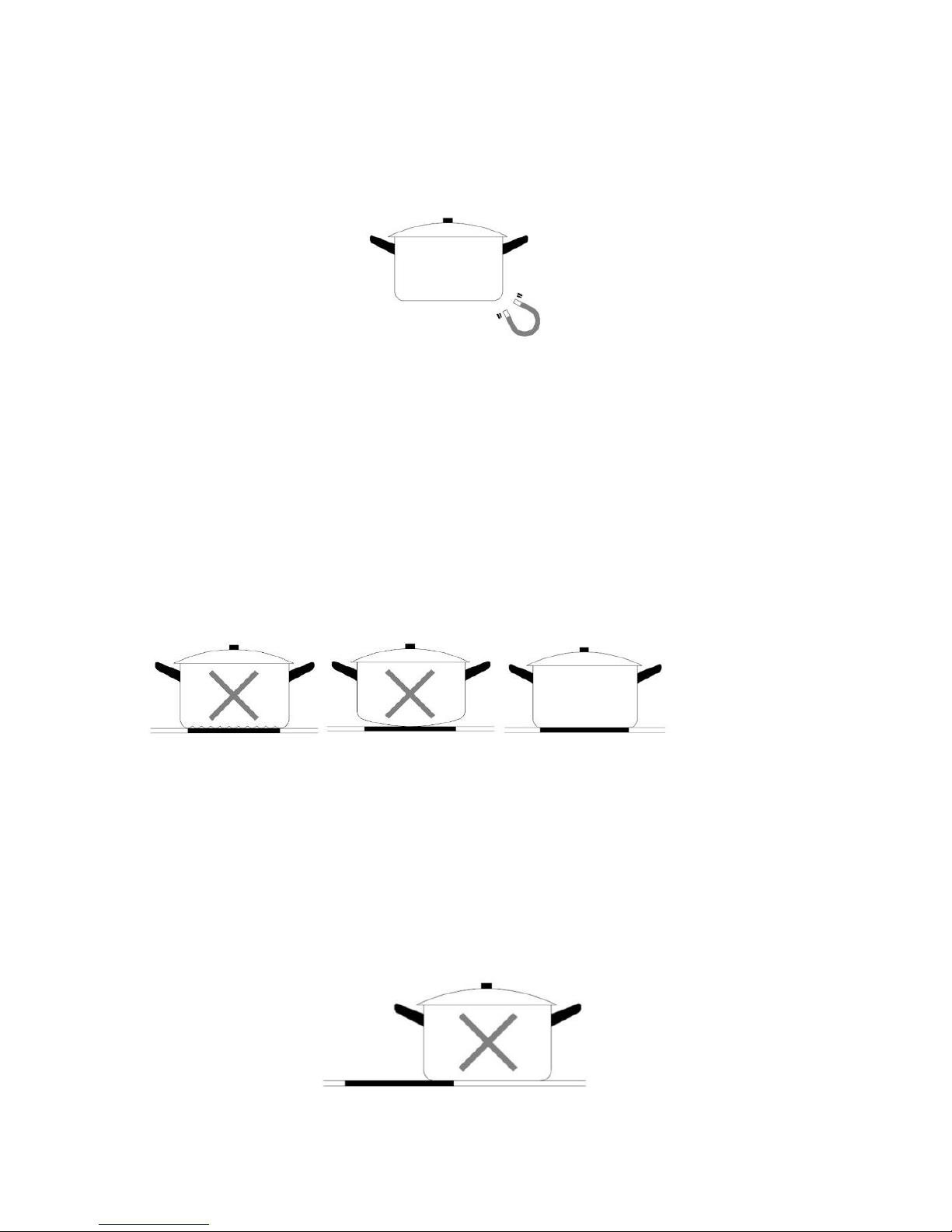

Induction hobs require cookware that is magnetic. New pans suitable
for induction cooking will be marked ‘Induction’ or with the symbol
shown in fig 8. These can be easily checked with a magnet.
Only use cookware with a base suitable for induction cooking. Look for
the induction symbol on the packaging or on the bottom of the pan, see
Fig. 8.

Page 15
PLUS-500-I03-160617
• Most homes will already have cast iron or stainless steel pans that will
be suitable. You can check whether your cookware is suitable by
carrying out a magnet test. Move a magnet towards the base of the pan.
If it is attracted, the pan is suitable for induction.
• Cookware made from the following materials is not suitable: pure
stainless steel, aluminium or copper without a magnetic base, glass,
wood, porcelain, ceramic, and earthenware. Some aluminium pans
available have a magnetic core inserted in the base which will make
them suitable. Esse do not recommend these pans as they have been
known to cause issues with induction hobs.
Pans should have a thick flat base. Do not use cookware with jagged
edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass,
and is the same size as the cooking zone. For the Ø210 ring Pots less
than Ø130 mm could be undetected by the hob and for the Ø145 rings
pots less than Ø90mm may be undetected.
You can use multiple pans on the induction zone, but one pan must
always be covering the centre of the glass.

Page 16
PLUS-500-I03-160617
Always lift pans off the induction hob – do not slide, or they may scratch
the glass.
Using your Induction Hob
The induction hob has 3 rings or burners. Two are Ø145mm with 1.6kW
elements and one Ø210mm ring or burner with a 2kW element.
Fig. 13

Page 17
PLUS-500-I03-160617

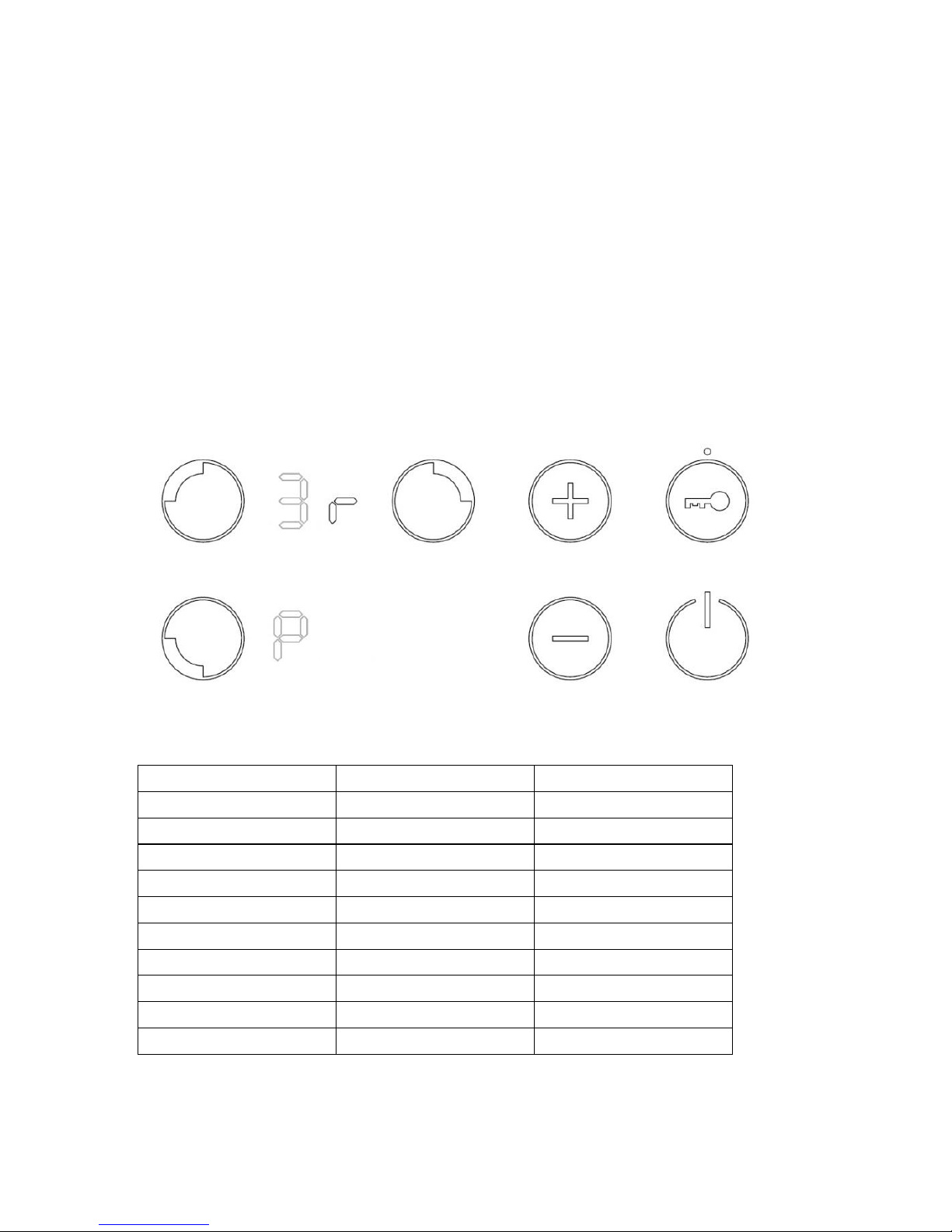

The induction is controlled via User Interface (UI) shown in Fig 5. The set
power level, any error codes and any selected functions are displayed on
the induction status display, shown Fig 5.
Each induction zone has 9 power settings, a timed full power
boost setting (P) and a timer function. The induction unit is set to work
on a 13 Amp plug and is limited to 2800w maximum. Each zone will still
work to its maximum power setting, including the power boost
functions. However each time the user tries to increase the power, the
total power level of the cooktop is calculated. If this total power level is
greater than the cooktop power limit, the power increase is not allowed.
An error beep sounds and the heater display shows an ‘r’ for 3 seconds.
Fig. 14

Page 18
PLUS-500-I03-160617
User interface initial calibration.
The User Interface has implemented an initial keyboard calibration
focused to adapt the sensibility of the keys, to the final mechanical,
environmental and user conditions. Any time the Cooktop is plugged in
or there is a power failure that generates a reset in the user interface,
the first time the Key Lock is touched the sensitivity of the keyboard is
readjusted. This first touch of the Key Lock must be done in certain
conditions: Do not use gloves, Use a clean finger.
Initial Light Conditions
When power is initially applied to the Cooktop, the touch control
conducts a calibration process for the touch keys, which requires a low
level of ambient light in the area of the touch keys.
If during this calibration process excessive ambient lighting is detected
the User Interface displays "FL" (Infrared Ambient Light Error) and the
control calibration process is suspended. In order to rectify the process
any lighting that could affect the calibration process should be switched
off (e.g. halogen cooker hood lighting). The error will disappear when
satisfactory ambient lighting is detected and the touch control
calibration procedure will now complete satisfactorily.
Notes:
1) The "FL" error can only be generated within approximately 3s of initial
power being applied to the cooktop.
2) We recommend that the user switches off all cooker hood lighting
and any lighting directed towards the cooktop when power is initially
applied to the cooktop.
3) After the touch control has conducted its initial calibration process,
(approximately 3s) any cooker hood or other lighting can be switched
on as normal and will not affect the operation of the touch control.

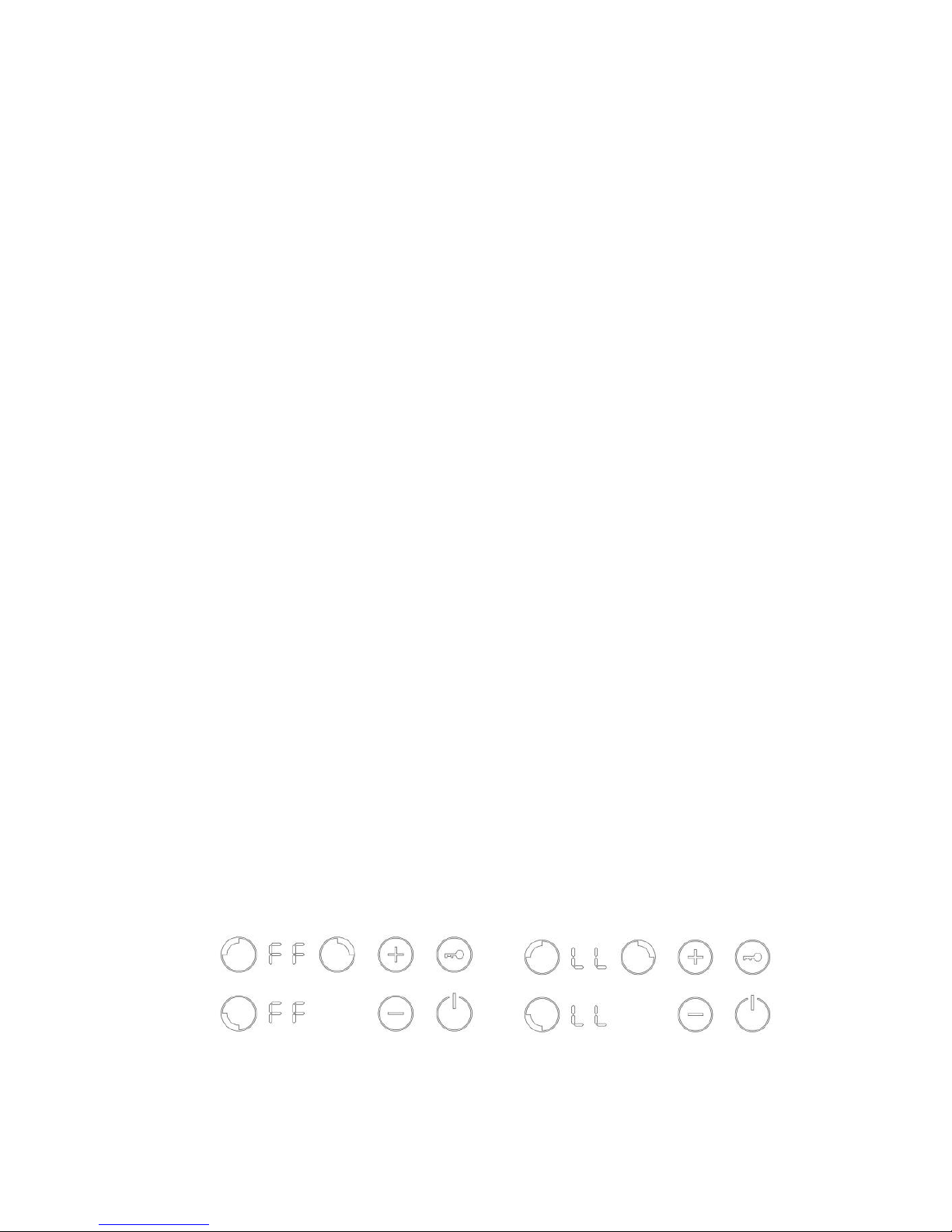

Fig. 15 Infrared Ambient Light Error

Page 19
PLUS-500-I03-160617
Switching On/Off the Cooktop
The cooktop is switched ON by touching the [ON/OFF] key for 1 sec. A
beep sounds and all the heater displays show the digit point.
Fig. 16
If the selection of a heater is not done in 10 seconds, the cooktop will be
turned off automatically.
The cooktop is switched OFF by touching the [ON/OFF] key for 1 sec. An
[OFF_SOUND] sounds and all the heaters are switched OFF. The purpose
of these [OFF_SOUND] is to distinguish the OFF action over all others.
When the cooktop is OFF, after 5 sec without any error/alarm to display
and without any message to indicate (residual heat), the control
switches off the (KEYLOCK LED) in order to reduce as much as possible
the power consumption. As soon as we touch a key, the (KEYLOCK LED)
goes ON and we can continue to operate us normal unlocking the
keyboard if necessary and touching the [ON/OFF] key to switch ON the
cooktop. The (ON/OFF) key will be locked to switch ON the cooktop if
the key lock is activated (KEYLOCK LED on) or if there is any appliance
error.

Page 20
PLUS-500-I03-160617
Switching On a Heater
To switch on a heater it is necessary to actuate the desired cooking zone
or zones. Once the KEY LOCK is disabled and the hob turned ON, this is
done by means of selecting the heater and then selecting the required
power level.
Fig. 17
A heater is selected by touching the heater [HEATER_SELECTION] key for
500 milliseconds, a beep sounds and the heater display shows the power
level with normal brightness.
If more than one heat is already operating, then the heaters that are not
selected are dimmed.
If more than one heater is on, the heater selection will finish 10 second
after the last touch of the [-], [+] key or if another heater is selected. If
only one heater is on, the heater selection will finish if another heater is
selected.
When the heater selection is finished after 10 seconds, a beep sound
and all the heater displays that were dimed show the power levels with
normal brightness.
When the heater selection finishes, if the selected level is 0, the heater
display will be switched off

Page 21
PLUS-500-I03-160617
When the heater selection finishes, if all the heaters are off, all the
heater displays will show the digit point, waiting a heater selection.
Fig. 18
Selecting a power level for a heater
Once the heater is selected, the power level can be selected by touching
the – or + keys. In each increase/ decrease a beep sounds and the
corresponding display shows the new power level. If the finger is held
down on the key, the action is repeated twice every second. The + key
raises the cooking level to 9, whereas the - key reduces the cooking level
to 0.
Fig. 19
With the heater at power level 0, the - key raises the cooking level to 9.
With the heater at power level 9, the + key raises the cooking level to
Booster level a beep sounds and the heater display shows “P”

Page 22
PLUS-500-I03-160617
With the heater at Booster level, if the + key is Touched an error beep
sounds and the cooking level doesn’t change.
With the heater at Booster level, if the - key is Touched a beep sounds
and the cook level is reduced to 9.
Fast Boil (Booster) Function
After a heater has been selected, touch the + key until level 9. To select
the Fast Boil function touch the + key again. A beep sounds and the
heater display shows “P” (see selecting a power level for a heater)
The heater will work at maximum power level for 10 minutes. After these
10 minutes a beep sounds and the heater will return to level “9”.
All rings or burners can be set on Power Boost at the same time.
Fig. 20
Switching Off a Heater
Once the heater is selected, the heater can be switched off by touching
the - and + keys simultaneously. A beep sounds and the corresponding
display shows “0”.

Page 23
PLUS-500-I03-160617
Fig. 21

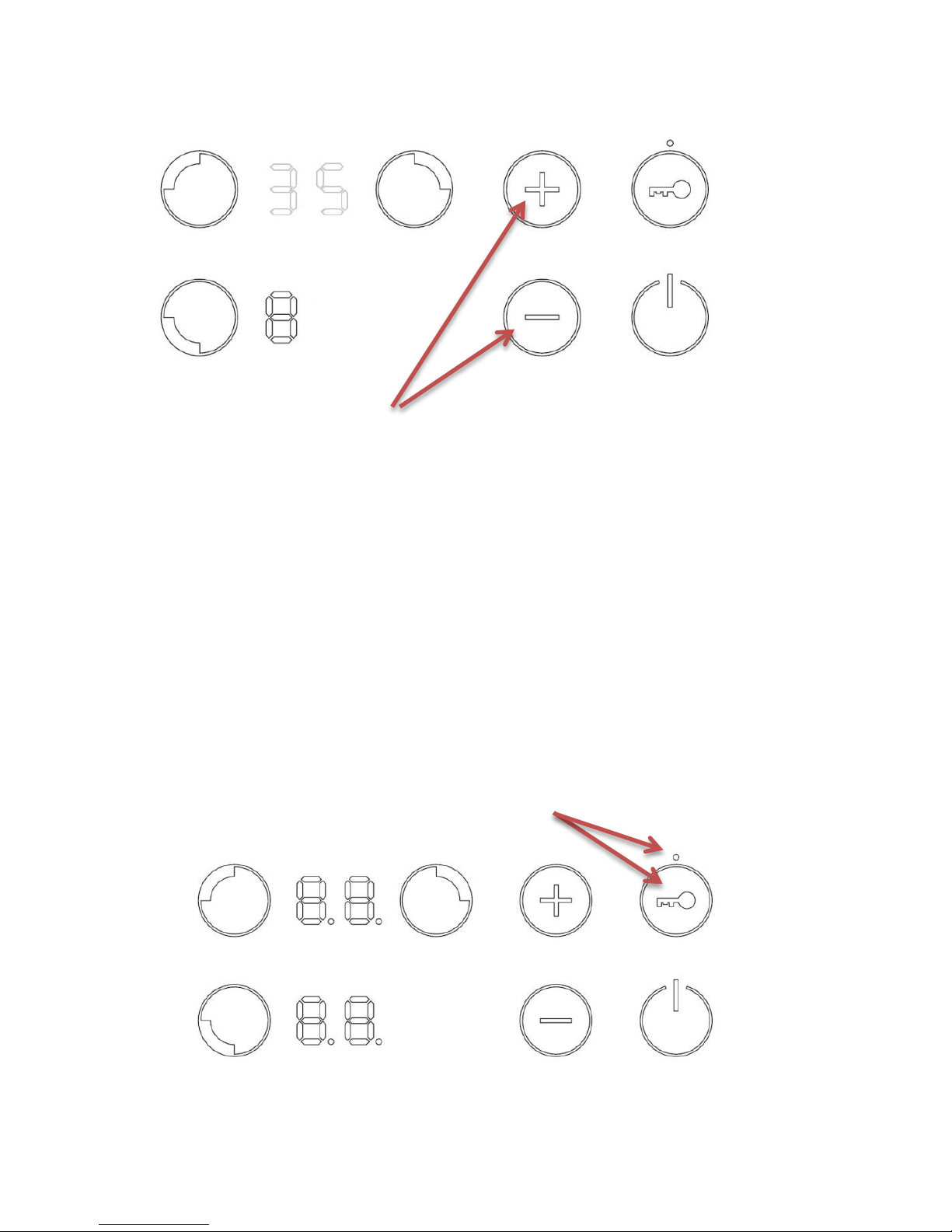

Key Lock
Touching the KEYLOCK key for 1 second, the key lock function is
activated and deactivated. If the LED associated to the key lock key is on,
the keyboard is locked.
The locking function can be activated when the heaters are on or when
the cook top is off. If the cook top is on, the key lock function locks all
the keys except the general ON/OFF key and the KEYLOCK.
When the cook top is OFF and the key lock function activated, all the
keys, including the ON/OFF key are locked.
The key-lock is always activated at initial power up of the control.
Fig. 22

Page 24
PLUS-500-I03-160617
Automatic Safety Shut Off
If the power level is not changed during a pre-set time, the
corresponding heater turns off automatically. The maximum time a
heater can stay on, depends on the selected cooking level
10 3 10 4 10 5 10 6 10 7 10 8 10
Operating the timer
The timer value can be selected between 1 and 99 minutes. It is possible
for the user to time all the heaters at the same time at any power level
(1...P).
To activate a timer for any heater, first of all this heater must be
selected (touch the HEATER SELECTION key). Then, using + or - keys a
power level must be decided (for example power level 2).
Timer option is not operational if power level value is ‘0’.
When required power level is selected, touching again HEATER
SELECTION key, a beep sounds and a letter T with a dot point appears on
the heater display. The remaining time will be displayed in the opposite
part of timed heater. If timed heater is in the down part, timed time will
appear in up displays and vice-verse.

Page 25
PLUS-500-I03-160617

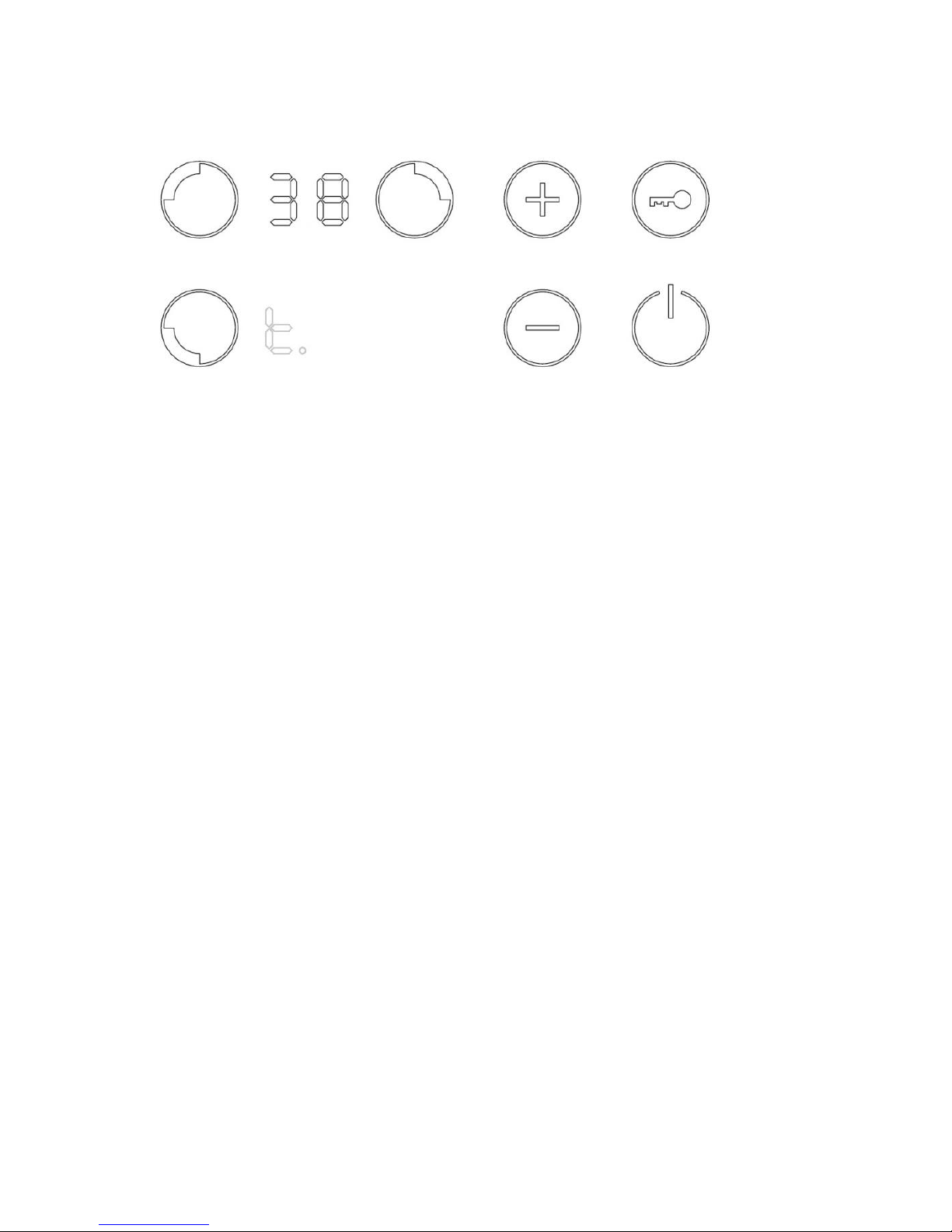

Fig. 23
When the timer is waiting a time selection, the timer value can be
selected between 0 and 99 minutes touching the + or - keys. The
remaining time will be displayed in the opposite part of timed heater.
If the + or - key is touched continuously the change speed is increased
automatically. This makes it possible to reach the desired time setting
more quickly.
If a time is not selected before 10 seconds, or if the selected time is 0
after 10 seconds of the last touch of the + or the - key, the timer is
switched off.
Starting Timer Countdown
The countdown starts when the timer visualization is finished touching
any HEATER_SELECTION key or automatically 10 seconds after the last
touch of the + or - keys. A beep sounds and the heater display will show
the power level and the dot point showing that the heater is timed.
Timer Countdown End
When the remaining time has run out, the timed heater is switched off,
the heater display shows a 0 blinking and the timer alarm beeps for one
minute.
The alarm will be cancelled by pressing any key of the touch control.

Page 26
PLUS-500-I03-160617
Altering the Timer
To change the time for a timed heater it is a repeat of the setting
process.

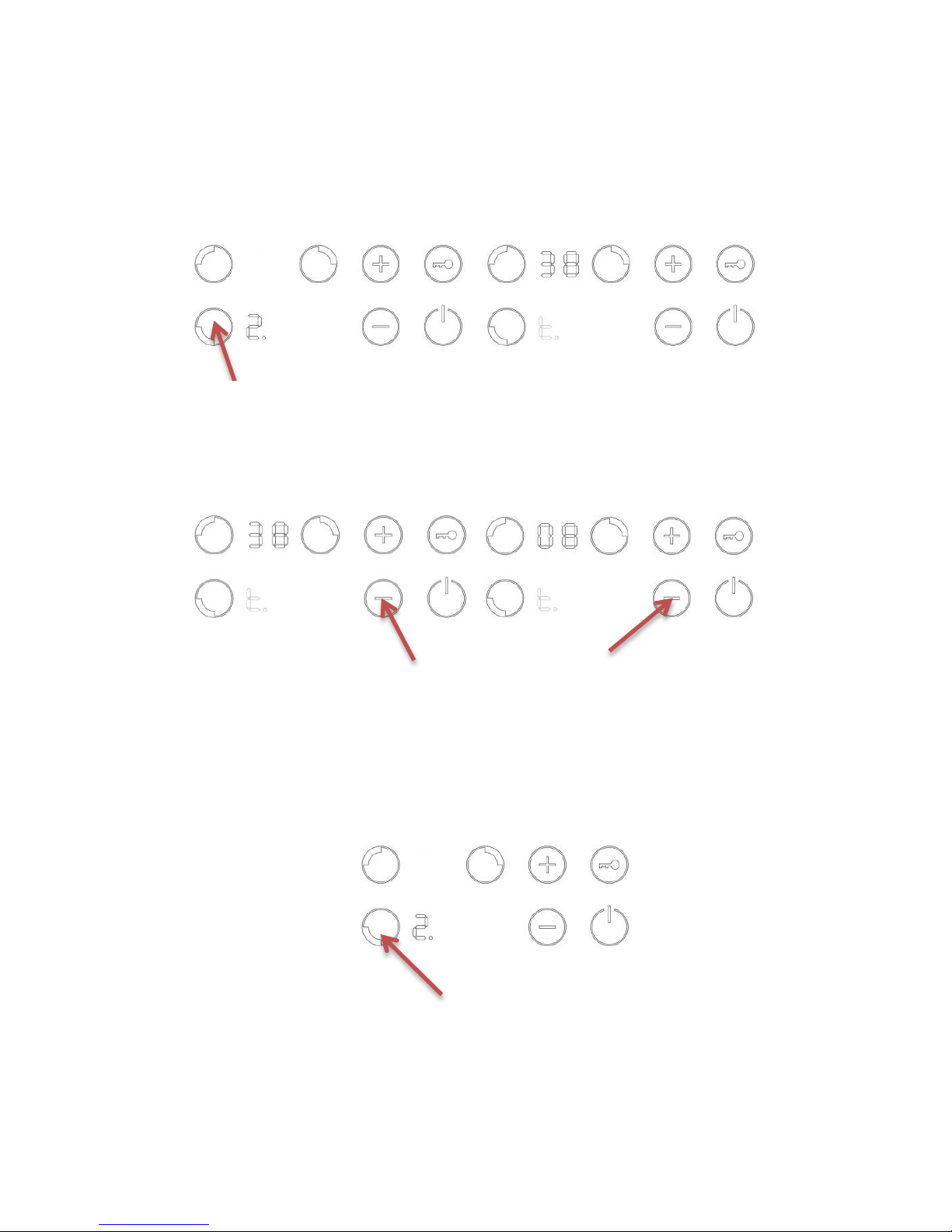

Fig. 24 Select the timed heater to see the remaining time
Fig. 24 Change the time if desired
Fig 25.Accept the time

Page 27
PLUS-500-I03-160617

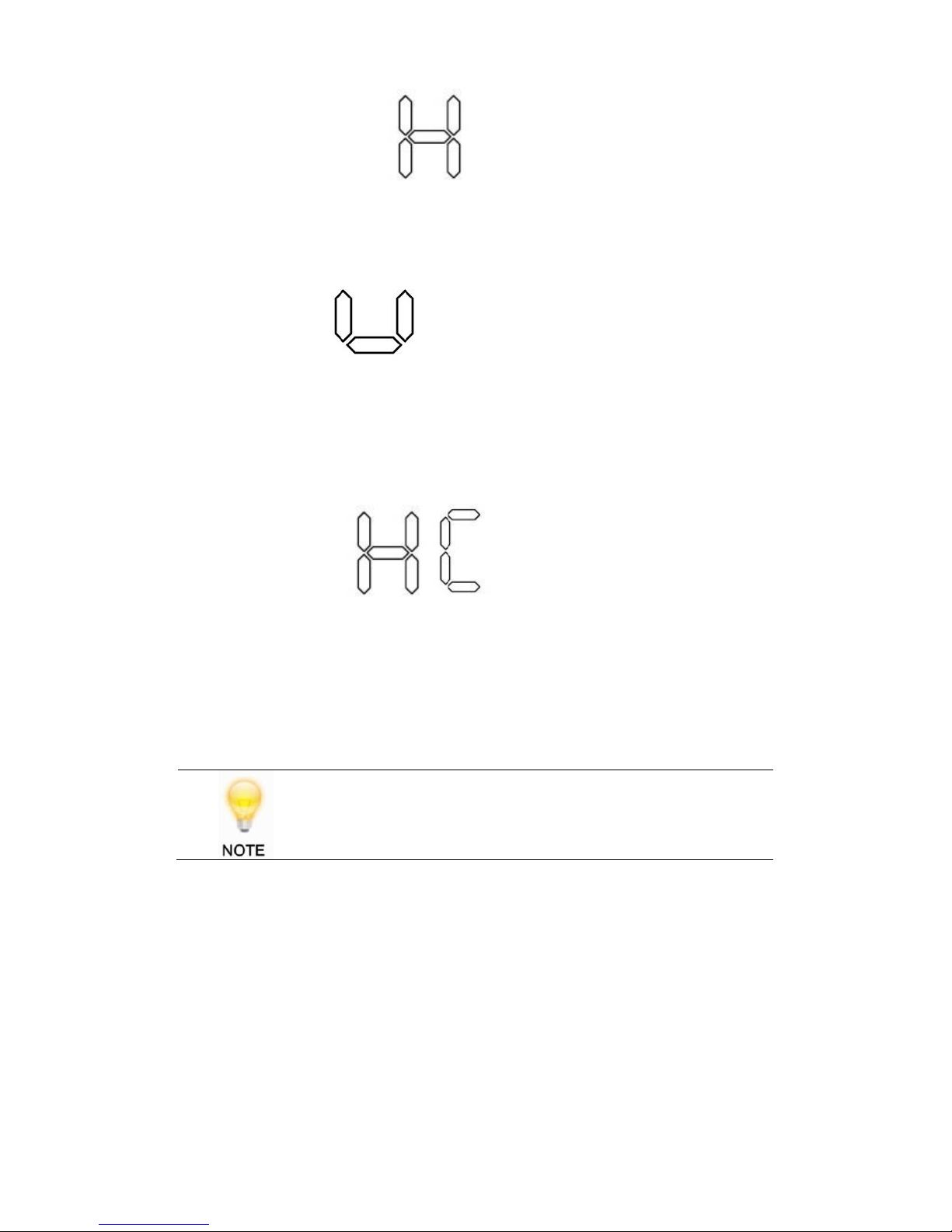

Residual Heat Display:
After turning off the induction unit, the residual heat on the cooking
element is displayed as an H.
Pot Detection:
If cookware is not detected, the ‘suspended pot’ is shown on the
Induction status display. If no cookware is recognised, the induction
zone will switch off automatically after 10 minutes.
Over Temperature:
If the induction coil or heatsink goes over temperature a letter H and
C will be displayed until the unit has reached a pre-set safe
temperature.
The minimum pan size for the induction zone is
Ø90mm for the Ø145mm coil and Ø130mm for the
210mm Coil.

Page 28
PLUS-500-I03-160617
Delicate warming for small amounts of food
Melting chocolate, butter and foods that
burn quickly.
Gentle simmering
Slow warming.
Reheating
Rapid simmering
Cooking rice
Sautéing
Cooking pasta
Stir-frying
Searing
Bring soup to the boil
Boiling water
Errors/Alarms:
When an error is detected, the whole appliance or the heaters are
switched off, a beep sounds (only if one or more heaters are active)
and all displays show an ‘F’ letter and the error code alternately.
While in error status the keys of the corresponding heaters are not
operative.
Except EEPROM and microcontroller errors, all errors are recoverable.
That is, when the cause of the error disappears all displays are
deactivated and the cooktop returns to normal operation.

Page 31
PLUS-500-I03-160617
INDUCTION SAFETY POINTS:
If the Induction zone glass is cracked or broken the cooker
MUST NOT BE CONNECTED and no part of it may be used.
Switch off and unplug the appliance to avoid possibility of
electric shock.
Do not place or leave any magnetisable objects (e.g. credit
cards, memory cards) or electronic devices (e.g. computers,
MP3players) near the appliance, as they may be affected by its
electromagnetic field.
Never use the appliance as a work or storage surface.
CARING FOR YOUR ESSE COOKER.
Your Esse cooker is very easy to keep clean.
Splashes and spills on the vitreous enamel should be wiped away as
soon as possible, using a damp soft cloth. Micro-fibre cloths are
especially good for this. Never use a cold wet cloth on any enamelled
surfaces as the thermal shock can cause crazing.
If spills have become baked on to the enamel, use soap filled pad, not
too coarse, so as to avoid scratching enamel. DO NOT use oven
cleaners.
Likewise the inner door panels can be cleaned with a cream cleanser or
for more stubborn marks, a soap filled pad. The linings will show marks
and discolour with use, but with regular cleaning will maintain its look
for longer.
The handrail can be cleaned with a damp soapy cloth, followed by a wet
cloth, finishing by polishing with a clean dry cloth.
The enamelled surfaces can be cleaned with glass cleaner to help get a
good streak free shine. Any spillage of milk or fruit juices on to the
enamelled surfaces must be wiped up straight away, as the acidity may
stain the front.

Page 32
PLUS-500-I03-160617
Some components such as the side panels are powder coated (painted)
and nothing abrasive should be used on them. Use a soap filled pad
instead.
If the cooker is finished in the ‘Matte Black’ painted finish, additional
care must be taken not to use any chemicals or abrasive cleaners. Use a
light brush or lint free cloth instead.
If the cooker is not going to be used for an extended period of time, we
advise that the cooker be cleaned thoroughly and the doors left slightly
ajar.
During the life of your cooker it may be necessary to adjust the door
handles and change the door ropes. The door handles can be adjusted
using the adjustment screw on the lift up latch part of the handle. A
video on how to adjust the door handle is on the Esse TV section of
www.esse.com. Replacement door ropes can also be purchased form
www.esse.com
An extractor may be used with this appliance. See your local Esse dealer
or www.esse.com for details.

Page 33
PLUS-500-I03-160617
Your ESSE is guaranteed against defects arising from faulty manufacture
for 2 years when supplied by an ESSE Specialist.
Upon registration of the warranty, ESSE will extend the guarantee period
to 5 years from purchase. Your details must be registered with us by
either returning the completed warranty card or by completing
registration on-line at www.esse.com.
The appliance must be only used for normal domestic purposes and in
accordance with our instructions, be correctly installed and serviced.
The guarantee does not cover:
Installation
Wear and tear
Parts deemed to be replaceable or service parts replaced in the normal
usage of the appliance.
Enamel damage caused by impact, spillage, water ingress or condensate
attack from flue or by using unsuitable fuels.
This guarantee is personal to the original purchaser and not
transferable.
Any stove or defective part replaced shall become the Company’s
property
INTERMITTENT USE OF YOUR COOKER
In the event of intermittent use and prolonged shutdown, it should be
noted that in some circumstances enamel may be displaced due to
ingress of damp. Whilst this is rare, it is most likely to occur in situations
where the unused cooker remains in an unheated property. There is a
layer (known as the ground coat) between the vitreous enamel surface
and the cast iron. Ground coat is porous and if exposed (e.g. after a chip
in the vitreous enamel coat), may allow damp to penetrate behind the

Page 34
PLUS-500-I03-160617
vitreous enamel and spread through the ground coat. Surface
oxidisation of the cast iron may thereafter occur, causing the vitreous
enamel to fall off. Such damage will not be covered by your warranty.
We recommend that a light coating of petroleum jelly be applied to any
damaged areas when the cooker is not in use to help keep out the damp,
in addition to following the ‘caring for your Esse cooker’ instructions on
page31.
CUSTOMER CARE
In the event you should require spare parts, please order through your
ESSE dealer or by contacting Esse via telephone (01282 813235) or our
website, www.esse.com.
Should you have cause for dissatisfaction with your cooker, you should
contact your ESSE dealer, who will, in most instances, be able to offer
you immediate assistance. You will be required to give the following
details.
Your name, address and postcode.
Your telephone/contact details.
Clear and concise details of the fault.
Model and serial number of the cooker (found on the inside panel of
the bottom right hand oven door).
Purchase date (please note that a valid purchase receipt or
guarantee documentation is required for in-guarantee service calls).
We will then check that we have an accurately completed warranty card,
if not then any work carried out may be charged.
We will assess the nature of the complaint and either send replacement
parts for your dealer to fit, send an engineer to inspect & report, or send
an engineer to repair. If the fault is not actually due to faulty
workmanship but some other cause such as misuse or failure to install
correctly, a charge will be made to cover the cost of the visit and any
new parts required, even during the warranty period. Home visits are
made between 08.30-1700 hrs Monday to Friday, and are arranged for
either a morning or afternoon appointment.

Page 36
PLUS-500-I03-160617
ESSE Engineering Limited, Ouzledale Foundry, Long Ing, Barnoldswick, Lancashire
BB18 6BJ
Tel. 01282 813 235, Fax: 01282 816 876
Website and On-line Store http://www.esse.com
