Page 1
INSTALLATION & COMMISSIONING INSTRUCTIONS
MODEL: CAT - Enabled
GAS FIRED COOKERS
THIS APPLIANCE MUST BE COMMISSIONED BY A GAS SAFE REGISTERED ENGINEER
THE WARRANTY CARD MUST BE RETURNED TO ENSURE GUARANTEE VALIDITY
Page 2
HEALTH & SAFETY AT WORK ACT 1974
(AND AMENDMENTS)
The installer has a responsibility under this Act, to provide for the
safety of person(s) carrying out the installation.
Attention is drawn to the following:
1) The appliance is heavy and requires care in handling.
Lifting off the pallet and positioning may be carried out
using the Lifting Jack* available from ESSE dealers.
There may also be sharp edges on certain components.
2) Fire cement is caustic and hands must be washed
thoroughly after use.
Although this appliance does not contain asbestos products,
it is
possible that asbestos may be disturbed in existing
installations and every precaution must be taken.
*Patent applied for.
IMPORTANT:
This cooker must be installed in accordance with regulations
in
force and only used in a well ventilated space. Read
these
instructions before installing or using.
GAS CATEGORIES:
Natural Gas Models - 2nd Family - I
2
H
Propane Gas Models - 3rd Family - I3P
COUNTRY OF DESTINATION:
GB AND IE
2
Page 3
TABLE OF CONTENTS
General Information

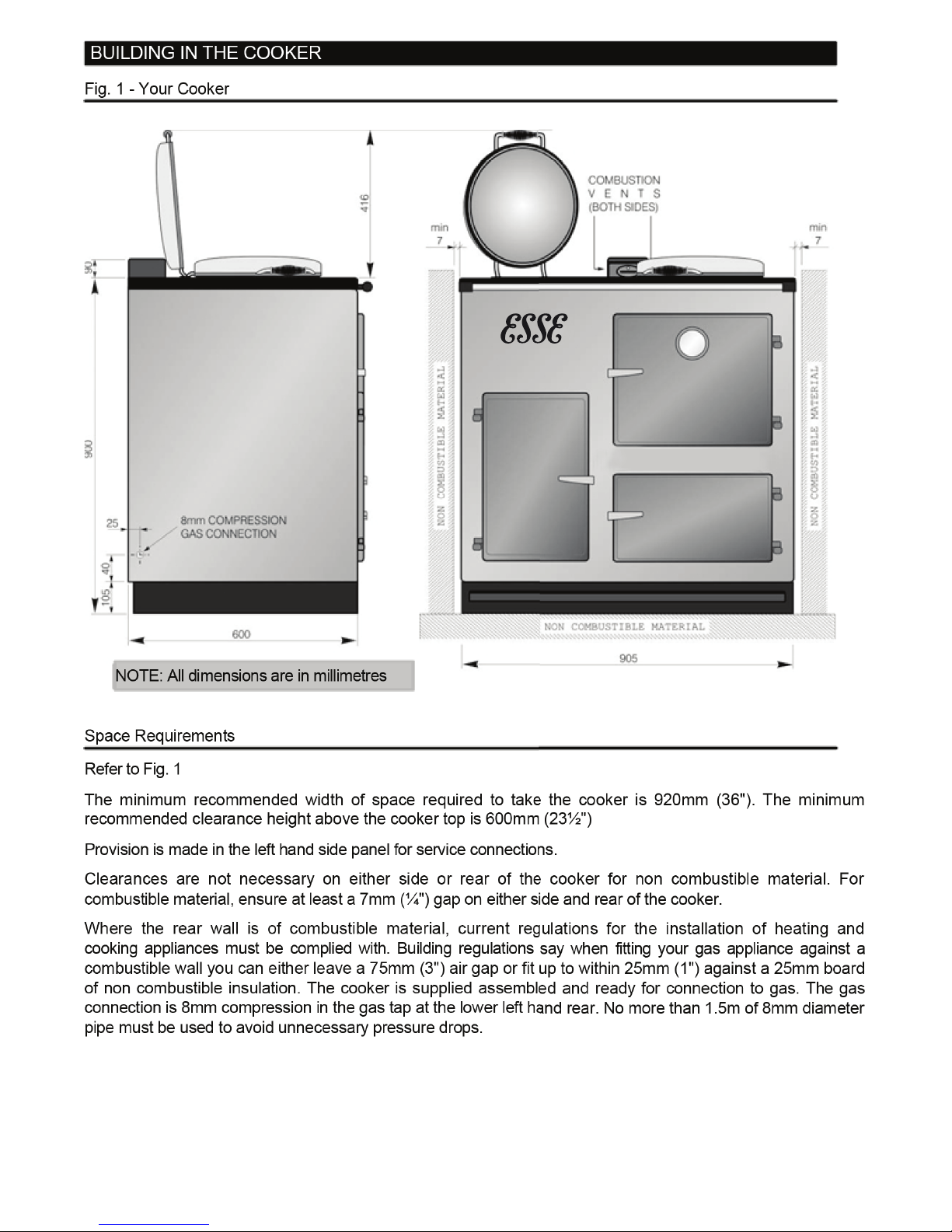

Building in the Cooker
Gas Control System
Oven Control
Commissioning
GENERAL INFORMATION
Page 3 Maintenance and Servicing Page 8
Page 4 Fault Finding Chart Page 12
Page 5 Commissioning Record Page 12
Page 5 Service Record Page 13
Page 7 Replacement Parts Page 16
The installation of the cooker, the chimney, hearth and walls adjacent to the cooker must be in conformity
with local or national regulations currently in force. In the United Kingdom, the appropriate sections of the
Building Regulations must be conformed to. The cooker weighs 300kg (662lbs) approx. The floor must
be solid, level, and constructed in accordance with any Building Regulations which apply to the particular
site. The cooker is supplied fitted for either or LPG or Natural Gas, and the fuel type is marked on a data
label fixed to the inside of the burner chamber door. The cooker must not be installed in a bedroom,
bathroom or any sleeping area. Additionally, a LPG cooker must not be installed in high rise flats or
basements. Check the data plate specifications correspond to the available gas supply before starting
installation.
Kitchen/Room Volume
The kitchen or room size in which the cooker is installed must be at least 15m
3
(530ft
3
). This volume may
include adjacent spaces but these spaces must not be separated.
Ventilation
As this appliance has no flue and is intended to be fitted into a kitchen, Building Regulations require an
openable window (to outside).
An extractor hood directly over the cooker may be fitted.
Gas Service
Check that the gas meter and service pipe are both of adequate size to meet the requirements of the
cooker and any other appliances that may be fitted on the system.
3
Page 4
4
Page 5
Procedure for Assembly
Unpack the cooker completely and check all loose parts against the checklist provided. Inspect for any
transit or other damage. For ease of movement, the three doors can be removed and stored carefully to
avoid damage. Move the cooker into its final position and make gas and electrical connections as
necessary. Place the fluebox loosely on the hob.
Replace the three doors, the shelves and roasting tin. Check the hotplate is level. Check that the hotplate
covers lift easily and stay in the upright position when raised.
Remove the plastic protection from the hotplate covers and from the inside of the oven doors.
GAS CONTROL SYSTEM
Gas enters at the left hand side of the cooker via the 8mm compression connection. A square head
service cock is provided. It is ON when the inscribed line is in line with gas flow. Appliances are
despatched from the factory with the cock in the ON position and must remain in that position unless it is
required to turn it OFF for servicing etc. (Figs. 4, 5, 6, & 7).
It is not recommended that the gas control is turned below setting 1 or 2 to pilot only as
condensation is likely to occur from a cold start.
OVEN CONTROL
This is a multi-functional control incorporating a thermo-electric flame failure valve, rotary tap and
thermostatic control. The thermostat (100°C - 300°C / 212°F - 572°F) terminates in a phial clamped to the
inside of the oven. This control is connected to the oven burner.
A 7-day electronic timer is fitted as standard.
A by-pass valve is also fitted for use in event of electrical power not being available.
The burner has a pilot, thermocouple and igniter.
Electricity Supply
The appliance requires a main electrical supply of 230 volts AC 50hz. This supply must be earthed and
provided with a 3 amp fuse. One cable is supplied which is live to the electronic timer (Fig. 3).
5
Page 6
Technical Information
GAS NATURAL GAS NATURAL GAS NATURAL GAS PROPANE
(G20) (G25) (G20 & G25) (G31)
Category I
2
HI
2
LI
2
E & I2E+ I3P
Heat Input Max (Gross) 5.6kW 5.6kW 5.6kW 5.1kW
Heat Input Min (Gross) 1.25kW 1.2kW 1.25kW 1.1kW
Supply Pressure 20mbar 25mbar 20mbar 37mbar
Burner Pressure High 18.2mbar ± 0.2mbar 23.8mbar ± 0.5mbar 18.2mbar ± 0.2mbar 36.7mbar ± 0.5mbar
Burner Pressure Low* 1.2mbar ± 0.2mbar 1.3mbar ± 0.5mbar 1.2mbar ±0.2mbar 2.0mbar ± 0.2mbar
Injector Size (Burner) BRAY 82/360 BRAY 82/380 BRAY 82/360 BRAY 92/160
By Pass Injector BRAY 960/70 BRAY 960/70 BRAY 960/70 BRAY 960/16
(Solenoid)
Oxypilot P441 P412D P412D P451
Gas Connection 8mm compression or 8mm compression or 8mm compression or 8mm compression or
¼" BSP ¼" BSP ¼" BSP ¼" BSP
Gas Consumption 0.53m
3
/h 0.62m3/h 0.53m3/h 0.2m3/h
(High)
Countries AT, CH, CZ, DK, NL BE, DE, FR, LU BE, CH, CZ, ES, FR,
ES, FI, GB, IT, LT, GB, GR, IE, PL, PT
LV, NO, PL, PT, SE,
* With the manual/timer valve in manual position

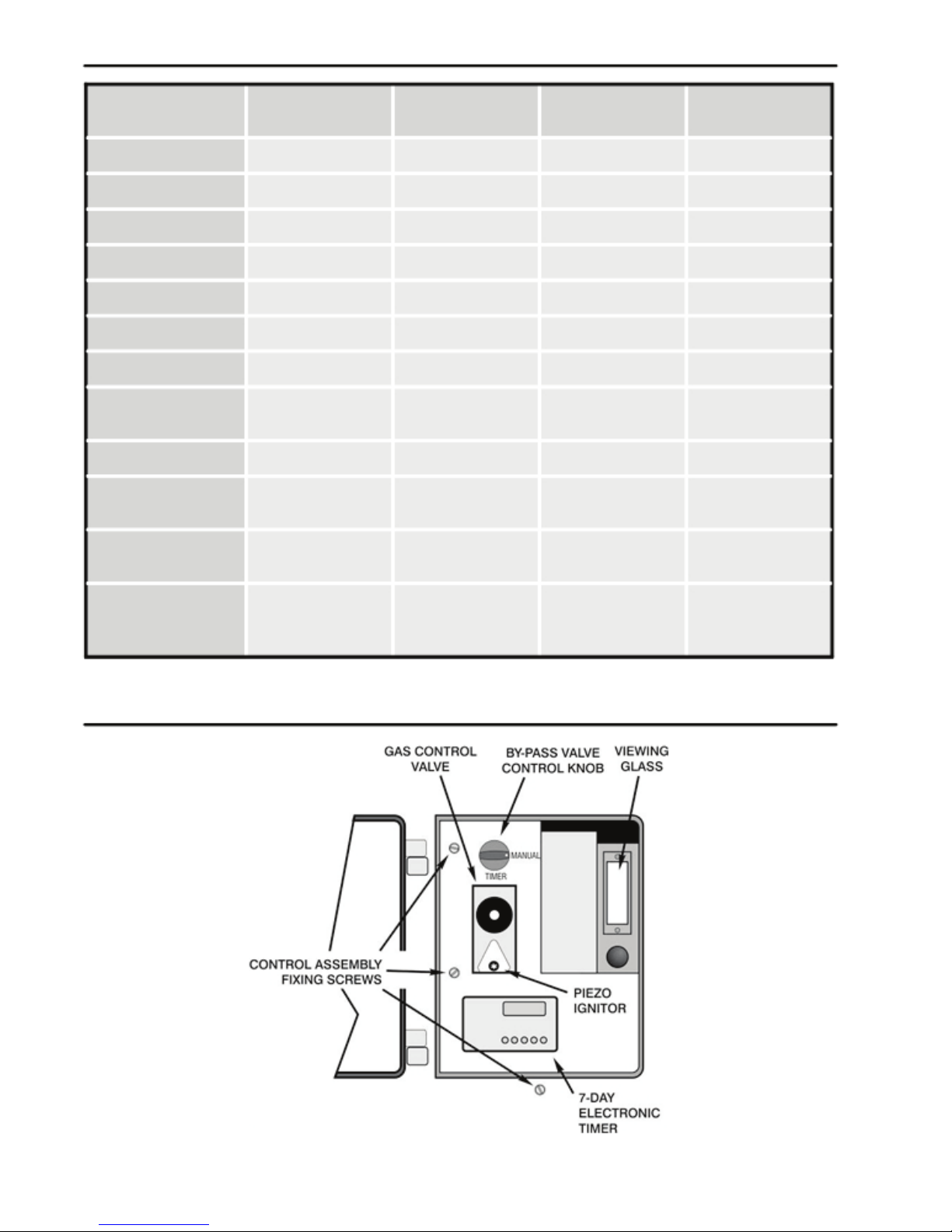

Fig. 2 - The Control Panel
6
Page 7

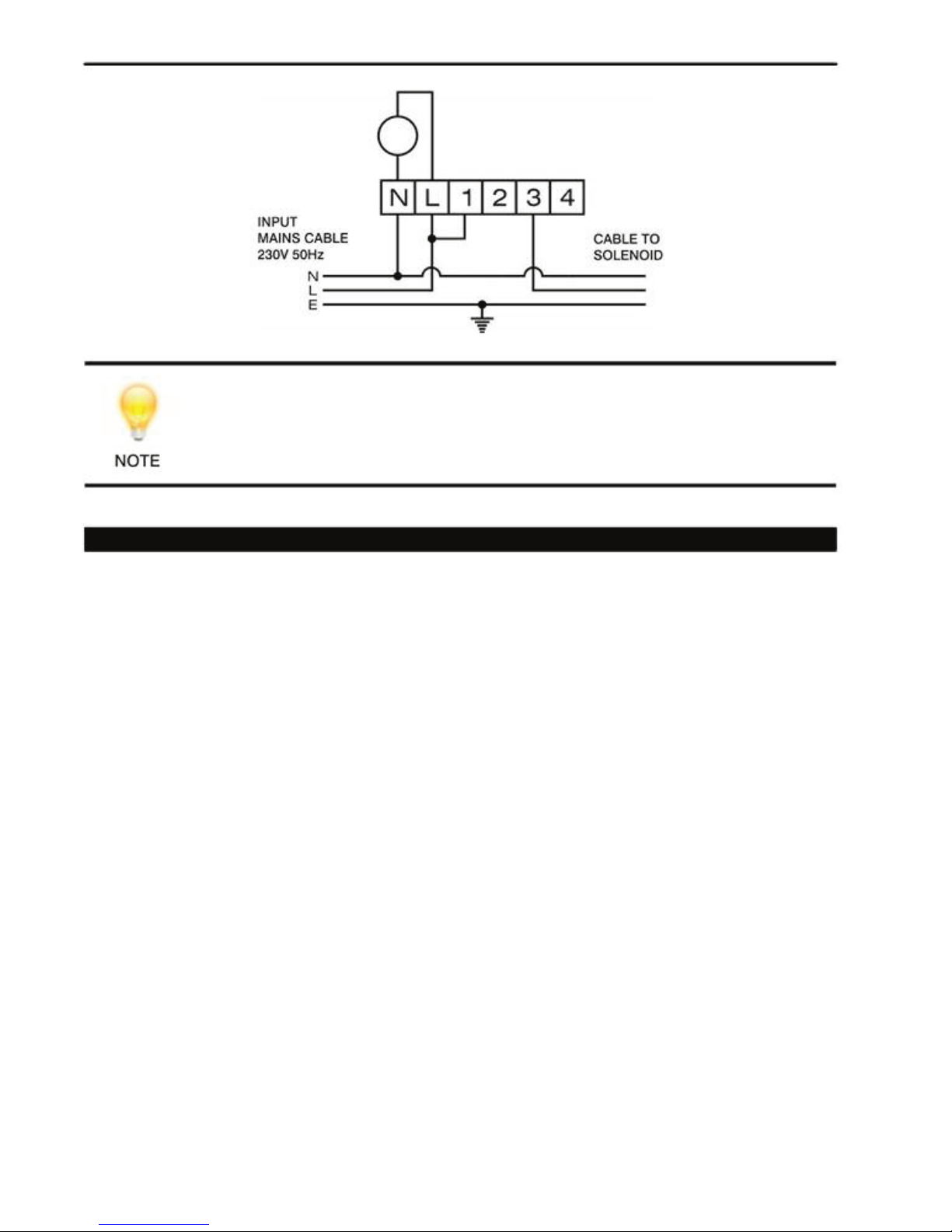

Fig. 3 - Wiring Instructions for Horstmann Electronic Timer
Terminal 4 is only live when the Horstmann Timer is calling for heat.
COMMISSIONING
With the cooker installed and connected to gas and electricity proceed as follows:-
1) Pull off the by-pass control knob. Remove control panel, using the three control assembly fixing
screws (Fig. 2), connect pressure gauge to test point on control inlet (Fig. 5). Check to ensure that
appliance is ON.
2) Purge the pipework system of air. This can be done via the pressure test point or by holding the gas
control lighting button until gas flows from the pilot.
3) Light the pilot. Leave main burner OFF. Check the pilot flame length through the inspection glass flames should be approx. 20mm (
4
/5") long.
4) Refer to the users instructions. Lift the hotplate covers to the upright position and light the burner.
Check that the supply pressure is in accordance with that given in the Technical Information Table on
page 6. Turn the main burner off, remove the pressure gauge, replace the pressure test screw and
test for gas soundness. Replace the controls panel and by-pass control knob. Light the burner. Allow
the cooker to heat up for 45 minutes. Because of the initial cold mass of metal, there will be some
initial condensation and/or steaming but this should disappear as the cooker heats up. The hotplate
covers are raised to prevent initial condensation affecting the soft seal fixative, wait 15 minutes, then turn
the oven control knob to its lowest setting and check that the oven burner flame reduces to low rate - a
flame length of about 3mm (¼") over the burner. Turn the burner down to No. ½ ready for future use.
7
Page 8
Fig. 5 - Control Assembly
MAINTENANCE & SERVICING
Eurosit Control Valve
This is a single knob multifunctional control incorporating thermoelectric flame failure protection together with
a thermostatic section using a phial type sensor. The thermostat will modulate the gas rate over its specific
range and then down to the snap-off position.
The inlet and outlet connections are R
3
/8" Female. Double inlet and outlet connections are available and
the unused connection is plugged off. This must not be disturbed. The unit contains a restart interlock to avoid
re-ignition safety i.e. when turned off the control must be allowed to stand in the OFF position for several
minutes before the burner can be relit. The pilot may light but will go out as soon as the knob is released.
The gas rate to the burner is fixed by an adjusting screw in the outlet plug. This plug must not be
interfered with since unscrewing will affect the gas input. The screw is sealed with paint before despatch.
The minimum rate screw also has an adjusting screw and must not be interfered with.
A piezo igniter is included within the cover assembly. This cover is fixed by one screw at the upper front.
Operation
Refer to Users Instructions - Turn knob to ignition position, press knob fully inwards and light pilot,
release knob after 10 seconds, turn to full on position.
Pilot Rate Adjustment
Pre-set - no adjustment required.
Minimum Rate Adjustment
Pre-set - no adjustment required.
8
Page 9
To Remove Parts
Burner Chamber Door - simply lifts off.
Controls Panel - Remove three screws (Fig. 2)
Heatshield - Remove two wing nuts. Lift off the heatshield.

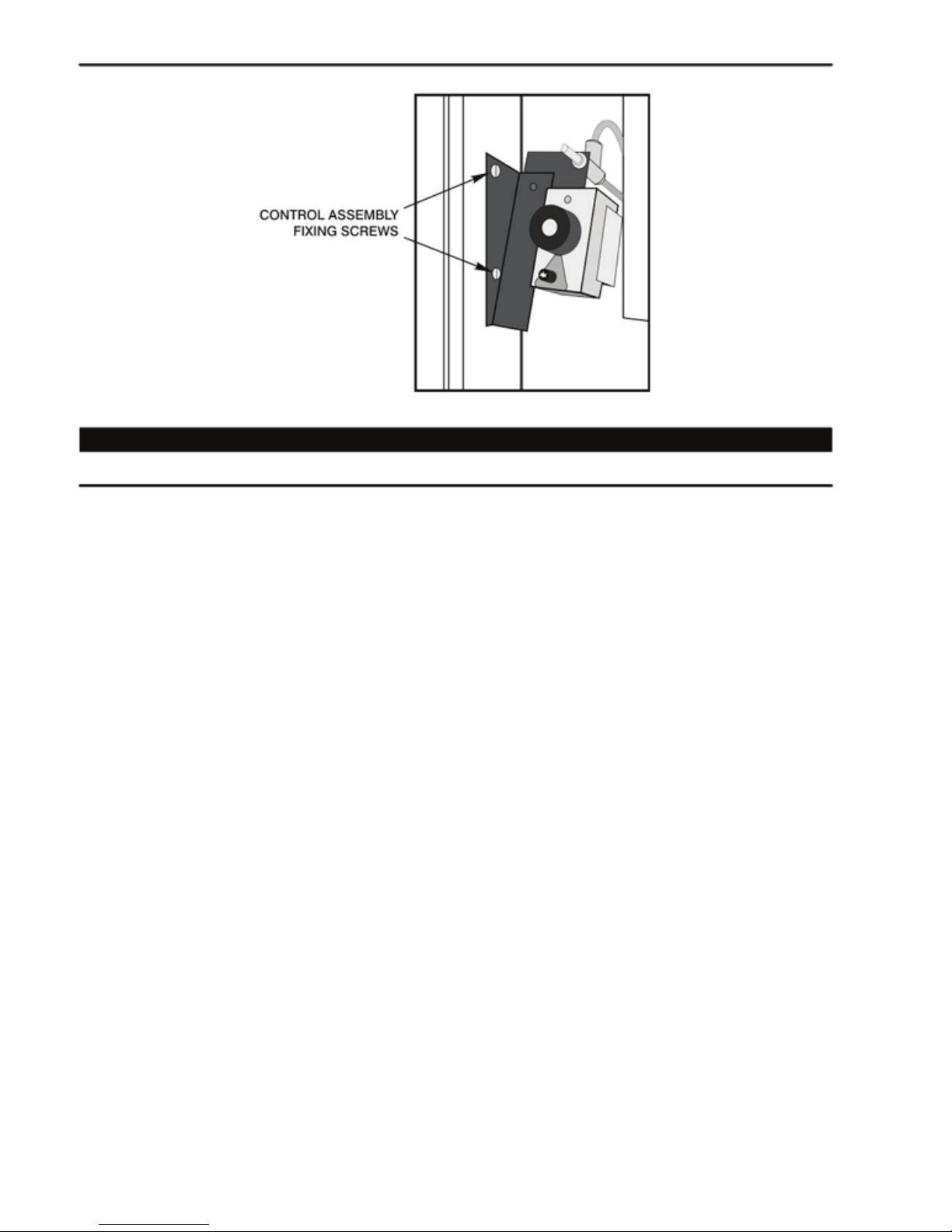

Burner/Controls/Pipework Removal (Figs. 4, 6, & 7)
Burner assembly - Remove parts as described above. Isolate gas supply. Undo union on burner
supply at control. Remove two screws fixing burner assembly to combustion chamber. Remove
two screws fixing controls assembly (Fig. 4) Remove whole assembly.
Pilot Assembly - Pull off igniter lead at electrode. Undo union nut on pilot supply at control. Undo
union nut on thermocouple. Remove lint arrestor. Remove two screws from underside of pilot
bracket. Remove whole assembly.
Burner from Assembly - Undo union nut on injector. Remove two nuts from underside of burner.
Injector - Remove burner end plate (two screws). Remove injector locating nut.
Eurosit Control & Solenoid - Undo union nut on each end of the supply from service cock to
control. Remove supply pipe. Undo union nut on pilot supply. Undo thermocouple fixing nut. Pull
off igniter lead. Open oven door, remove two screws securing Eurosit fixing bracket to the
cooker frame. Remove valve and solenoid.
The thermostat phial and capillary pass between cooker front and combustion chamber
and can lead to difficulty when replacing. To avoid this, sellotape a length of thin string or
wire to the end of the phial before removing it from the oven. Feeding the string through
as the capillary is withdrawn. This will provide a guideline when the new control is fitted.
Servicing
The cooker should be serviced once each year by an authorised person. The following parts should be
removed and cleaned as detailed below.
Hotplate
Care must be taken with the hotplate when removing or replacing as damage can occur to the enamelled
surface. Remove the two hotplate securing screws and lift out the hotplate using the two screwed tools
supplied to the user. Brush the underside with a wire brush.
9
Page 10
Burner Assembly
Remove burner/controls/pipework as previously described. Check top surface for any dust or debris.
Brush down as necessary. On completion, replace all parts.
Cooker Interior (Burner Chamber)
Sweep out any debris from the burner chamber, use a vacuum cleaner nozzle if necessary.
At no time during servicing should the gas rate screw and the low flame screw be disturbed.
Catalyser (Fig. 9)
Remove catalyser mounting plate complete with catalyser and carefully clean if necessary with a soft
brush.
Re-assemble all components in reverse order.
1. Check high and low burner setting pressures as described in 'Commissioning' Section.
2. If a combustion catalyser is available check the combustion performance of the cooker as
follows:
Light the cooker and after 15 minutes check that the combustion performance of the cooker at the
combustion vents is in accordance with the tale below.
If the CO figures are more than that given in the table this suggests the catalyser is incor-
rectly fitted, or needs changing.
Table: CO/CO
2
emissions
CO Less than 20ppm
CO
2
Approx 3.0 - 4.0%

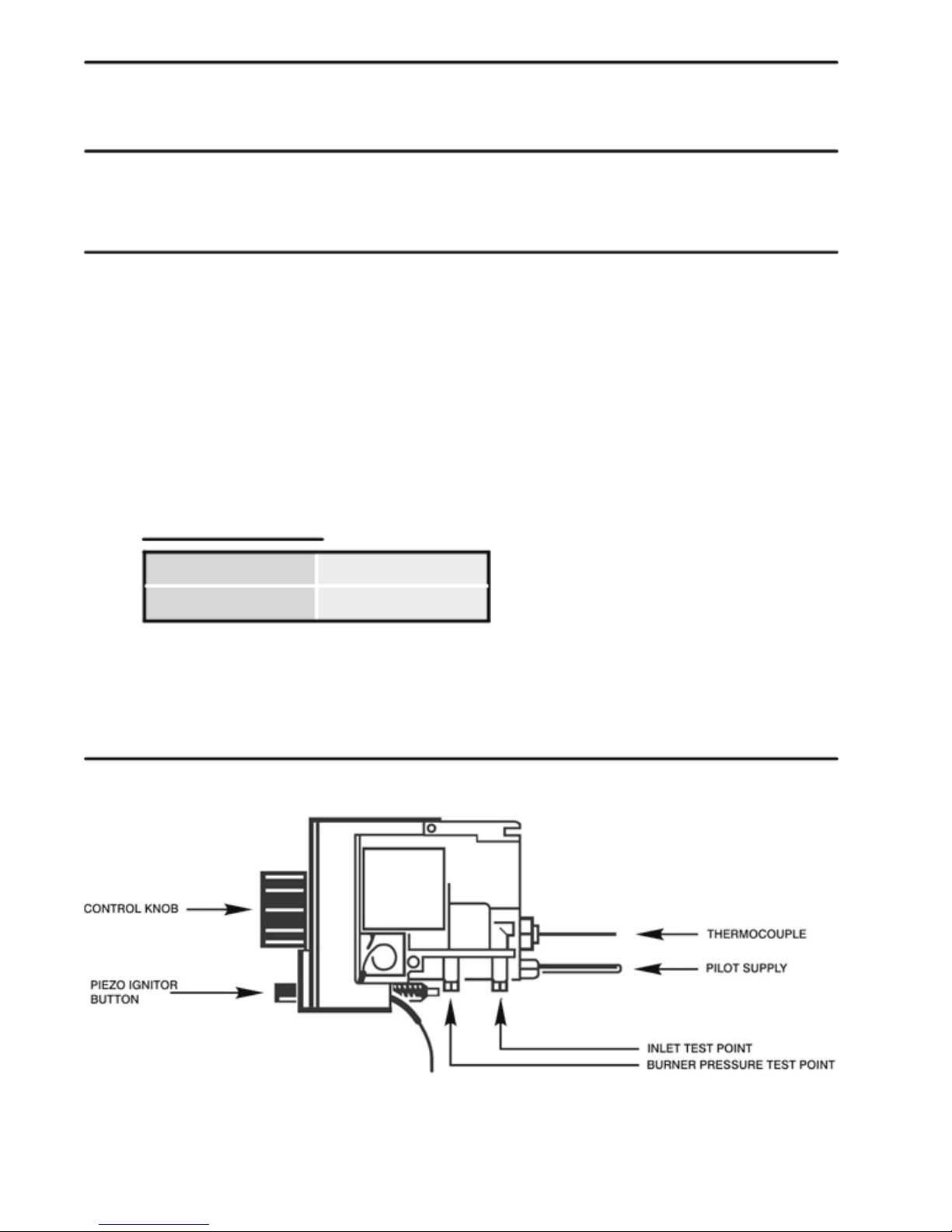

Fig. 5 - Eurosit Control Valve (Side view)
10
Page 11

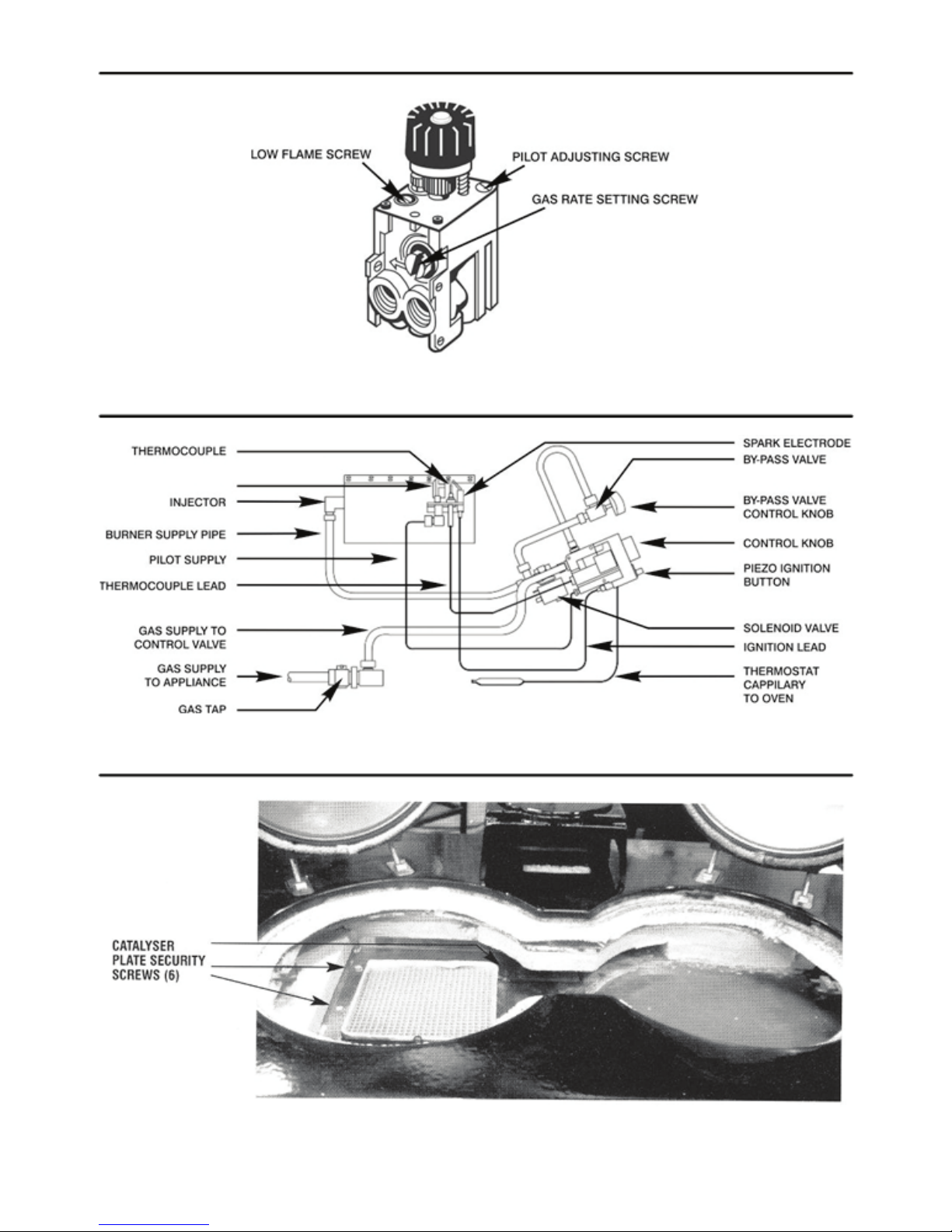

Fig. 6 - Eurosit Control Connections and Rate Screws
Fig. 7 - Gas Components - Schematic Arrangement
Fig. 8 - Catalyser
11
Page 12
COOKER FAULT FINDING CHART
SITUATION
No gas to pilot
No spark to pilot
Pilot light won't stay lit or keeps
going out
Oven stays too hot
Oven stays too cool
Cooker not heating
COMMISSIONING RECORD
Engineer's Name
Address
Tel No.
Gas Safe Reg No.
POSSIBLE CAUSES
Isolation valve closed
Pilot blocked
Piezo lead detached
Spark gap incorrect
Piezo faulty
Piezo lead faulty
Dirty/loose thermocouple
connection
Faulty thermocouple
Pilot flame too short
Blocked lint arrestor
Fuming out from draught diverter
causing oxygen depletion pilot to
shut off
Minimum rate set too high
Thermostat faulty
Thermostat faulty
Burner cutting down
Burner cutting down control
valve complete
Utensils not flat
Date
Fax No.
REMEDIES
Open isolation valve
Remove and clean pilot
assembly or replace
Connect piezo lead
Adjust spark gap
Replace piezo
Replace piezo lead
Tighten/clean thermocouple
connection into rear of gas valve
Replace pilot assembly
Remove and clean pilot
assembly or replace
Clean lint arrestor
Correct poor draught
Re-set minimum rate
Change control valve complete
with thermostat
Change control valve completely
Increase cooker thermostat
setting
Faulty thermostat - replace
Use machine utensils
12
Page 13
SERVICE RECORD
Engineer's Name Date
Address
Tel No. Fax No.
Gas Safe Reg No.
Engineer's Name Date
Address
Tel No. Fax No.
Gas Safe Reg No.
Engineer's Name Date
Address
Tel No. Fax No.
Gas Safe Reg No.
Engineer's Name Date
Address
Tel No. Fax No.
Gas Safe Reg No.
13
Page 14
Engineer's Name Date
Address
Tel No. Fax No.
Gas Safe Reg No.
Engineer's Name Date
Address
Tel No. Fax No.
Gas Safe Reg No.
Engineer's Name Date
Address
Tel No. Fax No.
Gas Safe Reg No.
Engineer's Name Date
Address
Tel No. Fax No.
Gas Safe Reg No.
14
Page 15
Engineer's Name Date
Address
Tel No. Fax No.
Gas Safe Reg No.
Engineer's Name Date
Address
Tel No. Fax No.
Gas Safe Reg No.
Engineer's Name Date
Address
Tel No. Fax No.
Gas Safe Reg No.
Engineer's Name Date
Address
Tel No. Fax No.
Gas Safe Reg No.
15
Page 16

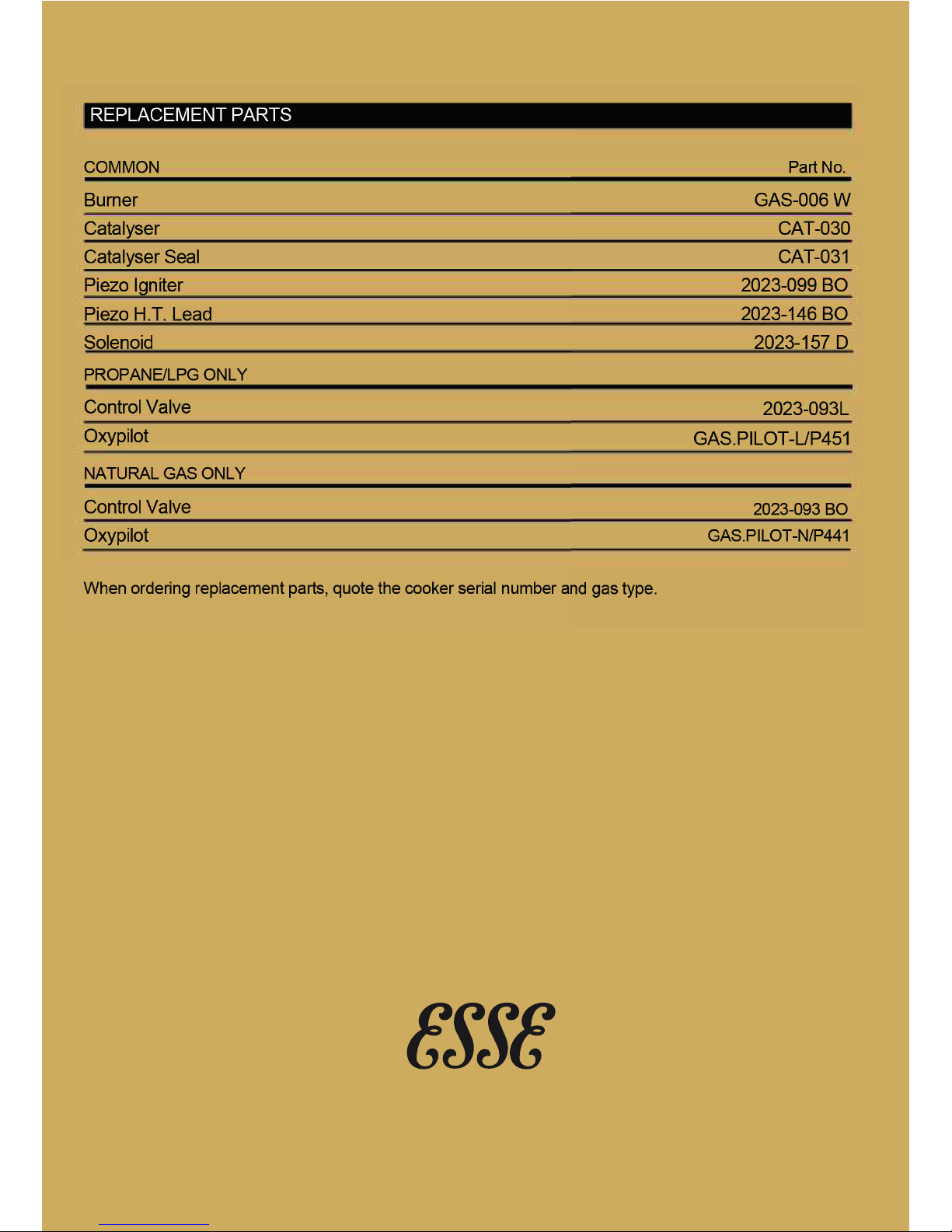

ESSE Engineering Limited, Ouzledale Foundry, Long Ing, Barnoldswick, Lancashire BB18 6BJ
Tel: 01282 813235 Fax: 01282 816876 Email: [email protected]
Website: https://esse.com On-line store: https://esseparts.com
Reference 1st September 2016
09/16 (PP)
INSTR.CK-CAT/i
Loading...
