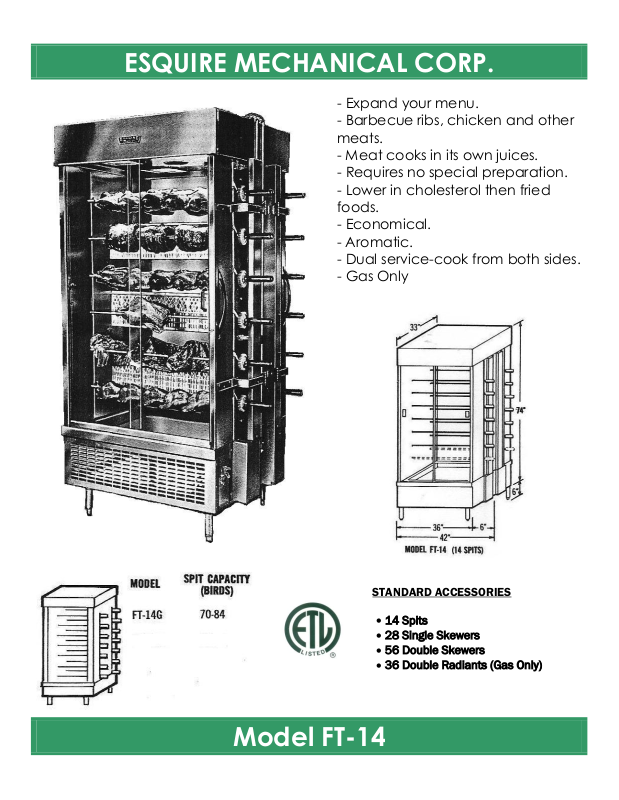

ESQUIRE FT-14 User Manual

ESQUIRE MECHANICAL CORP.

- Expand your menu.

- Barbecue ribs, chicken and other
meats.

- Meat cooks in its own juices.

- Requires no special preparation.

- Lower in cholesterol then fried
foods.

- Economical.

- Aromatic.

- Dual service-cook from both sides.

- Gas Only

STANDARD ACCESSORIES

 14 Spits
 28 Single Skewers
 56 Double Skewers
 36 Double Radiants (Gas Only)

Model FT-14

FT-14

BODY: All visible interior & exterior surfaces of polished stainless
steel; exterior top of heavy gauge corrosion resistant coated steel.
All joints electrically welded for maximum strength. Welded
integral seamless grease pan. Double swing hinged stainless steel
access panels provided.
INSULATION: Minimum of 1” thick approved thermal insulation
material on top and sides.
LEGS: Adjustable 6” high, polished stainless steel.
SLIDING DOORS: Full vision shatter proof, tempered glass sliding
doors, both sides, mounted on removable bottom roller track.
Provided with heat resistant handles for easy accessibility.
SPITS: Stainless steel with heat resistant plastic handles.
SKEWERS: Corrosion resistant plated single and double skewers
with thumb screws.

MOTORS: Heavy duty vertical open gear drive, thermally protected
to prevent against burnout. Circuit breaker furnished to protect
from overload.
LIGHTING: Illuminated by (4) flood lamps wired to toggle switches.
GAS HEATED MODEL: Provided with (3) heavy duty pipe burners,
complete with Venturi air mixer. 115 volt power source required
to operate motors and lights. Furnished with cord set and plug
(NEMA # 5-15P) for plug in operation. Refer to chart below for
B.T.U. ratings. Specify type of gas.

GAS DATA

POWER

FACTOR

RATED

POWER

NOMINAL AMPERES PER LINE

BTU

RATING

115V

GAS

2.0KW

17.4

120,000
