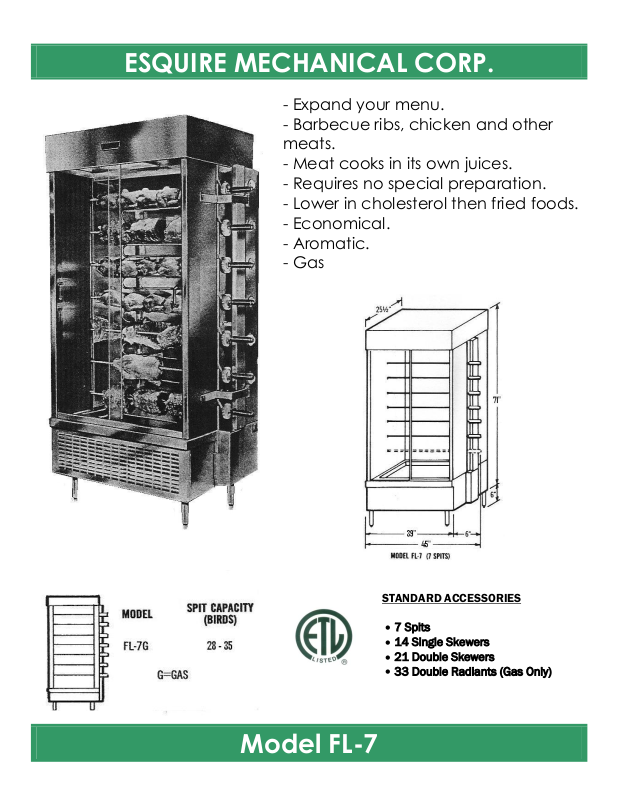

ESQUIRE FL-7 User Manual

ESQUIRE MECHANICAL CORP.

- Expand your menu.

- Barbecue ribs, chicken and other
meats.

- Meat cooks in its own juices.

- Requires no special preparation.

- Lower in cholesterol then fried foods.

- Economical.

- Aromatic.

- Gas

STANDARD ACCESSORIES

 7 Spits
 14 Single Skewers
 21 Double Skewers
 33 Double Radiants (Gas Only)

Model FL-7

FL-7

BODY: Front, sides and interior of polished stainless steel; exterior
back and top of heavy gauge corrosion resistant coated steel.
All joints electrically welded for maximum strength. Welded
integral seamless grease pan. Double swing hinged stainless steel
access panel provided.
INSULATION: Minimum of 1” thick approved thermal insulation
material on top and sides.
LEGS: Adjustable 6” high, polished stainless steel.
SLIDING DOORS: Full vision shatter proof, tempered glass sliding
doors, both sides, mounted on removable bottom roller track.
SPITS: Stainless steel with heat resistant plastic handles.
SKEWERS: Corrosion resistant plated single and double skewers
with thumb screws.

MOTOR: Heavy duty vertical open gear drive, thermally protected to
prevent against burnout. Circuit breaker furnished to protect from
overload.
LIGHTING: Illuminated by (1) flood lamp wired to toggle switch.
GAS HEATED MODEL: Provided with (3) heavy duty pipe burners,
complete with Venturi air mixer. 115 volt power source required to
operate motor and light. Furnished with cord set and plug (NEMA #
5-15P) for plug in operation. Refer to chart below for B.T.U. ratings.
Specify type of gas.

GAS DATA

POWER

FACTOR

RATED

POWER

KW PER CIRCUIT

NOMINAL AMPERES PER LINE

BTU

RATING

CIRCUIT # 1

115V

GAS

.83KW

.83

8.0

120,000
