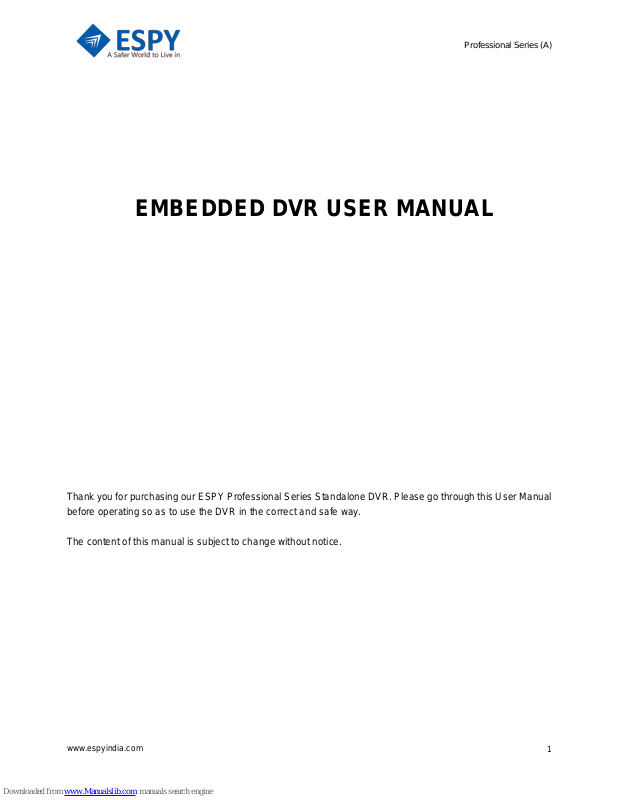

EMBEDDED DVR USER MANUAL
Thank you for purchasing our ESPY Professional Series Standalone DVR. Please go through this User Manual
before operating so as to use the DVR in the correct and safe way.
The content of this manual is subject to change without notice.
Professional Series (A)
www.espyindia.com
2
1 PRECAUTIONS
Please observe the following precautions, in order to avoid damage or loss of data caused by improper
operation.
Install DVR within the temperature and humidity requirements.
Do not install DVR in humid, dusty or smoky environment.
Require a solid mounting surface for installation.
Do not block any ventilation openings. Install under the manufacturer's instructions.
Do not spill liquid of any kind on device.
Do not put any other equipment on device.
Do not dismantle the device.
Select specified HDD by manufacture.
2 NOTE
This user manual is for reference only, subject to available products.
This user manual may contain inaccurate data or printing error.
Updates to the manual or products themselves will occur without further notification.
Contact the customer service department when you are in doubt or documentations.
Professional Series (A)
www.espyindia.com
3
Table of Contents
1 PRECAUTIONS 2
2 NOTE 2
3 PRODUCT INTRODUCTION 5
3.1 SUMMARY 5
3.2 FEATURES 5
4 INSTALLATION 6
4.1 CHECK DVR AND ITS ACCESSORIES 6
4.2 HDD INSTALLATION 6
4.3 FRONT PANEL 7
FRONT PANEL 7
REAR PANEL 8
REAR PANEL I/O PORT CONNECTION 9
5 LOCAL OPERATION GUIDE 11
5.1 POWER ON /OFF OPERATION 11
5.1.1 POWER ON 11
5.1.2 POWER OFF 11
5.1.3 OUTAGE RECOVERY 11
5.2 LOGGING INTO THE MAIN MENU 12
5.3 LIVE VIEW 12
5.4 PTZ CONTROL 13
5.4.1 PTZ CONTROL 13
5.4.2 PTZ SETTING 14
5.5 RECORDING OPERATION 16
5.6 PLAYBACK 17
5.6.1 FAST AND SLOW MOTION 18
5.6.2 BACKWARD AND SINGLE FRAME PLAYBACK 19
5.7 CONFIGURATION 19
5.7.1 SETTING 19
5.7.2 CHANNEL MANAGEMENT 20
5.7.3 NETWORK SETTING 21
5.7.4 ALARM CONFIGURATION 24
5.7.5 USER MANAGEMENT 26
5.7.6 EXCEPTIONS SETUP 27
5.8 STORAGE 28
Professional Series (A)
www.espyindia.com
4
5.8.1 HDD MANAGEMENT 28
5.8.2 RECORD BACKUP 29
5.9 UTILITIES 30
5.9.1 PTZ CONFIGURATION 30
5.9.2 ALARM OUTPUT 31
5.9.3 PORT CONFIGURATION 31
5.9.4 OUTPUT 32
5.10 MAINTENANCE 33
5.11 SHUTDOWN 35
6 ON-LINE OPERATION 36
6.1 WEB OPERATION GUIDE 36
6.1.1 NETWORK CONNECTION 36
6.1.2 CONTROL SETUP & LOG IN / LOG OFF 36
6.1.3 LIVE VIEW 38
6.1.4 PTZ CONTROL 38
6.1.5 SYSTEM SETTING 39
6.1.6 SEARCH RECORD 40
6.2 CLIENT OPERATION GUIDE 41
7 APPENDIX 41
7.1 HDD CAPACITY CALCULATION 41
7.2 REMOTE CONTROL OPERATION 42
7.3 MOUSE CONTROL 42
7.4 TROUBLESHOOTING 43
Professional Series (A)
www.espyindia.com
5
3 PRODUCT INTRODUCTION
3.1 SUMMARY
Our Embedded Digital Video Recorder is an excellent digital surveillance product which adopts H.264 video
compression, hard disk recording, TCP/IP transmission, and a Linux based OS in addition to some of the more
advanced technologies in the information technology industry. This enables a more stable, reliable and high
picture quality.
These products up to the GB 20815-2006《Surveillance DVR》, support synchronized video and audio
recording, playback, and monitoring. This series also supports network based system control, as well as
excellent network streaming capabilities.
3.2 FEATURES
Features switched according to the soft/hardware edition.
Live surveillance
composite video signal (BNC) or VGA output
Live video by monitor, TV or display devices
Single screen / four-screen / nine-screen / sixteen-screen output
Privacy masking, character overlay, unusual states message,
Compression
Apply H.264 video compression and G.711 audio compression.
Recording
Motion detection, alarm linkage recording mode, SATA HDD and SMART tech of local HDD.
USB backup or network backup.
Playback
Video searching, playback, and backup via head end or web interface.
Multiple playback modes: slow motion, fast forward, frame by frame and skip backward.
Network backup or USB 2.0 ports for backup devices.
Multi-channel playback synchronization
Camera control & Alarm
PTZ (using RS-485), camera control, preset, tour, pattern setting and call.
Three-dimensional positioning ( in PTZ condition )
Alarm management
Multi-channel alarm inputs could be connected with standard devices such as infrared, smoke
detection, vibration alarm.
Professional Series (A)
www.espyindia.com
6
Alarm detection for motion, video loss and masking.
Multi-channel alarm outputs which link alarm with light control.
Interface
USB2.0, Ethernet interface, RS485, etc.
Network
Support TCP/IP and TCP, UDP, RTP transmission.
Support online real-time surveillance and record search, playback, manage.
Support dynamic IP addressing, PPPOE, DDNS
Access DVR by WEB interface (Internet Explorer)
NTP timing, alarm by Email, etc.
Operation
Support front panel, remote control and mouse control.
Simple operation, menu driven with help tips.
4 INSTALLATION
4.1 CHECK DVR AND ITS ACCESSORIES
Please carefully check the contents following the packing list. If any of the items are missing, please contact
with your dealer.
4.2 HDD INSTALLATION
Preparation:
A Phillips head screwdriver is required to disassemble and reassemble the unit.
This series DVR allows a maximum 2 Hard disks. HDD capacity is tested up to 2TB at the time of writing
Steps:
Remove the metal top cover by removing two screws from the sides of the cover.
Place the hard disks on a flat table and fasten it by screws.
Connect the power and data cables to the HDD.
Reinstall the metal top cover and fasten it by screws.
Caution:
Only use HDD specified by the manufacturer.
HDD will be formatted automatically during startup, it may cause data loss.
Recording duration is decided by HDD capability and DVR parameters (recording setup, encoding setup).
Please see the form in Chapter 7.1（for reference only）.
Professional Series (A)
www.espyindia.com
7
4.3 FRONT PANEL
Front Panel
The front panel of R8702/R9702 is shown as follow：
Name
Icon
Function
Power button
Press this button to boot up or shut down DVR.
Shift
Shift
In textbox, click this button to switch between numeral, character and other
functions.
Up/Down
Activate current control switch, and then move up and down;
Modify setup, Increase/decrease numeral;
Channels can be switched while playing single channel record;
Assistant function (Such as PTZ menu), performs as direction control for PTZ;
In textbox, enter the number, increment +1 and decrement -1;
Multi-screen switch.
Left/Right
Activate current control switch, and then move left and right;
Press left/right buttons to control the playback progress bar when playback video;
Performs as direction control for PTZ;
Unilaterally switch.
Enter
ENTER
Confirm current operation; Go to menu.
ESC
ESC
Go to previous menu, or cancel current operation.
Record
REC
Manually stop/start recording, in the video control menu, working with direction
keys or numeral keys to select the recording channel.
Auxiliary
Fn
In single-camera monitor mode, click this button to display auxiliary function: PTZ
control and image color setting;
In motion detection setup, working with Fn and direction keys to realize setup;
Backspace function: press Fn for 1.5seconds to delete the previous character
before the cursor;
When textbox selected, continuously press this button to switch between
numeral, English character(small/capitalized) , Chinese input(expandable) etc;
Professional Series (A)
www.espyindia.com
8
Realize other special functions.
Slow play
Various slow speeds and normal playback;
Perform as zoom- function for PTZ control.
Fast play
Various fast speeds and normal playback;
Perform as zoom + function for PTZ control.
Play/Pause
In playback mode, click this button to play or pause playback.
Perform as Iris- function for PTZ control
Reverse/Pause
In playback mode, click this button to reverse or pause playback
Perform as Iris+ function for PTZ control
Play Next
In playback mode, playback the next video
Perform as Iris+ function for PTZ control
Play previous
In playback mode, playback the previous video
Perform as Iris- function for PTZ control
USB
To connect USB mouse，Mobile HDD，USB storage device, etc.
Network abnormal
indication light
Net
The NET light indicates the network is connected normal
HDD abnormal
indication light
HDD
The video light indicates recording
Remote control
receiver
IR
Used to receive the signal from the remote control
Power indication
light
power
Light will be on after power up
Alarm indication light
Alarm
Show whether there is external alarm input. Light on means there are external
alarm, light goes out means external alarm stopped
Rear Panel
Professional Series (A)
www.espyindia.com
9
Rear panel I/O port connection
1 2 3 8 5 4 6 7
Only used for 1080P
1 2 10 3 5 4 6 7
1 2 10 3 4 6 7
5 8
1 2 3 4 2
1 3 4 1
2 2
Professional Series (A)
www.espyindia.com
10
Rear panel I/O interface information：
Serial Number
Name
Description
1
Alarm input
Alarm input port, connected to the alarm.
2
GND
Ground port
3
Alarm output
Alarm output port
4
RS-485
RS-485 port, connected to the PTZ.
Alarm input connection
Normal open or Normal close type
Please parallel connect COM end and GND end of the alarm detector to the GND end of the DVR
Please connect the NC port（or NO port）of the alarm sensor to the DVR alarm input(ALARM)
Use the same ground with that of DVR if you use external power to the alarm device.
Alarm output connection
This alarm output use relay output, please refer to the related parameters while connecting the relay to avoid
overload or damage to the DVR.
Material of the touch
Silver
Electrical functions
Maximum switch power
240VA，48W
Maximum switch voltage
125VAC，60VDC
Maximum switch currency
2A
Figure 4-1 Relay parameters
PTZ connection
Decoder A (B) line connects with DVR RS-485 A (B) line. If multiple decoders are connected, please connect a 120
Ω resistance in parallel at the A (B) line distal to minimize the control signal distortion caused by reflection.
1 3 4 1 2
Professional Series (A)
www.espyindia.com
11
5 LOCAL OPERATION GUIDE
5.1 POWER ON /OFF OPERATION
5.1.1 POWER ON
Connect power supply and press the power button on the front panel to startup the DVR. The power light is on
and ― ‖ displayed on the LCD during startup. Multiple live view is defaulted when turn on DVR unless it‘s in the
period which set for recording.
Note：
Power supply has to match with DVR, any other substitutes are not allowed.
5.1.2 POWER OFF
Hold down on-off key to turn off device（only operated by the user who has power off authority）.
【Main Menu】→【Power off】→【Power off】 （Tip: This is the recommended method to shut down, in
order to avoid damaging the HDD/system）.
Note: turn off the device and switch off the power when changing HDD
5.1.3 OUTAGE RECOVERY
Reboot after an outage or forceful shutdown, the DVR will save the record before outage and return to normal
operation mode.
Professional Series (A)
www.espyindia.com
12
5.2 LOGGING INTO THE MAIN MENU
Pop up the login dialog by pressing the [Enter] key or left clicking the mouse in live view mode and type in
correct username and password.
Default users:
User Type
Name
Default Password
Administrator
admin
123456
User
user
123456
Hidden default
default
Note:
Password security: occur alarm after three times wrong input and system lockout in 30 minutes after 5
unsuccessful login.
For security consideration, please modify the default password. For information on how to add groups,
users and modify users information, please refer Chapter 5.7.5 Uses Management
Click to toggle the character input method in mouse mode.
5.3 LIVE VIEW
Power on the DVR and enter the default live view mode. There are date, time, channel names and icons which
indicate status displayed on screen. The icons represent:
1
Shows on scream when in
recording
3 Shows on scream when video loss
2
Shows on scream when
motion detection
4
Shows on scream when the channel
is locked
Switch display screens by the front panel, remote control or mouse control.
If you have enable the screen message for external alarm, video loss, masking, motion detection, network and
IP conflict alarm, the below interface would popup when those alarm occur.
Professional Series (A)
www.espyindia.com
13
5.4 PTZ CONTROL
Right click on the selected screen under live view mode and choose Pan/Tilt/Zoom. You will see the following
interface.
5.4.1 PTZ CONTROL
Control PTZ direction, step size, zoom, focus, IRIS, presets, tour, pattern, border scan, AUX switch,
light switch, auto pan.
Step size controls PTZ speed, e.g. step size 8 is moved faster than step size 1. （you can set 1-8 step size
by soft keyboard or keys on front panel）
Click and of zoom, focus and IRIS to modify zoom, focus and brightness.
Support PTZ eight-direction rotation.（If you are using the front panel, it is only four-direction）.
Quick positioning:
〈SIT〉: In the middle of direction keys is the quick position key. It only supports mouse control and supported by
certain PTZ protocols.
Single click to move this point to the screen center.
Clicking and dragging a specific region to make the camera to center and zoom accordingly.
Professional Series (A)
www.espyindia.com
14
Dragging from left to right zooms in, and right to left zooms out.
5.4.2 PTZ SETTING
Click 【Set】to set【Preset】,【Tour】,【Pattern】,【Border】. Gray keys represent unsupported function.
【Preset】setting: Click【Preset】and input a number to assign these coordinates as that number. Click 【Save】
to save these coordinates to that preset number
Call【Preset】: Input preset number and click ―preset‖ on left side to call a specific preset location.
【Tour】setting: Select ―Tour‖; input numbers in ―Path‖ and ―preset‖. Click【Add Preset】to add one preset in
cruise path, repeat to add more than one presets. Click 【Clear Preset】to delete a preset, repeat to delete
more.（Note: This feature is only available in certain protocols）
Call【Tour】: Input a path number and click ―Tour‖ on the left side to start this function. Click【Stop】to quit.
Professional Series (A)
www.espyindia.com
15
【Pattern】setting: Assign a path number, and click start to begin recording. Once recording, go back to the
PTZ controls in order to modify your【zoom】,【focus】and【IRIS】, etc. Click【Stop】in ―Pattern‖ settings
once finished, in order to save that pattern number
Call【Pattern】: Input a pattern path number and click 【Pattern】to call the function. Right click to hide the
menu in pattern mode; you can take manual control of the camera to stop the pattern at any time.
【Border】setting: Move camera to left/right boundary by direction keys and click 【Left Border】and【Right
Border】to confirm the setting.
Call【Border】: Click ―Border‖ to start the function, the【Border】button will turn to【Stop】. Right click to hide
menu and single click【Stop】to quit.
Click 【 Page Switch 】 again to set additional PTZ functions. These functions are also protocol
dependent.（only DH-SD1 and DH-SD2 realize the function presently）
Professional Series (A)
www.espyindia.com
16
Click 【Page Switch】again to set camera（support a few protocol）
Direction keys are primarily used for menu navigation. If the button is grayed out, then the option is unavailable.
Up/down keys is using to select menu items and right/left keys to modify the parameters. Click【Page Switch】
to go back to the window shown in the picture.
5.5 RECORDING OPERATION
Tip：The “Recording” authority is required for manual recording.
Operation interface
A right click【REC】on remote control in preview mode to enter manual operation directly.
Status
Manual: The highest priority. Whatever the current mode is, when you select ―Manual‖, the recording
mode will switch to normal.
Schedule：If this is selected, the system will record according to the schedule (regular, MD or alarm) in
―Record Config‖.
Stop：Stop recording
All start：All channels start recording
All stop：All channels stop recording
Professional Series (A)
www.espyindia.com
17
Start/stop recording
Please confirm the recording mode before changing the channel status. Here you can check whether the
status is on or off（blank refers the recording off; ticked is the recording on）. To change the status, select a
channel by using the 【】/【】key and then change the recording mode by using the【】/【】or numeric
key.
5.6 PLAYBACK
Playback interface:
Professional Series (A)
www.espyindia.com
18
Index
Type
Description
1
Calendar
Click the calendar icon-- to show the record list (only the dates with blue
background take records.）and then click a specific date to call the record. The
list will be upgraded automatically.
2
Time
Select record start and end time.
3
Play
Playback control: stop/play, pause, fast, slow, previous/next frame in pause.
4
Record Type
Search record by external alarm, MD and all alarm record
5
Channel Select
Select record channel
6
Play
Turn to previous/next record and previous/next channel.
7
Search
Once your parameters are set, click ―Search‖ to get the results in list
8
Record Backup
Tick the records you want（enable to select backup records in two channels）
and click to call out backup operation menu and confirm the backup.
Remove records in backup operation menu by removing the ―‖ next to
records（single channel list 32 items）
9
Record List
Search results show in the results list.
Click / to move through the records in list which contains maximum 128
search results. Select one of the records and click ―ENTER‖ or double-click left
mouse to play the file.
Record type: R—regular; A—alarm; M—MD.
10
Window Select
Select focus window
5.6.1 FAST AND SLOW MOTION
Keys
Description
RMKS
Playback fast motion:
The key:
For changing between fast motion in slow and
normal mode, speed 1, speed 2 are alterable.
Actual playback speed
varies by versions
Playback slow motion:
the key: ►
Switch to slow motion in fast and normal
mode, speed 1, speed 2 are alterable.
Play/Pause: ►/
Control Play/Pause in slow/fast mode
Previous/Next
Valid in playback mode, click│ and │ to
switch to previous or next recording in the
same channel
Professional Series (A)
www.espyindia.com
19
5.6.2 BACKWARD AND SINGLE FRAME PLAYBACK
Keys
Description
RMKS
Backward:
Backward key
Single left click backward key to play
backwards and single click again to stop back
run
In backward and
single frame playback
mode, click ►/ to
return to normal
playback
Manual single frame
playback
single frame playback by clicking │ and │
Tips：
1. The current playback speed, channel, time and progress are displayed on the front panel.
2. Playback type and speed are related to product version, please refer to panel prompt.
5.7 CONFIGURATION
5.7.1 SETTING
Enter ―Setting‖ under ―Configuration‖:
【Time】： Set the current time
Note：Click to save the time modification.
【Date Format】： To modify the date display format
【Daylight Saving Time (DST)】： Click ―DST‖ to enable the function, and enter the local DST starting and
ending time.
【Date Separator】： To select the separator for date
【Time Standard】： 24 hr or 12 hr display mode
【Language】： Language selection（vary by different model）。
【Full HDD Solution】： When HDD is full, there are two options: ―Overwrite‖ or ―Stop recording‖. If you select
Professional Series (A)
www.espyindia.com
20
―Overwrite‖, the DVR will overwrite the earliest recorded files and continue recording as all HDD in DVR are full.
If you select the ―Stop recording‖ option the DVR will stop recording when it reaches capacity.
【Video Length】： To set time length for each record, default is 60 minutes, the maximum is 120 minutes.
【No.】： Number more than one DVR, click ―Ad‖ button on remote control and input a number to select the
corresponding DVR to operate.
【Video Standard】standard: PAL/NTSC（alter for different model）.
【Menu Standby Time】： This ranges from 0-60 minutes. This is the amount of time without a key press before
the DVR will automatically logout of the current user.
5.7.2 CHANNEL MANAGEMENT
Standard
The ―Base Config‖ interface:
【Channel】： The channel selection
【Video Compression】： H.264
【Resolution】： Options are D1/CIF/QCIF; frame rate scope is different depending on channel and resolution.
Extra stream of 1～16 channel is forced to QCIF while the main stream parameters are selectable.
【FPS】PAL: 1fps-25fps; NTSC: 1fps-30fps
Note：Resolution and frame rate are vary depending on DVR model.
【Stream Control】： Constant Bit rate or Variable Bit rate. There are 6 levels of image quality in Variable Bit rate,
6 is the best but it is fixed in Constant Bit rate
【Audio/Video】： Enable or disable the recording of video and audio per channel.
【More】：
Modify【Channel Name】,【Date Display】,【Channel Title】,【Time Title】setting
Modify【View Tampering】setting, tampering area is alterable.
Modify【Snapshot】setting.
Modify【Prerecord】setting, the maximum is 30 seconds.
Turn on/off【Redundancy】
【Copy】： Copy one channel‘s configuration to other
Record plan
Record Config interface:
Professional Series (A)
www.espyindia.com
21
【Channel】： To select channel, Green, yellow and red refer to the normal, MD and alarm recording type.
Modify it in【Edit】.
【Duplicate】： To copy one channel‘s configuration to other
Plan interface：
【Week】： To set time period, you can set 6 periods for each day
【Normal】： Continuous recording
【Motion Detection】： MD enables
【Alarm】： Alarm event recording
5.7.3 NETWORK SETTING
Standard
Professional Series (A)
www.espyindia.com
22
Base interface:
【DHCP】： Enable the DVR to obtain an IP address automatically. If this is enabled, the DVR will reboot and
search for a DHCP server, and then assign a dynamic IP address. The dynamic IP address will be displayed in
the menu. Enter a static IP address if there is no DHCP service available. If you are using the advanced feature
PPPoE, then the IP/mask/gateway and DHCP are unable to be changed.
【IP Address】： Use（）or input numbers to modify IP, then set [subnet mask] and [default gateway] for this
IP.
【Preferred DNS】： DNS server IP
【Reserve DNS】： DNS alternate IP
【Physical Address】： Physical address of current net port
Advanced
Advance interface:
【PPPOE】Enable PPPOE
Input PPPoE username and password provided by ISP.
Operation: Using this feature, the DVR will automatically obtain a public IP address from your ISP.
You can then visit the web interface of the DVR by typing this IP into Internet Explorer.
Professional Series (A)
www.espyindia.com
23
【DDNS】 Enable the DVR to update a DDNS hostname
Select DDNS type（supports various DDNS currently, include CN99 DDNS, NO-IP DDNS, Private
DDNS and DynDNS Pro DDNS, with many other compatible）and enable the function; Input the
update server IP, port, DNS, username and password. Once setup, you can then login via the web
client by using this DNS in Internet Explorer.
Private DDNS is available for use with a specific DDNS server and client software.
【NTP】ON/OFF NTP. Network Time Protocol – allows the DVR to sync with a time server automatically.
Host IP: input IP of NTP server
Port: this SNTP support TCP only, the default port is 123.
Update cycle: time interval between 1 min and 65535 min.
Time zone: London: GMT+0, Berlin: GMT +1, Cairo: GMT +2, Moscow: GMT +3, New Delhi: GMT
+5, Bangkok: GMT +7, Hong Kong/Peking: GMT +8, Tokyo: GMT +9, Sydney: GMT +10, Hawaii
standard time(HST): GMT-10, Alaska standard time(AKST): GMT-9, Pacific standard time (PST):
GMT-8, Mountain standard time(MST): GMT-7, Central standard time(CST): GMT-6, Eastern
standard time(EST): GMT-5, Atlantic standard time(AST): GMT-4, Brazil: GMT-3, middle Atlantic:
GMT-2.
【IP Authority】 DVR authority management, if you enable the white list, only the DVR in IP list is allowed to
connect. This system supports a max of 64 IP addresses.
【Multicast, Port】
【Network Through Capacity】
【On-line User】 Range: 0-10, 0 indicates that no connections are allowed.
【Network Transmission QoS】 Fluency, resolution or automatic adjustment. The automatic setting
adjusts these settings based on available network resources.
【Speedy online download】 If enabled, this allows higher priority for downloading a playback clip
against viewing live cameras, at the same time.
【Port】：
【HTTP】default: 80
【TCP】default: 37777, variable
【UDP】default: 37778, variable
【Multicast】： Tick ‗Multicast‘ and set a group in ‗Set‘
【Email】： Set SMTP server IP, port, username, password and sending interval.
Professional Series (A)
www.espyindia.com
24
The email subject is alphanumeric; the limitation is a maximum of 32 characters. Emails can be
sent to up to 3 receivers. SSL is supported also.
The email sending interval is between 0-3600 seconds. This interval is a threshold to prevent an
abusive amount of emails from being sent.
【FTP】： Tick ―FTP‖ and click ―Set‖
Set FTP server IP address, port and destination folder. System will create folders by IP, time and
channel if there is no remote folder specified.
FTP username and password
Set a maximum file size, channel, time, type and etc.
Set FTP file length. Upload the whole record if the file length is smaller than setting; leave out the
exceed part if the file length is exceed the setting; 0 refers to uploading the entire record in any
condition.
Set up to two time periods and choose from 3 different record types for channels.
【Alarm Center】Reserved interface
Network status
Display the current network and IP.
5.7.4 ALARM CONFIGURATION
Local alarm
Local Alarm interface:
【Alarm Input Channel No.】： Select the alarm input channel
【Enable】： The specified alarm in /out
【Type】： Select the alarm circuit type.
【Copy】： Copy the configuration to another channel
【Process Mode】： Enter alarm linkage interface:
Professional Series (A)
www.espyindia.com
25
【Period】： Sets the alarm active period
【Linkage】： ON/OFF【Record Channel】,【PTZ】,【Tour】,【Snapshot】linkage and select channel.
【Abnormity】： Enable or disable【Alarm Out】,【Show Message】,【Send Email】
Professional Series (A)
www.espyindia.com
26
5.7.5 USER MANAGEMENT
Note：
Group and user names can be from 1-6 characters in length. Valid characters include letter, numbers,
and symbols. You may not use a space as a leading or ending character.
There is no limit to the number of groups or users. By default there are two different group levels:
admin and user.
User management determined upon two levels: the group and the user level. Group and user names
can not be duplicated, and each user can only belong to one group.
Use Management interface:
【Add uses】： Add group member information and set authorities.
Default users are: ―admin‖, ―user‖ and hidden ―default‖, the password of first two username is 123456.
―Admin‖ has advanced authorities; ―user‖ only has surveillance and playback authority.
Hidden default: operate in password-less login mode.
Enter【Add uses】; Input username, password and select group and reusable options. Reusable allows
the account to be used by multiple logins.
Users can only belong to one group. User rights cannot exceed group rights.
【Modify users】： Modify existing group member information and authority.
【Add group】： Add group and set group authorities
Set a group and authorize 60 items including control panel, shut down, live view、playback, record,
record backup, PTZ control, account, system information, alarm in /out setting, system configuration,
search log, log delete, upgrade, operation authority, etc.
【Modify group】： Modify existing group information.
【Password modification】： Change password
Select a user name, and input the previous password and new password twice.
Click【Save】to confirm
Password can be in 1-6 numbers, letters or symbol; blank in beginning and end is invalid.
The account with management authority could change others‘ password.
Professional Series (A)
www.espyindia.com
27
5.7.6 EXCEPTIONS SETUP
Abnormity interface:
【No Disk】 Alarm when the hard disk is not present or can not be detected. 【Process Mode】 includes:
【Alarm Output】, 【Display On Screen】 and 【Send Email】.
【Disk No Space】Alarm when hard disk capacity is lower than setting. 【Process Mode】 is same as 【No
Disk】‘s 【Process Mode】
【Network Failure】 Alarm when network is not connected.【Process Mode】includes【Alarm Output】, 【Display
On Screen】 and 【Send Email】and recording linkage.
【IP Conflict】Alarm when IP address conflict. 【Process Mode】 is same as 【No Disk】‘s 【Process Mode】
【Disk Error】Alarm when there is error in reading and writing hard disk.【Process Mode】 is same as 【No
Disk】‘s 【Process Mode】
Professional Series (A)
www.espyindia.com
28
5.8 STORAGE
5.8.1 HDD MANAGEMENT
Maintain and manage local HDD
Standard
―Base Config‖ shows DVR storage capacity, available space and working status.
【Format】: It is possible to format an individual HDD.
Note: Hard disk format operation result in the loss of video data
【Set】: To set HDD as read-write, read only or redundancy mode. In read only mode, video data cannot be
covered.
Record
―Record‖ shows the video start and end time.
Professional Series (A)
www.espyindia.com
29
5.8.2 RECORD BACKUP
Connect an External USB device with the USB port to backup in the ―Record Backup‖ menu.
【Detect】: Identify external USB device and display the device information
【Backup】: Tick the external device and click【Backup】to enter the backup menu.
Backup operation
Select the record start and end time and click【Add】to add in list; duplicate it by inputting the start and end time
again; click【Delete】to clear the files list. Tick the record you want and click【Start】to backup and display time
remaining.
【Delete】Delete all data in USB backup device
Note: This operation probably cause permanent data loss
Professional Series (A)
www.espyindia.com
30
5.9 UTILITIES
5.9.1 PTZ CONFIGURATION
Set PTZ channel, protocol, address, baud rate, etc.
Firstly, set the dome address and ensure the A, B lines of dome and DVR are connected correctly. The
configuration interface:
【Channel】: Select the channel for PTZ camera
【Protocol】: Select associated dome protocol (e.g. PELCOD)
【Address】: Select associated dome address, default: 1（Note: this address has to correspond with dome
address, or the dome will not control.）
【Baud Rate】: Select the dome baud rate and control, default is 9600. Note: the baud rate has to correspond
with the dome address, or the dome will not control).
【Data Bits】Default: 8
【Stop Bits】Default: 1
【Parity】Default: None
Professional Series (A)
www.espyindia.com
31
5.9.2 ALARM OUTPUT
This menu manages alarm output parameters and displays the current state of alarms.
【Channel】Alarm port
【Auto】Alarm output is determined by the alarm output menu, while in auto mode.
【Manual】Alarm output is on and the status is active.
【Close】Alarm output is off and the status is inactive.
【Status】Current status of alarm output
5.9.3 PORT CONFIGURATION
Port Config interface:
【Port Function】Adjust protocol
General port: upgrade and debug by port and software;
Keyboard: keyboard connected by port;
Bypassed port: connect with PC to bypass parameters;
Professional Series (A)
www.espyindia.com
32
Net keyboard: keyboard connected by net port;
PTZ matrix: control PTZ matrix
Note: Certain models are without an RS-232 port, please see 7.4 Specifications.
【Baud Rate】Set baud rate.
【Data Bit】Default: 8
【Stop Bit】Default: 1
【Confirm】Default is no
5.9.4 OUTPUT
Menu configuration
【Opacity】: Maximum: 255（opacity）, minimum: 128.
【Channel Name】: To modify channel name, available options are symbols, letters, and numbers.
【Time Display】: To choose whether time displays on screen
【Channel Display】: To choose whether channel name displays on screen
【Overlaying】: To choose whether overlaying information displays on screen
Professional Series (A)
www.espyindia.com
33
Output configuration
【VGA Output】: To select VGA resolution and refresh rate, default is 1024×768@60Hz.
【TV Adjust】: To adjust TV output area. Modify the image to the right size for monitor.
Tour configuration
Setting tour mode and interval between rotation , the time is within 5-120s，the mode include single screen,
four-, eight-, nine-, sixteen-screen.
【Motion Tour Type】: To set the motion detection tour mode
【Alarm Tour Type】: To set the alarm tour mode
Note：
Shortcut: Switch / by clicking the upper right button or pressing ―Shift‖ key.（ : enable tour : disable
tour）
5.10 MAINTENANCE
【Log】Display system log information.
Professional Series (A)
www.espyindia.com
34
Log type: System operation; configuration; data management; alarm event; recording; user management; log
delete; document operation. Select the type and time to filter the log list. Backup logs by clicking ―backup‖ or
clicking ―delete‖ to delete all logs.
【Version】: Shows features, software version and other information
Software upgrade: connect a USB flash device which contains the upgrade firmware and click ―Upgrade‖.
Note：Improper upgrades may cause the startup failure. Please operate under professional direction.
【Default】: Restore（items are selectable）
Note：Menu transparency, language, time format, video format, IP, user ID, etc are not restored.
【BPS】shows data rate of each channel by wave form.
Note：This is estimated value, foe reference only.
【Auto Maintain】Set auto maintenance items.
【On-line Users】Check the current online users status.
Professional Series (A)
www.espyindia.com
35
5.11 SHUTDOWN
【Menu Logout】Log out of the current user account
【Shutdown】Shutdown the DVR
【Restart System】Reboot the DVR
Professional Series (A)
www.espyindia.com
36
6 ON-LINE OPERATION
6.1 WEB OPERATION GUIDE
6.1.1 NETWORK CONNECTION
Check network connection by LCD on front panel, ― ‖ refers connection error.
Set IP, subnet mask and gateway for computer and DVR. The detail of DVR network configuration please
see【Settings】→【Network Setting】
Ensure the IP is correct and check whether the DVR is on the network by using the Windows command
―ping‖.
6.1.2 CONTROL SETUP & LOG IN / LOG OFF
You are able to access the DVR by Internet Explorer, assuming you have a correct network configuration.
You will see the following interface popup when you access the IP address in Internet Explorer.
Install ActiveX. If installation is blocked by Windows, please add the IP as a trusted site or lower your
Internet Explorer security settings to allow this.
The following interface will popup when you input your username, password and click ―Login‖.
Click ―Exit‖ to quit.
Professional Series (A)
www.espyindia.com
37
Index
Name
Description
1
Channel
Channel selection
2
Function key
Local playback: playback local record
Open all: play live views in surveillance window
3
Surveillance window
Change window layout
4
Image color & other
Image color: modify brightness, contrast and saturation
Other: set capture path, record download path and reboot
5
PTZ control
PTZ control menu
6
Menu
System config, record search, alarm setting, exit, etc.
Professional Series (A)
www.espyindia.com
38
6.1.3 LIVE VIEW
Select a live view channel in surveillance window
Top left（1 area in next diagram）shows DVR IP address and stream.
Left bottom（2 area in next diagram）shows the channel name.
Top right（3 area in next diagram）shows the date and time.
Click ― ‖（4 area in next diagram）to switch between single screen and multi-screen.
― ‖（5 area in next diagram）refers to multi-screen switch, local record, capture and mute/
cancel mute audio.
Multi-screen switch: switch from single screen to multi-screen and vice versa.
Local record: save and record video to a local HDD while in a live view. Set recording path in
configuration.
Capture: capture of the present channel, set the path in ―other‖.
Sound: on/off sound.
6.1.4 PTZ CONTROL
Set protocol（see【Setting】→【PTZ Config】）
Professional Series (A)
www.espyindia.com
39
Control PTZ direction, step size, zoom, IRIS, preset, tour, pattern, border scan, light, wiper, auto pan, etc.
Step size controls PTZ speed, e.g. step size 8 is moved faster than step size 1.
Eight direction rotations: up, down, right, left, upleft, upright, lower left, lower right.
Border scan:
Operation: move camera to the left/right boundary by direction key. Click border again to confirm the setting..
Preset:
Operation: modify preset position by direction key and inputting a preset number, then click ―Add‖ to save.
Tour:
Operation: select ―Tour‖; and input numbers in ―Path‖ and ―preset‖. Click【Add Preset】to add one preset in the
cruise path, and repeat to add additional presets. Click 【Clear Preset】to delete a preset, repeat to delete
more.
Pattern:
Operation: Click ―Pattern‖ in order to record a automated pattern. Then, go back to the PTZ controls in order
to modify the zoom, focus and IRIS, etc. Stop recording in ―Pattern‖ setting to save the pattern..
AUX: on/off one of AUX
Wiper: on/off wiper under protocol
6.1.5 SYSTEM SETTING
Call up the DVR local configuration menu by click ―System Setting‖, the further details please refer【Local
operation guide】.
Professional Series (A)
www.espyindia.com
40
6.1.6 SEARCH RECORD
Click ―Search record‖ to open the search interface.
Search record: parameters (start and end time, channel number). Then, click ‗Search‘ in order to display
the results..
Play: double click a search result to play in video window. Control the the playing video by the control keys
on the bottom.
Professional Series (A)
www.espyindia.com
41
Download: select a searched video to download to local. The download speed and percentage are
displayed on the bottom of the screen.
6.2 CLIENT OPERATION GUIDE
See 《IMS1000 User Manual》
7 APPENDIX
7.1 HDD CAPACITY CALCULATION
HDD capacity
There is no capacity limitation for each HDD, please select HDD according to your actual recording
requirement.
Formulas
Formula for total HDD capacity:
Total HDD Capacity (MB) = Channel Number × Time（Hour）× HDD Occupation Per Hour（MB/hr）
Formula for record period:
Record Period（Hour）=
Total HDD Capacity (MB)
HDD Occupation Per Hour (MB/hr) × Channel Number
Simulation for file size (CBR)
Stream（top limit）
File
Stream（top limit）
File
Stream（top limit）
File
96k
42M
320k
140M
896k
393M
128k
56M
384k
168M
1.00M
450M
160k
70M
448k
196M
1.25M
562M
192k
84M
512k
225M
1.50M
675M
224k
98M
640k
281M
1.75M
787M
256k
112M
768k
337M
2.00M
900M
The file size is different in VBR mode; the above data is only for reference.
Professional Series (A)
www.espyindia.com
42
7.2 REMOTE CONTROL OPERATION
7.3 MOUSE CONTROL
Connect a mouse and DVR by the USB ports.
Left Click
Pops up the login box if you are not logged in. If you are logged in, a left click brings up the main
menu.
Click an icon to entry it‘s submenu
Execute an operation
Select a check box, modify MD state
Pop up drop-down list
Select input method and input test. ← refers backspace, ＿ refers blank
English input:
Number input:
Symbol input:
Double left-click mouse
Select and play a record.
In live view, switch channel to a full screen.
Return back to a previous multi-view by double clicking again.
Right Click mouse
Pop up the context menu in live view mode
Return to the previous menu / cancel the operation.
Scroll wheel
Change numeric fields up/down
Professional Series (A)
www.espyindia.com
43
Select options from a pull down menu.
Scroll page up/down in a list box
Left click and Drag mouse
Left click and drag to select a motion detection area.
Left click and drag to select a masked area
7.4 TROUBLESHOOTING
DVR startup failure or continuously reboot
Possible reasons:
1. The system has been damaged from a bad DVR update.
2. There is a problem with the DVR main board error, please contact the supplier.
3. There is an HDD error. Replace the faulty HDD.
Remote control does not work
Possible reasons:
1. Check for batteries in the remote control
2. The batteries are dead.
3. The IR receiver / transmitter is not aligned.
4. The DVR address and does not correspond to the remote control address. Please check your settings in
the ―General‖ menu, and press the RC key to pair the device.
DVR cannot control PTZ
Possible reasons:
1. RS-485 cable connection error, A, B ports are inversely connected. A is RS-485+, B is RS-485 -
2. PTZ decoder, protocol, baud rate, address are incorrect.
3. Parallel connect a 120Ω resistance to resolve signal reflex issues caused by too many PTZs on the line.
4. The RS-485 port on DVR is defective
Blurred screen in preview mode
Possible reasons:
Please make sure your cameras match your video format selected in the General menu. E.g. camera is NTSC
standard but the DVR is a PAL standard, the preview would be blurred.
Blurred screen in playback mode or failure to playback records
Possible reasons:
1. Procedure error, reboot the DVR
2. HDD error, test or change out the HDD
3. DVR hardware failure, contact your local supplier
Client software cannot view DVR live image
Possible reasons:
1. Network settings are incorrect
2. IP conflict
Download recording can not be played
Possible reasons:
1. No video player is installed. Please download the latest video player online.
2. The USB or HDD device itself has an error
3. Do not install graphic software later than DX8.1
Loading...
