Esprit Statmux User Manual December 1997 Issue 1.3 Page 1 of 36
ESPRIT
8/16 Channel Statistical Multiplexer
User Manual
WARNING - BEFORE INSTALLATION, PLEASE
REFER TO SAFETY INSTRUCTIONS IN APPENDIX A,
AND EMC INSTRUCTIONS IN APPENDIX C
Certified Compliant in the EC, when fitted in accordance with the installation
instructions, against the following directives/standards:
Low Voltage Directive (73/23/EEC and amendment 93/68/EEC)
EN60950 : 1992 (Safety)
Electro ma g ne ti c C o mp at i bility directive (89/336/EEC and subsequent
amendments to date):
EN55022 : 1994 (Emissions)
EN50082-1 : 1992 (Immunity)
Telecommunications Terminal Equipme nt directive (91/263/EEC and
amendment 93/68/EEC) where indicated in approvals requirements
section.
Part Number:
EA 08600B
Esprit Statmux User Manual December 1997 Issue 1.3 Page 2 of 36
CONTENTS
1 INTRODUCTION 4
1.1 Functional Overview 5
2 USE AND CONFIGURATION 6
2.1 Data Channel Connection 6
2.2 Default Channel Setup 6
2.3 Changing the Configuration 6
2.4 Supervisor Terminal requirements 6
2.5 Supervisor Terminal Emulations 7
2.6 General Set-Up display layout 8
2.7 General Keyboard Conventions 8
2.8 Composite confiuration
2.9 Statmux channel configuration 10
2.10 Copying another channel's set-up 10
2.11 Modem Configuration Options 12
3 INSTALLATION 14
3.1 Supply Voltage & Connection 14
3.2 Environmental Considerations 14
3.3 Mechanical Construction 14
3.4 Composite Interface Selection 14
3.5 Composite Connection 15
3.6 Parameter Values 15
4 TROUBLESHOOTING 17
4.1 Front Panel LEDs 17
4.2 Diagnostics & Loopbacks 17
4.3 Back to Back testing 18
4.4 Statistics 18
Esprit Statmux User Manual December 1997 Issue 1.3 Page 3 of 36
APPENDICES
A. Installation Warnings 20
B. Approval Requirements 23
C. EMC Requirements 24
D. Rear Panel Layout 26
E. Supervisor Port Pinout V.24 25 Way D Type DCE 27
F. Composite Link Interface Pinouts DTE 28
G. V.24/V.28 Data Channel Pinout 8 Way RJ45 Type DCE 29
H. Composite Link Network Cables X.21/V.11 30
X.21bis/V.35 31
X.21bis/V.24 32
I. Back to Back Cable 33
J. V24 Modem Connections & Setup 34
K. Technical Specification 35
Esprit Statmux User Manual December 1997 Issue 1.3 Page 4 of 36
Esprit 8/16 Channel
Statistical Multiplexer
User Manual
1 INTRODUCTION
The Esprit is an 8 or 16 channel asynchronous statistical multiplexer, which may be
used with Dial up Modems and Leased lines (such as Ki l oStream™) up to 256 Kbps in
the case of the 16 channel unit or 64Kbps for the 8 channel.
The unit is easily configured from ei ther end of the link, using a termi nal or a PC running
a terminal emulation package.
This user manual covers installation and setup of user options for the multiplexer.
A full set of cable specifications are available in the appendices.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 5 of 36
Note: Max rate for 8 channel unit is 64K
1.1 Functional overview
The Es prit has 8 or 16 asynchronous ports, and a single composite link which has a
selectable interface type (X.21, V.24 or V.35) .
The composite interface supports sy nchr onous l i nk r ates of up to 256Kbps (64Kbps for
the 8 channel unit), either dial up or leased line, for connection to Modems or digital
services such as BT KiloStream™.
The sixteen channel unit will support data rates of up to 115.2Kbps, with a maximum
aggregate of 1843.2Kbps.
The ei ght channel unit supports rates up to 38.4Kbps with a maximum aggregate of
307.2Kbps.
Unrestricted speed conversions are also possible by setting different data rates at the
local and remote sites.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 6 of 36
2 USE AND CONFIGURATION
This section covers connection and set-up of the channel data ports. The composite
port is covered in Section 3, the installation section of this manual.
2.1 Data Channel Connection
Peripherals are connected to the V.24/V.28 8-way 'RJ45' type connectors configured
DCE and numbered 1 to 16 (1 to 8) at the r ear of the multiplexe r . The pin connections
for these data channels are defined in Appendix G.
2.2 Default Channel Setup
When delivered, the Esprit Statisti c a l M u l t iplexer i s set to operate with all channels set
as follows:
Rate : 9600 bps
Bits/Char : 8
Stop Bits : 1
Parity : NONE
Flow Control : XOFF
RTS : ON
Mode : NORMAL
2.3 Changing the Configuration
The Es pr it may be configured using an asynchronous terminal. A laptop PC running
an asynchronous terminal emulation prog r am such as PC Anywhere™, CrossTalk™ or
Blast™ is ideal for the field engineer.
Windows™ Terminal may also be used to configure an Esprit but please note that
under Settings - Terminal Preferences, the bo x for 'U se function, arrow and ctrl keys
for Windows' must NOT be set. If it is, then you will not be able to move the cursor
around on the screen.
The te rminal should be connected via its serial port to the SUPERVISOR port on the
rear of the multiplexer.
2.4 Supervisor Terminal requirements
The terminal must be configured to:
8 bit character, no parity, one stop bit, speed 9.6Kbps, Xon/Xoff
A suitable cable for connection of the Supervisor port is defined in Appendix E.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 7 of 36
Please select terminal type from the following:
1 = VT52
2 = VT100
3 = ADDSVP
4 = ADM3A
5 = H1500
6 = N8009
7 = TVI920
ESPRIT 16 CHANNEL STATISTICAL MULTIPLEXER Vx.xx
=====================================================================================
Carrier : V.11 PRESENT 64K Channels 1 - 16 :
Link Clock : EXTERNAL Modem Setup :
Mode : NORMAL Statistics :
Configuration : >LOCAL
Channel :12345678
Rate : 9600 9600 9600 9600 9600 9600 9600 9600
Bits/Char :88888888
Stop Bits :11111111
Parity : NONE NONE NONE NONE NONE NONE NONE NONE
Flow Control : XOFF XOFF XOFF XOFF XOFF XOFF XOFF XOFF
RTS : ONONONONONONONON
Mode : NORMAL NORMAL NORMAL NORMAL NORMAL NORMAL NORMAL NORMAL
<= More More =>
Cursor Keys to move, CTRL-U to save, ESC to abandon
=====================================================================================
Use <SPACEBAR>/<+>/<-> to select
2.5 Supervisor Terminal Emulations
Several terminal emulations are supported by the Esprit. When connection is made
between the terminal or PC and the rear panel port labelled SUPERVISOR, the
following screen will appear:
The te rminal type or emulation in use should be selected by pressing the relevant
number key on the PC or terminal. The monitor will now show the basic configuration
screen for the multiplexer setup. This is formatted as below (16 channel unit shown):
Esprit Statmux User Manual December 1997 Issue 1.3 Page 8 of 36
2.6 General Set-Up Display Layout
There are three main areas on the superv isor set-up screen used to change parameters
for the Esprit:
Upper left System parameters (Mode,
Link Clock, Carrier, Residual,
and Configure).
Upper right Other display pages which
may be selected (Channels 1
to 16, Modem Setup.
Bottom Channel configuration.
The initial display is that for the ASYNC channels.
2.7 General Keyboard Conventions
Only a few keys are required to configure the Esprit multiplexer and are summarised
as follows:
(Right arrow) Moves the cursor to the next field to the right.
(Left arrow) Moves the cursor to the next field to the left.
(Up arrow) Moves the cursor to the next field upwards.
(Down arrow) Moves the cursor to the next field downwards.
+ (Plus) or <SPACEBAR> Toggles the parameter value up to the next available setting.
- (Minus) Toggles the parameter value
down
to the next available setting.
<ENTER> or <RETURN> Accepts the current display page (else same as ).
<CTRL> and U Accepts all changes and causes multiplexer re-configuration.
<ESC> Abandons all changes since last <CTRL> and U.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 9 of 36
2.7.1 Cursor Movement
The cursor symbol ">" is moved around the scr een to the requir ed field using the arrow
keys.
2.7.2 Parameter changing
If it is possible to modify the field over which the cursor is placed, the message "Use
<SPACEBAR>, <+>, <->" is shown at the bottom of the screen. No m essage will
appear if the field is calculated, un-modifiable or hardware set.
Pressing the Space bar, the "+" key or the "-" key will cycle through the choices
available for a parameter.
2.7.3 Accepting all changes and Updating the configuration
If "Control" and "U" are pressed at the same time after the configuration has been
suitably adjusted, the config uration is updated at the local and remote end as necessary
and held in Non-Volatile Memory (NVRAM.)
2.7.4 Abandoning Changes
Pressing ESC at any point before a configuration is updated will cause the message
Abandon Changes? (y/n) to appear at the bottom of the screen. If n is selected the
message will disappear and editing may continue. If y is pres s e d, all modifications will
be abandoned and last updated configuration will be re-painted to the screen.
2.7.5 Local or Remote Configuration.
Most settings are independent at each end of the multiplexer link e.g. Flow Control,
and Rate.
The "Configure" parameter in the upper left of the selected screen shows whether the
LOCAL or REMOTE multiplexer is being configured.
2.7.6 Changing the configuration page
The Configuration Page required, e.g. Channels 1-16, or Modem Setup etc., is
selected by moving the cursor to the upper right area and pressing Enter when
alongside the required page.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 10 of 36
2.8 Composite Configuration
PARAMETER CHOICES NOTES
Carrier
V.24, V.11 If the screen shows either
Toggle through software V.24 or V.11 then you may
Internal link fitted to J5 toggle between the two
using the space bar.
To select V.35 , the link
fitted to J5 must be moved
to J6
V.35
Internal link fitted to J6
Link Clock
Ext Normal setting.
INT [Rate] Internal clock rates of up to
256K may be set for test
purposes.(64K for 8
channel unit)
2.9 STATMUX channel Configuration
To change the Statmux channel configuration, select the configuration screen (shown
on page 7) by moving the cursor to the top line on the right hand area of the screen,
next to 'Channels 1-16:' (Channels 1-8) and pressing ENTER or RETURN.
The display shows parameters for eight data channels CH1 to CH8, or CH9 to CH16.
The alternative 8 channels are selected by moving the cursor further to the left or right
as necessary.
Each data channel has parameters selectable as detailed on the following page.
2.10 Copying another channel's set-up
Channel data may be copied from another similar STATMUX channel, by placing the
cursor over the channel number field (of the channel to be changed).
The message 'Enter number or use <+>/<-> to copy channel' appears.
Simply entering the number (if channel is less than 10) of the channel to be copied
transfers all of that channels parameter s to the cur rent channel . If the channel number
is greater than 10, the spacebar may be used to increment it through each channel
number.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 11 of 36
Esprit Channel Set-up Options
PARAMETER CHOICES NOTES
Channel
1 to 16 (8) Use spacebar or '-' key to
select another channel to
copy.
Rate
0 to 115200 bps. (38400bps Data channel bit rate.
for 8 channel) Independently settable at
each end of link.
Bits/Char
5, 6, 7 or 8 bits. Number of bits per
asynchronous character.
Stop Bits
1, 1.5 or 2 Number of stop bits per
asynchronous character.
Parity
EVEN, ODD or NONE Asynchronous data parity.
Flow Control
XOFF XOFF - use XON/ XOFF soft
CTS CTS - Uses DTR (input) to
NONE No Flow control used
flow control
control data flow out from
MUX, CTS (output) to
control data flow from
equipment to MUX.
RTS
ON Always on
OFF Always off
(DSR) Transparent to DSR
Mode
NORMAL Normal RUN mode.
ECHO
Data echoed locally and
sent to remote (Half duplex
mode).
LLOOP Data locally looped back to
this site. Not sent via link.
QBF1 Send Quick Brown Fox
message directly to local
port.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 12 of 36
ESPRIT 16 CHANNEL STATISTICAL MULTIPLEXER Vx.xx
=====================================================================================
Carrier : V.24 LOST Channels 1 - 16 :
Link Clock : EXTERNAL Modem Setup :
Mode : NORMAL Statistics :
Configuration : >LOCAL
Link Fallback : 30 Seconds
Status : Idle
Cursor Keys to move, CTRL-U to save, ESC to abandon
=====================================================================================
Use <SPACEBAR>/<+>/<-> to select
QBF2 Send Quick Brown Fox
message via link to remote
port.
LOOP-R
Set this at remote site to
loop back data to local via
link.
2.11 Modem Configuration Options
The screen below shows the Modem Configuration options. A modem call is made
when characters are detected in any channel buffer. The call will be dropped
automatically after the period shown as 'Link fallback' after all data has been sent
successfully.
Esprit Modem/External TA Configuration options
PARAMETER CHOICES NOTES
Link Fallback
PERM LINK permanently
established. Use for leased
line operation.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 13 of 36
30 Seconds, 1 Minute Time before call is
2 Minutes, 5 Minutes automatically dropped, if no
15 Minutes, 30 Minutes further data flow detected.
60 Minutes.
Status
No Options Gives the current diagnostic
status of the Modem call
progress
Esprit Statmux User Manual December 1997 Issue 1.3 Page 14 of 36
3 Esprit Multiplexer Installation
BEFORE INSTALLATION, PLEASE REFER TO THE SAFETY WARNINGS IN
APPENDIX A, APPROVALS REQUIREMENTS IN APPENDIX B, and EMC
REQUIREMENTS IN APPENDIX C
3.1 Supply Voltage & Connection
A.C. 100 - 240V a.c. without adjustment.
D.C. 48V d.c. without adjustment. (OPTIONAL TBA)
The Esprit may be optionally DC or AC powered. The AC power supply is a switched
mode unit, the optional DC power supply unit being a DC to DC convertor. Both allow
considerable input voltage variation.
3.2 Environmental Considerations
The Esprit Multiplexer must be operated under the following atmospheric conditions:
Temperature: 0 to 40 degrees centigrade.
Humidity: 0% to 90% non-condensing.
Air Pressure: 86 to 106 kPa.
3.3 Mechanical Construction
The Esprit is housed in a 1.5U tall 19" encl osure. An optional rack mount kit is av ailable
on request. Three LEDs on the front panel indicate the current status of the multiplexer.
The multiplexer MUST be disconnected from the power supply before opening the
unit or changing any network connections.
Screws on the left, right and top of the enclosure are removed using a Pozidrive
screwdriver to access the interior.

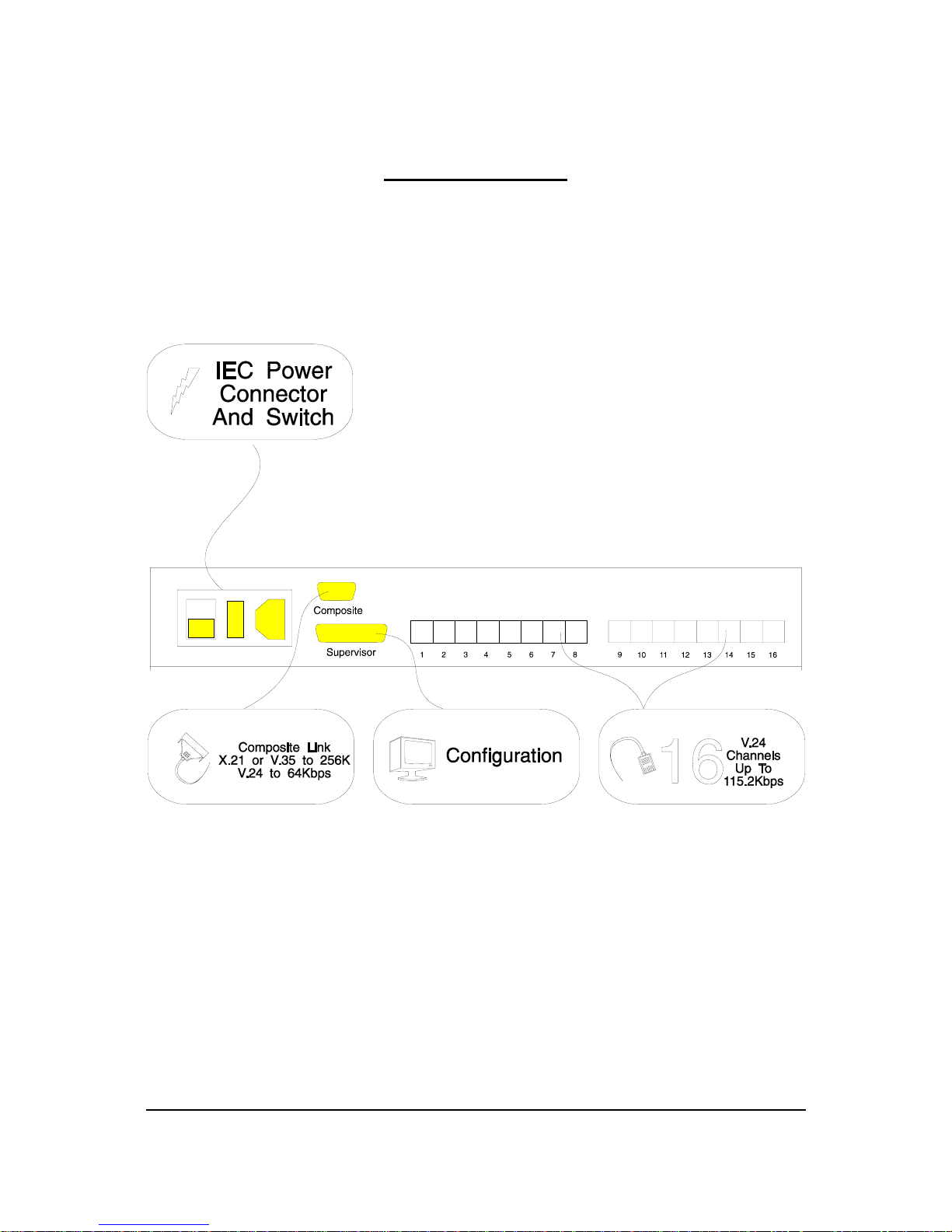

The rear panel (illustrated on page 26) accommodates the link interface connectors and
supervisor port.
3.4 Composite Interface Selection
The composite interface type is selected throug h the menu page. (X21/V11, V24, V35).
It is necessary to use the corresponding external cable to make connection once the
interface card has been fitted.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 15 of 36
3.5 Composite Network Connection
The Esprit Statistical Multiplexer supports Network Interfaces of X21/V11, V35 and V24.
The composite port appears on t he back panel as a 15 way D-type connector, the pin-
out for each interface standard being shown i n Appendix F. Correct cabl es for Netw ork
connection are shown in Appendix H.
3.6 Composite Link Parameters
Parameters in the System area (upper left) and the choices available by pressing the
Space Bar or + and - keys are:
Esprit Statmux User Manual December 1997 Issue 1.3 Page 16 of 36
PARAMETER CHOICES NOTES
Link Clock
EXTERNAL Rate up to 256K can be
INTERNAL 64K set on INTERNAL
V.11/V.24/
V.35
Present Shows whether the link
Lost is successfully
connected.
Mode
NORMAL Normal RUN Mode
LLOOP Loops all transmitted
data to the receiver.
Configuration
LOCAL "Modified" appears if
REMOTE
change has been made.
In dial up mode, a call
will automatically be
made when the remote
page is accessed.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 17 of 36
4 TROUBLESHOOTING
4.1 Front Panel LEDs

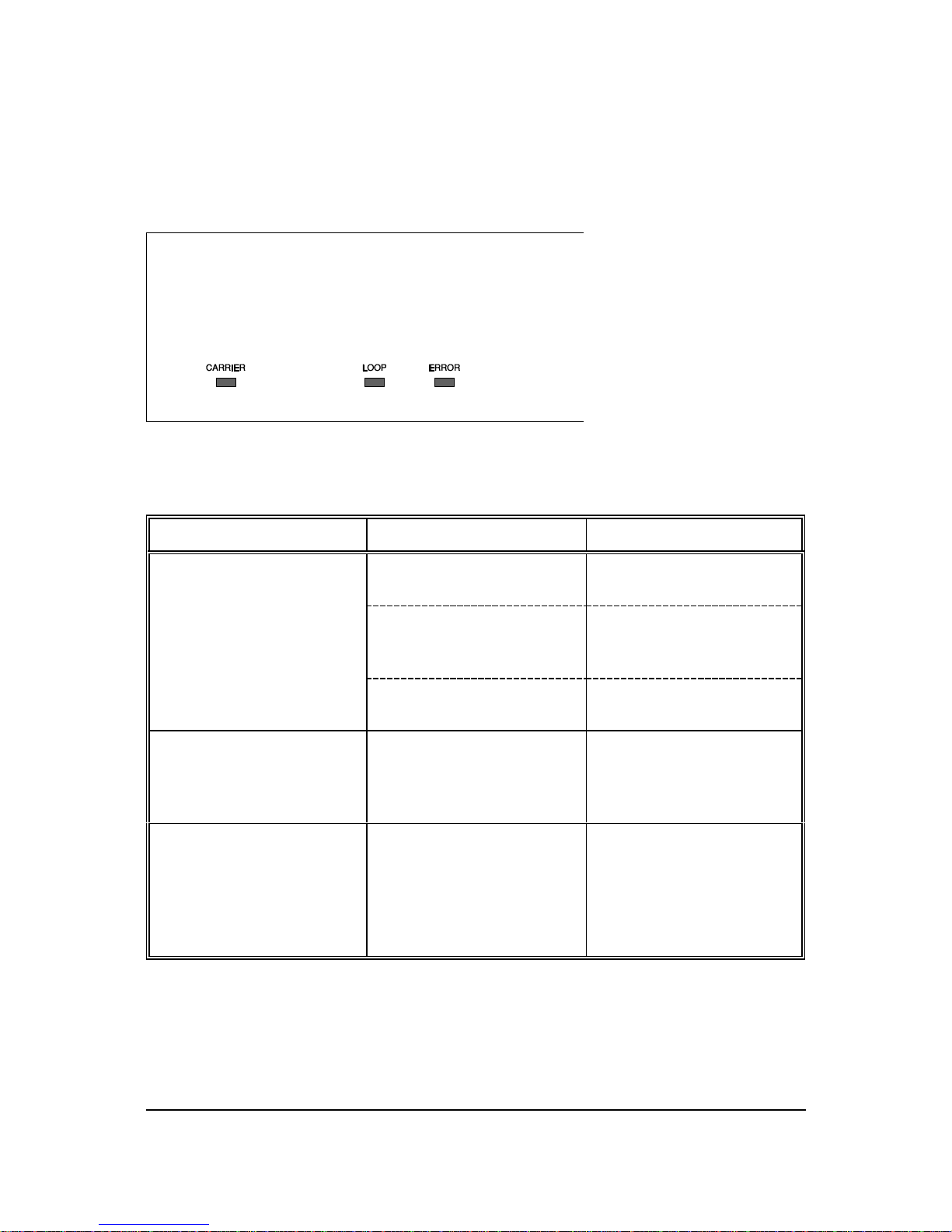

On the front panel only the CARRIER light should be illuminated during normal use.
When the multiplexer is
IDLE the CARRIER LED
will flash slowly. A faster
flash shows that a call
attempt is being made on
a dial up modem.
LED LABEL CONDITION NOTES
CARRIER Slow Flash IDLE
Fast Flash Call established,
searching for
synchronisation.
Steady Green Call in progress -
passing data OK
LOOP Not illuminated Normal un-looped mode
Green Some Channels looped
or in QBF test modes.
ERROR Red Red if an ERROR has
Not illuminated Unlit if link passing data
occurred on the
composite link.
correctly.
4.2 Diagnostics & Loopbacks
A numb er of debug options are available. They are described in the table in section
2.10, on page 11. It is pos s i bl e loop back any channel, as well as sending continuous
Quick Brown Fox messages either locally and remotely, to allow data and flow control
Esprit Statmux User Manual December 1997 Issue 1.3 Page 18 of 36
ESPRIT 16 CHANNEL STATISTICAL MULTIPLEXER Vx.xx
=====================================================================================
Carrier : V.11 PRESENT 64K Channels 1 - 16 :
Link Clock : EXTERNAL Modem Setup :
Mode : NORMAL Statistics :
Configuration : >LOCAL
Frames Sent : 9415 Frames Received : 11607
Frame Errors : 0 Frame Errors : 0
Retransmit : 0 Retransmit : 0
Throughput : 3584 Throughput : 3584
Unnumbered : 512
Carrier Loss : 0
Cursor Keys to move, CTRL-U to save, ESC to abandon
=====================================================================================
Use <SPACEBAR>/<+>/<-> to select
to be tested for proper operation.
If fl ow control is properly set, the messages should be received without loss when
attache d to a data tester, terminal or printer. In the case of printers, it is essential to
test flow control also under off-line conditions, as many have very large buffers which
can give a misleading indication that flow control is working when it is in fact not ever
requested by the printer.
4.3 Back-to-Back Testing
It is possible to test a pair of Esprits in a back-to-back mode usi ng a cable as descr ibed
in Appendix I
First ensure that both multiplxers ar e set to the same ty pe of composite interface, then
connect the two composite ports using the appropriate cable.
Set one mux to Internal Clock and also select an vali d r ate for it to r un at. Set the other
mux to External clock.
The m ultiplexers should establish carrier and perform exactly as if connected via a
digital service.
When you have finished any back-to-back testing, always set the cl ock back to External
as conflict will occur if it is connected to a digital data service.
4.4 Statistics
Below is an example of the Statistics page.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 19 of 36
Frames sent - Number of frames that have been transmitted across the
composite link.
Frames Errors - Number of frames that have errored whilst being transmitted.
Retransmit - Number of retransmit requests received.
Throughput - Data throughput in bytes/second.
Frames Received- Number of frames that have been received across the composite
link.
Frames Errors - Number of frames that have errored whilst being received.
Retransmit - Number of retransmit requests received.
Throughput - Data throughput in bytes/second.
Unnumbered - Number of idle frames received.
Carrier Loss - Number of times that carrier has been lost.
To reset the statistics page type <CTRL> - R
Esprit Statmux User Manual December 1997 Issue 1.3 Page 20 of 36
APPENDIX A - SAFETY REQUIREMENTS
WARNING: THIS EQUIPMENT MUST BE EA RTHED / GROUNDED
This equipment relies on the EARTH / GROUND
connection to ensure safe operation such that the
user and TELECOM Network are adequately
protected. It must not under any circumstances be
operated without an earth connection, which could
nullify its approval for connection to a network.
WARNING:
INSTALLAT ION OF EQUIPMENT
Installation of this equipment must only be
performed by suitably trained service personnel.
WARNING:
CONNECTION OF OTHER EQUIPMENT
This equipment allows connection only of suitably
approved equipment to its ports, the safety status
of which are defined below.
SELV Ports:
i) Supervisor port
ii) Composite port
iii) 1 to 16 (Channel ports)
The above named ports are classified as SELV (Safety Extra Low
Voltage) in accordance with in Clause 2.3 of EN60950 (BS7002,
IEC950 as applicable), and must only be connected to equi pment
which similarly complies with the SELV safety classification.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 21 of 36
Warnung: Dieses Gerät Muß an einem Anschluß mit
Schutzleiter betrieben werden.
Zum sicheren Betrieb ist der Anschluß des Gerätes an
Spannungsversorgungen mit Schutzleiter notwendig. Nur so
kann ein optimaler Schutz für Bedienpersonal und
Übertragungseinrichtungen gewährleistet werden. Unter
keinen Umständen darf dieses Gerät ohne Schutzleiter
betrieben werden, da ansonsten die Zulassung für den
Anschluß an Netzen erlischt.
Warnung: Installation des Gerätes
Die Installation des Gerätes darf nur von entsprechend
ausgebildetem und autorisiertem Personal durchgeführt
werden.
Warnung: Anschluß von anderen Geräten
Angeschlossen werden dürfen nur Systeme mit
entsprechenden zugelassenen und geeigneten Schnittstellen,
siehe auch nachfolgende Tabelle:
SELV Ports
i) Supervisor Port
ii) Composite port
iii) 1 to 16 (Channel Ports)
Die oben aufgeführten Ports sind klassifiziert als SELV (Safety
Extra Low Voltage) in Übereinstimmung mit Absatz 2.3 der
Verordnung EN60950 (BS7002, IEC950 soweit anwendbar), und
dürfen nur zusammen mit Geräten verwendet werden, die dieser
Bestimmung entsprechen.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 22 of 36
Mise en garde: Cet équipement doit être relié a la terre
Cet équipement doit posséder une prise de terre de manière
à ce que le réseau télécom et ses utilisateurs soient
équitablement protégés. Tout manquement à cette obligation
entraînerait l'annulation de l'autorisation de connexion a un
réseau.
Mise en garde: Installation de l'équipment
L'installation doit être assurée uniquement par des
personnels convenablement formés à ce type de matériel.
Mise en garde: Connexion d'autres équipements
Des équipement complémentaires pourrant être connectés
aux ports de cet éq u i p e m en t à la seule condition que ceux-ci
soient agrées. Les conditions optimales de sécurité pour
toute connexion sont définies ci-dessous:
Ports SELV.
1) port Supervisor
2) port Composite
3) ports pour les canaux 1 à 16
Les ports cités ci-dessous sont classés dans la catégorie SELV
(Safety Extra Low Voltage) conformément à la classe 2.3 de
EN60950 (BS7002, IEC950 applicable) et doivent être connectés
à des équipements répondant à la norme de sécurité SELV.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 23 of 36
APPENDIX B - APPROVAL REQUIREMENTS
The Esprit MULTIPLEXER carrying the BABT / CE168 assessment symbols and
approval number, is approv ed for connection to the netw orks identi fied in this Appendi x
as follows:
X.21/V.11
Throughout Europe (Pan European) to I-CTR2 at data rates up to and including
256Kbps when the composite interface is configured to X.21/V.11 .
Connection must be made using a suitable non-integral i nterface specific cable, detai l s
of which are provi ded i n Appendix H, page 30. This cable is avai l abl e from y our deal er
using the specified part number.
V.35
Throughout Europe (Pan European) to I-CTR2 at data rates up to and including
256Kbps when the composite interface is configured to V.35 .
Connection must be made using a suitable non-integral i nterface specific cable, detai l s
of which are provi ded i n Appendix H, page 31. This cable is avai l abl e from y our deal er
using the specified part number.
V.24
Throughout Europe (Pan European) to I-CTR2 at data rates up to and including
19.2Kbps when the composite interface is configured to V.24 .
Connection must be made using a suitable non-integral i nterface specific cable, detai l s
of which are provi ded i n Appendix H, page 32. This cable is avai l abl e from y our deal er
using the specified part number.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 24 of 36
APPENDIX C - EMC REQUIREMENTS
To ensure compliance with the EMC directi v e, some car e must be taken to ensur e that
the units are installed properly, using suitable cables and connections. The following
must be observed:
C.1 Limitation of Emissions:
C.1.1 'D-Type' Connections
This product r elies on the use of screened cables for connection to the 15 way and 25
way 'D-Type' ports. The cables must hav e the foil or braid scr een connected effectively
to the metal headshell to ensure continued compliance. The following headshells are
among those which have been found to provide suitable screen connection:
25 Way 15 Way
a) CINCH SCH25-K SCH15-K
b) RS 460-979 454-930
c) TOBY MHDTZK-25-K MHDTZK-15-K
The diagram below illustrates an example of a suitable screen connection. Note how
the foil or braid screen is bent back over the 'C' cl ip to achieve a pressure contact of the
screen against the shell:
It is important to keep the screen to shell connection as short as possible.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 25 of 36
C.1.2 RJ45 Data Channel Connections
The RJ45 Channel Data connections do not normally require any shielding or ferrite to
meet emissions requirements, unless they are to be connected to other equipment that
does require a shielded cable, in which case suitable precautions should be taken.
C.1.3 Mains Connection
The mains connection is internally filtered and requires no special consideration.
C.2 To Ensure that adequate immunity is achieved:
It is in the user's interest to ensure continued product immunity against mains born
transients, and static discharge. To achieve this, it is important to ensure that
equipment is effectively earthed.

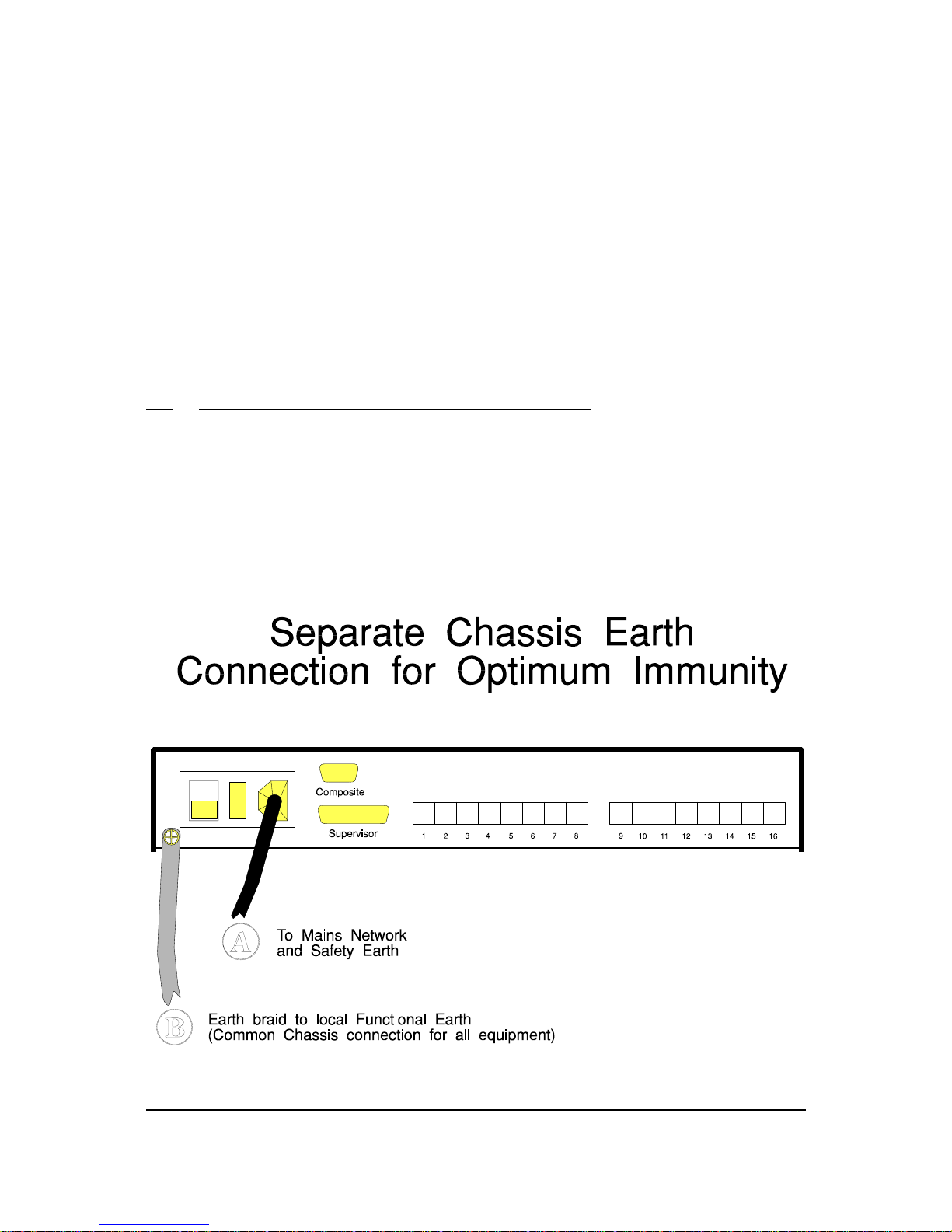

The m a in s IEC cable provides some protection, but to achieve optimal immunity, the
chassis EARTH screw connection should be connected to a local EARTH busbar or
cabinet frame wherever possible as shown below:
Esprit Statmux User Manual December 1997 Issue 1.3 Page 26 of 36
APPENDIX D
Rear Panel Layout
The layout of all ports on the rear panel of a 16 channel Esprit multiplexer is shown in
the diagram below, the 8 channel version doesn't have ports 9-16:
Note: Max channel rate of 38.4K for 8 channel Esprit
Esprit Statmux User Manual December 1997 Issue 1.3 Page 27 of 36
APPENDIX E - Supervisor port pinout
V.24 Supervisor Port Pinout (25 Way D Type Configured DCE)
1 Ground
2TxD
3RxD
4RTS
5CTS
6DSR
7 Common
8 DCD
20 DTR
9600bps Operation: The multiplexer requires connections to TxD, RxD and
Commo n only. The output signals CTS, DSR and DCD are provided fo r the
terminal if required.
Cable for connection to PC serial port
Signal Mux PC Serial Port PC Serial Port
25 way Male 25 way Female 9 way Female
Ground 1 1 -
TxD 2 2 3
RxD 3 3 2
RTS 4 4 7
CTS 5 5 8
DSR 6 6 6
Common 7 7 5
DCD 8 8 1
DTR 20 20 4
Esprit Statmux User Manual December 1997 Issue 1.3 Page 28 of 36
APPENDIX F - LINK A 15 way pinout
15 D-Type Composite Interface
Pin Connections (DTE)
15 Way Type at
Mux X.21/V11 V.35 V.24 Connector
Connector
(Normal Use)
1 PROTECTIVE GROUND 8 G COMMON COMMON Common
Return
2 T(A) TXDa TXD Generator
9 T(B) TXDb - Generator
3 C(A) DTR DTR Generator
10 C(B) - - Generator
4 R(A) RXDa RXD Load
11 R(B) RXDb - Load
5 I(A) DCD DCD Load
12 I(B) - - Load
6 S(A) RXCa RXC Load
13 S(B) RXCb - Load
7 X/B(A) TXCa TXC Load
14 X/B(B) TXCa - Load
15 RTS RTS - Generator
Notes: 1 15 way D-type connector shell and termination as specified in EMC section
Appendix C, on page 24 of this manual.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 29 of 36
APPENDIX G - V.24 Data Channel Pinout
V.24 Data Channels connectors 1 - 16 (8 Way RJ45 Type Configured DCE)
DATA CHANNEL CONNECTIONS:
Description DCE - RJ45 Type
Protective Ground - -
TxD 6 Load
RxD 5 Generator
RTS 8 Load
CTS 7 Generator
DSR 1 Generator
Common 4 -
DCD 2 Generator
DTR 3 Load
Esprit Statmux User Manual December 1997 Issue 1.3 Page 30 of 36
APPENDIX H - NETWORK COMPOSITE CABLES
X.21/V.11 STRAIGHT
15 Way Multiplexer Composite DTE
to Network DCE Cable
(P/N BB15019C)
MUX 15 Way Male V.11 15 Way Male Type at Connector
Connector Connector
UNC 4/40 Screws M3 Screws
2
(Normal Use)
11SHIELD8 8 G Common Return
2 2 T(A) Generator
9 9 T(B) Generator
3 3 C(A) Generator
10 10 C(B) Generator
4 4 R(A) Load
11 11 R(B) Load
5 5 I(A) Load
12 12 I(B) Load
6 6 S(A) Load
13 13 S(B) Load
Notes: 1 Pin 14 on Mux not Connected
2 V11 Male for connection to NTU must have M3 Screws. Mux end has 4/40 screws
unless National Regulations permit the use of UNC 4/40. Each cable end must be
clearly identifiable.
3 Dashed lines show wires to be twisted pairs.
4 Cable type: Belden 9506, 6 wire twisted pair overall screen (or equivalent).
Maximum length 100 Metres.
5 Connector shell and termination as specified in EMC section Appendix C, on page
24 of this manual.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 31 of 36
X21bis/V.35 STRAIGHT
15 Way Multiplexer Composite DTE
to Network DCE Cable
(P/N BB08601A)
MUX 15 Way Male V.35 34 Way MRA Male Type at Connector
Connector Connector
UNC 4/40 Screws
(Normal Use)
1ASHIELD8 B COMMON Common Return
2 P TXDa Generator
9 S TXDb Generator
15 C RTS Generator
3 H DTR Generator
4 R RXDa Load
11 T RXDb Load
5 F DCD Load
6 V RXCa Load
13 X RXCb Load
7 Y TXCa Load
14 AA TXCb Load
Notes: 1 Dashed lines show wires to be twisted pairs.
2 Cable type: Belden 9507, 7 twis ted pair ov erall s creen (or equiv alent). M axim um
length 100 Metres.
3 Connector shell and termination as specified in EMC section Appendix C, on page
24 of this manual.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 32 of 36
X.21bis/V.24 STRAIGHT
15 Way Multiplexer Composite DTE
to Network DCE Cable
(P/N BB08602A)
MUX 15 Way Male V.24 25 Way Male Type at Connector
Connector Connector
UNC 4/40 Screws UNC 4/40 Screws
(Normal Use)
11SHIELD8 7 COMMON Common Return
2 2 TXD Generator
15 4 RTS Generator
3 20 DTR Generator
4 3 RXD Load
5 8 DCD Load
6 17 RXC Load
7 15 TXC Load
Notes: 1 Cable type: Belden 9540, 10 conductors overall screen (or equivalent). Maximum
length 10 Metres.
2 Connector shell and termination as specified in EMC section Appendix C, on page
24 of this manual.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 33 of 36
APPENDIX I - Back to Back Test Cables
Back to Back cable spec fo X.21/V.11 , V.24 and V.35
Signal Name 15 way D male (Mux A) 15 way D male (Mux B)
Common 8 8
TxDa/RxDa 2 4
TxDb/RxDb 9 11
RxDa/TxDa 4 2
RxDb/TxDb 11 9
Clocka/Xclocka 6 & 7 6 & 7
Clockb/Xclockb 13 & 14 13 & 14
Note : Set Mux A to INTERNAL CLOCK and Mux B to EXTERNAL CLOCK
Esprit Statmux User Manual December 1997 Issue 1.3 Page 34 of 36
APPENDIX J - V24 Modem Connections & Setup
Modem setup example
Not all modems behav e identicall y, but the foll owing g eneric AT commands are a useful
starting point. One of the two modems must be set up as the Originator and the other
is set up as the Answering modem.
Set the Originator modem up as follows :-
AT &F0 Set Def aults
AT &M2 Set SYNCHRONOUS DTR dialling
AT &D2 DTR required for modem to go online
AT &S1 DSR Responds to remote modem
AT &Z0= tel No Set telephone number
AT &W Save settings
Set the Answering modem up as follows :-
AT &F0 Set Def aults
AT &M1 Set SYNCHRONOUS mode
AT &D0 Ignore DTR
AT &S1 DSR Responds to remote modem
ATS0=1 Set answer to 1 ring
AT &W Save settings
Connect the composite link of the local multiplexer to the calling modem and the remote
to the answering modem using an X.21bis/V.24 Straight cable.
Esprit Statmux User Manual December 1997 Issue 1.3 Page 35 of 36
APPENDIX K - Esprit TECHNICAL SPECIFICATION
ASYNCHRONOUS DATA CHANNELS
Interface: V.24/V.28 (DCE)
Capacity: 8 or 16 Channels
Data Rates: 0 to 115200bps (0 to38400bps for 8 channel)
Data Format: 5,6,7,8 bit data
Stop Bits: 1, 1½, or 2 stop bits
Data Parity: EVEN, ODD or NONE
Data Flow Control: In Band: XON/XOFF(DC1/DC3).
Out Of Band: CTS (Data to Mux), DTR (Data from Mux)
Diagnostics: Local a nd Remote Loopbacks. 'Quick Brown Fox' test messages. Echo
Mode
Flags: RTS may be set ON, OFF or to follow DSR from the Remote mux
COMPOSITE LINK
Interface: V.11 , V.35 , V.24 (all DTE)
Data Rates: Up to 256Kbps (64K for V.24 or 8 channel version), Clock Source
Internal or External
Transmission Modes: HDLC
SUPERVISOR PORT
Interface: V.24/V.28 (DCE)
Data Rate: 9600bps asynchronous
Data Format: 8 bits, no parity, 1 stop bit
Supported Terminals: VT52, VT100, ADDSVP, ADM3A, H1500, N8009, TVI920
GENERAL
Front Panel Indicators: Carrier, Loop, Error.
Dimensions: 434mm x 274mm x 61mm
Weight: 2.6K
g
Environment: Operating 0-40C, 0-90% humidity non-condensin
g
Esprit Statmux User Manual December 1997 Issue 1.3 Page 36 of 36
Power Requirements: 100 - 240V AC , 50 - 60Hz
Loading...
