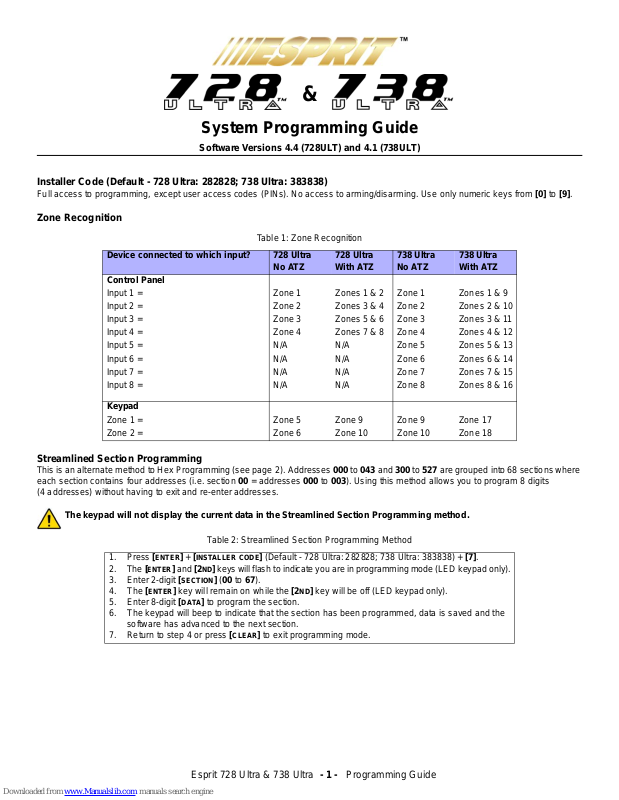

ESPRIT 738 ultra, 728 ultra Programming Manual
Esprit 728 Ultra & 738 Ultra - 1 - Programming Guide
System Programming Guide
Software Versions 4.4 (728ULT) and 4.1 (738ULT)
Installer Code (Default - 728 Ultra: 282828; 738 Ultra: 383838)
Full access to programming, except user access codes (PINs). No access to arming/disarming. Use only numeric keys from [0] to [9].
Zone Recognition
Streamlined Section Programming
This is an alternate method to Hex Programming (see page 2). Addresses 000 to 043 and 300 to 527 are grouped into 68 sections where
each section contains four addresses (i.e. section 00 = addresses 000 to 003). Using this method allows you to program 8 digits
(4 addresses) without having to exit and re-enter addresses.
The keypad will not display the current data in the Streamlined Section Programming method.

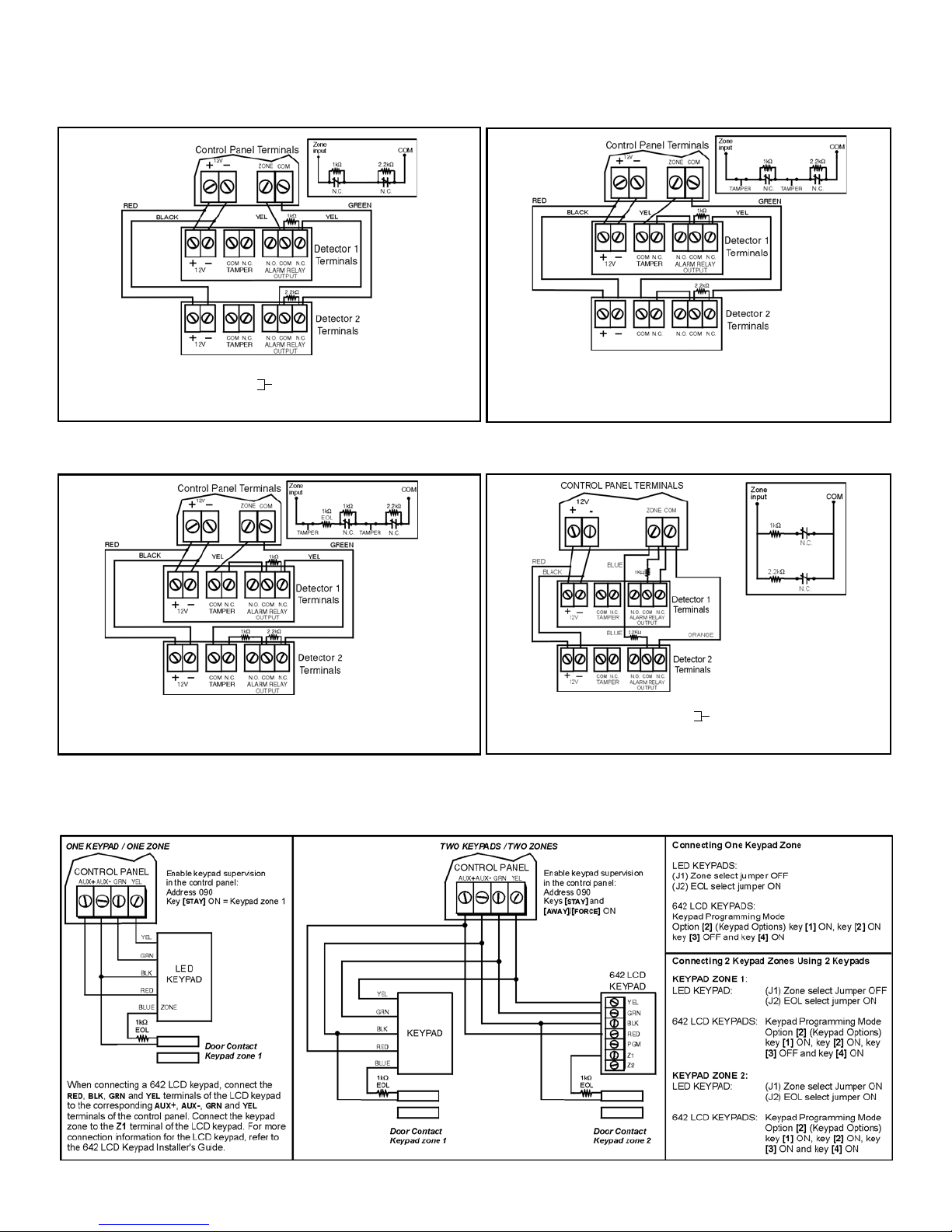

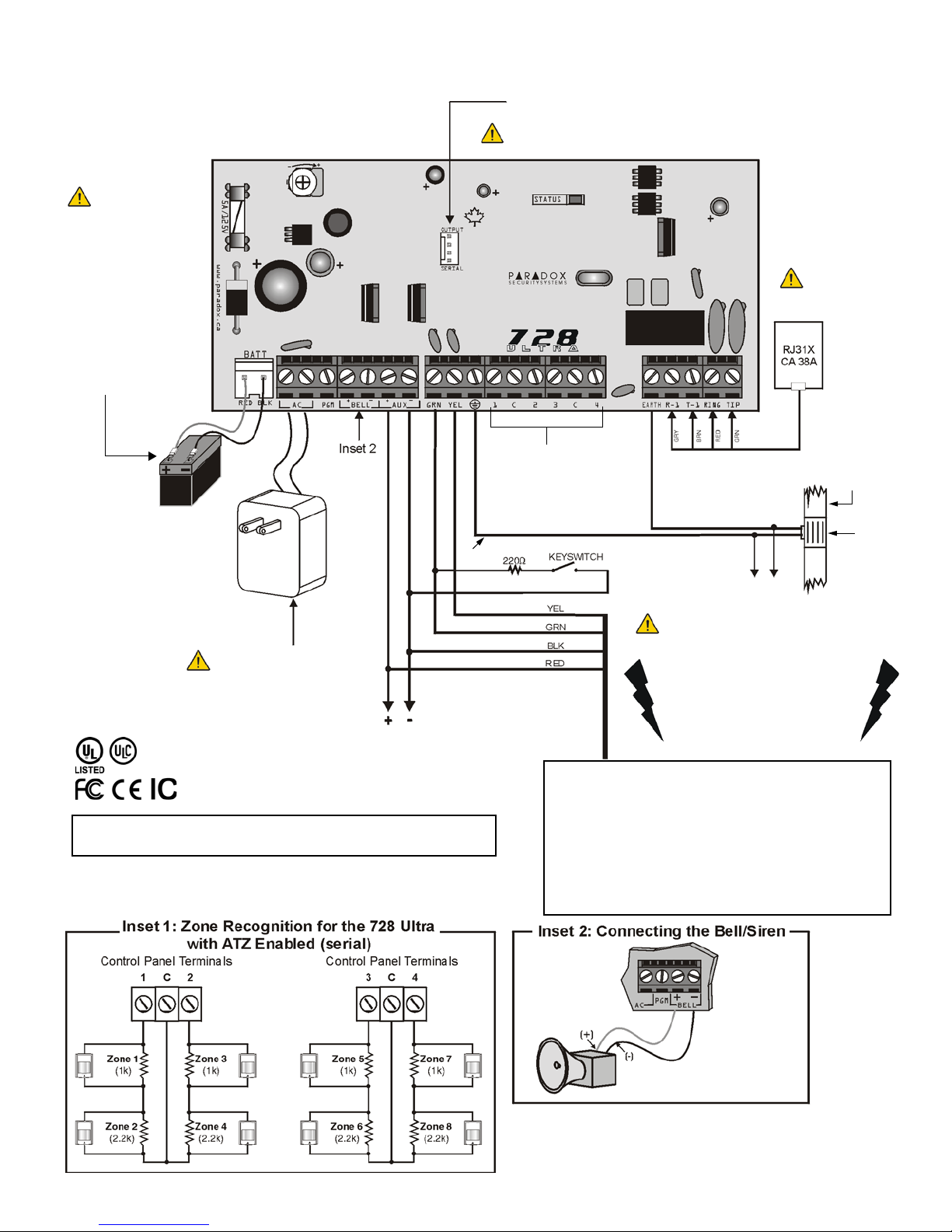

Table 1: Zone Recognition
Device connected to which input? 728 Ultra
No A TZ
728 Ultra
With ATZ
738 Ultra
No ATZ
738 Ultra
With ATZ
Control Panel
Input 1 = Zone 1 Zones 1 & 2 Zone 1 Zones 1 & 9
Input 2 = Zone 2 Zones 3 & 4 Zone 2 Zones 2 & 10
Input 3 = Zone 3 Zones 5 & 6 Zone 3 Zones 3 & 11
Input 4 = Zone 4 Zones 7 & 8 Zone 4 Zones 4 & 12
Input 5 = N/A N/A Zone 5 Zones 5 & 13
Input 6 = N/A N/A Zone 6 Zones 6 & 14
Input 7 = N/A N/A Zone 7 Zones 7 & 15
Input 8 = N/A N/A Zone 8 Zones 8 & 16
Keypad
Zone 1 = Zone 5 Zone 9 Zone 9 Zone 17
Zone 2 = Zone 6 Zone 10 Zone 10 Zone 18
Table 2: Streamlined Section Programming Method
1. Press [
ENTER] + [INSTALLER CODE] (Default - 728 Ultra: 282828; 738 Ultra: 383838) + [7].
2. The [
ENTER] and [2ND] keys will flash to indicate you are in programming mode (LED keyp ad only).
3. Enter 2-digit [
SECTION] (00 to 67).
4. The [ENTER] key will remain on while the [2ND] key will be off (LED keypad only).
5. Enter 8-digit [
DATA] to program the section.
6. The keypad will beep to indicate that the section has been programmed, data is saved and the
software has advanced to the next section.
7. Return to step 4 or press [
CLEAR] to exit programming mode.
&
Esprit 728 Ultra & 738 Ultra - 2 - Programming Guide
Keypad Trouble Display
Press the [TBL]/[TRBL] key to view the trouble. Any illuminated keys represent a specific trouble as indicated in Table 3 below. Press the
[CLEAR] button to exit the trouble display.
Hex Programming
This is an alternate method to the Streamlined Section Programming (see page 1). Addresses 000 to 043 and 300 to 527 can be
programmed using the Hex Programming method. In this mode, you can enter any hexadecimal digit from 0 to F where keys [1] to [9]
represent digits 1 to 9 respectively; the other keys represent hexadecimal digits A to F as shown in Figure 1 below.

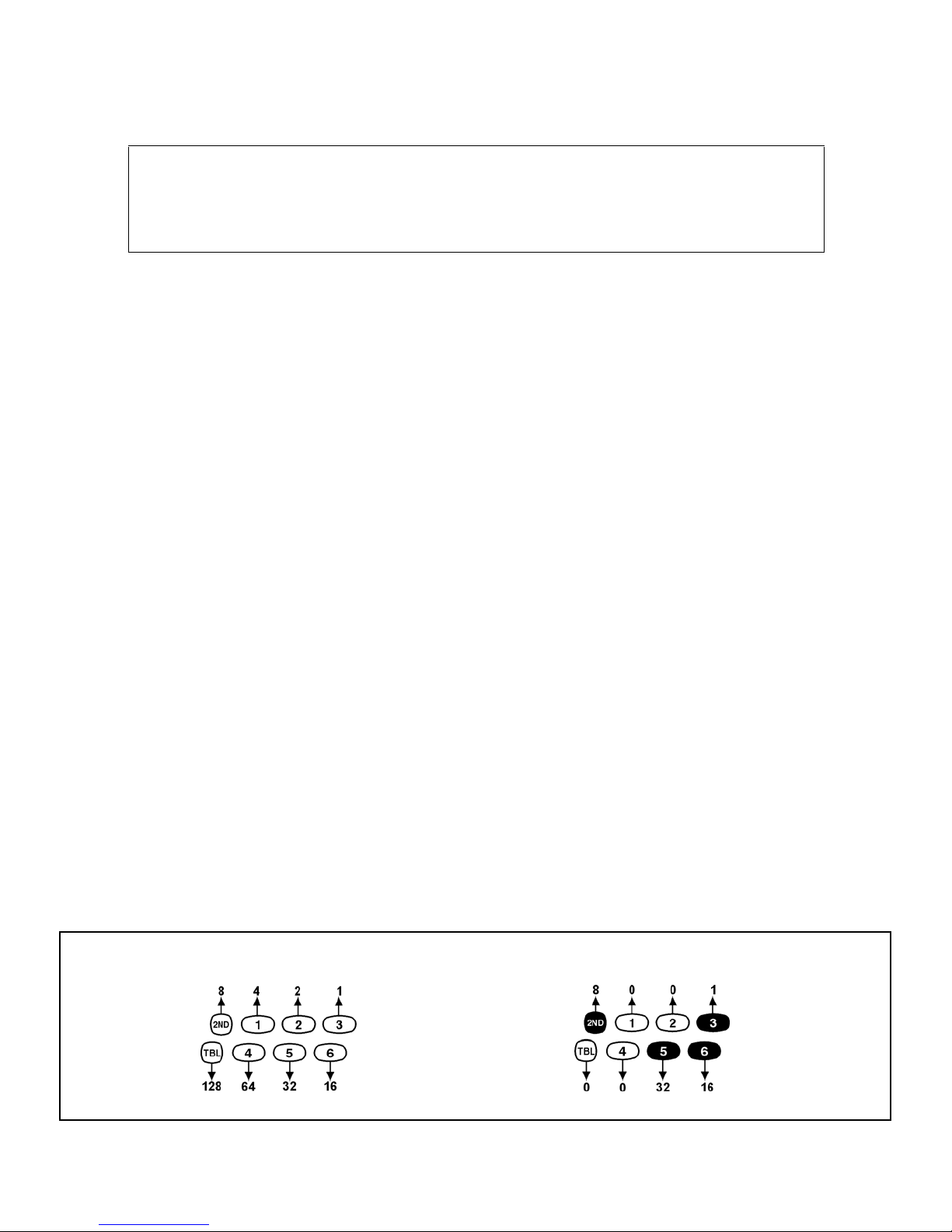

Figure 1: Hex Digit Data Entry and Data Display for LED Keypads
Table 3: Trouble Display
[1]
- No Battery or Low Voltage
[7]
- Communicator Report Failure
[2]
- Power Failure
[8]
- Timer Loss* (to clear , see [MEM] key in
Table 11 on page 11)
[4]
- Bell Output Disconnected
[9]
- Tamper or Zone Wiring Failure
[5]
- Exceeded Maximum Bell Current
[10]
- Telephone Line Monitoring Failure
[6]
- Exceeded Maximum Auxiliary Current
[11]
- Fire Loop Trouble
Table 4: Hex Programming Method
1. Press [
ENTER] + [INSTALLER CODE] (Default - 728 Ultra: 282828; 738 Ultra: 383838).
2. The [
ENTER] key will flash indicating you are in programming mode (LED keypad only).
3. Enter the desired 3-digit [ADDRESS].
4. The keypad will display the 2-digit data currently saved at this address as described in Figure 1 below.
5. Enter 2-digit [
DATA] and do not press [ENTER], the software automatically saves the data.
6. Return to step 2 or press [CLEAR] to exit programming mode.
Therefore 2-digit data = 7A
= First digit = 4 + 2 + 1 = 7
= Second digit = 8 + 2 = 10
Note: Values 10 to 15 represent hex digits A to F respectively. See keypad to the left.
Each key in the first 2 rows of the keypad represents a specific value when the key is lit, as
shown above. If the key isn’t lit, the key represents 0. The sum of the values of the lit keys in
the first row correspond to the second hex digit. The sum of the values of the lit keys in the
second row correspond to the first hex digit as shown in the example below.
Sum of the second row = first hex digit
Sum of the first row = second hex digit
If the key is not lit, value = 0
Note: LCD keypads will display current data on the screen.
Esprit 728 Ultra & 738 Ultra - 3 - Programming Guide
INSTALLER / Panel Answer Options
Telephone and Account Numbers
If only one monitoring station phone number is used, program the same number for telephone numbers 1 and 2. If only one account
number is required, the same number must be entered for both accounts "A" and "B".
[0] to [9] = numeric value [
BYP] = switch from pulse to tone while dialing
[
STAY] = * [MEM] = pause 4 seconds
[AWAY]/[FORCE] = # [TBL]/[TRBL] = end of number
Streamline Section Data
Description
Address Answering Machine Override
___ / ___ Installer code (1st, 2nd digit) 000
[2ND] or [1] = disabled [5] = 40 seconds
___ / ___ Installer code (3rd, 4th digit) 001
[2] = 16 seconds [6] = 48 seconds
___ / ___ Installer code (5th, 6th digit) 002
[3] = 24 seconds [7] = 56 seconds
___ / ___ Panel answer options
003
[4] = 32 seconds [8] to [F] = 60 seconds
Number of rings (Max. 15)
Streamline Section Data
Description
Address
___ / ___ Panel Identifier (1st, 2nd digit) 004
___ / ___ Panel Identifier (3rd, 4th digit)
005
___ / ___ PC Password (1st, 2nd digit) 006
___ / ___ PC Password (3rd, 4th digit)
007
Computer Telephone Number
(View at addresses
008
to
015
)
Streamline Section Streamline Section
Press the [TBL]/[TRBL]
key to end phone
number if less than 16
digits are programmed.
02
__/__/__/__/__/__/__/__
03
__/__/__/__/__/__/__/__
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Monitoring Station Telephone Number 1
(View at addresses
016
to
023
)
Streamline Section Streamline Section
Press the [TBL]/[TRBL]
key to end phone
number if less than 16
digits are programmed.
04
__/__/__/__/__/__/__/__
05
__/__/__/__/__/__/__/__
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Monitoring Station Telephone Number 2
(View at addresses
024
to
031
)
Streamline Section Streamline Section
Press the [TBL]/[TRBL]
key to end phone
number if less than 16
digits are programmed.
06
__/__/__/__/__/__/__/__
07
__/__/__/__/__/__/__/__
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Accounts “A” and “B” (View at addresses 032 to 035)
Streamline Section
For 3-digit account
numbers, enter “skip”
([2
ND]) as first digit.
The Standard Pulse
report format can
support 3- or 4-digit
account numbers.
The Ademco Express,
Ademco Contact ID
and the Pager report
formats only support 4digit account numbers.
08
__/__/__/__ __/__/__/__
1234 5678
AB
00
01
{
Identifies the control panel to the PC.
{
Identifies the PC to the control panel.
First digit disables “Answering Machine Override”
(key [2
ND] or key [1]), or determines period of time
between first and second call. Second digit
determines number of rings required before panel
will answer. If [2
ND][2ND] is entered, panel will not
answer (Default value is [2
ND] [8]).
Esprit 728 Ultra & 738 Ultra - 4 - Programming Guide
Streamline Section Data
Description
Address
[2
ND] / [2ND] Future Use 036
___ / ___ 1st digit: Pager Delay (see table at right)
2nd digit: Time correction (see table at right)
037
___ / ___ 1st digit: Communicator Format 1
2nd digit: Communicator Format 2
038
___ / ___ 1st digit: PGM1 type
2nd digit: PGM2 type (738 Ultra only)
039
Streamline Section Data
Description
Address
___ / ___ PGM1 040
___ / ___ PGM2 (738 Ultra only) 041
___ / ___ PGM Mask 1 042
___ / ___ PGM Mask 2 (738 Ultra only) 043
Communicator Formats
(* = supports 4-digit account codes only)
Key Key
[2
ND] = ADEMCO slow (1400Hz, 1900Hz, 10bps) [6] = RADIONICS with PARITY (1400Hz, 40bps)
[1] = (1400Hz, 1800Hz, 10bps) [7] = RADIONICS with PARITY (2300Hz, 40bps)
[2] = SILENT KNIGHT fast (1400Hz, 1900Hz, 20bps) [8] = * ADEMCO express
[3] = SESCOA (2300Hz, 1800Hz, 20bps) [9] = * ADEMCO contact ID (programmable codes)
[4] = RADIONICS (40bps with 1400Hz handshake) [0] = * ADEMCO contact ID (all codes)
[5] = RADIONICS (40bps with 2300Hz handshake) [
TBL] / [TRBL] = * PAGER FORMAT (personal dialing)
Programmable Contact ID Event Codes
All addresses from 300 to 527 (sections 11 to 67) programmed with values other than [2ND] [2ND] will report the contact ID codes corresponding to the
values programmed. Values to be programmed should be selected from this table.
CID Reporting Code Prog. Value CID Reporting Code Prog. Value
100: A
UXILIARY ALARM [2ND] / [1] 300: SYSTEM TROUBLE [2] / [2]
110: F
IRE ALARM [2ND] / [2] 301: AC LOSS [2] / [3]
111: F
IRE SMOKE [2ND] / [3] 302: LOW SYSTEM BATTERY [2] / [4]
112: C
OMBUSTION [2ND] / [4] 305: SYSTEM RESET [2] / [5]
113: W
ATER FLOW [2ND] / [5] 306: PROGRAM CHANGED [2] / [6]
114: H
EAT [2ND] / [6] 309: BATTERY TEST FAIL [2] / [7]
115: P
ULLSTATION [2ND] / [7] 320: SOUNDER/REL AY TROUBLE [2] / [8]
116: D
UCT [2ND] / [8] 321: BELL 1 TROUBLE [2] / [9]
117: F
LAME [2ND] / [9] 323: ALARM RELAY TROUBLE [2] / [0]
118: N
EAR ALARM [2ND] / [0] 350: COMMUNICATION TROUBLE [2] / [STAY]
120: P
ANIC ALARM [2ND] / [STAY] 351: TELCO 1 FAULT [2ND] / [AWAY] OR [FORCE]
121: D
URESS [2ND] / [AWAY] OR [FORCE] 354: FAIL TO COMMUNICATE [2] / [BYP]
122: S
ILENT PANIC [2ND] / [BYP] 370: PROTECTION LOOP TROUBLE [2] / [MEM]
123: A
UDIBLE PANIC [2ND] / [MEM] 371:
P
ROTECTION LOOP OPEN
[2] / [TRBL]
130: B
URGLARY [2ND] / [TRBL] 372: PROTECTION LOOP SHORT [3] / [2ND]
131: P
ERIMETER BURGLARY [1] / [2ND] 373: FIRE LOOP TROUBLE [3] / [1]
132: I
NTERIOR BURGLARY [1] / [1] 382: SENSOR TROUBLE [3] / [2]
133: 24H
R BURGLARY [1] / [2] 383: SENSOR TAMPER [3] / [3]
136: B
URGLARY OUTDOOR [1] / [3] 400: OPEN / CLOSE [3] / [4]
137: B
URGLARY TAMPER [1] / [4] 401: OPEN / CLOSE BY USER # [3] / [5]
138: B
URGLARY NEAR ALARM [1] / [5] 402: GROUP OPEN / CLOSE [3] / [6]
140: G
ENERAL ALARM [1] / [6] 403: AUTOMATIC OPENING / CLOSING [3] / [7]
150: 24 H
OUR AUXILIARY [1] / [7] 404: LATE TO OPEN / CLOSE [3] / [8]
151: G
AS DETECTED [1] / [8] 407: REMOTE ARM DOWNLOAD [3] / [9]
152: R
EFRIGERATION [1] / [9] 410: REMOTE ACCESS [3] / [0]
153: L
OSS OF HEAT [1] / [0] 441: OPEN / CLOSE - STAY MODE [3] / [STAY]
154: W
ATER LEAKAGE [1] / [STAY] 570: BYPASS [3] / [AWAY] OR [FORCE]
155: F
OIL BREAK ALARM [1] / [AWAY] OR [FORCE] 572: 24 HOUR ZONE BYPASS [3] / [BYP]
156: D
AY TROUBLE ALARM [1] / [BYP] 573: BURGLARY BYPASS # [3] / [MEM]
157: L
OW GAS LEVEL [1] / [MEM] 574: GROUP BYPASS [3] / [TRBL]
158: H
IGH TEMPERATURE [1] / [TRBL] 601: MANUAL TEST [4] / [2ND]
159: L
OW TEMPERATURE [2] / [2ND] 602: PERIODIC TEST [4] / [1]
161: L
OSS AIR FLOW [2] / [1] 625: TIME / DATE RESET [4] / [2]
654: S
YSTEM INACTIVITY [4] / [3]
09
10
[2ND] or [1] = 8s
[2] = 16s
[3] = 24s
[4] = 32s
[5] = 40s
[6] = 48s
[7] = 56s
[8] = 64s
[2
ND] = No adjustment
[1] = Plus 4s
[2] = Plus 8s
[3] = Plus 12s
[4] = Plus 16s
[5] = Plus 20s
[6] = Plus 24s
[7] = Plus 28s
[8] = Minus 4s
[9] = Minus 8s
[0] = Minus 12s
[
STAY] = Minus 16s
[
FORCE] = Minus 20s
[
BYP
]
= Minus 24s
[
MEM
]
= Minus 28s
[
TRBL
]
= Minus 32s
Time Correction Table (2nd digit)
Pager Delay Table (1st digit)
[9] = 72s
[0] = 80s
[
STAY] = 88s
[
FORCE]/[AWAY] = 96s
[
BYP] = 104s
[
MEM] = 112 s
[
TBL]/[TRBL] = 120s
Esprit 728 Ultra & 738 Ultra - 5 - Programming Guide
Reporting Codes
All digits from [1] to [F] are valid. [2ND] = digit will not be reported except for Contact ID programmable codes. For single digit reporting,
enter “skip” ([2ND]) as the first digit (Default = [2ND] / [2ND]).
Enter FF to program the default Ademco Contact ID report code when using the Ademco Contact ID (programmable
codes) or Pager report formats.
If the Contact ID Format (all codes) is selected, addresses 300 to 527 (sections 11 to 67) do not have to be programmed.
To select Contact ID (all codes) you must set key [0] at section 09/address 038 for both monitoring station numbers (see
page 4).
Arming (Closing) Report Codes:
Streamline
Section
Data Description Address
Streamline
Section
Data Description Address
___ / ___ Auto / Espload 300 ___ / ___ User Code 23 324
___ / ___ Master 301 ___ / ___ User Code 24 325
___ / ___ User Code 1 302 ___ / ___ User Code 25 326
___ / ___ User Code 2 303 ___ / ___ User Code 26 327
___ / ___ User Code 3 304 ___ / ___ User Code 27 328
___ / ___ User Code 4 305 ___ / ___ User Code 28 329
___ / ___ User Code 5 306 ___ / ___ User Code 29 330
___ / ___ User Code 6 307 ___ / ___ User Code 30 331
___ / ___ User Code 7 308 ___ / ___ User Code 31 332
___ / ___ User Code 8 309 ___ / ___ User Code 32 333
___ / ___ User Code 9 310 ___ / ___ User Code 33 334
___ / ___ User Code 10 311 ___ / ___ User Code 34 335
___ / ___ User Code 11 312 ___ / ___ User Code 35 336
___ / ___ User Code 12 313 ___ / ___ User Code 36 337
___ / ___ User Code 13 314 ___ / ___ User Code 37 338
___ / ___ User Code 14 315 ___ / ___ User Code 38 339
___ / ___ User Code 15 316 ___ / ___ User Code 39 340
___ / ___ User Code 16 317 ___ / ___ User Code 40 341
___ / ___ User Code 17 318 ___ / ___ User Code 41 342
___ / ___ User Code 18 319 ___ / ___ User Code 42 343
___ / ___ User Code 19 320 ___ / ___ User Code 43 344
___ / ___ User Code 20 321 ___ / ___ User Code 44 345
___ / ___ User Code 21 322 ___ / ___ User Code 45 346
___ / ___ User Code 22 323
___ / ___ User Code 46 347
___ / ___ User Code 47 348
___ / ___ User Code 48 / 349
(Duress)
Continues in next section.
Disarming (Opening) Report Codes (reset code “empty”):
Streamline
Section
Data Description Address
Streamline
Section
Data Description Address
See previous section ___ / ___ User Code 5 356
___ / ___ Auto / Espload 350 ___ / ___ User Code 6 357
___ / ___ Master
351
___ / ___ User Code 7
358
___ / ___ User Code 8
359
___ / ___ User Code 1 352 ___ / ___ User Code 9 360
___ / ___ User Code 2 353 ___ / ___ User Code 10 361
___ / ___ User Code 3 354 ___ / ___ User Code 11 362
___ / ___ User Code 4 355 ___ / ___ User Code 12 363
11 17
12 18
13 19
14 20
15 21
16 22
23
23
25
24
26
Esprit 728 Ultra & 738 Ultra - 6 - Programming Guide

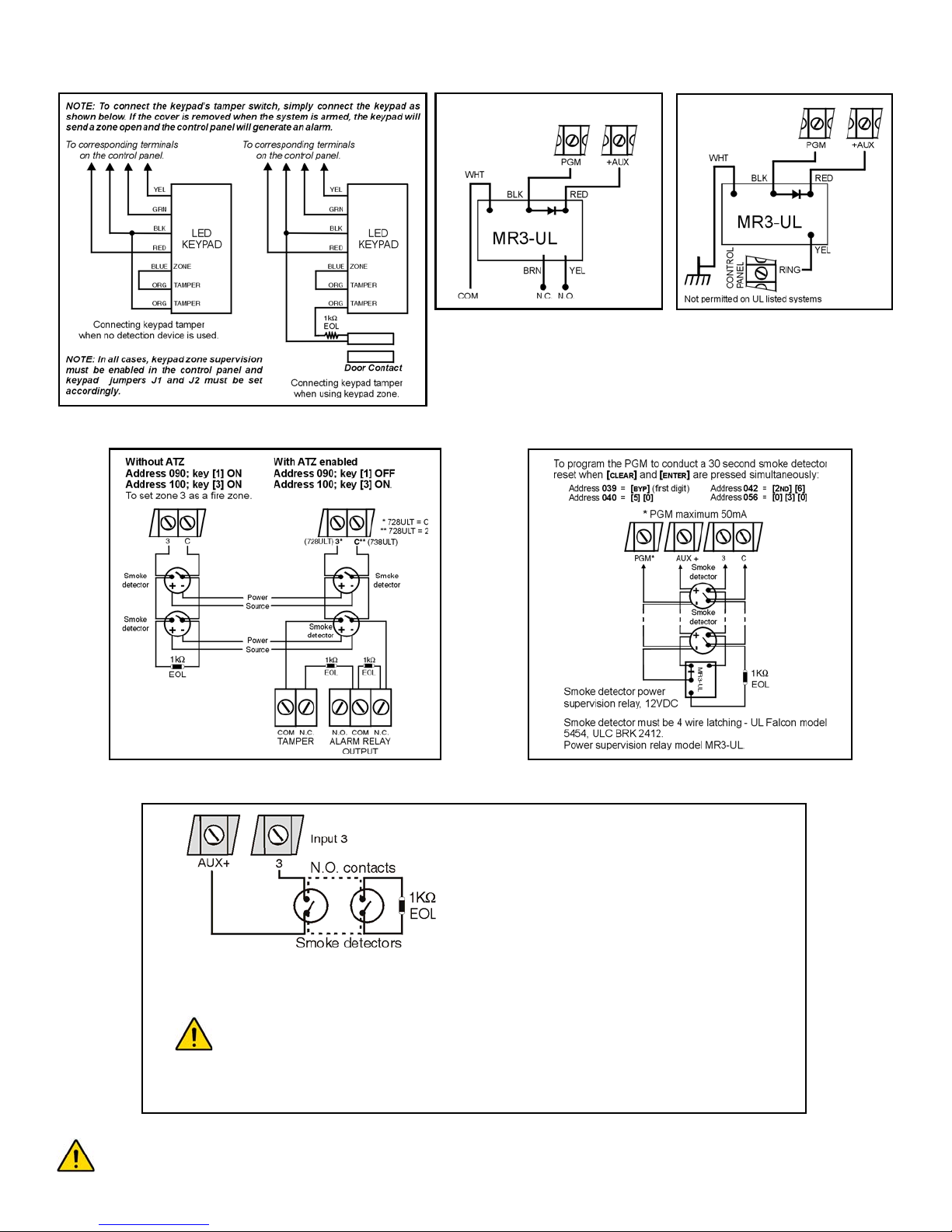

* = Fire zone for 4-wire smoke detectors or 2-wire smoke detectors (with no ATZ enabled—728 Ultra only).
** = Fire zone for 2-wire smoke detectors (address 086, key [BYP]) only when A TZ is enabled (address 090, key [8]). Applies only to 728 Ultra.
† = Zones 1 to 10 for the 728 Ultra and Zones 1 to 18 for the 738 Ultra
Disarming (Opening) Report Codes (reset code “empty”): (continued)
Streamline
Section
Data Description Address
Streamline
Section
Data Description Address
___ / ___ User Code 13 364 ___ / ___ User Code 29 380
___ / ___ User Code 14 365 ___ / ___ User Code 30 381
___ / ___ User Code 15 366 ___ / ___ User Code 31 382
___ / ___ User Code 16 367 ___ / ___ User Code 32
383
___ / ___ User Code 17 368 ___ / ___ User Code 33 384
___ / ___ User Code 18 369 ___ / ___ User Code 34 385
___ / ___ User Code 19 370 ___ / ___ User Code 35 386
___ / ___ User Code 20 371 ___ / ___ User Code 36 387
___ / ___ User Code 21 372 ___ / ___ User Code 37 388
___ / ___ User Code 22 373 ___ / ___ User Code 38 389
___ / ___ User Code 23 374 ___ / ___ User Code 39 390
___ / ___ User Code 24 375 ___ / ___ User Code 40 391
___ / ___ User Code 25 376 ___ / ___ User Code 41 392
___ / ___ User Code 26 377 ___ / ___ User Code 42 393
___ / ___ User Code 27 378 ___ / ___ User Code 43 394
___ / ___ User Code 28 379 ___ / ___ User Code 44 395
___ / ___ User Code 45 396
___ / ___ User Code 46 397
___ / ___ User Code 47 398
___ / ___ User Code 48 /
(Duress)
399
Alarm Report Codes For Zones 1 to 10 (18) †: Alarm Restore Repo rt Codes For Zones 1 to 10 (18) †:
Streamline
Section
Data Description Address
Streamline
Section
Data Description Address
___ / ___ Zone 1 400 ___ / ___ Zone 1 424
___ / ___ Zone 2 401 ___ / ___ Zone 2 425
___ / ___ Zone 3/Fire zone*
(fire address 100)
402 ___ / ___ Zone 3/Fire zone*
(fire address 100)
426
___ / ___ Zone 4 403 ___ / ___ Zone 4 427
___ / ___ Zone 5/Fire zone** 404 ___ / ___ Zone 5/Fire zone** 428
___ / ___ Zone 6 405 ___ / ___ Zone 6 429
___ / ___ Zone 7 406 ___ / ___ Zone 7 430
___ / ___ Zone 8 407 ___ / ___ Zone 8 431
___ / ___ Zone 9 408 ___ / ___ Zone 9 432
___ / ___ Zone 10 409 ___ / ___ Zone 10 433
___ / ___ Zone 11
(738 Ultra only) 410 ___ / ___ Zone 11 (738 Ultra only) 434
___ / ___ Zone 12
(738 Ultra only) 411 ___ / ___ Zone 12 (738 Ultra only) 435
___ / ___ Zone 13 412 ___ / ___ Zone 13 436
___ / ___ Zone 14 413 ___ / ___ Zone 14 437
___ / ___ Zone 15 414 ___ / ___ Zone 15 438
___ / ___ Zone 16 415 ___ / ___ Zone 16 439
___ / ___ Zone 17 416 ___ / ___ Zone 17 440
___ / ___ Zone 18
417
___ / ___ Zone 18 441
41 Future Use 418 - 423 47 Future Use 44 2 - 447
27 31
28 32
29 33
30 34
35
36
42
37 43
38 44
39
738 Ultra
only
45
738 Ultra
only
40
738 Ultra only
46
738 Ultra only
Loading...
