Page 1
W A V E
SOLUT I O N IN A SPECIAL D E S IGN EDITIO N
Operating Manual
Page 2
2
Page 3
3
Contents
EN
Safety instructions ...................................................................................................... 4-7
Machines – Overview
...................................................................................................... 8
Start-up
....................................................................................................................... 9
Prepare drinks
............................................................................................................. 10
Programming cup capacity
............................................................................................. 11
Insert water filter
........................................................................................................ 12

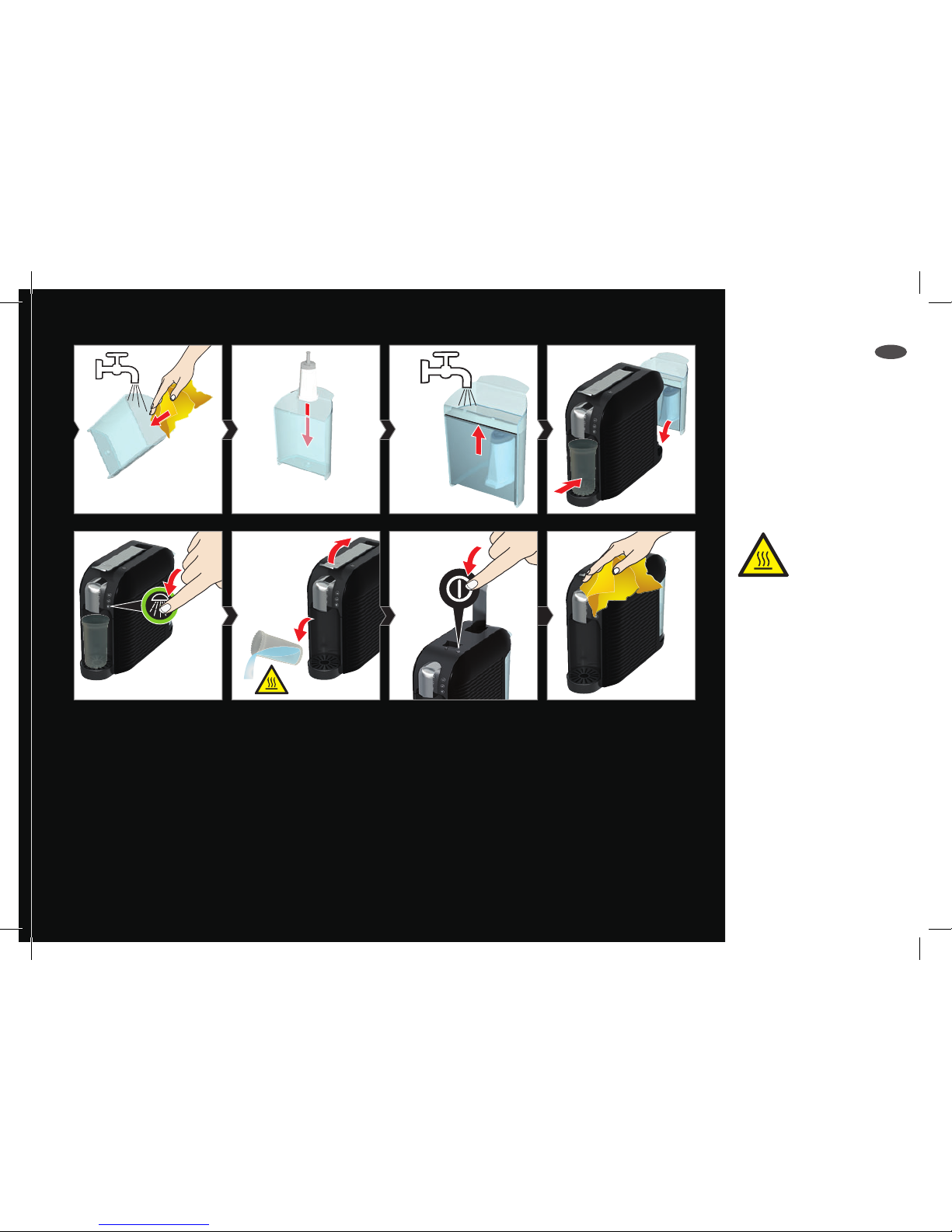

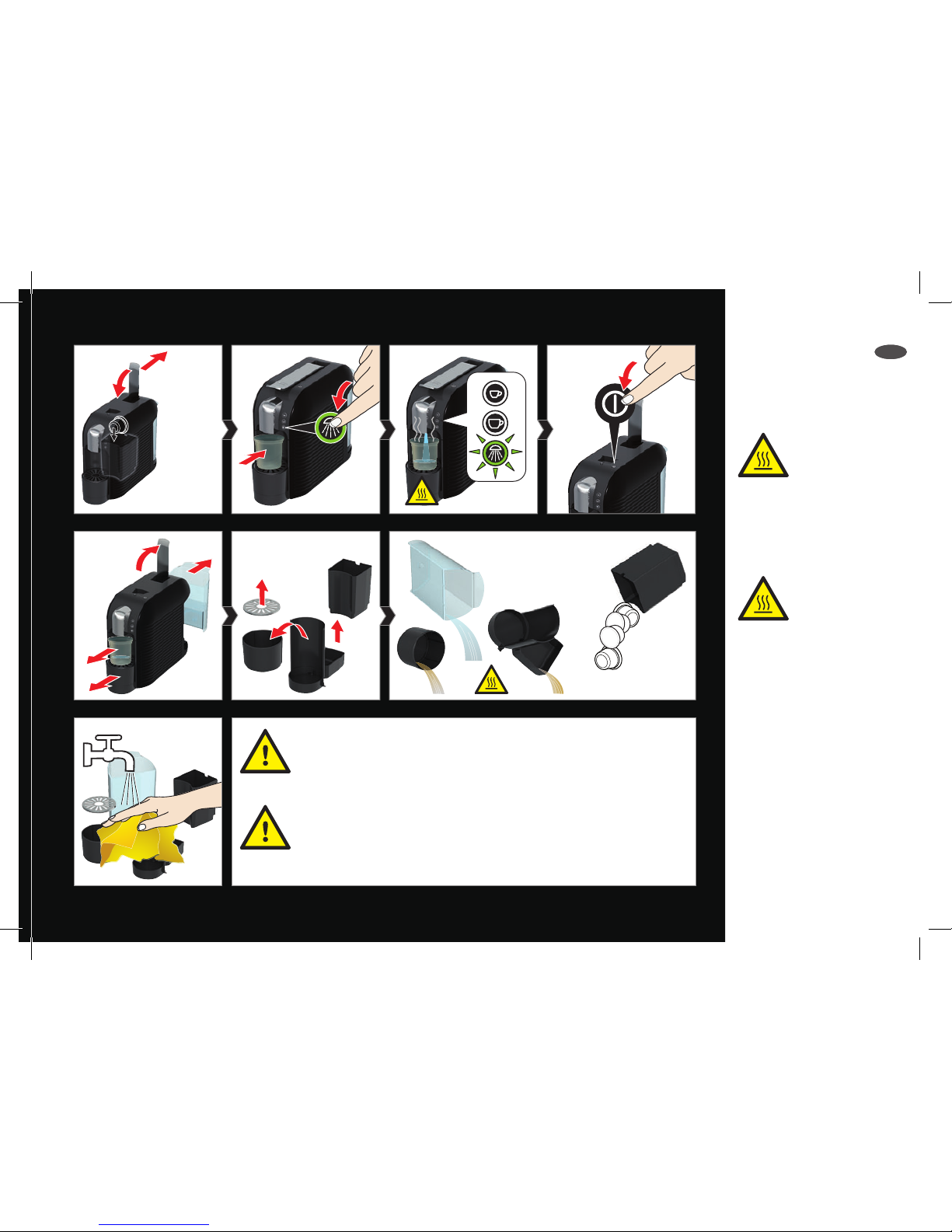

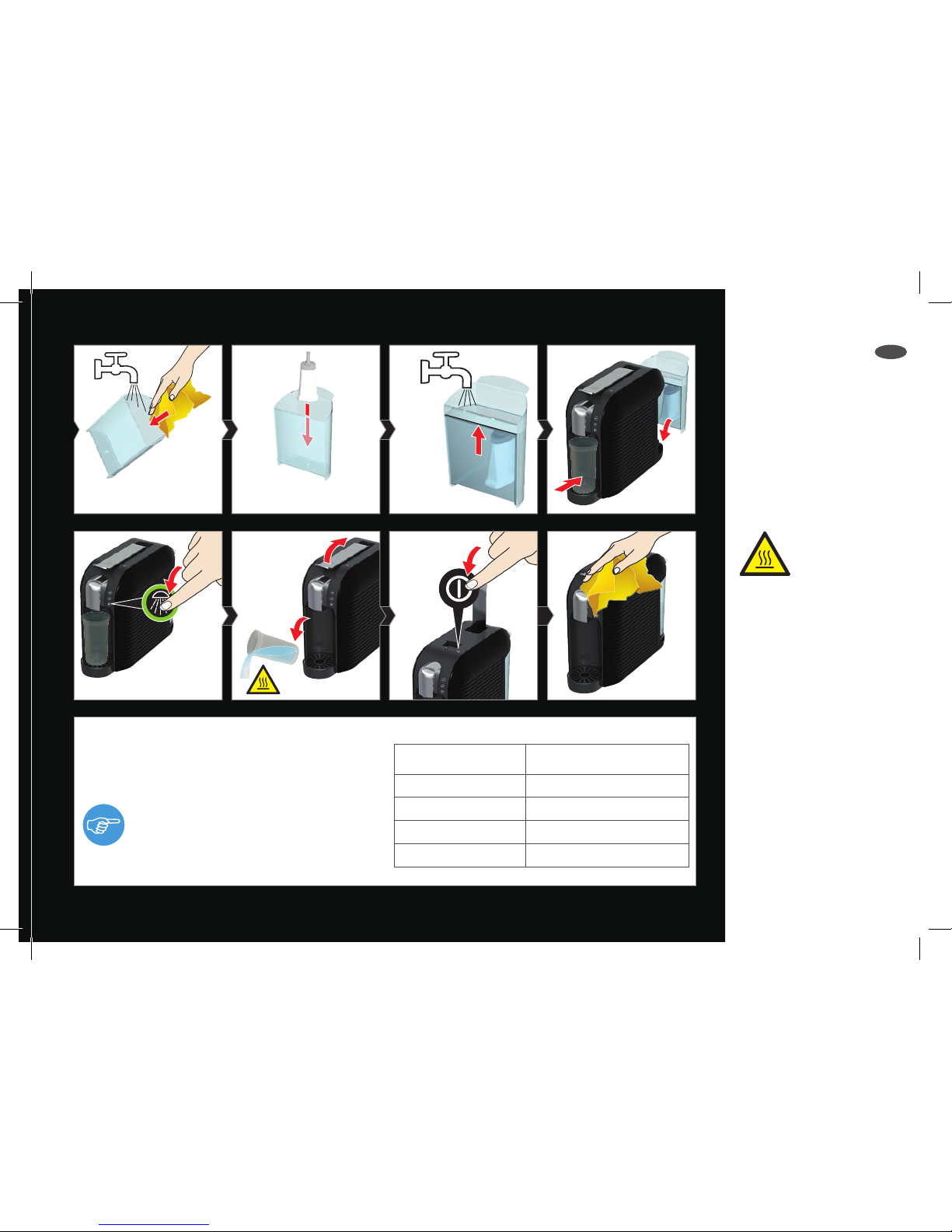

Clean the machine (daily / monthly) ............................................................................13-15

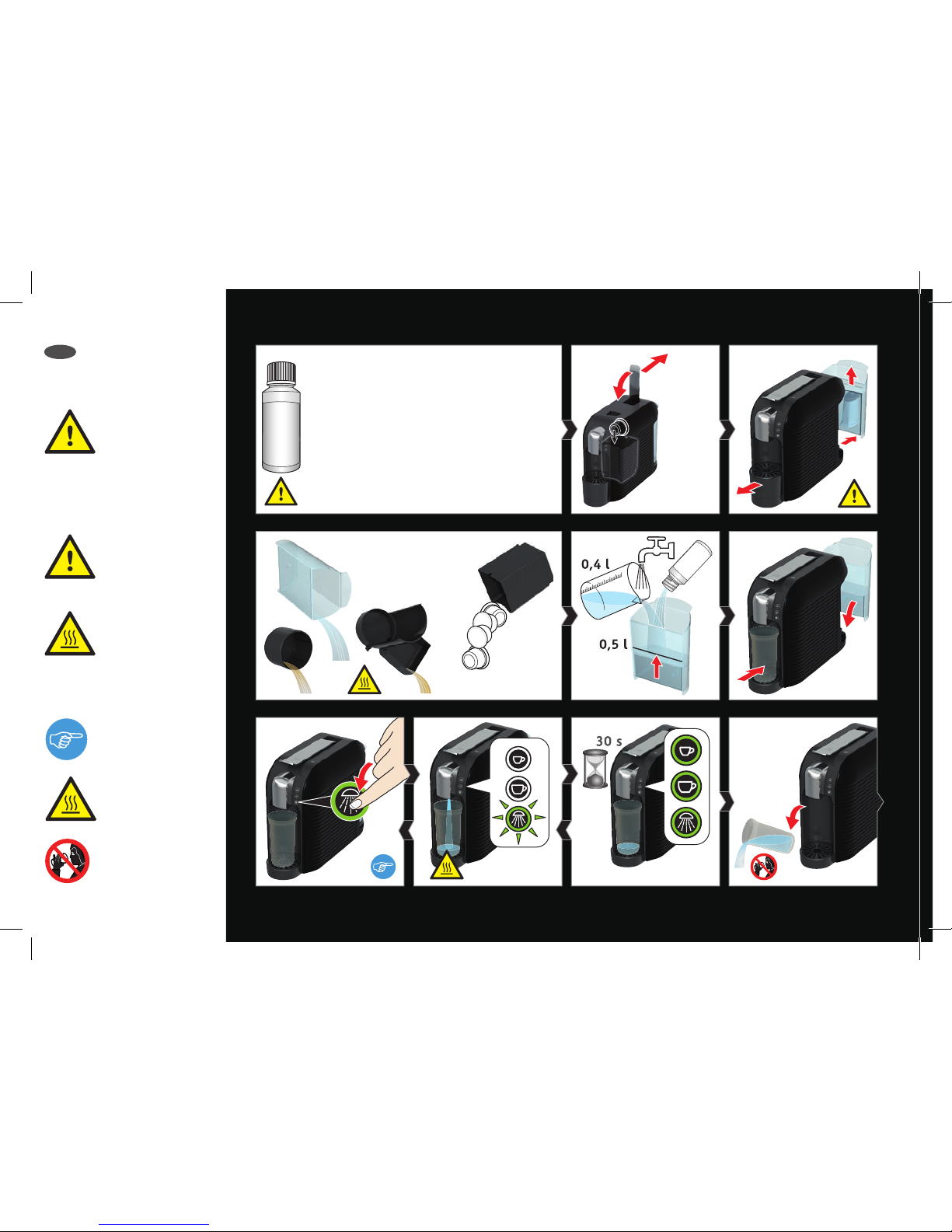

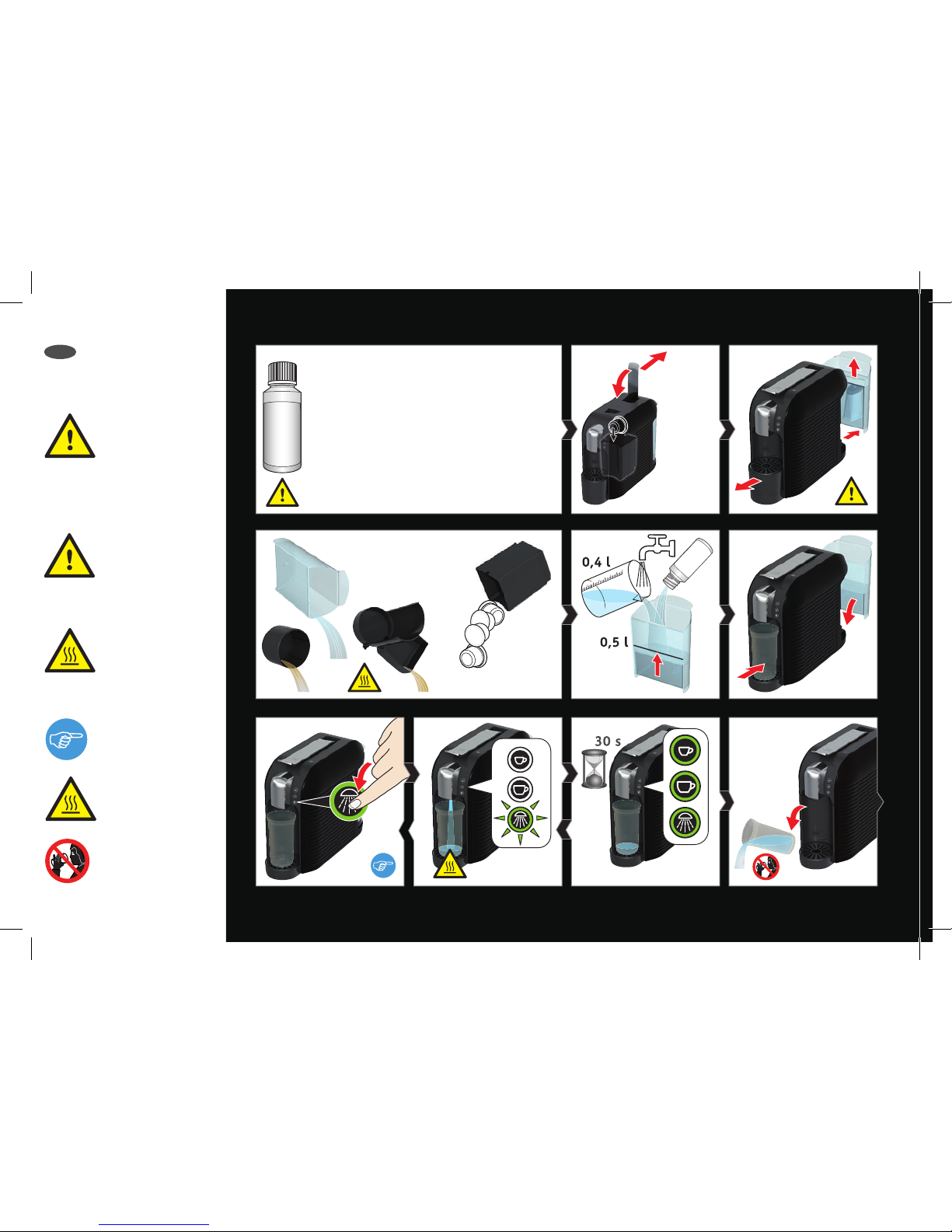

Descale the machine every month
...............................................................................16-17
Evaporate remaining water
............................................................................................ 18
Frequently Asked Questions
........................................................................................... 19

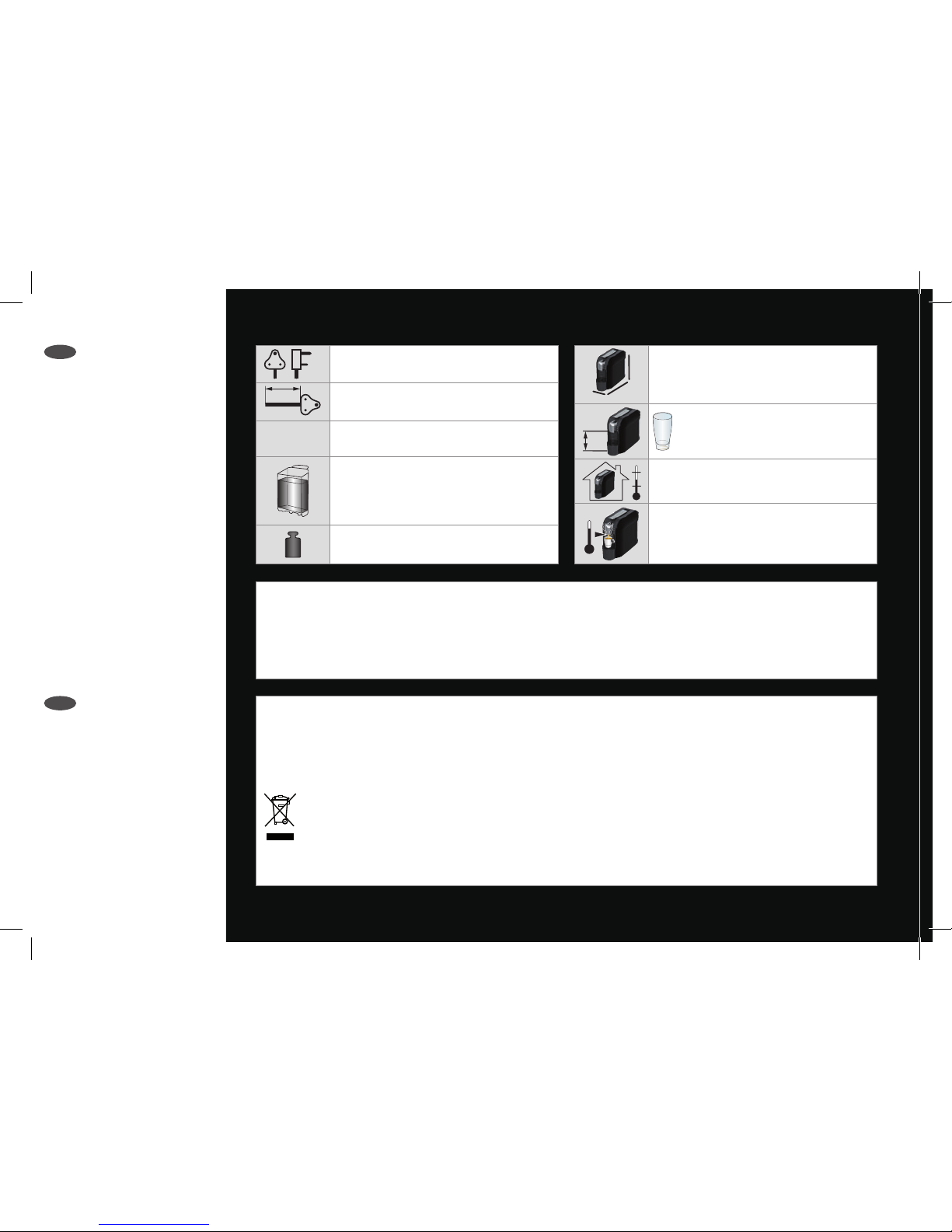

Specifications and servicing
........................................................................................... 20
Disposal instructions
.................................................................................................... 20
Page 4
4
Safety
Instructions
EN
Symbols and warnings
The warning triangle is used in
the instructions where risks can
result to the user or the machine
when the safety instructions are
not followed.
Warning: danger of scalding
Prohibited: do not reach into
machine!
Prohibited: do not drink!
Recommended action
If you fail to comply with the operating instructions and safety instructions, the machine may become dangerous to operate. Please retain the
operating instructions and pass them
on with the machine should this be
passed on.
Do not start the machine if it is damaged
or if it does not work properly. In that
case, immediately pull the plug out of
the mains socket and contact the Service
Hotline.
The machine is designed and manufactured for domestic use. The manufacturer
assumes no liability for consequences
arising from commercial use, use not in
compliance with its intended purpose or
noncompliance with the operating manual. This machine is intended to make
hot drinks as stipulated in the operating
instructions.
This machine is intended for use in
households and similar areas, such as
staff rooms in offices and shops, as well
as other work work-related facilities;
also in farms, for use by guests in hotels,
motels and bed & breakfast establishments. The machine may only be used
for its intended purpose.
Page 5
5
In case of long periods of absence, vacation etc., the machine must be emptied,
cleaned and the mains plug must be removed from the socket.
When there is risk of frost, all residual
water must be removed, see the section
on „Evaporate remaining water“ on page
38.
The mains voltage must match the spec-
ifications on the nameplate. Only connect the machine to a grounded 3-pin
wall socket. In the case of an incorrect
connection your warranty rights may be
forfeited.
Do not damage the mains cord by placing it on or near hot objects or over
sharp edges. Do not allow the mains cord
to hang down (risk of tripping). Do not
touch the mains cord with wet hands.
Do not pull the plug from the socket by
pulling on the cable. If the mains cord
shows signs of damage, do not start the
machine.
When the mains cable of the machine
is damaged it must be replaced by the
manufacturer, the respective customer
service or a similarly qualified person in
order to avoid any hazards.
Do not place the machine on a hot surface (e.g. cooker) or operate it next to
heat sources or fires. Do not place the
machine on its mains cable. Always
place the machine on a stable, flat and
water-repellent surface.
For health reasons, only fill the water
tank with fresh drinking water.
How to avoid injuries and scalds when
using the machine.
Do not leave the machine unattended
during beverage preparation.
This machine can be used by children
from the age of 8 years and older and by
persons with reduced physical, sensory
or mental abilities or who lack experience
and knowledge provided they are supervised or have been instructed regarding
the safe operation of the machine, and
understand the resulting dangers.
Safety instructions (continued)
EN
Page 6
6
Cleaning or servicing of the machine
that is normally carried out by the user
must not be carried out by children unless they are 8 years old or older and act
under supervision.
The machine and its connection cable
must be kept out of the reach of children
younger than 8 years. Children must not
play with the machine.
Never open the lever on the machine
during the brewing, rinsing, cleaning or
descaling processes. When a process has
been completed and the lever is then
opened, never hold your fingers under
the spout - there is a risk of scalding
from remaining hot liquid dripping from
the spout! When the brewing process
has been completed, slowly open the lever in order to eject the capsule; do not
bend over the capsule insertion opening
(risk of hot liquid sprays).
Never reach with your fingers into the
capsule insertion opening - risk of injury!
Do not use the machine without drip
tray and drip grating! Do not overfill the
water tank. Never lift the machine by its
lever.
Store the machine and all its accessories
outside the reach of children.
Never open the machine or insert objects into the machine openings.
In order to avoid any hazards, any work
beyond the normal use of the machine,
its cleaning, descaling and maintenance,
such as repairs or replacing the mains
cable may only be carried out by a customer service authorised by the manufacturer.
Before cleaning the exterior of the machine, unplug the mains cord and allow
the machine to cool down. Do not clean
the machine or the mains cord or the
mains plug with water and do not immerse the machine in water.
Do not clean the machine under running
water. Never put the machine or its parts
into a dishwasher.
Safety instructions (continued)
EN
Page 7
7
Safety instructions (continued)
EN
Refer to the instructions for use of all
cleaning and descaling agents before
use and comply with the safety regulations.
Never use a damaged or deformed capsule. Only use drink capsules marked
with the K-fee® system logo that are intended for the machine.
Capsules to be used!
Only use original K-fee® system capsules! Look for the red K-fee® system logo and the characteristic fluted
shape of the capsules.
Using non-original capsules involves the
following risks:
1. Health hazards
When using non-original capsules, differences in the brewing process and
the capsule design can cause hot water
to escape under high pressure - risk of
scalding!
2. Damage to the machine and warranty
When using non-original capsules, differences in the brewing process and the
capsule design will cause damage to the
machine which means that any warranty
claims may be forfeited!
The manufacturer and his distribution
partner cannot be held liable for any
injury or damage which is the direct
or indirect result of non-original capsules being used with this machine.
These operating instructions are also
available as download from our website:
www.k-fee-system.com
Page 8
8

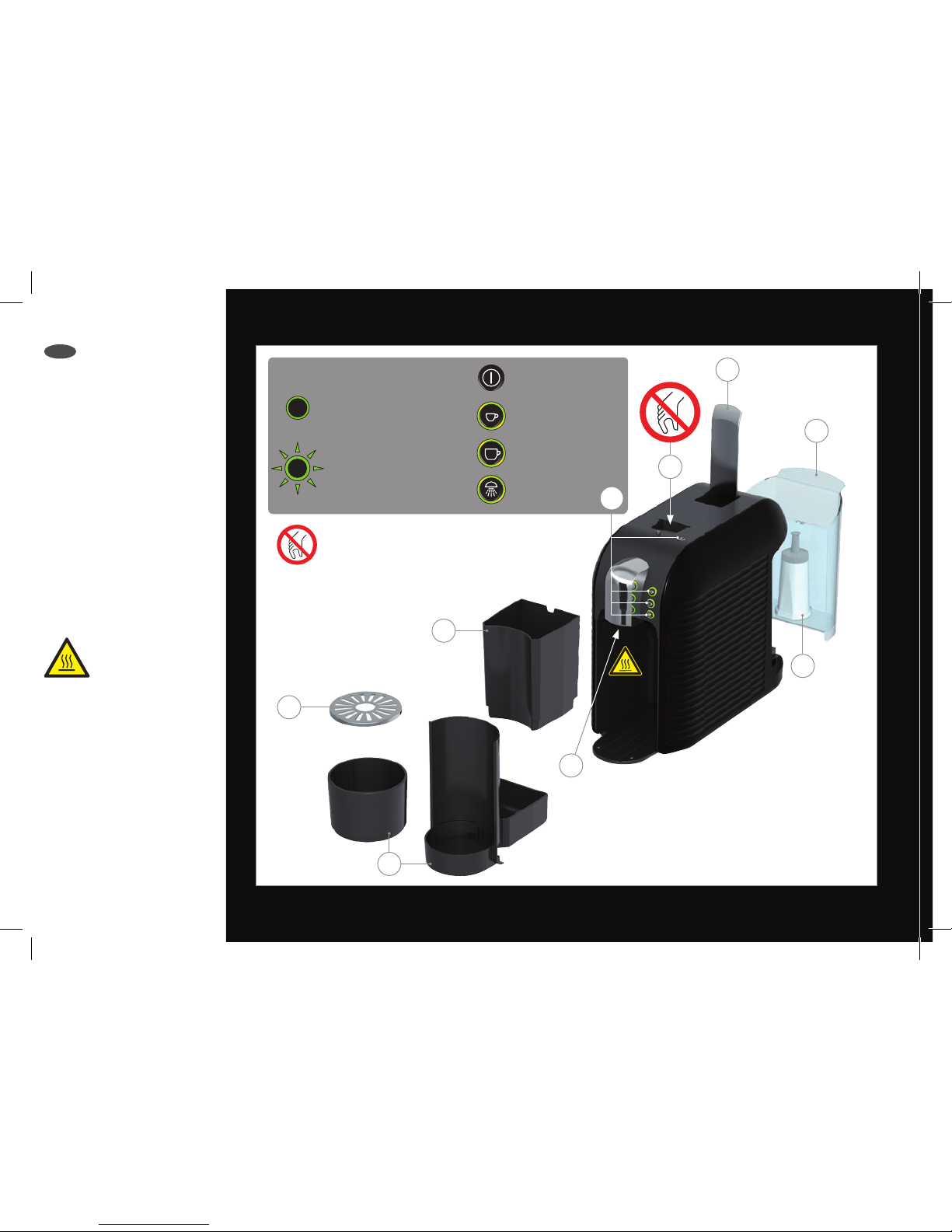

Machines –
Overview
1 Drip grating
2 Spent capsule container
3 Controls
4 Capsule insertion open-
ing
5 Lever
6 Water tank
7 Water filter (optional)
8 Spout
9 Height-adjustable drip
tray
EN
WARNING
The machine produces very
hot water (for brewing, descaling, cleaning and rinsing). In order to prevent
scalding and other injuries
always ensure that the lever if fully closed when the
machine is running. Do not
reach under the spout and
do not remove the drip tray.
5
6
1
3
9
8
4
CAUTION
Four pointed needles open the capsule in
the machine. Do not reach into the capsule insertion opening in order to avoid
injuries.
7
On/Off button
Small cup
Large cup
Rinsing
button
Light signals
Button lights up:
READY, button can be
pressed.
Button flashing: please
wait. Machine is either
heating up, dispensing
a drink or rinsing.
With the exeption of the water filter, all illustrated parts and these original operating instructions form part of the delivered package.
Before starting up the machine, please check
that you have received all parts.
2
Page 9
9
129
65
1 2
1110
87
43

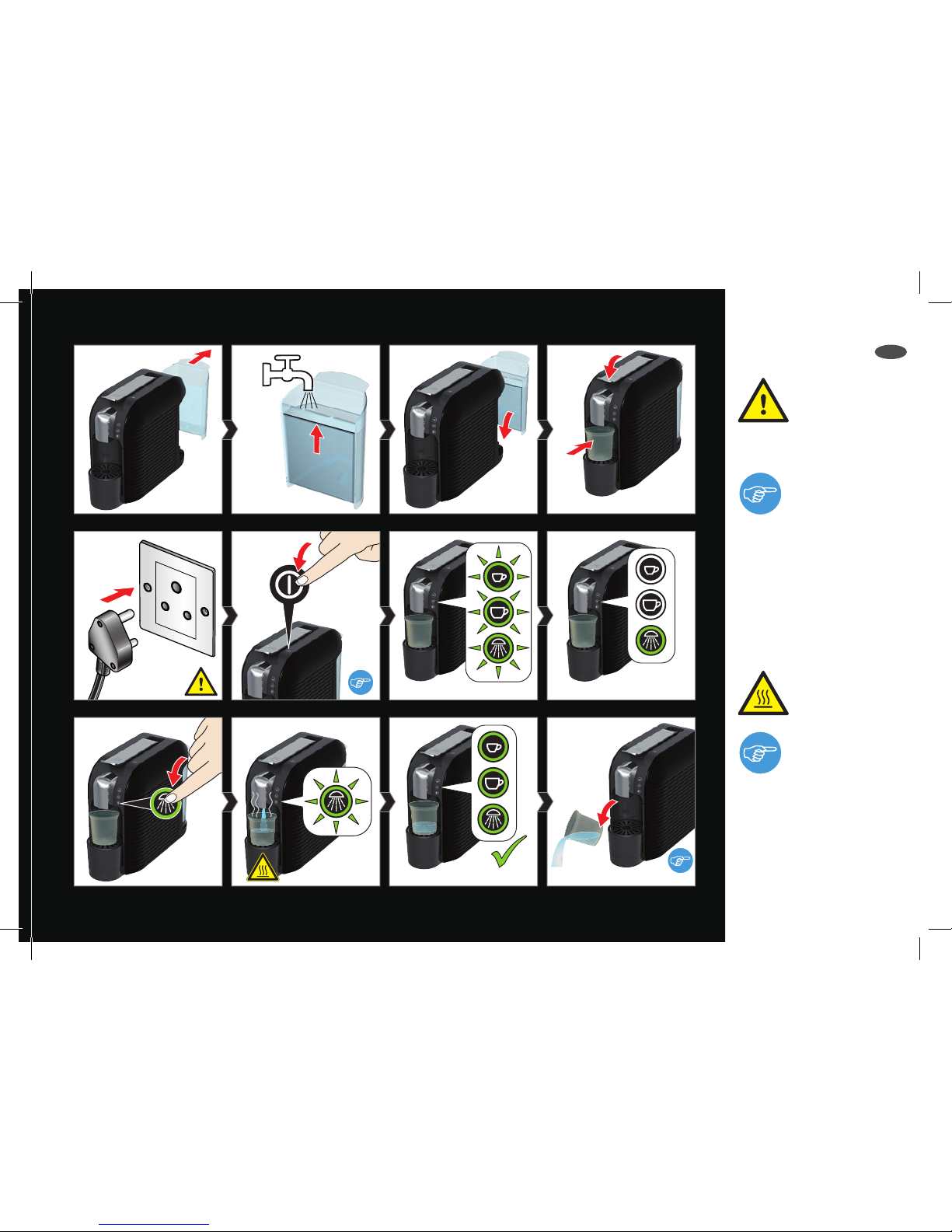

Start-up
EN
Before starting up
the machine, the
safety instructions
on pages 24 to 27 must be
read.
When the machine
was exposed to
temperatures below
freezing point, please wait
at least 3 hours before starting up the machine so that it
can warm up again to reach
room temperature. When the
machine is very cold or frozen it is possible that it does
not function correctly.
Before using the
machine for the first
time, run 4 rinsing
cycles. To do that, press
the rinsing button once the
previous rinsing process has
been completed. When using a water filter, please read
the instructions on page 32.
Very hot water –
risk of scalding!
max
Remove
water tank.
On
Keep lever closed.
Machine is heating up.
Ready for rinsing.
The machine is ready. Discard the rinsing water.
Page 10
10

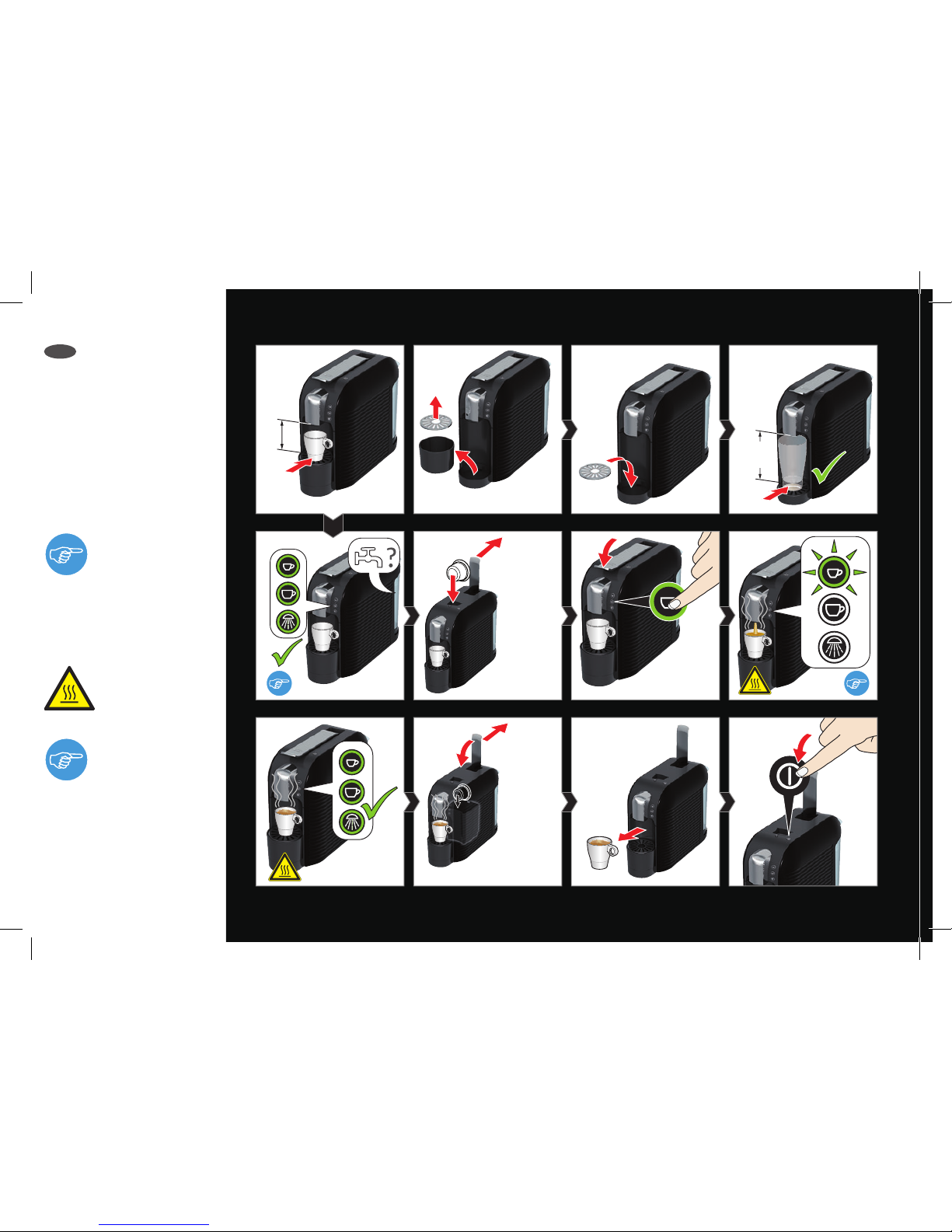

Prepare drinks
(e.g. espresso)
EN
6
32
1 A
7
54
CB
98
The brewing process
can be stopped by
pressing any button
a second time.
The machine automatically switches
off if it is not used
for 5 minutes. If necessary,
use the on/off button to reactivate the machine before
preparing new drinks.
Very hot water –
risk of scalding!
max.
90 mm
max.
150 mm
Off
3 s min.
If required,
adjust the cup support.
Select size of cup.
The machine is ready.
Open the lever
and insert capsule.
The drink is ready.
Open the lever
in order to eject the capsule.
Lever to be
closed, press
required button.
Page 11
11

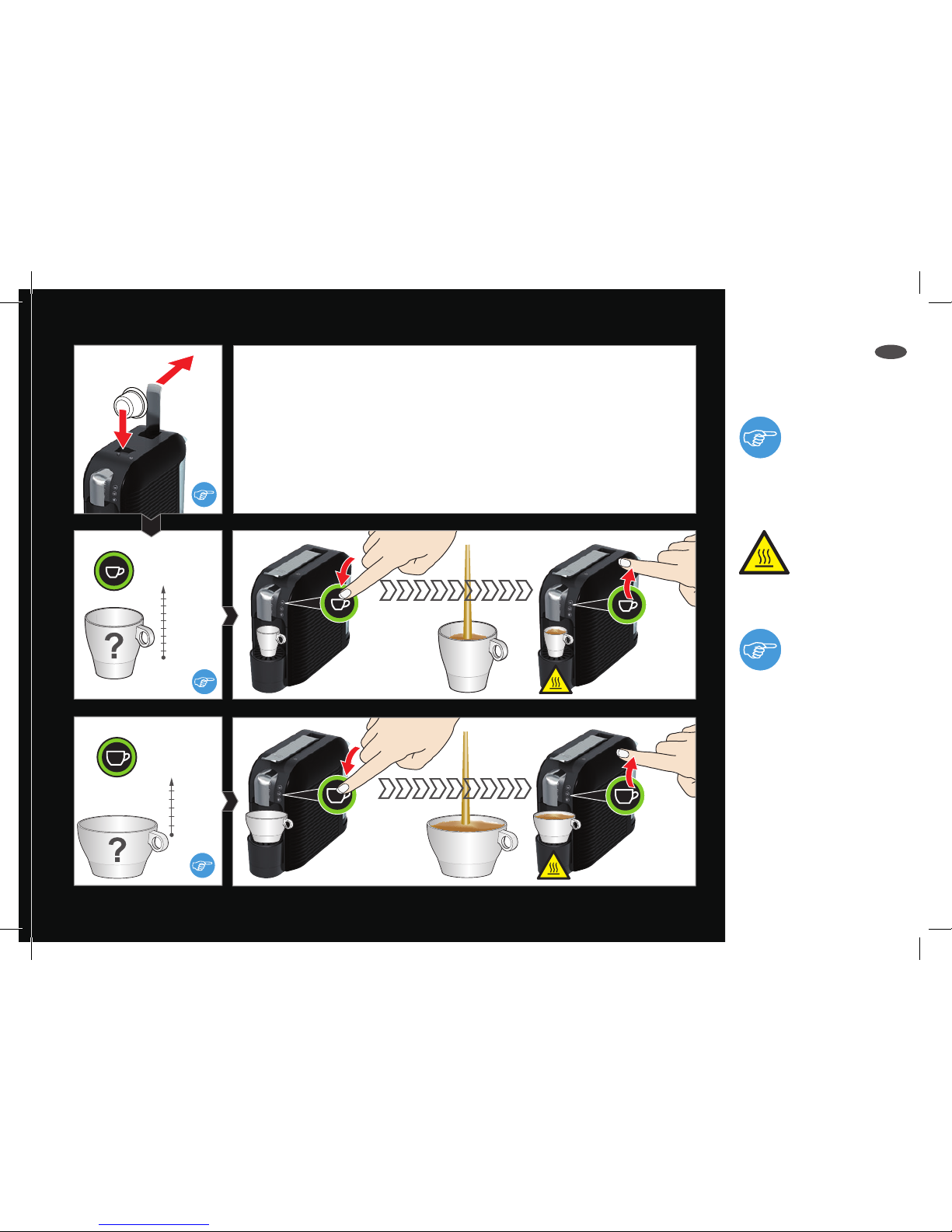

Programming cup
capacity
EN
100 ml
200 ml
1
2 3
2 3
40 ml
100 ml
1
First insert a capsule before
programming the cup fill
quantity.
Very hot drink –
risk of scalding!
Presettings:
small cup
......approx. 50 ml
large cup ....approx. 100 ml
3 s min.
3 s min.
Adapting the fill quantity to your cup size:
Keep the „small cup“ or „large cup“ button depressed for at least 3 s in
order to start the programming. Proceed to keep the button depressed
until the required fill quantity has been reached.
The new fill quantity remains stored (also after an electricity outage).
Page 12
12

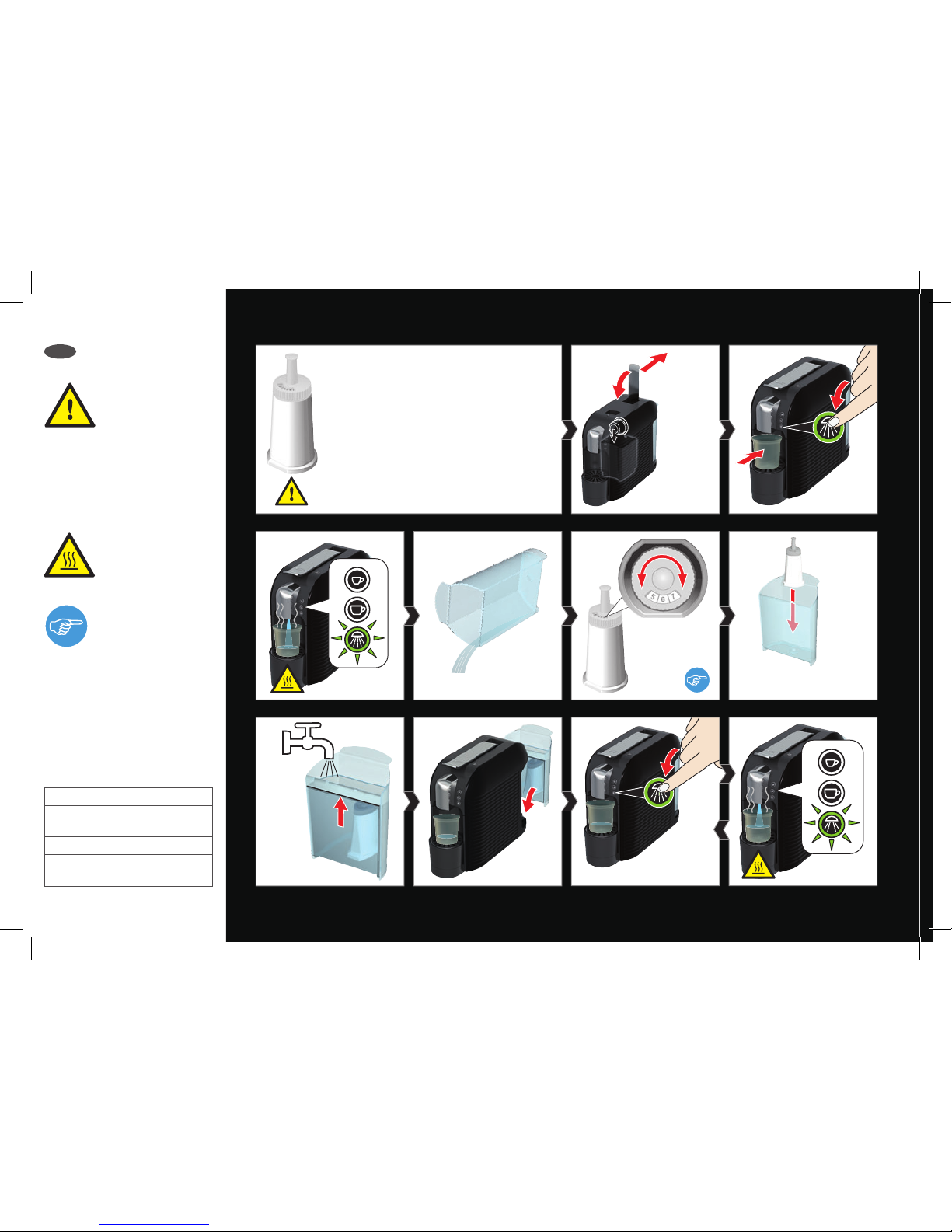

Insert water filter
EN
Safety instruction! Please care-
fully read the
water filter operating and
safety instructions. For reasons of hygiene we recommend replacing the water filter at least every 3 months.
Very hot water –
risk of scalding!
Use the rotary scale
to set the month
for the next filter
change. The hardness of the
water determines the service life of the water filter
(see water hardness table
on page 37). For an average
consumption of one full water tank per day we recommend a filter change:
every 3 months soft water
every 2 months medium-
hard water
every 1 to 2 months hard water
monthly very hard
water
118
54
76
31 2
9
10
The water filter prevents scaling, removes odorous and taste-producing
substances (chlorine etc.) and optimises the quality of the drink. Only
use water filters that are suitable for
the K-fee® system. For further information, please visit our website at:
www.k-fee-system.com
max
Eject existing
capsule.
Rinse
the machine.
Insert water filter
and push down firmly.
Empty the water tank.
Rinse water
filter 2 x in sequence.
Page 13
13
Clean the machine
every day (or after
its last use)
1 4
8 76
8 8
EN
2 3
Very hot water –
risk of scalding!
Risk of scalding!
Carefully empty the drop
tray and spent capsule container.
5
Risk of damage!
Only use a damp cloth and a mild cleansing agent (no scouring
agents or aggressive cleaning products).
No not wash machine parts in the dishwasher.
Danger to health:
When the machine is not used for longer periods without prior
rinsing or cleaning, it is possible that deposits form which are
difficult to remove.
3 s min.
Empty all the containers.
Off
Eject
existing capsule.
Rinse
the machine.
Page 14
14
1
EN
Clean the machine
every month
32
Only use cleansing agents that are suitable for the K-fee® system. For further
information, please visit our website at:
www.k-fee-system.com
107
4
65
8
9
Danger to health:
Carefully read the
operating instructions for the cleansing
agent and follow the safety
instructions.
Risk of scalding!
Carefully empty the
drip tray and spent
capsule container.
Repeat the rinsing
process (images 7,
8, 9) a total of 8 x.
Caution! Remove
the water filter be-
fore cleaning.
Very hot water –
risk of scalding!
Danger to health:
Do not drink any
cleansing liquid.
Eject
existing capsule.
Empty all the containers.
Allow to take effect.
Page 15
15
Clean the machine
every month
(continued)
EN
15
141311 812
16
17
18
Very hot water –
risk of scalding!
3 s min.
max
Thoroughly rinse and
clean the water filter.
Off
Rinse the machine
4 x in sequence.
Re-insert the water
filter (optional).
Page 16
16
1
EN
Descale the
machine every
month.
10
4
65
32
7
8
9
Danger to health:
Carefully read the
operating instructions for the descaling
agent and follow the safety
instructions.
Risk of scalding!
Carefully empty the
drip tray and spent
capsule container.
Repeat the rinsing
process (images 7,
8, 9) a total of 8 x.
Caution! Remove
the water filter be-
fore descaling.
Very hot water –
risk of scalding!
Danger to health:
Do not drink any
cleansing liquid.
Only use descaling agents that are suitable for the K-fee® system. For further
information, please visit our website at:
www.k-fee-system.com
Eject
existing capsule.
Empty all the containers.
Allow to take effect.
Page 17
17
Descale the
machine every
month (continued)
EN
15
141311 812
16
17
Water hardness table
Degree of hardness Water hardness in mmol
1 (soft) < 1.3
2 (medium-hard) 1.3 - 2.5
3 (hard) 2.5 - 3.8
4 (very hard) > 3.8
When no water filter is used the machine must
be descaled every month in order to retain
optimum function.
For further information regarding water
hardness in your area, contact your
water company.
18
Very hot water –
risk of scalding!
3 s min.
max
Thoroughly rinse and
clean the water filter.
Off
Rinse the machine
4 x in sequence.
Re-insert the water
filter (optional).
Page 18
18
Evaporate
remaining water
EN
With this function, any remaining water in the
machine is evaporated and removed. This prevents any residual water freezing in the machine
when the machine is transported or stored at
temperatures below freezing point.
CAUTION
Extreme temperatures can cause dam-
age to the machine (permitted operating temperature 10 - 45°C). For this reason the
machine
- must be protected against frost,
- must not be used at temperatures below 10°C,
- must not be used at temperatures over 45°C.
Procedure
• If necessary, warm up the machine until it
reaches room temperature.
• Open and close the lever in order to eject any
existing capsule.
• Take out and empty the water tank.
• Ensure that the machine is switched off.
WARNING
Risk of scalding! The evaporation process results in hot steam (up to 120°C)
and hot water.
Do not reach under the spout and maintain a
safe distance from the spout.
• Hold the „small cup“ and the rinsing button
depressed at the same time. Now press the
on/off button. Evaporation starts and the
„large cup“ button flashes green.
• After the evaporation process the machine
switches off automatically.
• Re-insert the empty water tank.
• Empty and dry the drip tray and spent capsule
container.
• Use a dry cloth to wipe the front of the housing.
Page 19
19
Frequently Asked
Questions
EN
The machine will only work
with capsules marked with
the K-fee® system logo.
Is the drink dispensing process delayed?
The machine will re-adjust the temperature for the requested drink.
Is the spent capsule container overfull and jammed?
Try to remove the spent capsule container by jogging the container gently to and fro.
Is the drink not hot enough?
Pre-warm the cup. If necessary, descale the machine – see the "Descale the machine every month"
section.
Are all buttons flashing at a fast rate?
Switch the machine off and remove the plug from the mains supply. If the problem persists, please
inform Customer Service.
Is the drink not dispensed properly?
Push the lever fully down. If necessary, descale the machine – see the "Descale the machine every
month" section.
Do I have to descale the machine if I am using the water filter?
If the water filter is regularly changed, no descaling is necessary. Nevertheless, it is possible that
mineral deposits occur depending on the water quality and the machine location. For this reason we
recommend an annual cleansing/rinsing process using a K-fee® system descaler.
Does the machine suddenly switch off during a period of intensive use?
If the cooling-down period is too short, the machine switches itself off as protection against overheating. In this case allow the machine to cool down for about 30 minutes before using it again.
Does the machine switch itself off?
The machine switches off automatically if it is unused for more than 5 minutes. Please remember that
the machine uses power as long as it is plugged into the mains socket (< 0.5 W).
Page 20
20
220-240 V~, 50 Hz, max. 1455 W
1 m
P
max. 19 bar
1 l
3.8 kg
Specifications and
servicing
EN
A
B
C
A = 150 mm
B = 378 mm
C = 297 mm
max. 150 mm
10°C - 45°C
~ 90°C
The packaging is recyclable. Ask the responsible
authorities in your local council offices for further information about recycling.
Environmental protection has priority!
The machine is made of valuable materials
that are recyclable.
The machine bears the sign for waste electrical and electronic appliances in accordance
with European Directive 2002/96/EC (WEEE).
This directive regulates the return and recycling
of waste appliances within the EU. For this reason, only dispose of the machine at a public recycling yard in your vicinity. The machine must
not be disposed of as part of normal domestic
waste.
Disposal
instructions
EN
If you have any queries or suggestions,
please contact us:
Foghound Interactive
Service Centres in Johannesburg and Cape Town.
24 Richards Drive
Midrand
Tel: 087 943 7177
Email: [email protected]
Page 21
21
EN
Page 22
www.my-espresto.com
K-fee System GmbH, 51469 Bergisch Gladbach, Germany
WAVE
Loading...
