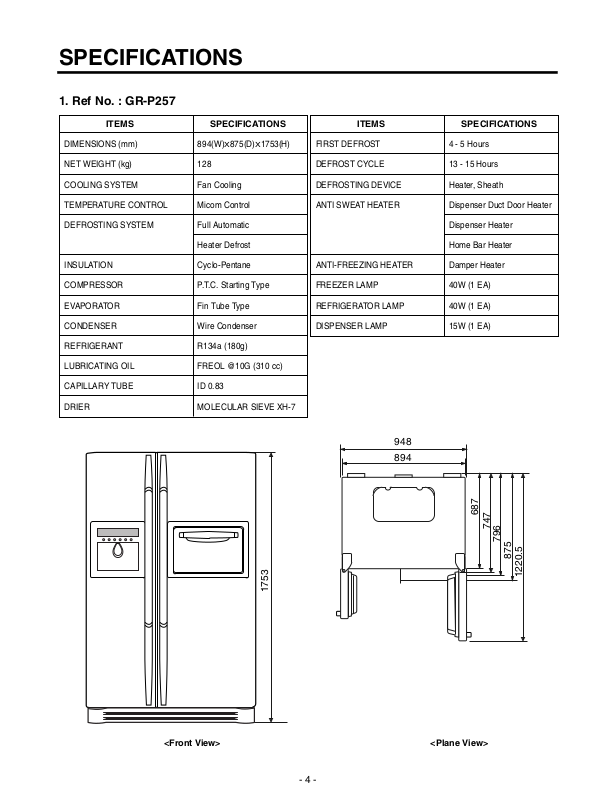

Page 1
SPECIFICATIONS
1. Ref No. : GR-P257
ITEMS SPECIFICATIONS
DIMENSIONS (mm) 894(W)X875(D)X1753(H)
NET WEIGHT (kg) 128
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR P.T.C. Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (180g)
LUBRICATING OIL FREOL @10G (310 cc)
CAPILLARY TUBE ID 0.83
DRIER MOLECULAR SIEVE XH-7
ITEMS SPECIFICATIONS
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI SWEAT HEATER Dispenser Duct Door Heater
Dispenser Heater
Home Bar Heater
ANTI-FREEZING HEATER Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (1 EA)
DISPENSER LAMP 15W (1 EA)
1753
948
894
687
747
796
875
1220.5
<Front View> <Plane View>
- 4 -
Page 2
SPECIFICATIONS
2. Ref No. : GR-P217
ITEMS SPECIFICATIONS
DIMENSIONS (mm) 894(W)X790(D)X1753(H)
NET WEIGHT (kg) 120
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR P.T.C. Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (180g)
LUBRICATING OIL FREOL @10G (310 cc)
CAPILLARY TUBE ID 0.83
DRIER MOLECULAR SIEVE XH-7
ITEMS SPECIFICATIONS
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI SWEAT HEATER Dispenser Duct Door Heater
Dispenser Heater
Home Bar Heater
ANTI-FREEZING HEATER Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (1 EA)
DISPENSER LAMP 15W (1 EA)
1753
948
894
602
662
711
790
1135.5
<Front View> <Plane View>
- 5 -
Page 3
SPECIFICATIONS
3. Ref No. : GR-L257
ITEMS SPECIFICATIONS
DIMENSIONS (mm) 894(W)X875(D)X1753(H)
NET WEIGHT (kg) 125
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR P.T.C. Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (180g)
LUBRICATING OIL FREOL @10G (310 cc)
CAPILLARY TUBE ID 0.83
ITEMS SPECIFICATIONS
DRIER MOLECULAR SIEVE XH-7
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI SWEAT HEATER Dispenser Duct Door Heater
Dispenser Heater
ANTI-FREEZING HEATER Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (1 EA)
DISPENSER LAMP 15W (1 EA)
1753
948
894
687
747
796
875
1220.5
<Front View> <Plane View>
- 6 -
Page 4
SPECIFICATIONS
- 7 -
ITEMS SPECIFICATIONS
DIMENSIONS (mm) 894(W)X790(D)X1753(H)
NET WEIGHT (kg) 117
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR P.T.C. Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (180g)
LUBRICATING OIL FREOL @10G (310 cc)
CAPILLARY TUBE ID 0.83
<Front View> <Plane View>
4. Ref No. : GR-L217
ITEMS SPECIFICATIONS
DRIER MOLECULAR SIEVE XH-7
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI SWEAT HEATER Dispenser Duct Door Heater
Dispenser Heater
ANTI-FREEZING HEATER Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (1 EA)
DISPENSER LAMP 15W (1 EA)
1753
948
894
602
662
711
790
1135.5
Page 5
SPECIFICATIONS
1. Ref No. : GR-C257
ITEMS SPECIFICATIONS
DIMENSIONS (mm) 894(W)X875(D)X1753(H)
NET WEIGHT (kg) 117
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR P.T.C. Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (180g)
LUBRICATING OIL FREOL @10G (310 cc)
CAPILLARY TUBE ID 0.83
DRIER MOLECULAR SIEVE XH-7
ITEMS SPECIFICATIONS
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI SWEAT HEATER Home Bar Heater
ANTI-FREEZING HEATER Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (1 EA)
DISPENSER LAMP 15W (1 EA)
1753
948
894
687
747
796
875
1220.5
<Front View> <Plane View>
- 8 -
Page 6
SPECIFICATIONS
2. Ref No. : GR-C217
ITEMS SPECIFICATIONS
DIMENSIONS (mm) 894(W)X790(D)X1753(H)
NET WEIGHT (kg) 112
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR P.T.C. Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (180g)
LUBRICATING OIL FREOL @10G (310 cc)
CAPILLARY TUBE ID 0.83
CDRIER MOLECULAR SIEVE XH-7
ITEMS SPECIFICATIONS
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI SWEAT HEATER Home Bar Heater
ANTI-FREEZING HEATER Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (1 EA)
DISPENSER LAMP 15W (1 EA)
1753
948
894
602
662
711
790
1135.5
<Front View> <Plane View>
- 9 -
Page 7
SPECIFICATIONS
3. Ref No. : GR-B257
ITEMS SPECIFICATIONS
DIMENSIONS (mm) 894(W)X875(D)X1753(H)
NET WEIGHT (kg) 114
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR P.T.C. Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (180g)
LUBRICATING OIL FREOL @10G (310 cc)
CAPILLARY TUBE ID 0.83
ITEMS SPECIFICATIONS
DRIER MOLECULAR SIEVE XH-7
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI-FREEZING HEATER Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (1 EA)
DISPENSER LAMP 15W (1 EA)
1753
948
894
687
747
796
875
1220.5
<Front View> <Plane View>
- 10 -
Page 8
SPECIFICATIONS
4. Ref No. : GR-B217
ITEMS SPECIFICATIONS
DIMENSIONS (mm) 894(W)X790(D)X1753(H)
NET WEIGHT (kg) 109
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR P.T.C. Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (180g)
LUBRICATING OIL FREOL @10G (310 cc)
CAPILLARY TUBE ID 0.83
ITEMS SPECIFICATIONS
DRIER MOLECULAR SIEVE XH-7
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI-FREEZING HEATER Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (1 EA)
DISPENSER LAMP 15W (1 EA)
1753
948
894
602
662
711
790
1135.5
<Front View> <Plane View>
- 11 -
