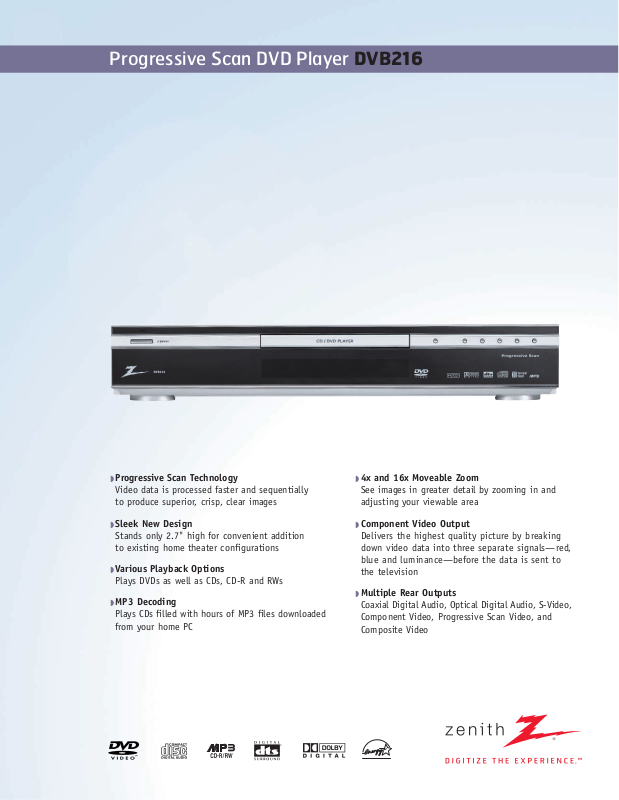

Progressive Scan DVD Player DVB216

◗Progressive Scan Technology

Video data is processed faster and sequentially
to produce superior, crisp, clear images

◗Sleek New Design

Stands only 2.7" high for convenient addition
to existing home theater configurations

◗Various Playback Options

Plays DVDs as well as CDs, CD-R and RWs

◗MP3 Decoding

Plays CDs filled with hours of MP3 files downloaded
from your home PC

◗4x and 16x Moveable Zoom

See images in greater detail by zooming in and
adjusting your viewable area

◗Component Video Output

Delivers the highest quality picture by breaking
down video data into three separate signals—red,
blue and luminance—before the data is sent to
the television

◗Multiple Rear Outputs

Coaxial Digital Audio, Optical Digital Audio, S-Video,
Component Video, Progressive Scan Video, and
Composite Video

Jack Pack

Component Video Out (YUB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

S-Video Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Composite Video Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Optical Digital Audio Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Coaxial Digital Audio Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Progressive Scan Video Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Special Features

Disc Capacity . . . . . . . . . . . . . . . . . . . . . . . . . Single Slot

Disc Playback . . . . . . . . . . . DVD-Video, CD-Audio, CD-R, RW

Progressive Scan Output. . . . . . . . . . . . . . . . . . . . . . . Yes

Digital Audio Output . . . . . . . . . . . . . DTS™/Dolby Digital™

MP3 Decoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

HDCD Decoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Simulated Surround Sound . . . . . . . . . . . . . . . . . . . . . Yes

Variable Hi Speed Scan. . . . . . . . 2x/4x/16x/100x (Fwd/Rev)

Zoom . . . . . . . . . . . . . . . . . . . . . . . . 4x, 16x (Moveable)

Aspect Ratios . . . . . . . . . . . . . . . . . . . . 4:3/16:9/Panscan

Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Rear Panel Source Select Switch. . . . . . . S-Video/Component

Upgradeable Software . . . . . . . . . . . . . . . . . . . . . CD-ROM

Multiplay Enhanced. . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Basic Features

Auto Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Programmable Play . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Programmable Memory . . . . . . . . . . . . . . . . . . . . 20 Tracks

Repeat Play . . . . . . . . . . . . . Track/A-B/Programmed/1 Disc

Random Play Modes . . . . . . . . . . . . . . . Programmed/1 Disc

Marker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Search . . . . . . . . . . . . . . . . . . . . . . Chapter/Marker/Track

Screensaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Still . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Frame Advance/Slow/Skip/Search . . . . . . . . Forward/Reverse

OSD Menu Language . . . . . . . . . . . . English/Spanish/French

Menu Type . . . . . . . . . . . . . . . . . . . . . . . . . . . Text/Icon

GUI. . . . . . . . . . . . . . . . . . . . . . . . OSD & FDP Navigation

Multi-Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Multi-Story . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Interactive Story . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Multi-Language/Subtitle Capability. . . . . . . . . . . . . . . . Yes

Closed Caption support . . . . . . . . . . . . . . . . . . . . . . . Yes

Format. . . . . . . . . . . . . . . . . . . . . . . NTSC, Region Code 1

Energy Star® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Video DAC. . . . . . . . . . . . . . . . . . . . . . . . . 27MHz, 10 Bit

Audio DAC . . . . . . . . . . . . . . . . . . . . . . . . . 96kHz, 24 Bit

Cabinet Description

Finish (Front) . . . . . . . . . . . . . . . . . . . . . . . . . . . Silver

Finish (Rear). . . . . . . . . . . . . . . . . . . . . . . . . . . . . Black

Front Panel Display . . . . . Fluorescent Alpha Numeric Display

Remote Control

Transmitter. . . . . . . Variable Speed Shuttle Universal Remote

Model Number . . . . . . . . . . . . . . . . . . . . . . . . . . MBR281

Transmitter Finish . . . . . . . . . . . . . . . . . . . . . . . . . Silver

Jog/Shuttle. . . . . . . . . . . . . . . . . . . . . . Shuttle and Glow

Packaged Materials

S-Video Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

A/V Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

AAA Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Carton Printing . . . . . . . . . . . . . . . . . . . . . White, 3-Color

Operating Guide. . . . . . . . . . . . . . . . . . . . English, 1-Color

Registration Card . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Warranty Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Progressive Scan DVD Player DVB216

Aspect Ratios Able to display video in both standard 4:3 and 16:9 wide screen formats.

Parental Control Programmable options can prohibit viewing of “mature” DVD material.

DTS™ and Dolby Digital™ Decoding Digital surround sound provides a theater-

like atmosphere with six separate audio channels.

S-Video Carries video signals from the DVD player to the TV and bypasses the
TV’s internal comb filter. Bypassing the comb filter eliminates additional signal
processing and produces a truer picture.

Variable Hi Speed Scan Fast forward or rewind from two to 100 times the normal
viewing speed.

Programmable Memory Program up to 20 tracks for playback of CDs or DVDs.

Multi-Angle Certain DVDs enable you to change your viewing angle.

Energy Star

®

Designation for products that meet energy efficiency standards set by

the US Department of Energy and Environmental Protection Agency.

Additional Information

Cabinet Dimensions:

Width x Height x Depth . . . . . . . . . . . . . . . . . . . . . . . . 16.9" x 2.7" x 8.5"

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.7 lbs.

Dimensions with Packaging:

Width x Height x Depth. . . . . . . . . . . . . . . . . . . . . . . . 20.9" x 6.5" x 13.5"

Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.4 lbs.

UPC Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4464230032 6

Required Approvals

UL, C-UL, NOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL, C-UL

Service/Limited Warranty

Warranty: Parts/Labor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Year/90 Days

Dimensions and weights are approximate. Design and specifications subject to change without notice.

Dolby® and Dolby Digital™are trademarks of Dolby® Laboratories.
DTS™is a trademark of Digital Theatre Systems.
Energy Star® is a registered trademark of the U.S. Environmental Protection Agency.

Zenith Electronics Corporation 2000 Millbrook Drive, Lincolnshire, IL 60069 www.zenith.com

Toll free: 1-877-9-zenith

©

2002 Zenith Electronics Corporation Printed in the USA Z-0075
