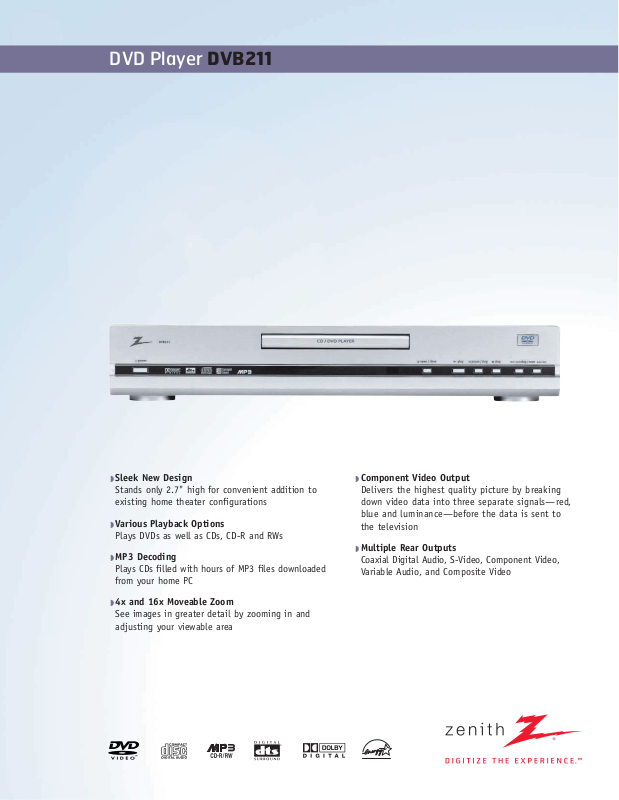

Page 1
34" 16:9
DVD Player DVB211
◗Sleek New Design
Stands only 2.7" high for convenient addition to
existing home theater configurations
◗Various Playback Options
Plays DVDs as well as CDs, CD-R and RWs
◗MP3 Decoding
Plays CDs filled with hours of MP3 files downloaded
from your home PC
◗4x and 16x Moveable Zoom
See images in greater detail by zooming in and
adjusting your viewable area
◗Component Video Output
Delivers the highest quality picture by breaking
down video data into three separate signals—red,
blue and luminance—before the data is sent to
the television
◗Multiple Rear Outputs
Coaxial Digital Audio, S-Video, Component Video,
Variable Audio, and Composite Video
Page 2
Jack Pack
Component Video Out (YUB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
S-Video Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Composite Video Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Coaxial Digital Audio Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Variable Audio Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Special Features
Disc Capacity . . . . . . . . . . . . . . . . . . . . . . . . . Single Slot
Disc Playback . . . . . . . . . . . DVD-Video, CD-Audio, CD-R, RW
Digital Audio Output . . . . . . . . . . . . . DTS™/Dolby Digital™
MP3 Decoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Simulated Surround Sound . . . . . . . . . . . . . . . . . . . . . Yes
Variable Hi Speed Scan. . . . . . . . 2x/4x/16x/100x (Fwd/Rev)
Zoom . . . . . . . . . . . . . . . . . . . . . . . . 4x, 16x (Moveable)
Aspect Ratios . . . . . . . . . . . . . . . . . . . . 4:3/16:9/Panscan
Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Upgradeable Software . . . . . . . . . . . . . . . . . . . . . CD-ROM
Multiplay Enhanced. . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Basic Features
Auto Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Programmable Play . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Programmable Memory . . . . . . . . . . . . . . . . . . . . 20 Tracks
Repeat Play . . . . . . . . . . . . . Track/A-B/Programmed/1 Disc
Random Play Modes . . . . . . . . . . . . . . . Programmed/1 Disc
Marker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Search . . . . . . . . . . . . . . . . . . . . . . Chapter/Marker/Track
Screensaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Still . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Frame Advance/Slow/Skip/Search . . . . . . . . Forward/Reverse
OSD Menu Language . . . . . . . . . . . . English/Spanish/French
Menu Type . . . . . . . . . . . . . . . . . . . . . . . . . . . Text/Icon
GUI. . . . . . . . . . . . . . . . . . . . . . . . OSD & FDP Navigation
Multi-Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Multi-Story . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Interactive Story . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Multi-Language/Subtitle Capability. . . . . . . . . . . . . . . . Yes
Closed Caption support . . . . . . . . . . . . . . . . . . . . . . . Yes
Format. . . . . . . . . . . . . . . . . . . . . . . NTSC, Region Code 1
Energy Star® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Video DAC. . . . . . . . . . . . . . . . . . . . . . . . . 27MHz, 10 Bit
Audio DAC . . . . . . . . . . . . . . . . . . . . . . . . . 96kHz, 24 Bit
Cabinet Description
Finish (Front) . . . . . . . . . . . . . . . . . . . . . . . . . . . Silver
Finish (Rear). . . . . . . . . . . . . . . . . . . . . . . . . . . . . Black
Front Panel Display . . . . . . . . . . . . . . . . . . . . . . . LED Dot
Remote Control
Transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DVD
Packaged Materials
S-Video Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
A/V Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
AAA Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Carton Printing . . . . . . . . . . . . . . . . . . . . . White, 3-Color
Operating Guide. . . . . . . . . . . . . . . . . . . . English, 1-Color
Registration Card . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Warranty Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Required Approvals
UL, C-UL, NOM . . . . . . . . . . . . . . . . . . . . . . . . . UL, C-UL
Service/Limited Warranty
Warranty: Parts/Labor . . . . . . . . . . . . . . . . 1 Year/90 Days
DVD Player DVB211
Aspect Ratios Able to display video in both standard 4:3 and 16:9 wide screen formats.
Parental Control Programmable options can prohibit viewing of “mature” DVD material.
DTS™ and Dolby Digital™ Decoding Digital surround sound provides a theater-
like atmosphere with six separate audio channels.
S-Video Carries video signals from the DVD player to the TV and bypasses the
TV’s internal comb filter. Bypassing the comb filter eliminates additional signal
processing and produces a truer picture.
Variable Hi Speed Scan Fast forward or rewind from two to 100 times the normal
viewing speed.
Programmable Memory Program up to 20 tracks for playback of CDs or DVDs.
Multi-Angle Certain DVDs enable you to change your viewing angle.
Energy Star
®
Designation for products that meet energy efficiency standards set by
the US Department of Energy and Environmental Protection Agency.
Additional Information
Cabinet Dimensions:
Width x Height x Depth . . . . . . . . . . . . . . . . . . . . . . . . 16.9" x 2.7" x 8.5"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.7 lbs.
Dimensions with Packaging:
Width x Height x Depth. . . . . . . . . . . . . . . . . . . . . . . . 20.1" x 6.5" x 13.5"
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.4 lbs.
UPC Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4464230012 8
Dimensions and weights are approximate. Design and specifications subject to change without notice.
Dolby® and Dolby Digital™are trademarks of Dolby® Laboratories.
DTS™is a trademark of Digital Theatre Systems.
Energy Star® is a registered trademark of the U.S. Environmental Protection Agency.
Zenith Electronics Corporation 2000 Millbrook Drive, Lincolnshire, IL 60069 www.zenith.com
Toll free: 1-877-9-zenith
©
2002 Zenith Electronics Corporation Printed in the USA Z-0074
AUDIO
OUT
LPr
Pb
R
Y
VIDEO
OUT
VIDEO
OUTPUT
S-VIDEO
COMPONENT/
PROGRESSIVE
SCAN
DIGITAL
OUT
COAXIAL
S-VIDEO
OUT
COMPONENT/
VIDEO OUT
