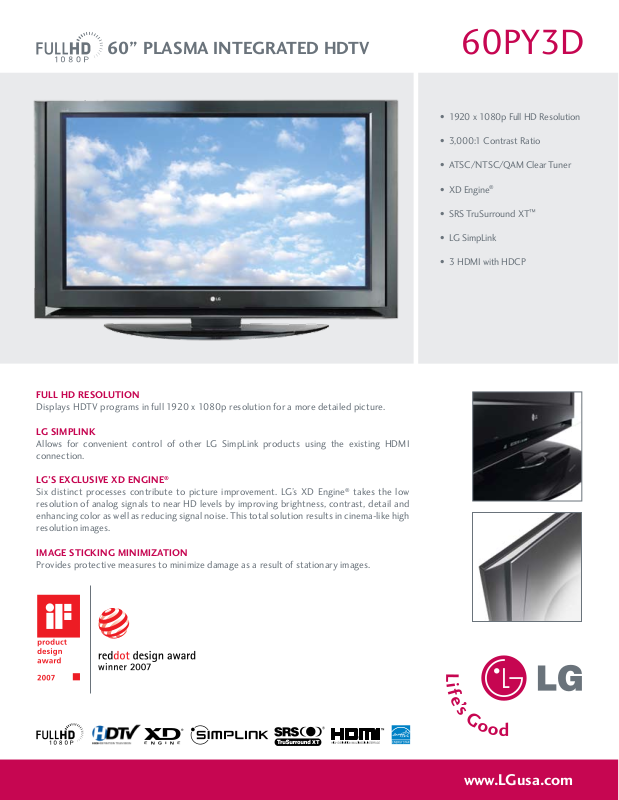

60” PLASMA INTEGRATED HDTV
®
XT
60PY3D
• 1920 x 1080p Full HD Resolution
• 3,000:1 Contrast Ratio
• ATSC/NTSC/QAM Clear Tuner
FULL HD RESOLUTION
Displays HDTV programs in full 1920 x 1080p resolution for a more detailed picture.
LG SIMPLINK
Allows for convenient control of other LG SimpLink products using the existing HDMI
connection.
LG’S EXCLUSIVE XD ENGINE
Six distinct processes contribute to picture improvement. LG’s XD Engine® takes the low
resolution of analog signals to near HD levels by improving brightness, contrast, detail and
enhancing color as well as reducing signal noise. This total solution results in cinema-like high
resolution images.
®
• XD Engine
• SRS TruSurround XT
• LG SimpLink
• 3 HDMI with HDCP
®
™
IMAGE STICKING MINIMIZATION
Provides protective measures to minimize damage as a result of stationary images.
www.LGusa.com
60” PLASMA INTEGRATED HDTV
63.5”
37.8”
40.4”
18”
4.6”
23.6”
15.7”
40.7”
60PY3D
TV
ATSC/NTSC/QAM Clear Tuner •
VIDEO
Native Display Resolution 1920 x 1080p
Contrast Ratio 3,000:1
Brightness (cd/m²) 1000
XD Engine® •
High Contrast Screen Filter Glass Filter
Image Sticking Minimization 3 Modes
Digital Comb Filter 3D
Color Temperature Control 4 Modes
Aspect Ratio Adjustment 6 Modes
Enhanced Noise Reduction (Video Noise Filter) •
Enhanced Line Doubler •
3:2 Pull-Down Correction 3:2 (480i/1080i)
Picture Selection Mode 5 Modes
Black Stretcher (Black Level Enhancer) •
DTV Signal Strength Indicator •
ACM (Active Color Management) •
Color Processor 14 Bit
AUDIO
Mono/Stereo/Dual (MTS/SAP) •
Audio Output Power (Watts - THD 10%) 10W + 10W
Speaker System Details 2 Way 4 System
Dolby Digital Decoder •
Surround System Type SRS TruSurround XT®
Bass/Treble/Balance Controls •
AVL (Auto Volume Leveler) •
EZ Sound (Sound Status Mode) 5 Modes
Mute •
REMOTE REAR AUDIO/VIDEO INPUTS/OUTPUTS SIDE
1080p SOURCE INPUT
HDMI 60p/30p/24p
Component 60p/30p/24p
RGB 60p
SPECIAL FEATURES
Auto Input Detect •
Custom Input Labels •
Back (Previous Channel) •
Parental Control w/V-Chip •
Intelligent Fan Control 2 Speeds
Closed Caption •
LG SimpLink (HDMI CEC) •
Trilingual Menus English, Spanish, French
Auto Channel Programming •
Channel Add/Delete •
Favorite Channel •
Manual Clock •
On/Off Timer •
Sleep Timer •
Auto Off (When no Video is Present) •
REAR AUDIO/VIDEO INPUTS/OUTPUTS
RF In (Antenna/Cable) 1
L/R Audio/Composite Video In 1
L/R Audio Out 1
S-Video In 1
HD Component Video In (Y,Pb,Pr) + L/R Audio 2
Digital Audio Out 2 (1 Coaxial/ 1 Optical)
HDMI/HDCP Input 3
RGB In (D-Sub 15pin) - PC 1
PC Audio Input 1
REAR AUDIO/VIDEO INPUTS/OUTPUTS (CONTINUED)
RS-232c In (Control/Service) 1
Remote Control In (IR) 1
SIDE AUDIO/VIDEO INPUTS/OUTPUTS
L/R Audio/Composite Video In 1
S-Video In 1
USB In(Music, Photos Only) 1 (JPEG,/MP3)
CABINET/ACCESSORIES
Cabinet Style Table Top
Cabinet Color Gloss Black
Remote Control Type Universal
VESA® Compatible (W x H) 600mm x 400mm
POWER
Consumption (Typical) 650 W
Stand-by Consumption 1W
Energy Star Compliant •
SPECIFICATIONS
Dimensions w/Out Stand (W x H x D) 63.5" x 37.8" x 4.6"
Weight w/Out Stand 142.4 lbs.
Dimensions w/Stand (W x H x D) 63.5" x 40.4" x 18"
Weight w/Stand 177.7 lbs.
Dimensions w/Packaging (W x H x D) 69.3" x 45.1" x 21.6"
Weight In Package 199.7 lbs.
UPC 719192171008
Warranty 2 Year Parts/Labor
LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 (800)243-0000
© 2007 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. LG Design and Life’s Good are trademarks of LG Electronics, Inc.
All other trademarks are the property of their respective owners.
Design and specifications subject to change without notice. 03/06/07
www.LGusa.com
