ESP HDview User Manual
1
4 MEGAPIXEL CC TV SY S TEM
U S E R MANUAL
www.espuk.com
RekorHD DVR Manual.indd 1 09/05/2017 16:38:45
2
CONTENTS
DVR Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Connection Diagram ....................................... 4
System Operations ............................................... 5

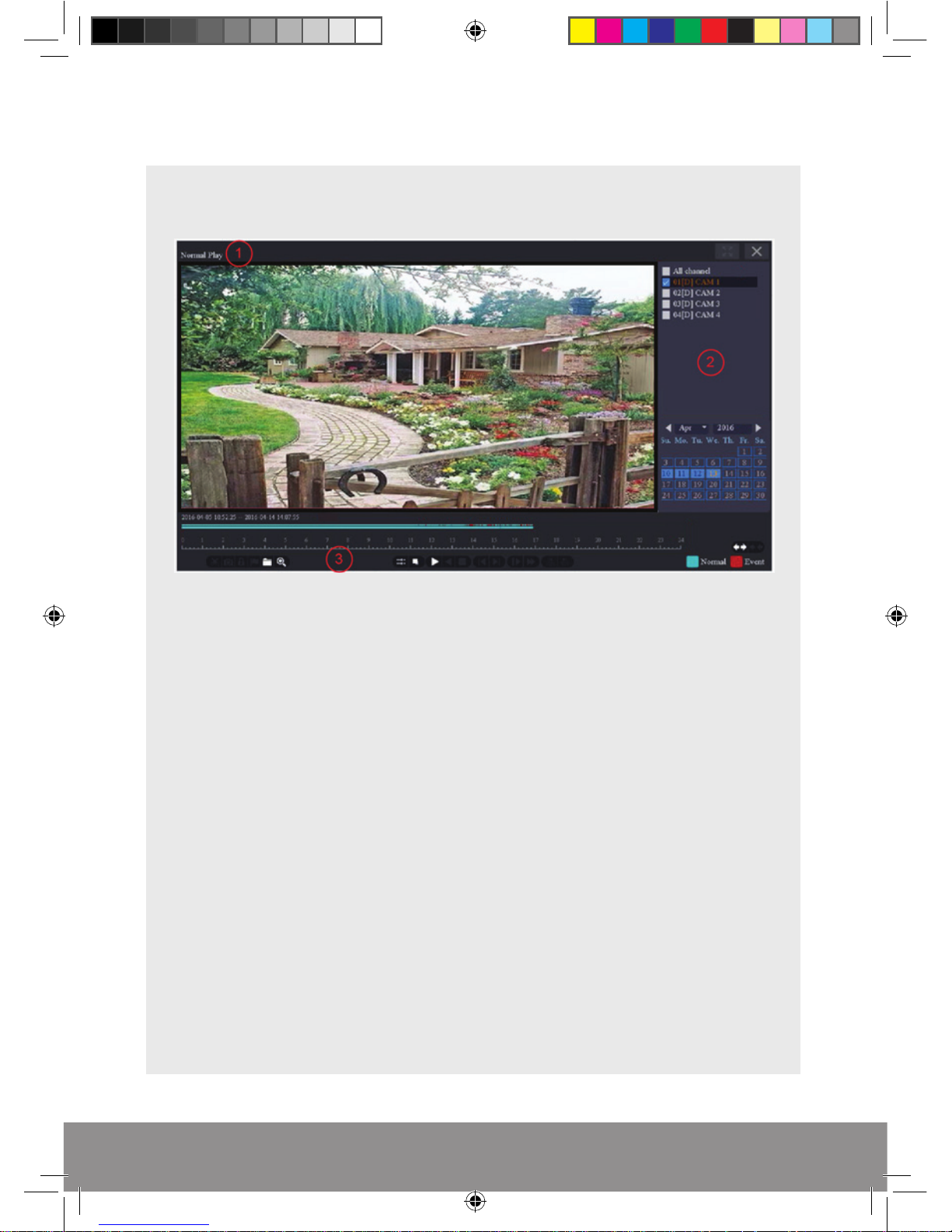

Record Setup ................................................... 12

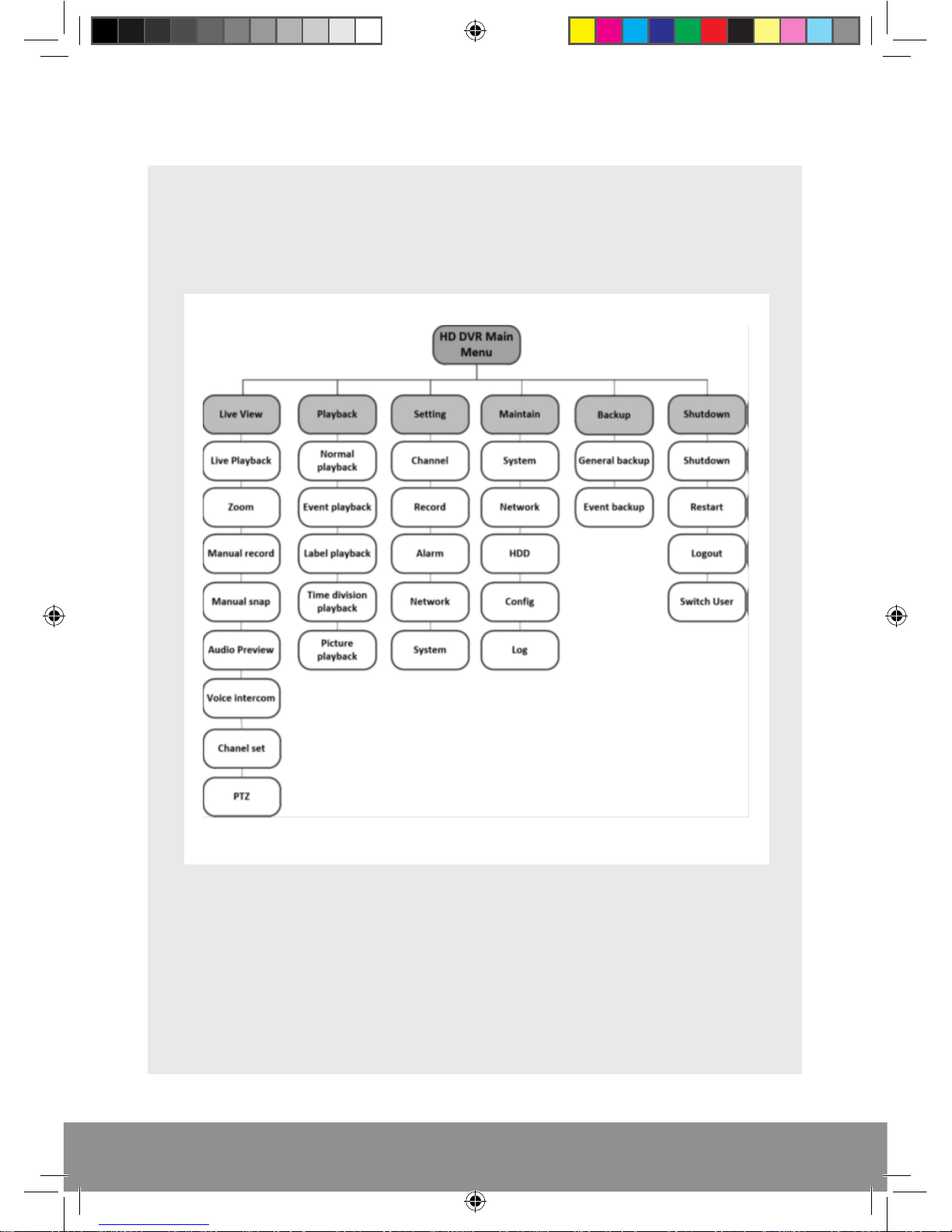

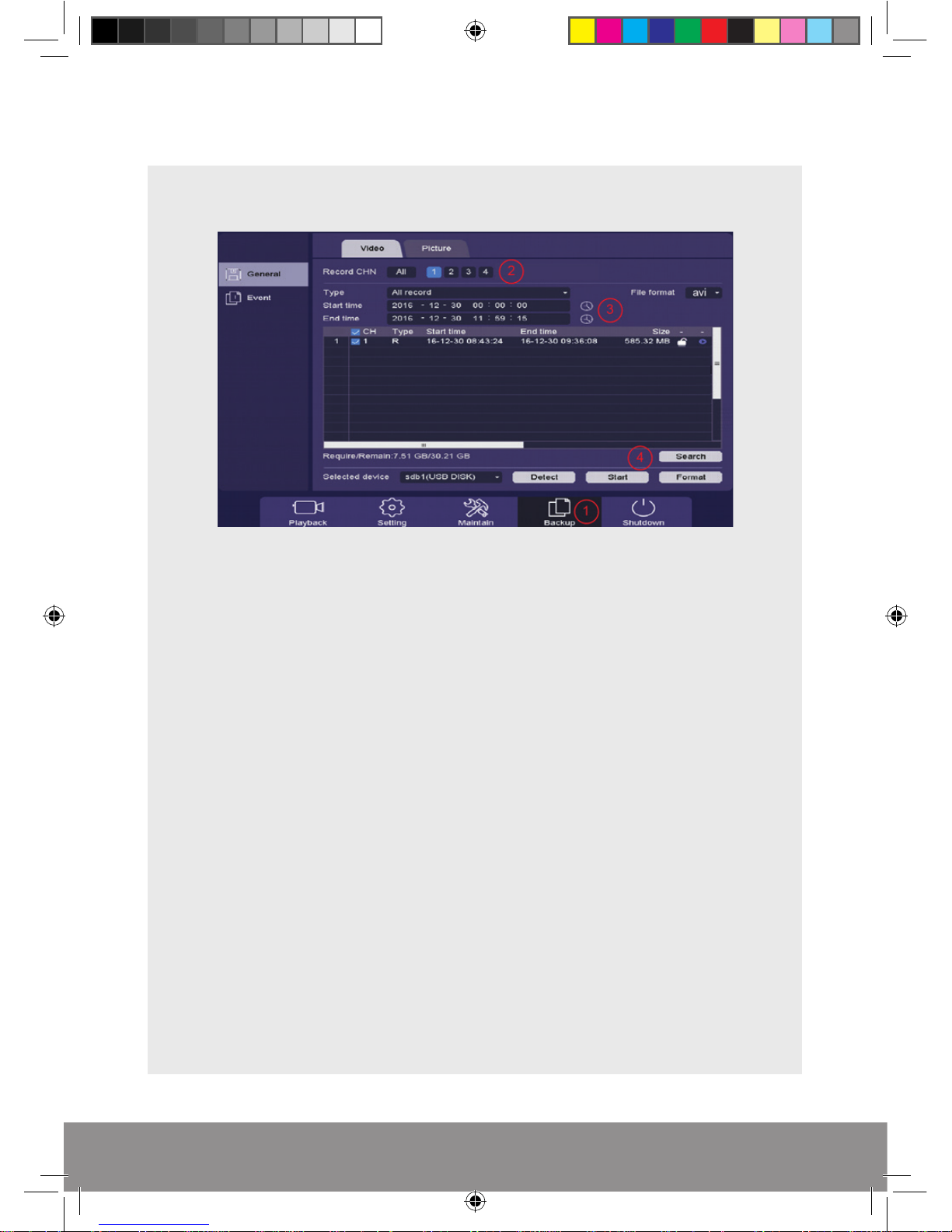

Menu Layout ................................................... 17
Remote Viewing ................................................ 18
Support Guide .................................................. 19
This manual is designed to be used as a quick start guide alongside the informative general user
interface (GUI) of the DVR. The menu above is not exhaustive and is designed to lead the user
quickly to the most often required aspects of the unit.
The DVR will require a connection to a monitor to be programmed.
IMPORTANT NOTICE
• Please read this manual and keep for later use
• Do not use accessory devices not recommended by the manufacturer
• Please use the power adapter equipped for the unit
• Please do not touch any control parts not mentioned in the manual. Incorrect
adjustment
of a control part not mentioned in the manual may damage the machine
• Ensure air ventilation around the unit and do not cover or block the vent hole
• Do not place the unit in direct sunlight or near a heat source
RekorHD DVR Manual.indd 2 09/05/2017 16:38:45
3
REAR PANEL
DVR DESCRIPTION
FRONT PANEL
1) VIDEO IN 1-4/8 for Camera Video Input
2) HDMI Output for Monitor
3) Audio IN / OUT
4) VGA Output for Monitor
5) LAN Socket for Network Cable
6) USB for Mouse Controller and USB backup
7) DC12V Input Power
RekorHD DVR Manual.indd 3 09/05/2017 16:38:45
1) USB for Mouse Controller and USB backup
2) Power Indicator
3) Alarm Trigger Indicator
4
SYSTEM CONNECTION DIAGRAM
NB. The Video & Power connectors are not weatherproof. Please ensure the connections
are made internally, or housed in a suitable enclosure.
RekorHD DVR Manual.indd 4 09/05/2017 16:38:45
DVR Connections
Monitor
Router
HDMI Lead
Power Input
System Power
Supply
Power InputVideo Input
Power & Video
Input
System Camera
Mouse
Controller
5
SYSTEM OPERATIONS
CONNECTION TO A MONITOR
Use either HDMI or VGA output to connect to a monitor and select the correct input
channel on the monitor.
CONNECTION TO A ROUTER
If remote reviewing is required from a smart-phone or PC, please connect the DVR to
the router using a network cable. During power up the DVR will obtain the necessary
network details.
POWER ON
Plug one lead from the 5-way power supply into the 12VDC power supply input
marked on the DVR. Turn on the DVR at the mains power point. The Power supply
indicator light will illuminate on the DVR’s front panel followed by several
short bleeps.
POWER OFF
Select Logout from the Shortcut menu and turn off the DVR at the mains
power source.
N.B Auto resume after power failure. If the DVR is shut down abnormally, the DVR
will automatically backup video and resume previous working status after the
power is restored.
MOUSE CONTROLLER
In order to prevent un-authorised tampering majority of DVR functions of are
controlled via the mouse controller.
RekorHD DVR Manual.indd 5 09/05/2017 16:38:45
6

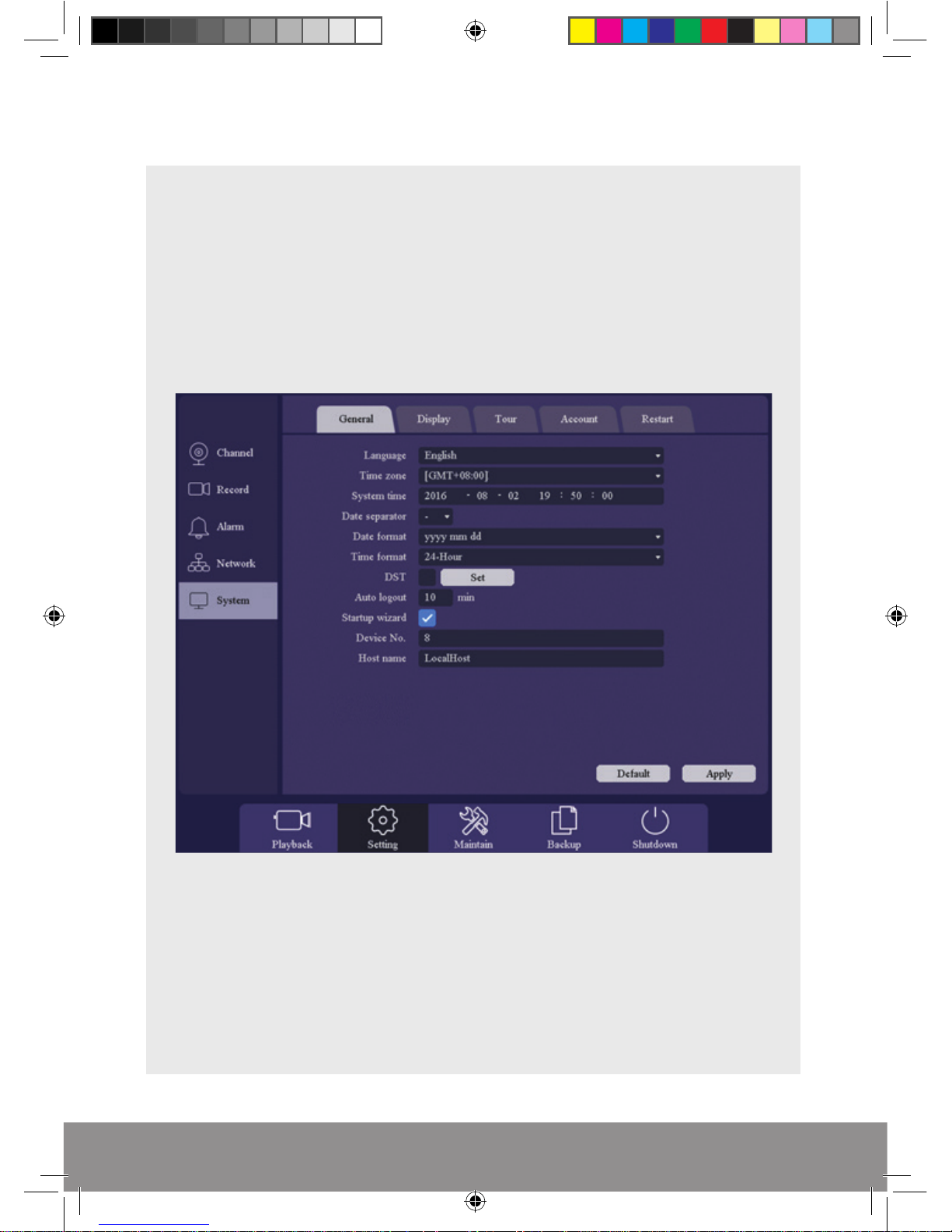

START-UP WIZARD
The Set-up Wizard takes the user through basic system settings. More advance
options and settings are found in the Main Menu.
INTRODUCTION
LOG-IN
An opportunity to change the password is provided within the Main Menu.
The default settings are:
User Name: admin
Password: ‘leave blank, there is no default password’
RekorHD DVR Manual.indd 6 09/05/2017 16:38:45
