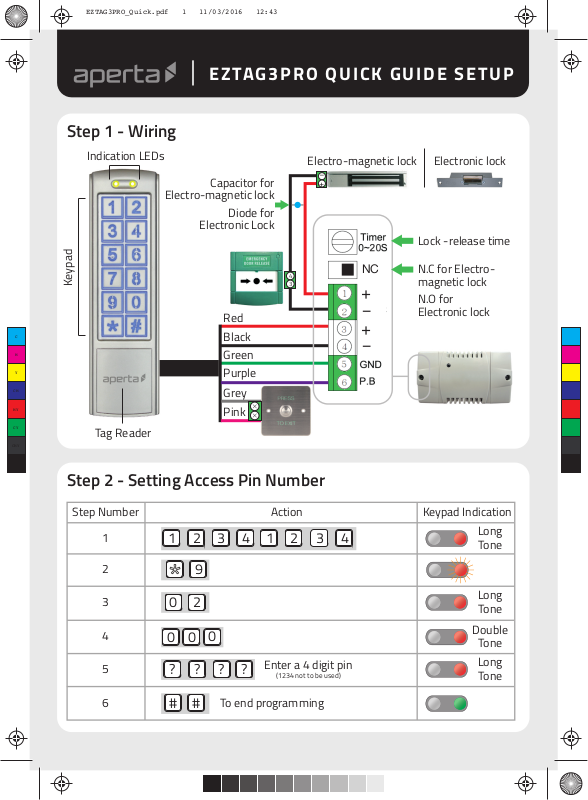

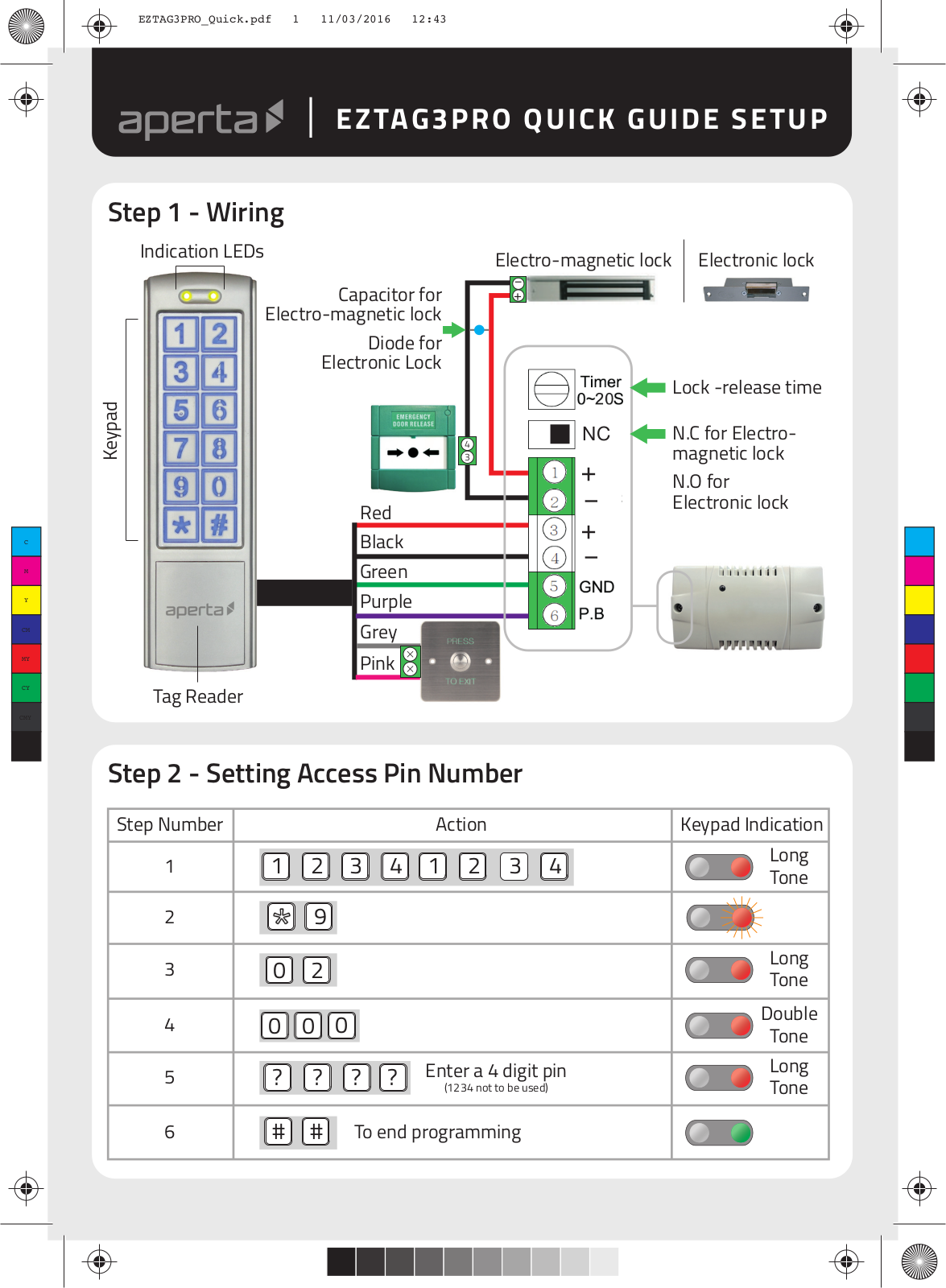

EZTAG3PRO QUICK GUIDE SETUP
Step 1 - Wiring
Indication LEDs
Capacitor for
Electro-magnetic lock Electronic lock
_
+
Electro-magnetic lock
Diode for
Electronic Lock
Lock -release time
NC
Keypad
4
3
+
_
Red
C
M
Y
CM
MY
CY
CMY
K
Tag Reader
Black
Green
Purple
Grey
Pink
+
_
N.C for Electromagnetic lock
N.O for
Electronic lock
Step 2 - Setting Access Pin Number
Step Number Keypad Indication
1
2
3
4
5
6
1 2 3 4 1 2 3 4
9
0 2
0 0
0
? ? ? ?
# #
To end programming
Action
Enter a 4 digit pin
(1234 not to be used)
Long
Tone
Long
Tone
Double
Tone
Long
Tone
Page 2
EZTAG3PRO_Quick.pdf 2 11/03/2016 12:43

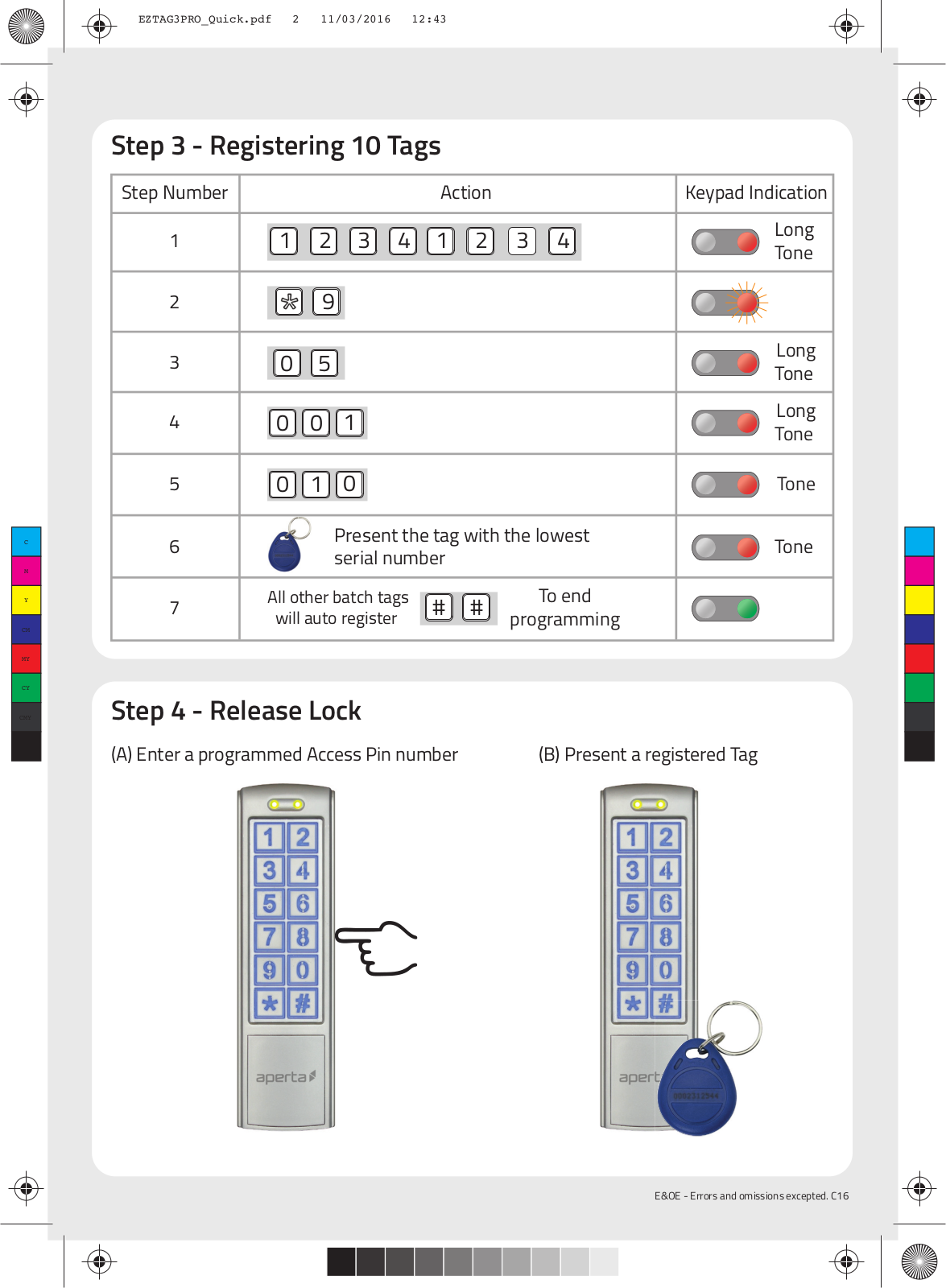

Step 3 - Registering 10 Tags
ActionStep Number Keypad Indication
1
2
3
4
5
C
M
Y
CM
MY
CY
CMY
K
Step 4 - Release Lock
(A) Enter a programmed Access Pin number (B) Present a registered Tag
6
7
1 2 3 4
9
0 5
0 0
0 1
All other batch tags
will auto register
1
0
Present the tag with the lowest
serial number
1 2 3 4
# #
To end
programming
Long
Tone
Long
Tone
Long
Tone
Tone
Tone
E&OE - Errors and omissions excepted. C16
