USER MANUAL
Page 2
Contents

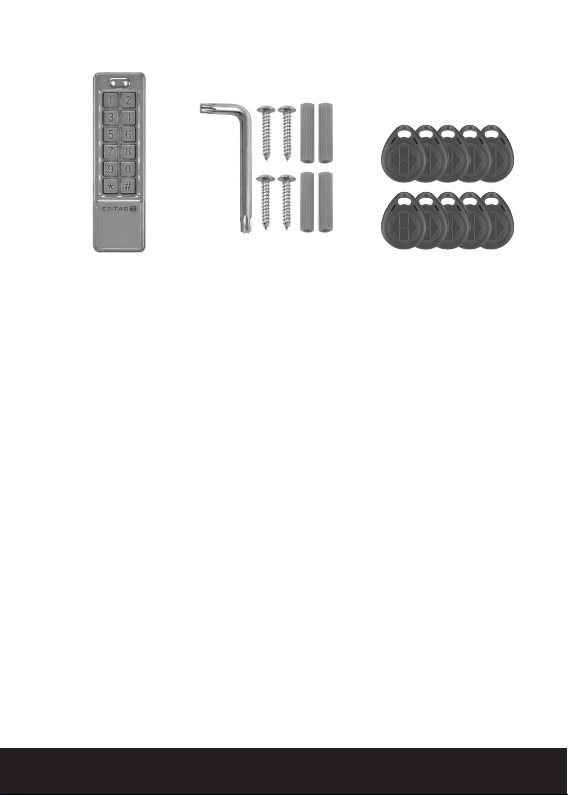

1 x Security Torx Key
4 x Screws and raw plugs
and Back Plate
1 x Marking out template
Equipment required for controlling one door:-
12 volt DC power supply 2 amp minimum (EV-BPS)
Lock - Magnetic (EVML-250)/Yale type keep 12 volt lock (enter D)
Push to exit button (EVEXIT)
Green break glass emergency release (EVEBG)*
*Note:- for use with Magnetic lock only
Functions of the EZ-TAG2
The EZ-TAG2 can control up to two doors by use of Tags or pin
numbers
Selectable Pin number length 2, 3, 4, 5 and 6 digits (per zone).
Programmable door open time 00 to 99 seconds.
Two locations (zone 1, zone 2) are available for programming Tags
and Pin numbers.
1000 Tags or Pins can be programmed for zone 1.
10 Tags or Pins can be programmed for zone 2.
Two volt free change over relays one per door.
Door closed function (contact required).
2 push to exit button inputs, one per zone.
Programmable volt free change over relay for door bell function.
Programmable rear tamper.
Internal buzzer for tamper monitoring (auto cut off after 1 minute).
10 x TagsEZ-TAG2
2
Page 3
Sighting Of The EZ-TAG2
System wiring
Screw
raw plugs
Screws
Torx Screw
The EZ-TAG2 must not be located within 2 meters of any
reader/keypad type devices.
The EZ-TAG2 must not be sited back to back with other reader/keypad
type devices.
Site the EZ-TAG2 within easy access to the door/doors to be controlled
Recommended mounting height 1.2m.
Fitting
Using the template mark and drill the fixing and cable entry holes.
Remove security screw from the underside of the keypad/reader and
remove back plate.

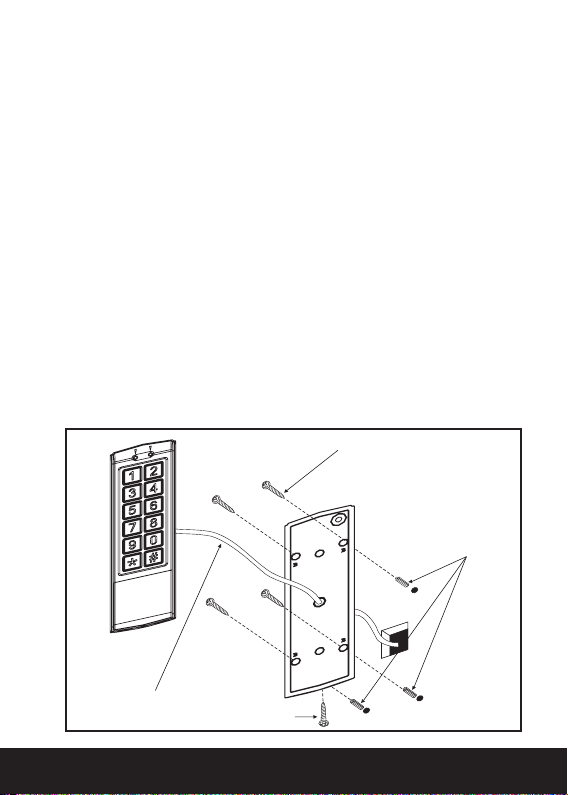

Fit and secure the back plate in its final position. (See Fig. 1)
Feed the cable from the keypad/reader though the centre hole of the
back plate.
Clip the top of keypad/reader onto the back plate and secure using the
security fixing screw located on the underside of the keypad/reader.
Make all wiring connections and connect 12 volts DC to the keypad/reader.
The green power LED will now be illuminated on the front of the
keypad/reader.
Fig. 1
3
Page 4
Yellow-push to exit button - Zone 2
Additional power
supply for lock
Brown-door status detecting - reed switch
Orange-push to exit button - Zone 1
Green - COM
Not Used
Not Used
Exit button - Zone 2
Exit button - Zone 1
COM
Door contact - reed switch
Wiring Diagram and connections
4
Page 5
RED
BLACK
WHITE
PINK
Exit Button
0-20
L N
E.lock
+ -
DC out
+ -
Push button
GND P.B
N.O
Timer
secs
240vAC
INPUT
EV-BPS
Yale Release
Exit Button
0-20
L N
E.lock
+ -
DC out
+ -
P
ush button
GND P.B
N
.C
Timer
s
ecs
RED
BLACK
WHITE
PINK
INPUT
EV-BPS
Maglock
Emergency
door release
COM
N.C
Capacitor
0.47uF
100v
240vAC
Wiring Diagram for Maglock
Wiring Diagram for Yale Release
5
Page 6
Brief details of programming
Access of programming mode.
There are two locations for entering pin or Tags (zone 1 and zone 2).
Zone 1 has 1000 locations available 000-999.
Zone 2 has 10 locations available 00-09.
Programme pin numbers and tags.
Select the lock release time (00-99 seconds)
How to escape programming mode.
Note:- if no keys are press within 30 seconds the unit will drop out
of programming mode.
How to enter and exit programme mode
• To enter programme mode enter the 4 digit pin number twice
(default pin 1234).
• To exit programme mode press the # key.
Zone 1 programming
Programming a User Pin number to Zone 1
Note:- Zone 1 has 1000 locations available from 000 to 999.
1. Enter programming mode
A Long bleep will be heard and the green power LED will turn orange.
2. Enter the vacant location you want to programme the pin number
in using a 3 digit format (xxx).
The green programming LED (top left of keypad) will illuminate.
Note:- if this location already has a pin number or Tag programmed the LED
will turn red.
To delete this location press the star *key twice. The LED will now turn
green.
3. Enter the pin number required, a conformation bleep will be
heard.
If further pin numbers are to be programmed select the next available
location number (xxx).
6
Page 7
Programming one Tag to Zone 1
Note:- Do not have Tags in your hand or close by when pressing keys.
Zone 1 has 1000 locations available from 000 to 999.
1. Enter programming mode
A Long bleep will be heard and the green power LED will turn orange.
2. Enter the location you want to programme the Tag to in a 3 digit
format (xxx).
The green programming LED (top left of keypad) will illuminate.
Note :- if this location already has a pin number or Tag programmed the LED
will turn red.
To delete this location press the star *key twice. The LED will now turn green.
3. Pick up one Tag only and present it to the bottom of the reader
( ) and remove.
2 bleeps will be heard.
If further Tags are to be programmed select a the next available location
number (xxx)
Programming a group of Tags to Zone 1
Note:- Do not have Tags in your hand or close by when pressing keys.
Zone 1 has 1000 locations available from 000 to 999.
1. Enter programming mode
All tags to be programed as a group must have consecutive numbers.
A Long bleep will be heard and the green power LED will turn orange.
2. Press the *key then the 9 key the power LED will start to flash
3. Press the 0 key then the 1 key the unit will bleep once.
4. Enter the number of the first available location in the range of 000
to 999.
5. Now enter in a 3 digit format how many tags you want to
programme (xxx) into the system, present the lowest number tag
to the reader
( ) and remove. Alternatively enter the 8 digit number
of the lowest number Tag from the group to be programmed into
the keypad.
To confirm the programming has been successful 2 bleeps will be heard.
7
Page 8
Setting the Unlock Time for Zone 1
1. Enter programming mode
A Long bleep will be heard and the green power LED will turn orange.
2. Press the *key then the 1 key the orange LED will start to flash
3. Enter the time in seconds for the unlock time from 00 to 99
seconds.
Zone 2 programming
Programming A User Pin number to Zone 2
Note:- Zone 2 has 10 locations available 00-09.
1. Enter programming mode
A Long bleep will be heard and the green power LED will turn orange.
2. Press the *key followed by the 4 key
The orange LED will start to flash
3. Enter the vacant location number you want to programme the pin
number in to (xx).
The green programming LED (top left of keypad) will illuminate.
Note :- if this location already has a pin number or Tag programmed the LED
will turn red.
To delete this location press the star *key twice. The LED will now turn green.
4. Enter the new pin number required, a conformation bleep will be
heard.
If further pin numbers are to be programmed select the next available
location number (xx).
Programming one Tag to Zone 2
Note:- Do not have Tags in your hand or close by when pressing
keys.
Zone 2 has 10 locations available 00-09.
1. Enter programming mode
A Long bleep will be heard and the green power LED will turn orange.
2. Press *key then 4 the orange LED will start to flash.
3. Enter the location you want to programme the first Tag in to (xx).
The green programming LED (top left of keypad) will illuminate.
8
Page 9
Note:- if this location already has a pin number or Tag programmed the LED
will turn red.
To delete this location press the star *key twice. The LED will now turn
green.
4. Pick up one Tag only and present to the bottom of the reader
( ) and remove.
2 bleeps will be heard.
If further Tags are to be programmed select a the next available location
number (xx).
Setting the Unlock Time for Zone 2
1. Enter programming mode.
A Long bleep will be heard and the green power LED will turn orange.
2. Press the *key then the 5 key the power LED will start to flash.
3. Enter the time in seconds for the unlock time from 00 to 99
seconds.
How to Change the Programming Pin Number
1. Enter programming mode.
A Long bleep will be heard and the green power LED will turn orange.
2. Press *key followed by the 3 key the orange LED will start to
flash.
3. Enter the new programming pin twice.
A conformation bleep will be heard.
How to delete all pin numbers and Tag data
1. Enter programming mode.
A Long bleep will be heard and the green power LED will turn orange.
2. Press *key followed by the 8 key the orange LED will start to
flash.
3. Press the 8 key twice.
7 conformation bleeps will sound.
9
Page 10
Deleting a Tag/Pin number from Zone1
1. Enter programming mode
A Long bleep will be heard and the green power LED will turn orange.
2. Enter the location number of the pin number/tag you wish to delete
using a 3 digit format (xxx).
The red LED will illuminate.
3. Press the star * key twice.
The LED will now turn green.
Deleting a Tag/Pin number from Zone2
1. Enter programming mode
A Long bleep will be heard and the green power LED will turn orange.
2. Press the * key followed by the 4 key
The orange LED will start to flash
3. Enter the location number of the pin number/tag you wish to delete
using a 2 digit format (xx).
The red LED will illuminate.
4. Press the star *key twice.
The LED will now turn green.
How to load factory default settings
1. Enter programming mode.
A Long bleep will be heard and the green power LED will turn orange.
2. Press the *key followed by the 8 key the orange LED will start
to flash.
3. Press the 9 key twice.
One bleep will sound and the System will automatically come out of
programming mode.
How to Disable the rear tamper
1. Enter programming mode.
A Long bleep will be heard and the green power LED will turn orange.
2. Press the *key followed by the 6 key the orange LED will start
to flash.
3. Press the 0 key followed by the 1 key.
The rear tamer is now off.
How to Enable the rear tamper
1. Enter programming mode.
A Long bleep will be heard and the green power LED will turn orange.
10
Page 11
2. Press the *key followed by the 6 key the orange LED will start to
flash.
3. Press the 0 key followed by the 2 key.
The rear tamer is now on.
How to set the length of the pin numbers to be used
1. Enter programming mode by entering the 4 digit pin number twice
(default pin 1234).
A Long bleep will be heard and the green power LED will turn orange.
2. Press the *key followed by 9 key the orange LED will now flash.
3. Press 04 a long bleep will be heard.
4. Enter the length of the pin number you require (2,3,4,5 or 6).
If the length is the same as already programmed you will get a conformation bleep.
If you have changed the length you will get 7 bleeps to say it has now been changed.
Note:- Any pin numbers or Tags programmed into the system will be deleted if
the pin length is change.
How to Enable the door Bell function
Note:- If two doors are being controlled the bell function can not be used.
1. Enter programming mode.
A Long bleep will be heard and the green power LED will turn orange.
2. Press the *key followed by the 2 key the orange LED will start to flash.
3. Press the 0 key followed by the 2 key.
The door bell function is now on.
Note: The * key is now used to ring the doorbell
How to Disable the door Bell function
1. Enter programming mode.
A Long bleep will be heard and the green power LED will turn orange.
2. Press the *key followed by the 2 key the orange LED will start to flash.
3. Press the 0 key followed by the 1 key.
The door bell function is now off.
How to reset a lost programming pin number
Note:- this will set the programming Pin back to its default factory setting of 1234
and leave all other settings intact provided Pin length is still 6 digits.
1. Remove power to the keypad/reader for 10 seconds.
2. Apply power and press the # key within 3 seconds
11
Page 12
Technical Specification
DC input 12 - 24volts
AC input 12 - 24volts
Standby current 80ma
Operating current (without lock) 110ma
Working temperature -20c to +50c
Reader frequency 125Hz
Tag reading distance 5cm
IP rating 65
Dimension 152 x 45 x 25mm
Technical Support 01527 515145
Elite Security Products
Unit 7, Target Park, Shawbank Rd
Lakeside, Redditch B98 8YN
Telephone: 01527 515150
Technical Support: 01527 515145
email: info@espuk.com
Loading...
