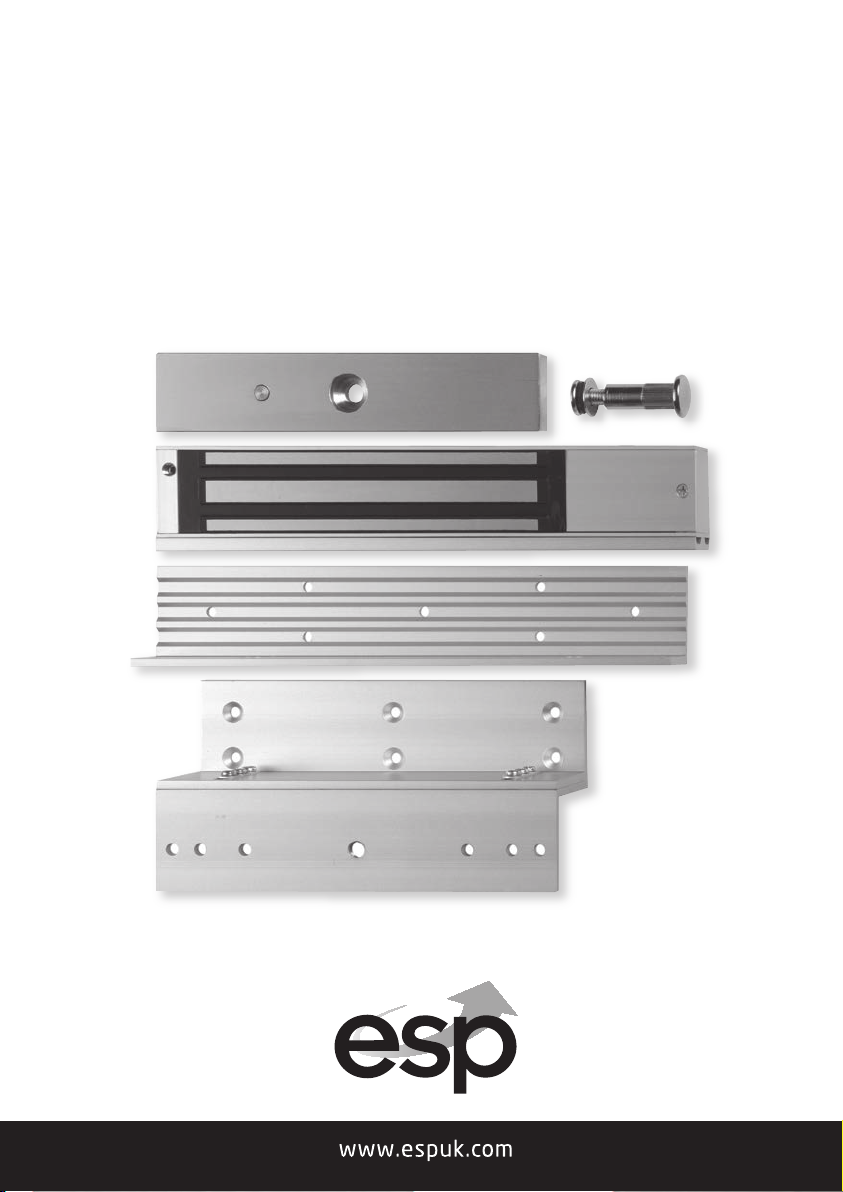

EV-ML-250
250KG M AGNETIC LOCK INSTRUCTIONS
Page 2

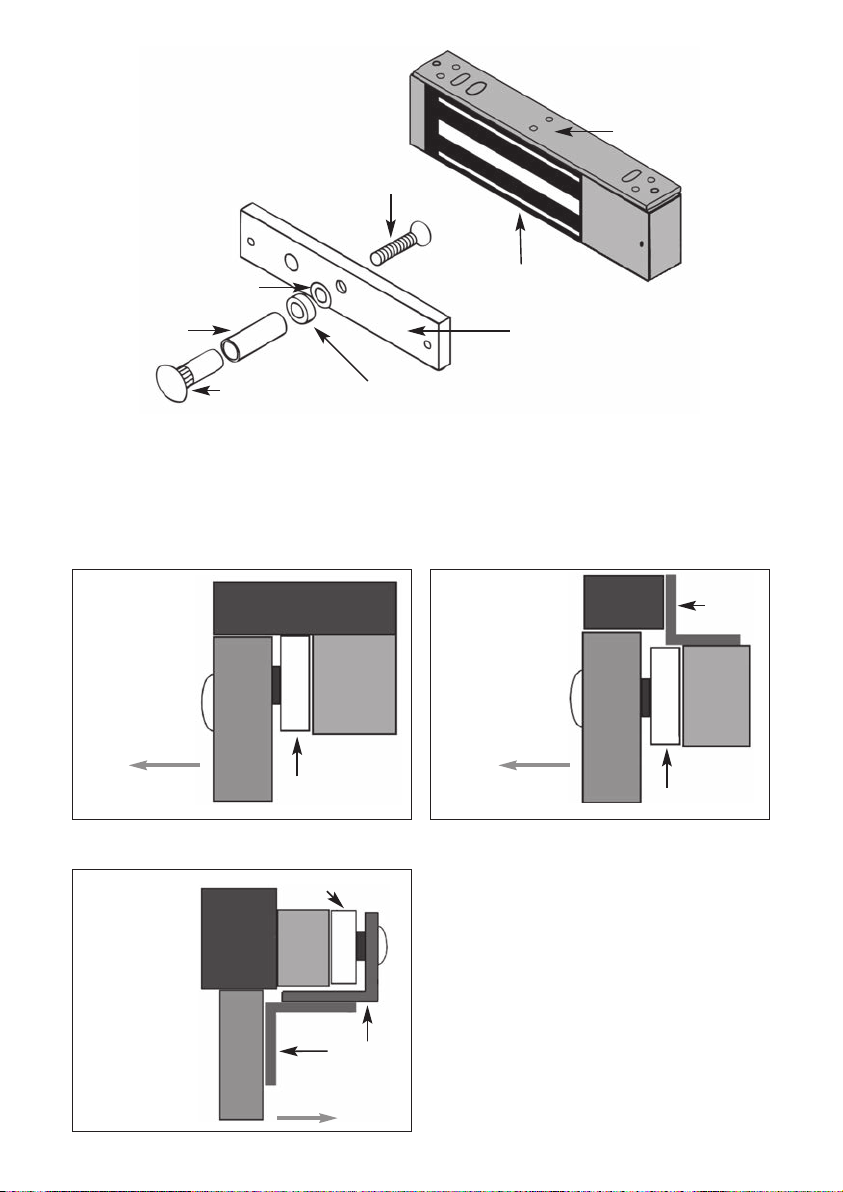

EV-ML-250 Diagram
Mounting Plate
Armature Screw
Magnet
Armature Plate
Door Spacer
Washer
Sexnut Bolt
Rubber Washer
Mounting Confi gurations
Please identify the type of installation required, for example; which way the door will swing. Refer to
the installation diagrams for the electro magnetic lock & armature to complete the install.
Standard mounting
Surface mounted
electromagnetic
lock with door
mounted
armature.
Door
Out-swinging
‘Z’ Bracket mounting
Face mounted
electromagnetic
lock with ‘Z’
Bracket
mounting.
Door Frame
Door Frame
EM Lock
Armature Plate
Armature Plate
EM Lock
‘L’ Bracket mounting
‘L’ Bracket mounted
electromagnetic
lock with door
mounted armature.
Out-swinging
Door Frame
Door
Adjustable
‘L’ Bracket
EM Lock
Armature Plate
Door
‘Z’ Bracket Set
In-swinging
Page 3
Installation Instructions
Removal of the Mounting Plate/Installation of electromagnetic lock
Mountable Surface
N.B Different
Remove fixing screw to release cover Unscrew threads with allen key
to remove mounting plate
Once the mounting plate is fixed into the required position, re-attach the magnet
Armature installation
Armature Door Mount Armature Bracket Mount
Door Frame
installations may
require the ‘L’ bracket
mounting plate.
Armature
Rubber Washer
Steel Washer
Sexnut
Bolt
Rubber washer installation Wiring configuration
The rubber washer allows the armature plate
to pivot to compensate for door misalignment.
Rubber Washer
Important
Using the Jumpers
provided, select
correct voltage by
covering the pins
12 VDC
24 VDC
Power Supply Input
12VDC or 24VDC
Page 4
Technical Specifications
Holding Force 250kg/550lbs max
Housing Stainless Steel
Dual Voltage 12 & 24 VDC
Current Drawn 420mA @ 12VDC
Safety Approval CE
Magnet Dimension 250 x 42 x 25 mm
Armature Dimension 180 x 38 x 10 mm
240mA @ 24VDC
Telephone: 01527 515150 www. e spuk. com
