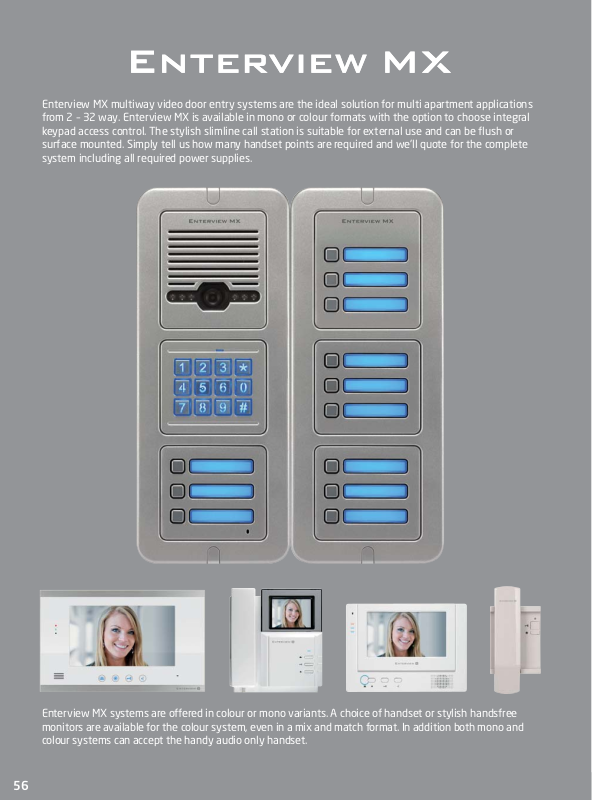

Enterview MX multiway video door entry systems are the ideal solution for multi apartment applications
from 2 – 32 way. Enterview MX is available in mono or colour formats with the option to choose integral
keypad access control. The stylish slimline call station is suitable for external use and can be flush or
surface mounted. Simply tell us how many handset points are required and we'll quote for the complete
system including all required power supplies.
Enterview MX systems are offered in colour or mono variants. A choice of handset or stylish handsfree
monitors are available for the colour system, even in a mix and match format. In addition both mono and
colour systems can accept the handy audio only handset.
56
Example of an Enterview MX 12 way video door entry call system with keypad
Apartment 1
Apartment 2
Apartment 3
Apartment 4
Apartment 7
Enterview MX
Apartment 8
Apartment 9
Apartment 10
Apartment 5
Apartment 6
NB. EVBPS required to
power call point and lock.
Apartment 11
Apartment 12
57
Enterview MX - Multi way mono &
colour video door entry systems
■ Stylish aluminium design
■ 2-way to 32-way
■ Label ID template available
■ Surface or flush mounting of call station
■ Access control keypad option
■ Blue backlight illumination
■ Up to 4 handsets per apartment
Working condition Temperature: -20ºC ~ +55ºC
RH ≤ 95%
Voltage DC 15V ±10%
Standby current ≤ 80 mA
Working current ≤240 mA
Communication mode Dual transmission
Talking time 2 minutes
IP rating 55
Weight 1.05kg
Dimensions surface 124 (W) x 304 (H) x 38mm (D)
Dimensions flush 124 (W) x 304 (H) x 340mm (D)
EVMX2 Monochrome 2 button video door station
EVMX2C Colour 2 button video door station
58
EVMX4 Monochrome 4 button video door station
EVMX4C Colour 4 button video door station
EVMX6 Monochrome 6 button video door
EVMX6C Colour 6 button video door station
