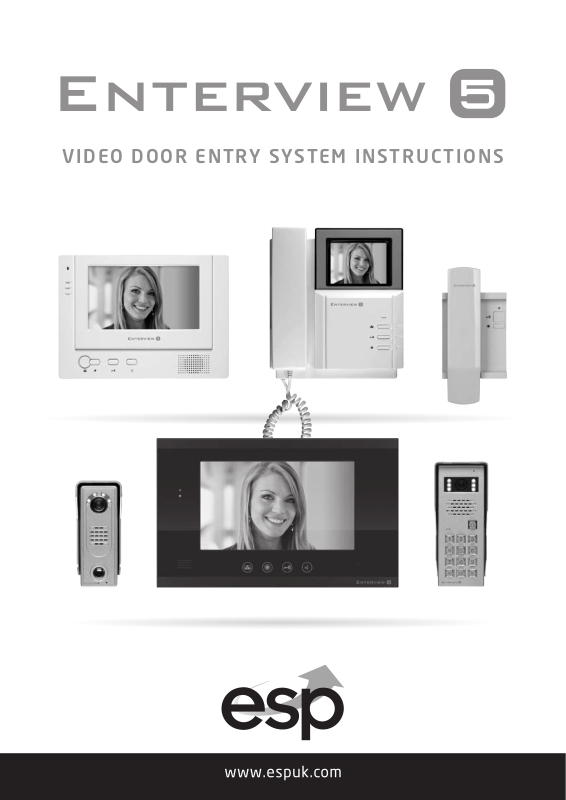

VIDEO DOOR ENTRY SYSTEM INSTRUCTIONS
Table of contents
Enterview 5 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Wiring Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Door Wiring Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Maximum Wiring Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Additional Keypad and Magnetic Lock Wiring . . . . . . . . . . . . . . . . . . . . . . . . . 7
Additional Keypad and Yale-release Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Keypad Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Additional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2
Enterview 5 Overview
4 Handsets maximum per-system
2 Audio-Only handsets maximum per-system
Each handset requires supplied PSU (1 PSU per handset required)
Keypad Camera requires suppIied PSU
Standard Camera requires EVBPS for door release facility
For a voltage-free contact: Keypad Camera requires a12VDC relay (not supplied)
AT5e cable speci fied for maximum distances
C
100 Meters maximum distance between outdoor station and furthest handset
10 Meters maximum distance between handset and supplied PSU - Note: 2 pairs of
CAT5e must be used to achieve this distance
1 3 2 4
EVH5C-HF
1 3 2 4
1 – Opens Camera Channel
2 – Door Release
3 – Call Transfer
4 – Opens 2-way Audio
EVH5
EVH5AOEVHF10B / EVHF10W
2
3
Keypad Camera
1
2
3
Standard Camera
1
2
1
2
3
3
1 – Camera
2 – Speaker
3 – Call Button
3
Wiring Configuration
1
2
3
4
5
6
Standard Camera
LOCK
AC240 AC240
Handset PSUs
provided
Keypad Camera
See additional wiring instructions for Keypad
LOCK
4
AC240
Keypad PSU provided
AC240 AC240
Handset PSUs
provided
1
2
3
4
5
6
2 Door Wiring Configuration
LOCK
LOCK
AC240 AC240
Handset PSUs
provided
AC240
See additional wiring instructions for keypad
Keypad PSU
provided
AC240
NOTE:
J1 AND J2 – DO NOT REMOVE
J3 – ONLY REMOVE FOR MULTIWAY
OUTDOOR STATION CONNECTION
Handset Connections
5
Maximum
Wiring
Configuration
AC240 AC240
AC240
AC240
AC240
AC240
See additional wiring
instructions for keypad
LOCK
6
Additional Keypad and Magnetic Lock Wiring
EMERGENCY
BREAK
GLASS
Back of Keypad camera
EGR Ov COM
N.C
Keypad PSU provided
EXIT
BUTTON
*For a voltage-free contact: Keypad requires
and additional 12VDC relay (not supplied)
–
+
Additional Keypad and Yale-release Wiring
MAGLOCK
AC240
Back of Keypad camera
EGR Ov COM
N.O
EXIT
BUTTON
*For a voltage-free contact: Keypad requires
and additional 12VDC relay (not supplied)
–
+
Yale Release
AC240
Keypad PSU provided
7
Keypad Commands
Default master code: 1234
E
ntering Programming mode
1 Press * then 4 digit master code
2 If successful three tones will sound and the LED will flash
A
dding user codes
1 Enter programming mode
2 lnput the code group O1-31 for normal operation, 32-40 for latching mode.
3 Enter the 4 digit code, if successful three tones sound if not 2 tones sound.
4 Press* to exit
D
eleting a user code
1 Enter programming mode
2 Enter group code O1-40
3 Press # to delete code
4 If successful three tones will sound
5 Press * to exit
D
eleting a code from an unknown group
1 Enter programming mode
2 Press # two tones will sound
3 lnput 4 digit code to be deleted
4 Three tones will sound if successful
5 Press * to exit
D
eleting all codes
1 Enter programming mode
2 Press # two tones will sound
3 Press # again to hear a further two tones
4 Press # seven times to default all codes and settings (the master code will remain)
5 The system will resume after five seconds
C
hanging the master code
1 Down power the unit
2 Press and hold *, power up the unit, a long tone will sound, release *
3 When the tone stops a short tone will sound, the new 4 digit master/programming
code can be input
S
et the lock time
1 Enter programming
2 Enter O0
3 Enter the lock/delay operation time (O1-99 seconds)
4 Press * to exit
8
Installation Guide
EVH5
EVH5C
EVH5C-HF / EVHF10W / EVHF10B
9
Installation Guide
EV5 CAM
EV5 CCAM
EV5KPCAM
EV5CKPCAM
10
*Recommended installation height 150cm
Trouble Shooting Guide
No picture appears on the monitor (blue or white screen)
Check that all wires are connected and connected in the correct configuration
Check that the voltage at the back of the monitor across terminals 5 and 6. The voltage
should be over 14.3vDC, if it is not then the handset will not function correctly
One or more monitors are not working but others are
Check that all wires are
Swap the monitor positions around. This will identify if the issue lies with the monitor or
the location of the monitor. For example - monitor 1 does not work, monitor 2 does, when
swopped around monitor 1 works in monitor 2’s location. There is a problem with monitor
2’s location (wiring problem etc)
If no monitors work
Check that power
have been followed correctly
Check that all wires are connected and connected in the correct configuration
Run a new length of short cable and connect a monitor next to the camera, this will rule
out any issue with lack of voltage and/or cable run length. The PSU’s supplied with each
monitor must be used and the cable length
In multi apartment systems if more than one apartments monitor rings
simultaneously
Remove jumper J3 from all handsets
Please also check
The monitor and the outdoor station connections are colour coded - ensure the colours
are matched
Connect to the CN1 terminal on the back of the handset for a single outdoor station
system
Connect to the CN2 terminal on the b
The electro-magnetic lock (MAGLOCK) will not energise
The electro-magnetic lock (MAGLOCK) requires 12vDC to lock. Trace the 12vDC from the
lock to the power supply source and test that sufficient power is reaching the lock
If using the EVBPS
Please ensure that the N.C switch is in position for an electro-magnetic lock release
Please ensure that t
The electro-magnetic lock (MAGLOCK) does not have enough holding force
Check the voltage and ensure that the rubber washer has been fitted along with the
armature, this will enable enough movement for the magnet and armature to line-up
correctly as the movement allowed compensates for misalignments on the door / frame
connected and connected in the correct configuration
is
supplied to each monitor and that the specifications for installation
from
PSU to monitor must not exceed 10m
ack
of the handset if a 2nd outdoor station is used
he N.
O switch is in position for a Yale style lock release
11
Technical Speci cation
Enterview 5
Power 14.5 DC
Video Output 1-1VP-P 750hm B/W PAL
Operating Temp. -10/55ºC
Consumption 800ma
Dimensions (mm) 205x220x50
Enterview 5C
Power 14.5 DC
Video Output 1-1VP 750hm PAL
Operating Temp. -10/55ºC
Consumption 800ma
Dimensions (mm) 205x220x50
Enterview 5C-HF
Power 14.5 DC
Video Output 1-1VP 750hm PAL
Operating Temp. -10/55ºC
Consumption 800ma
Dimensions (mm) 240x175x38
EVHF10B / EVHF10W
Power 14.5 DC
Video Output 1-1VP 750hm PAL
Operating Temp. -10/55ºC
Consumption 800ma
Dimensions (mm) 340x210x38
Enterview 5 CAM
Power 14.5 DC
Video Output 1-1VP-P 750hm B/W PAL
Min. Illumination 1 Lux
Operating Temp. -10/55ºC
Consumption 150ma
Dimensions (mm) 55x130x40
Enterview 5 C-CAM
Power 14.5 DC
Video Output 1-1VP-P 750hm PAL
Min. Illumination 1 Lux
Operating Temp. -10/55ºC
Consumption 150ma
Dimensions (mm) 55x130x40
Enterview 5 KP
Power 14.5 DC
Video Output 1-1VP-P 750hm B/W PAL
Min. Illumination 1 Lux
Operating Temp. -10/55ºC
Consumption 150ma
Dimensions (mm) 75x190x45
Enterview 5 CKP
Power 14.5 DC
Video Output 1-1VP-P 750hm PAL
Min. Illumination 1 Lux
Operating Temp. -10/55ºC
Consumption 150ma
Dimensions (mm) 75x190x45
Additional Accessories
EV-BPS – 12VDC 2 amp Multi output boxed power supply
EV-EBG – Emergency break glass
EV-EXIT – Push to exit button
EV-ML-250 – Electromagnetic lock
Elite Security Products
Unit 7, Target Park, Shawbank Rd
Lakeside, Redditch B98 8YN
Telephone: 01527 515150
email: info@espuk.com
