ESP APKITKP, aperta APKITKP, aperta APKIT User Manual

U S E R M A N U A L

w w w . e s p u k . c o m

A P K I T K P

|

C O L O U R V I D E O D O O R E N T R Y S Y S T E M

APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 1

2

System Cabling

All system cabling (excluding mains 240vAC supply) has been tested with Cat5E UTP PVC cable.

Part Number - A8NFORCE5EUTP

Find this product online:
elandcables.com | Cables & Accessories | LAN Cable | Cat 5E UTP PVC Cable

Contents

System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

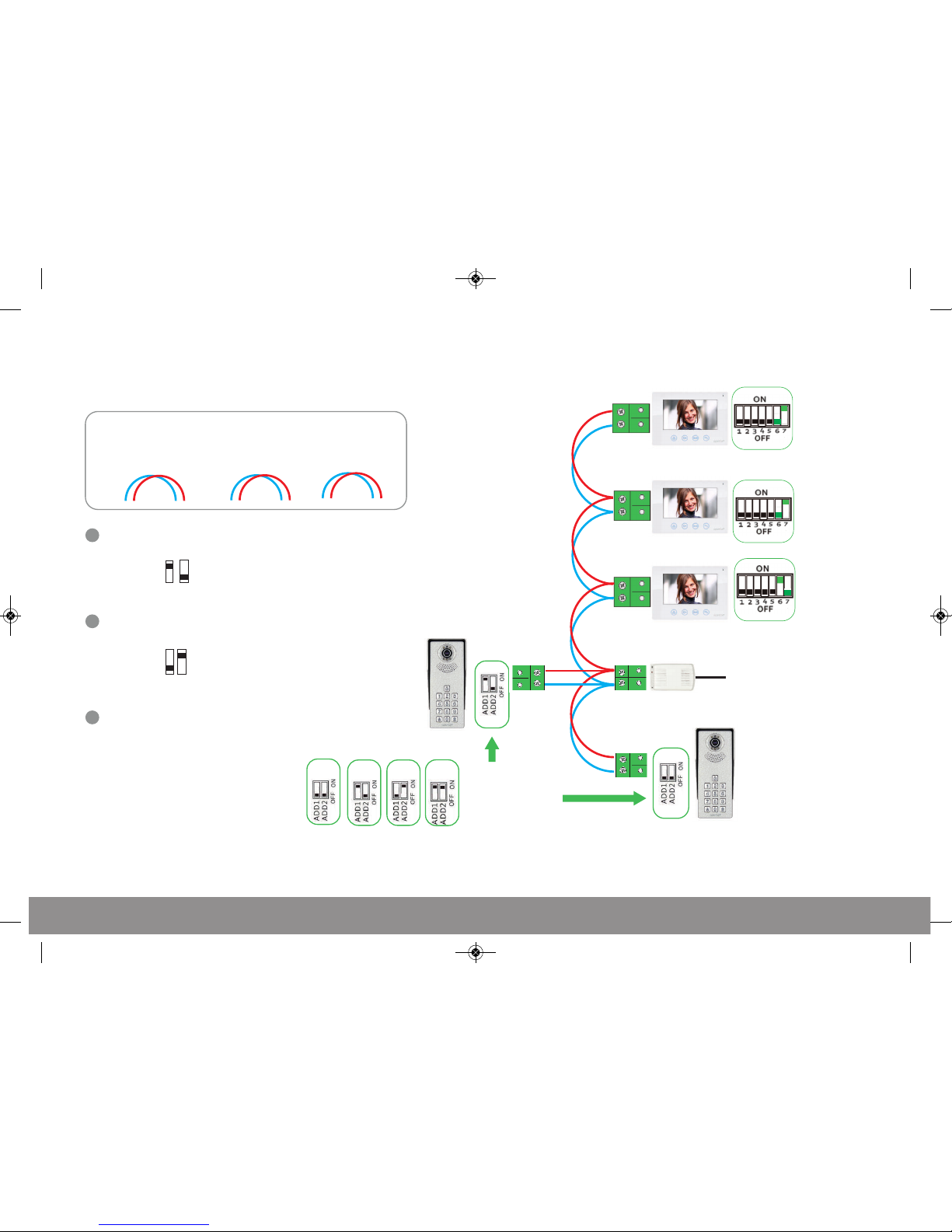

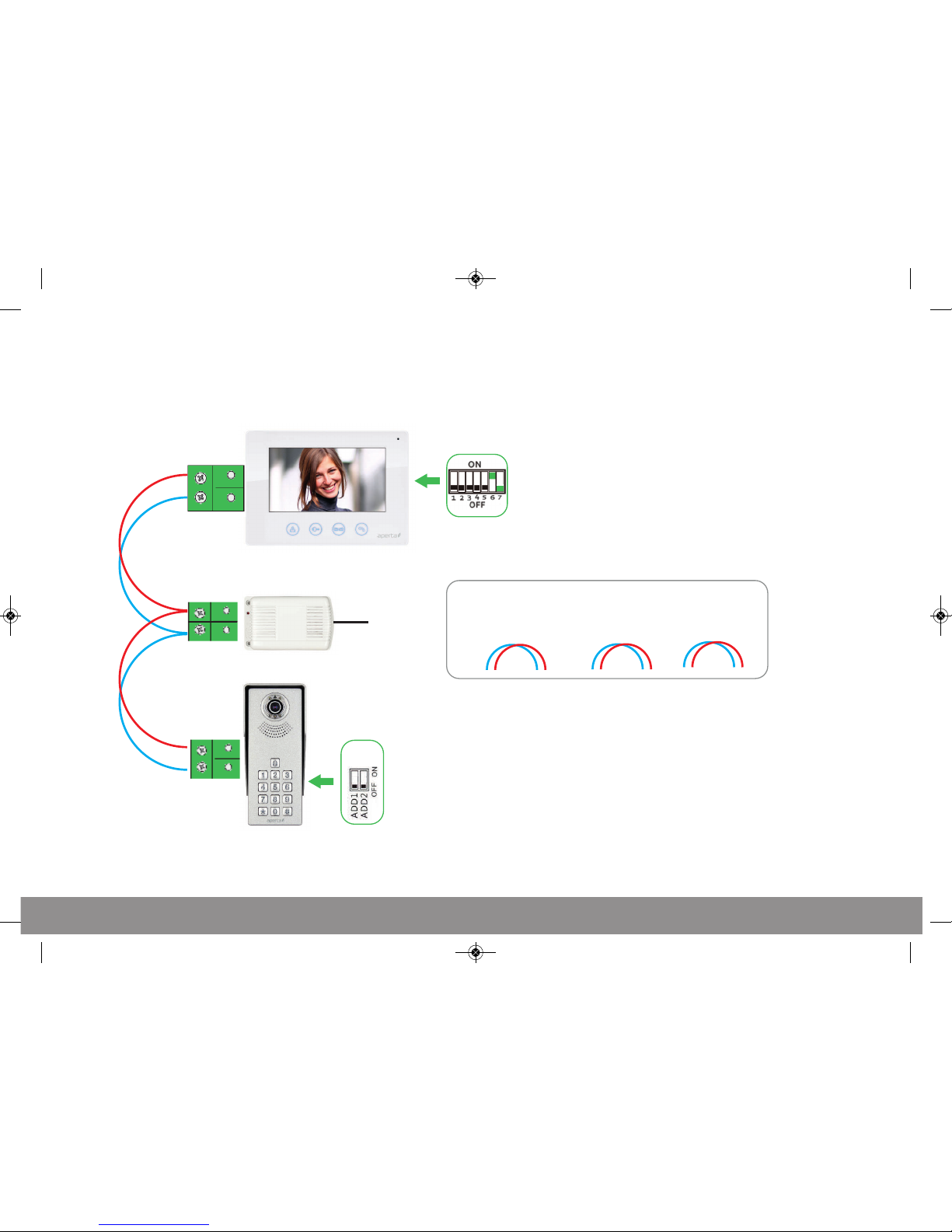

System Connections Example 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

System Connections Example 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

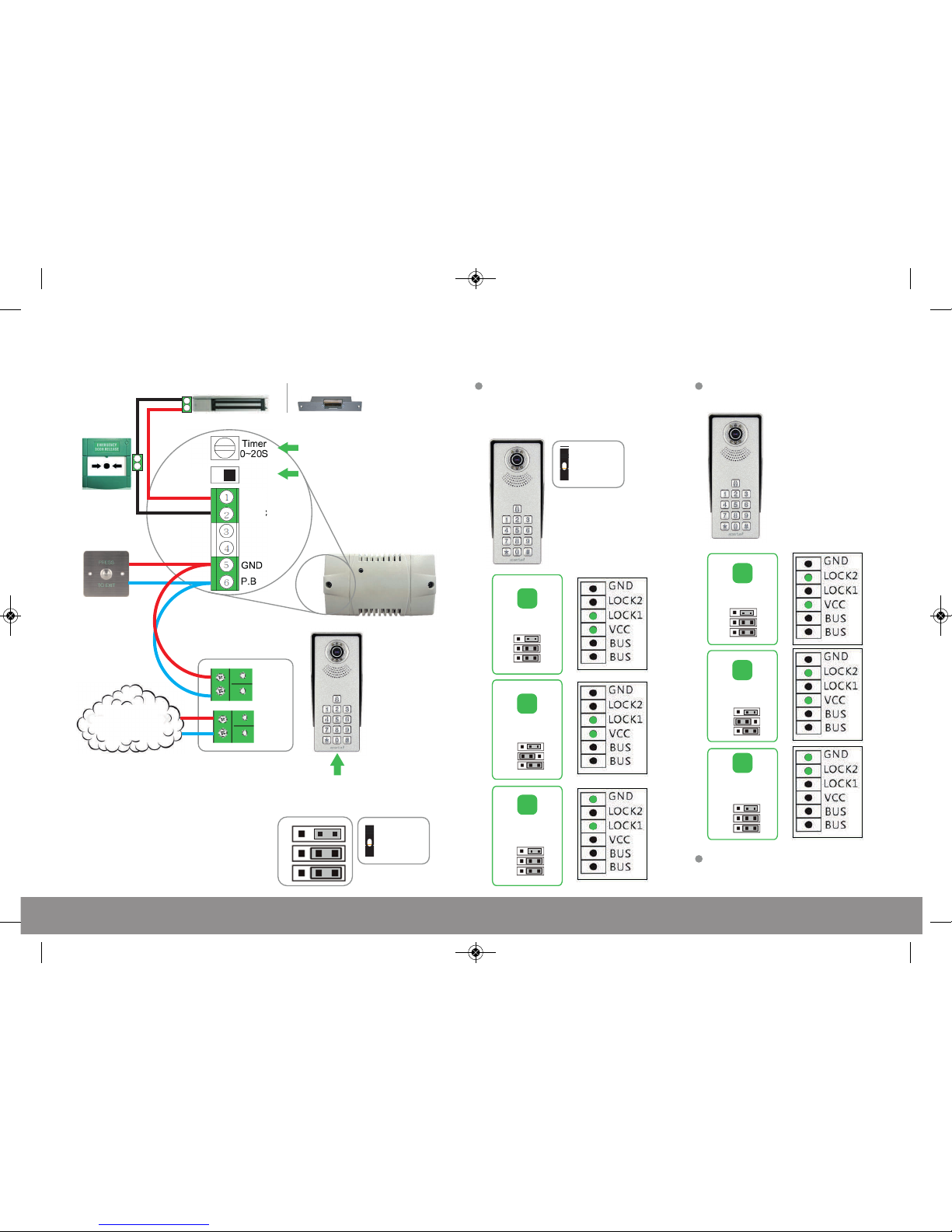

Lock Connections Example 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Lock Connections Example 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

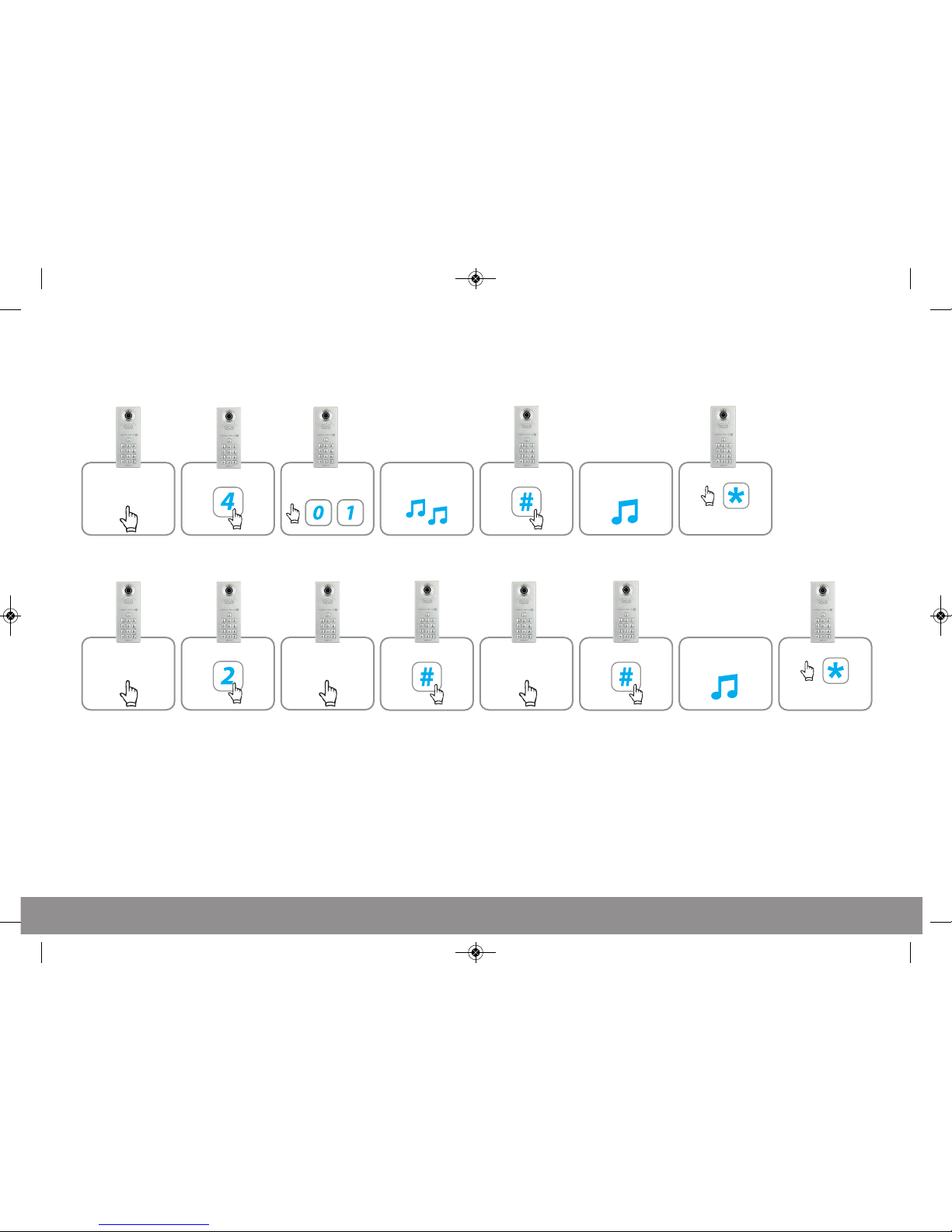

Door Station Programming Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Installer’s Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 2

3

System Components

APDSSWKP

Door Station

APMONW

Monitor

APPOWSW

System Power Supply

EVBPSBB

Lock Power Supply

EV-EXIT

Push To Release

EV-EBG

Emergency Release

EV-ML-250/500XT

Electro-magnetic Lock

ENTERD

Electric Lock

Optional Accessories

APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 3

4

90

。

1.2 m 1. 5 m～

Site the door station a

recommended 1.5 meters from

the ground, or to suit application.

Avoid areas of high sunlight

and noise levels.

Surface mount the sunshield of the door station and

connect the system cabling. Mount the camera to the

sunshield by fixing with the supplied hex screw.

The camera needs to point in

the direction of where a visitor

will stand during operation.

Site the indoor monitor to suit application.

Monitor

1-Gang Mount Box

(if required, not supplied)

Surface mount the bracket of the monitor or if required onto a 1-gang mount box (not supplied).

Make the system connections to the back of the monitor and then slide the monitor onto the

bracket using the hooks to hold firmly in place.

Monitor Mounting

Bracket

Installation
