Congratulations on your purchase of the Expresso WR62. This manual was created

to quickly guide you through the many functions of your device, and to assist you with

the initial setup thereof. Please take a few minutes to read through the manual,

after which you may begin using your WR62 and enjoying its many features. Also,

please visit us on the web at www.golfesn.com to register your device and for

support help.

The WR62 comes with a premium clasp and resizable band. The band will need to

be custom fitted. It is recommended that you seek assistance from a local jeweler or

watch store in resizing the band. It is also advisable to resize the band slightly loose

to accommodate for minor wrist expansion.

Welcome

All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted,
disseminated, downloaded, or stored in any storage medium, for any purpose without the express prior written consent
of Expresso Satellite Navigation, INC. Information in this document is subject to change without notice. Expresso
reserves the right to change or improve its products and to make changes in the content without obligation to notify any
person or organization of such changes or improvements. Visit www.golfesn.com for current updates and supplemental
information concerning the use and operations of this and other Expresso Satellite Navigation, Inc. products.

(2)

Computer Requirements

• The WR62 is ready to use out of the box without the requirement of any additional

software or hardware; however, a computer and internet access are required in order

to receive course updates. Compatible operating systems include:

- PC (Windows 7, Windows Vista, Windows XP) **Windows is a registered trademark

of Microsoft Corporation in the United States and other countries.

- Mac (OS X, version 10.6 INTEL or newer) **Mac and Mac OS are trademarks

of Apple Inc, registered in the USA and other countries.

• In order to receive course updates from iGolf.com, please ensure that Java is installed

and up to date on your PC or Mac.

• When connected to your computer, if you see any unusual messages pop-up about the driver

or hardware, please register your WR62 at iGolf.com and follow the instructions on the screen.

(3)

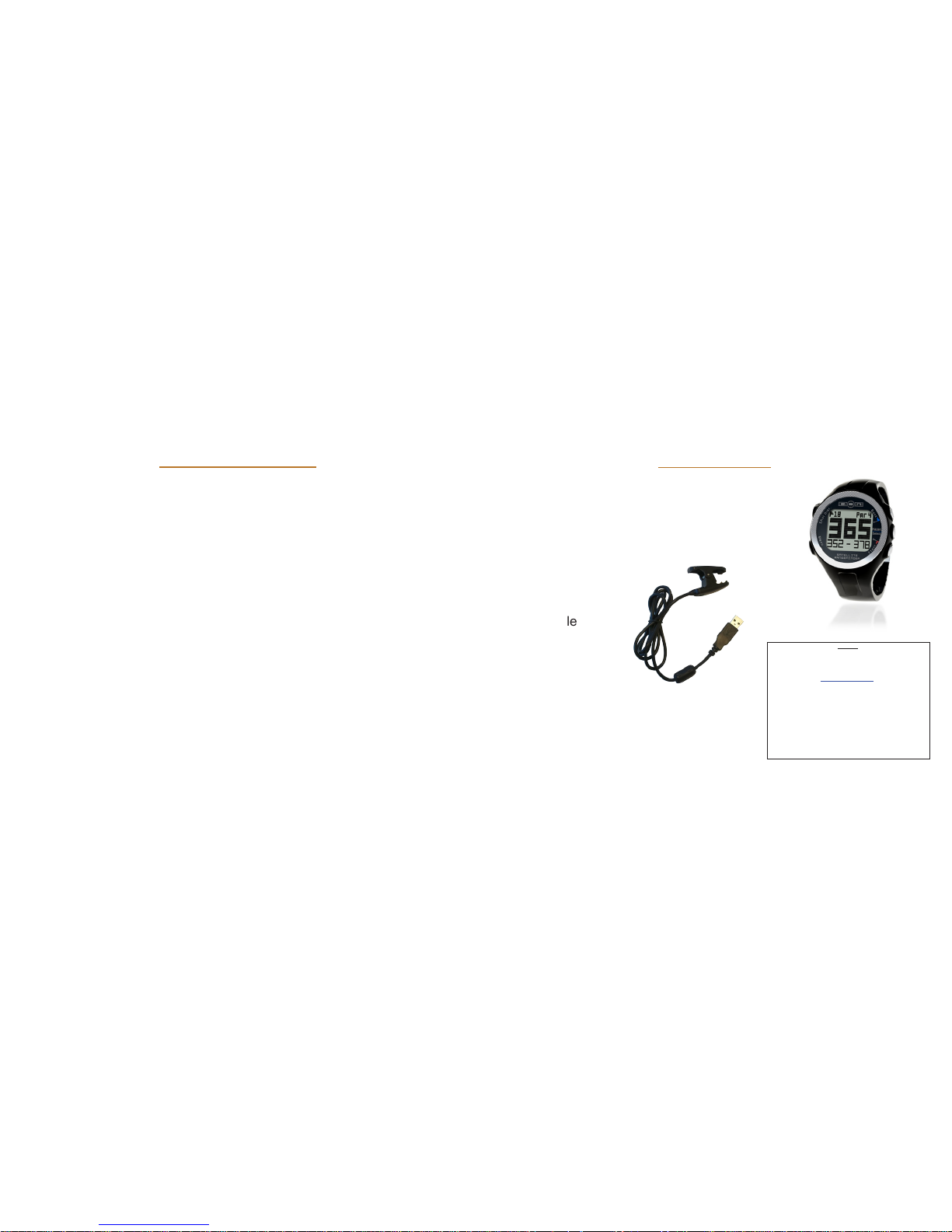

Package Includes

1 USB Cable

1 WR62 Designer Golf GPS Watch

1 WR62 Quick Start Guide

(1)

Congratulations on your purchase of the Expresso WR62. This Quick Start Guide was created

to quickly guide you through the many functions of your device, and to assist you with the

initial setup thereof. Please take a few minutes to read through the Quick Start Guide, after

which you may begin using your WR62 and enjoying its many features. A full user manual is

available for download here: http://www.golfesn.com/manuals

If you normally do not wear a watch, ESN recommends practicing your swing at a driving range

while wearing the WR62 to grow accustomed to golfing while wearing a wristwatch.

The WR62 comes with a premium clasp and resizable band. The band will

need to be custom fitted. It is recommended that you seek professional

assisitance in resizing the band. It is also advisable to resize the band a

little bit on the loose side to accomodate for minor wrist expansion.

Welcome

Date: 03.19.2012

Version: QSGWR62R1

(4)

Table of contents

Care & Maintenance..........(5)

Charging Battery...............(6)

WR62 Overview..................(7)

Features..............................(8)

Play Golf Overview.........(9)

Play Golf Functions......(10)

Golf Demo.....................(11)

Stopwatch....................(12)

Timer.............................(13)

Alarm...........................(14)

Odometer.....................(15)

Location........................(16)

GPS Status...................(17)

Settings............................(18)

Time/Date................(19-20)

Sound...........................(21)

Units.............................(22)

System Reset..............(23)

About...........................(24)

Troubleshooting

& FAQs.......................(25-29)

FCC Statement................(30)

iGolf Hazard Glossary......(31)

Warranty...........................(32)

(5)

Care & Maintenance

The WR62 is durable and waterproof. In order to utilize the features, it is
advisable to use the watch in accordance with the following guidelines:

• Avoid exposing the watch to extreme conditions for a prolonged period

of time.

• Avoid severe impacts on the watch.

• You may clean the watch occasionally with a soft and damp cloth.

• Brush the clip contacts at the bottom of the watch regularly. Dirt build-up

on the surface of the contact points may affect normal charging and
data transfer. (*Note: Use a soft-bristled brush. Hard bristles or wire
brushes may leave scratches on the watch).

• DO NOT expose the watch to strong chemicals such as gasoline and

alcohol, as they will damage the watch.

• Store the watch in a dry place when it is not in use.

(6)

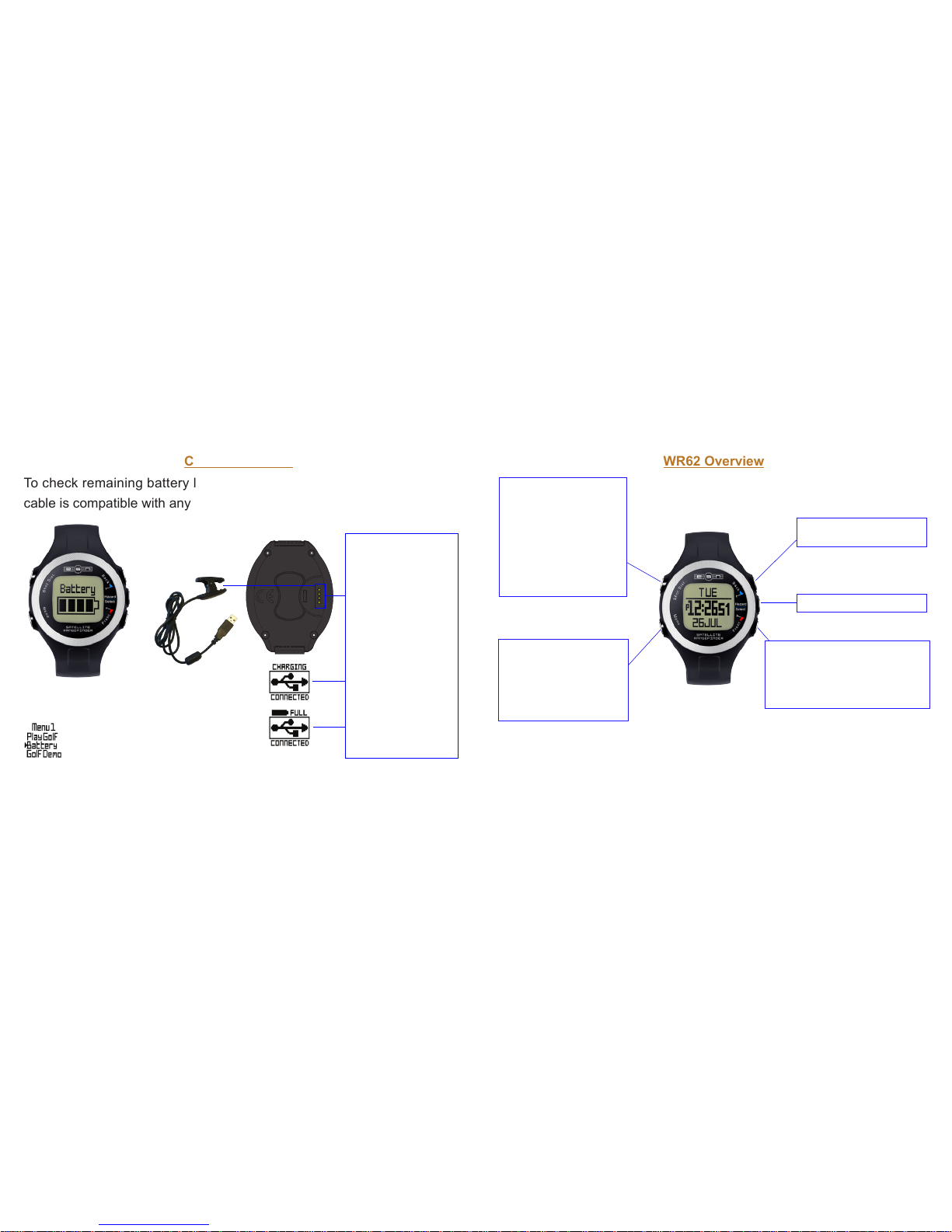

Charging Battery

To check remaining battery life, select “Battery” from Menu 1. The USB

cable is compatible with any type of USB port, including A/C chargers.

To recharge the

battery, attach the

4-pin end of the

USB cable to the

receptors and

connect to your

computer. The

screens to the

left indicate the

connection and

battery status.

*Note: It is estimated that
charging from empty to full will

take 2-3 hours. Using GPS

functions deplete the battery

at a faster rate than non-GPS

functions.

(7)

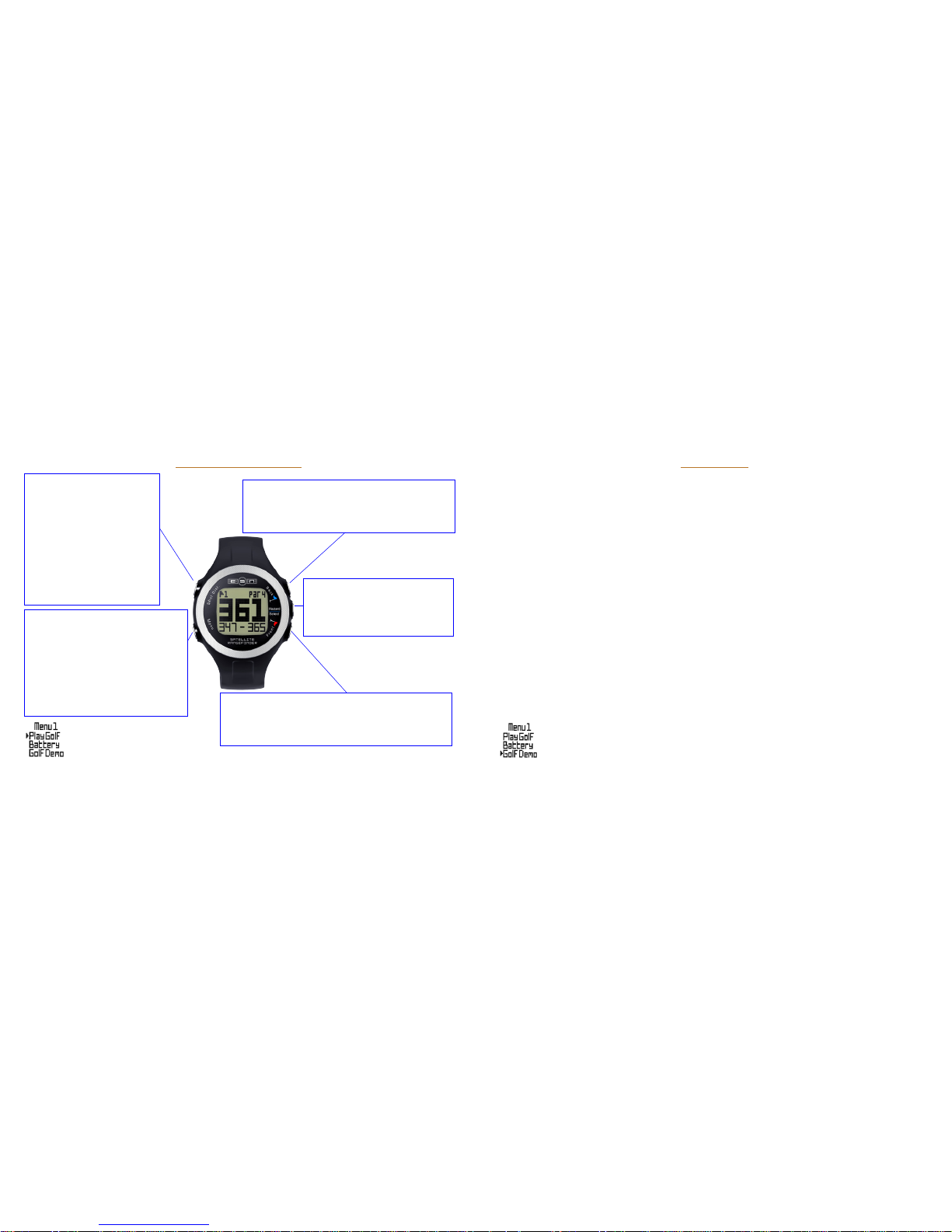

WR62 Overview

• Press and hold to power on/off

(Powers off from Time Screen only)

• Scroll down through menu items

• Scroll up through menu

items

• Select menu items

*

*

*

*

Press and hold all four “corner” buttons to perform a hardware reset. This will reboot the watch and restore all
default settings. Time will be reset to 12:00 pm when a hardware reset is performed.

*

• Press once for Main Menu

options

• Press to exit Main Menu or

to return to previous Menus

from Sub-Menus

• Enable backlight with a

single push

• Press and hold to enable

Night Mode (backlight

remains on).

• Disable Night Mode with a

single quick push

Features

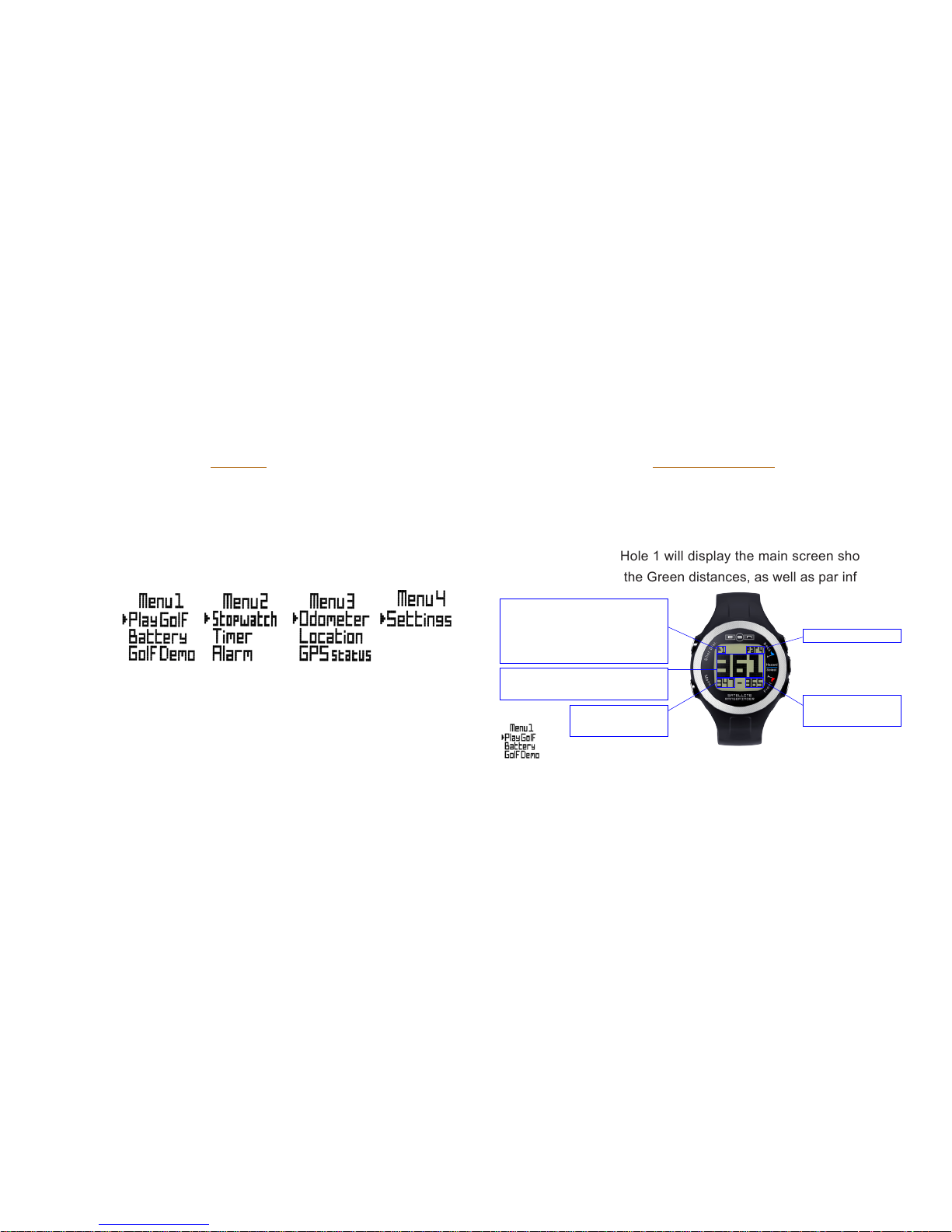

The WR62 is preloaded with many great applications. To access these,

power the watch on and select the “Menu” button. Scroll through the

menu options using the “Front” and “Back” buttons. Select the feature

you wish to use by pushing the “Hazard/Select” Button.

Play Golf *

Golf Demo

Stopwatch

Timer

Alarm

Odometer*

Location*

GPS Status*

* GPS Feature – These features require satellite signal.

To ensure reception, make sure you are outdoors away from
tall buildings and trees, with a clear view of the sky.

Play Golf Overview

After selecting “Play Golf” from menu 1, the WR62 will search for

satellite signal. Once signal has been acquired, the WR62 will display a
list of local courses. Scroll the list using the “Back” and “Front” buttons,
and select your course using the “Hazard/Select” button. When you
select your course, Hole 1 will display the main screen showing Front,

Center, and Back of the Green distances, as well as par information.

Hole Number: The hole #

will automatically advance

as you play the course

Front of the

Green Distance

Back of the

Green Distance

Center of the Green

Distance

Par Information

(9)(8)

(10)

Play Golf Functions

Track Shot Distance

Pressing the Shot Dist.

button will set Point A (where

you are standing) to 0. After

walking to your ball (Point

B), the WR62 will display the

distance between Point A

and Point B in a straight line.

Press Select, Front, or Back

to exit Shot Distance.

View Golf Menu Options

The Golf Menu allows you to view

the time, manually change holes,
change the units of measurement

(yards or meters), exit the game, or

select Men’s or Women’s tees (for

Par purposes only).

Distance to Front of Green

Pressing this button will display the distance to the

front of the green for 10 seconds.

Distance to Back of Green

Pressing this button will display the distance to

the back of the green for 10 seconds.

Hazard Distances

Pressing this button will display

the distances to key hazards for

10 seconds.

(11)

Golf Demo

The Golf Demo provides an overview of the functionality of

Play Golf mode without acquiring satellite signal. It will display

sample screens of the main Front, Center, Back (FCB) screen,

Shot Distance, Hazard Distances, Back of the Green, and Front

of the Green Screen. Bring up the Golf Menu and select “Exit

Game” to exit the Golf Demo.

*Note: “Change Hole” and “Yds/Mtrs” are non-functional in the

Golf Demo.

See page 11 for overview of button functionality for the Golf Demo.

(12)

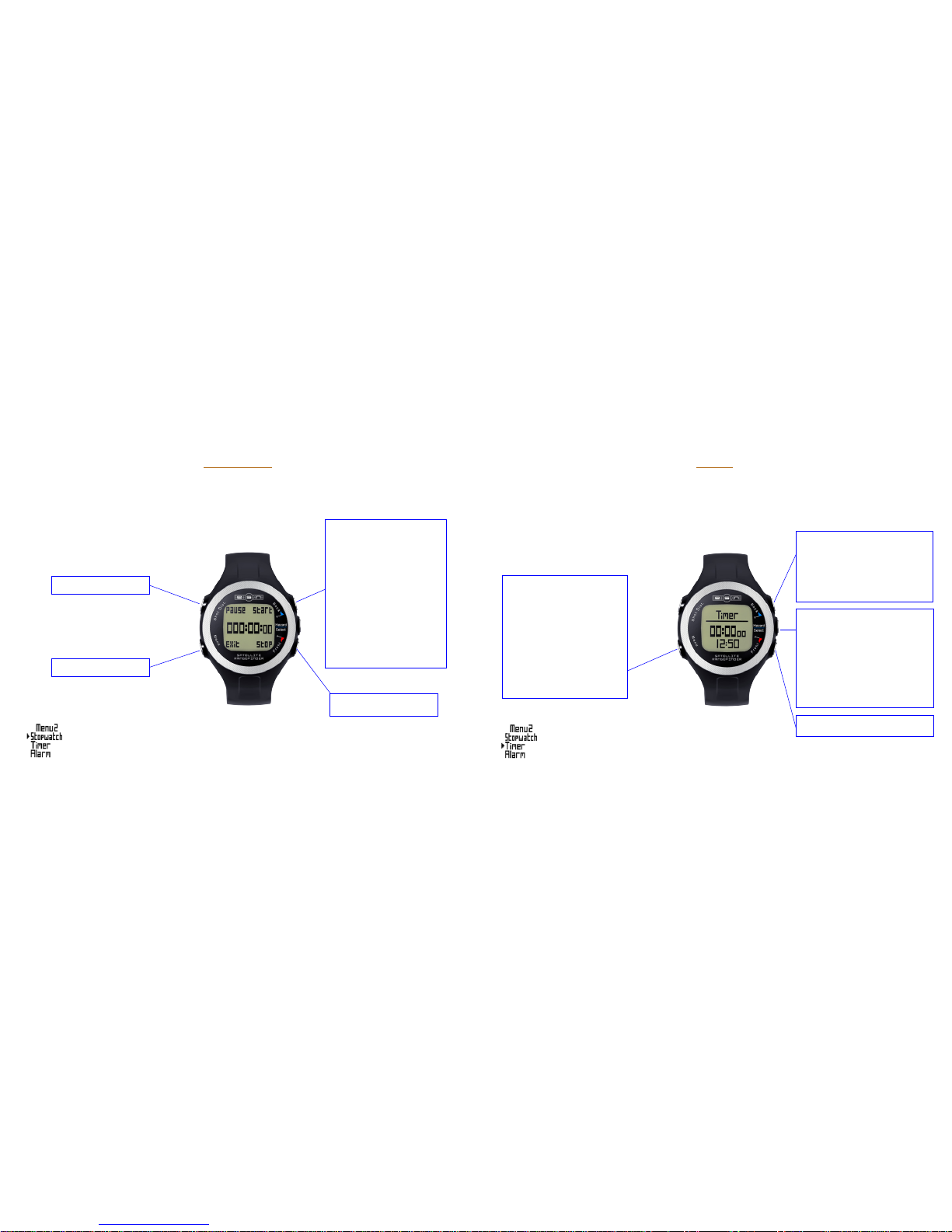

Stopwatch

Exit Stopwatch

Exit Stopwatch

Stop Stopwatch

A useful and convenient stopwatch feature is included in

the WR62.

Start Stopwatch

Restart time when

paused

When time is

stopped, pressing

restarts time from 0

(13)

Timer

Toggle Time Up

Activate timer from
main Timer screen

Toggle Time Down

The WR62 timer function works like a kitchen timer. Set

the desired time, and an alarm will sound when time

expires.

Activate elds to

adjust time

Toggle between elds

(Hours/Minutes/

Seconds)

Exit Timer when no

elds are active

Return to main

Timer screen once

all elds are set

accordingly

(14)

Alarm

The WR62 features a standard alarm clock function.

Exit Alarm when no

elds are active

Enable Alarm once

all elds are set

accordingly

Enable/Disable

saved Alarm

Toggle time up on Hours/

Minutes

Cycle between AM/PM

Activate elds to adjust

time and AM/PM

Toggle between elds

(Hours/Minutes/AM/PM)

Toggle time down on

Hours/Minutes

Cycle between AM/PM

(15)

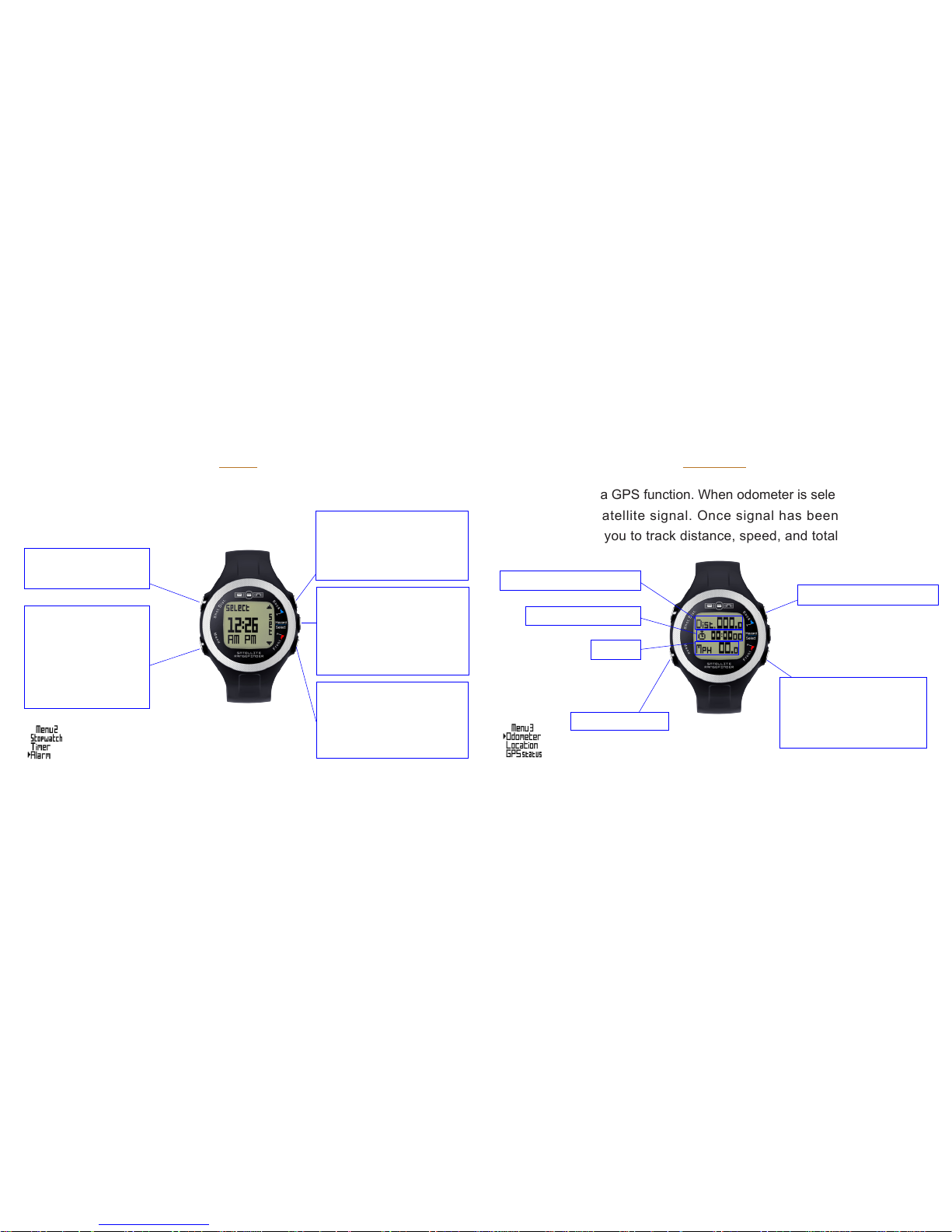

Odometer

The odometer is a GPS function. When odometer is selected, the WR62

will search for satellite signal. Once signal has been acquired, the

odometer allows you to track distance, speed, and total activity time.

Start time / Pause time

Reset Time and

Distance to zero (these

settings will only reset

when time is paused)

Exit Odometer

Total distance traveled

Total time elapsed

Speed

(16)

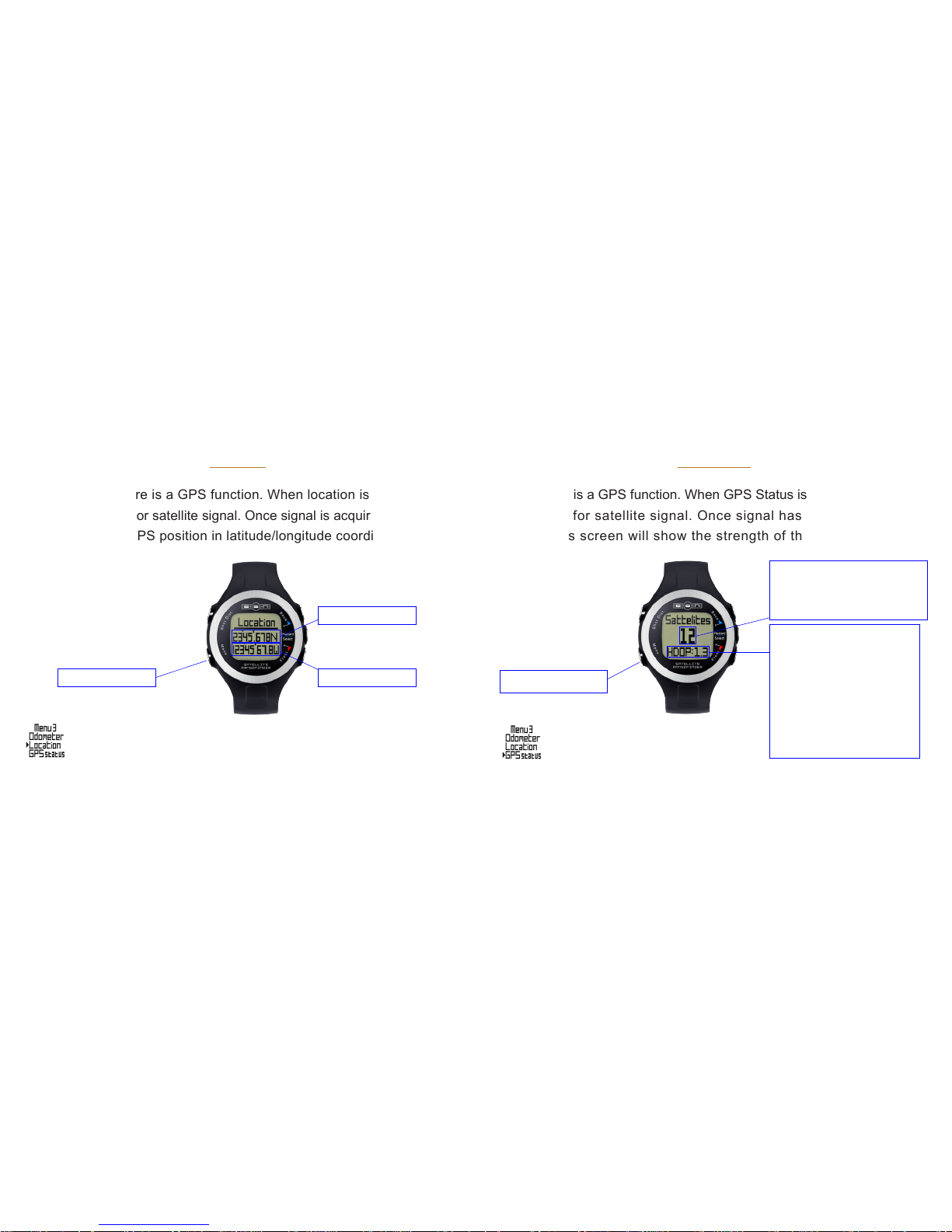

Location

The location feature is a GPS function. When location is selected, the

WR62 will search for satellite signal. Once signal is acquired, the WR62

will display your GPS position in latitude/longitude coordinates.

Exit Location Longitude

Latitude

(17)

GPS Status

GPS Status is a GPS function. When GPS Status is selected, the WR62

will search for satellite signal. Once signal has been acquired, the

GPS Status screen will show the strength of the signal.

Exit GPS Status

This number indicates the

amount of satellites the

WR62 is locked onto

Horizontal Dilution of

Precision. This number

is indicative of the

precision of the x on

position. The lower

the number, the more

precise the position x,

below 2.0 is best.

(18)

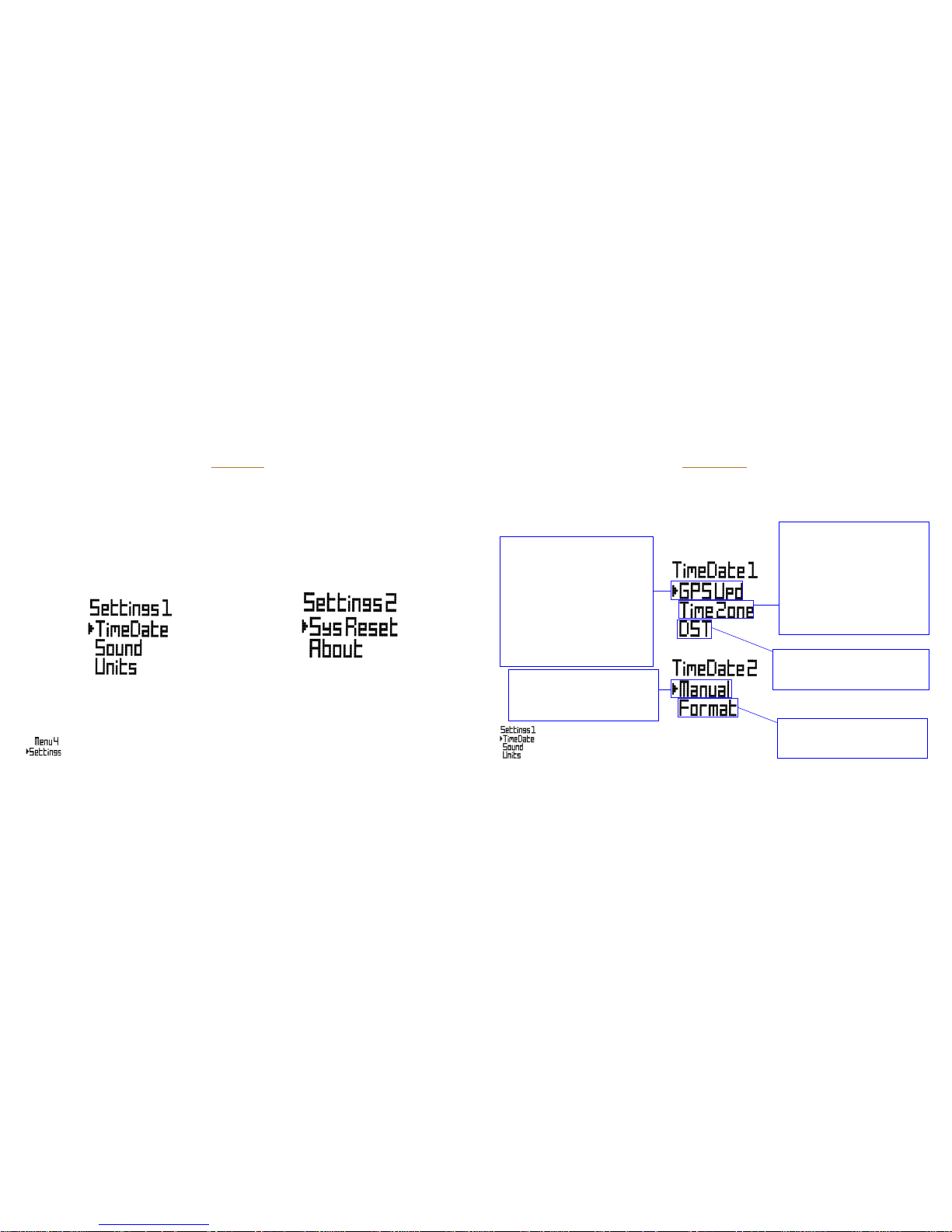

Settings

From the settings menu, you can adjust the time, date, and Daylight

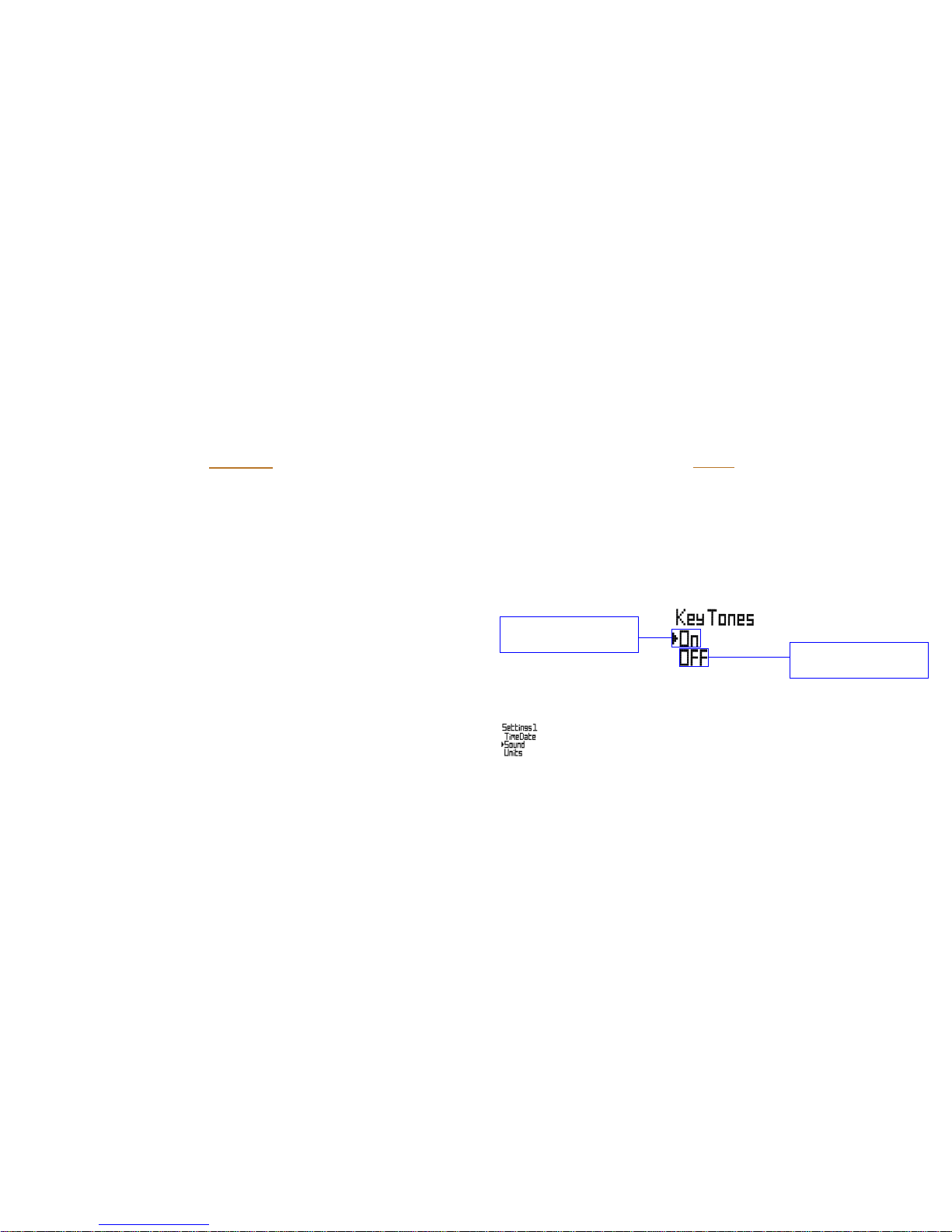

Savings settings (TimeDate option), disable the key tones (Sound

options), adjust the units of measurement between standard and

metric (Units option), and perform a system reset.

(19)

Time/Date

This option allows you to set the time and date, adjust daylight savings

settings, set the time zone, adjust the GPS update settings, and set the

preferred time format.

GPS Update: Setting this option

to “On” will update the time to

the time zone you have selected

when GPS Signal is acquired.

In order for the WR62 to update

the time based upon your GPS

position, set the time zone to “By

Longitude.” The time will then set

automatically when GPS signal

is acquired

Time Zone selections are based

upon Coordinated Univeral Time

(UTC) values.

•Eastern Standard Time: -05:00

•Central Time: -06:00

Mountain Time: -07:00

Pacic Time: -08:00

Alaska Time: -09:00
Hawaii Time: -10:00

Turn Daylight Savings Time on or

off. When “On,” DST will set the

clock forward by one hour.

Set time format to standard or
military. For standard time, select
12h. For military time, select 24h.

Manually set time. Set GPS

Update to “Off” to ensure the

time is not changed when GPS

signal is acquired.

(20)

Time/Date

The time will set automatically when you obtain a GPS signal. You can

do this quickly by stepping outdoors and selecting “Location” from

the Menu. By default, the WR62 is set to update time based upon

GPS position. These settings are as follows:

GPS Upd: On TimeZone: By Longitude DST (Daylight Savings Time): On

These settings can be adjusted from the Settings menu under the

“TimeDate” option. When GPS Upd is set to “On,” the watch will

always update the time when GPS signal is acquired, based upon the

“TimeZone” setting. If you do not want the time to update via GPS, set

GPS Upd to “Off,” and set the time manually.

Note: Daylight savings time varies from year to year. When daylight savings is in effect (Spring-

Fall), DST should be set to “On.” From Fall-Spring, DST should be set to “Off.”

(21)

Sound

This menu option allows you to disable key tones. When key tones

are set to the “On” position, the WR62 will emit beeping tones with

each button push. When key tones are set to the “Off” position, the

buktton pushes will be silent.

Enable key tones on

button push.

Disable key tones on

button push.

(22)

Units

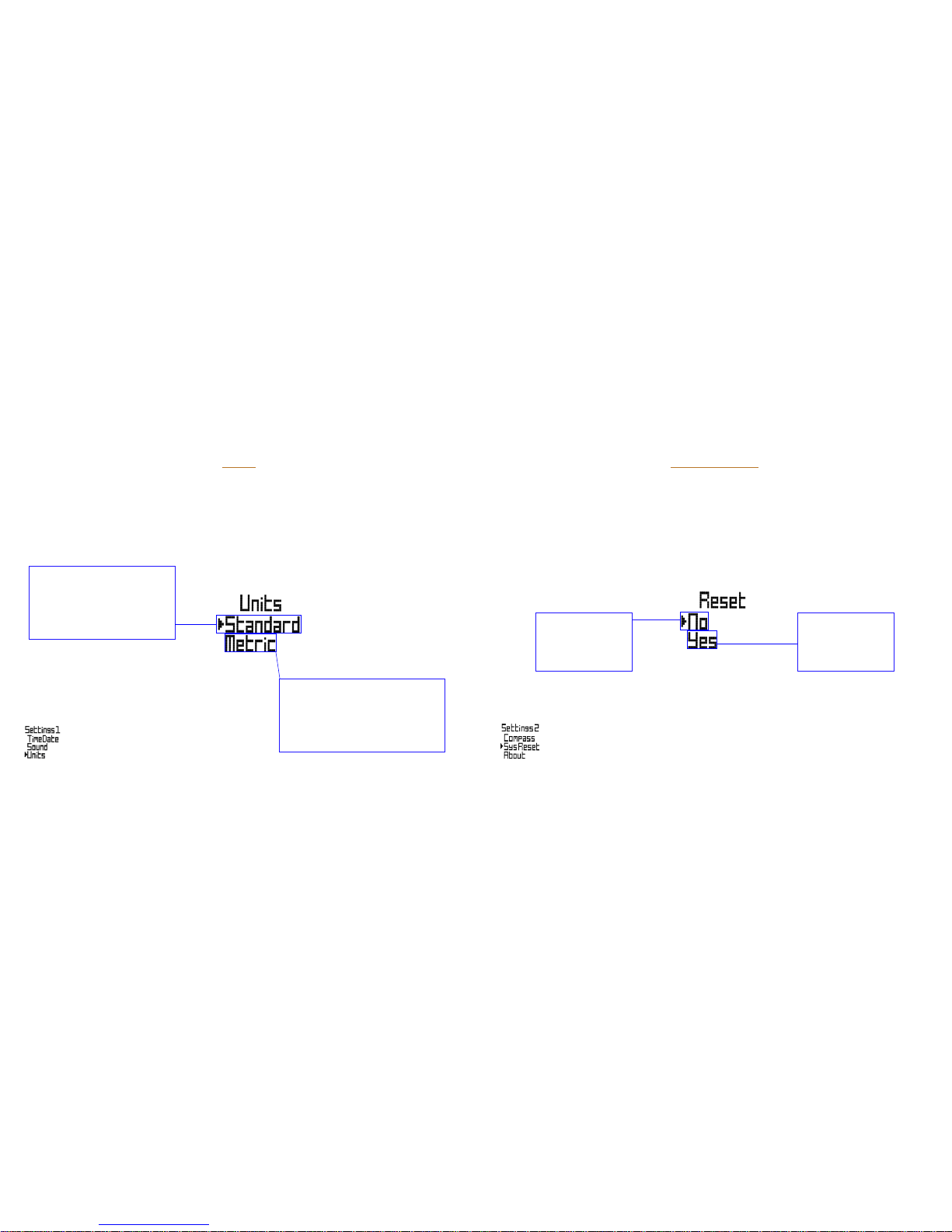

This menu option allows you to change the units of measurement

from standard to metric.

Select standard for

measurements in

yards and miles.

Select metric for

measurements in

meters and kilometers.

(23)

System Reset

This menu option resets the WR62 software to factory default.

The software reset does not affect the clock time.

Keep current

settings and

return to menu

Reset to

factory default

settings

(24)

About

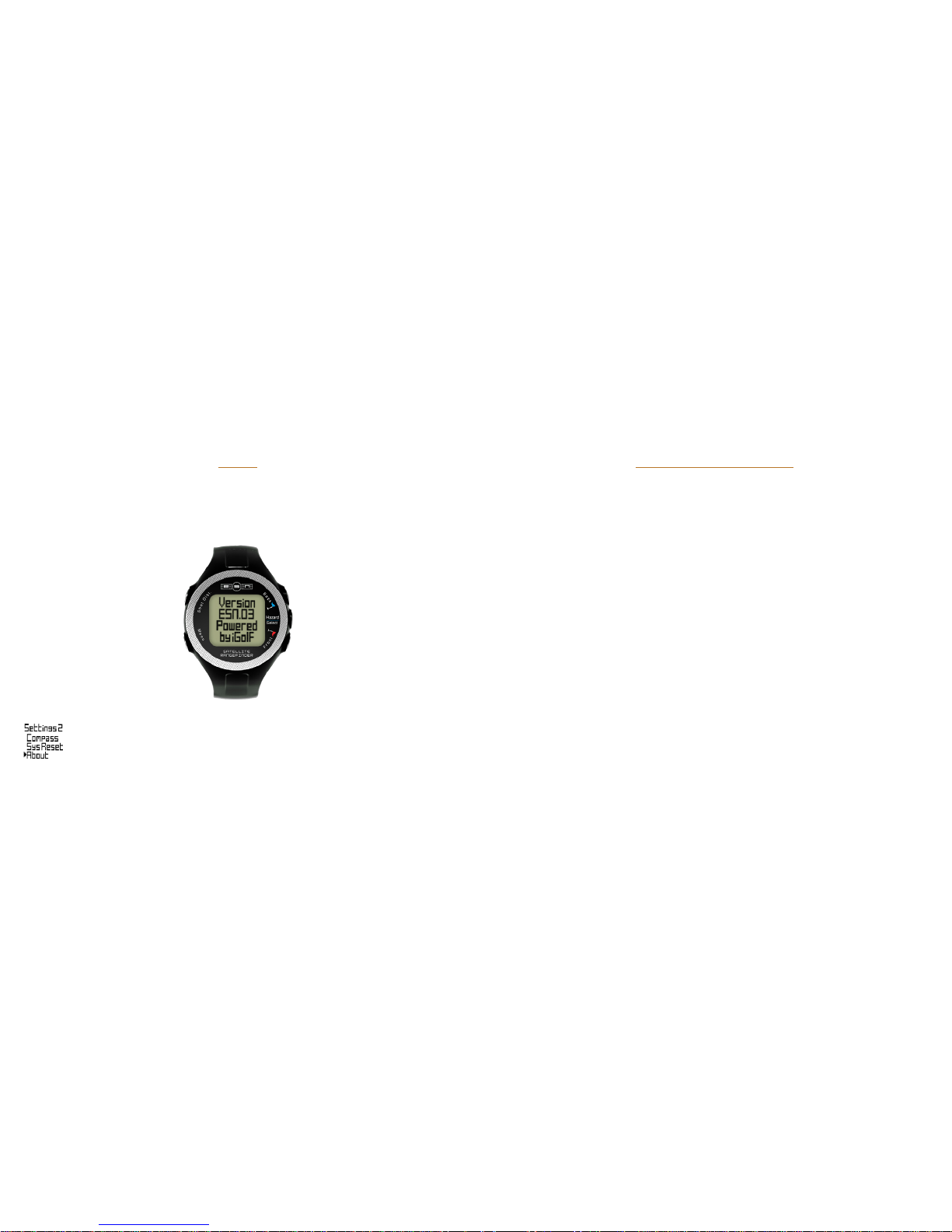

The about screen displays the software version that is running

on your device.

(25)

Troubleshooting & FAQs

For any issue that you may experience with the WR62, first try

performing a software reset by selecting “Sys Res” from the

“Settings” menu. If you still have trouble after the software

reset, perform a hardware reset by pressing and holding the 4

“corner” buttons (Front, Back, Shot, & Menu) simultaneously

until the screen goes blank. The device will automatically

reboot. If this Troubleshooting & FAQs guide doesn’t resolve

your issue, please contact ESN support.

How do I power ON/OFF the WR62?

• Turning ON- Hold the “front” button until the WR62 powers ON.

• Turning OFF- From the main screen (Day and Time) hold the

“front” button until the WR62 powers OFF.

Are there any fees for using the WR62?

• There are no fees for using the WR62 or downloading courses.

You also receive a free membership to iGolf.com when you

register the WR62. This allows you access to their worldwide

database of GPS courses, a handicap tracker and many more

great features.

Where can I find the WR62 serial number/product identification

number?

• The serial number/product identification number is located at

the bottom of the WR62 box and starts with “WR62SR”.

(26)

Troubleshooting & FAQs

How do I adjust the watch band?

• For best results, it is recommended that you seek professional

assistance to custom fit the watch band.

How loose should I have the WR62 band sized?

• You want to make sure that the WR62 fits comfortably. It is

recommended that you do not size it too small because your wrist

may expand slightly during golf or exercise. You also do not want

to size it too loose that it will affect your golf swing. Please note

that you can always resize smaller, but you cannot resize larger

without a new band. If for some reason you find that your band has

been resized too small, please contact ESN and we will ship you a

replacement band promptly.

(27)

Troubleshooting & FAQs

Will the WR62 have any effect on my golf swing?

• The WR62 is designed to be comfortable and light; however, we

advise wearing the watch to a driving range to practice your swing

in order to grow accustomed to golfing with a watch on your wrist.

If my golf course is not accurate what can I do?

• Please contact ESN directly to report course mapping issues.

What courses are preloaded on the WR62?

• There are two versions of the WR62. The North American version

is preloaded with courses for the United States and Canada. The

International version is preloaded with courses for Canada, Sweden,

(28)

Troubleshooting & FAQs Troubleshooting & FAQs

(29)

the United Kingdom, Ireland, Germany, France, Spain, Portugal,

Italy, the Netherlands, Denmark, Finland, Norway, the United Arab

Emirates, Australia, New Zealand, and South Africa.

How long will the battery last on and off the course?

• You should expect about 12 hours of battery life on the course. If

you are using the WR62 as an everyday (time only) watch you can

get a full year on a single charge.

Can I replace the battery?

• No, you cannot replace the battery. If you experience issues

with WR62 battery please contact ESN support.

(30)

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference inn a residential installation. This
equipment generates, uses and radiates radio frequency energy. If it is not installed and
used in accordance with the instructions, it may cause harmful interference to radio
communications.

However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the seperation between the equipment and receiver.

• Consult the dealer or an experienced radio/TV technician for help.

(31)

iGolf Hazard Glossary

Hazards within the iGolf application are shown as abbreviations. These
abbreviations are dened as follows:

1. LFB- Left Fairway Bunker

2. MFB- Middle Fairway Bunker

3. RFB- Right Fairway Bunker

4. LFW- Left Fairway Water Layup

5. LFWC- Left Fairway Water Carry

6. MFW- Middle Fairway Water Layup

7. MFWC- Middle Fairway Water Carry

8. RFW- Right Fairway Water Layup

9. RFWC- Right Fairway Water Carry

10. FGB- Front Green Bunker

11. RGB- Right Green Bunker

12. LGB- Left Green Bunker

13. BGB-Back Green Bunker

14. RGW- Right Green Water

15. FGWC- Front Green Water Carry

16. FGW- Front Green Water Layup

17. LGW- Left Green Water

18. BGW- Back Green Water

19. CRK- Creek Layup

20. CRKC- Creek Carry

21. EOF- End of Fairway

(32)

Warranty

All EXPRESSO SATELLITE NAVIGATION, INC. SYSTEMS (GPS) are navigation aids, and are not intended to replace other methods
of navigation. The purchaser is advised to perform careful position charting and use good judgment. READ THE USER GUIDE
CAREFULLY BEFORE USING THE PRODUCT.
The WR62 Golf GPS Watch is warranted to be free from defects in materials or workmanship for two years from the date of purchase.
Within this period, EXPRESSO SATELLITE NAVIGATION, INC. will, at its sole option, repair or replace any components that fail in

normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer
shall be responsible for any transportation cost. This warranty does not apply to: (i) cosmetic damage, such as scratches, nicks,
and dents. (ii) consumable parts, such as batteries, unless product damage has occurred due to a defect in materials or workmanship.
(iii) damage caused by accident, abuse, misuse, water, flood, fire, or other acts of nature or external cause. (iv) damage caused by

service performed by anyone who is not an authorized service provider of EXPRESSO SATELLITE NAVIGATION, INC.; or (v) damage
to a product that has been modified or altered without the written permission of EXPRESSO SATELLITE NAVIGATION, INC. In addition,
EXPRESSO SATELLITE NAVIGATION, INC. reserves the right to refuse warranty claims against products or services that are obtained

and/or used in contravention of the laws of any country.
Note: Repairs have a 90 day warranty. If the unit sent in is still under its original warranty, then the new warranty is 90 days or to the end
of the original one year warranty, depending upon which is longer.
THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER

EXPRESS, IMPLIED, OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, WHICH MAY VARY FROM STATE TO STATE.
IN NO EVENT SHALL EXPRESSO SATELLITE NAVIGATION, INC. BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THE PRODUCT OR

FROM DEFECTS IN THE PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL

DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
EXPRESSO SATELLITE NAVIGATION, INC. retains the exclusive right to repair or replace (with a new or a newly-overhauled replacement
product) the product or software or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE
AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.

Online Auction Purchases: Products purchased through online auctions or unauthorized third parties are not eligible for warranty coverage.

Online auction conrmations are not accepted for warranty verication. To obtain warranty service, an original or copy of the sales receipt from
the original authorized retailer is required. EXPRESSO SATELLITE NAVIGATION, INC. will not replace missing components from any package

purchased through an online auction or unauthorized third party.

Contact EXPRESSO SATELLITE NAVIGATION, INC. Technical support to receive an RMA number.
Call or email an EXPRESSO SATELLITE NAVIGATION, INC. Technical Support Specialist to describe the problem and request a return
material authorization (RMA) number. You will need to provide the unit’s serial number (if applicable), your original receipt of purchase
from an authorized EXPRESSO SATELLITE NAVIGATION, INC. dealer, your return shipping address, and a daytime phone number.

Phone: [phone] E-mail: [email protected]
Once you have received the RMA number, ship the unit (insured) to the following address and include the assigned RMA number
and proof of purchase:

• Expresso Satellite Navigation, INC. • 824 Lincolnway, 3rd oor • La Porte, IN 46350 •

e

n

s
