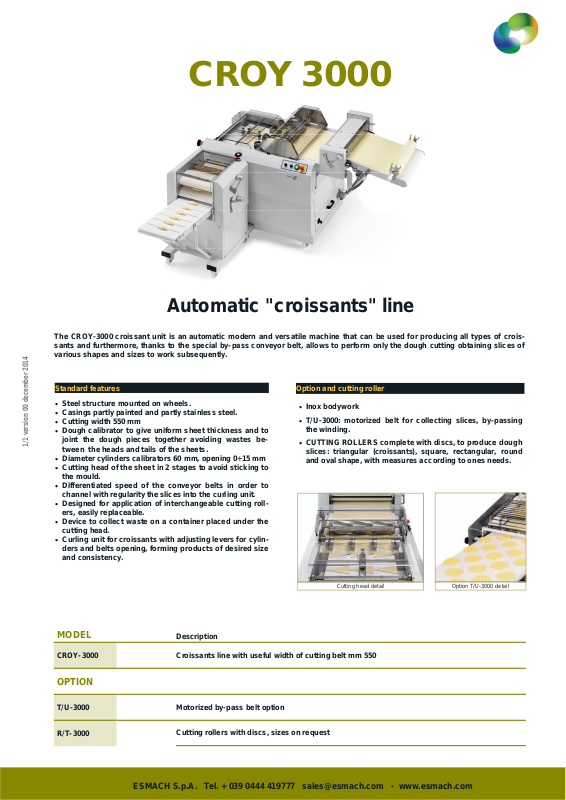

CROY 3000

Automatic "croissants" line

The CROY-3000 croissant unit is an automatic modern and versatile machine that can be used for producing all types of crois­sants and furthermore, thanks to the special by-pass conveyor belt, allows to perform only the dough cutting obtaining slices of
various shapes and sizes to work subsequently.

Standard features

 Steel structure mounted on wheels.
 Casings partly painted and partly stainless steel.
 Cutting width 550 mm
 Dough calibrator to give uniform sheet thickness and to

1/1 version 00 december 2014

joint the dough pieces together avoiding wastes be­tween the heads and tails of the sheets.

 Diameter cylinders calibrators 60 mm, opening 0÷15 mm
 Cutting head of the sheet in 2 stages to avoid sticking to

the mould.

 Differentiated speed of the conveyor belts in order to

channel with regularity the slices into the curling unit.

 Designed for application of interchangeable cutting roll-

ers, easily replaceable.

 Device to collect waste on a container placed under the

cutting head.

 Curling unit for croissants with adjusting levers for cylin-

ders and belts opening, forming products of desired size
and consistency.

MODEL

CROY-3000 Croissants line with useful width of cutting belt mm 550

Description

Option and cutting roller

 Inox bodywork
 T/U-3000: motorized belt for collecting slices, by-passing

the winding.

 CUTTING ROLLERS complete with discs, to produce dough

slices: triangular (croissants), square, rectangular, round
and oval shape, with measures according to ones needs.

Cutting head detail

Option T/U-3000 detail

OPTION

T/U-3000 Motorized by-pass belt option

R/T-3000

Cutting rollers with discs, sizes on request

ESMACH S.p.A. Tel. + 039 0444 419777 [e-mail] - www.esmach.com

Automatic croissants line CROY 3000

Cutting rollers size details

Shapes

Min. dimensions

mm

Max. dimensions

mm

Between min e max all measures are acceptable
T/C - TRIANGLE-base x H 60x69 300x275
T/Q - **SQUARE-side 60x60 275x275
T/RE - **RECTANGLE-sides 60 275
T/RO - **ROUND - diameter 60 550
T/RC - **R. TOOTHED EDGE d. 60 550
T/O - **OVAL -diameter 60 550

** reccomended adoption of by-pass belt (option)

Triangular cutting scheme (croissants)

Rectangle cut

smooth or toothed

TECHNICAL AND DIMENSIONAL FEATURES

Round cut with

edge

6 Row triangle cut

3 Row triangle cut

Net weight - kg 600
Absorbed power - kW 2

Approx. Hourly production

- on three rows 1800 pz. da g 80 a g

- on four rows 2400 pz. da g 75 a g

- on five rows 3000 pz. da g 45 a g

- on six rows 3600 pz.da g 25 a g

- on seven rows 4200 pz. da g 12 a g

ESMACH S.p.A. Tel. + 039 0444 419777 [e-mail] - www.esmach.com

CURLING UNIT
BY-PASS BELT (option)
CUTTING HEAD

CALIBRATOR
