OPERATION INSTRUCTIONS

A33 FULL BODY AIR-MASSAGE CHAIR

SAVE THESE INSTRUCTIONS

Page 2

Thanks for purchasing this product. Please read this manual instruction carefully in order to know how to use this product correctly before operation. Please pay more attention to some important safety warning and keep this manual book properly for future use. Note: Our Company reserves the right to revise the design and description of this product without any further notice. Please refer to the actual color of this product.

Safety and maintenance

Name and function of components

Function & Efficacy

Method of usage

Product specification

CONTENTS

Page 3

0302

Don t allow children to touch moveable part of this product. Please use well-grounding power supply suited to this product. Please pull out the plug after use or before cleaning to avoid injury or

Damage to the product.

Please operate this product according to this manual instruction. Don t use accessories which are not recommended. Don t use this product outdoors. Please read this manual instruction carefully before operation. Any other usage that is not listed in this manual instruction is forbidden. 20 minutes of usage each time is recommended. Please don t use it if the leather is broken or damaged. Please don t use it if the cover or leather is damaged. Please don t use it if the radiator hole is covered or blocked. Please don t drop anything into this product. Please don t fall asleep while using this product. Please don t use it if drunk or feel unwell. Please don t use it within one hour after having meal. Please don t make the massage function too strong for avoiding

Injury.

2. Environment for usage. Please don t use it under high temperature and moist environment such as

bathroom.

Please don t use it immediately while the environmental temperature

changes sharply.

Please don t use it under heavy-dusty or caustic environment. Please don t use it where there is not enough space or not good ventilation.

3. People who are not suitable to use this product. People who are suffering from osteoporosis are not suitable to use this product.

People who are suffering from heart disease or carrying electronic medical

equipment such as heart pacemaker are not suitable to use this product.

People who are suffering from fever are not suitable to use this product.

Pregnant women or women that are in menses period are not suitable to use this

product.

People who got injured or skin disease are not suitable to use this product. Children under 14-year old or people mentally unbalanced without being

Supervised are not allowed to use this machine.

People who are told by doctor to have rest or people who feel unwell are not

suitable to use this product.

People whose bodies are wet are forbidden to use this product. The appliance has a heated surface.persons insensitive to Heat must be

careful when using the appliance.

4. Safety. Check the voltage if it is suitable to the specification of this product.

Don t use wet hand to pull the plug. Don t make water go inside this product to avoid electric shock or cause

damage to this product.

Don t damage the wires or change the circuit of this product. Don t use wet cloth to clean the electric parts such as switch and plug. Be away from this product under power cut state to avoid injury if the power

comeback suddenly.

Stop using this product while it works abnormal, and please consult local agent

immediately.

Stop using this product if you feel unwell, and please consult health care doctor.

This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the

appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its

Service agent or similarly qualified persons in order to avoid a hazard.

5. Maintenance. This product should be maintained by certain appointed agents, users are

prohibited to disassemble or maintain by themselves.

Please don t forget to cut the power after usage. Don t use this product if the socket looses. If this product will be left unused for long, please curl up the wires and reserve this

product in dry and dustless environment.

Don t reserve this product under high temperature or near fire and avoid

longtime direct sunshine.

Please clean this product by dry cloth. Don t use thinner, benzene or alcohol. The mechanical components of this product are specially designed and made,

it is not necessary to be specially maintained.

Don t use edged res to thrust this product. Don t roll or pull this product above uneven ground, it should be lifted before

moving.

Please use it intermittently; don t make this product work continuously for long.

6. Solution of ordinary malfunctions. It is nature movement voice if the motor sounds while in usage.

If the controller can t work normally, please check the plug and socket if they

are connected strongly and make sure the switch is turned on.

If the rated working time is over, the product will automatically activate the

power-off button; If this product works continuously for long, the temperature protector will make the product automatically power-off, it should be used again after half an hour s r est.

If the detachable cord / supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a Hazard.

1.IMPORTANT SAFETY WARNING.

Safety and maintenance Safety and maintenance

Page 4

04 05

Name and function of components

Function & Efficacy

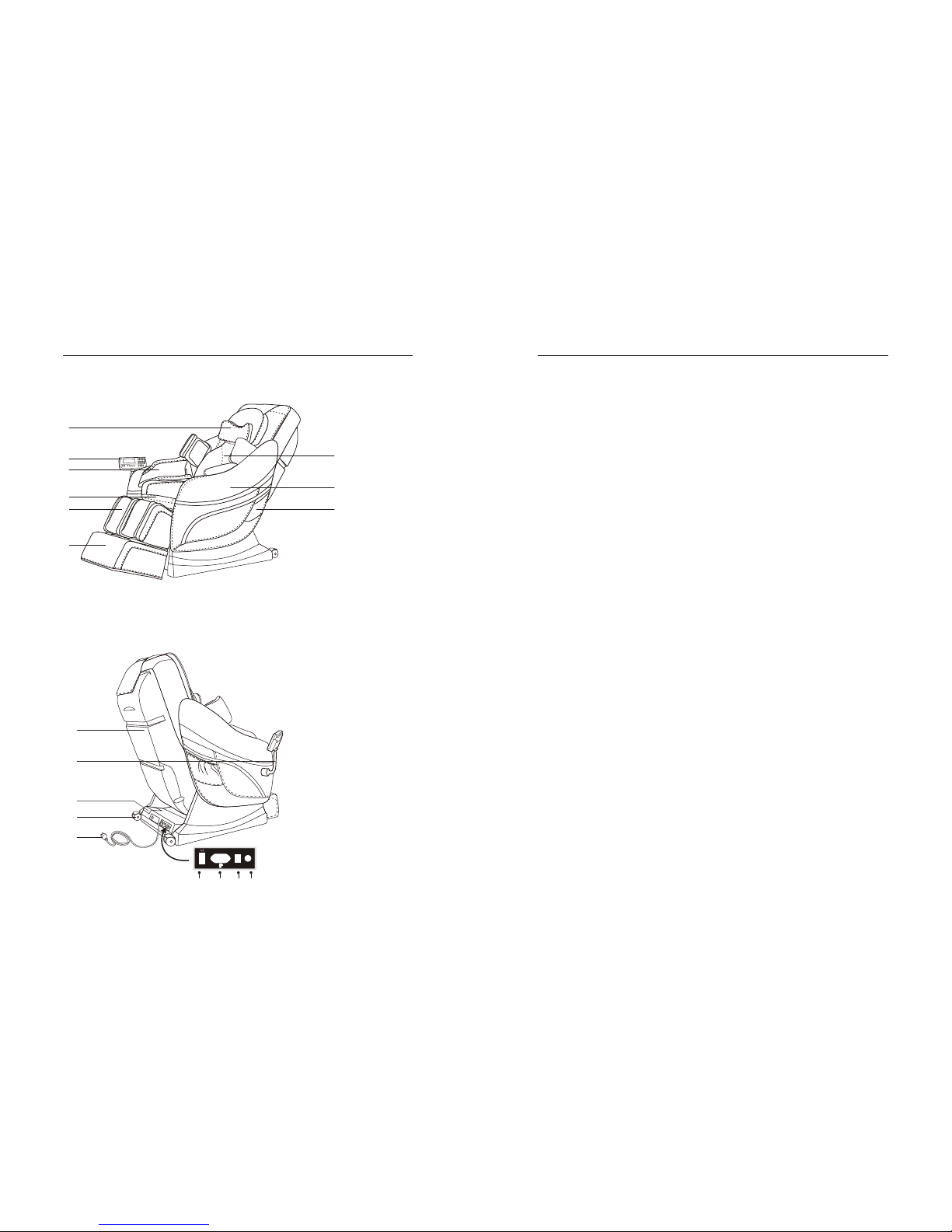

1.Pillow pad

2.Controller

3.Arm air bag components

4.Seat cushion

5.Leg rest frame

6.Foot rest frame

7.backrest pad

8.Armrest

9.remote controller pocket

10.backrest cover

11.Controller support

12.MP3 Player Box

13. Moving wheels

14.Power cord and plug

15.Earphone socket

16.power plug socket

17.Power switch

18.Fuse box

Function

1. This product is designed with a set of smart 3D mechanical hands, which can move up and down, stretching back and forth, four-wheel driven with muted design.

2. The shoulder part is designed with automatic detection and micro adjustment function; body curve and massage points automatic detection, it can automatically adjust the distance of massage hands' moving back and forth according to the detected body curve and massage points, to make the massage more humanistic and scientific.

3. Designed with automatic massage programs

4. Air pressure,waist twist, swing hip, waist stretch and other specific massage functions.

5. Manually select the upper body massage; three massage position options of overall, partial and fixed position; six massage methods of shoulder grasping, kneading, tapping, shiatsu, kneading&flapping and 3D; five massage speed levels available; under tapping and shiatsu massage status, the width of the massage hand can be adjusted in five levels.

6. Arm air massage function (built-in 26 airbags), leg air massage function (built-in 38 airbags), with 3 intensity adjustments

7. Upper-body air massage: neck and shoulder air massage function (built-in 8 airbags), seat air massage function (built-in 16 airbags)

8. MP3 music displayer. pause, previous, next, volume up, volume down.

9. Back heating function. Use carbon fiber as infrared heating source

10. The footrest can be extended to suit various heights .

11. Footrest lifting and backrest lift adjustment

12. Auto-sitting function, massage Massage hands can automatically return to

Original position after turning off.

13. VFD display

14. MP3 player, earphones, U disc

Effectiveness

Release fatigue Accelerate blood circulation Release muscle fatigue Release muscle tension Release nerve pain Release the muscle pain.

4 5

15 16 17

ON/OFF

FUSE

Page 5

0706

ON/OFF

FUSE

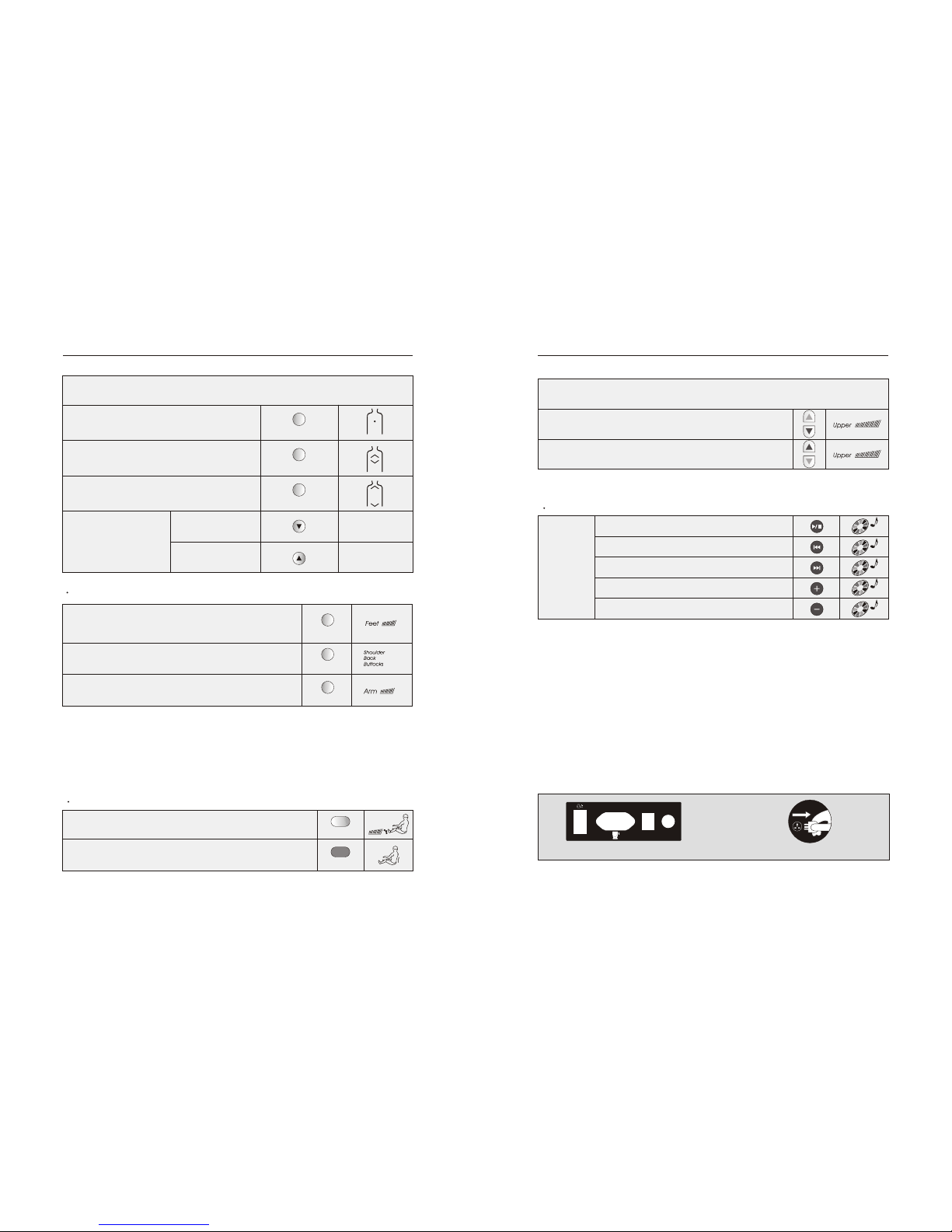

Method of usage Method of usage

1.Switch power supply on

Diagram of the switch position of power supply Diagram of plug in

2.Adjust angle of backrest and footrest

Footrest up button: press this button and the footrest will recline slowly, release the button it will stop.

Footrest down button: press this button and the footrest will decline slowly, release the button it will stop.

Backrest up button: press this button the backrest will recline slowly. release the button it will stop.

Backrest down button: press this button the backrest will decline slowly. release the button it will stop.

Position adjust up button: press this button the backrest will recline and the footrest will decline slowly. release the button it will stop.

Position adjust down button: press this button the backrest will decline and the footrest will recline. release the button it will stop.

SPEED

WIDTH

BACK STRETCH

ARM

UPPER BODY

CALF

AIRBAG

WAIST

STRETCH

POSITION

ADJUST

FOOT

REST

BACK REST

BACK

INTENSITY

BACK WARMER SOLE ROLLER

AUTO

ADJUST SHOULDER

WAIST TWIST

SWING

HIP

Auto

WHOLE

BODY AIRBAGS

Page 6

0908

Shoulder adjust

H1~H4

( )

H1~H2

( )

H1~H2

( )

H1~H2

( )

H1~H2

( )

Method of usage Method of usage

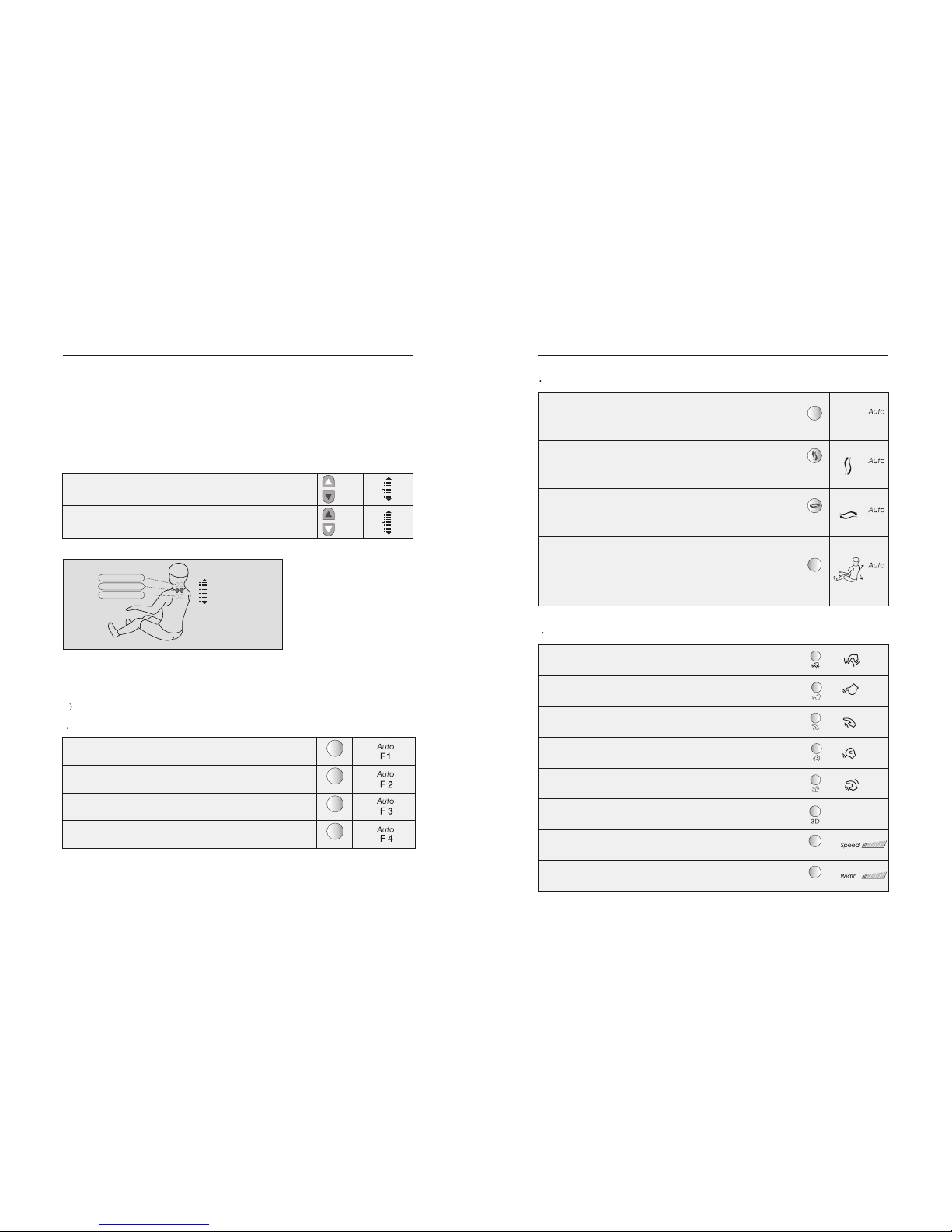

3. Start massage

1). Press the red power button to start massage, the massage chair will recline automatically.

2). Automatically detecting shoulder position and massage points, please wait till dection finished.

3). It sounds [di di di...] after detection finished. Now, please adjust the shoulder position by pressing up or down button. It will run automatic massage if there is no adjustment on shoulder position within 10 seconds.

Move the massage balls upward to a suitable position.

Move the massage balls downward to a suitable position.

ADJUST SHOULDER

High shoulder position

suitable shoulder position

Low shoulder position

4 . Choose massage methods

Automatic massage

Relax: relax muscles and bones

Ease: accelerate blood circulation

Ache Release: make deep massage to relax the ache position

Fatigue recover: release the fatigue and activate body

Note: Press the buttons repeatedly and choose different automatic massage methods, the four automatic massage methods can run circularly.

Specific massage

Whole-body air massage: air massage on neck&shoulder, waist, buttock, arms and thigh positions will work at the same time.

Waist twist: focus on waist massage, the waist airbags make waist twist leftside and rightside, meantime the seat airbags make hip-swing massage

Waist stretch: When the calf airbags work and squeeze calf part, the backrest lays down and calfrest pulls down to stretch the waist part, then return to original position and repeat above actions. Meantime the seat airbags and massage mechanism works.

Upper-body manual massage

Shoulder grasp: 1 method available with speed and strength adjustment

Shiatsu: 2 methods available with speed, width and strength adjustment.

Kneading: 2 methods available with speed strength adjustment.

Flapping: 2 methods available with speed, width and strength adjustment.

Kneading&Flapping: 2 methods available with speed strength adjustment.

3D: 4 methods available with speed and strength adjustment.

Speed: 5 leves available

Width: 5 levels available (only under flapping and shiatsu status).

UPPER BODY

WAIST TWIST

SWING

HIP

WAIST

STRETCH

SPEED

WIDTH

AUTO

Swing Hip:focus on hip massage,swing hip machanism and seat cushion pressure operating makes hip swing left and right

Page 7

ON/OFF

FUSE

Music

Other manual functions:

Method of usage Method of usage

Backrest stretch (can be operated under all manual modes except shoulder grasp status).

Fixed massage

Partial massage

Overall massage

Position adjustment (under fixed and partial status, the position can be adjusted).

Massage mechanism up

Massage mechanism down

Lower-body manual air massage

Foot: foot air massage with 3 strength available When foot air massage is working, the footrest stretch function will run automatically

Upper-body: neck&shoulder, waist and seat air massage

Arm: arm air massage with 3 strength available

Note: Under automatic massage status, it can adjust the relative air massage strength by pressing any button of Arm, Upper-body and Foot

Foot roller: with 3 speed levels available

Backrest heating: backrest infrared heating massage, can be felt after 3 minutes

Upper-body strength adjustment with 5 levels available:

Stronger: press this button to increase the strength of backrest massage

Weaker: press this button to decrease the strength of backrest massage.

Music on and off

Volume up

Volume down

Music

4. Shut off power and finish massage Press red power button during massage to stop all massage functions immediately, the backrest and footrest will return to original position automatically. After rated working time, all massage functions will be finished but backrest and footrest won't return to original position.

Switch power off

Figure (switch power off)

Power switch position map

power switch method map

BACK STRETCH

ARM

UPPER BODY

CALF

SOLE ROLLER

BACK WARMER

Page 8

1312

Figure Figure

Figure

Method of usage Method of usage

5.How to download mp3 music :

1.Turn off the power of massage chair .

2.Pull out the u-disk from the MP3 player .

3.Insert the u-disk into USB port of PC (Windows Xp Windows 2000 WindowsNT.)

4.Download your favorite MP3 format music into U-disk .if fails , please firstly format the disk.

5.Delete the USB Mass Storage Device on the PC after complete download .

6.Pull out the U-disk from PC

7.Insert U-disk to the USB port of MP3 player

8.Now MP3 music was renewed . you may turn on the power of massage chair .

Note :

1.If fails to play MP3 music ,please firstly format the U-disk on PC before

Download.Then follow the instruction to insert the U-disk into USB port of Mp3 player.

2.Except the U-disk , do not remove or loose the MP3 player .

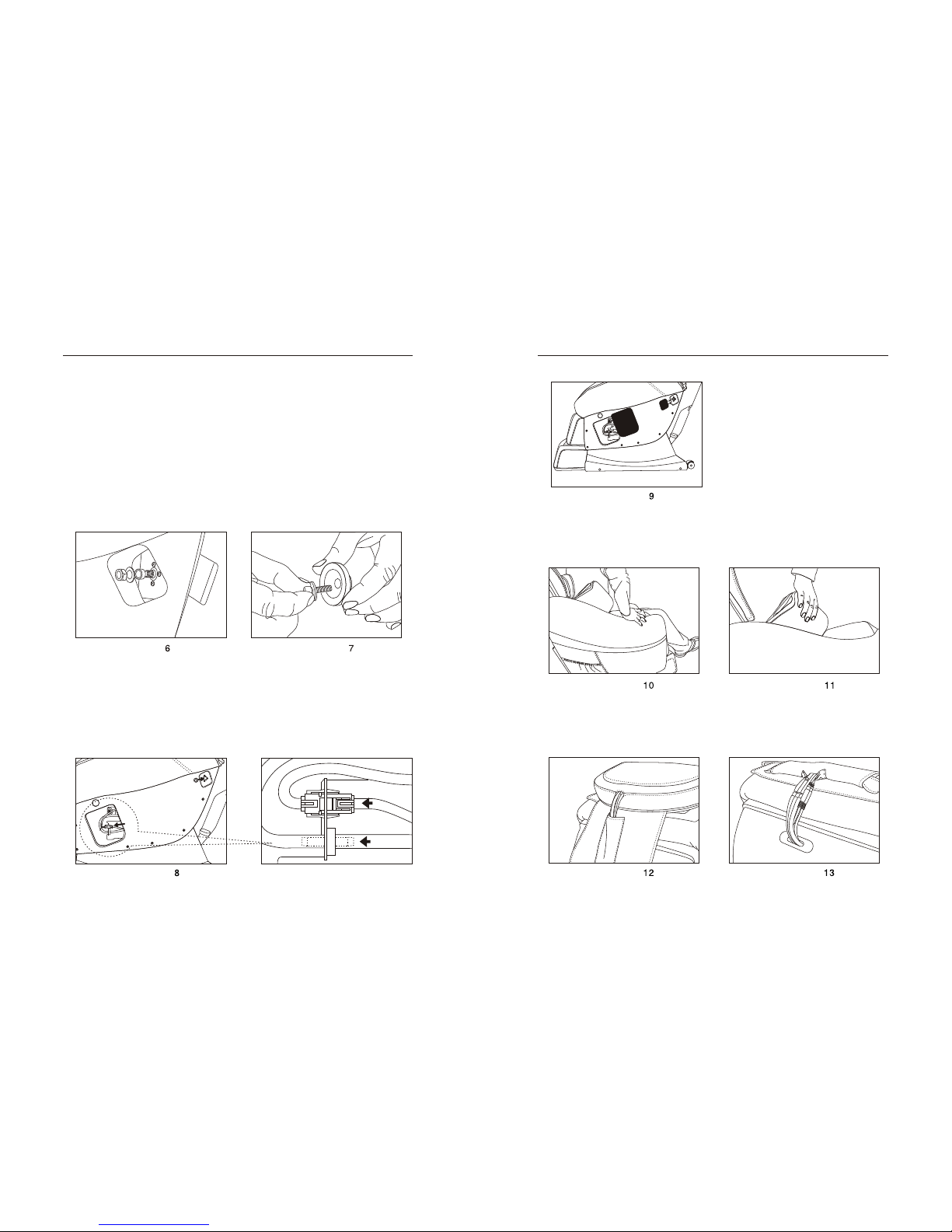

6. Amrest installation and notice.

1).Check if the inner supporting gear are well fixed onto related seat frame position.(figure 1)

2).Pull the zip on the lower edge of the armrest.

3).Open the big and small cover outside the armrest(shown as figure 2)

4).Lift the amrest and ready to install on the chair, pull air-pipe and valve from the seat frame and cross them through relative hole on the armrest side.(figure 3)

5).Push the sliding sets in the front part of armrest into the inner supporting Gear.(figure 4)

6).Push the end of the armrest into the revolving shaft.(figure 5)

A.Upper fixing cover

B.Lower fixing cover

Figure

1 2 3

Page 9

Figure Figure

Figure

Method of usage Method of usage

7).Gently hold the armrest side.When revolve the shaft, firstly put into cage ring, then put into big washer and wrest the locknut by specialized tools. (Figure 6).

8).Thread the socket head cap screws into upper tightening cap (Figure 7), then use the provided wrench to screw in upper supporting gear and wrest screw tight.

9).Thread the socket head cap screws into lower tightening cap (Figure 7), then use the provided wrench to screw in lower supporting gear and wrest screw tight.

10).Respectively connect air pipe and valve connector with relavent connectors on the iron plate of armrest (Figure 8).

11).Check if the armrest is well fixed. If there isn't much swing, close the big and small cover outside the armrest. (Figure 9).

12).Close the zipper of lower armrest and finish installation.

Be careful don't put stress on the two sides of armrest in order to support the body (Figure10)

Be careful don't put stress inwardly on upper arm airbag support board (Figure 11)

Thread head pad air pipe and detection lines into pocket (Figure 12)

Respectively connect the backrest trachea according to the number (Figure 13)

Enlarge sketch map

Page 10

Method of usage

Product specification

7.FLOOR PROTECTION

Put the heavy massage chairs on the wood floor for a longtime may damage the floor, so please place a carpet or other object to avoid this damage.

Caution: Do not move the chairs with its wheels on wood floor, rough ground or in a narrow space. Two people are required to lift the chair.

8.METHOD OF MOVEMENT

Make sure that all wires are far above the ground, tilt the backrest backward to a certain degree (with the gravity center resting on the wheels), push the chair forward or backward with your hands and finally resume the chair to the normal position in a slow and gentle manner.

Material introduction: PVC, PA, steel parts and electric &ele

-ctron parts

MATERIAL

LEATHER CLOTH WOOD

Model: A33 Description: Full Body Air-massage Chair Rated Voltage: 110-120V~ 60Hz

220-240V~ 50Hz 60Hz

Rated Power Input: 280W Rated Working Time: 15Minutes Safety Design: Class
