ASSEMBLY INSTRUCTIONS & PARTS

Eskape 400 Ice Shelter

MODEL 69164

OM69164

Rev. 8/27/08

Page 2

GetEskimo.com

HIGH PERFORMANCE ICE FISHING GEAR

Eskape™ 400 Hardwater Series (69164)

Eskimo ice shelters are engineered with you, the high performance ice angler in mind. We appreciate your purchase of one of our high performance portable ice shelters. Follow these simple instructions and your ice shelter will provide you many years of trouble-free pleasure. Save these instructions for future reference.

If for any reason you have a problem with your product, DO NOT return to the retailer, contact the Eskimo customer service depart- ment by phone at 800-345-6007 or by e-mail at [email protected] for assistance.

CONTENTS

Introduction & Registration .............................................................. 2

Important Safety Precautions .......................................................... 3

Assembly, Set-up & Take-down Instructions ................................. 4-9

Standard Accessories.................................................................... 10

Long Term Storage ........................................................................ 10

Parts ......................................................................................... 11-13

FAQ’s (Frequently Asked Questions) ............................................. 14

Warranty ........................................................................................ 15

Optional Accessories ..................................................................... 16

REGISTRATION

Record the model number and serial number (if applicable) in the space provided for easy reference. Fill out and mail the registration card located in the parts packet. Warranty is valid only if the completed registration card is received by Ardisam, Inc. within 30 days of purchase.

OWNERSHIP RECORDS

Place of Purchase:

Place of Purchase Address:

City: State/Province: Zip Code/Postal Code:

Model Number: Serial Number:

Date of Purchase:

Notes:

Page 2

1-800-345-6007

Page 3

HIGH PERFORMANCE ICE FISHING GEAR

GetEskimo.com

Eskape™ 400 Hardwater Series (69164)

IMPORTANT SAFETY PRECAUTIONS

This tent is made with ﬂame resistant fabric which meets CPAI-84 speciﬁcations. It is not ﬁre proof. The fabric will burn if left in continuous contact with any ﬂame source.

The application of any foreign substance to the tent fabric may render the ﬂame resistant properties ineffective.

Heat sources burn oxygen and emit carbon monoxide. Use caution with heaters and vent properly.

This symbol points out important safety instructions which if not followed could endanger your personal safety. Read and follow all instructions in this manual.

• Do not use candles, matches or open ﬂames of any kind in or near this shelter.

• Do not cook inside this shelter.

• Exercise extreme caution when using fuel-powered lanterns or heaters inside this shelter.

• Do not refuel lamps, heaters or stoves inside this shelter.

• Extinguish or turn off all lanterns before leaving this shelter.

• Do not smoke in this shelter.

• Do not store ﬂammable liquids inside this shelter.

WARNING

READ, UNDERSTAND AND FOLLOW ALL ASSEMBLY, SAFETY, SET-UP & USE INSTRUCTIONS PROVIDED BEFORE EACH USE. FAILURE TO FOLLOW ALL WARN INGS AND INSTRUCTIONS COULD RESULT IN SERI OUS INJURY OR DEATH.

KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC.

DUE TO TRAFFIC ON LAKES, ICE FISHING CAN BE HAZ ARDOUS AT NIGHT. IF YOU CHOOSE TO FISH AT NIGHT OR IN CONDITIONS WITH POOR VISIBILITY, BE SURE TO TAKE PRECAUTIONS.

NEVER LEAVE THE ICE SHELTER UNATTENDED.

SECURELY ANCHOR THE ICE SHELTER TO THE ICE IN HIGH WIND CONDITIONS.

LUBRICATE THE SLIDE POLES WITH WD-40 ICON SPRAY AT LEAST SEASONALLY. DO NOT USE OIL OR GREASE AS A LUBRICANT.

® OR A SIL-

1-800-345-6007

Page 3

Page 4

GetEskimo.com

HIGH PERFORMANCE ICE FISHING GEAR

Eskape™ 400 Hardwater Series (69164)

ASSEMBLY INSTRUCTIONS

Tools Needed: (2) 7/16” wrenches & (1) 3/8” wrench.

ASSEMBLY NOTE: This ice shelter should be assembled in a garage or basement setting due to the time and length of assembly. Identify and familiarize yourself with all parts and hardware before assembly. Allow 1-3 hours for assembly.

ASSEMBLY NOTE: The use of a cordless drill with socket will make assembly of your ice shelter much quicker. Be sure to set the drill speed low so you do not over tighten any nut and bolt combinations.

ASSEMBLY NOTE: If a High-Speed Tracking Kit will be purchased for use on this ice shelter, it should be mounted to the sled before assembly of the ice shelter for convenience.

IMPORTANT ASSEMBLY TIP: DO NOT FULLY TIGHTEN ANY NUT AND BOLT COMBINATIONS UNTIL ALL BOLT-ON PARTS ARE ASSEMBLED TOGHETHER! FINGER TIGHTEN ONLY! THIS WILL HELP HOLE ALIGNMENT OF ALL PARTS.

1. Attach (1) left hinge riser (68052) and (1) sled support strap (68161) to the upper left side of sled lip using (3) provided 1/4-20 x 1” hex head bolts, nyloc nuts and (1) washer. SEE FIGURE 1.

2. Repeat step 1 to attach (1) right hinge riser (68053) and (1) sled support strap to the upper right side of sled lip. SEE FIGURE 1.

3. Attach (1) left hinge assembly (68146) to the top of left hinge riser and (1) right hinge assembly (68145) to the top of right hinge riser using (4) provided 1/4-20 x 3/4” hex head bolts and nyloc nuts. SEE

FIGURE 1.

NOTE: Be sure hinge assemblies are orientated as shown in

FIGURE 1, with high sides of hinges placed to the front of sled. Snap buttons on hinge poles should face inward, towards each other.

4. Repeat steps 1-3 for attaching remaining left and right hinge risers and hinge assemblies to the opposite side of sled to create the double sided conﬁguration. FIGURE 1 image will apply to other side also.

NOTE: STEPS 5-14 FOR SEAT KIT ASSEMBLY SHOULD BE DONE

FOR BOTH SEAT KITS, ONE FOR EACH SIDE OF SLED.

5. Attach (2) seat kit mount brackets (68304) to each hinge assembly using (4) provided 1/4-20 x 3/4” hex head bolts and nyloc nuts SEE

FIGURE 2.

6. Slide the pre-assembled rod holder assembly (68449) into the T-slot of either bench seat rail. Doing so makes this bench seat rail the front rail and will be positioned beneath your legs during use.

7. Attach (2) bench seat rails (68301) to the top side of seat kit mount brackets using (4) provided 1/4-20 x 2-1/2” bolts, nyloc nuts and (4) washers. SEE FIGURE 3A. Make sure the rail with the rod holder assembly is in front, so it will be positioned beneath your legs during use.

sled support strap

FIGURE 1

seat mount bracket

(2) 1/4” nuts

FIGURE 2 (left side shown)

right hinge assembly

left hinge assembly

right hinge riser

(2) 1/4” washers front bolt only

(2) 1/4” x 3/4” bolts

high side of hinge

(6) 1/4” x 1” bolts

left hinge riser

(6) 1/4” nuts

hinge riser

Page 4

1-800-345-6007

Page 5

HIGH PERFORMANCE ICE FISHING GEAR

GetEskimo.com

Eskape™ 400 Hardwater Series (69164)

8. Attach (2) storage tray end caps (68156) to each end of the storage tray (68157) using (8) provided 10-24 x 5/8” bolts and nyloc nuts. SEE FIGURE

3B.

9. Attach the seat brace (68024), the left backrest bracket (68310), the right backrest bracket (68323) and the plastic storage tray to the center set of holes on bench seat rails using (2) provided 1/4-20 x 3-1/2” Phillips truss head bolts, (2) 1/4-20 x 4-1/2” Phillips truss head bolts, (4) nyloc nuts and (4) washers. SEE FIGURE 3A. The long bolts should be used in the rear holes since the added length is needed to go through the seat brace.

NOTE: Seat brace will ﬁt under the lip of plastic storage tray.

(4) 1/4” x 2-1/2” bolts

bench seat rails

plastic storage tray

(8) 10-24 nuts

(8) 10-24 x 5/8” bolts

storage tray end caps

FIGURE 3B (left side shown)

(2) 1/4” x 3-1/2” bolts

(2) 1/4” x 4-1/2” bolts

rod holder assemblies

right backrest bracket

seat mount brackets

all washers are 1/4”

all nuts are 1/4”

left backrest bracket

plastic storage tray

seat brace

FIGURE 3A

1-800-345-6007

Page 5

Page 6

GetEskimo.com

HIGH PERFORMANCE ICE FISHING GEAR

Eskape™ 400 Hardwater Series (69164)

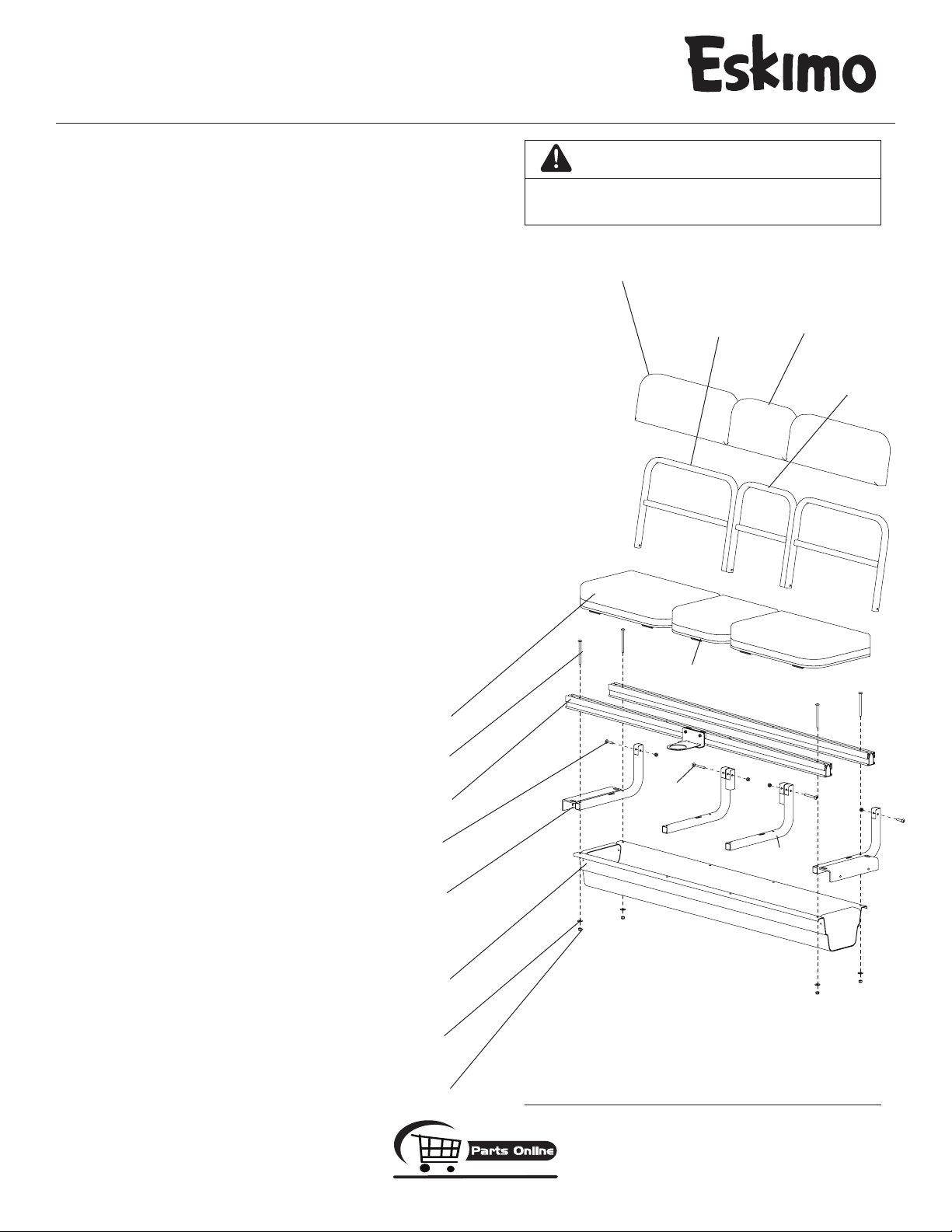

10. Attach the (2) outer seat bottom frames (68322) and the plastic storage

tray to the bench seat rails using (4) provided 1/4-20 x 3-1/2” Phillips head bolts, nyloc nuts and washers SEE FIGURE 4.

11. Attach the (2) 19” padded seat assemblies (68153) and the (1) 12” pad

ded seat assembly (68004) to the curled lip of front bench seat rail by hooking the curled end of seat bracket into the curled end of bench seat rail. SEE FIGURE 4. Seats should be positioned so the will ﬂip upwards to the front so you can access gear underneath the seats, in the storage tray.

NOTE: Do not force the seat bracket into the bench seat rail. Loos-

ening the seat bracket and adjusting the position of it from front to back will allow for the adjustment needed to hook the seat into the seat rail. You may want to keep it loose while you hook the seat into the seat rail and then retighten the seat bracket on seat afterwards. You may even need to remove the seat brackets from the seat and hook them into the seat rail individually, then reattach the seat to the seat brackets.

Once your shelter is completely assembled, you may want to adjust

the seat bracket position on the seat using the slots for desired positioning. Doing this will allow you to adjust how much travel the seats will have when ﬂipping up.

12. Attach the (2) 19” metal backrest frames (68342) and the (1) 12” metal

backrest frame to the backrest brackets using (2) provided 1/4-20 x 1-1/4” Phillips head bolts, (2) 1/4-20 x 2-1/4” Phillips head bolts and (4) nyloc nuts. SEE FIGURE 4.

13. You may now tighten all nut & bolt assemblies. Be sure not to over

tighten or crush tubing when tightening!

14. Attach (2) removable 19” backrest cushions (68154) and (1) removable

12” backrest cushion (68008) to the backrest frames and secure with Velcro.

WARNING

BE SURE SEAT PAD & BUCKLES ARE SECURELY AND CORRECTLY ATTACHED TO PREVENT ACCIDENTAL REMOVAL!

(2) 19” backrest cushions

(2) 19” backrest

frames

(1) 12” padded seat

(1) 12” backrest cushion

(1) 12” backrest

frame

Page 6

(2) 19” padded seats

(4) 1/4” x 3-1/2” bolts

bench seat rails

(2) 1/4” x 1-1/4” bolts

(2) outer backrest brackets

plastic storage tray

all washers are 1/4”

all nuts are 1/4”

(2) 1/4” x 2-

1/4” bolts

(2) backrest

brackets

FIGURE 4

1-800-345-6007

Page 7

HIGH PERFORMANCE ICE FISHING GEAR

GetEskimo.com

Eskape™ 400 Hardwater Series (69164)

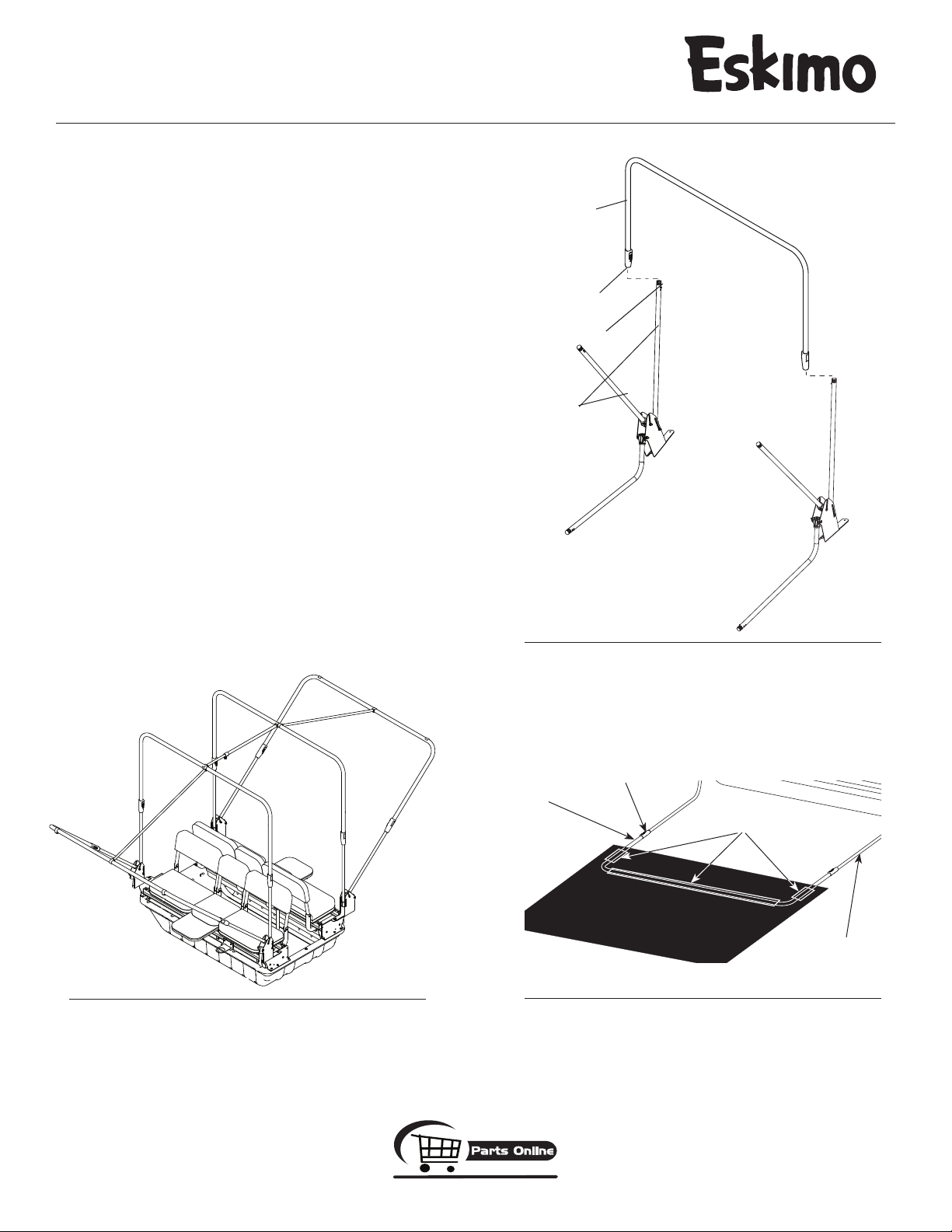

15. Insert (2) hinge upright poles from each hinge into (4) cross brace poles

(68117). Making sure the lever side of large, red QRS pole clip is inline with the push button of hinge poles, push the snap buttons inward to allow cross brace pole to go over hinge poles. Snap into place for the “in-use position.” SEE FIGURE 5.

NOTE: If cross brace poles are not assembled correctly, added

tension will be applied to the fabric skin.

16. Attach (2) top roof spreader poles (68035) and the adjustable length

center roof spreader pole between the assembled cross brace poles by snapping C-clip over cross brace poles.SEE FIGURE 6. The shelter should be stable enough to drape the shelter skin over the shelter sled in the next step.

17. Unfold skin and locate the Eskimo Eskape 400 logo near the zippered

doors, which are the ends of the shelter. Drape the skin over the partially erected frame and position it the best you can. Locate the (3) fabric sleeves sewn to the bottom seam on both ends of shelter. Slide each remaining cross brace pole through the (3) fabric sleeves. Insert (1) hinge “J” pole from each hinge into the bottom cross brace poles. Making sure the lever side of large, red QRS pole clip is inline with the snap button of hinge poles, push the snap buttons inward to allow cross brace pole to go over “J” poles. Snap into place for the “in-use position.” SEE FIGURE

18. Assemble the two sets of door spreader poles (68046 & 68148) by sliding

male half into the female half and snapping in place with snap button.

SEE FIGURES 8.

cross brace poles

red QRS pole clips

snap buttons

upright poles

FIGURE 6

bottom cross brace pole

FIGURE 5

snap button

(3) fabric sleeves

hinge “J” poles

FIGURE 7

1-800-345-6007

Page 7

Page 8

GetEskimo.com

HIGH PERFORMANCE ICE FISHING GEAR

Eskape™ 400 Hardwater Series (69164)

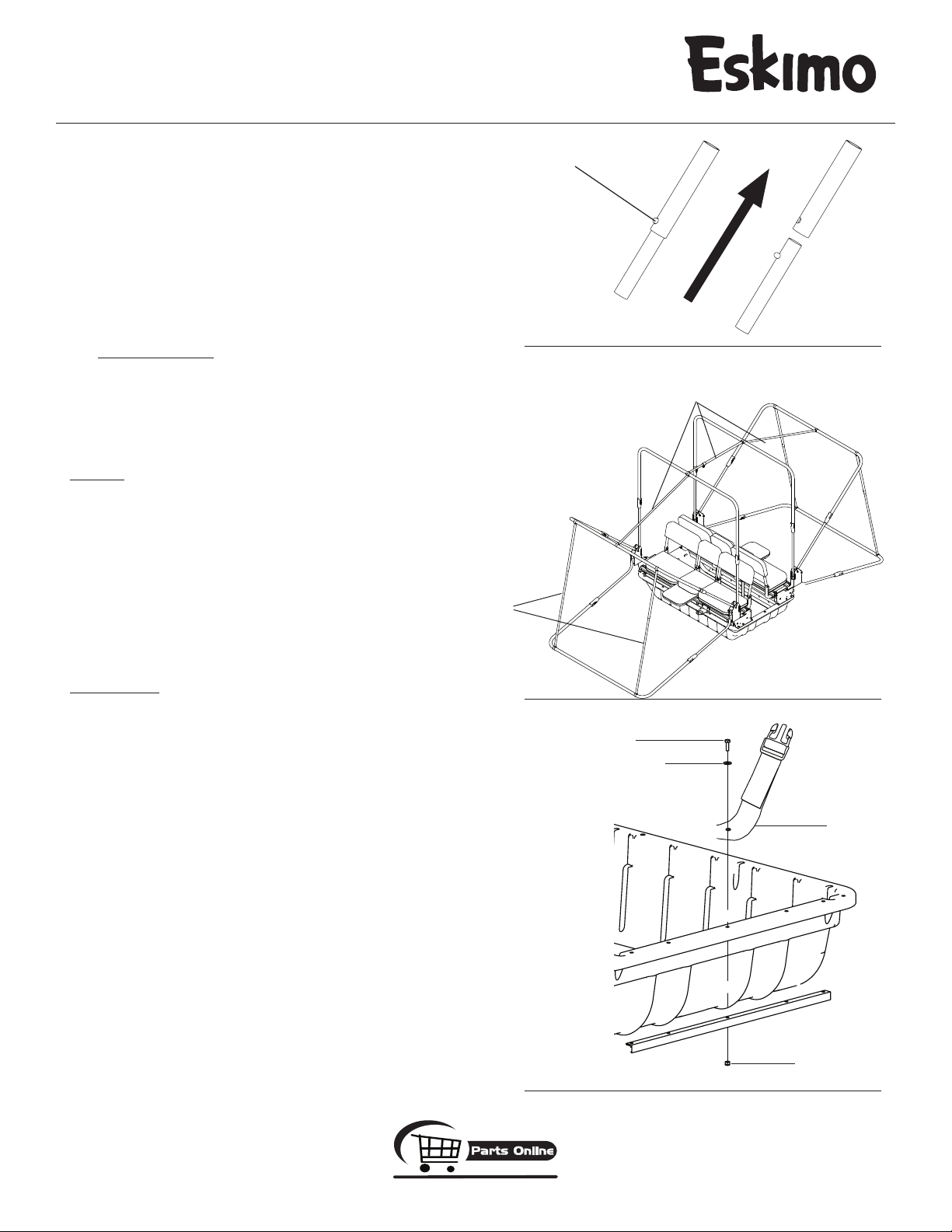

19. Unzip doors and move to the inside of shelter. Attach all door spreader

poles into position by snapping C-clip over cross brace poles. Attach all Velcro loops to cross brace poles. SEE FIGURE 9.

20. Attach the short strap/buckle that is sewn to the wall of skin to the sled

lip and support strap using (2) provided 1/4-20 x1” hex head bolts, nyloc nuts and washers. SEE FIGURE 10. Tighten securely.

21. Push ends of 8’ tow rope through hitch tab or holes provided at the

front of sled and knot each end to secure. This tow rope is designed for manual pulling by hand only. Do not tow behind a motorized vehicle with rope. For high speed towing, you should purchase the Eskimo Tow Hitch accessory.

IMPORTANT NOTE: If purchasing a tow hitch for your Eskimo ice

shelter, it is highly recommended that you also purchase a high speed tracking kit to help extend the life of your sled and prevent unnecessary damage. Failure to do so may result in voiding of your

warranty.

SET-UP & USE INSTRUCTIONS

SET-UP:

1. From the outside of shelter, pull out all cross brace poles and snap into

place. As you pull out each cross brace pole and snap into place, ﬂip all cross braces over to the in use position.

2. Secure all spreader poles in between all cross brace poles by snapping

C-clips over cross brace poles. The center roof spreader pole is adjustable, so you can apply the proper amount of tension to the poles and skin. Tighten thumb screw at desired location.

3. Snap the two side release buckles together located on each end of the

sled. This will securely attach the long sides of the skin to the sled. Pull straps tight to apply the correct amount of tension.

TAKE-DOWN:

1. Remove all spreader poles and place in bottom of sled.

2. Detach all Velcro straps on the two center (vertical) cross brace poles.

These Velcro straps all say “Detach Before Collapsing Shelter”

3. Unbuckle the two side release buckles so the skin is no longer attached

to the sled.

4. Remove backrest pads from one seat kit only, it does not matter which

side.

5. Close all window covers, vent covers and zip doors shut.

6. Press the QRS pole clips in and retract all cross brace poles to their

shortest length. Starting with the inner most cross brace poles, ﬂip all poles back into the transport position by using FIGURES 11A and 11B as a guide line for the proper alternating sequence. The sequence must start with the inner most cross brace pole that is on the opposite side of the seat kit that you removed the backrest pads from because this will allow for that cross brace pole to lay ﬂat against the opposite side seat kit. Use extreme caution when ﬂipping poles for transport position and make sure no part of the skin gets pinched, caught or stuck between any poles or in any pinch points. Fold excess skin inside sled when complete.

NOTE: THIS STEP IS EXTREMELY IMPORTANT TO DETER FROM

DAMAGING POLES AND SKIN! Use extreme caution so you don’t rip or tear any portion of the skin, especially around the hinges or any pinch point areas.

snap button snapped in place

FIGURE 8

spreader poles

door spreader poles

FIGURE 9

(2) 1/4”-20” x 1” bolts

(2) 1/4” washers

short strap/buckle from skin

(2) 1/4” x 20” nuts

FIGURE 10

Page 8

1-800-345-6007

Page 9

HIGH PERFORMANCE ICE FISHING GEAR

GetEskimo.com

Eskape™ 400 Hardwater Series (69164)

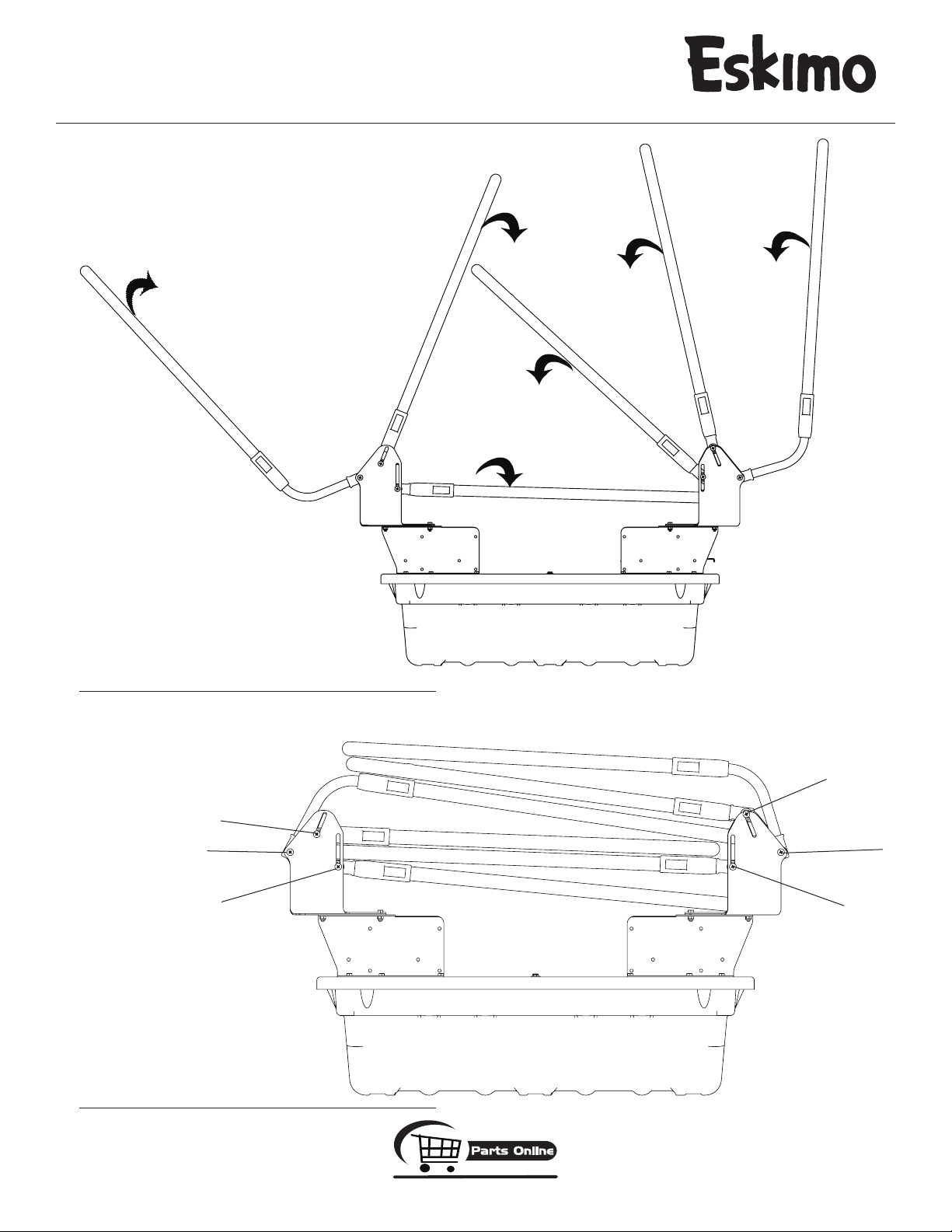

FIGURE 11A

FIGURE 11B

1-800-345-6007

Page 9

Page 10

GetEskimo.com

HIGH PERFORMANCE ICE FISHING GEAR

Eskape™ 400 Hardwater Series (69164)

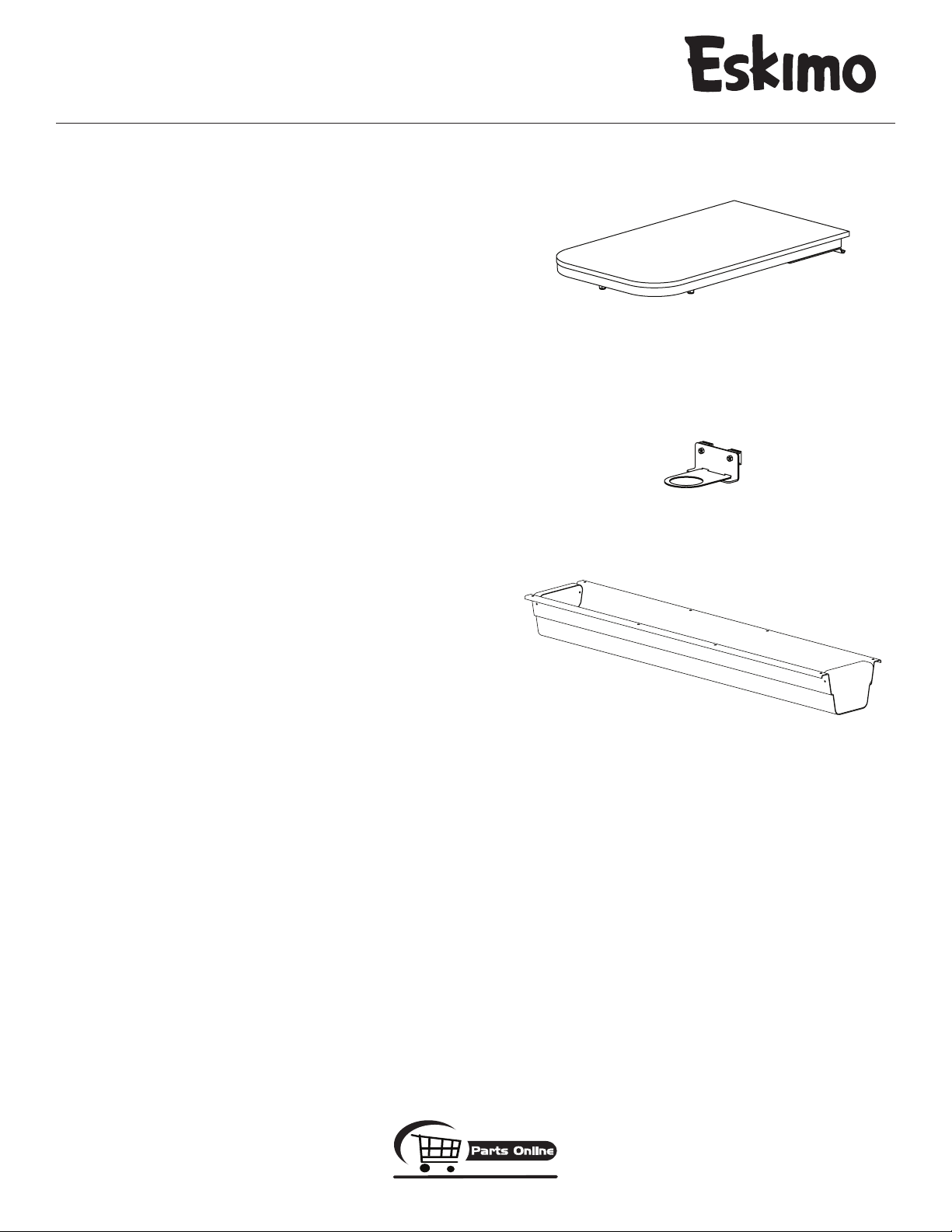

STANDARD ACCESSORIES

REMOVABLE GEAR TABLE

This gear table is designed to lock into the curled lip of the rear aluminum bench seat rail. It works just like the ﬂip up seats, as you can ﬂip the table up and access gear underneath. Most anglers will remove the center seat and put the table in so it is accessible to two anglers at once, however, the table can certainly be positioned anywhere along the bench seat rail, even to one end against the side of the shelter if desired. Simply remove one of the seats from the aluminum bench seat rail and replace it with the table. The table should always be removed during transport so it does not get damaged and so a travel cover accessory can snugly ﬁt over the shelter for transport.

REMOVABLE ROD HOLDER

Depending on which model you have, your shelter has come standard with at least one rod holder assembly. This is designed to ﬁt in the T-slot portion of the front aluminum bench seat rail. With the builtin plastic slides, the rod holder can easily be positioned anywhere along the bench seat rail. The round hole design allows you to set your rod and any position desired. By turning your rod in the hole and by sliding the assembly in the seat rail, you will be able to ﬁnd your most desired position. Rod holder(s) should always be removed during transport so the do not get damaged and so a travel cover accessory can snugly ﬁt over the shelter for transport. Simply unhook the plate from the mount. The mount can stay in the bench seat rail.

STORAGE TRAY

The exclusive built-in storage tray runs the entire length of the bench seat so you have ample storage of rods, bait, beverages, the removable rod holders and more. It’s left open for you to customize to your liking. If you want to add foam blocks, or partitions, it can easily be done yourself so you can customize it just the way you want. The durable design will protect your small gear from the large gear you may be storing in the ice shelter sled like buckets or ice augers.

LONG TERM STORAGE

• Always make sure your ice shelter is completely dry before storing for long periods of time. Storing your ice shelter when damp or wet may cause mold and mildew damage.

• Remove skin, padded seats and padded backrests from ice shelter sled and poles. Clean all salt, moisture and debris from your shelter skin.

• Store skin, padded seats and padded backrests in a cool, dry place away from rodents.

• Clean all salt, moisture and debris from the sled and poles of your shelter. Wipe down poles with WD-40 or similar types of silicon to deter from corrosion.

NOTE: Before attaching skin for use, re-wipe the poles to re-

move excess WD-40 or silicon substance to deter from damage to your skin.

• Store poles and sled in a cool, dry place.

gear table

rod holder

storage tray

Page 10

1-800-345-6007

Page 11

HIGH PERFORMANCE ICE FISHING GEAR

GetEskimo.com

23, 27

2 5

Eskape™ 400 Hardwater Series (69164)

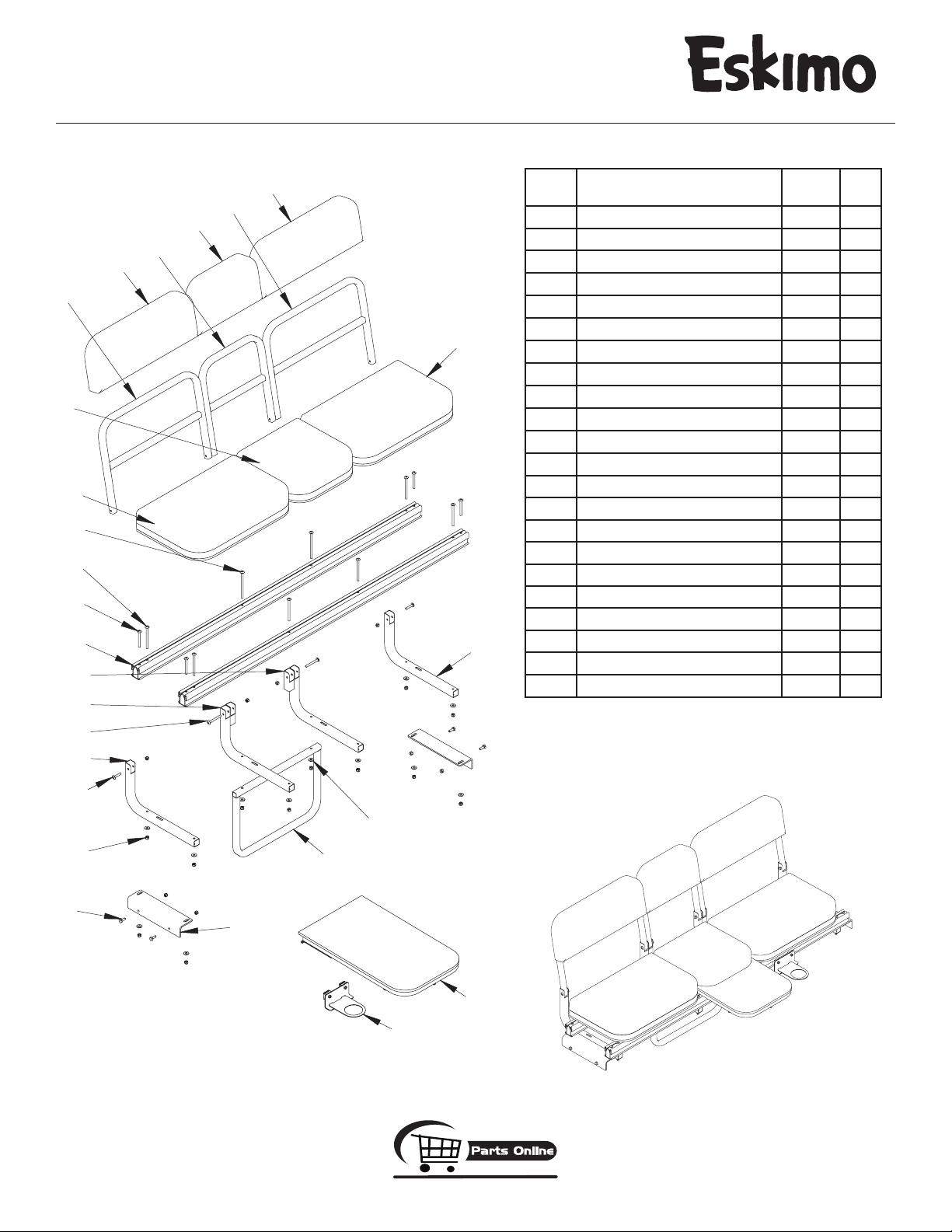

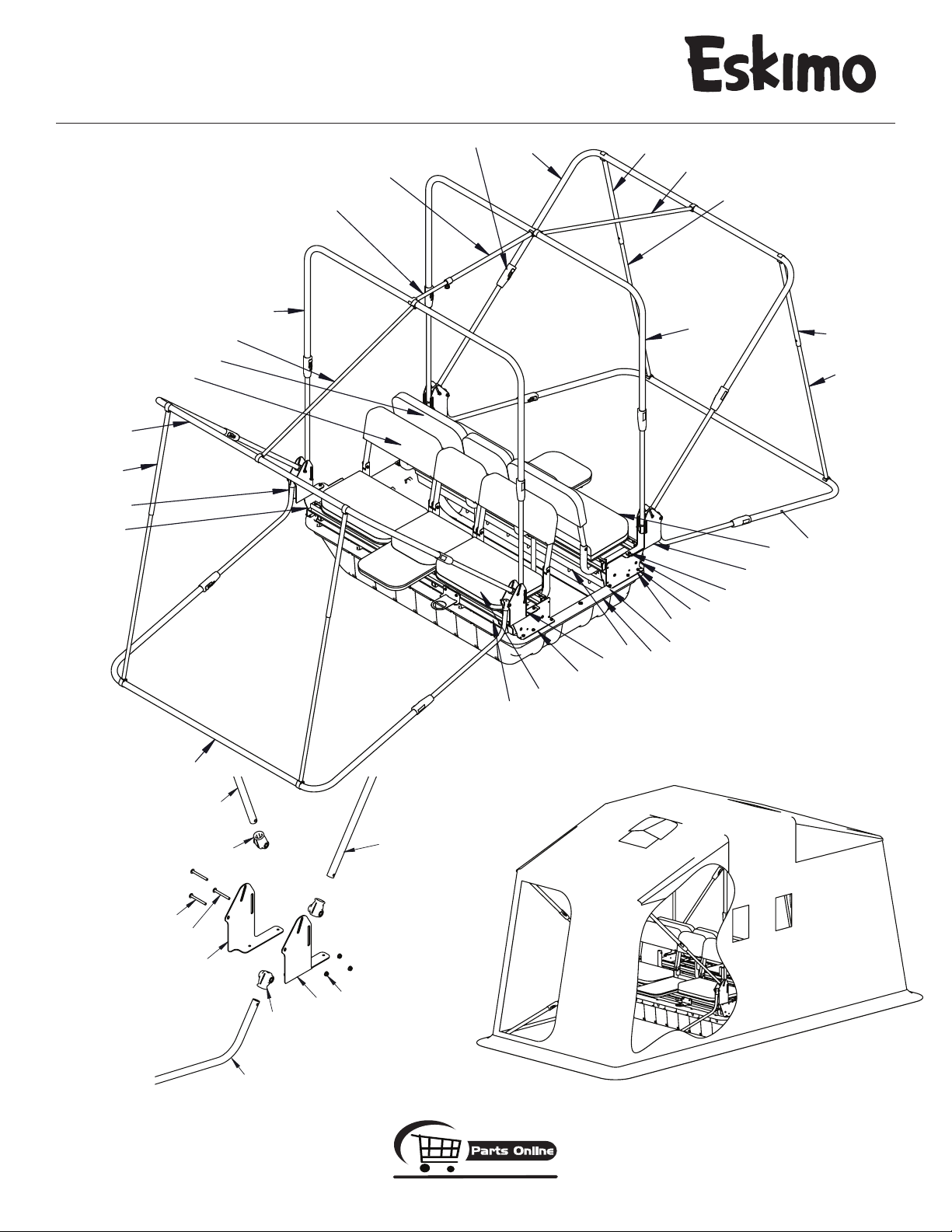

ESKAPE 400 PARTS

1-800-345-6007

Eskape 400 assembledEskape 400 hinge assembly

Page 11

Page 12

GetEskimo.com

HIGH PERFORMANCE ICE FISHING GEAR

Eskape™ 400 Hardwater Series (69164)

PARTS LISTS

REF.

NO. DESCRIPTION PART NO. QTY.

1 BOLT, 1/4-20 X 3/4” HH GR5 8930 8

2 WASHER, 1/4” 48261B 6

3 POLE ASSEMBLY, 45.75” SPREADER (INCLUDES TWO .706” LARGE CLIPS) 68035 2

4 POLE ASSEMBLY, SPREADER FEMALE 22.16” (INCLUDES ONE .875” LARGE CLIPS) 68046 4

5 NUT, 1/4-20 HNYLK ZN 67538 22

6 BOLT 1/4-20 X 1” HHCS GR5 ZN 69345 14

7 RISER, HINGE LEFT 68052 2

8 RISER, HINGE RIGHT 68053 2

9 POLE ASSEMBLY, CROSS BRACE WITH PLASTIC E400 68134 6

10 HINGE ASSEMBLY, RIGHT HAND 68145 2

11 HINGE ASEMBLY, LEFT SIDE 68146 2

12 POLE ASSEMBLY, SPREADER MALE 38.59” (INCLUDES ONE .706” LARGE CLIP) 68148 4

13 BOX, ROD HOLDER 68159 2

14 SUPPORT, TUB 68161 2

15 POLE ASSEMBLY, SPREADER FEMALE 22 1/8” (INCLUDES ONE .875” LARGE CLIP AND

THUMB SCREW)

16 POLE ASSEMBLY, SPREADER MALE 23 5/8” (INCLUDES ONE .706” LARGE CLIP) 68165 1

17 SLED 69190 1

18 SEAT KIT-SEE SEAT KIT PARTS BREAKDOWN 69299 2

19 NUT, 1/4-20 TOP LOCK FLANGED BLK 48752B 12

20 BOLT 1/4-20 X 2-1/2” PHILLIPS TRUSS HD 67430 12

21 POLE ASSEMBLY, UPRIGHT 28.75” 68029 8

22 RIGHT HINGE, DOUBLE SIDED HOLE 68051 4

23 POLE ASSEMBLY, J-POLE 27 7/8” RIGHT 68059 2

24 CAP, POCKET POLE HINGE 68060 12

25 LEFT HINGE, DOUBLE SIDED HOLE 68076 4

26 CLIP, QRS POLE 68061 12

27 LEFT HINGE, DOUBLE SIDED HOLE 68067 2

ITEMS BELOW NOT SHOWN

- CAP END, ROD HOLDER BOX 68156 2

- SCREW, 10-32 X 1/4” PAN HD 68136 16

- CLIP, LARGE .875” 68064 5

- CLIP, LARGE .706” 68063 9

- TOW ROPE 67589 1

- SHELTER SKIN, RED 68022 1

- WINDOW REPLACEMENT, 8” X 12” 69531 4

- WINDOW REPLACEMENT, 13.5” X 13.5” 69534 4

REPAIR PARTS

- PATCH KIT, RED 69742 -

68167 1

Page 12

1-800-345-6007

Page 13

HIGH PERFORMANCE ICE FISHING GEAR

GetEskimo.com

Eskape™ 400 Hardwater Series (69164)

ESKAPE 400 SEAT PARTS

REF.

NO. DESCRIPTION

1 BOLT 1/4-20 X 3/4” HH GR5 8930 4

2 WASHER 1/4” 48261 12

3 BOLT, 1/4-20 X 1-1/4” PTH GR2 67400 2

4 BOLT 1/4-20 X 3-1/2” PTH GR5 67402 6

5 BOLT 1/4-20 X 4-1/4” PTH GR5 67403 2

6 BOLT 1/4-20 X 2-1/2” PTH GR5 67430 4

7 NUT 1/4-20 HEX NYLOC 67538 20

8 SEAT ASSEMBLY, 12” RED 68004 1

9 BACKREST PAD, 12” RED 68008 1

10 SEAT BRACE WELDMENT 68024 1

11 SEAT ASSEMBLY, 19” RED 68153 2

12 BACKREST PAD, 19” RED 68154 2

13 RAIL, BENCH SEAT 68301 2

14 BRACKET, SEAT MOUNT 68304 2

15 BRACKET, BACKREST LEFT 68310 1

16 BRACKET, BACKREST OUTER 68322 2

17 BRACKET, BACKREST RIGHT 68323 1

18 BACKREST WELDMENT, 19” 68342 2

19 BACKREST WELDMENT, 12” 68345 1

20 TABLE 68447 1

21 ROD HOLDER ASSEMBLY 68449 1

22 BOLT 1/4-20 X 2-1/4” PTH GR5 69279 2

PART

NO. QTY.

1-800-345-6007

Page 13

Page 14

GetEskimo.com

HIGH PERFORMANCE ICE FISHING GEAR

Eskape™ 400 Hardwater Series (69164)

Frequently Asked Questions

• How can I keep mice and other rodents from damaging my ice shelter?

During the off season, you should always remove your ice shelter skin, padded seats and padded backrests from the sled and

poles and make sure it is dry. Fold it up and store in a large plastic container with lid and store in a cool, dry place. The use of moth balls or dryer sheets may be helpful also.

• My poles are noisy and don’t run as smooth as they did originally. Is there a ﬁx?

Applying WD-40 or a similar type of silicon spray works well for lubricating the poles for easier operation and also deters from

corrosion. You should do this maintenance at least seasonal, especially before storing for long term periods. Wipe off excess lu bricant so it does not damage your ice shelter skin. Using a rod with a cloth attached to the end of it, apply the WD-40 or silicon lubricant to the rag and wipe the inside of the large poles so they have a lubricated surface for the hinge poles to slide on.

• My zipper functions roughly or freezes up from snow/ice. How can I ﬁx this?

You can try a silicon spray to help lubricate it, or purchase an actual Zipper Lube brand lubricant found in many sporting goods

stores, in the camping section. Either way, use with caution and wipe off excess lubricant so it does not damage your ice shelter skin.

• For attaching the edge trim to my skin and sled, do I actually drill holes through the skin?

Yes, this is the best way to make a seal between the skin and sled. It also keeps the edge trim securely in place and will not fall off

during transport. If you remove the skin from the poles and sled during the off season, the skin will go back on the same way and you should be able to use the same holes for the screws as you did the previous season.

• The edge trim is hard to put on the sled lip, is there a secret?

You should apply the edge trim to the sled lip at room temperature which makes it more pliable. The use of a rubber mallet will help

too.

• Why are my windows turning cloudy when they get wet?

Sometimes if your windows get extremely wet, the moisture can penetrate the windows which gives them a cloudy appearance.

This can easily be remedied by removing the windows and bringing them into a warm environment (indoors) and letting the moisture retreat from the window which will clear them back up to the original appearance.

• I have a tear in my skin, how do I repair it?

You can call or e-mail us to purchase a patch kit which consists of a 12” x 12” piece of skin material and an adhesive to apply the

patch to the tear area. This should be done at room temperature to assure proper adhesion. Allow at least 24 hours for the adhesive to set and assure proper adhesion.

• My shelter lets some water come through it, how can I remedy that?

You may purchase a seam sealer or silicon spray to help seal the seams to help repel water, such as Camp Dry which can be found

in many sporting goods stores, in the camping section. See Important Safety Precautions on page 3. Eskimo ice shelters are not water proof.

• I can see small pin holes in my shelter skin, why?

The coating on the inside of shelter skin is done to help darken the interior. The pin holes are either the coating wearing off the

fabric from normal exposure to the elements or from normal wear and tear. This will not affect the performance of the ice shelter in any way and is normal.

• I can see cracks on the inside of my shelter skin, why?

This is also normal due to exposure to the elements and normal wear and tear. When you fold your shelter for transport, lines and

creases develop in the fabric. This will not affect the performance of the ice shelter in any way.

• Will my ice shelter leak from the small pin holes in skin?

Many variables can come into play. It depends on the outside air temperature, the air temperature inside the shelter, how much heat

you are using inside shelter, etc. Some leaking could occur due to condensation, but that is normal. This can be controlled better by using the numerous air vents, windows and doors that are on your shelter.

• Do I have to have a tracking kit to tow my ice shelter?

For high speed towing behind a snowmobile or ATV, we highly recommend you purchase a high speed tracking kit so you do not

cause unnecessary or premature damage to your ice shelter sled. If you are only going to pull your ice shelter by hand, a high speed tracking kit is not necessary, but does make it easier to pull.

• Can I wash my ice shelter skin?

You can use a mild bleach and water solution to get rid of mold or mildew. If you just want to wash your skin, you can use a mild

soap and water mixture. Do not machine wash your skin.

Page 14

1-800-345-6007

Page 15

HIGH PERFORMANCE ICE FISHING GEAR

GetEskimo.com

Eskape™ 400 Hardwater Series (69164)

WARRANTY

ONE YEAR LIMITED WARRANTY

Ardisam, Inc., a manufacturing company, warrants this Eskimo Ice Shelter to be free from defects in the material or workmanship for a period of one year from the date of purchase. During the one year warranty of this product, Ardisam will furnish 100% parts and labor to correct any defect caused by faulty material or workmanship. The warranty does not cover cracked windows, tent tears, or bent poles due to high wind conditions or unattended use. Warranty work must be sent directly to Ardisam, Inc. or to an authorized service center. To obtain warranty service and/or replacement instructions, you must

have prior approval before shipping package by calling our customer service department at 1-800-345-6007 for a return material authorization number (RMA#). All items must be shipped prepaid. Ardisam, Inc. will at no charge, repair

or replace, at their discretion, any defective part which falls under the conditions stated above. Ardisam retains the right to change models, speciﬁcations and price without notice. This product if used as intended, will give you years of trouble free service. We hope you will enjoy the quality of our products for years to come. For replacement parts, phone 1-800-345-

6007 or go online to GetEskimo.com.

This warranty applies to the original owner with a proof of purchase and is not transferable. It supersedes all other warranties either expressed or implied and all other obligations to liabilities on our part. Ardisam, Inc. does not assume, and does not authorize any other person to assume for us, any liability in connection with the sale of our products. The warranty applies only to products which have not been subjected to negligent use, misuse, alteration, accident or repairs made by anyone not certiﬁed by Ardisam, Inc. This guarantee is void unless the warranty card is properly ﬁlled out and received by Ardisam, Inc., within 30 days of purchase.

Eskimo, A Division of Ardisam, Inc.

1360 First Avenue; P.O. Box 666

Cumberland, Wisconsin 54829

1-800-345-6007 · Fax (715) 822-4180

E-mail: [email protected]

1-800-345-6007

Page 15

Page 16

GetEskimo.com

ACCESSORY CHART

ITEM # DESCRIPTION MSRP*

69195 High Speed Tracking Kit, Eskape 400 $59.99

69174 Travel Cover, Eskape 400 $69.99

69106 Tow Hitch, Eskape 400 $49.99

* Prices shown do not include shipping & handling charges.

All prices are subject to change without notice. When ordering from manufacturer, there is a $10.00 minimum order.

For replacement parts, phone 1-800-345-6007 or

go online to www.GetEskimo.com

Visit www.ardisam.com and discover more innovations

that will beneﬁt you throughout the year.

Eskimo, Division of Ardisam, Inc.

1360 First Avenue; P.O. Box 666

Cumberland, Wisconsin 54829

1-800-345-6007 · Fax (715) 822-4180

E-mail: [email protected]
