Page 1
Operator's Manual
GAS/OIL
RATIO
50:1
Original Operating Instructions
QuickFlip™ 1
Flip-Style Sled Shelter
Get parts online at
www.GetEskimo.com
15448
ECN # 9755
Rev. 1 06/14/2013
© Copyright 2013 Ardisam, Inc.
All Rights Reserved.
Page 2
Operator's Manual
ESKIMO® QuickFlip™ 1
INTRODUCTION
Eskimo® Ice Shelters are engineered with the ice sherman in mind. We make quality and durability our priority, and we appreciate your purchase of one of our ice shelters. Follow these simple instructions and your ice shelter will provide you many years of
trouble-free pleasure. If for any reason you have a problem with your product, DO NOT return to the retailer, contact the Eskimo®
customer service department at 1-800-345-6007 or by email at [email protected] for assistance. Congratulations on your
investment in quality. Save these instructions for future reference. Ardisam, Inc reserves the right to change or alter this manual
without notice.
CONTENTS
Introduction ....................................................................................................................................................................................................................................... 2
Registration ........................................................................................................................................................................................................................................2
Important Safety Precautions ...................................................................................................................................................................................................... 3
Assembly ......................................................................................................................................................................................................................................... 4-6
Wind Break Position .........................................................................................................................................................................................................................6
Long-Term Storage ..........................................................................................................................................................................................................................6
Bolt Identication Chart .................................................................................................................................................................................................................6

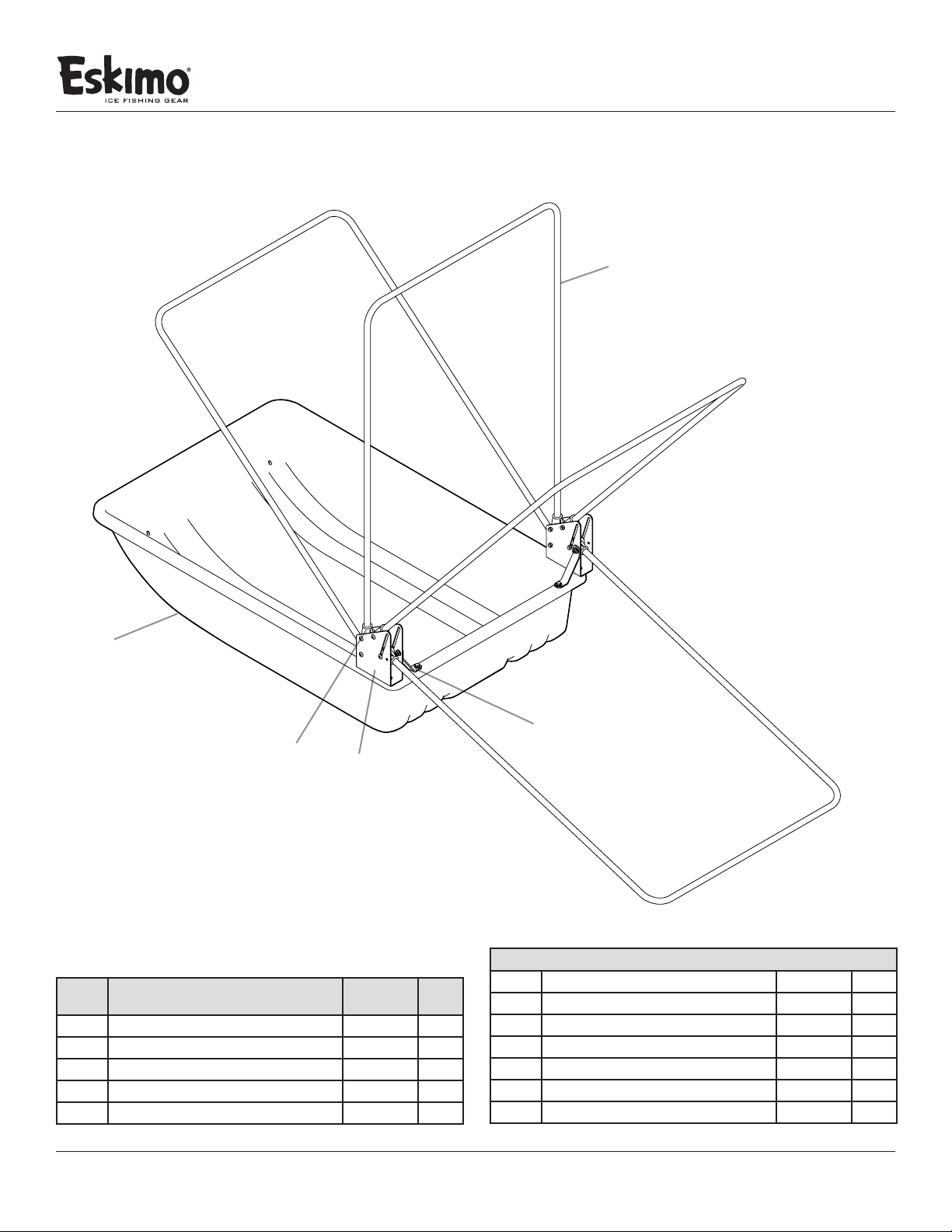

Parts .......................................................................................................................................................................................................................................................7
Warranty ..............................................................................................................................................................................................................................................8
REGISTRATION AND SERVICE
Record the product model number and serial number in the space provided for easy reference when ordering parts or requesting
technical support. You can register your warranty online by visiting www.geteskimo.com, or by mailing it to: Ardisam, Inc., 1160
Eighth Avenue, Cumberland, WI 54829. For service questions, call our customer service department at (800) 345-6007 Mondays
through Fridays from 8 a.m. to 5 p.m. CT. Warranty is valid only if the completed registration card is received by Ardisam, Inc. within
30 days of purchase.
OWNERSHIP RECORDS
Place of Purchase:
Place of Purchase Address:
City: State/Province: Zip Code/Postal Code:
Model Number: Serial Number (found next to warning tag):
Date of Purchase:
Notes:
2
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT
Page 3
IMPORTANT SAFETY PRECAUTIONS
This shelter is made with ame resistant fabric which meets
CPAI-84 specications. It is not re proof. The fabric will burn if
left in continuous contact with any ame source. The application of any foreign substance to the shelter fabric may render
the ame resistant properties ineective.
Fuel-based heat sources burn oxygen and emit carbon monoxide
(an odorless, colorless, poison gas). Breathing carbon monoxide
can cause headaches, drowsiness, nausea, dizziness, confusion
and eventually death. Use caution with heaters. Be sure you
have adequate fresh ventilation, including open windows and
doors. All vents must be opened when using fuel-based heaters
in your shelter.
• Donotusecandles,matchesoropenamesofanykindin
or near an ice shelter.
• Donotcookinsidetheshelter.
• Exerciseextremecautionwhenusingfuel-powered
lanterns or heaters inside a tent. Use battery-operated
lanterns whenever possible.
• Donotrefuellamps,heatersorstovesinsideatent.
• Ifyouareshingandfallingasleepintermittently,turno
all lanterns and heaters.
• Donotsmokeinshelter.
Operator's Manual
ESKIMO® QuickFlip™ 1
WARNING
READ, UNDERSTAND AND FOLLOW ALL ASSEMBLY,
SAFETY, SETUP & USE INSTRUCTIONS PROVIDED
BEFORE USE. FAILURE TO FOLLOW ALL WARNINGS
AND INSTRUCTIONS COULD RESULT IN SERIOUS IN
JURY OR DEATH.
DO NOT USE OPEN FLAME HEATERS IN YOUR ICE
SHELTER.
WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY
FROM THIS TENT FABRIC. THIS TENT IS MADE WITH FAB
RIC THAT MEETS CPAI84 SPECIFICATIONS FOR FLAME RE
SISTANCE. IT IS NOT FIRE PROOF. THE FABRIC WILL BURN
IF LEFT IN CONTINUOUS CONTACT WITH ANY FLAME
SOURCE.
DUE TO TRAFFIC ON LAKES, ICE FISHING CAN BE
HAZARDOUS AT NIGHT. IF YOU CHOOSE TO FISH AT
NIGHT OR IN CONDITIONS WITH POOR VISIBILITY, BE
SURE TO TAKE PRECAUTIONS.
NEVER LEAVE THE ICE SHELTER UNATTENDED.
SECURELY ANCHOR THE ICE SHELTER TO THE ICE IN
HIGH WIND CONDITIONS.
• Donotstoreammableliquidsinsideoftheshelter
.
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT
3
Page 4
ASSEMBLY INSTRUCTIONS
Tools needed – (2) 7/16” wrenches, a Phillips head screwdriver,
rubber mallet (optional), and a cordless drill (optional).
Operator's Manual
ESKIMO® QuickFlip™ 1
¼-20 X 3/4” bolt
hinge
Assembly Note: This ice shelter should be assembled in a
garage or basement setting due to the time and length of
assembly. Identify and familiarize yourself with all parts
and hardware before assembly. Allow 1-3 hours for assembly.
Assembly Note: The use of a cordless drill with socket will
make assembly of your ice shelter much quicker. Be sure to
set the drill speed on low so you do not over tighten any nut
and bolt combination.
Assembly Note: If a tracking kit is purchased with the
shelter it should be mounted to the sled before assembly
of the ice shelter for convenience.
Important Assembly Tip: Do NOT fully tighten any nut and
bolt combination until instructed in later notes. This will
help hole alignment of all parts.

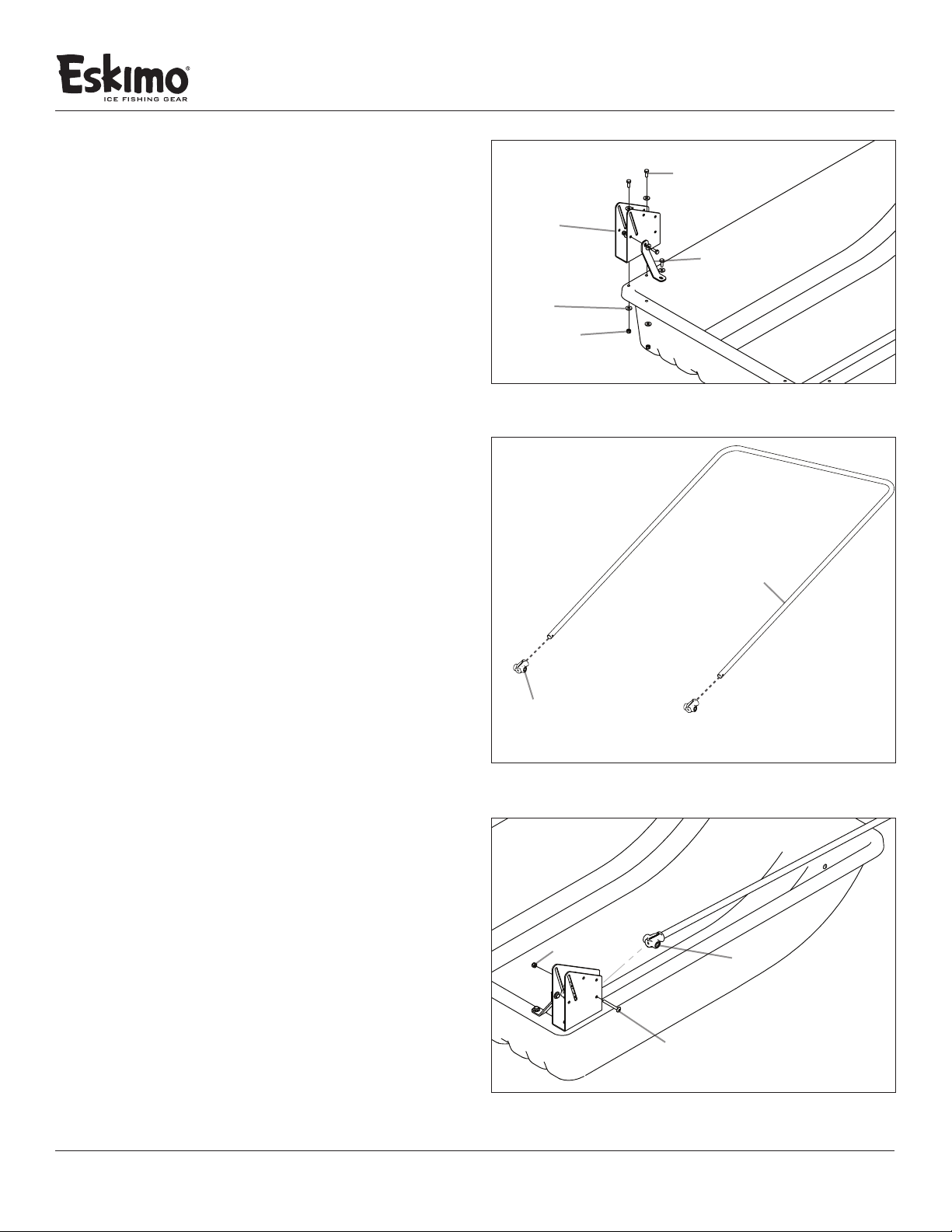

1. Attach the Hinge (15062) to the upper lip of the tub using (2)
¼-20 X 3/4” bolts, (4) ¼” washers and (2) ¼-20 nylock nuts.
Repeat this step on the opposite side. SEE FIGURE 1
2. Attach the (1) hinge support brace (11203) to the hinge(15062)
using (2) ¼-20 x 3/4” bolts, (4) ¼” washers, and (2) ¼-20 nylock
nuts. Repeat this step on the opposite side. SEE FIGURE 1
Note: If the hole alignment is o or looks too far apart,
rotate the hinge support brace and try again. This part will
only bolt on one way.
hinge support brace
¼” washer
¼-20 nylock nut
FIGURE 1
frame support pole
pole cap
3. Tighten all hardware used to complete this portion of
assembly instructions.
4. Locate the (8) pole caps (15295) from the parts bag. Using
(6) of the pole caps, slide one pole cap on to each end of (3)
frame support poles (15017). The holes in the frame support
poles must line up with the holes in the pole caps. SEE
FIGURE 2
Note: The (2) additional red pole caps will be used for a later
step. A rubber mallet may be helpful for this step.
5. Starting with the hole #1 on each of the (2) hinges (15062),
attach the (3) frame support poles (15017) from the previous
step, to the left and right hinges using (2) ¼-20 x 2-1/4” bolts,
and (2) ¼-20 nylock nuts. Repeat this step for hole #2 and #3
on each of the hinges. SEE FIGURE 3
4
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT
FIGURE 2
FIGURE 3
¼-20 nylock nut
#
#
3
2
#
1
#
4
pole cap
¼-20 X 2-1/4” bolt
Page 5
SHELTER SKIN INSTALLATION

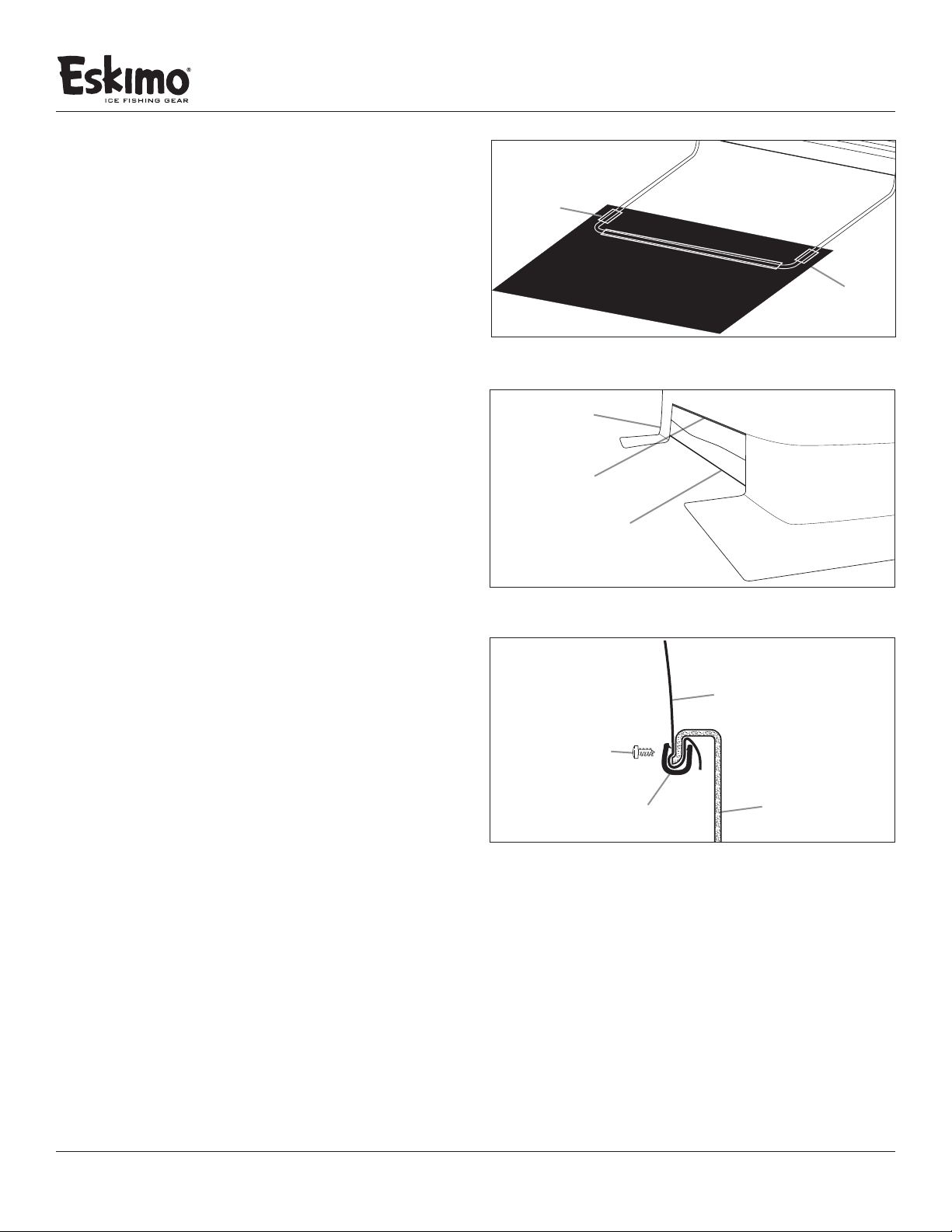

6. Unfold the skin and locate the Eskimo® logo near the zippered
door, which is in the front of the sled. With the outer part of
the shelter skin lying facing down, locate the (3) pole sleeves
on the bottom front, right side, and left side of the shelter skin.
Slide the remaining frame support pole (15017) through the
(3) pole sleeves. SEE FIGURE 4
Operator's Manual
ESKIMO® QuickFlip™ 1
fabric sleeve
7. Slide the remaining (2) pole caps (15295) onto the ends of
the frame support pole (15017) from the previous step.
8. Attach the frame support pole (15017) with the attached pole
caps (15295), from the previous step, into slot #4 on each of
the (2) hinges (15062). Use (2) ¼-20 x 2-1/4” bolts, and (2) ¼-20
nylock nuts to complete this step. REFER BACK TO FIGURE 4
9. It is now time to drape the shelter skin over the top of the
frame. Start by lifting the rear of the shelter skin over the top
of the front frame support. Make sure that you are evenly
working the shelter skin over the supports. Continue working
the shelter skin over the rest of the frame supports until the
shelter skin lies evenly over the entire shelter. SEE FIGURE 5
Note: Attaching the skin can be a difficult task and is
easiest with two people to ensure proper installation
and desired t.
10. Once the shelter skin is on the frame, move to the inside of
the shelter and attach the hook and loop retainers to the
frame supports. There will be four hook and loop retainers
per frame support.
11. After attaching all of the hook and loop retainers you are
ready to install the edge trim to the rear of the shelter. Move
to the outside of the shelter and start by identifying the edge
trim piece (69654) from the parts box. Locate the center of
the edge trim piece by folding it in half. Line up the center
of the edge trim to the best of your ability with the center of
the rear of the shelter.
12. Pull the skin taut and push the edge trim over lip of the sled
with the shelter skin between the two. It is important to keep
the skin taut and work the edge trim evenly around both sides
of the shelter until all edge trim is in place. SEE FIGURE 5
Note: When pulling the shelter skin tight, DO NOT lift the
lower frame support o the ground. Make sure all spreader
poles are properly installed before the edge trim is attached
to ensure a proper t. Using a rubber mallet may be helpful
while attaching the edge trim to the sled lip.
13. Secure the edge trim in place using the (12) #6 x 3/8” sheet
metal screws provided. A cordless drill and Phillips head bit is
recommended for this step, but is not necessary. SEE FIGURE
6
Note: Screws should be spaced evenly apart. This step does
mean you will put very small holes in your shelter skin to
keep the edge trim and skin securely attached to the sled lip.
This will in no way aect the performance of your shelter.
FIGURE 4
FIGURE 5
#6 - 3/8” screw
FIGURE 6
skirt
edge trim
sled
edge trim
skin
skin
sled
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT
5
Page 6
ADDITIONAL INSTALLATION
14. Locate the included 8 foot tow rope that was in the hardware
bag. To install the tow rope locate the two holes in the front
of the sled and push each end of the rope through a hole. Tie
a knot at each end of the rope to keep the rope from pulling
through the holes. This tow rope is designed for manual pulling by hand only. DO NOT tow behind a motorized vehicle
with rope. For high-speed towing, you should purchase the
Eskimo Universal Tow Hitch accessory (11608).

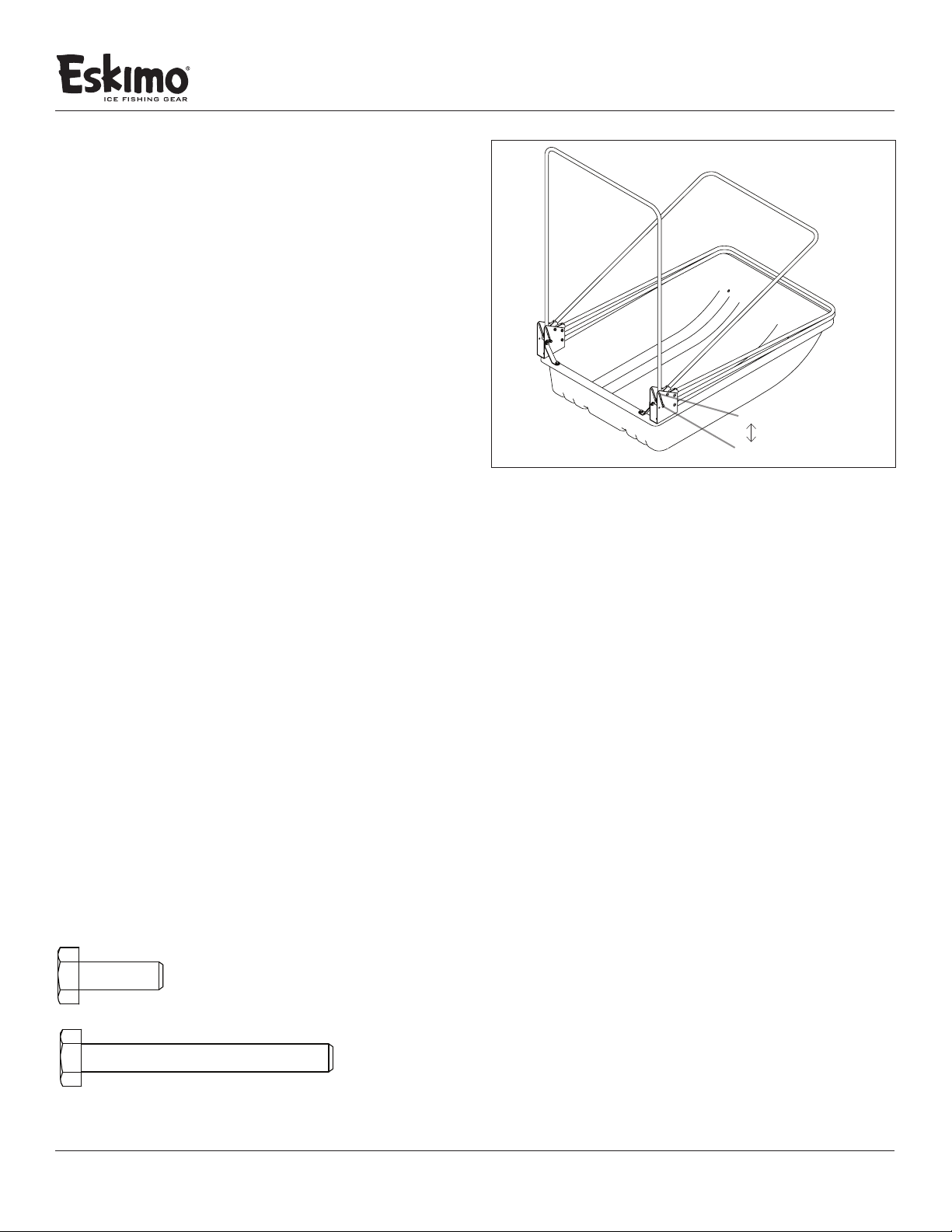

WIND BREAK POSITION
This shelter is equipped with a locking system that positions
the shelter to be used as a wind break on colder days. To
engage, ip the sheler back halfway leaving the pole at the bottom slot in the hinge. SEE FIGURE 7
Note: To disengage the wind break position, the front pole
must be lifted to the top of the hinge slot before it can fold at
to the sled.
Operator's Manual
ESKIMO® QuickFlip™ 1
open
locked
FIGURE 7
LONG-TERM STORAGE
• Alwaysmakesureyouriceshelteriscompletelydrybefore
storing for long periods of time. Storing your ice shelter
when damp or wet may cause mold and mildew damage.
• Removeskinfromicesheltersledandpoles.
• Cleanallsalt, moisture and debris from your shelter skin,
sled and poes. Wipe down poles with a wet rag.
Note: Lubricate the slide poles with a silicon spray at
least seasonally. Do not use oil or grease as a lubricant.
Note: Before attaching skin for use, spray silicon spray
inside of poles for ease of sliding.
• Store skin, poles an sled in a cool, dry place away from
rodents.
BOLT IDENTIFICATION CHART
• Not all bolt sizes shown are included with all shelters. Bolts
shown are for size reference only. Extra hardware may be
included in the parts bag.
BOLT 1/420 X 3/4” HH GR5 ZN
BOLT 1/420 X 21/4” HH GR5 ZN
6
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT
Page 7
PARTS EXPLOSIONS
QuickFlip™ 1
Operator's Manual
ESKIMO® QuickFlip™ 1
4
1
3
2
QUICKFLIP™ 1 PARTS LIST
REF.
NO. DESCRIPTION PART NO. QT Y.
SLED
1
HINGE
2
POLE CAP
3
FRAME SUPPORT POLE
4
HINGE SUPPORT STRAP
5
15502 1
15062 2
15295 8
15017 4
11203 2
5
ITEMS BELOW NOT SHOWN
WASHER 1/4” FLAT ZINC
NUT 1/420 HNYLK ZN
BOLT 1/420 X 21/4 PTH ZN
BOLT 1/420 X 3/4” HH GR5 ZN
ROPE 1/4” X 8” TWISTED BLK
SCREW 6 X 3/8” PTHA ZN
EDGE TRIM 1/4 IN CUT TO 93.5 INCH
48261 16
67538 16
69279 8
8930 8
8930 1
69629 12
69654 1
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT
7
Page 8
QUICKFLIP™ 1
Warranty Terms and Conditions
PRODUCT WARRANTY: 1YEAR LIMITED WARRANTY
Ardisam, Inc., warrants this Eskimo® QuickFlip™ 1 under a one-year limited warranty to be free from defects in materials or workmanship
or both for a period not exceeding twelve consecutive months from the date of original purchase by the rst retail consumer or
commercial end user. “Consumer use” means personal recreational use by a retail consumer. “Commercial use” or “commercial
application” means all other uses, including use for commercial, income producing or rental purposes. Once a product has experienced
commercial use, it shall thereafter be considered as a commercial use product for purposes of this warranty. This warranty does not
cover cracked windows, tent tears, or bent poles due to use in high wind, inclement weather conditions, unattended use or uses other
than those listed in the owner’s manual. This warranty applies to the original owner that provides a proof of purchase of the shelter.
The warranty is not transferable. The warranty period begins on the date of purchase by the rst retail consumer or commercial end
user, and continues for the twelve month consecutive period thereafter. Any unit used in a commercial application is covered for
a period of 90 days after purchase. For the warranty to be valid, the product must be registered online at www.GetEskimo.com, or
the warranty card must be lled out and received by Ardisam, Inc., within 30 days of purchase. Ardisam, Inc. shall not be obligated
to ship any repair or replacement product to any location outside of the United States of America or Canada.
For replacement parts, phone 800-345-6007 or go online to www.geteskimo.com.
*This warranty applies only to products which have not been subjected to negligent use, misuse, uses other than those indicated in the
product’s owner’s manual, alteration, accident, use of unauthorized parts, failure to perform periodic maintenance as specied in product’s
owner’s manual, normal wear and tear, use of unauthorized parts or repairs performed at non-authorized service centers. There is no other
expressed warranty. Implied warranties, including those of merchantability and tness for a particular purpose, are limited to one year from
purchase, or to the extent permitted by law. All other implied warranties are excluded. Liability for incidental or consequential damages
are excluded to the extent exclusion is permitted by law. Ardisam, Inc. does not assume, and does not authorize any other person to assume
for us, any liability in connection with the sale of our products. To obtain warranty service, you must have prior approval by calling our
customer service department at 1-800-345-6007. If you choose to ship your product to Ardisam for warranty repair, you must rst have
prior approval from Ardisam by calling our customer service department for a return material authorization number (RMA#). Under these
circumstances, all items must be shipped prepaid. Ardisam will at no charge, repair or replace, at their discretion, any defective part which
satises all conditions stated above. Ardisam retains the right to change models, specications and price without notice. Ardisam, Inc. shall
not be obligated to ship any repair or replacement product to any location outside of the United States of America or Canada.
Eskimo®, Division of Ardisam, Inc.
1160 8th Avenue, PO Box 666
Cumberland, WI 54829
800-345-6007 | Fax 715-822-2223
Email: [email protected]
All weights, specications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Items used for props not
included. Some assembly may be required.
Check for parts online at www.geteskimo.com or call 800-345-6007 M-F 8-5
Loading...
