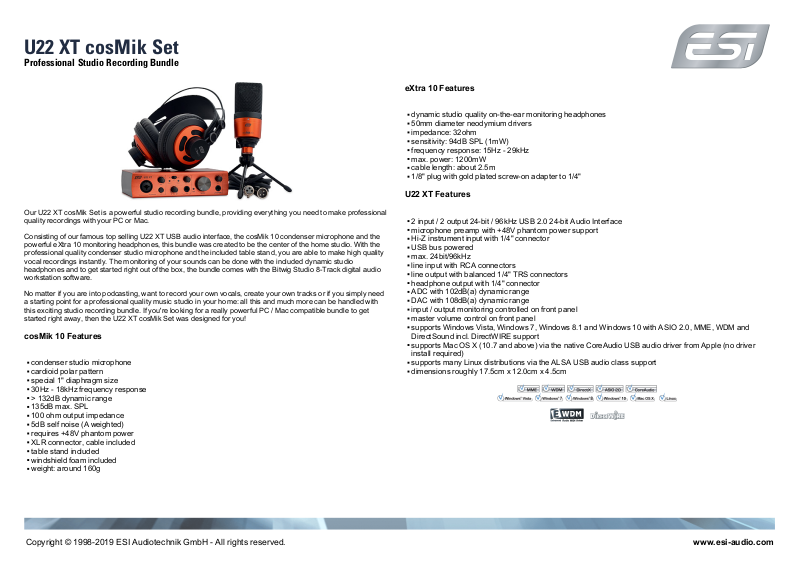

ESI U22 XT cosMik Set Specification

Our U22 XT cosMik Set is a powerful studio recording bundle, providing everything you need to make professional
quality recordings with your PC or Mac.

Consisting of our famous top selling U22 XT USB audio interface, the cosMik 10 condenser microphone and the
powerful eXtra 10 monitoring headphones, this bundle was created to be the center of the home studio. With the
professional quality condenser studio microphone and the included table stand, you are able to make high quality
vocal recordings instantly. The monitoring of your sounds can be done with the included dynamic studio
headphones and to get started right out of the box, the bundle comes with the Bitwig Studio 8-Track digital audio
workstation software.

No matter if you are into podcasting, want to record your own vocals, create your own tracks or if you simply need
a starting point for a professional quality music studio in your home: all this and much more can be handled with
this exciting studio recording bundle. If you're looking for a really powerful PC / Mac compatible bundle to get
started right away, then the U22 XT cosMik Set was designed for you!

cosMik 10 Features

condenser studio microphone
cardioid polar pattern
special 1" diaphragm size
30Hz - 18kHz frequency response
> 132dB dynamic range
135dB max. SPL
100 ohm output impedance
5dB self noise (A weighted)
requires +48V phantom power
XLR connector, cable included
table stand included
windshield foam included
weight: around 160g

eXtra 10 Features

dynamic studio quality on-the-ear monitoring headphones
50mm diameter neodymium drivers
impedance: 32ohm
sensitivity: 94dB SPL (1mW)
frequency response: 15Hz - 29kHz
max. power: 1200mW
cable length: about 2.5m
1/8" plug with gold plated screw-on adapter to 1/4"

U22 XT Features

2 input / 2 output 24-bit / 96kHz USB 2.0 24-bit Audio Interface
microphone preamp with +48V phantom power support
Hi-Z instrument input with 1/4" connector
USB bus powered
max. 24bit/96kHz
line input with RCA connectors
line output with balanced 1/4" TRS connectors
headphone output with 1/4" connector
ADC with 102dB(a) dynamic range
DAC with 108dB(a) dynamic range
input / output monitoring controlled on front panel
master volume control on front panel
supports Windows Vista, Windows 7, Windows 8.1 and Windows 10 with ASIO 2.0, MME, WDM and
DirectSound incl. DirectWIRE support
supports Mac OS X (10.7 and above) via the native CoreAudio USB audio driver from Apple (no driver
install required)
supports many Linux distributions via the ALSA USB audio class support
dimensions roughly 17.5cm x 12.0cm x 4.5cm

U22 XT cosMik Set

Professional Studio Recording Bundle
