ESI 192L User Manual

ESI WaMi Rack 192 Series

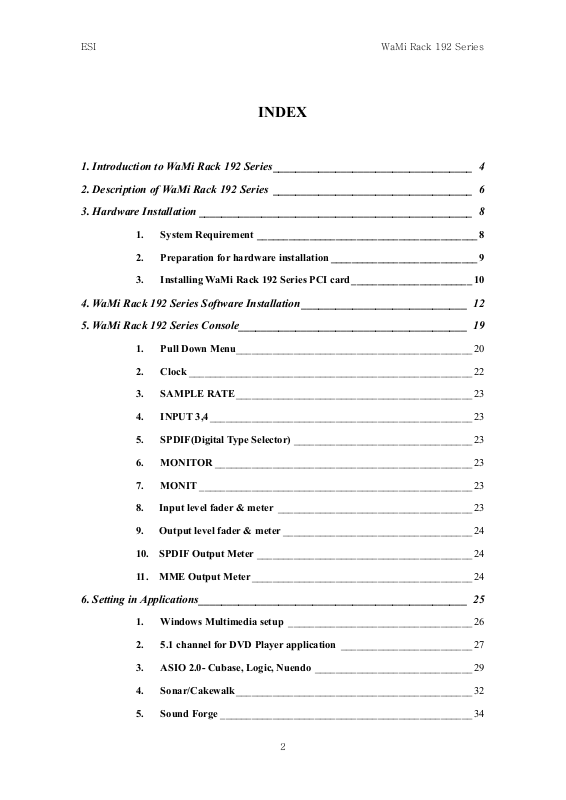

INDEX

1. Introduction to WaMi Rack 192 Series ___________________________________ 4

2. Description of WaMi Rack 192 Series ___________________________________ 6

3. Hardware Installation ________________________________________________ 8

1. System Requirement __________________________________________ 8

2. Preparation for hardware installation ____________________________ 9

3. Installing WaMi Rack 192 Series PCI card_______________________ 10

4. WaMi Rack 192 Series Software Installation _____________________________ 12

5. WaMi Rack 192 Series Console________________________________________ 19

1. Pull Down Menu_____________________________________________ 20

2. Clock ______________________________________________________ 22

3. SAMPLE RATE _____________________________________________ 23

4. INPUT 3,4__________________________________________________ 23

5. SPDIF(Digital Type Selector) __________________________________ 23

6. MONITOR _________________________________________________ 23

7. MONIT ____________________________________________________ 23

8. Input level fader & meter _____________________________________ 23

9. Output level fader & meter ____________________________________ 24

10. SPDIF Output Meter _________________________________________ 24

11. MME Output Meter__________________________________________ 24

6. Setting in Applications_______________________________________________ 25

1. Windows Multimedia setup ___________________________________ 26

2. 5.1 channel for DVD Player application _________________________ 27

3. ASIO 2.0- Cubase, Logic, Nuendo ______________________________ 29

4. Sonar/Cakewalk _____________________________________________ 32

5. Sound Forge ________________________________________________ 34

ESI WaMi Rack 192 Series

6. Wave Lab __________________________________________________ 35

7. Giga Studio (v. 2.20.42 or higher) _______________________________ 36

8. Using Direct Wire ____________________________________________ 37

7. Specifications ______________________________________________________ 42

* All features and specifications subject to change without notice.

ESI WaMi Rack 192 Series

1. Introduction to WaMi Rack 192 Series

Thank you for choosing WaMi Rack 192 Series of ESI.

There are WaMi Rack 192X and WaMi Rack 192L with same out look and features except the

quality of A/D & D/A converters of each product.

The WaMi Rack 192 Series is a professional digital audio/midi interface different from other

conventional sound cards. You will be amazed at the various and powerful functions and

features of WaMi Rack 192 Series. WaMi Rack 192 Series will satisfy beginners who have just

become involved in digital audio to professional musicians produce music at the professional

level with its various features and useful functions. Especially, ‘Dolby Surround 5.1 channel’

will lead you to the true surround experience.

1. Up to 192KHz sampling rate support

WaMi Rack 192 Series is one of the few 192KHz support digital recording devices. The digital

recording capability constantly progressed from 44.1KHz to 96KHz and even up to 192KHz.

Especially WaMi Rack 192 Series will prove their value in multi-track recording, mastering

application.

* WaMi Rack 192X can support 192kHz 24bit resolution for DVD Audio format.

Because it has not only 192kHz A/D and but also 192kHz D/A converters.

2. Perfect compatibility with EWDM driver

WaMi Rack 192 Series adopts the EWDM (Enhanced Audio MIDI driver model), providing

superior data processing and compatibility. Until now, Windows native drivers such as MME,

Direct Sound and the WDM driver could not show satisfied performance for serious music

production scene. Furthermore, Steinberg’s ASIO driver and TASCAM’s GSIF drivers were not

supported fully. WaMi Rack 192 Series employ the EWDM driver to provide the best solution

for users in to take advantage under newer Windows OS environment and concentrate on their

work, not their system. The E-WDM supports MME, ASIO, GSIF, and Direct X taking all the

merits of these drivers. One of its advantages is OS support that range from Windows 98SE and

Windows ME to Windows 2000 and XP, thus allowing the users to choose the OS of his or her

preference.

3. Professional Digital Recording Device

WaMi Rack 192 Series can be used for the beginners to professionals of hard-disk recording

application. The EWDM will work at its best in multi-track hard disk recording. The WaMi

ESI WaMi Rack 192 Series

Rack 192 Series is fully compatible with multi-track recording software such as

Sonar/Cakewalk, Cubase, Logic and Nuendo; mastering software such as Sound Forge and

Wave Lab; software sampler like GigaStudio, EXS and Halion and most of Virtual Instruments

such as Reason, Reactor.

4. Multimedia / 5.1 channel surround device

WaMi Rack 192 Series delivers super high-quality sound from Windows multimedia tools with

various additional features, which will be worth to replace the soundcard in your computer.

WaMi Rack 192 Series is capable of playing back MPEG, MP3, wav files, and playing DVD

and Video CDs. As the Internet becomes more and more popular, multimedia contents on the

web is also useful, such as Flash media and Internet Broadcast. WaMi Rack 192 Series supports

all of these features and, most importantly, 5.1 channel Dolby Surround format that will turn

your computer system into a DVD AV system better than expensive AV equipment for Hi-Fi

users.

As the evolution of the computer system continues, digital audio is becoming more and more

common. With WaMi Rack 192 Series, you can complete your Desk Top Music Production

System easily. WaMi Rack 192 Series will be the center of your DTMP system providing high

quality sound which is not less than the quality of a professional studio and a guide to the world

of digital audio music and multimedia.

5. DirectWire feature

WaMi Rack 192 Series supports DirectWire function that is provided by E-WDM supported

products from ESI. This unique feature will simplify the hassles of wiring externally for inter-

driver/inter-application audio data transfer. Especially when you use software synthesizers or

virtual instrument, DirectWire will help you to simplify your setup.

ESI WaMi Rack 192 Series

2. Description of WaMi Rack 192 Series

Here are the short descriptions of WaMi Rack 192 Series’s outlook.

1. Front Panel

(1)

(2) (5)

(3)

(4)

1) MIC/Line Input Level knob: Control the amount of input level through XLR type of

each MIC input or Line input through the TRS connectors on the rear panel of WaMi

Rack 192 Series.

2) MIC Input port: 4 low-Z XLR type MIC Input ports

3) Phantom Power switch: 48VDC of Phantom Power will be supplied by depressing the

buttons, each switch covers stereo pair.

4) MIC switch: When the switch is depressed, MIC Input engaged as input source, while

in normal position, when it is not depressed, Line Input will be chosen for input source.

5) Headphone Output and level knob: You can monitor all the input sources and wave

output1,2 through this headphone output. Output level can be adjusted with the pot.

2. Rear Panel

(1) (2) (3) (4) (5)

ESI WaMi Rack 192 Series

1) MIDI I/O : WaMi Rack 192 Series provides 1in 1out 16ch MIDI I/O

2) Line Input : 4 analog Line Input ports with balanced TRS phone connector

3) Monitor out : Stereo low-Z XLR type monitor output

4) Line Out : 8 analog Line Output ports with balanced TRS phone connector

5) D-Sub connector : Connect WaMi Rack 192 Series breakout box with PCI card on the

computer through this connector

3. PCI Card

(1) (2) (3)

1) Digital Coaxial Input : Digital Input in Coaxial type

2) Digital Coaxial Output : Digital Output in Coaxial type

3) D-Sub connector : Connect WaMi Rack 192 Series PCI card with the breakout box

ESI WaMi Rack 192 Series

3. Hardware Installation

WaMi Rack 192 Series requires couple of installation procedure: ‘PCI card installation’,

and ‘Driver installtion’. The ‘PCI card installation’ step includes install the WaMi Rack

192 Series PCI card into the PCI slot. ‘Driver installation’ is having the operating

system in your computer recognize WaMi Rack 192 Series and building the

communication channel.

1. System Requirement

To take advantage of WaMi Rack 192 Series and their full capacity, the computer

specifications are very important. Even though WaMi Rack 192 Series is built to have

low-CPU resource dependability, the computer needs to meet certain requirements in

order to get maximum performance. WaMi Rack 192 Series is not just a simple

soundcard, but a professional digital audio/midi device with various functions.

Therefore, the performance of WaMi Rack 192 Series would be affected by the

computer specs that are required to process the vast amount of digital data. A faster

CPU, faster hard disk, and larger amounts of RAM are generally recommended.

L WaMi Rack 192 Series gets power from computer power supplier, it is strongly recommended to

use 300W rated power supplier for maximum performance.

Minimum System Requirement

1. Intel Pentium II 350 MHz CPU or equivalent AMD CPU

2. Mainboard with Intel chipsets

3. 128MB of RAM

4. Microsoft Windows 98SE/ME/2000/XP operating system

5. Ultra DMA 33 hard disk drive

Recommended System Requirement

1. Intel Pentium III CPU or IV CPU or equivalent AMD CPU

2. Motherboard with Intel series chipsets(BX,820,815 and so on)

3. More than 256MB of RAM

4. Microsoft Windows 98SE/ME/2000/XP operating system

5. UDMA66/100 7200rpm hard disk drive

ESI WaMi Rack 192 Series

2. Preparation for hardware installation

WaMi Rack 192 Series PCI card and other components in the computer can be easily

damaged by electrical shock. You need to use an anti-static device that can discharge the

static electricity of your body to avoid potential static damage to the cards.

1. WaMi Rack 192 Series PCI card is placed into the anti static plastic pouch as it

is packaged. Do not open the pouch before you install the card.

2. Turn off the computer power and remove the power cable from your computer

power supply.

3. Remove the computer cover. Make sure that you have an available PCI slot in

your motherboard to install WaMi Rack 192 Series. Please, refer to your

computer user’s manual to remove the cover.

4. To avoid possible static shock to the computer parts, discharge it by touching

the computer case or something grounded. We recommend you to use an anti-

static device such as an anti-static wrist band.

5. When you need to hold the WaMi Rack 192 Series PCI card, please hold it on

the guide or he edge of card. Do not grab the card by the board.

ESI WaMi Rack 192 Series

3. Installing WaMi Rack 192 Series PCI card

Please look for an empty PCI slot. If you do not know which one is an actual PCI slot,

please, read the following;

There are 3 kinds of slots in most of recent computers. The PCI slot is most common

and is used for different types of devices from the soundcard to the modem. Usually, the

PCI slot is the white-colored slot. The ISA slot is used in older computers and it is

marked with a black slot. The AGP slot is only for the video card and is the most recent

type of slot. It is marked with a brown slot and is located close to the CPU. It will be not

too hard to find the PCI slot for WaMi Rack 192 Series.

If there is a guide blocking the empty slot, please remove the guide using the proper

screwdriver.

Next, put the WaMi Rack 192 Series PCI card into the slot and make sure it is placed in

the slot correctly. The card will fit into your slot and then tighten the screw.

ESI WaMi Rack 192 Series

Close the computer case.

ESI WaMi Rack 192 Series

4. WaMi Rack 192 Series Software Installation

After completing the installation of hardware for WaMi Rack 192 Series, you need to

install its driver software to use it. The software installation is not too hard, even for

computer beginners. Just follow the steps below and you will complete it without hassel.

The installation steps under Windows 98SE, Windows ME, Windows 2000 and XP are a

little bit different from each other. Below installation procedure is for the Windows XP.

However, Driver installation procedure is similar to other Windows version.

* Caution: Depend on your operating system, you may need Windows install CD.

You need to prepare Windows installation CD before the installation procedure begins.

* Caution: Because of the driver characteristic, WaMi Rack 192 Series installs several

drivers and continuously try to reboot the system. Unless the driver installation is

completely finished until the system cannot detect driver anymore, DO NOT reboot the

system. After all the driver is installed, restart your computer.

1 Turn your computer’s main power on. Windows will automatically detect a new

device has been installed and “Found New Hardware Wizard” will appear.

Choose Install from a list or specific location and click next.

ESI WaMi Rack 192 Series

2. Choose ‘Search for the best driver in these locations’ and Specify the location of the driver. Insert the

provided Driver CD into the CD-Rom drive and select ‘Include this location in the search’ and click

‘Browse’ to find the accurate location.

ESI WaMi Rack 192 Series

3. On Windows 2000 and XP, there might be a message appeared that says “The

software has not passed Windows Logo testing to verify its compatibility with Windows

XP.” You can simply ignore it and just select ‘Continue Anyway’.

Though, the message is appeared, the driver is completely tested and verified by

manufacture (ESI) and safe to use it.

4. First WaMi Rack 192 Series driver will be installed.

+ 30 hidden pages
