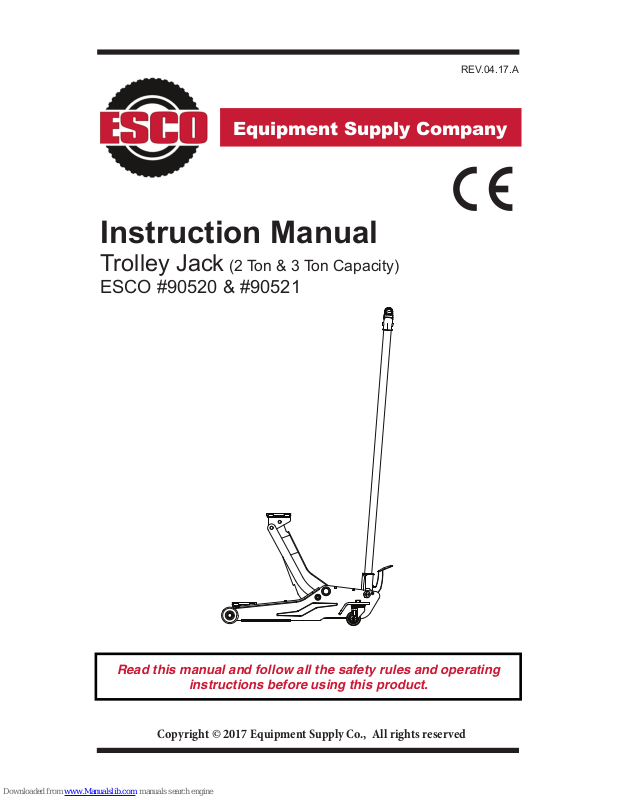

Page 1
Equipment Supply Company
Instruction Manual
Trolley Jack (2 Ton & 3 Ton Capacity)
ESCO #90520 & #90521
Copyright © 2017 Equipment Supply Co., All rights reserved
REV.04.17.A
Read this manual and follow all the safety rules and operating
instructions before using this product.
Page 2
2
1.800.352.9852 • [email protected] • www.esco.net
Trolley Jack [2 & 3 Ton Style] Model #90520

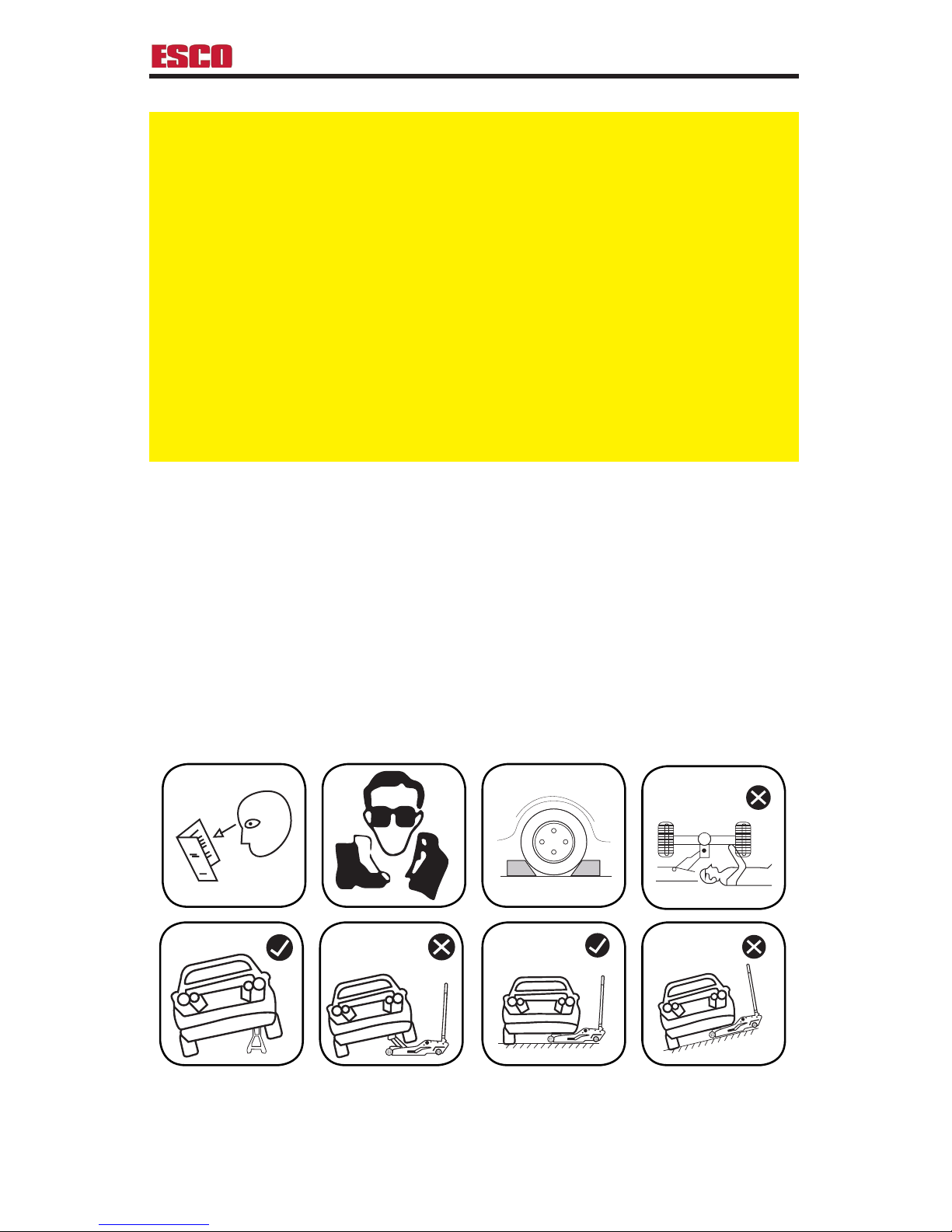

WARNING:
THIS PRODUCT, AS WELL AS ALL TIRE TOOLS, SHOULD NEVER
BE USED BY PERSONS UNLESS THEY HAVE BEEN TRAINED
PROPERLY ACCORDING TO OSHA REGULATIONS 29CFR
1910.177 ENTITLED “SERVICING SINGLE-PIECE &
MULTIPIECE RIM WHEELS”.
FOR THE SAFE USE OF THIS PRODUCT, PLEASE READ
INSTRUCTIONS. FAILURE TO DO SO CAN LEAD TO A VOID IN
WARRANTY OR SERIOUS INJURY. PLEASE USE THIS TOOL AND
OTHER TIRE SERVICE TOOLS WITH THE UPMOST SAFETY
PRECAUTIONS.
CAUTION
Before using the product, carefully read the instructions manual and all
stickers and warnings noted on the product. This is necessary to avoid
injury to the operator and damage to the product.
Page 3
3
1.800.352.9852 • [email protected] • www.esco.net
Trolley Jack [2 & 3 Ton Style] Model #90520
Product Description
The ESCO Trolley Jack Series (Model #90520 & #90521) are a double
pump, professional lifting jacks designed for the lifting of automotive and
medium sizes trucks and vans. Features unique “Lift & Twist” controlled
lowering of jack and foot pedal for much faster raising up the vehicle. Jacks
also include build in “Tools & Parts Tray” for convienence when working on
vehicle. Jacks come in 2 Ton and 3 Ton Capacities.
WARNING:
Only authorized persons should operate the jack after carefully reading and under- standing
the contents of this manual. Do not modify the jack in anyway. The manufacturer accepts no
responsibility for the improper use of the jack.

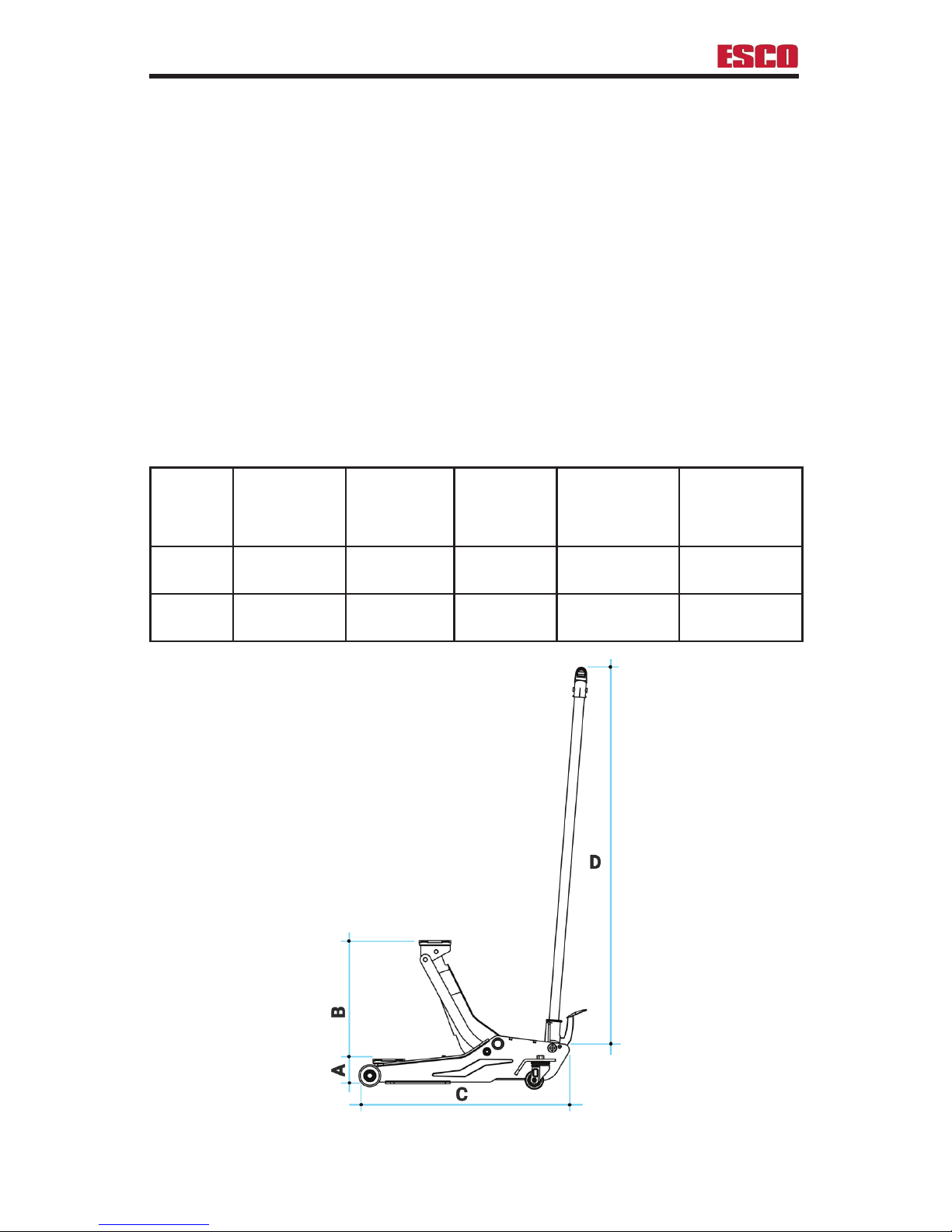

Product Specifications:
MODEL
CAPACITY
(TONS)
MIN
HGT. (A)
MAX.
HGT.
(B)
JACK
LENGTH
(C)
HANDLE
LENGTH
(D)
90520 2
2.95”
75mm
19.69”
500mm
28.35”
720mm
47.25”
1200mm
90521 3
3.75”
95mm
19.69”
500mm
28.35”
720mm
47.25”
1200mm
Page 4
4
1.800.352.9852 • [email protected] • www.esco.net
Trolley Jack [2 & 3 Ton Style] Model #90520

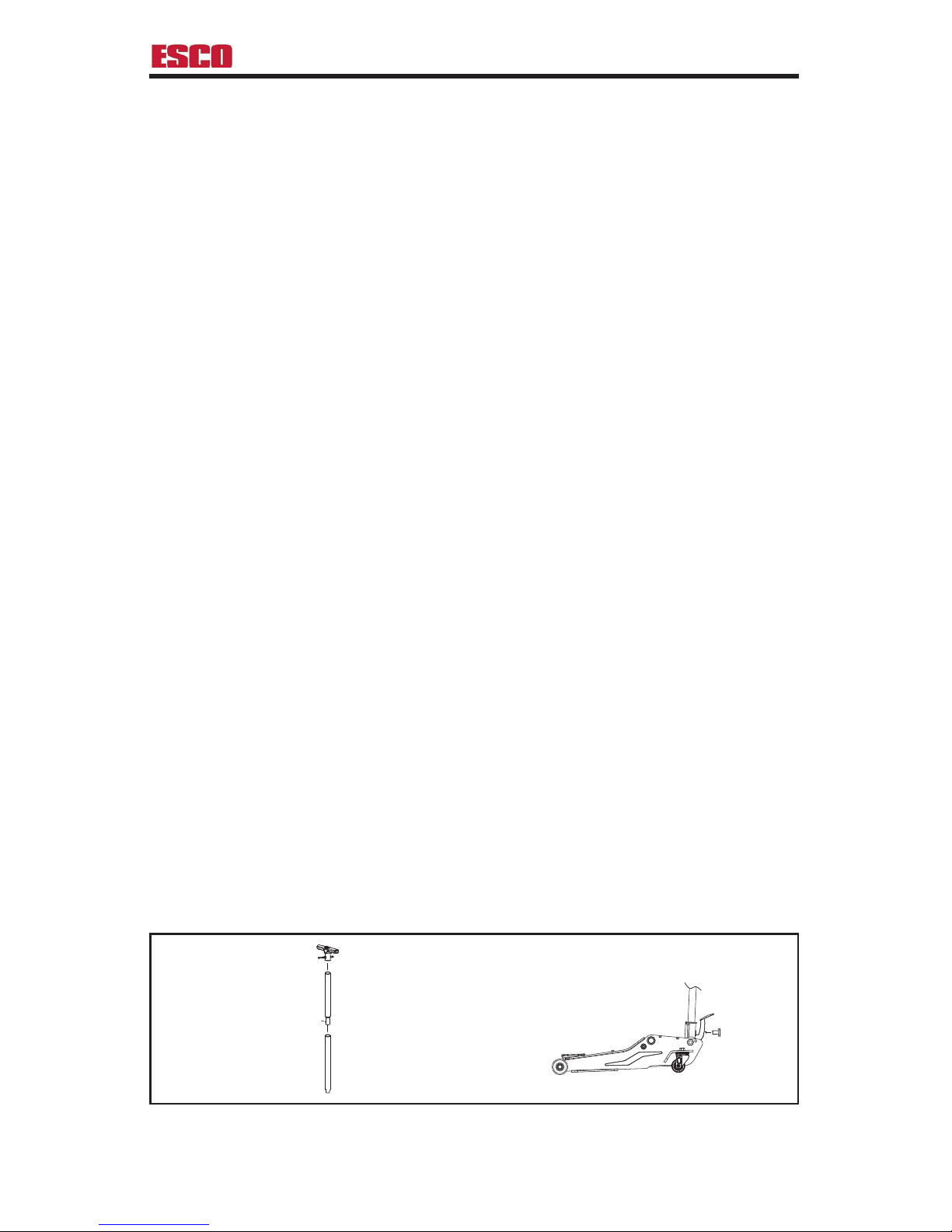

ASSEMBLY:
NOTICE: To insure the proper operation of the jack, please make sure
that all parts are included in the box in order to assemble the jack. Follow
the below diagrams to attach handle onto the jack body and proper operation procedures. Failure to follow these directions properly may lead to
failure of operation of this product.
1. Assemble the 2-pieces with bolt and fixted “T-Shape” Handle with
supplied screws.
2. Insert handle into the handle socket. Tighten the bolt on handle
socket to prevent accidental removal of handle when in use.
It is the owner/operator responsibility to properly use and maintain this
equipment and the legibility of all warnings and instruction labels.
Carefully read and understand the instructions and warnings in this
manual before operating this equipment. Keep this manual in a safe
location for future reference.
OWNER/OPERATOR RESPONSIBILITY:
FAILURE TO HEED THESE WARNINGS MAY RESULT IN PROPERTY
DAMAGE AND OR PERSONAL INJURY.
• Support load by appropriate means after lifting
• Use as lifting device only.
• Do not exceed rated capacity.
• Use only on hard, level surface.
• Center load on the jack.
• Do not modify jack.
• Never work under a raised vehicle without previously supporting with jack stands.
• Only use attachments and/or adapters supplied with or sold specifically for the jack.
• Only lift areas of the vehicle designated by the vehicle manufacturer.
• If the jack functions irregularly, discontinue use until professionally inspected or
repaired.
STEP 1 STEP 2
Page 5
5
1.800.352.9852 • [email protected] • www.esco.net
Trolley Jack [2 & 3 Ton Style] Model #90520

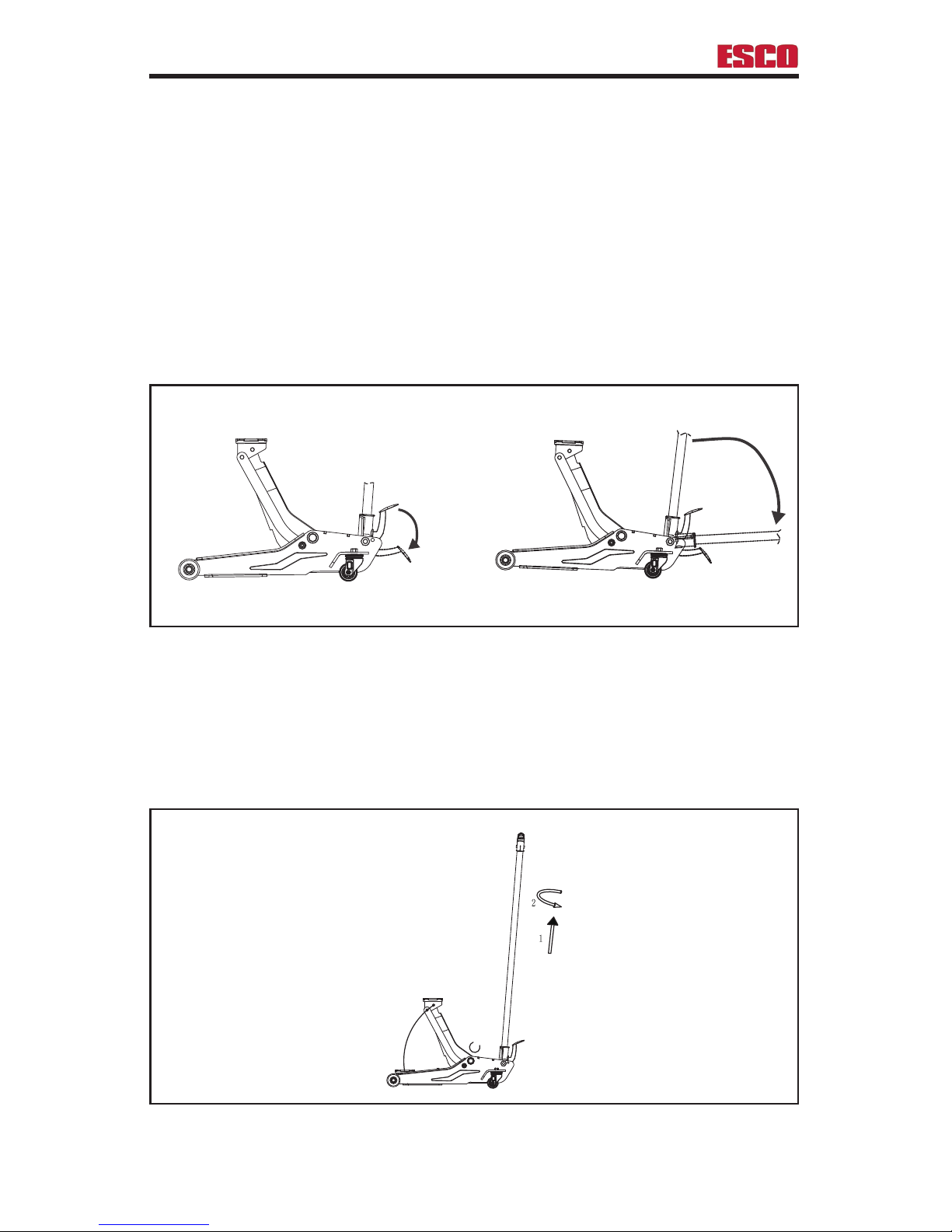

OPERATION - LIFTING:
1. Prior to operating the jack, remove any accumulated air from the system below:
Pull the handle and turn it counterclockwise while held in the below position, pump the jack
several times to ensure internal lubrication and bleed the accumulated air from the system.
2. Refer to the vehicle manufacturer owner’s manual to locate approved lifting
points on the vehicle. Center jack saddle under lift point.
3. Jack(s) are fitted with a foot pedal that gives a faster approach to the load.
4. Pump handle full stroke until load reaches desired height.
5. Transfer the load to appropriately rated jack stands.
OPERATION - LOWERING:
1. Raise the vehicle and clear the jack stands.
2. Pull up the handle up then turn the handle counter-clockwise. The handle is a
self-return, giving full control of descent of jack. Hold the handle until the jack is
back to the initial position.
Foot Pump Handle Pump
Full Control Descent Function of Handle
Page 6
6
1.800.352.9852 • [email protected] • www.esco.net
Trolley Jack [2 & 3 Ton Style] Model #90520

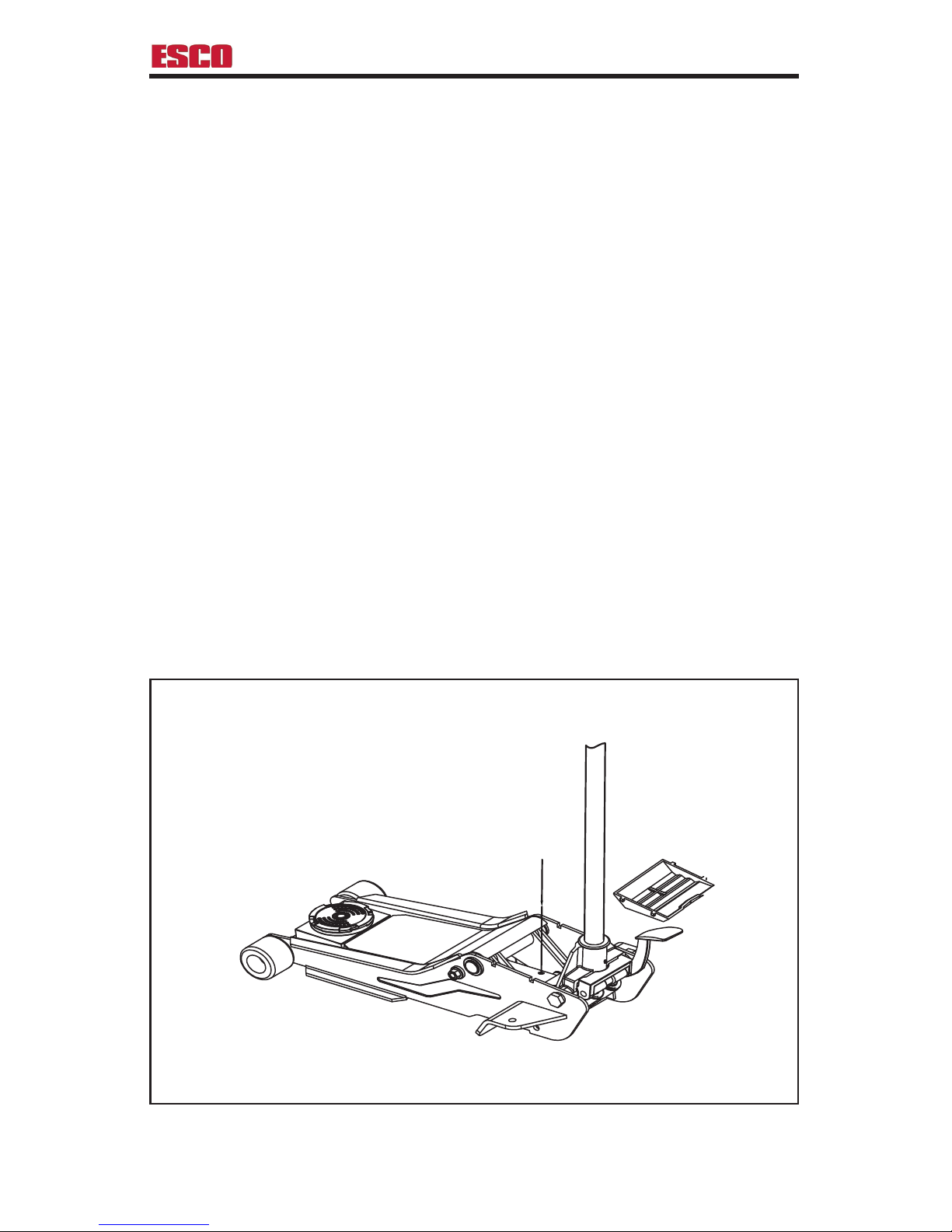

MAINTENANCE:
1. Both the maintenance and repair of the jack may only be performed
by qualified professionals.
2. Only original spare parts should be used.
3. When not in use, store the jack with saddle fully lowered.Keep the
jack in a clean, dry place and keep out of reach of children .
4. If the oil level needs to be checked or refilled, remove the filler plug
and drain contents into a container. Make sure that no dirt enters with
the new oil.
5. Too much oil will prevent saddle from lowering completely. Not
enough oil and saddle will not be able to rise to full height.
6. Do not use brake fluid, turbine oil , transmission fluid, motor oil or
glycerin. Improper fluid can cause premature failure of the jack
and the potential for sudden and immediate loss of load. Premium
hydraulic jack oil is recommended.
Oil plug
Page 7
7
1.800.352.9852 • [email protected] • www.esco.net
Trolley Jack [2 & 3 Ton Style] Model #90520

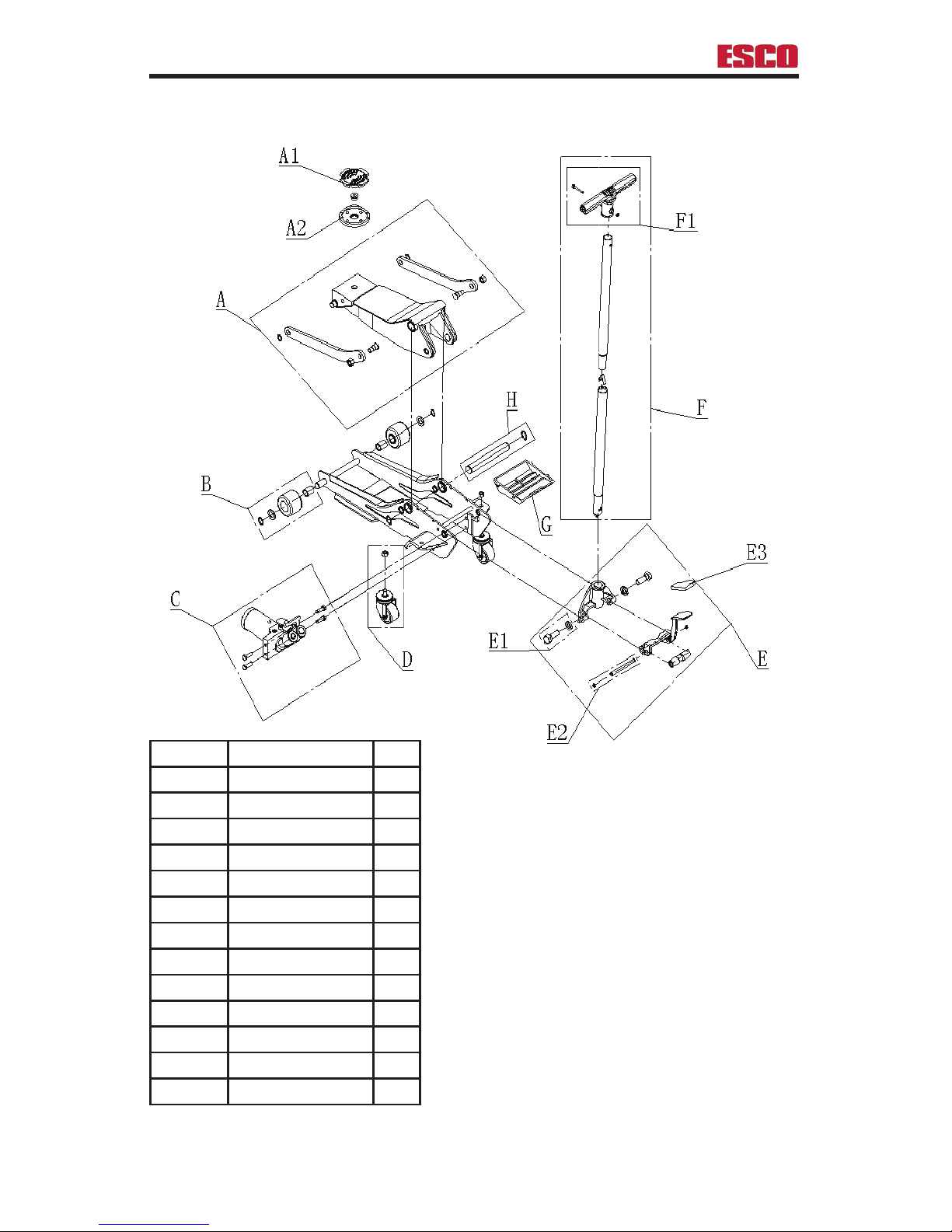

PARTS BREAKDOWN:
PART NO. DESCRIPTION QTY
A Lifting Arm Assy. 1
A1 Rubber Cap 1
A2 Saddle 1
B Wheel Sets 2
C Cylinder Assy. 1
D Wheel Sets 2
E Handle Socket 1
E1 Screw & Circle Clip 2
E2 Axle & Circle Clip 1
F Handle Assy. 1
F1 Handle & Screw 1
G Spare Parts Tray 1
H Axle & Circle Clip 1
REPAIRING OR REPLACEMENT PARTS:
ESCO strongly suggestes consulting with a
qualified professional tool and equipment repair
technican for any/all repairs to hydraulic
equipment. For more information about repair or
replacement parts for any ESCO product contact
an authorized ESCO product distributor or contact
an ESCO techincal support professional.
Page 8
CONTACT INFO:
www.esco.net - [email protected]
15270 Flight Path Drive
Brooksville, FL 34604
PH. 352.754.1117
Toll Free. 1.800.352.9852 (US, Canada Only)
Fax: 352.754.4508
