WS320 IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
1. General Comments
ESCENE had bright out WS320 wireless ip phone for corporate customer. It provide wireless
network to meet the high-end customers high avaiability demand and efficient work.
WS320 is a small-screen series IP phone, the appearance of fashion and technology,
excellent voice quality, powerful features, is a new generation of smart phones to replace the
traditional desktop office terminal.
WS320 IP Phone support 2 accounts registering and 2 calls management. Call Waiting, Call
Queuing and Call Forward can be well implemented; meanwhile, it makes conference to be
created very quickly. No matter how busy the calls will be, WS320 IP Phone can easily satisfy the
requirement.
WS320 IP Phone supports 6 extend modules that totally contain 192 programming buttons.
With the Busy Lamp Field BLF!function, operators can manage and monitor the calls more
efficiently. It provides headset jack that compatible with professional microphone headsets, which
will finely satisfy the call centre.
http://arttel.ru
Page 4
WS320 IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
2. Product Appearance and models

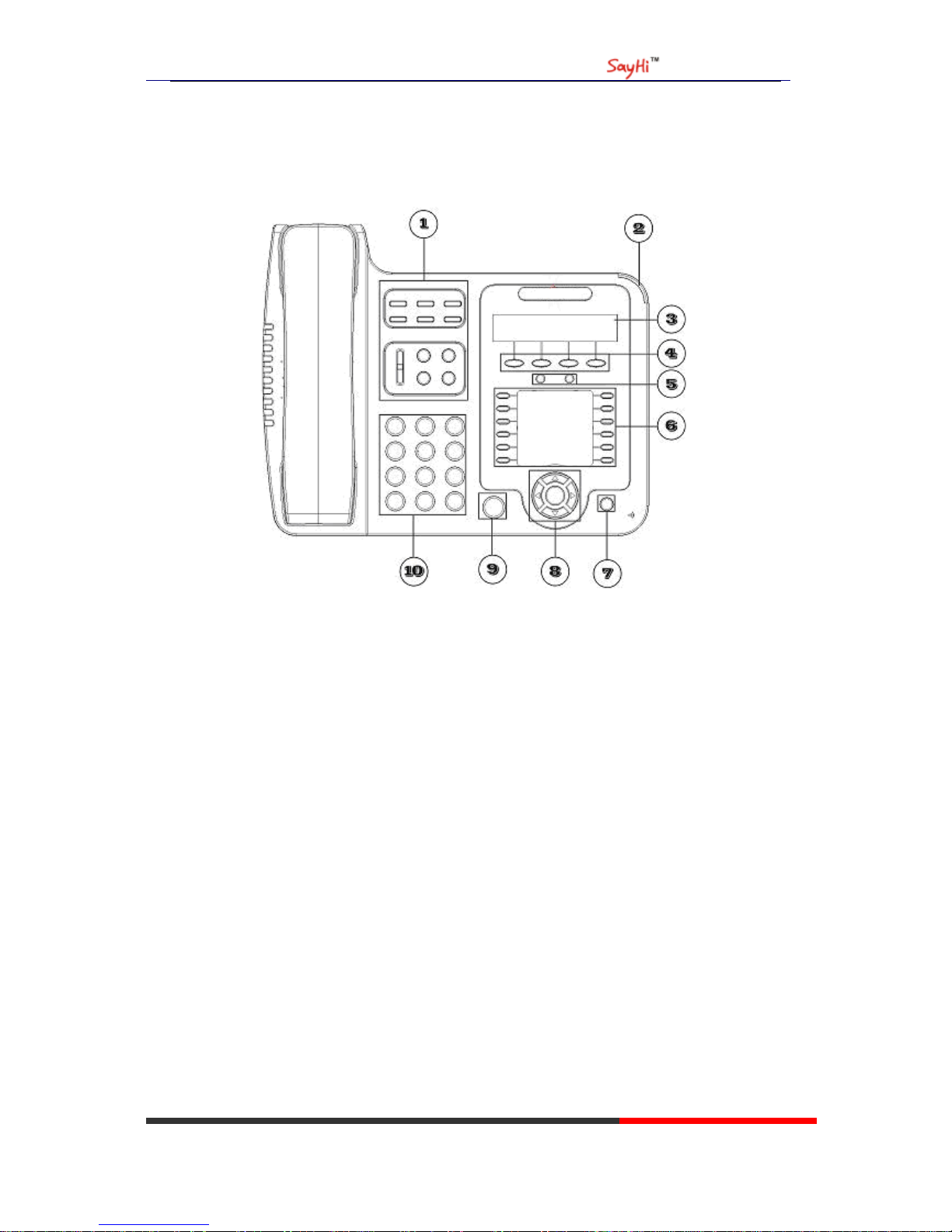

1!Product Appearance
Function Key Area(Simple, convenient, fast)
! Incoming call Indicator light
" Caller display(Support Chinese/English display, Caller info, Phone status, etc)
# Software keypad(Operation screen shortcut, user-defined keyboard shortcuts)
$ Line Keypad Line Status, Line Switch, Speed Dial, Call Queuing!
% Programmable Keypad BLF, BLA, Speed Dial!
& Delete key
' Navigation keypad arrow keys, shortcut keys, confirm key!
( Hands-free key
) Dial keypad Figures, Chinese alphabet, English alphabet!
(1) Function keys include: headset key, closed-tone key, message key, menu key,
conference key, transfer key, redial key, maintaining key.
(2) Navigation key areas: up keys, down key, left key , right key, confirm key. Up key
"high-speed call list" shortcut, down keys "missed calls list" shortcut , left key
"have received call list" shortcut .
(3) Programmable keypad: 12 programmable keys, Support BLF, high-speed dial and
other functions.
2!Model Rules Description
http://arttel.ru
Page 5
WS320 IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
3. Product Features
l Support Chinese display
128*64 Pixel screen support Chinese display, include Chinese phonebook and interface
setting, it is easy to use for Chinese.
l Clear voice
WS320 through the unique voice processing technology that enables voice calls for more
clarity and realistic, and communication more fluent.
l Advanced Call Process
Support 8 lines bicolor indicator light circuit, managing two lines at the same time, carrying
out call queuing and circuit switch, it s also convenient for teleconference and call transfer,
meet the communication requirement at the busy time.
l Support 12 Programmable Keys
Programmable keys can be defined as speed call key or other functional key to the appointed
contact for improving the operating efficiency, 12 pieces Programmable Keys support the
indicator light in busy line.
l Enterprise Address Book Application
Support business contacts
private phone book applications, to help with flowers quickly find the call number.
l PoE Support and AC power adapter
l Support HTTP/TFTP/FTP Auto-provision/TR069 upgrade software
4. Technical Features
Item WS320
Grayscale LCD with background light
Screen
128*64 pixel
Line
2 lines
Function Keys
4 Soft keys
2 Line keys
6 Navigation keys (Arrow button, OK button, C button)
Volume adjust , Hands-free, Mute, Headset, Message
WS320 -P
P-POE(Optional)
http://arttel.ru
Page 6
WS320 IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
Menu, Directory, Service, Hold, Redial, Conference, Transfer
ProgrammableKeys
12
VoIP Protocol
SIP 2.0
Network Protocol
HTTP"BOOTP"FTP"TFTP"IEEE 802.1Q"*IEEE 802.1X
Codec
G.723.1 (5.3K 6.4K b/S)"G.729 A/B(8Kb/s)"G.711 A/U (64Kb/S)"G722
QoS
TOS"Jiffer Buffer"VAD"CNG"G.168 (32ms)
Network
2!RJ45 10/100M Ethernet Interfaces (LAN/PC)
IP Assignment: static IP"DHCP"PPPoE
DNS Client, *VPN(L2TP), VLAN
Voice
HD Codec, HD Handset
Handle, Headset and Hands-free mode available
Support call centre headsets and PC headsets
Separated 9 Level Volume Adjustment
Call Processing
Line Status Indicator Multi Account
Always Forward, Busy Forward, No-answer Forward
Hotline number (Immediately/Delay)
Call Waiting, Call Queuing, Line Switching
Call Forward, Call Transfer, Call Holding, Call Pickup, *Callback
One Key Dial, Redial
Phone directly speed dial, Call record direct dial
3-way conference
DnD, *Blacklist
Voice mail, Voice Prompt, Voice Message
BLF
Application
Support PSTN and VoIP
Public phone directory
Private phone directory
Security
Login LCD by password
Login the website by password
Signaling encryption
Media encryption
Management
Upgrade: HTTP/TFTP/FTP Auto-provision/TR069
Configurations: Phone/HTTP/Auto-provision/TR069
Debug: Telnet/Phone/Web
Power Supply
Power adapter:AC100~240V input and DC 12V/1A output
PoE(IEEE 802.af)
Specifications
Storage Temperature: 0# ~ 60#
Operating Humidity: 10%~90%
Size: 275mm*215mm*90mm
Net weigh: 1.36kg
Package Features
Qty/CTN:10 PCS
N.W/CTN: 13.6kg
G.W/CTN: 14.1kg
http://arttel.ru
Page 7
WS320 IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
Measurement: 0.081CBM
Carton Meas: 470mm*450mm*290mm
Certifications
CE"FCC"RoHS
Note: *! Sign means function has not been published yet.
----------------------------------------------------------------------------------------------------------------
