Escene IS/IV 720, IS/IV 740 User Manual

Smart Security IP Intercom
Smart Security IP Intercom
IS/IV 720 User Manual
IS720-01 IV720-01
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
Copyright and Disclaimer
Copyright
Any enterprises or individuals cannot extract, copy and spread in any form of this
document without our written permission .In accordance with the law, copying includes
translating the document into other languages or conversing into other formats. When
this document is transmitted in network media, Escene Communication Co., Ltd allows
downloading or printing for private use. Any parts of the document are not allowed to be
modified or used for commercial purposes. Escene Communication Co. , Ltd will not
assume any responsibility for the injuries and losses caused by any unauthorized
modification or conversion of the document.
Declaration
Information regarding this guide is subject to change without any notice.
This manual provides accurate statement, information and recommendation to the largest
extent, but will not guarantee any express or implies. Users should take full responsibility
for the application of products. Escene Communication Co. , Ltd will not make any
gua rant ee for this manual, including but not limited to warranties for implies
merchantability and particular purposes. Escene Communication Co. , Ltd does not
assume any responsibility for indirect or consequential loss caused by the misuse of this
manual.
About this manual
Thank you for choosing Smart Security IP Intercom IS/IV 720.This IP Intercom is
specially designed for the user under the public environment with fashionable
appearance and complete functions. This manual aims to help you quickly use Smart
Security IP Intercom IS/IV 720.Before use ,please read the packing list and safety notes
section of this manual ,communicate with the system administrator to confirm if the
current network environment can meet the requirements of configuring the Intercom. If
this is your first time to use Smart Security IP Intercom IS/IV 720, we recommend that
you should read the quick installation guide and product technical manual. The document
can be downloaded from the following website: http://www.escene.cn/en/en.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
Summary
Copyright and Disclaimer....................................................................................................2
1.Getting Started.................................................................................................................5
1.1 Outline....................................................................................................................5
1.2 Product Features...................................................................................................5
1.3 Technical Information.............................................................................................6
2. Intercom Installation........................................................................................................7
2.1 Embedded............................................................................................................10
2.2 Equipment installation..........................................................................................12
3.Configuration of IP intercom...........................................................................................13
3.1 Remote WEB Management.................................................................................14
3.2 Phone Status.......................................................................................................17
3.3 Network................................................................................................................18
3.3.1 LAN Port Configuration..............................................................................18
3.3.2 PC Port Configuration................................................................................19
3.3. 3 VLAN Settings..........................................................................................19
3.3. 4 Port management Settings.......................................................................20
3.3. 5 QoS...........................................................................................................20
3.3. 6 Network Packet Mirroring.........................................................................20
3.3. 7 LLDP.........................................................................................................20
3.3. 8 Paging Settings.........................................................................................20
3.3.9 Socket5 Proxy Server................................................................................21
3.4 SIP Accounts.......................................................................................................22
3.5 Programmable Keys............................................................................................24
3.6 Phone Settings.....................................................................................................25
3.6.1 Output...............................................................................................................25
3.6.2 Time Settings....................................................................................................26
3.6.3 Backlight............................................................................................................26
3.6.4 Ring tone...........................................................................................................26
3.6.5 Volume Setting..................................................................................................27
3.7 Features...............................................................................................................27
3.7.1 VoIP Call Forward.............................................................................................28
3.7.2 Auto Redial.......................................................................................................28
3.7.3 Pickup function..................................................................................................28
3.7.4 Hotline function.................................................................................................28
3.7.5 Auto Answer......................................................................................................29
3.7.6 Remote Control.................................................................................................29
3.7.7 Action URL........................................................................................................29
3.7.8 EP+...................................................................................................................29
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
3.7.9 Other features settings......................................................................................30
3.8 Advanced.............................................................................................................31
3.8.1 Audio.................................................................................................................31
3.8.2 Dial Plan............................................................................................................31
3.9 Phone call info.....................................................................................................31
3.10 Door card setting................................................................................................32
3.11 Maintenance......................................................................................................32
3.11.1 HTTP Upgrade.........................................................................................32
3.11.2 FTP Upgrade...........................................................................................33
3.11.3 TFTP Upgrade.........................................................................................33
3.11.4 Factory reset............................................................................................34
3.11.5 Reboot.....................................................................................................34
3.11.6 Log...........................................................................................................35
3.11.7 Auto Provision..........................................................................................35
4. Relay management................................................................................................37
4.1 RFID Card management...............................................................................38
4.1.1 RFID Card issuing/revoking in the WUI of the phone................................38
4.1.2 Add card Issuer and Revocation...............................................................39
4.2 Press key/Input/ServerControl/DTMF/TouchKey management..........................40
5. Brief pictures for application environment..............................................................40
5.1 Door security system application.........................................................................41
5.2 Fire protection system application.......................................................................41
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
1.Getting Started
1.1 Outline
ESCENE SN-SG IP Door Phone IS/IV 720, is the newest indoor VoIP intercom
which professional designed as the requirements from industry users. The device has the
characteristic of well compatibility with different platform, offering users a convenient
service.
IS/IV 720 is dust proof, water proof and dismantle prevention, having a fashion
appearance and high protection. IS/IV 720 is a bond of door opening by long-distance
DTMF, Password and RFID. Its powerful performance, stability and reasonable price
make it a perfect choice of industry user.
NOTE: IS/IV 720-PRT, P is POE, R is Reader(optional), T is Touchpad(optional).
1.2 Product Features
Support embedded or wall-mounted installation.
High-fidelity sound quality, HD codec, Full duplex hands-free calls;
WEB supports multi-language: Chinese, Russian, French, etc.
4 SIP accounts, support 3-way conferencing;
2*RJ45 standard Ethernet Ports(LAN/PC), Support PoE;
Backlit Digital Keyboard, can provide dial-up or password input(Option);
*Built-in RFID reader; Indoor open-door interface and external power supply
interface;
User-defined DSS keys, which can be set up to Speedy dial, intercom, etc.
Support Plug-and-Play, auto-provision, remote maintenance and management;
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
1.3 Technical Information
INTERFACE SPECIFICATION:
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Intercom features
WEB support Multi-Language ;4 SIP account; Hotline; Call hold, Call waiting, Call forward; Call transfer (blind/busy/ask);Mute, DND; Auto-answer, 3-way conferencing;1 DSS programmable key(Speed dial, Intercom etc.);Volume control; Direct IP call without SIP proxy; Default Ring tone 1 selection/import/delete; Custom Ring tone 2 selection/import/delete; Time setting(SNTP/SIP Server/Manual);Support SIP main/standby server;
LED Status
Available--OFFBusy--Steadyregistration failed--Flashing
Network parameters
SIP v1 (RFC2543), v2 (RFC3261);DNS SRV (RFC3263);NAT Traversal: STUN mode; DTMF: In-Band, RFC2833, SIP Info, Auto; HTTP/HTTPS Web Management; IP Assignment: Static/DHCP/PPPoE; Network support Bridge mode; TFTP/DHCP/PPPoE client; DNS client, NAT/DHCP server;
Security
LLDP, VLAN QoS (802.1pq),VPN(L2TP);Transport Layer Security (TLS);Digest authentication using MD5/MD5-sess;Secure configuration file via AES encryption; Admin/User 2-level configuration mode;
Voice features
Wideband Codec: G.722;Narrowband codec: G.711μ/A, G.723.1;G.726, G.729a/b, iLBC; VAD, CNG, AEC, AGC; Full-duplex;
Video features
Video codec: H.264 ; Image codec: JPEG/PNG/BMP/GIF; Video format: MP4/3GP/FLV; Video call resolution: QCIF / CIF / VGA / 4CIF (1280x720P); Bandwidth selection: 64kbps~4Mbps; Frame rate selection: 10~30fps.
Physical properties
1 Digital Keypad, backlit digital (Option) 1 LED display (LED digital tube, available in touchpad model) 1 Speaker Key or DSS key ; 1 Reader Light, 1 Ringing status Light, 1 Network & SIP Light 1 Talking status light 2 RJ-45 10/100M Ethernet
Power adapter: DC 12V/1A; Power over Ethernet ,IEEE 802.3af,class 0; Each motherboard port, check the picture illustration below "Mother Broad Interface".
Carton packaging
The whole Size162*112*40mm
Product Certification
Platform Compatibility Test (non-certificate)
ZTE/Alcatel-Lucent/Asterisk/Broadsoft/Metaswitch/Yeastar/Avaya/3CX/Elastix/HUAWEI etc.
Smart Security IP Intercom

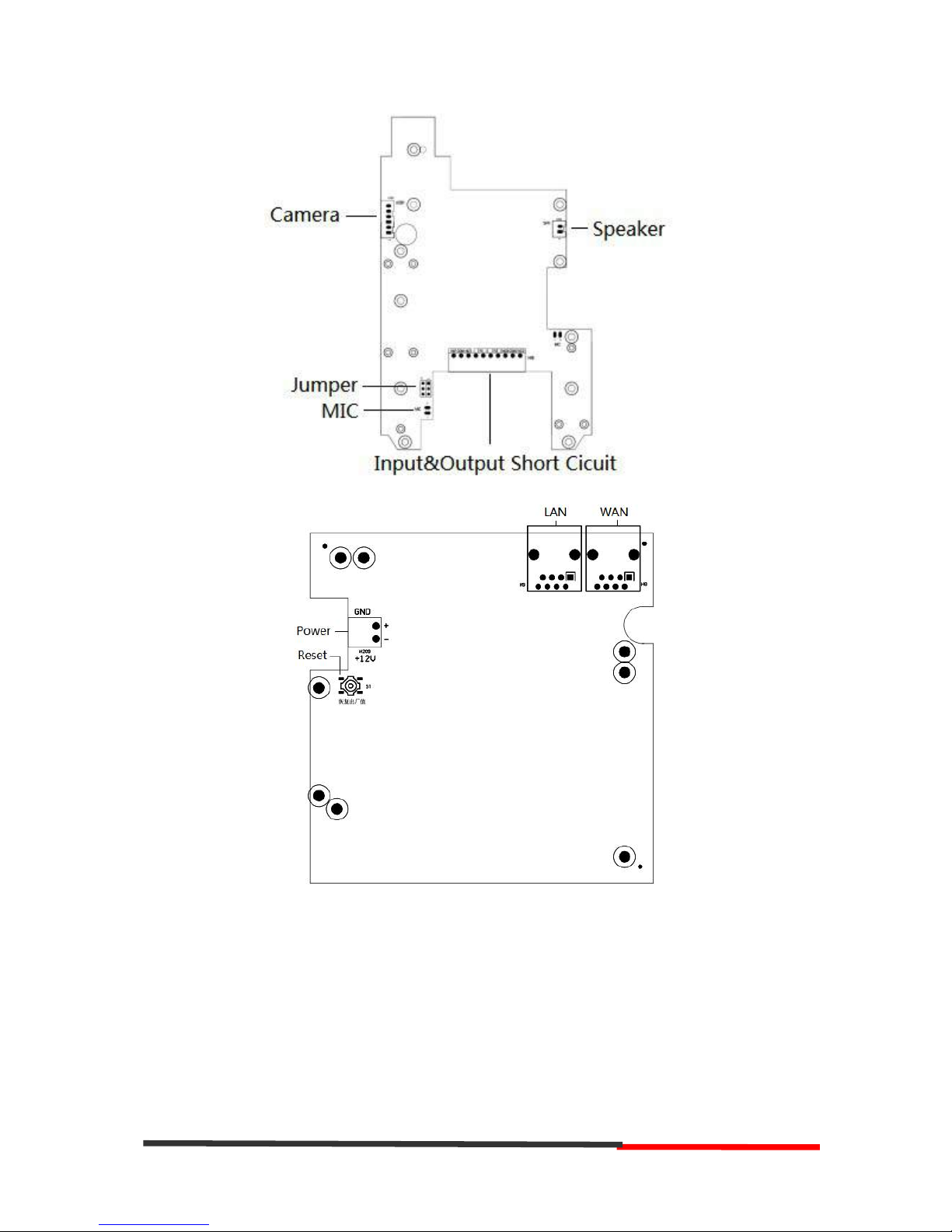

Expansion Board Connector Diagram
Mother Board Connector Diagram
*This data is for information purposes only and is subject to change without notice.
2. Intercom Installation
Generally system administrator will connect your new IS/IV 720 IP Intercom to company
LAN network. If not, please refer to below illustration.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
Open IS/IV 720 packing box, according to the packing list, check the related attachment
to make sure to no omitting. Packing list as follows.
IS/IV 720 Intercom
Quick operating guide
8*Screws
2*Rubbers
IS/IV 720 could be installed to internet according to the below steps.
A)Connect Network
B)Internal/External Electric Lock Connection Driver Option
C)Internal/External Electric Lock Connection

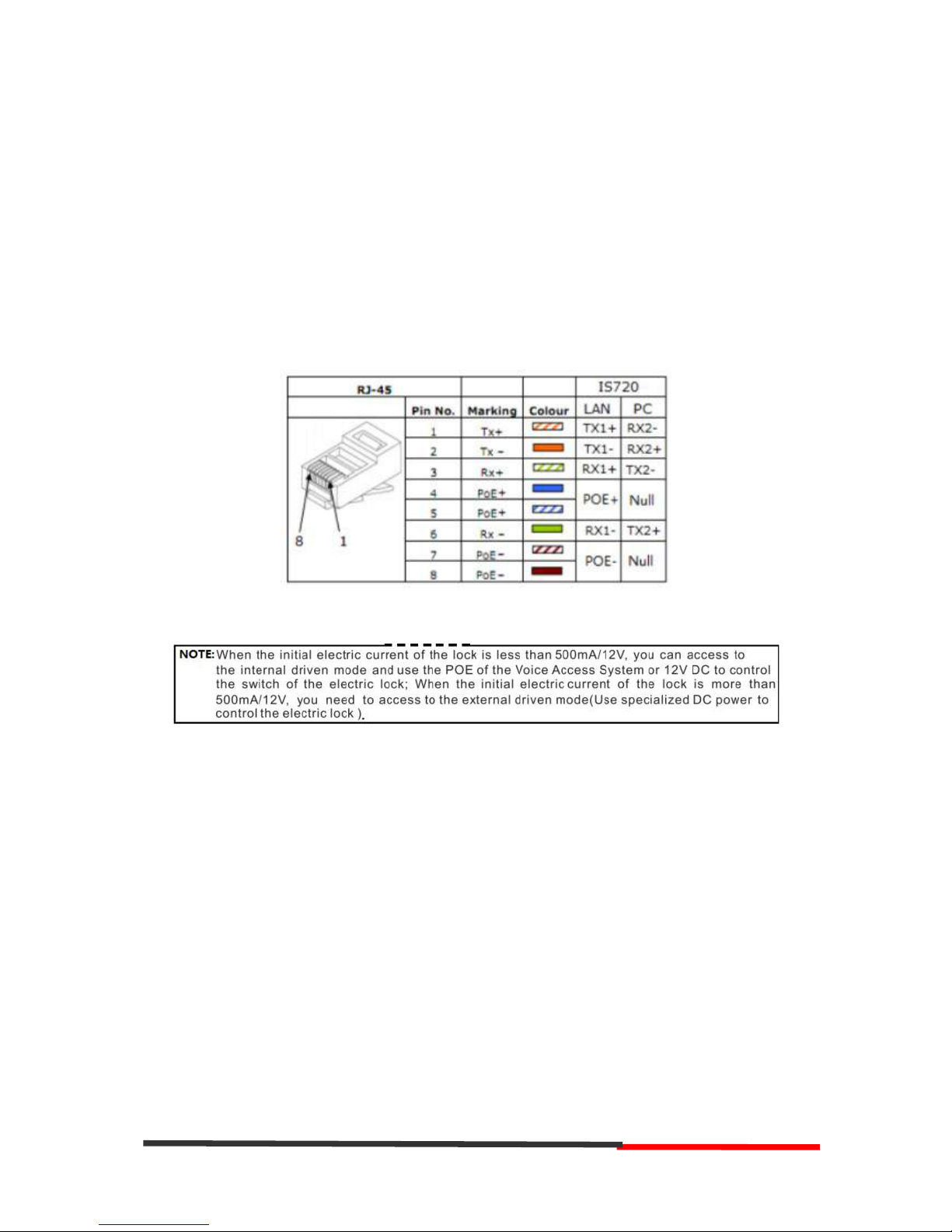

Connect network
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom

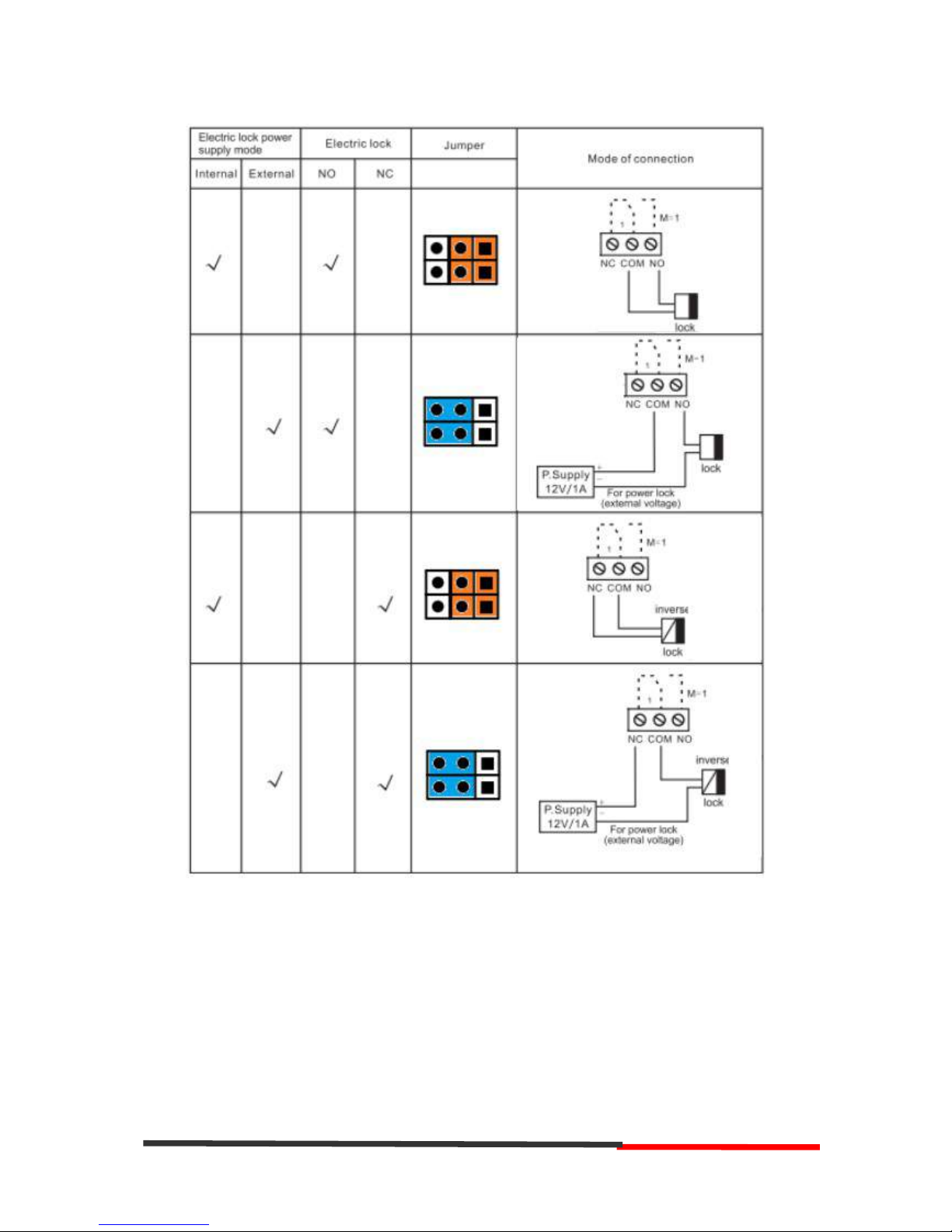

Internal/External Electric Lock Connection Driver Option
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom

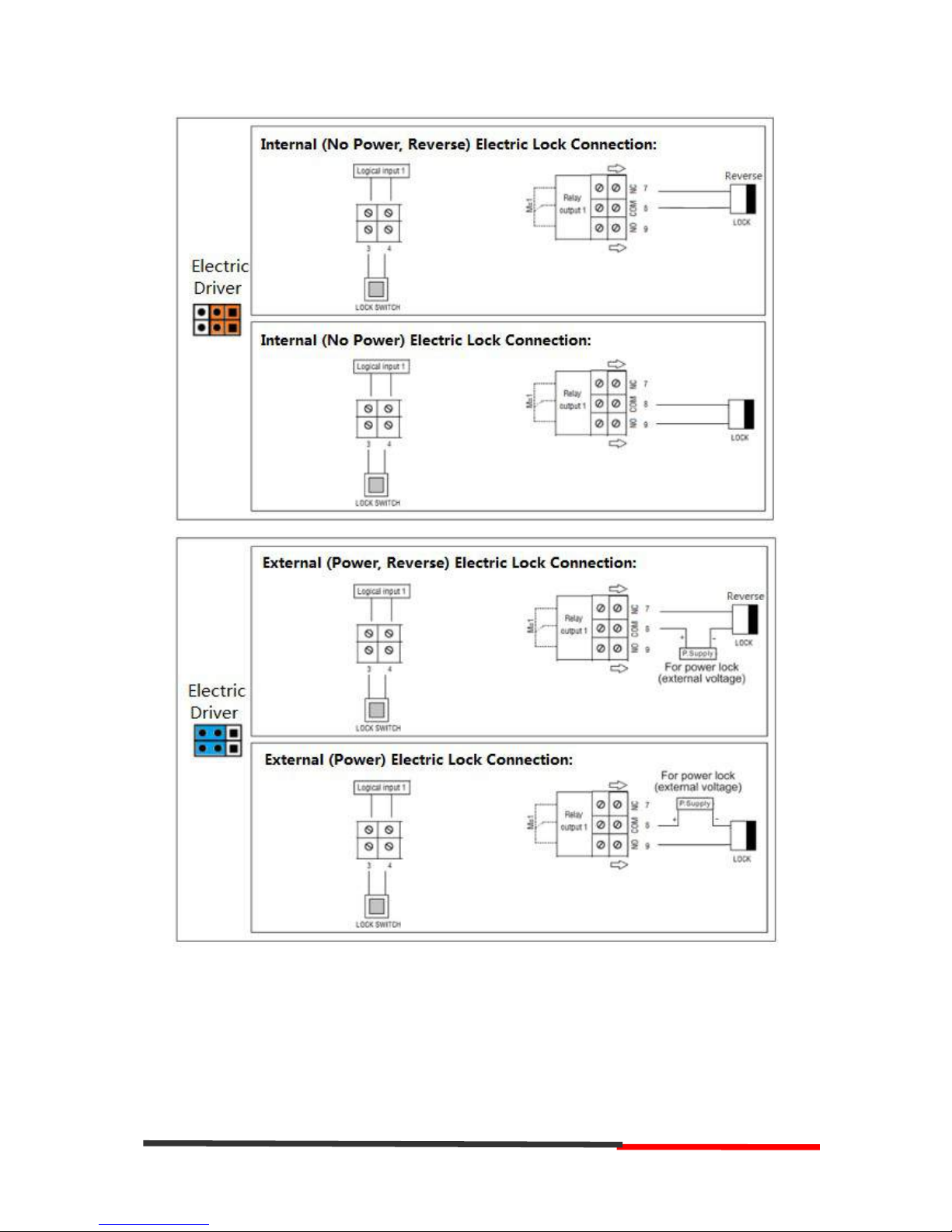

Internal/External Electric Lock Connection
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
2.1 Embedded

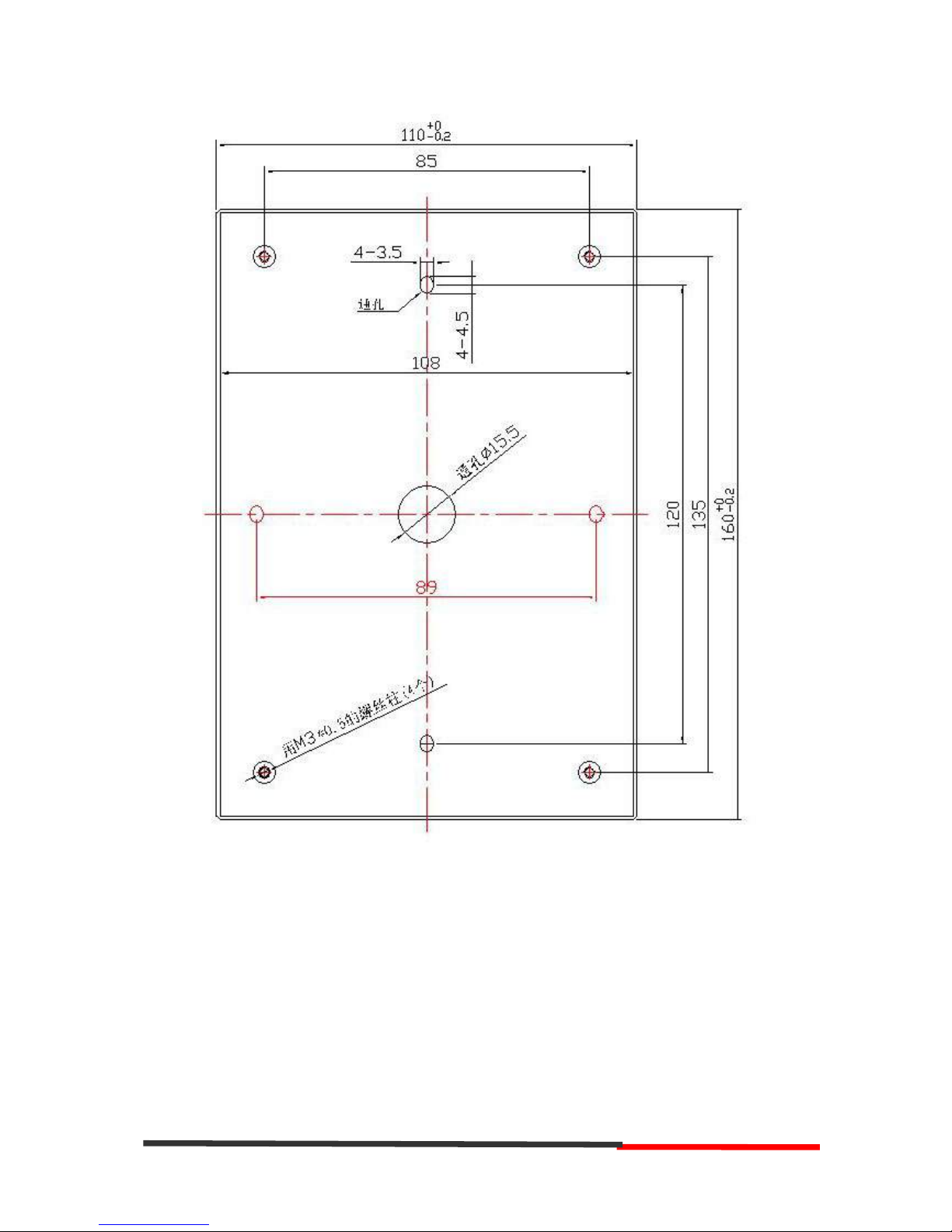

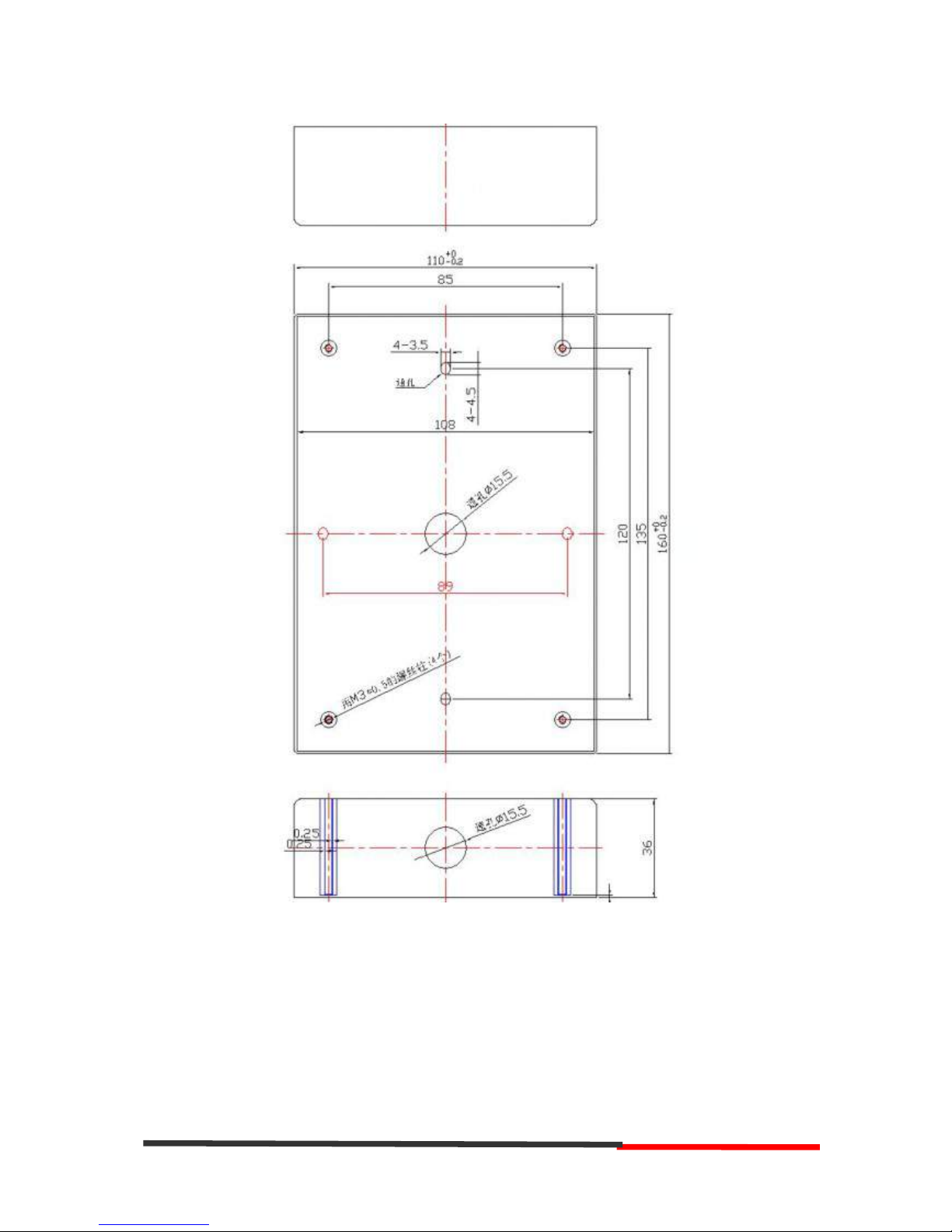

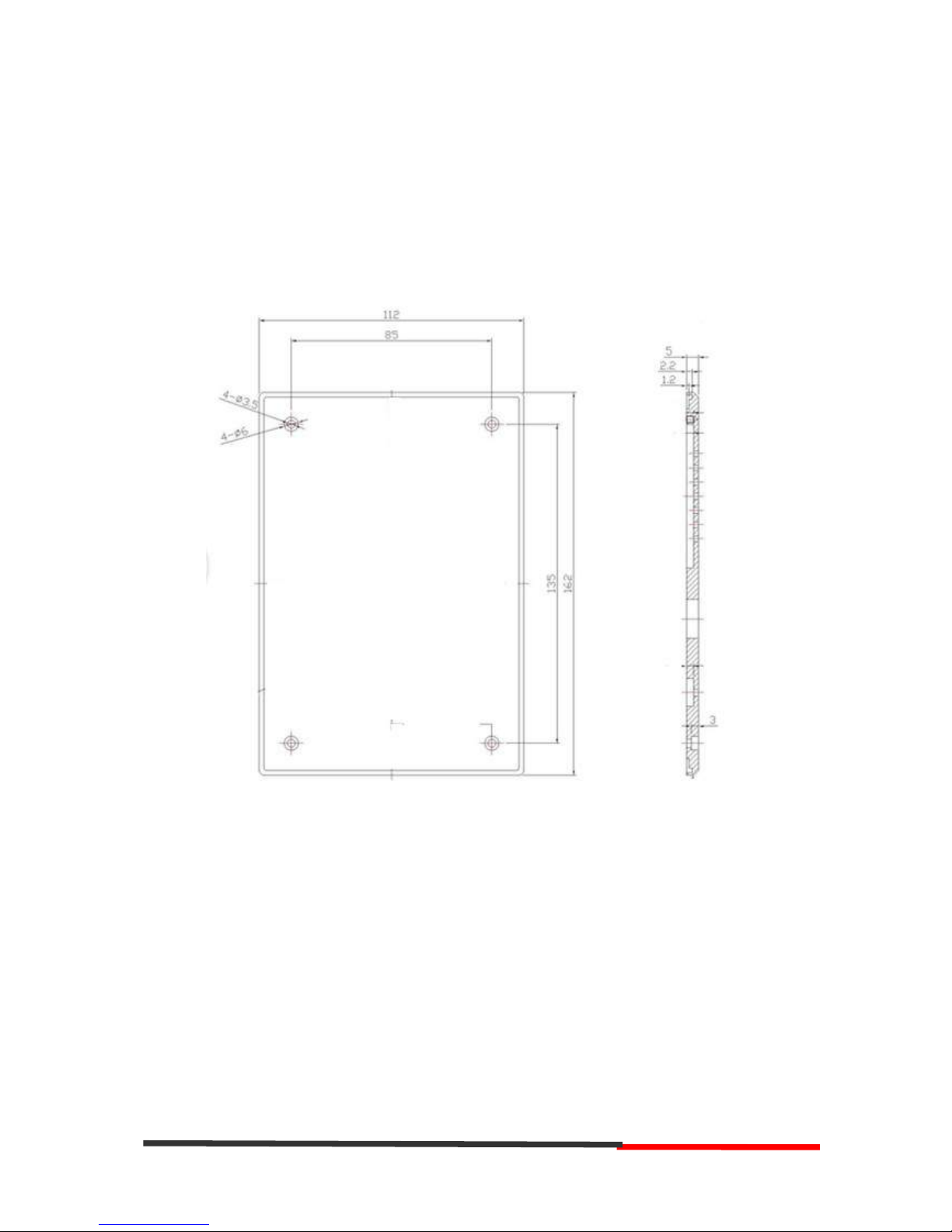

If the product is used for embedding,then the cutting of embedded need to be a little
bigger than the installing hole of standard dimension 168*116*42mm .(42mm means the
extra aluminum housing thickness.),as follows. Notice: the embedded value is up to the
actual situation.
Front and side structure
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
Back structure
2.2 Equipment installation
1、Open the aluminum housing.
2Put the IP intercom into it according to the cutting embedded specification. After that, fix four M3*12 screws on the wall with the screw driver.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
3、After installing inter housing, well-set the related wiring and replace the aluminum
housing. Power on and start testing.
3.Configuration of IP intercom
You need to know the IP address of IP Intercom before starting setting. You could learn
how to get IP address below.Default IP address is 192.168.1.153.in static status.If getting
from DHCP,you need to search the related IP address by the third software scanning
equipment MAC.(Getting IP by DHCP is not suggested.)
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom

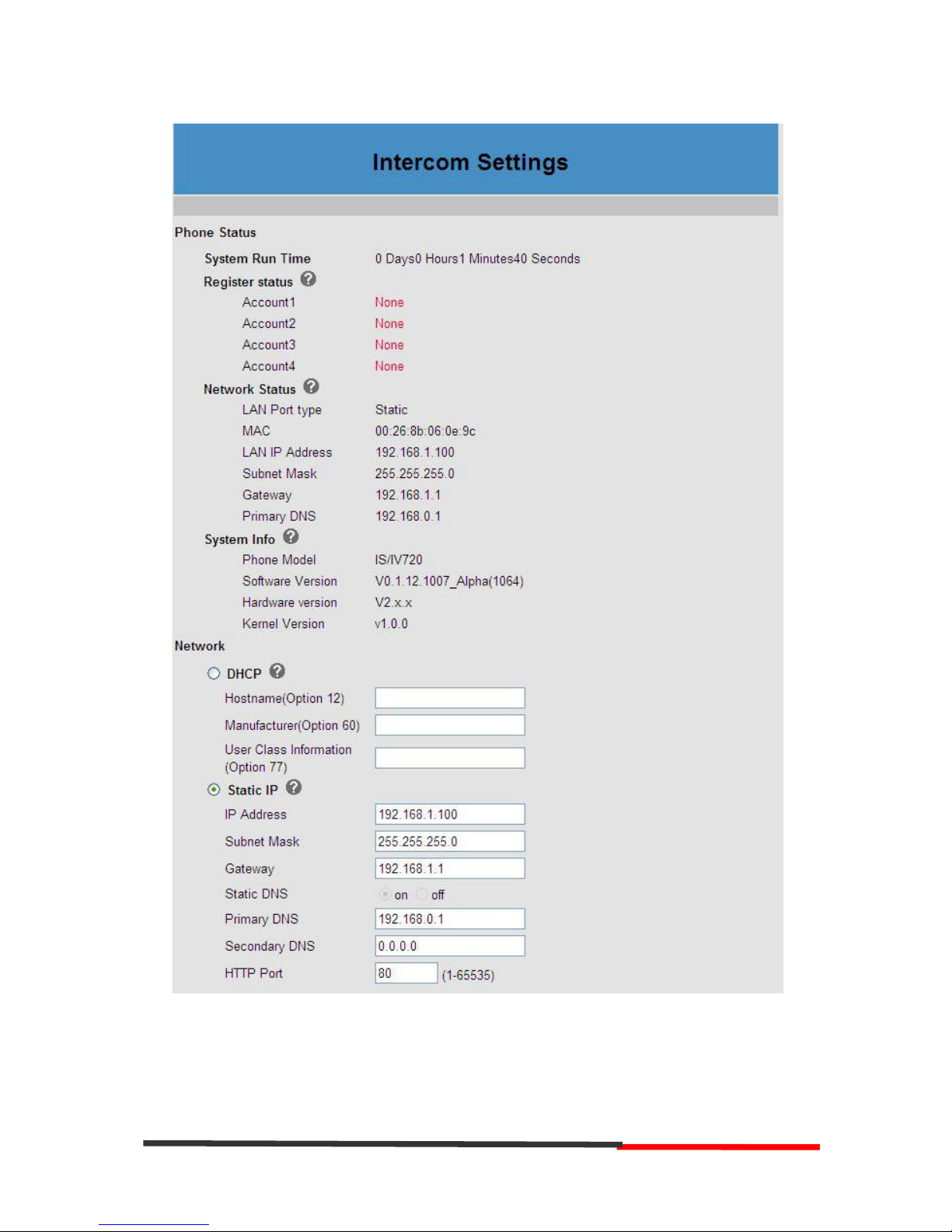

3.1 Remote WEB Management

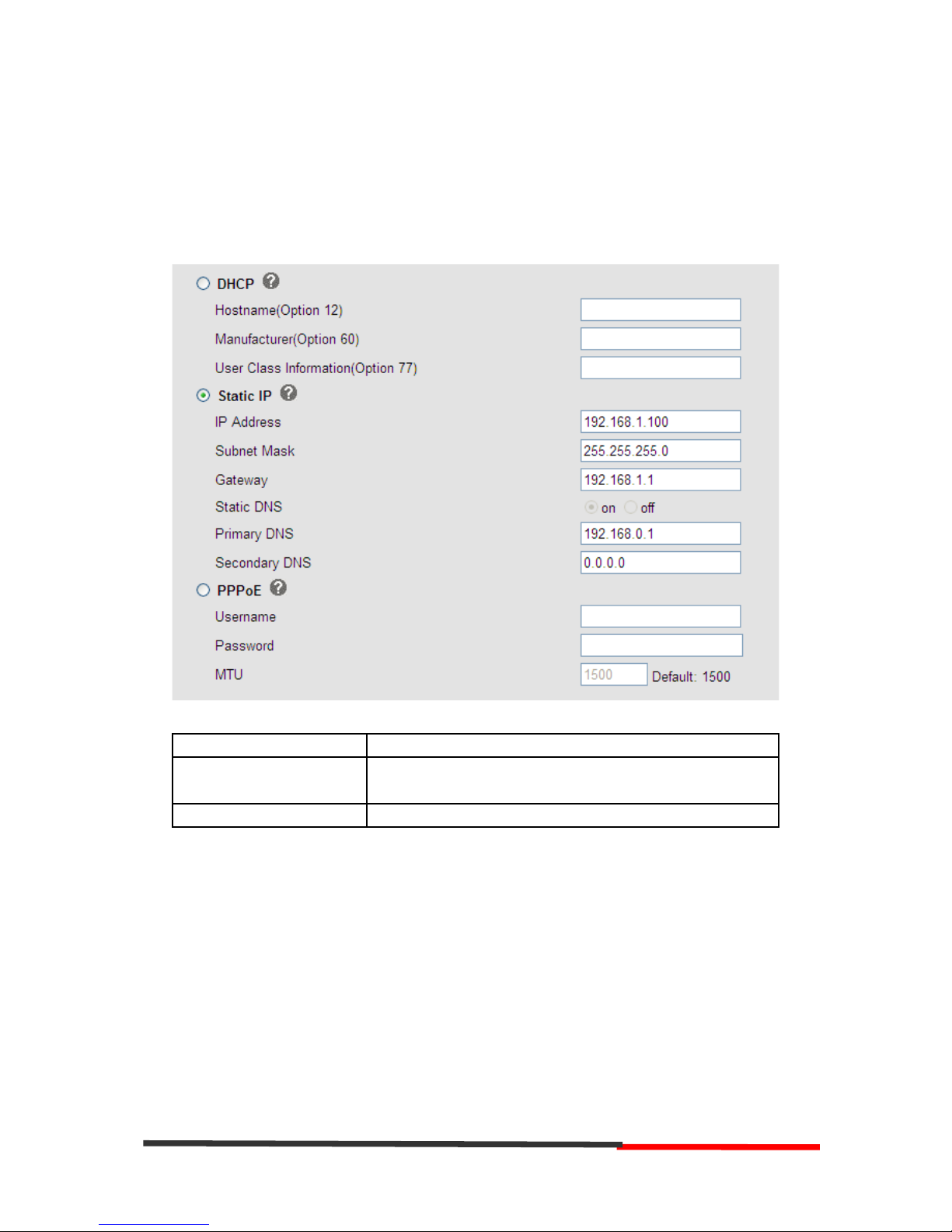

Th is e quip ment 's fa ctor y IP addr ess is u sing sta tic IP(ip:19 2.168.1.1 00,
Gateway:192.168.1.1).

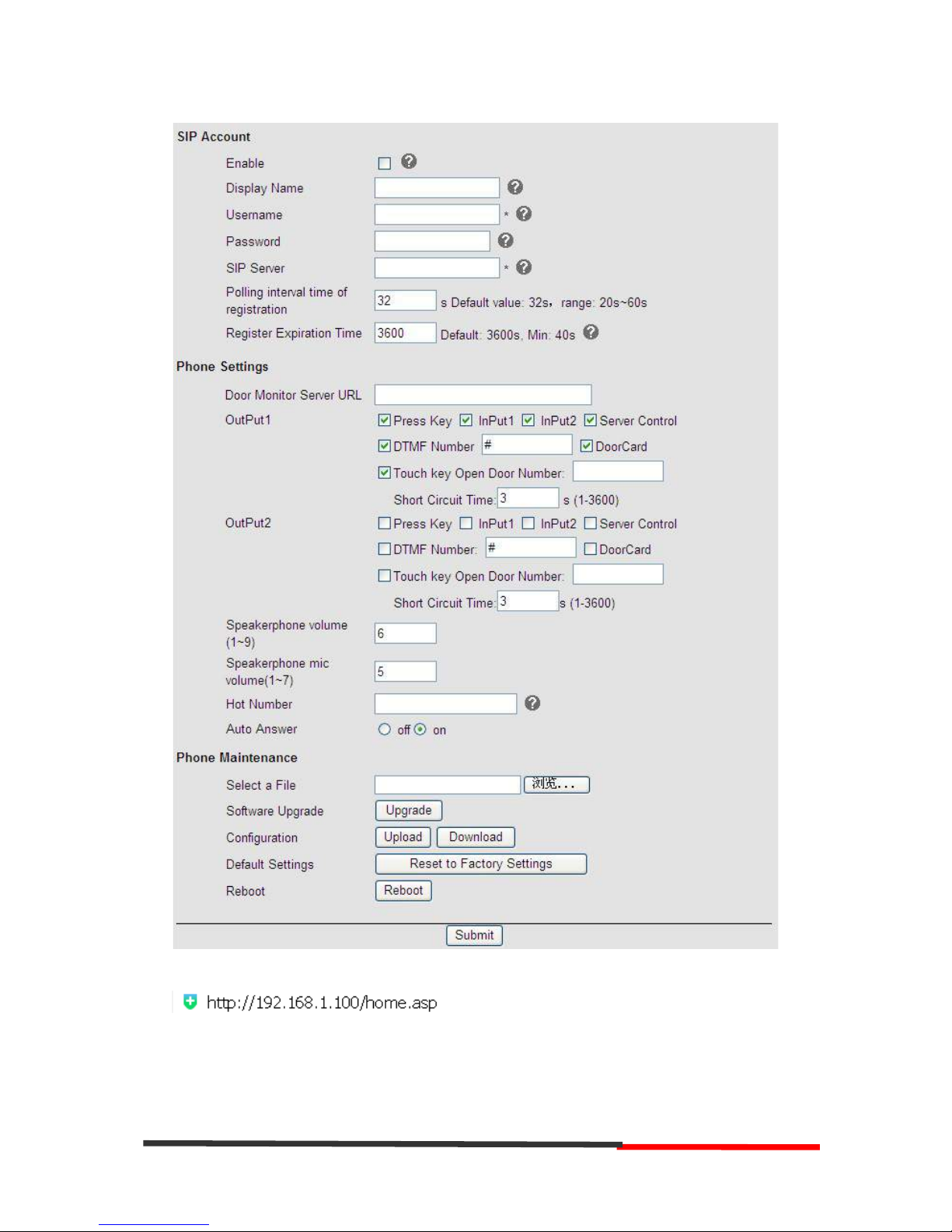

http://192.168.1.100/user.asp is easy web management.
http://192.168.1.100/home.asp is all-round web management.

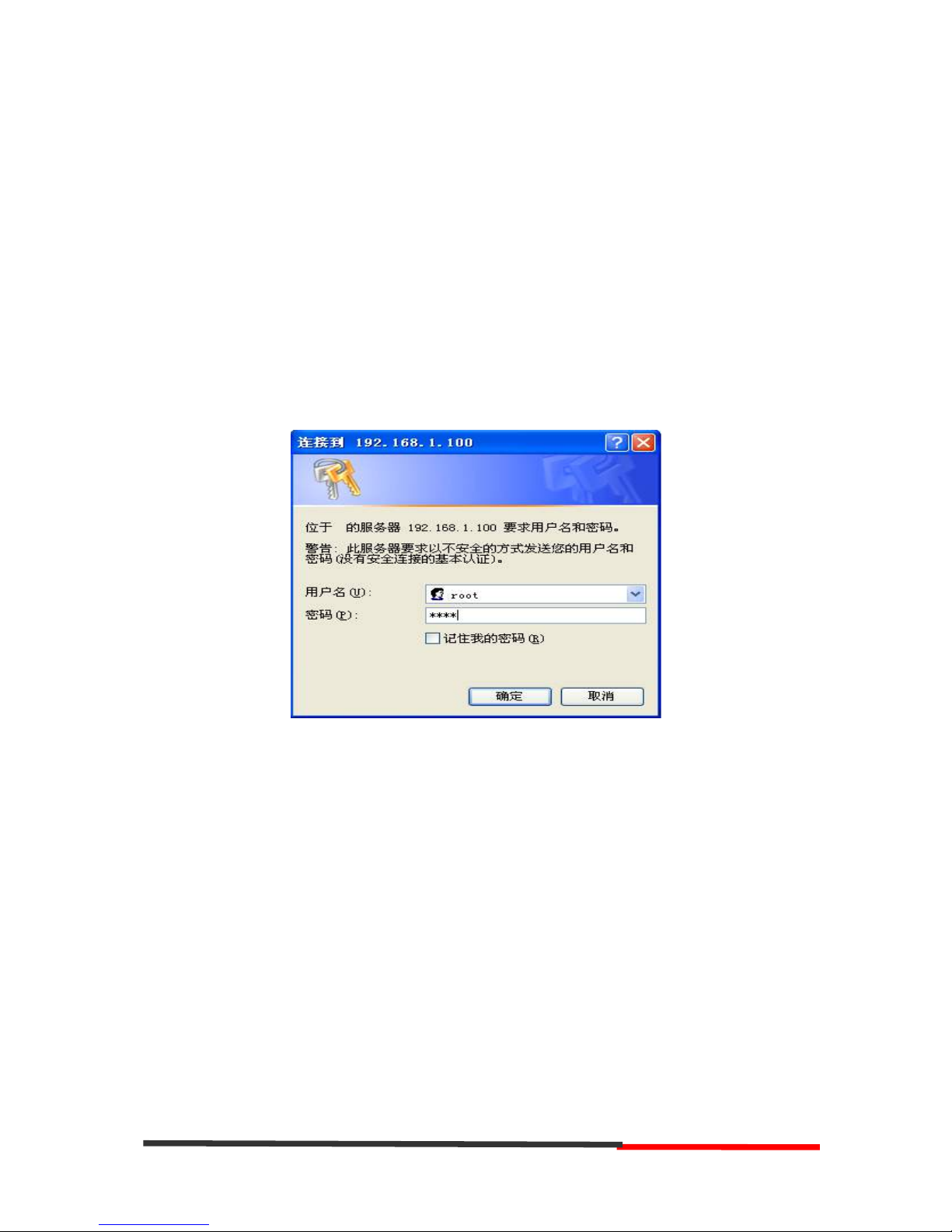

Once input the IP address of intercom on the web browser and tap the “enter” on the
keyboard. Then a login screen will pop up from the intercom equipment. You need to
input user name and password. Both default user name and password of system is case
letters “root”

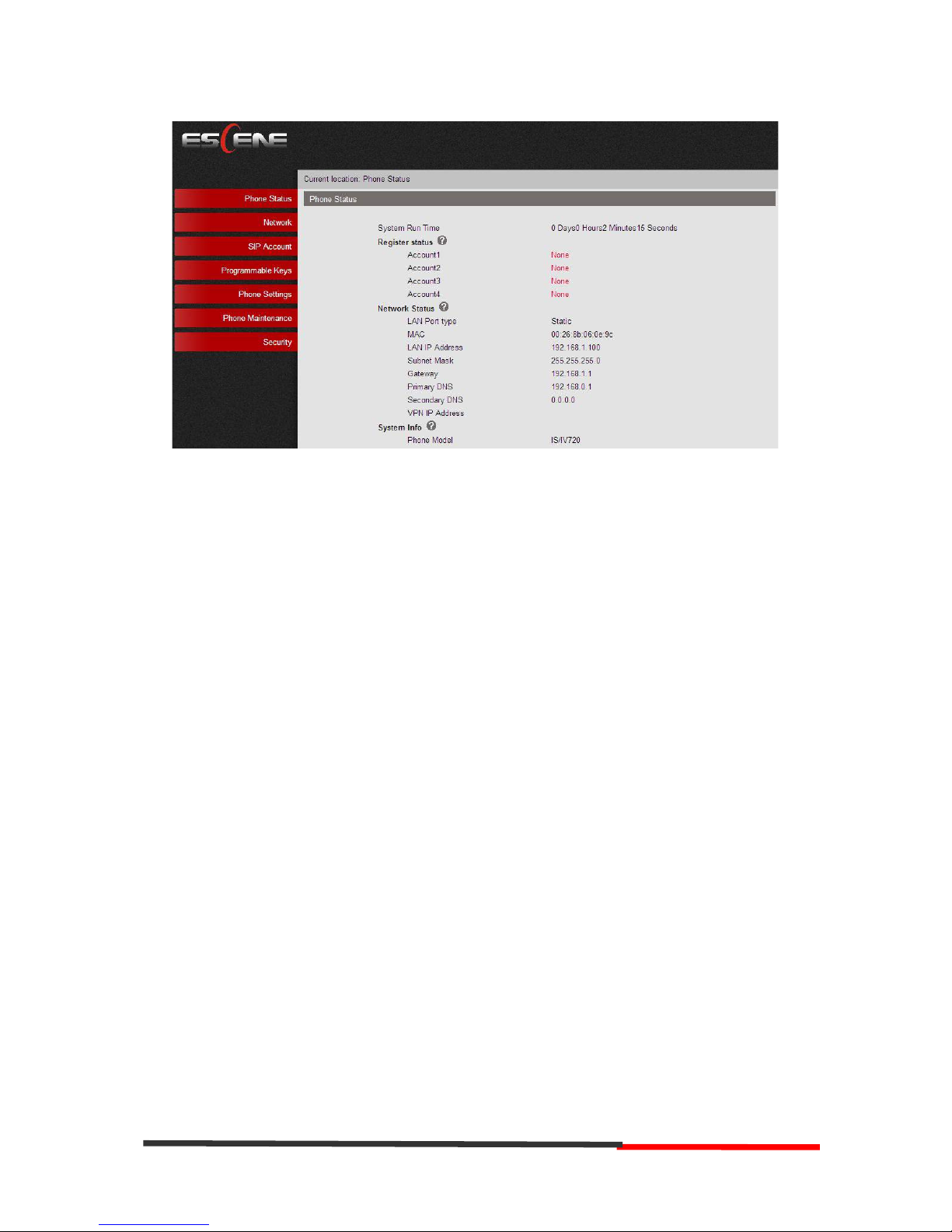

After the log-in,the easy administrate web page of the intercom will pop up.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
If you want to open the all-round web management, you can enter an URL as follow:
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
Here you can see as below information: System Run Time, Register Status, Network
Status, System Information,

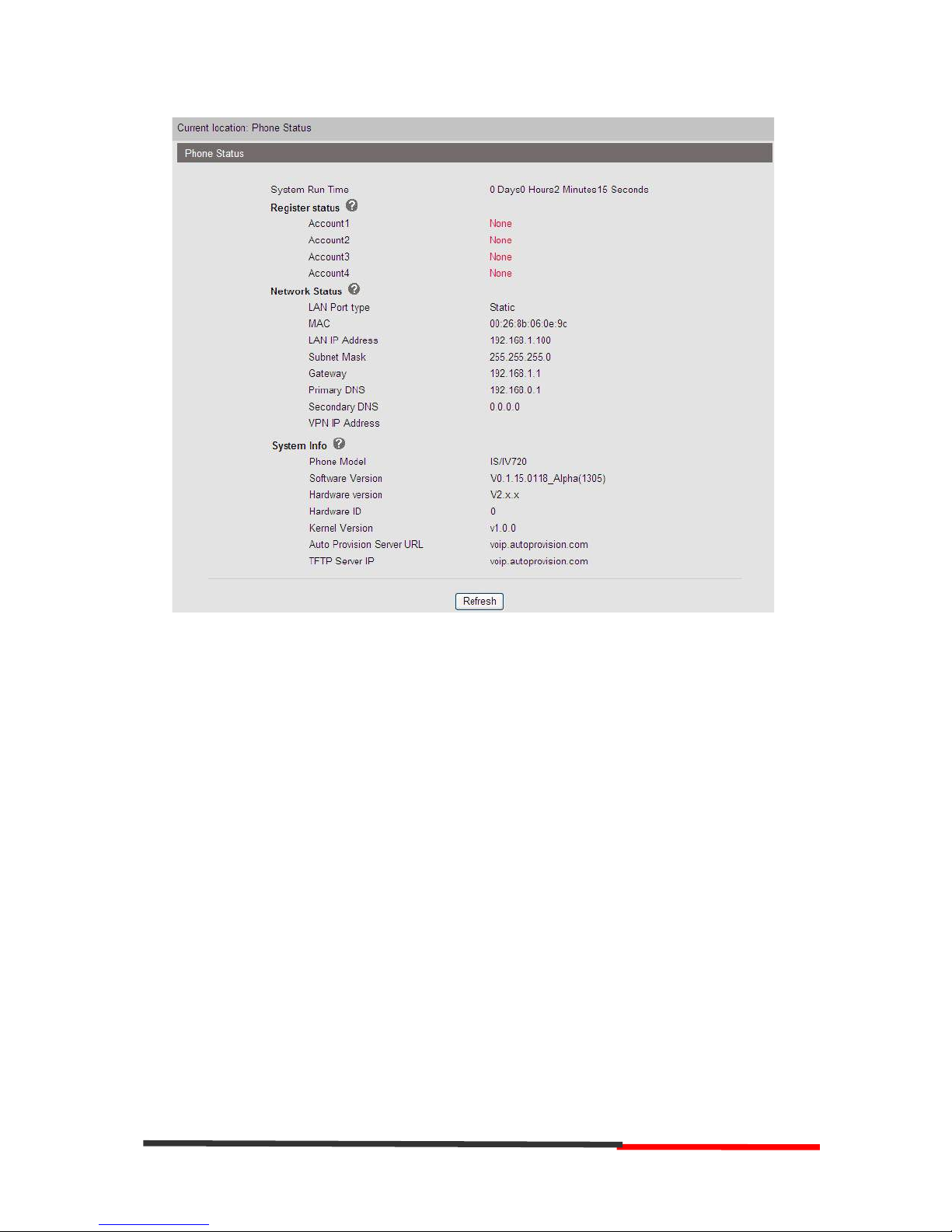

3.2 Phone Status
Here you can see as below information: System Run Time, Register Status, Network
Status, System Information,
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
3.3 Network
3.3.1 LAN Port Configuration
ITEM DESCRIPTION
N e t w o r k C o n n e c t i o n Mode
Network Connection Mode has DHCP, Static IP, PPPoE.
DNS SETTINGS
Select the DNS mode that you want.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom

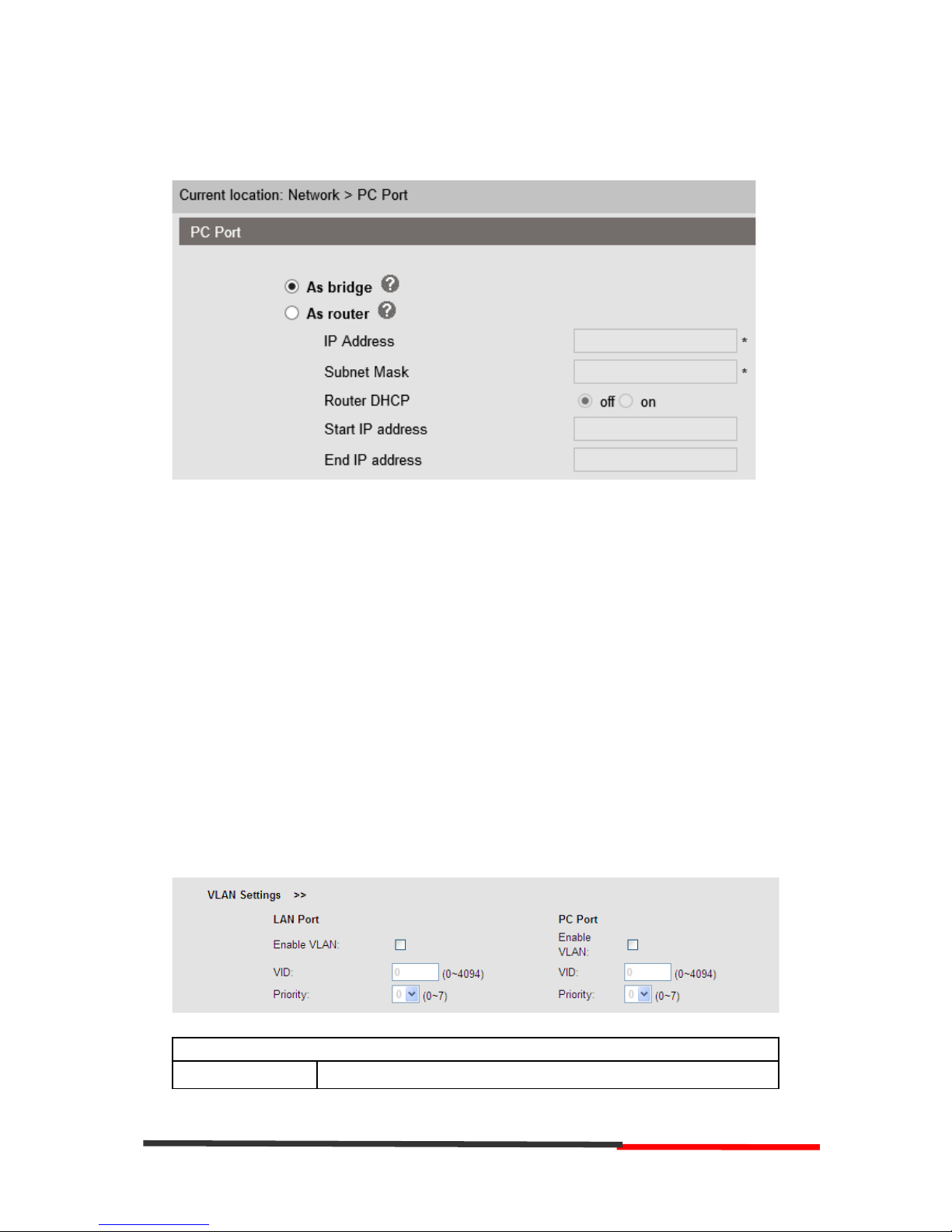

3.3.2 PC Port Configuration
Bridge mode
Normally, you should choose “bridge” feature, it means that pc port and LAN port will share the same network.
Router mode
Router feature is for the phone PC Port. You must input IP address (it’s equivalent to a gateway) and Net mask. If you want to use DHCP function, please turn it on, input start IP and end IP.
3.3. 3 VLAN Settings
When using VLAN Setting option, you can set several parameters as follow:
VLAN Setting
Enable VLAN You can enable/disable VLAN for phone and pc
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
VID [LAN/PC Port]
The VLAN ID you want the phone or pc to join

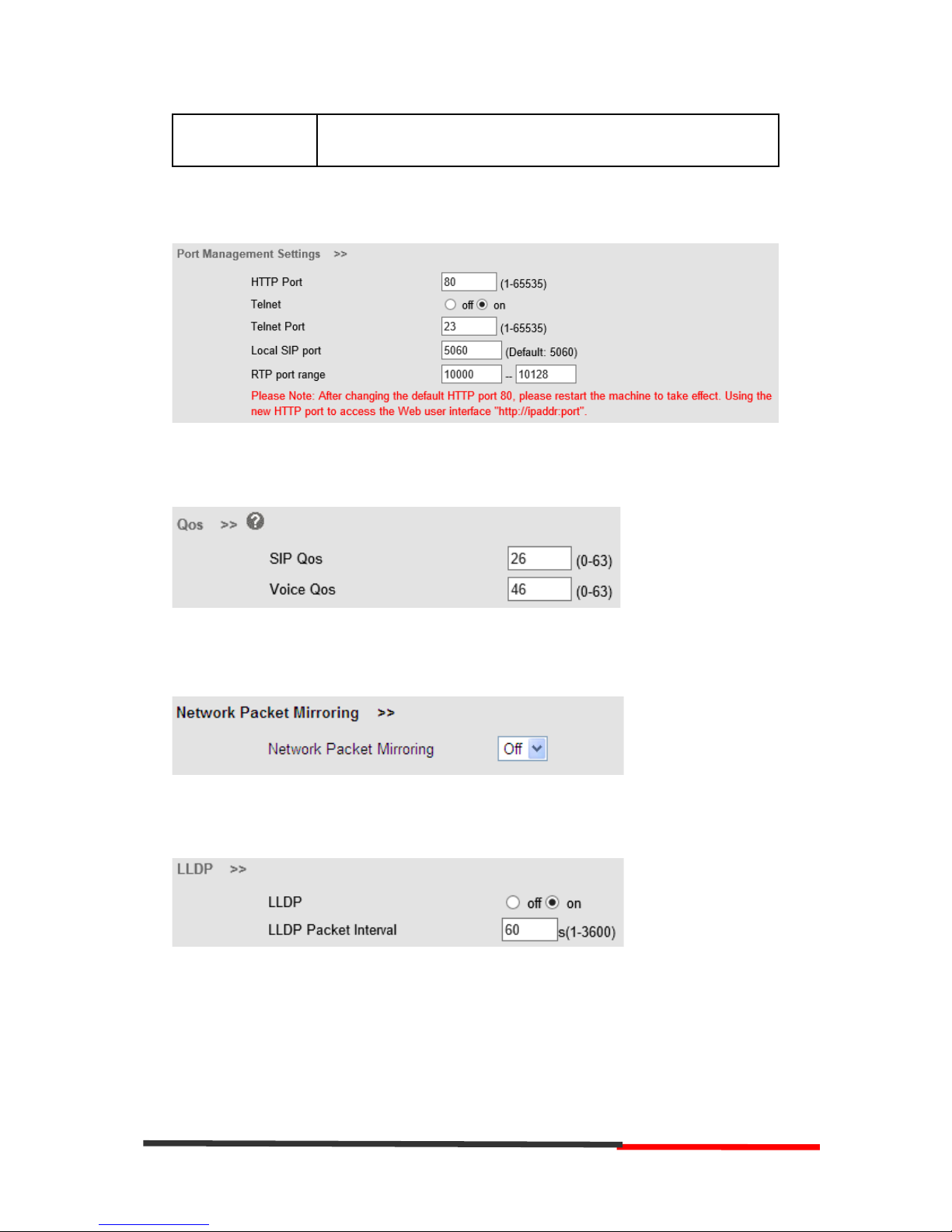

3.3. 4 Port management Settings
3.3. 5 QoS
3.3. 6 Network Packet Mirroring
3.3. 7 LLDP

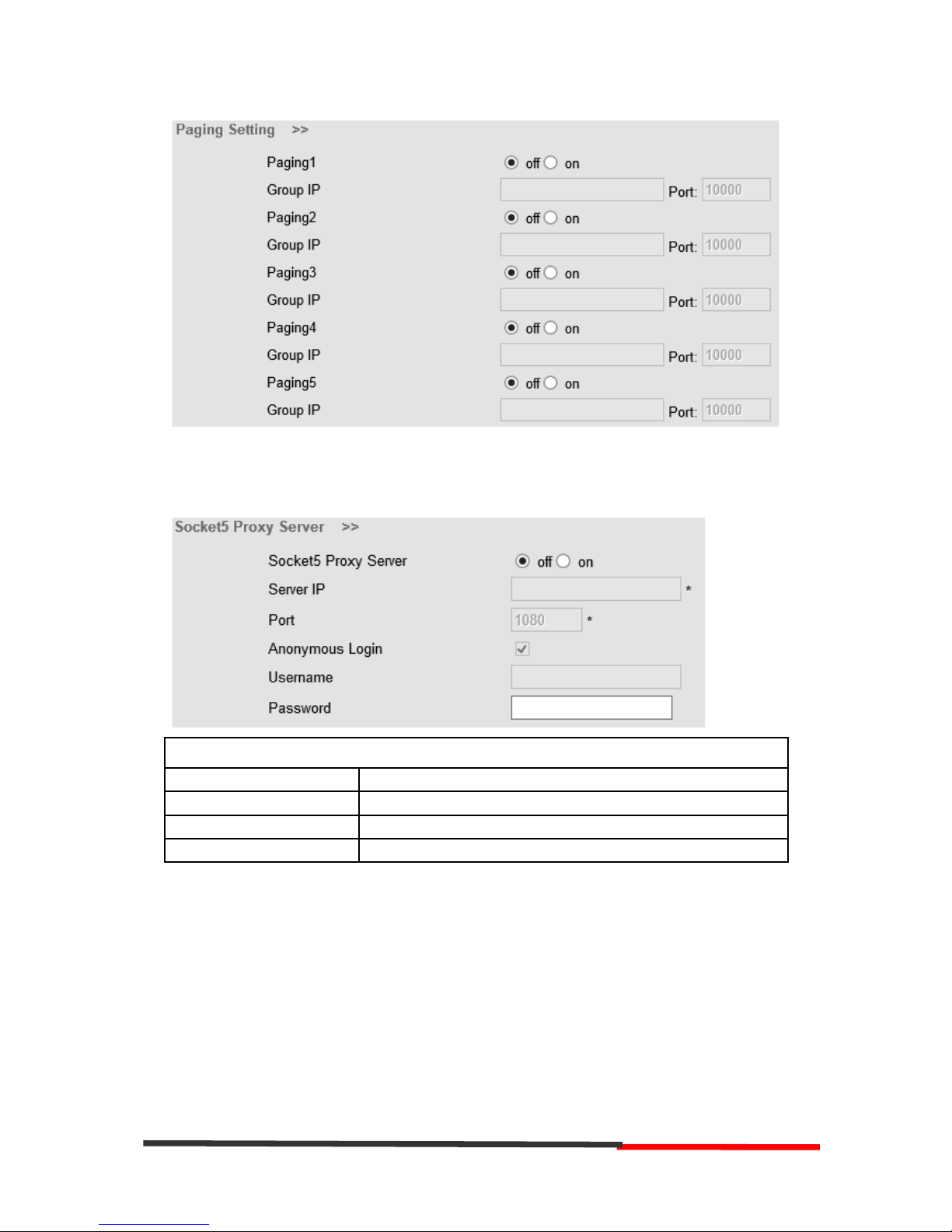

3.3. 8 Paging Settings
Paging Settings (NOTE: This feature priority is followed the serial number, In other
words, "paging1" is the highest priority)
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
3.3.9 Socket5 Proxy Server
Socket5 Proxy Server
Socket5 Proxy Server Enable/Disable Socket5 Proxy Server. Server IP Socket5 Proxy Server IP address. Port Socket5 Proxy Server port, default is 1080. Anonymous Login Enable/Disable Socket5 Proxy Server login username.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom

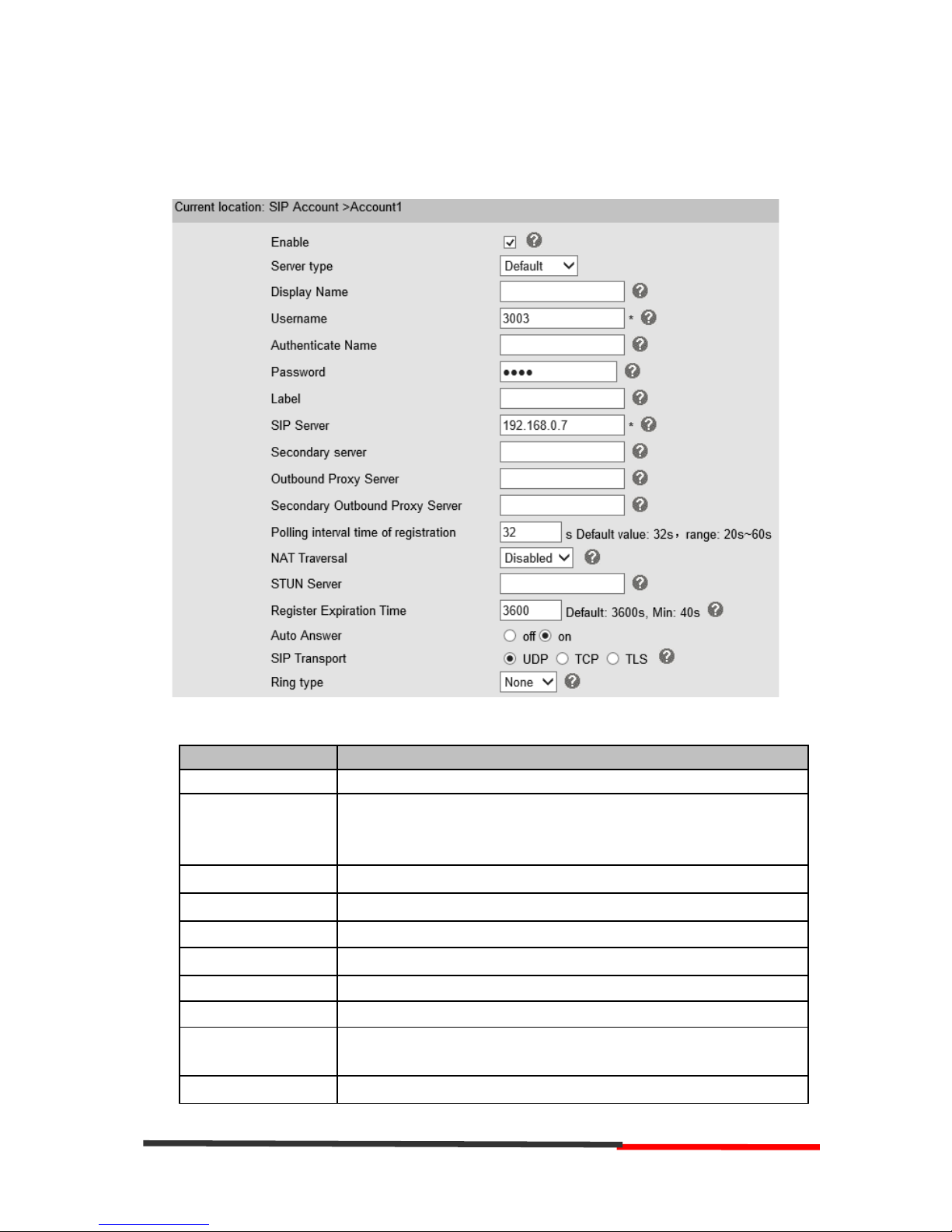

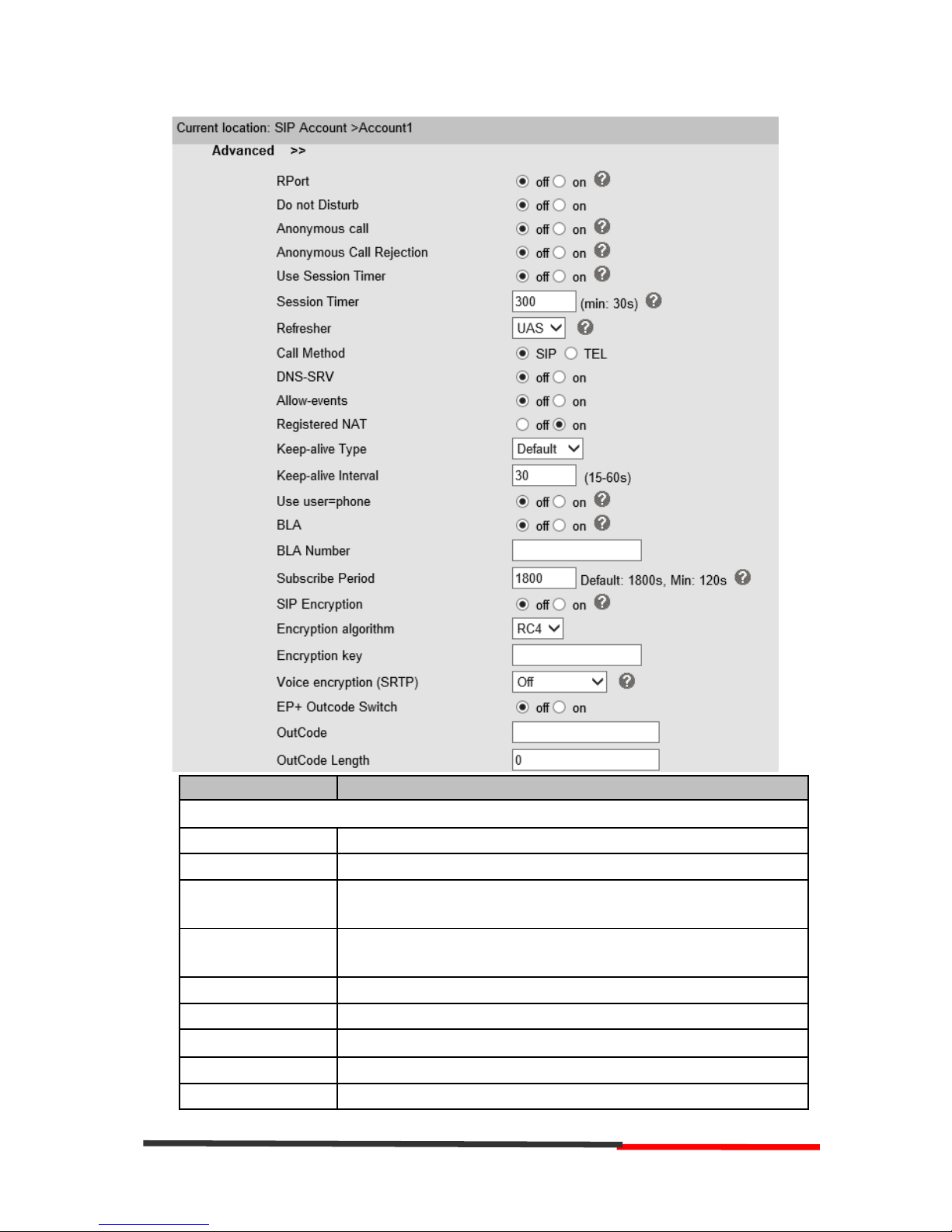

3.4 SIP Accounts
Choose one Account, you will find the following parameters:
ITEM
DECSRIPTIO
Enable
You can choose on/off to enable/disable the line.
Account Mode You can choose VOIP/PSTN, but this model nonsupport PSTN, If
you need, Pls contact us to buy another model that can supports PSTN.
Display Name It is showed as Caller ID when making a phone call Username It is a username provided by SIP Server Authenticate Name It is authenticated ID for authentication
Password It is a password provided by SIP Server Label Label with this account.
SIP Server Server for registration, provided by administrator Secondary server When the main server can't work, it also can register in this
secondary server.
Outbound Proxy
Put into the address with the outbound proxy server.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
Secondary Outbound Proxy Server
When the main out bound server can't work, it also can use this secondary server.
Poling Interval Time Of
Registration
Poling Interval Time Of Registration, default is 32 s.
NAT Traversal Defines the STUN server will be active or not STUN Server Session traversal utilities for NAT.
BLA Share with the line. BLA Number BLA Number Subscribe Period Subscribe expire time. Register Expire Time IP phone automatically registered every time
SIP Transport There are UDP/TCP/TLS three options Ring Type Select this account ringing type.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
ITEM
DECSRIPTIO
Call
Do Not Disturb Enable/Disable Do Not Disturb Anonymous Call Enable/Disable anonymous call. Anonymous Call
Rejection
Enable/Disable anonymous call rejection.
Use Session Timer Enable/Disable refresh session function. The device will send an
Invite packet to refresh the session during a call if it enable. Session Timer The refresh session time interval. Call Method This method include SIP and TEL. DNS-SRV Enable/Disable DNS-SRV.
Allow-events Enable/Disable Allow-events. Registered NAT Enable/Disable Registered to NAT
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
UDP Keep-alive Message
The phone periodically sends a UDP packet to keep the port active
and to avoid the server to shut down the port UDP Keep-alive
Interval
Default is 30 second.
ITEM
DECSRIPTIO
Security
SIP Encryption Enable/Disable SIP encryption. RTP Encryption Enable/Disable RTP encryption. Encryption Algorithm The encryption algorithm at this time we only have RC4. Encryption Key The key with encryption.

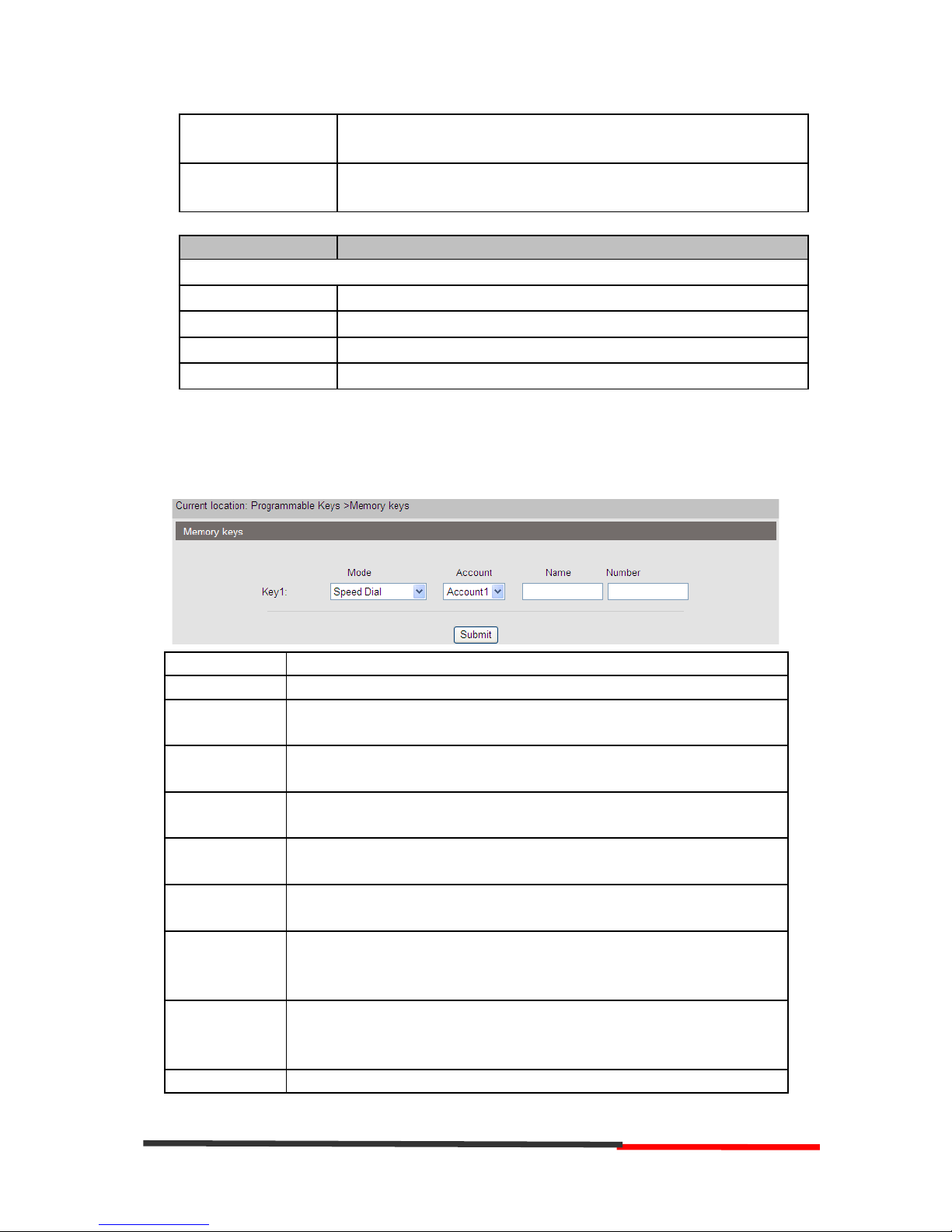

3.5 Programmable Keys
ITEMS DESCRIBES Line The default value. Speed Dial You can use this key feature to speed up dialing the numbers often
used or hard to remember. Speed Dial Prefix
You can use this key feature to speed up dial a call with a specified
prefix number. DTMF You can use this key feature to send the specification of arbitrary key
sequences via DTMF. BLF You can use the BLF feature to monitor a specific user for status
changes on the phone. Paging You can use multicast paging to quickly and easily forward time
sensitive announcements out to people within the multicast group. Call Park You can use call park feature to place a call on hold, and then retrieve
the call from another phone in the system (for example, a phone in
another office or conference room). Intercom You can press the configured intercom key to automatically connect
with a remote extension for outgoing intercom calls, and the remote
extension will automatically answer the incoming intercom calls BLA This feature such as the BLF. NOTE: ONLY WHEN YOU CHOOSE “SPEED DIAL”, THE RIGHT OF
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
“NAME”,”NUMBER” WILL TAKE EFFECT.
3.6 Phone Settings

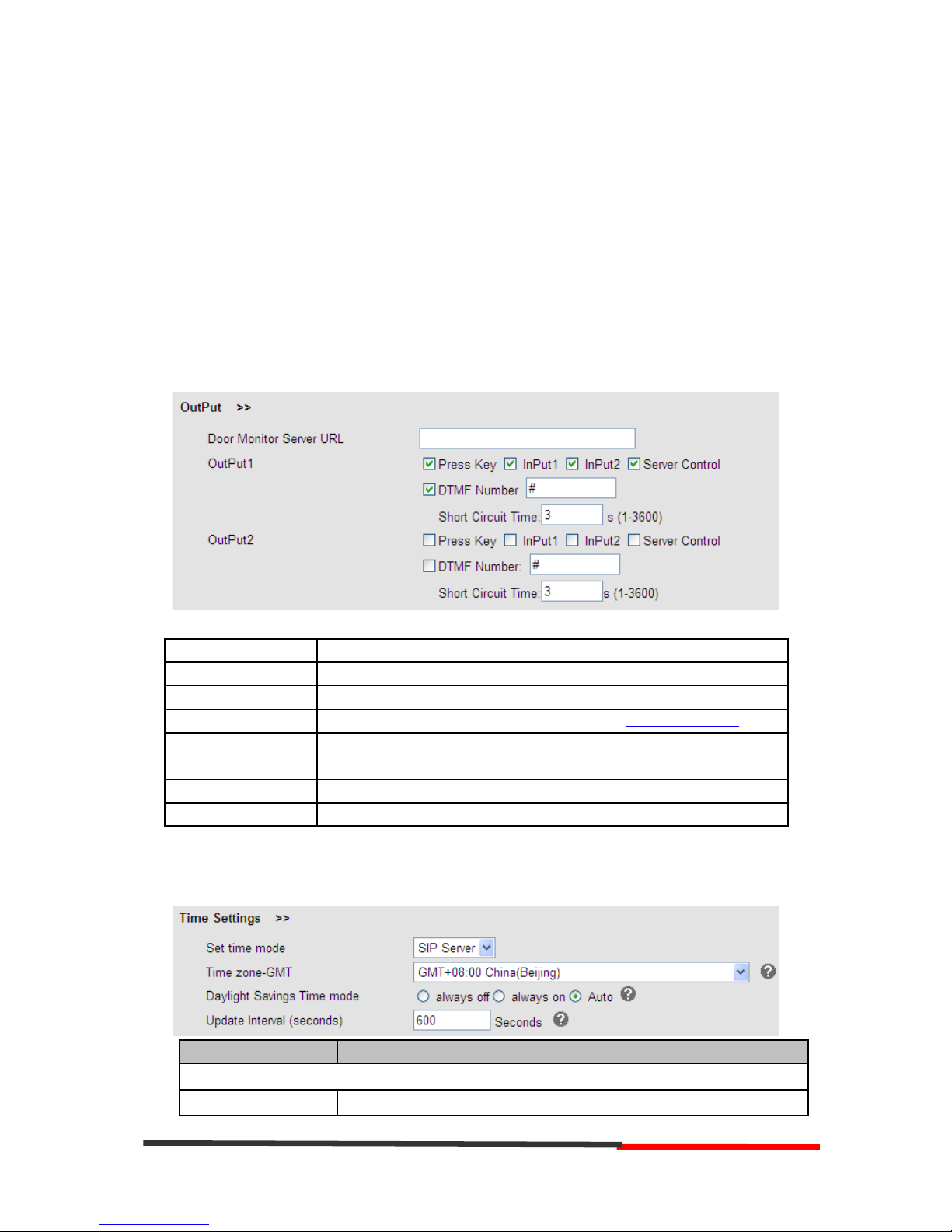

3.6.1 Output

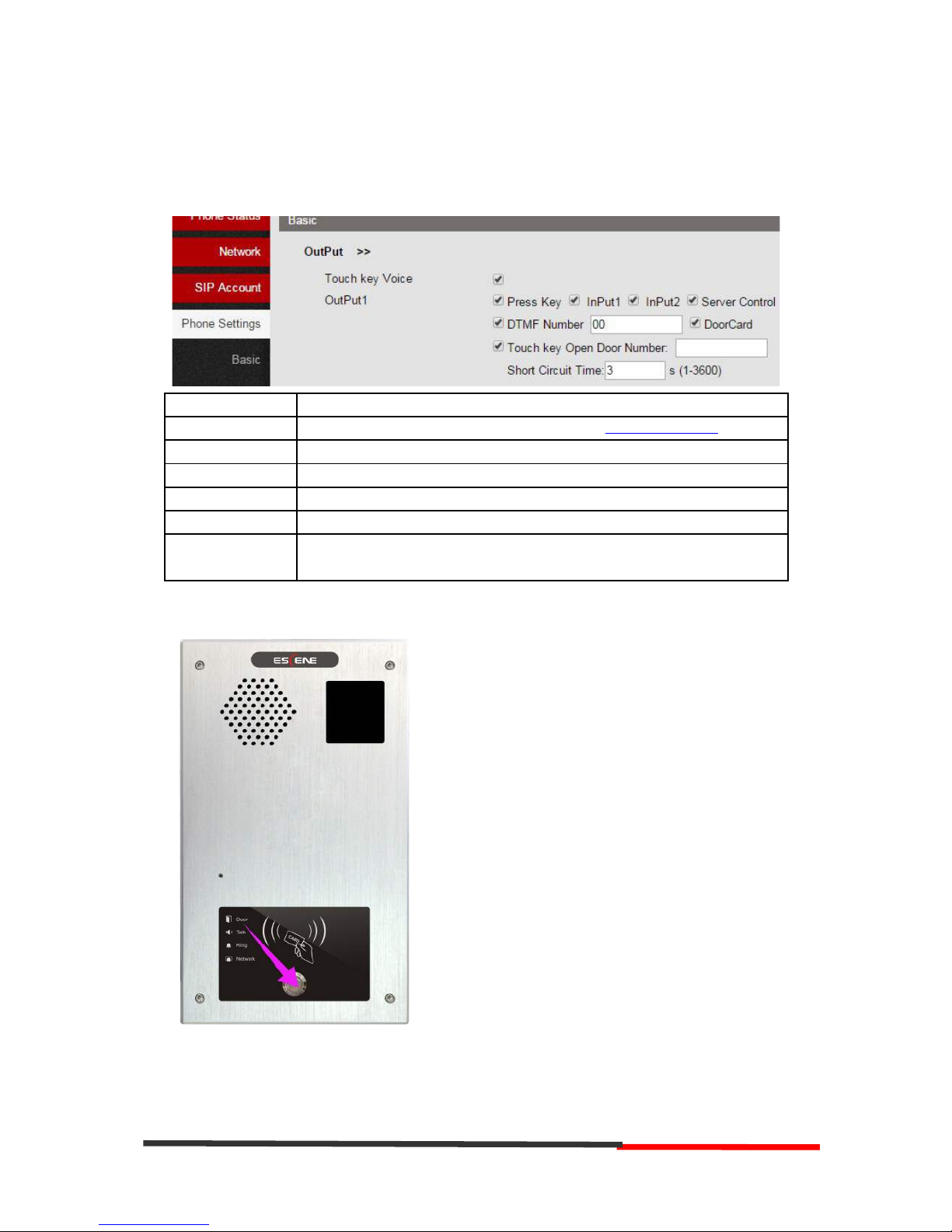

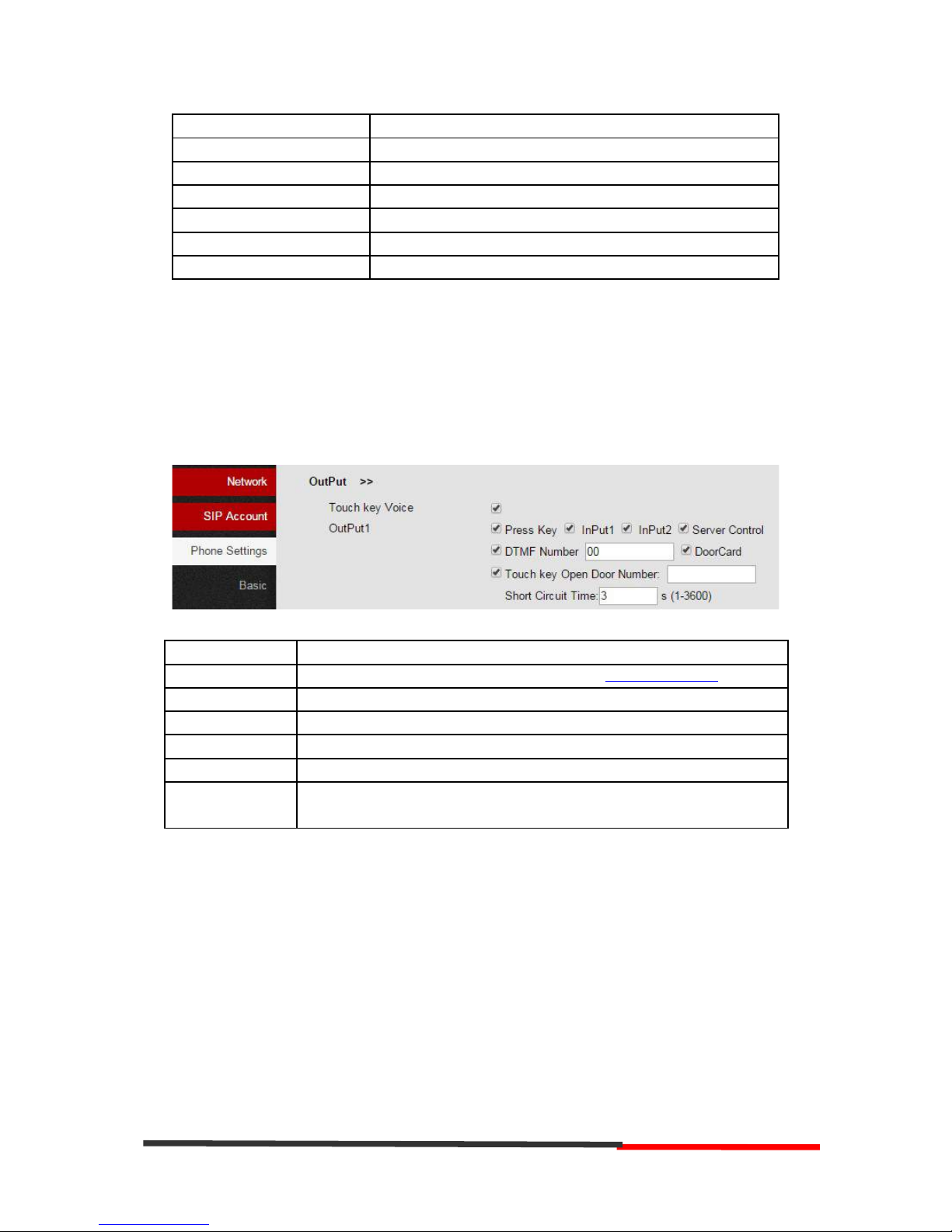

Signal output 1&2 is controlled by several variables. Among them, Server control is a custom variable for some specified platforms. Once custom option is selected, Output variable will be activating accordingly. Note: Both ‘signal input’ and ‘signal output’ are on/off switch
Output1 Variables for output1
output2 Variables for output2
Press key Press the dial button to trigger the relay. Input1/2 Shortcut the input1 logic to trigger the relay. See the diagram Server Control Use API command to trigger the relay. Ask us for dev manual
please. DTMF Number Pressing DTMF key to trigger the relay when the phone talking. Short Circuit time The relay circuit timer.
3.6.2 Time Settings
ITEM
DECSRIPTIO
Time Settings
Set Time Mode Include SNTP/SIP Server/PSTN/Manual
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
SNTP Server You can select in the list or input owner server address. Update Interval The update interval with SNTP. Day Light Saving
Time
Enable/disable the DST for the phone
Time Format
You can use 24 hour time format or 12 hour time format
Date Format
You can choose the appropriate time format.
Time Zone-GMT You can select different time zone for the phone Manual Setting Setting time manually.

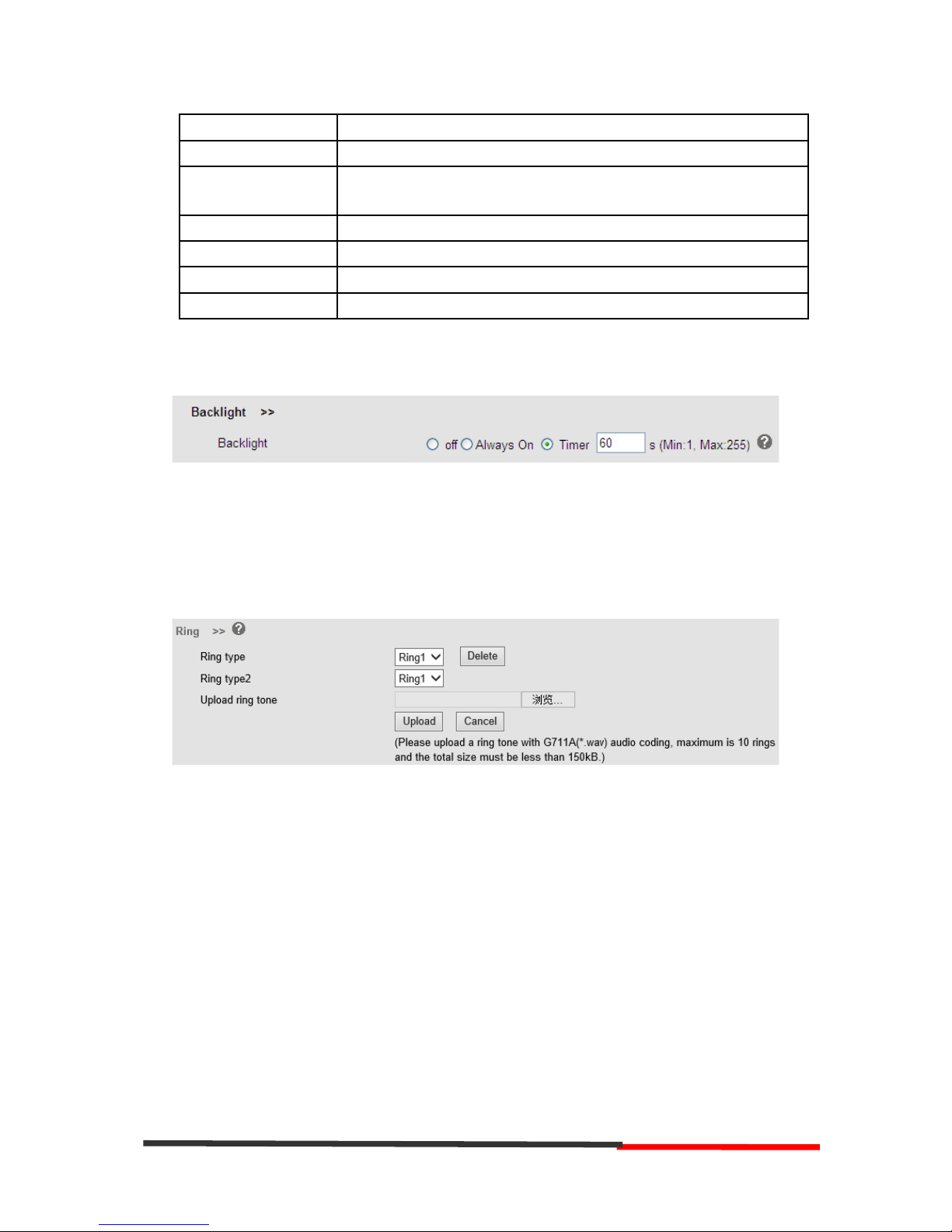

3.6.3 Backlight
3.6.4 Ring tone
Ring1 is for the speaker on the panel, Ring2 is for external speaker Note:Only Support a ring tone with G711A (*.wav) audio coding, maximum is 10 rings and the total size must be less than 150kB.

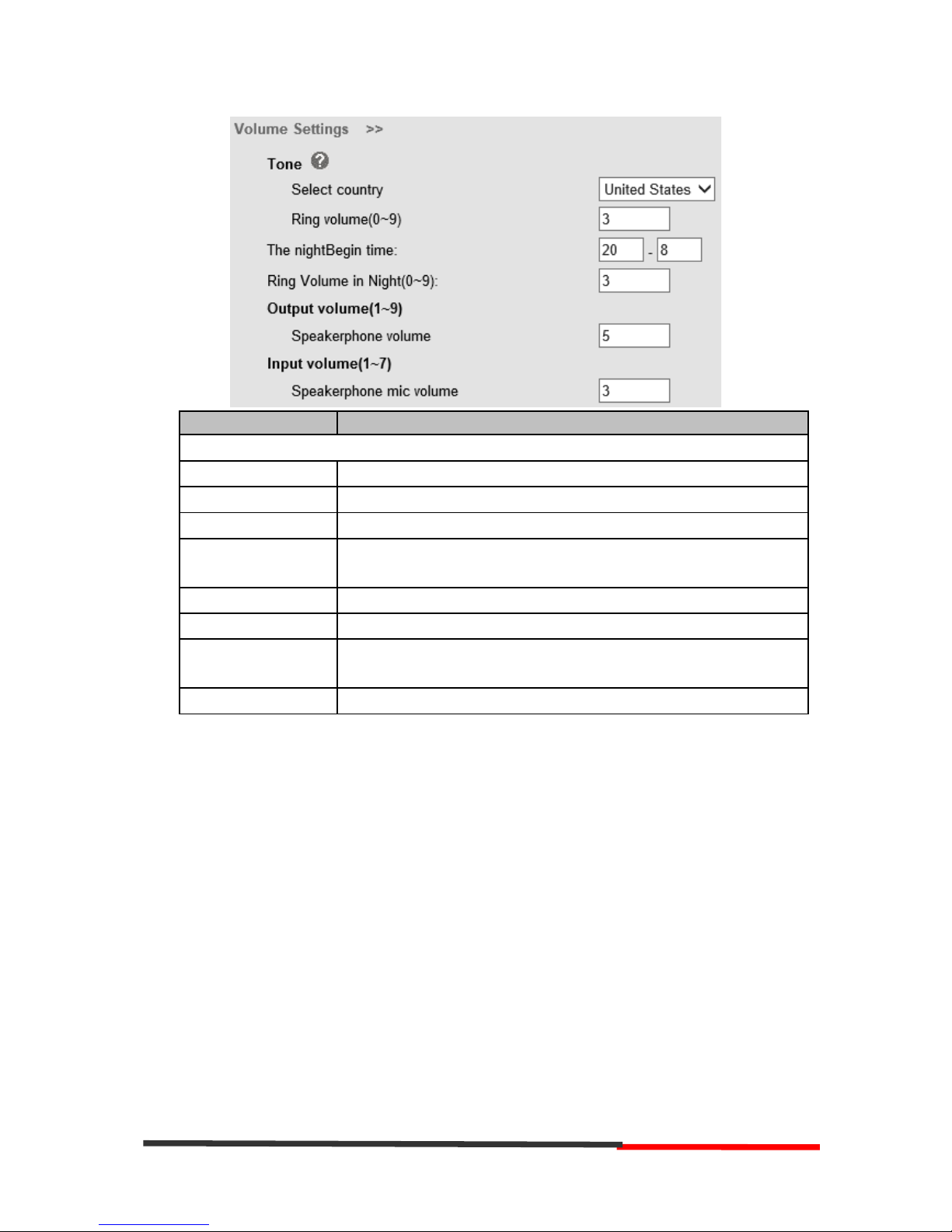

3.6.5 Volume Setting
You can manage the volume level and mic level as below form. Note: Normally if the mic is on level 7. Please keep the volume below level 4.Unless the
using area is small or you have good ability of noise reduction.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
ITEM
DECSRIPTIO
Basic
Select Country Select the country dial tone. Default is United States. Ring Volume The ring volume default is Lv3, the range is 0~9. Handset Volume The handset volume default is Lv5, the range is 1~9. Speaker Phone
Volume
The speaker volume default is Lv5, the range is 1~9.
Headset Volume
The headset volume default is Lv3, the range is 1~9.
Handset MIC Volume
The handset MIC volume default is Lv3, the range is 1~7.
Speaker Phone MIC Volume
The speaker MIC volume default is Lv3, the range is 1~7
Headset MIC Volume The headset MIC volume default is Lv3, the range is 1~7
3.7 Features
Including VOIP call forward, pickup features. Hot line features, auto answer, remote control. Action URL. EP+. And other features settings.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom

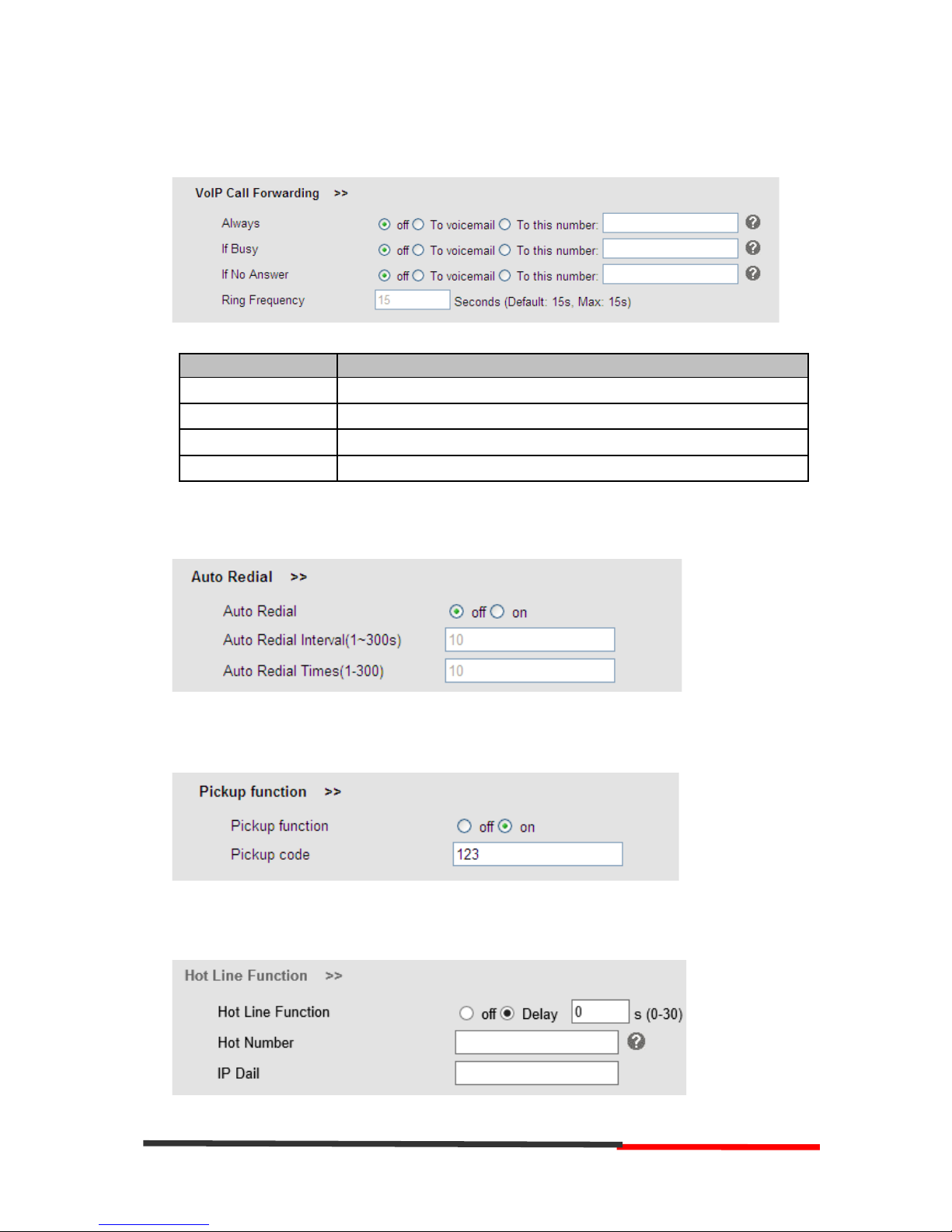

3.7.1 VoIP Call Forward
ITEM
DECSRIPTIO
Always All ways transfer the call to others. If Busy If the phone was busy working, the call will be transfer to others. If No Answer If the phone was no answer, the call will be transfer to others. Ring Frequency The ring frequency with the VOIP Call Forward.
3.7.2 Auto Redial
3.7.3 Pickup function
3.7.4 Hotline function
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom

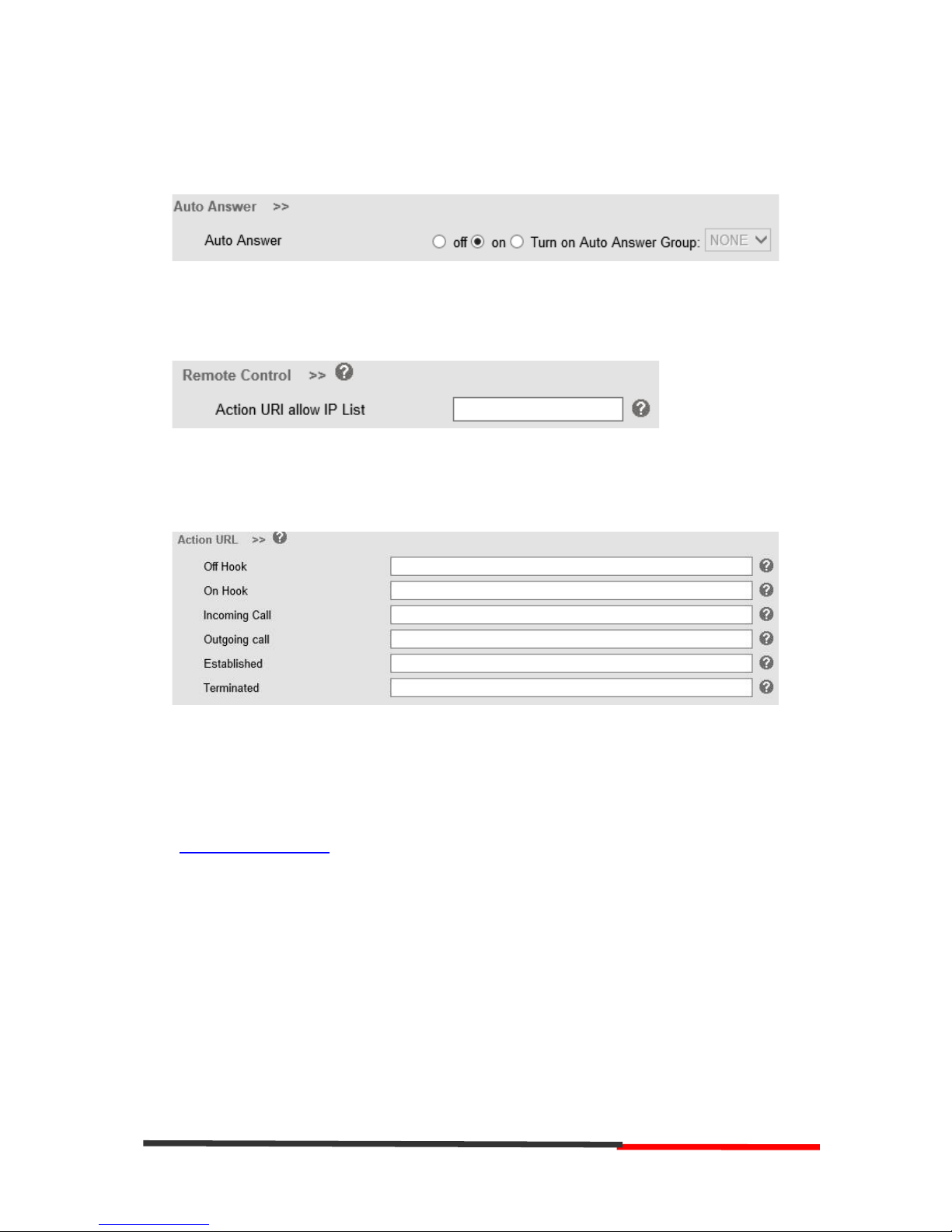

3.7.5 Auto Answer
Default value is on, Values can be changed accordingly。
3.7.6 Remote Control
A Third party is permitted to control this device
3.7.7 Action URL
The device will send orders to action URL initiative。

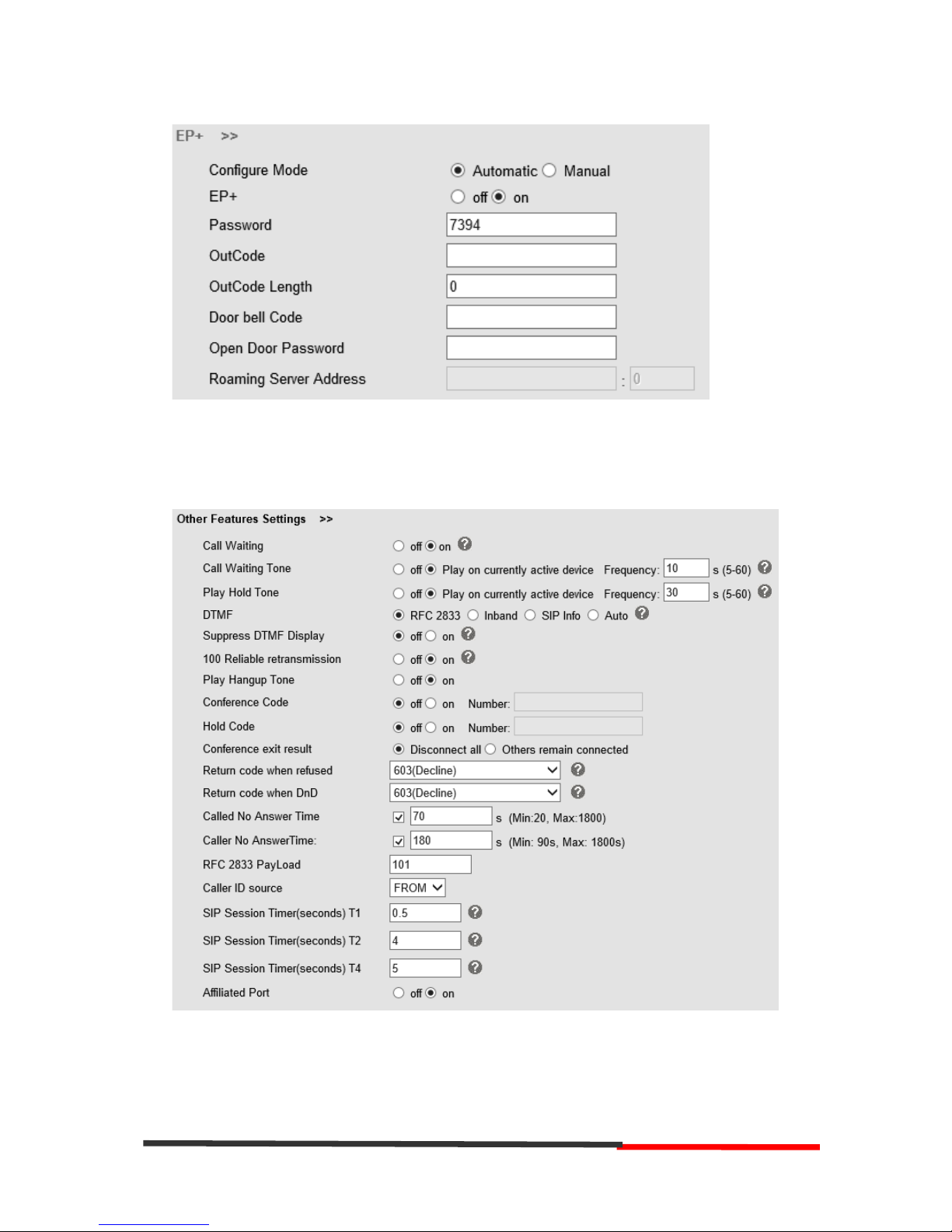

3.7.8 EP+
EP+ options are for the users who download the EP+ application on mobile phone.
After Completing below settings, EP+ will be activated. For more details, please refer to
www.escene.cn/en/en
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
3.7.9 Other features settings
For other features such as Call waiting, DTMF etc.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
3.8 Advanced

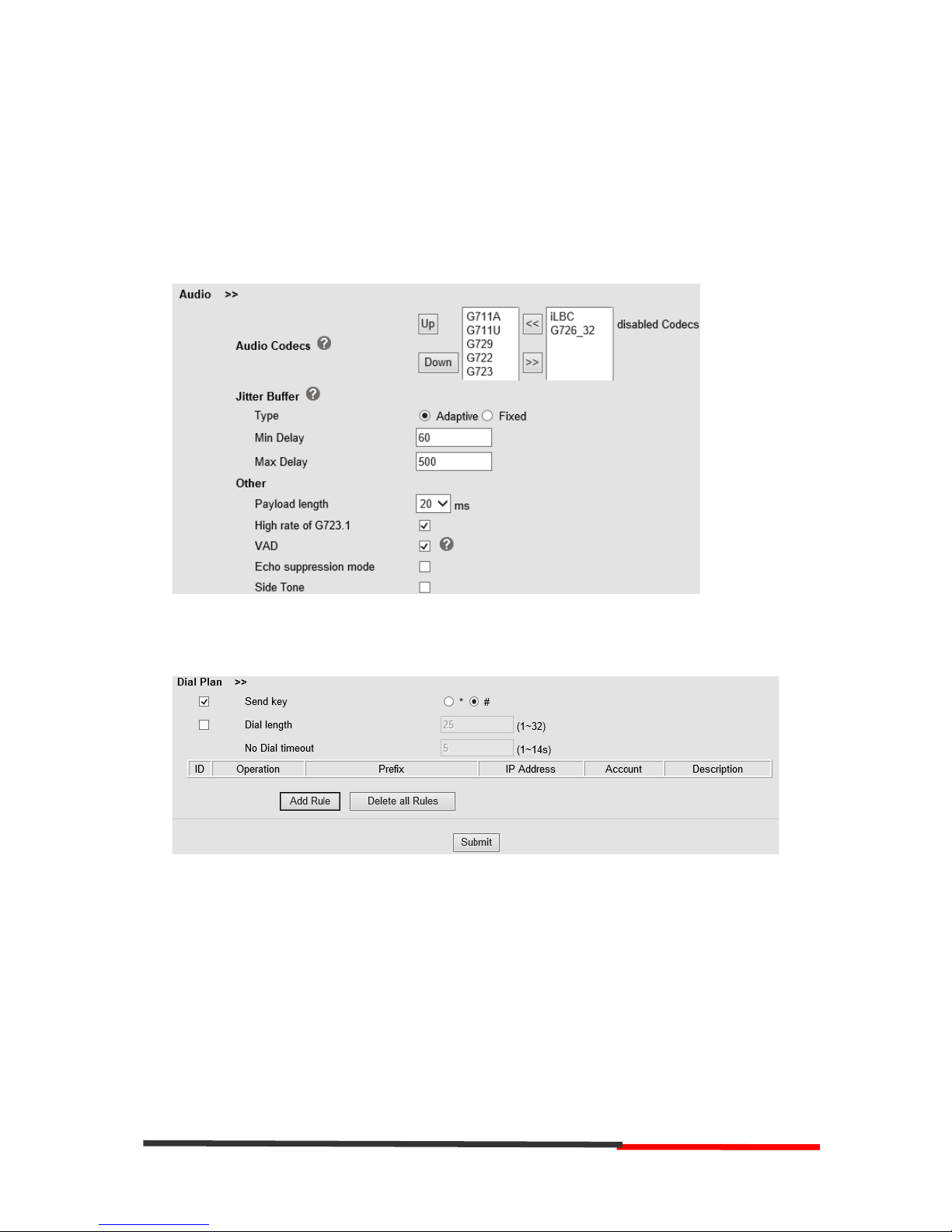

3.8.1 Audio
For Audio Codecs setting and Jitter Buffer setting.
3.8.2 Dial Plan

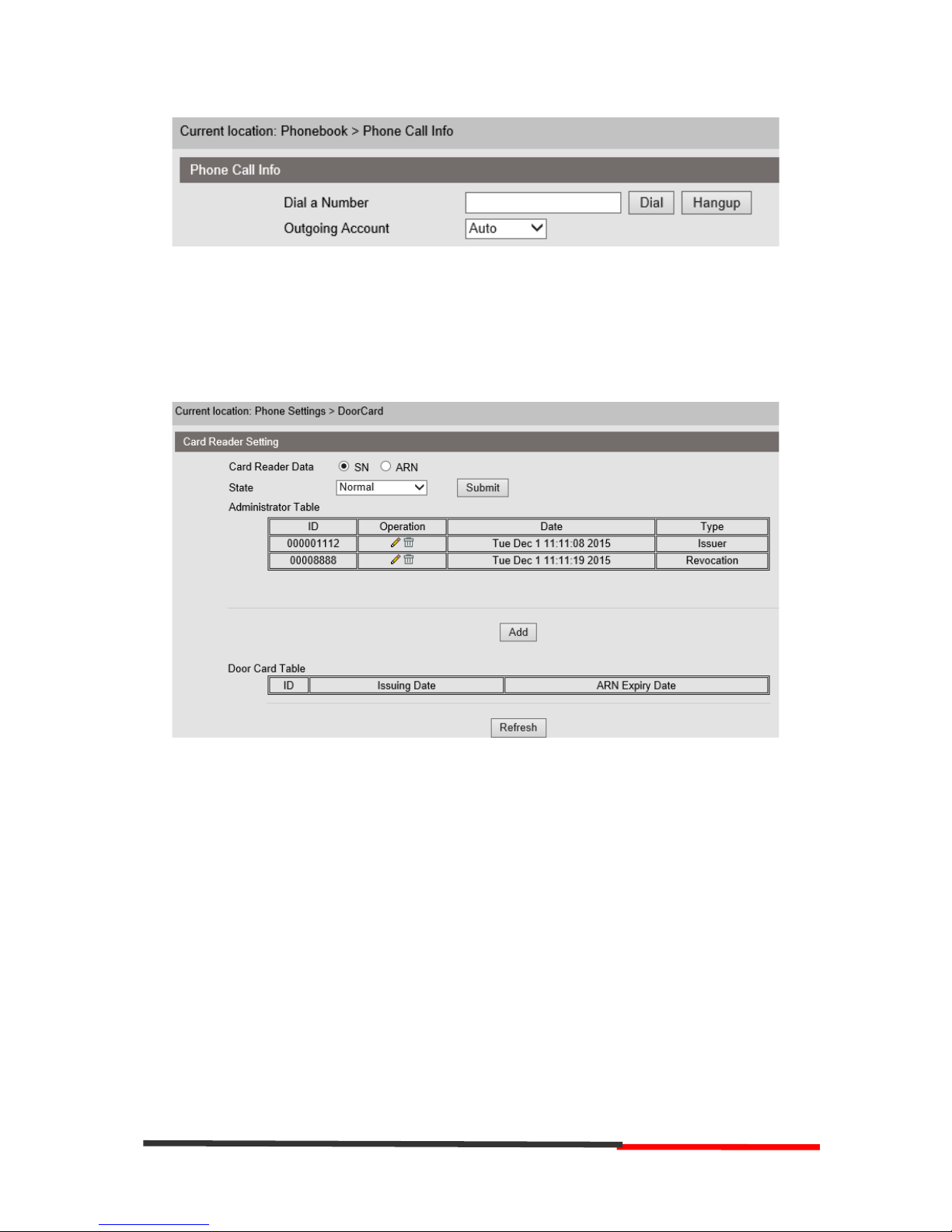

3.9 Phone call info
To call or hang up the phone via web
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
3.10 Door card setting
For reader data mode setting, cards management and door log look-up
3.11 Maintenance
This part mainly introduces some maintenance method. According to the below, you can
reconfigure Intercom IP Phone or view Intercom IP Phone log to gain more information
about maintenance.

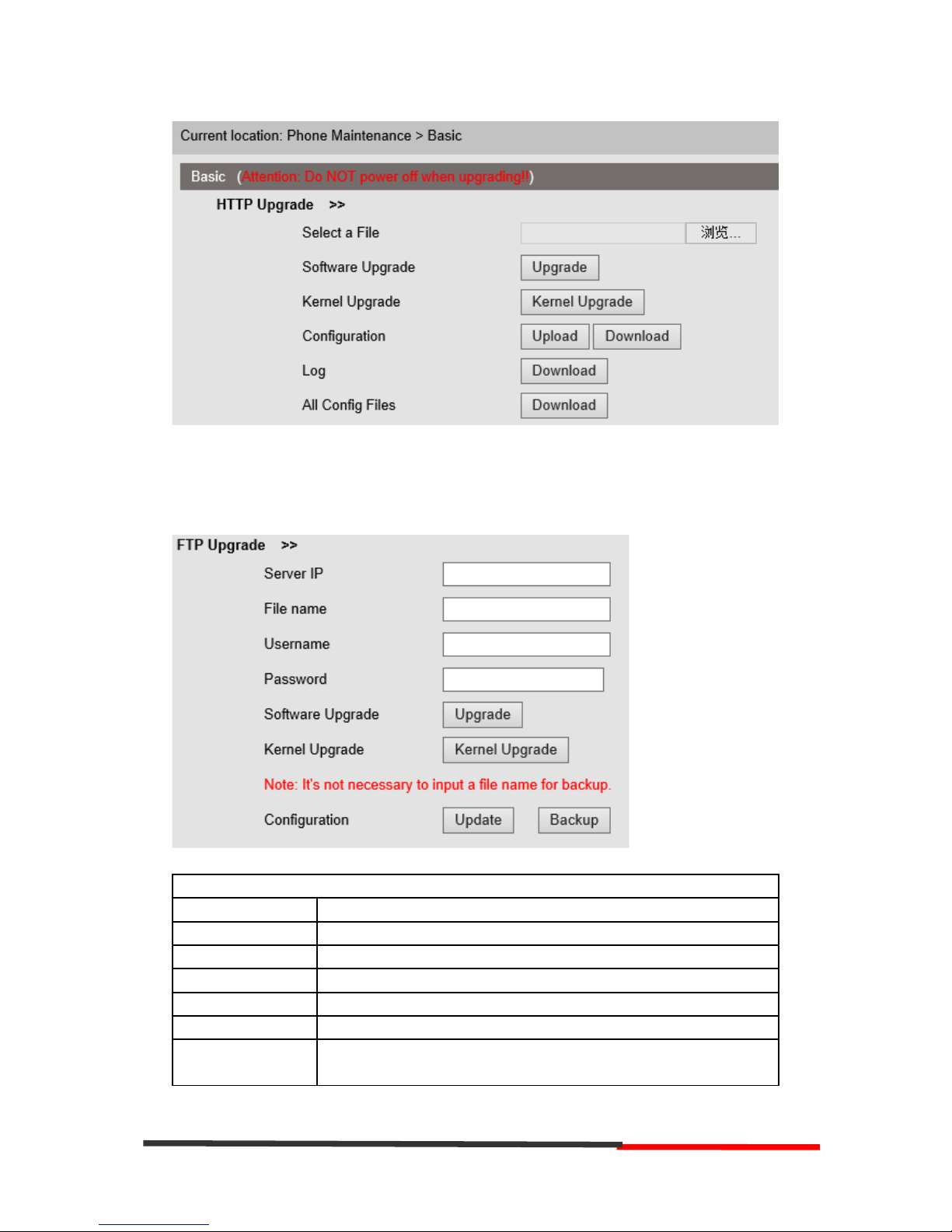

3.11.1 HTTP Upgrade
You can upgrade the software, kernel and configuration etc. files by HTTP.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
3.11.2 FTP Upgrade
You can upgrade the software, kernel and configure files by FTP.
When using FTP upgrade, you can set several parameters as follow:
FTP Upgrade
Server IP The IP address of the FTP server Filename Downloading from FTP server Username Providing by FTP server Password Providing by FTP server Software Upgrade Used for upgrading the software of the phone Kernel Upgrade Used for upgrading the kernel of the phone Configuration Used for updating/backup to update/backup the configure file of
the phone
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
Phone Book Used for updating/backup to update/backup the phonebook of
the phone
EXT Module Used for updating/backup the expansion of the phone
[NOTES:The mode doesn't support this feature]

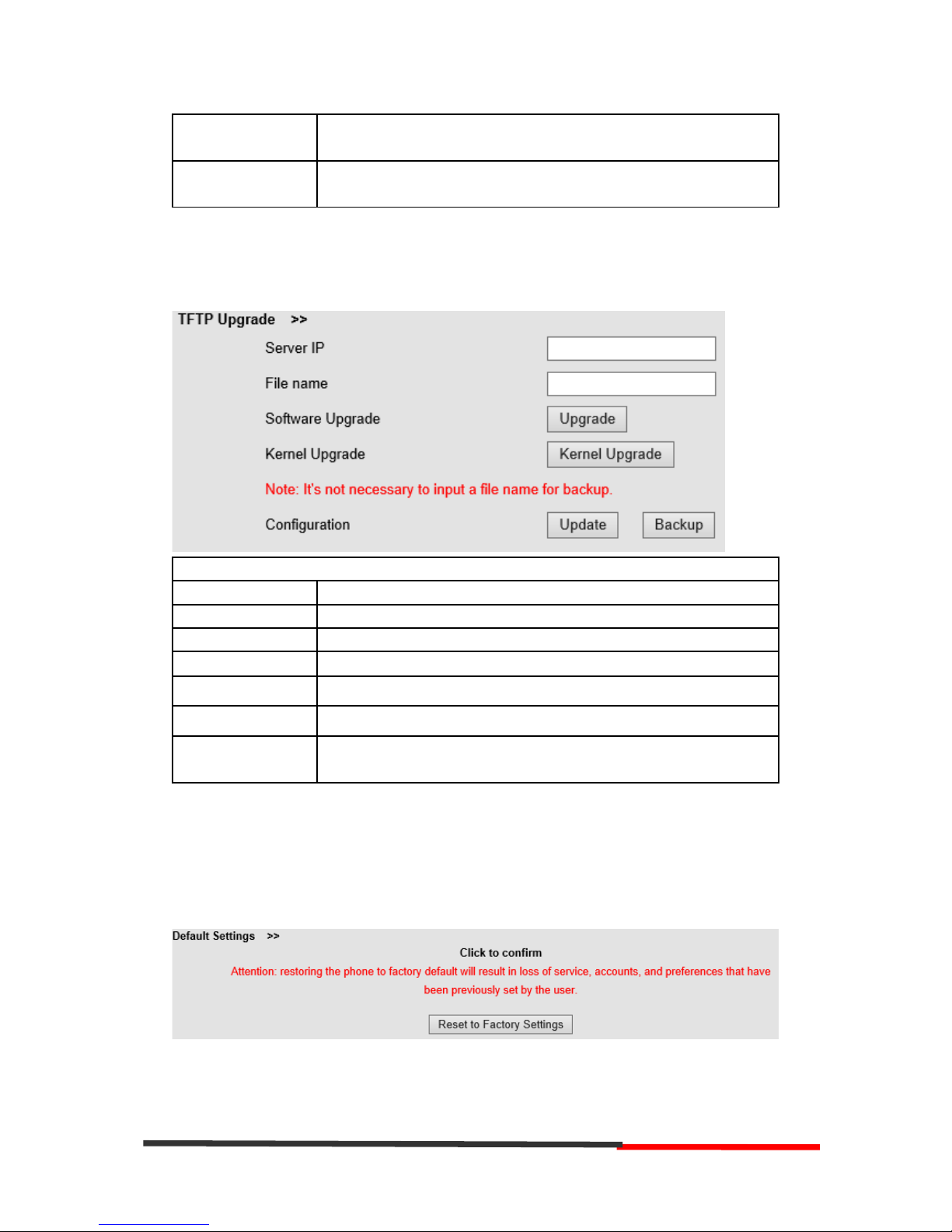

3.11.3 TFTP Upgrade
You can upgrade the software, kernel and configure files by TFTP.
TFTP Upgrade
Server IP The IP address of the TFTP server Filename Downloading from FTP server Software Upgrade Used for upgrading the software of the phone Kernel Upgrade Used for upgrading the kernel of the phone Configuration Used for updating/backup the configure file of the phone
Phone Book Used for updating/backup the phonebook of the phone EXT Module Used for updating/backup the expansion of the phone
[NOTES:The mode doesn't support this feature]
NOTES: It's not necessary to input filename when doing backup Configuration, Phone Book, EXT Module.
3.11.4 Factory reset
You can load the phone to the factory default setting in default setting option.
Press the ‘Reset to Factory Setting’ option, the phone will load to factory default setting on next reboot.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom

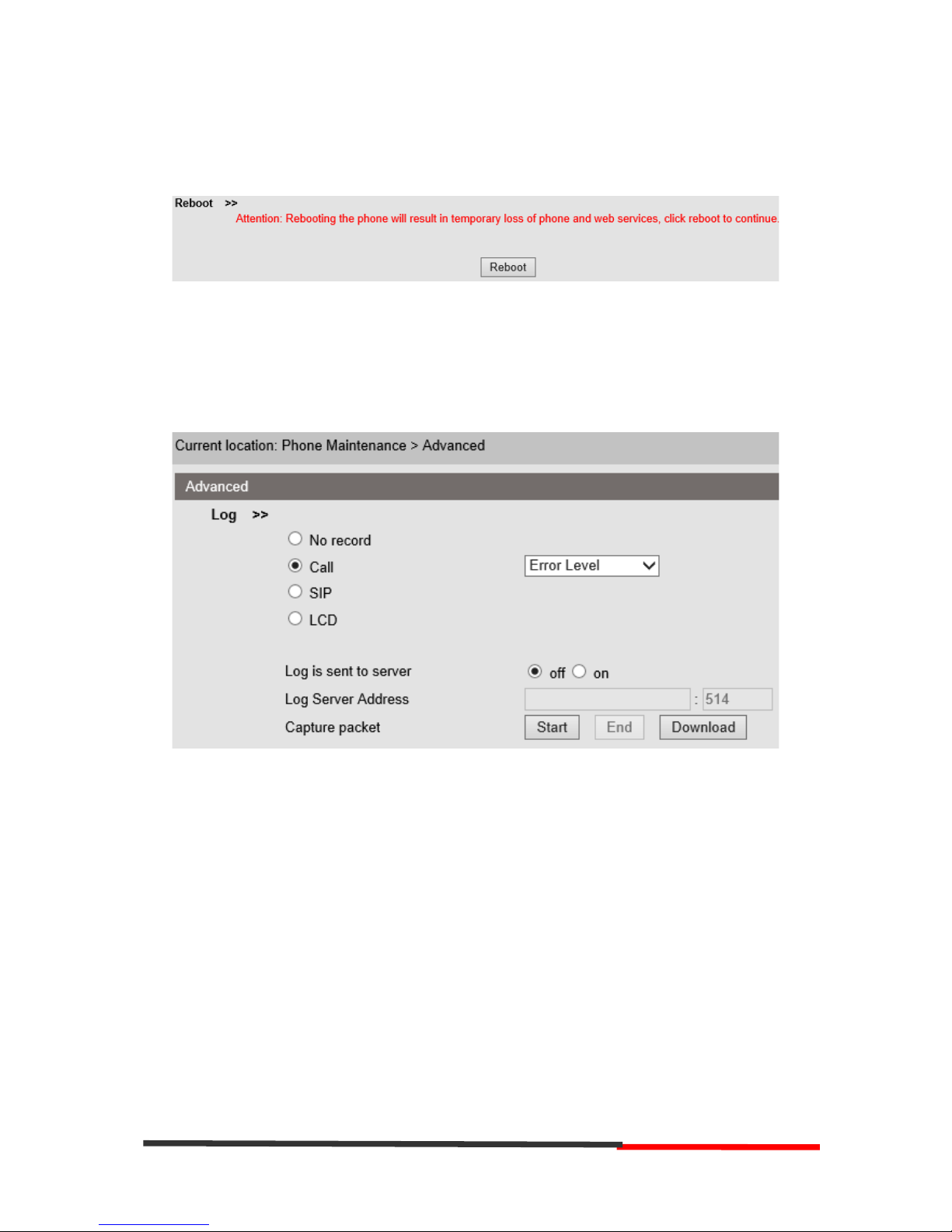

3.11.5 Reboot
You can use reboot option to reboot the phone.
3.11.6 Log
This feature is use for the administrator to managing the equipment, like debugging, SIP etc,. If you need to catch a debugging Level, you need to setup on this interface.
3.11.7 Auto Provision
When you open this auto provision feature, the phone will do auto provision after it detect a different software or kernel (Higher or Lower) which are putted on the TFTP,HTTP,HTTPS,FTP, server. For the detailed information about auto provision, you can find it in the official website: HTTP://www.escene.cn/en
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom

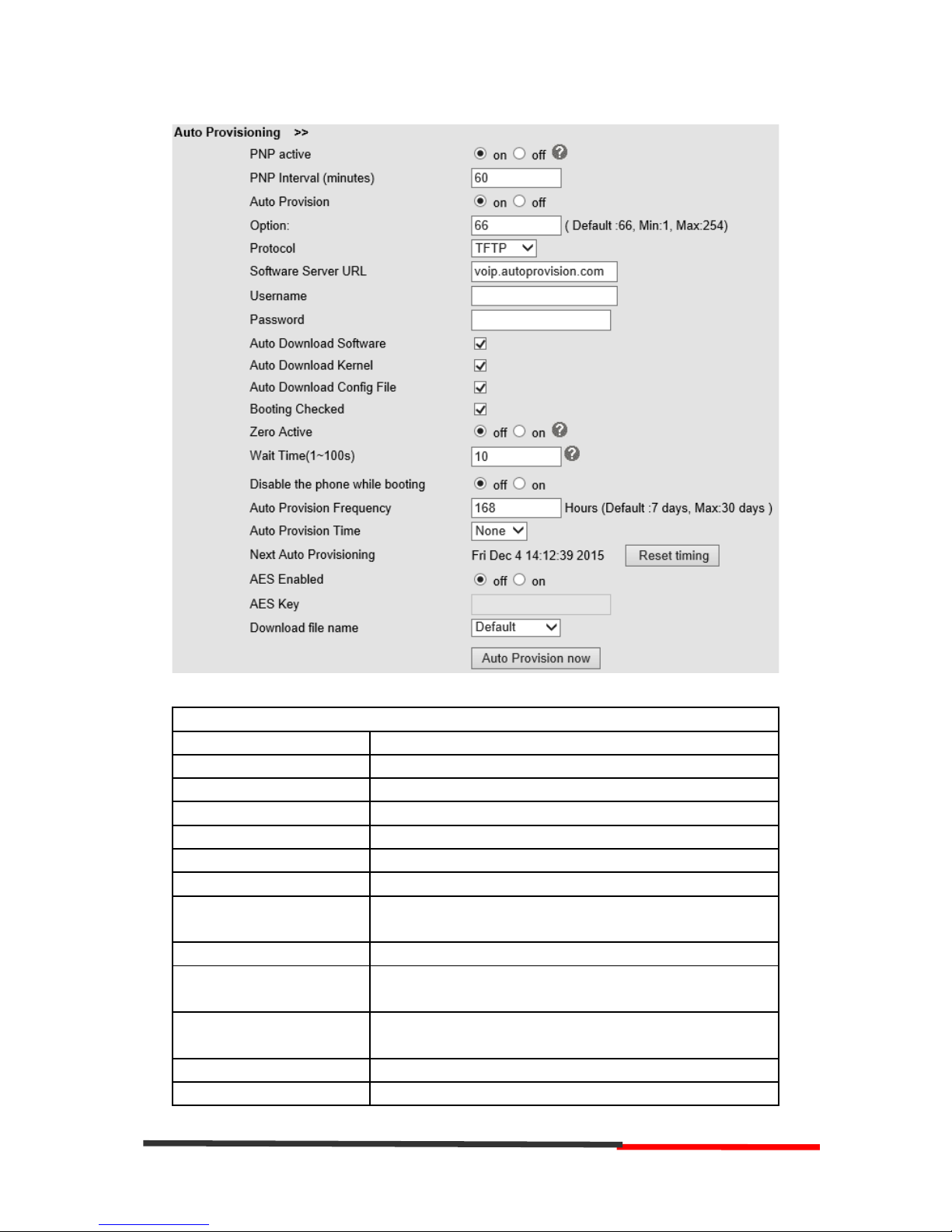

When using auto provision, you can set several parameters as follow:
Auto Provision
Auto Provision You can enable/disable auto provision by select on/off Protocol Used for auto provision, it includes TFTP/HTTP/FTP Software Server URL The server address of the auto provision Username Providing by provision server Password Providing by provision server Auto Download Software Used for auto download software from server Auto Download Kernel Used for auto download kernel from server Auto Download Config File
Used for auto download config file from server
Auto Download Expansion NOTES: The model doesn't support this feature. Auto Download Enterprise Phonebook
Used for auto download Enterprise Phonebook from
server Auto Download Personal Phonebook
Used for auto download personal phonebook from server
Booting Checked Used for checking the auto provision when phone booting Disable the phone while Enable/Disable the booting checking feature.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
booting checking Auto Provision Frequency Used for setting the time interval for auto provision Auto Provision Time Used for the specific time for auto provision Auto Provision Next Time Reset the Auto Provision Next Upgrading time. AES Enable You can enable/disable AES encrypt for auto provision AES Key The key of the AES Auto Provision Now Used for doing auto provision immediately
4. Relay management
The IS/IV 720 supports RFID card, TouchPad password, physical button, DTMF, API command to trigger the relay. PS: IS/IV 720-PRT, P=PoE, R=RFID Reader, T=TouchPad.
Press key Press the dial button to trigger the relay. Input1/2 Shortcut the input1 logic to trigger the relay. See the diagram Server Control Use API command to trigger the relay. Ask us for dev manual please. DTMF Number Pressing DTMF key to trigger the relay when the phone talking. Door Card Using RFID Card trigger the relay. Touch key Open Pressing digit passwords to trigger the relay. Short Circuit time
The relay circuit timer.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom

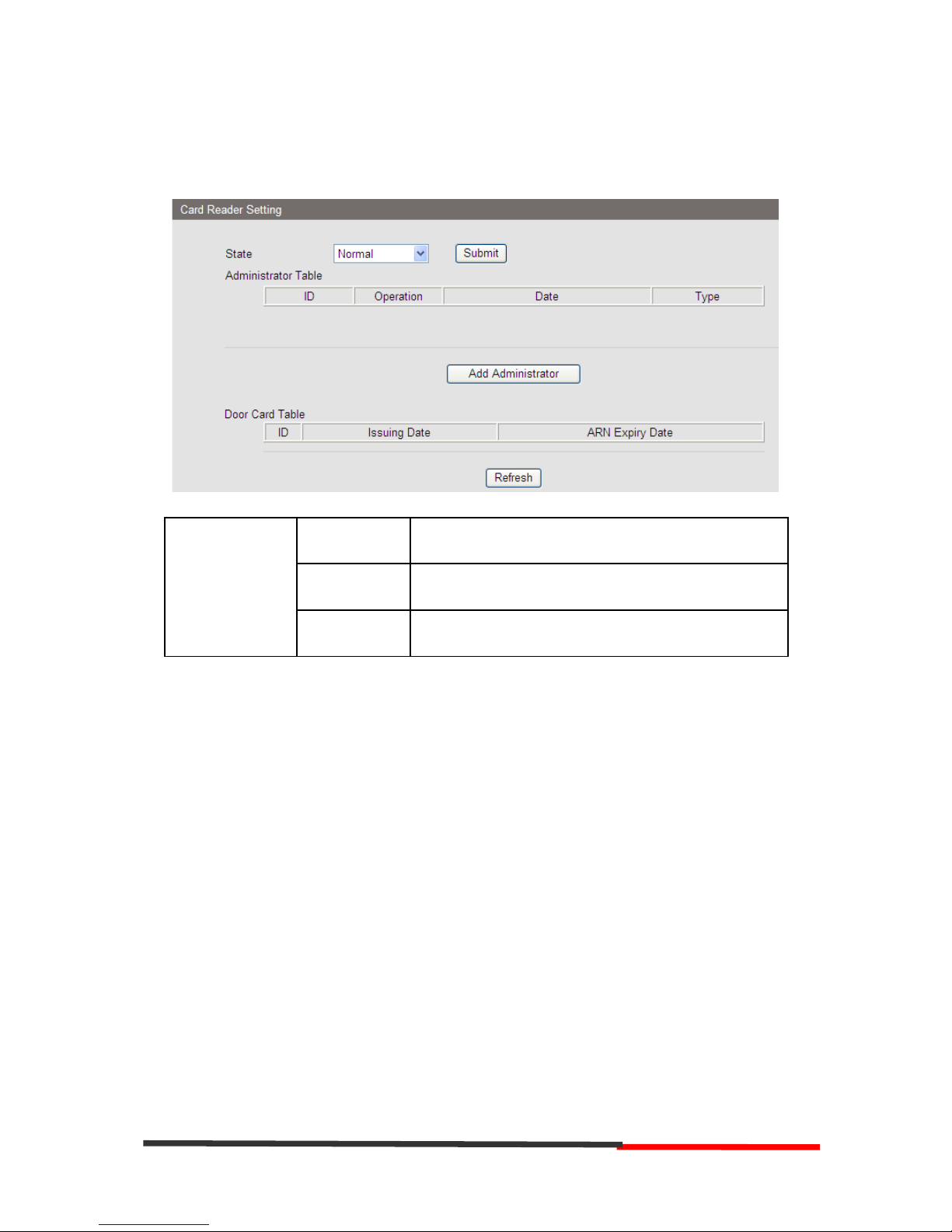

4.1 RFID Card management
State Normal Normal mode, the user can trigger relay by RFID
card.
Card Issuing Manage mode, to add relay permission for RFID
card. Card Revoking
Manage mode, to remove relay permission for RFID
card.
4.1.1 RFID Card issuing/revoking in the WUI of the phone
Card Issuing steps:
Set card reader state=Card Issuing.
Put the RFID card in the reader of the phone, you’ll hear the voice “du~”.
Refresh the web, you’ll see there’s a new message in the “Door Card table”
Now you can use this card to trigger the relay.
Card Revoking steps:
1) Set card reader state=Card Revoking.
2) Put the RFID card in the reader of the phone, you’ll hear the voice “du~”.
3) Refresh the web, you’ll see there’s a message loose in the “Door Card table”
4) Now this card was removed, it could not trigger the relay any more.
PS: Must remember to set card reader state=Normal when finishing configuration.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
4.1.2 Add card Issuer and Revocation
Add an Issuer and a Revocation card, so that you no need to access WUI to manage RFID cards any more. Issuer A manager card to issuing RFID cards RevocationA manager card to revoking RFID cards
Add Card Issuer steps:
1) Click “Add button” in the “administrator table” option.
2) Input the ID of the FRID Card(SN), select Type= Issuer. If you do not know the ID, see the below introduction please.
Card Issuer usage:
1) Put issuer card to the reader of the phone, you’ll hear voice “du~”.
2) Put these cards that need to give relay permission in the reader of the phone. One bye one.
3) Put issuer card to the reader of the phone, done.
Add Card Revocation steps:
1) Click “Add button” in the “administrator table” option.
2) Input the ID of the FRID Card(SN), select Type= Revocation. If you do not know the ID, see the below introduction please.
Card Revocation usage:
1) Put Revocation card to the reader of the phone, you’ll hear voice “du~”.
2) Put these cards that need to give relay permission in the reader of the phone. One by one.
3) Put Revocation card to the reader of the phone, you’ll hear voice “du~”, done.
How to check the ID of the RFID Card in the Web user interface:
1) Set card reader state=Card Issuing.
2) Put the card in the reader of the phone.
3) Refresh the Web page, you’ll see a new message in the “Door Card Table”, copy it’s ID.
4) Set card reader state=Card Revoking.
5) Put the card in the reader of the phone, done.
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
4.2 Press key/Input/ServerControl/DTMF/TouchKey
management.
Press key Press the dial button to trigger the relay. Input1/2 Shortcut the input1 logic to trigger the relay. See the diagram Server Control Use API command to trigger the relay. Ask us for dev manual please. DTMF Number Pressing DTMF key to trigger the relay when the phone talking. Door Card Using RFID Card trigger the relay. Touch key Open Pressing digit passwords to trigger the relay. Short Circuit time
The relay circuit timer.
Press key diagram:
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Smart Security IP Intercom
5. Brief pictures for application environment
The following pictures introduce the practical application of IP intercom. Take door security
and fire protection for example. More compatibility application is subject to actual test.

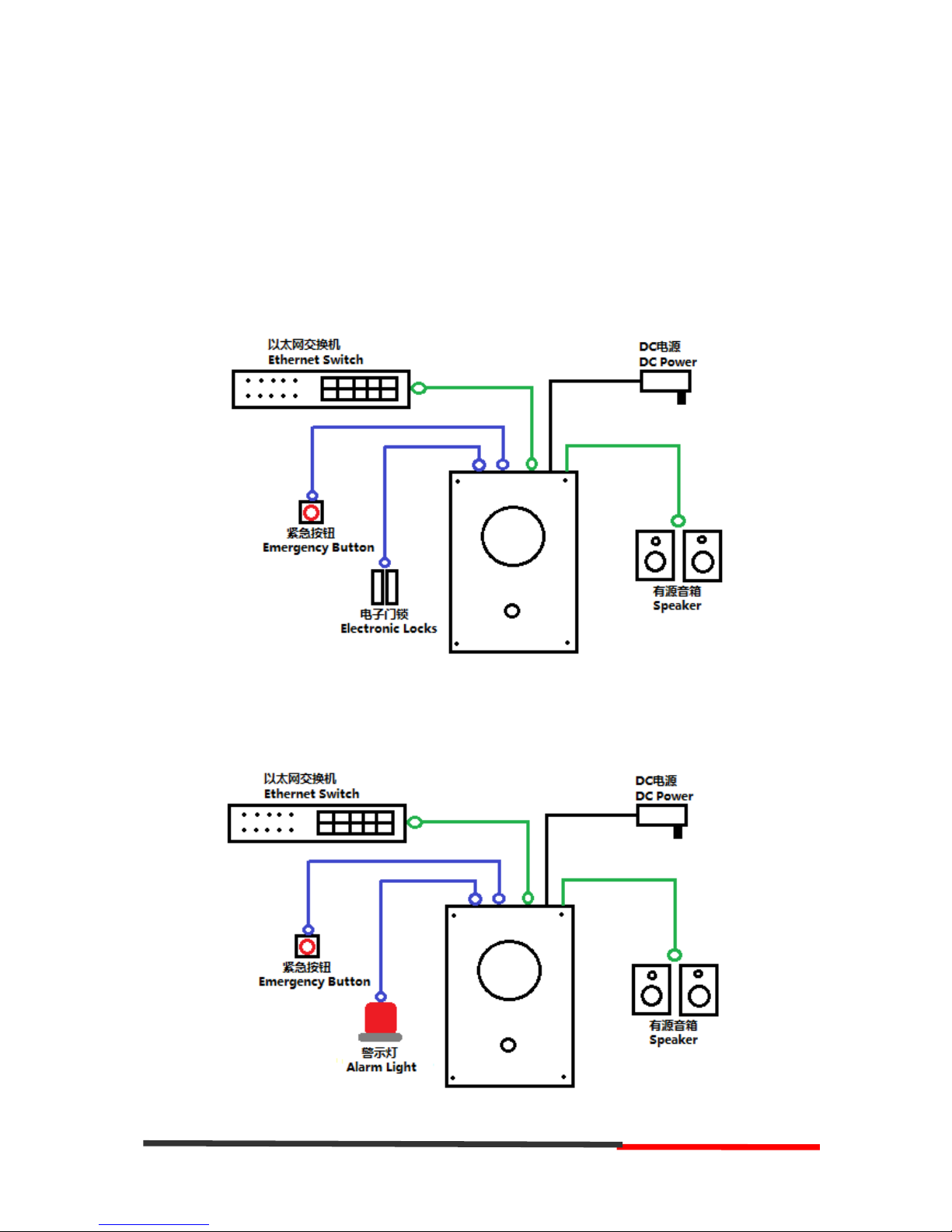

5.1 Door security system application
5.2 Fire protection system application
www.escene.cn/en
ESCENE COMMUNICATION CO.,LTD
Loading...
