ES410PE IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
1. General Comments
ES410PE is a medium-sized screen based IP phone in SayHi IP phone series, it has
fashion and technological appearance, excellent voice quality, and powerful features, and it
is a new generation of intelligent phones to replace of the traditional desktop office terminals,
It accomplished the powerful telephony features by cooperating with the communications
platform,. such as the call transfer, hotline, three-party conference calling, speed dial, voice
mail, Do Not Disturb, etc.
2. Product Appearance and models

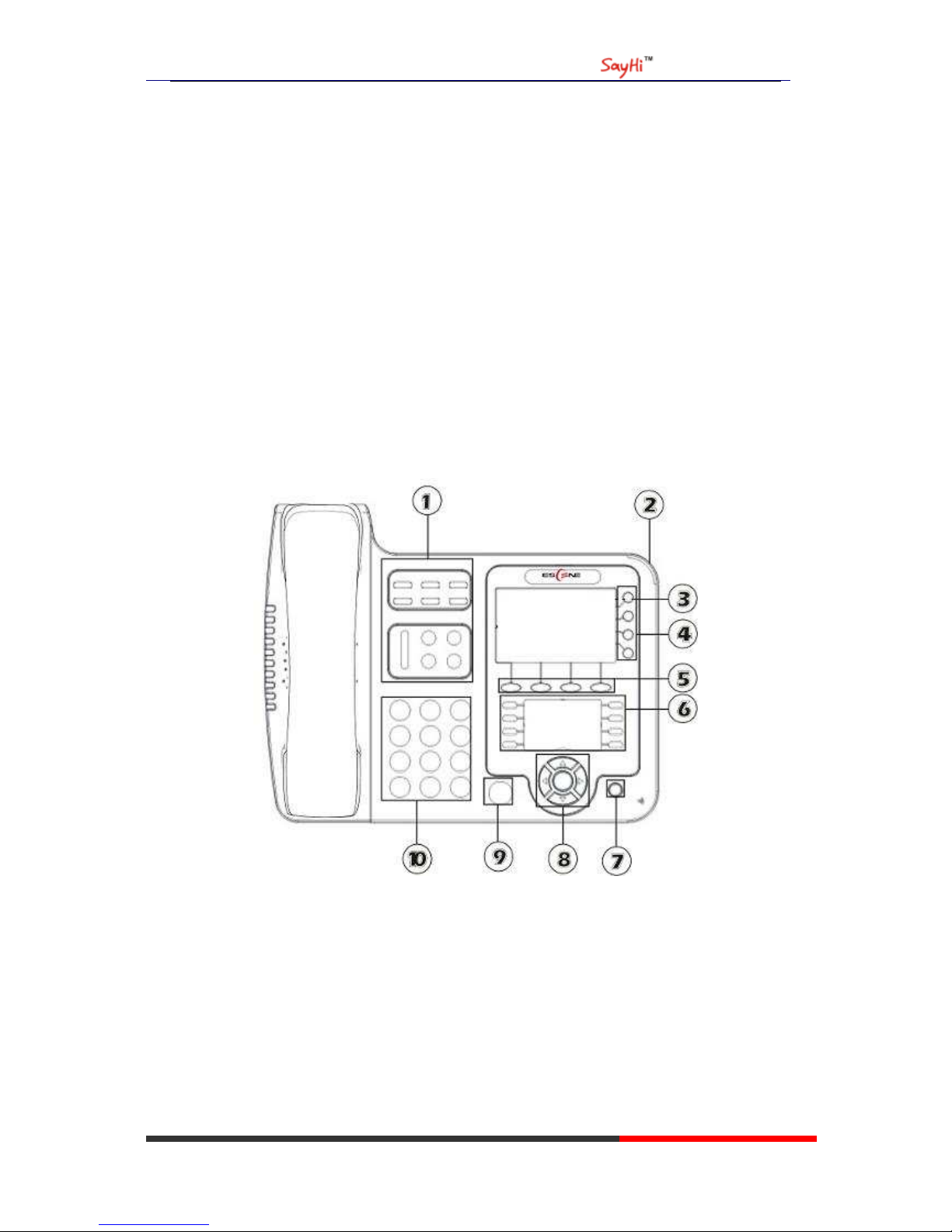

1!Product Appearance
Function Key Area(Simple, convenient, fast)
! Incoming call Indicator light
" Caller display(Support Chinese/English display, Caller info, Phone status, etc)
# Software keypad(Operation screen shortcut, user-defined, keyboard shortcuts)
$ Line Keypad Line Status!Line Switch!Speed Dial!Call Queuing"
% Programmable Keypad BLF, BLA, Speed Dial"
& Delete key
' Navigation keypad arrow keys, shortcut keys, confirm key"
( Hands-free key
) Dial keypad Figures, Chinese alphabet, English alphabet"
http://arttel.ru
http://arttel.ru/shop/ip-telefony/ip-telefon-escene-es410pe
Page 4
ES410PE IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
(1) Function keys include: headset key, closed-tone key, message key, menu key,
conference key, transfer key, redial key, maintaining key.
(2) Navigation keys: up key, down key, left key, right key, confirm key. Up key
"high-speed call list" shortcut , down keys "missed calls list" shortcut , left key
"have received call list" shortcut .
(3) Programmable keypad: 8 programmable keys. Support BLF/BLA, high-speed dial
and other functions.
2!Model Rules Description
3. Product Features:
l Support Chinese display
240*160 Pixel graphic screen support Chinese display(customizable screen), include
Chinese phonebook and interface setting, it is easy to use for Chinese.
l Clear voice
ES410PE series through the unique voice processing technology that enables voice calls for
more clarity and realistic, and communication more fluent.
l Advanced Call Process
Support 4 lines bicolor indicator light circuit, managing 4 lines at the same time, carrying
out call queuing and circuit switch, it s also convenient for teleconference and call transfer,
meet the communication requirement at the busy time.
l Support 8 Programmable Keys
Programmable keys can be defined as speed call key or other functional key to the appointed
contact for improving the operating efficiency, 8 pieces Programmable Keys support the
indicator light in busy line.
l Enterprise Address Book Application
*Support business contacts
private phone book applications, to help with flowers quickly find the call number.
l Extend Modules
Supports 6 extend modules that totally contain 192 programming buttons. With the Busy
Lamp Field function, operators can manage and monitor the calls more efficiently.
l PoE Support and AC power adapter
l Support /HTTP/TFTP/FTP Auto-provision/TR069 upgrade software
ES410 -P E
E-ESM Expansion Module (required)
P-POE (required)
http://arttel.ru
http://arttel.ru/shop/ip-telefony/ip-telefon-escene-es410pe
Page 5
ES410PE IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
4. Technical Features:
Item ES410PE
Grayscale LCD with background light
Screen
240*160 pixel
Language
Support Multi-Language
Line
4
Function Keys
4 Soft keys
4 Line keys
6 Navigation keys (Arrow button, OK button, C button)
Volume adjust , Hands-free, Mute, Headset, Message
Menu, Directory, Service, Hold, Redial, Conference, Transfer
VoIP Protocol
SIP 2.0
Network Protocol
HTTP, BOOTP, FTP, TFTP, IEEE 802.1Q, *IEEE 802.1X
Codec
G.723.1, G.729 A/B, G.711 A/U, G.722
QoS
TOS, Jiffer Buffer, VAD, CNG, G.168 (32ms)
Network
2!RJ45 10/100M Ethernet Interfaces (LAN/PC)
IP Assignment:static IP, DHCP, PPPoE
DNS Client, VPN(L2TP), VLAN/QoS
Voice
HD Voice:HD Codec/Handset/Speaker(Full-duplex)
Handle, Headset and Hands-free mode available
Support call centre headsets and PC headsets
Separated 9 Level Volume Adjustment
Call Processing
Line Status Indicator Multi Account
Always Forward, Busy Forward, No-answer Forward
Hotline line (Immediately/Delay)
Call Waiting, Call Queuing, Line Switching
Call Forward, Call Transfer, Call Holding, Call Pickup, *Callback
One Key Dial, Redial
Phone directly speed dial, Call record direct dial
3-way conference, SMS
DnD, *Blacklist
Voice mail, Voice Prompt, Voice Message
BLF, BLA, Speed dial
Expansion
Interface
EXT: ESM32 programmable key module
*USB port
Application
Public phone directory
Private phone directory
Wall Moudule, Adjustable bracket
Security
Login the LCD by password
Login the website by password
Signaling encryption
http://arttel.ru
http://arttel.ru/shop/ip-telefony/ip-telefon-escene-es410pe
Page 6
ES410PE IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
Media encryption
Management
Upgrade: HTTP/TFTP/FTP Auto-provision/TR069
Configurations: Phone/HTTP/Auto-provision/TR069
Debug: Telnet/Phone/Web
Power Supply
Power adapter:AC100~240V input and DC 12V/1A output
PoE(IEEE 802.af)
Specification
Storage Temperature: 0 ~ 60
Operating Humidity: 10%~90%
Size:287mm*214mm*90mm
Net weight:1.37kg
Package Features
Qty/CTN:10 PCS
N.W/CTN:13.7kg
G.W/CTN:14.2kg
Measurement: 0.081CBM
Carton Meas: 470mm*450mm*290mm
Certifications
CE, FCC, RoHS
Note: *! Sign means function has not been published
