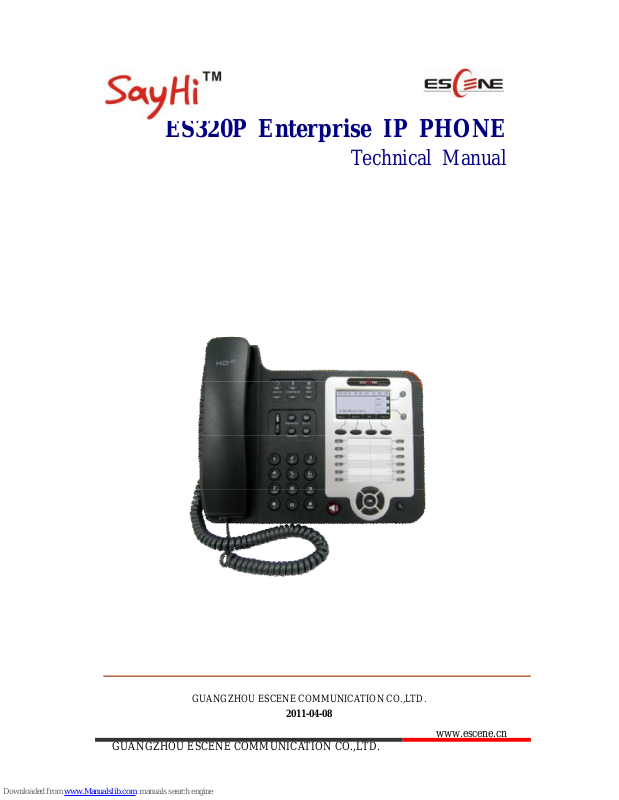

ES320P Enterprise IP PHONE
Technical Manual
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
2011-04-08
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
Content
1. General Comments...................................................................................................................3
2. Product Appearance and models...............................................................................................3
3. Product Features:......................................................................................................................4
4. Technical Features:...................................................................................................................4
ES320P IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
1. General Comments
ES320P is a small-screen-based IP phone in Sayhi IP phone series, it has fashion and
technological appearance, excellent voice quality, and powerful features, and it is a new
generation of intelligent phones to replace of the traditional desktop office terminals, It
accomplished the powerful telephony features by cooperating with the communications
platform,. such as the call transfer, hotline, three-party conference calling, speed dial, voice
mail, Do Not Disturb, etc.
2. Product Appearance and models
（1）Product Appearance

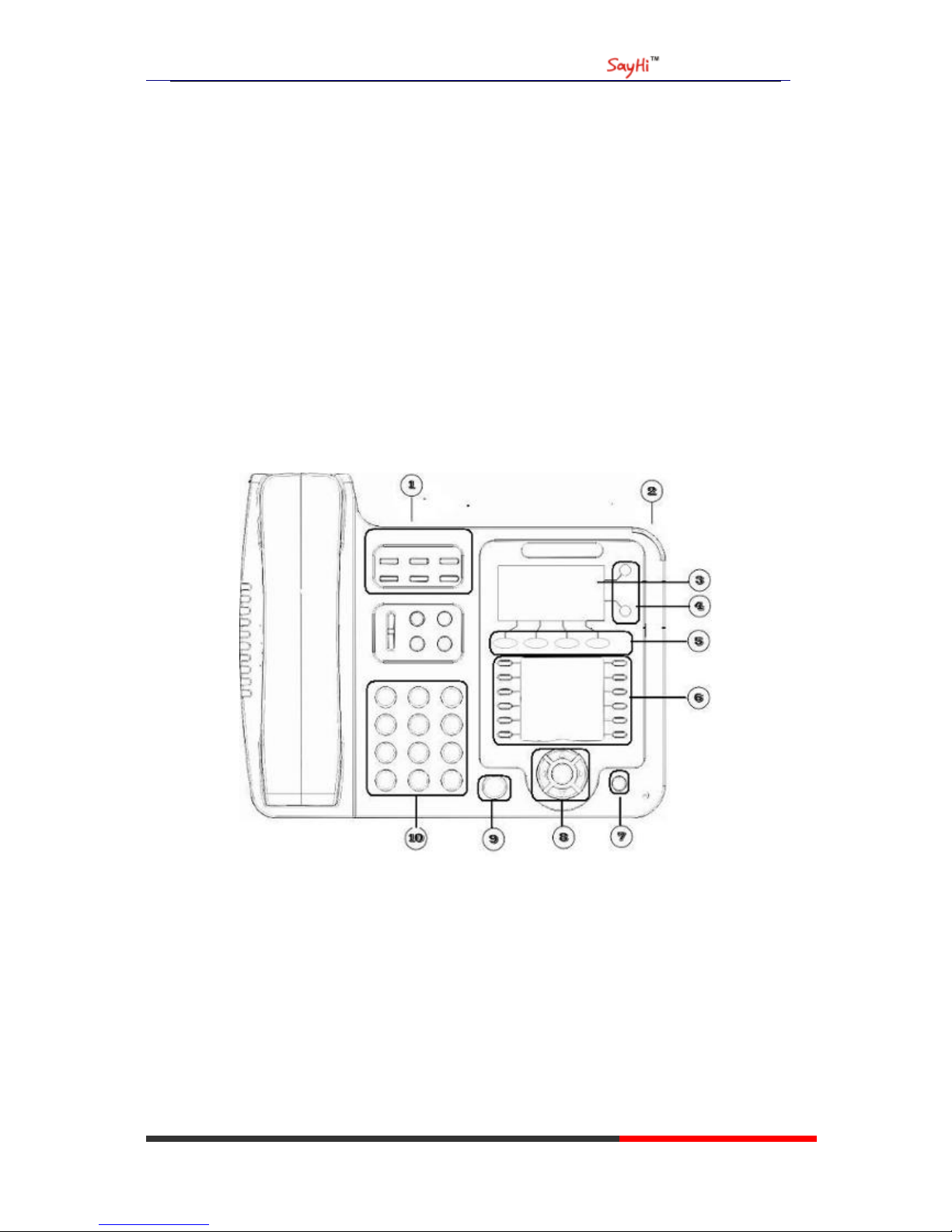

① Function Key Area(Simple, convenient, fast)
② Incoming call Indicator light
③ Caller display(Support Chinese/English display, Caller info, Phone status, etc)
④ Software keypad(Operation screen shortcut, user-defined keyboard shortcuts)
⑤ Line Keypad（Line Status, Line Switch, Speed Dial, Call Queuing）
⑥ Programmable Keypad（BLF, BLA, Speed Dial）
⑦ Delete key
⑧ Navigation keypad（arrow keys, shortcut keys, confirm key）
⑨ Hands-free key
⑩ Dial keypad（Figures, Chinese alphabet, English alphabet）
ES320P IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
(1) Function keys include: headset key, closed-tone key, message key, menu key,
conference key, transfer key, redial key, maintaining key.
(2) Navigation key areas: up keys, down key, left key , right key, confirm key. Up key
"high-speed call list" shortcut , down keys "missed calls list" shortcut , left key
"have received call list" shortcut .
(3) Programmable keypad: 12 programmable keys. Support BLF, high-speed dial and
other functions.
（2）Model Rules Description
3. Product Features:
l Support Chinese display
128*64 Pixel graphic screen support Chinese display, include Chinese phonebook and
interface setting, it is easy to use for Chinese.
l Clear voice
ES320P series through the unique voice processing technology that enables voice calls for
more clarity and realistic, and communication more fluent.
l Advanced Call Process
Support 8 lines bicolor indicator light circuit, managing two lines at the same time, carrying
out call queuing and circuit switch, it’s also convenient for teleconference and call transfer,
meet the communication requirement at the busy time.
l Support 12 Programmable Keys
Programmable keys can be defined as speed call key or other functional key to the appointed
contact for improving the operating efficiency, 12 pieces Programmable Keys support the
indicator light in busy line.
l Enterprise Address Book Application
Support business contacts
private phone book applications, to help with flowers quickly find the call number
l Support HTTP/TFTP/FTP Auto-provision/TR069 upgrade software
l PoE Support and AC power adapter
4. Technical Features:
Item ES320P
Grayscale LCD with background light
Screen
128*64 pixel
Language
Support Multi-Language
Line
2
ES320 -P
P-POE (optional)
ES320P IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
Function Keys
4 Soft keys
2 Line keys
6 Navigation keys (Arrow button, OK button, C button)
Volume adjust , Hands-free, Mute, Headset, Message
Menu, Directory, Service, Hold, Redial, Conference, Transfer
VoIP Protocol
SIP 2.0
Network Protocol
HTTP, BOOTP, FTP, TFTP, IEEE 802.1Q, *IEEE 802.1X
Codec
G.723.1, G.729 A/B, G.711 A/U, G.722
QoS
TOS, Jiffer Buffer, VAD, CNG, G.168 (32ms)
Network
2×RJ45 10/100M Ethernet Interfaces (LAN/PC)
IP Assignment: static IP, DHCP, PPPoE
DNS Client, VPN(L2TP), VLAN/QoS
Voice
HD Voice: HD Codec/Handset/Speaker(Full-duplex)
Handle, Headset and Hands-free mode available
Support call centre headsets and PC headsets
Separated 9 Level Volume Adjustment
Call Processing
Line Status Indicator Multi Account
Always Forward, Busy Forward, No-answer Forward
Hotline line (Immediately/Delay)
Call Waiting, Call Queuing, Line Switching
Call Forward, Call Transfer, Call Holding, Call Pickup, *Callback
One Key Dial, Redial
Phone directly speed dial, Call record direct dial
3-way conference,SMS
DnD, *Blacklist
Voice mail, Voice Prompt, Voice Message
BLF, BLA,Speed dial
Application
Public phone directory
Private phone directory
XML Phonebook
Wall Mounted, Adjustable bracket
Security
Login the LCD by password
Login the website by password
Signaling encryption
Media encryption
Management
Upgrade: HTTP/TFTP/FTP Auto-provision/TR069
Configurations: Phone/Web/Auto-provision/TR069
Debug: Telnet/Phone/Web
Power Supply
Power adapter:AC100~240V input and DC 12V/1A output
PoE(IEEE 802.af)
Specification
Storage Temperature: 0℃ ~ 60℃
Operating Humidity: 10%~90%
Size: 287mm*214mm*90mm
ES320P IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
Net weigh: 1.36kg
Package Features
Qty/CTN:10 PCS
N.W/CTN: 13.6kg
G.W/CTN: 14.1kg
Measurement: 0.081CBM
Carton Meas: 470mm*450mm*290mm
Certifications
CE, FCC, RoHS
Note: “*” Sign means function has not been published yet.
