Escene Sayhi ES220, ES22, SayHi ES210 User Manual

www.escene.cn/en

Escene Communication

ES220 IP Phone

User Manual

（firmware:v1.0.2.9-777）

EEsscceennee CCoommmmuunniiccaattiioonn CCoo ..,,LLttd

d

www.escene.cn/en

Escene Communication

Tables of Contents

1. Getting Started.............................................................................................................................1

About........................................................................................................................................1

Feature Highlights:...................................................................................................................1

Technical Features....................................................................................................................1

2. Connecting Your Phone...............................................................................................................3

3. Phone overview...........................................................................................................................4

Understanding Buttons and Hardware......................................................................................4

Understanding Phone Screen Features......................................................................................6

4. Basic Call Handling....................................................................................................................7

Placing a Call............................................................................................................................7

Answering a Call......................................................................................................................8

Ending a Call............................................................................................................................8

Using Hold and Resume (Switch Calling Line)........................................................................9

Transfer Calls............................................................................................................................9

Using Mute...............................................................................................................................9

Do Not Disturb........................................................................................................................10

3-way Conference...................................................................................................................10

5. Advanced Call Handling...........................................................................................................11

Using the Phone Book............................................................................................................11

Using Call Logs......................................................................................................................13

6. Keypad Instruction....................................................................................................................14

SIP Account Settings...............................................................................................................14

Network Setting......................................................................................................................15

PC Port....................................................................................................................................16

Load default settings...............................................................................................................16

Modify password....................................................................................................................16

Language setting.....................................................................................................................17

Customizing Rings and Volume..............................................................................................17

View status..............................................................................................................................18

Diagnose.................................................................................................................................18

7. Web Settings..............................................................................................................................19

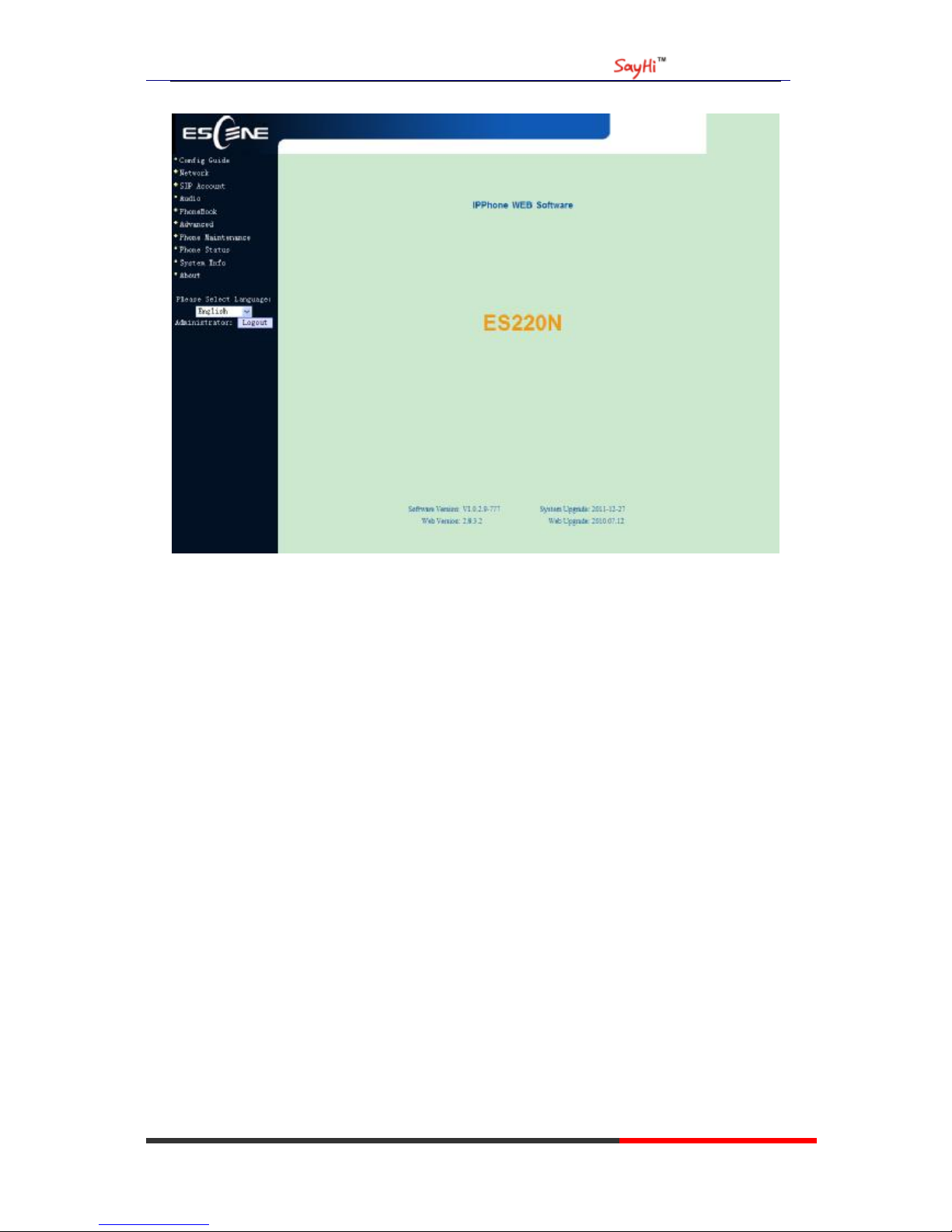

Config Guide...........................................................................................................................19

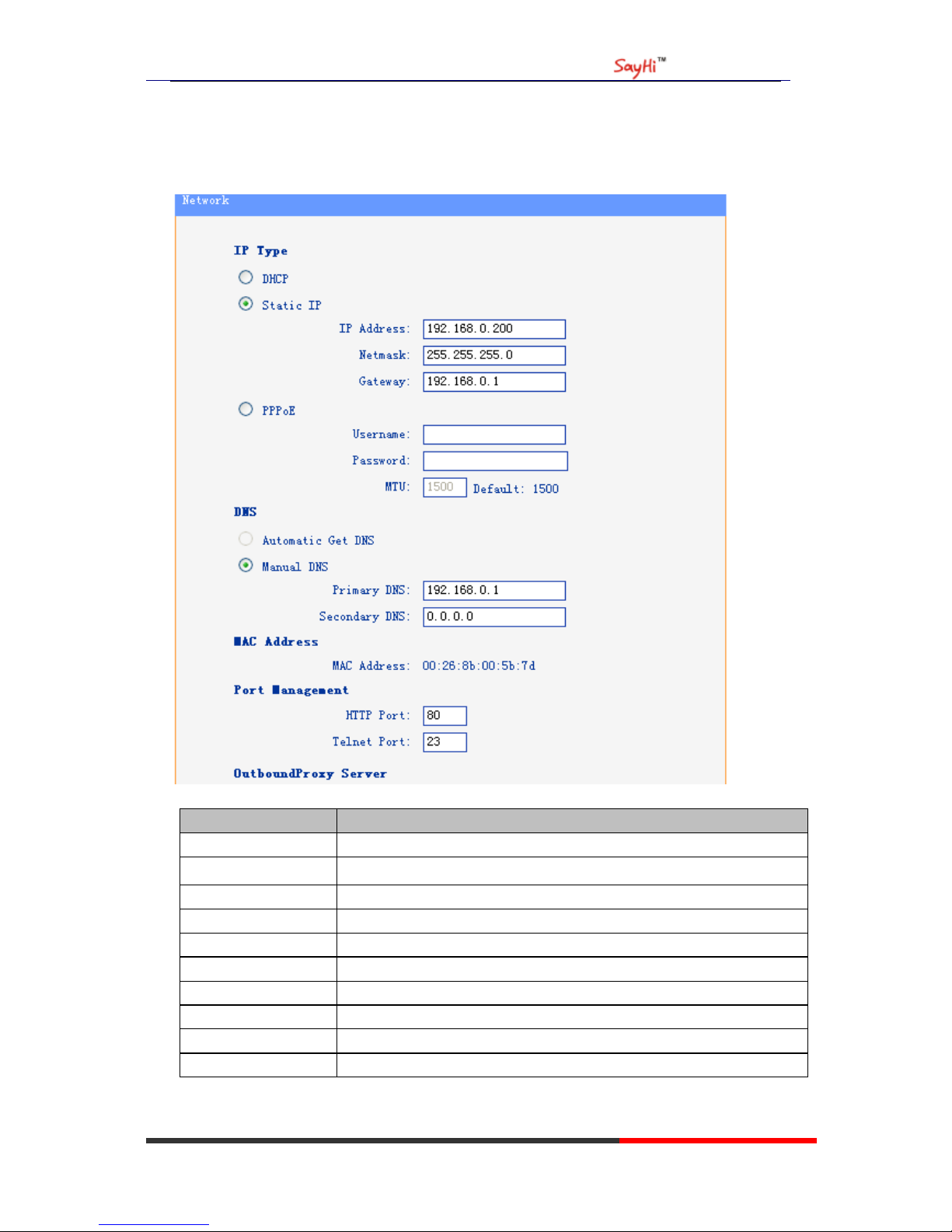

Network..................................................................................................................................21

SIP Account............................................................................................................................22

Audio......................................................................................................................................23

PhoneBook..............................................................................................................................24

Group..............................................................................................................................24

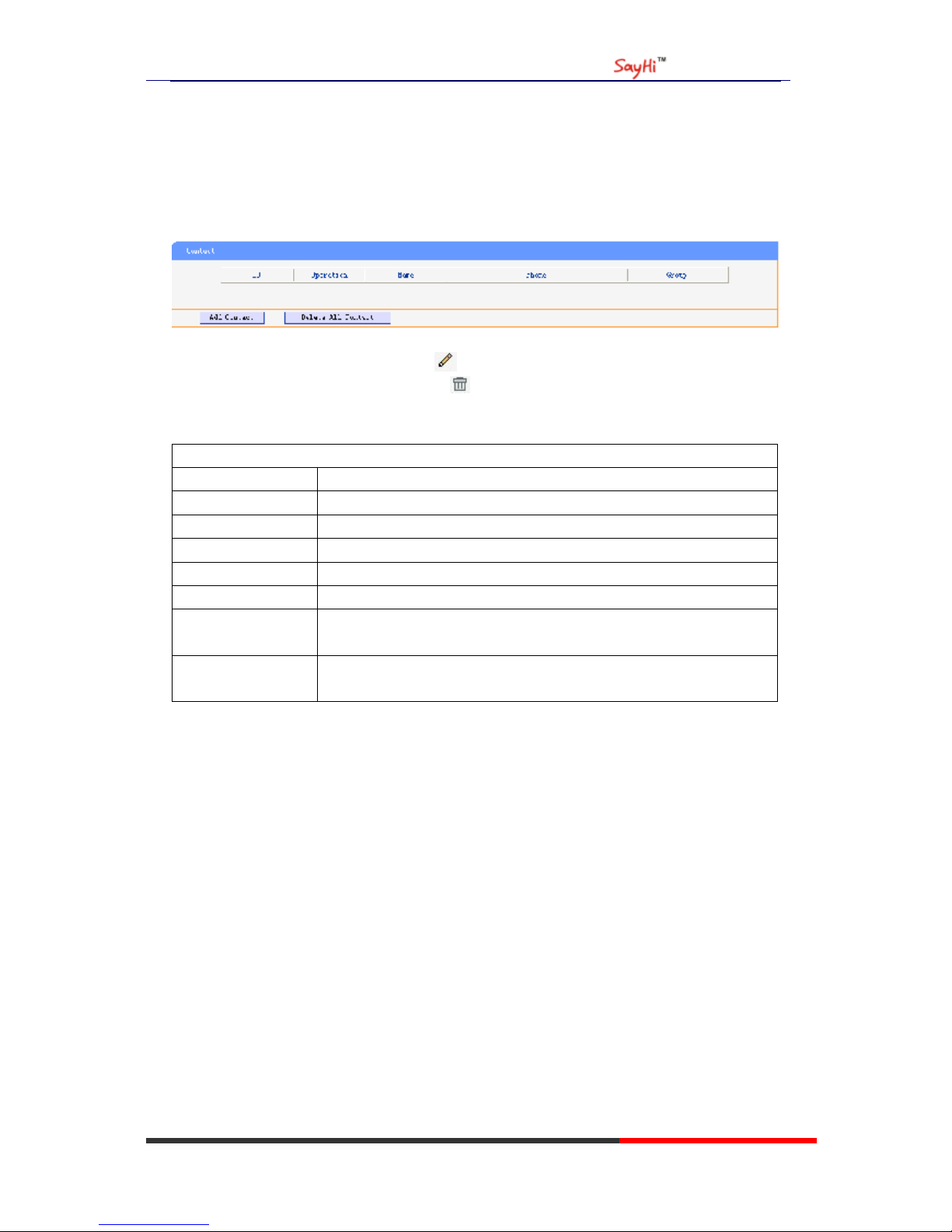

Contact............................................................................................................................25

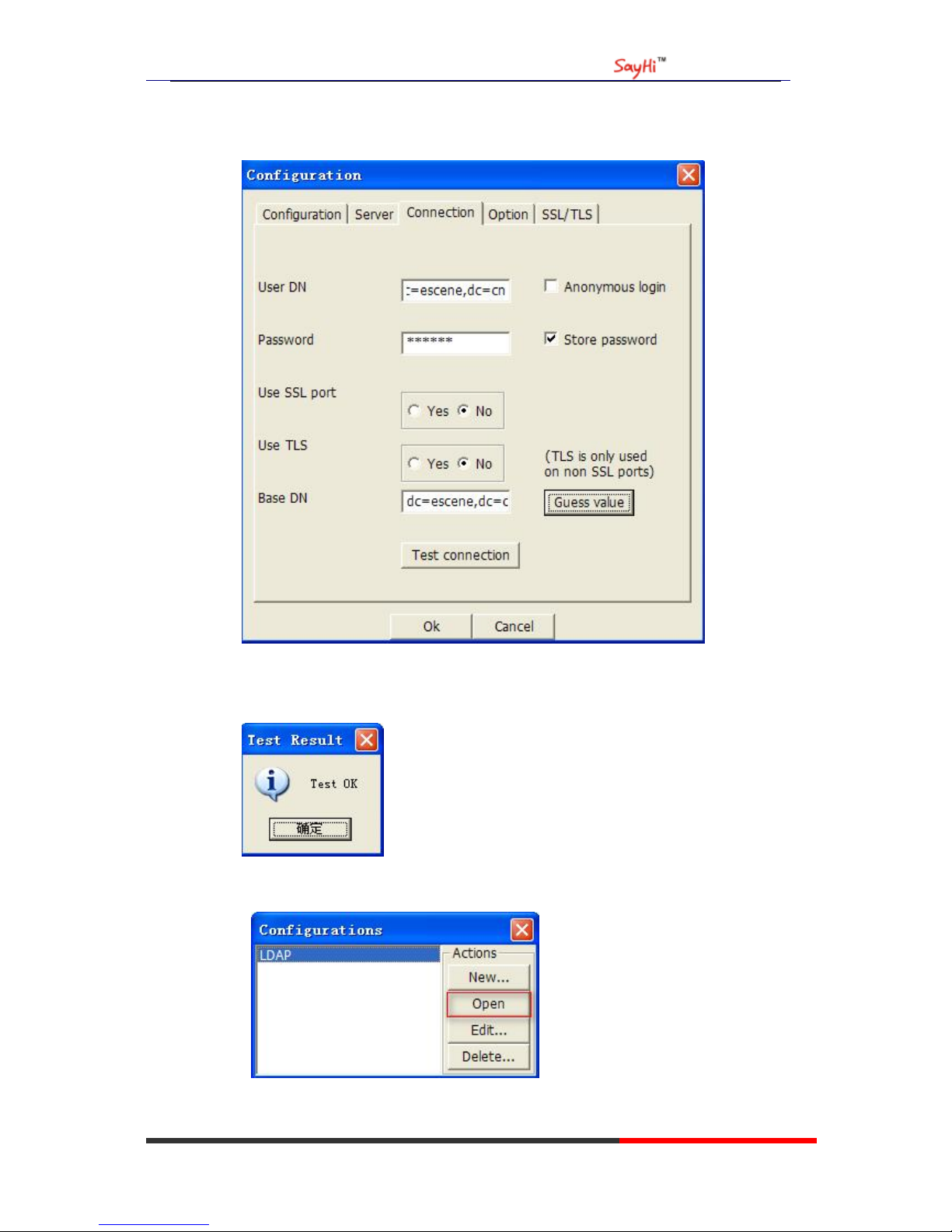

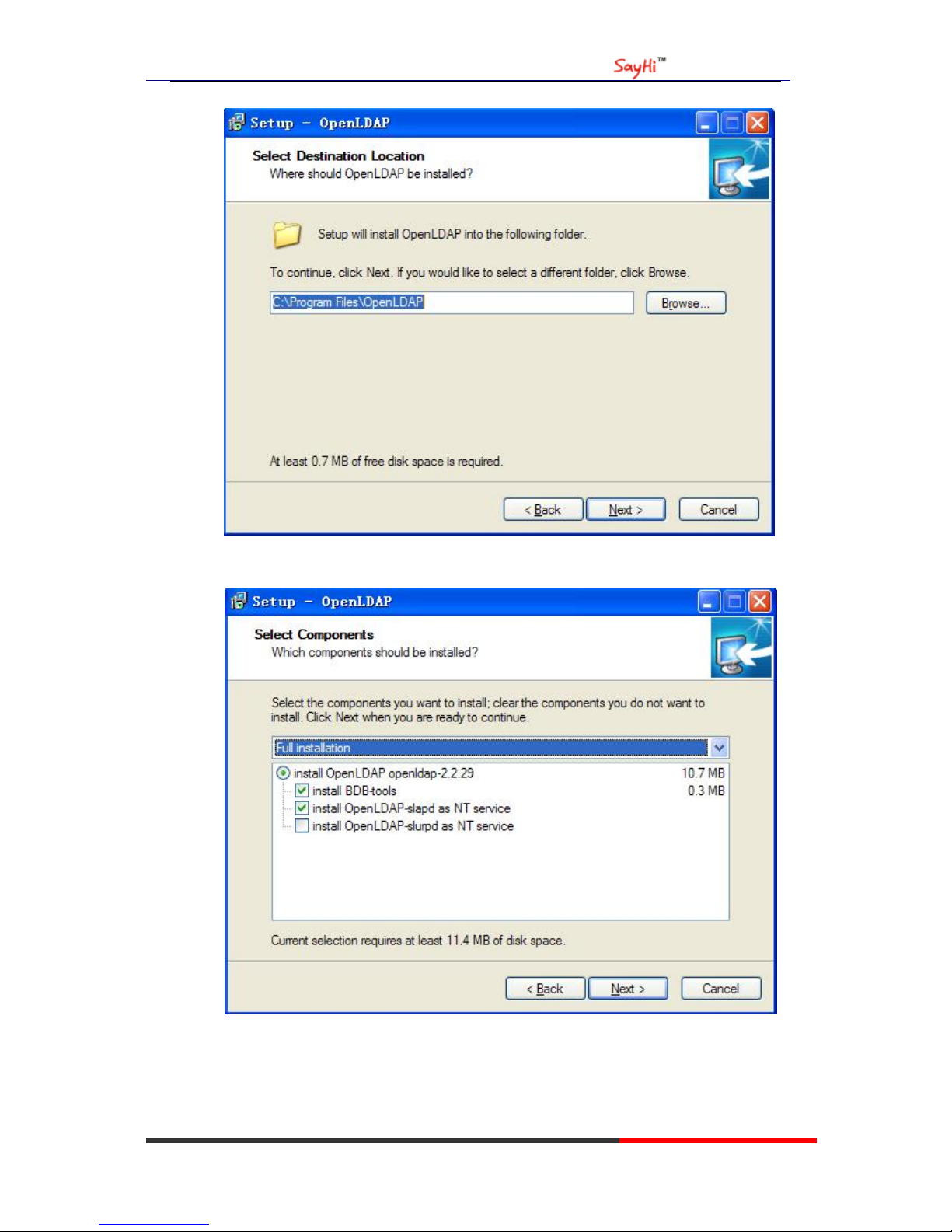

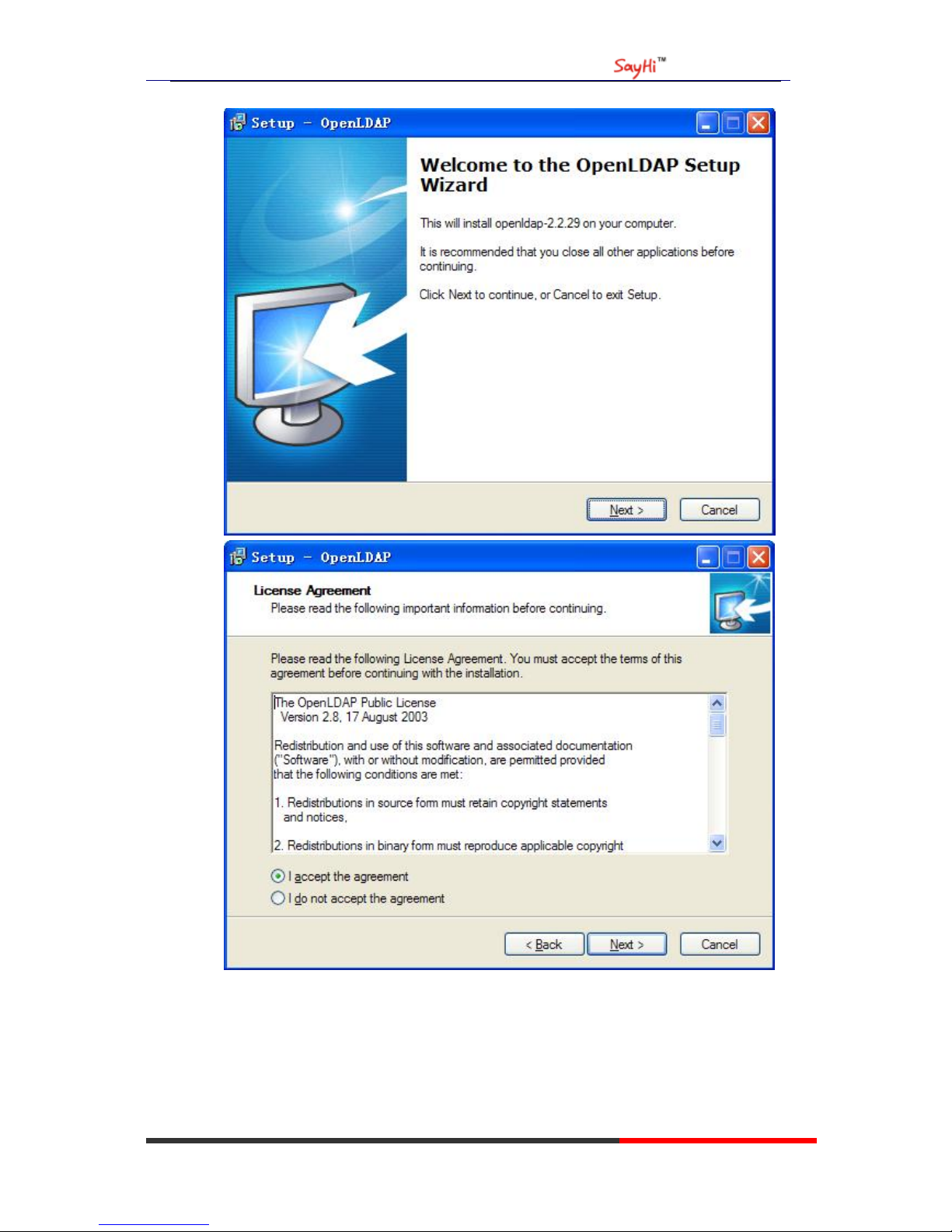

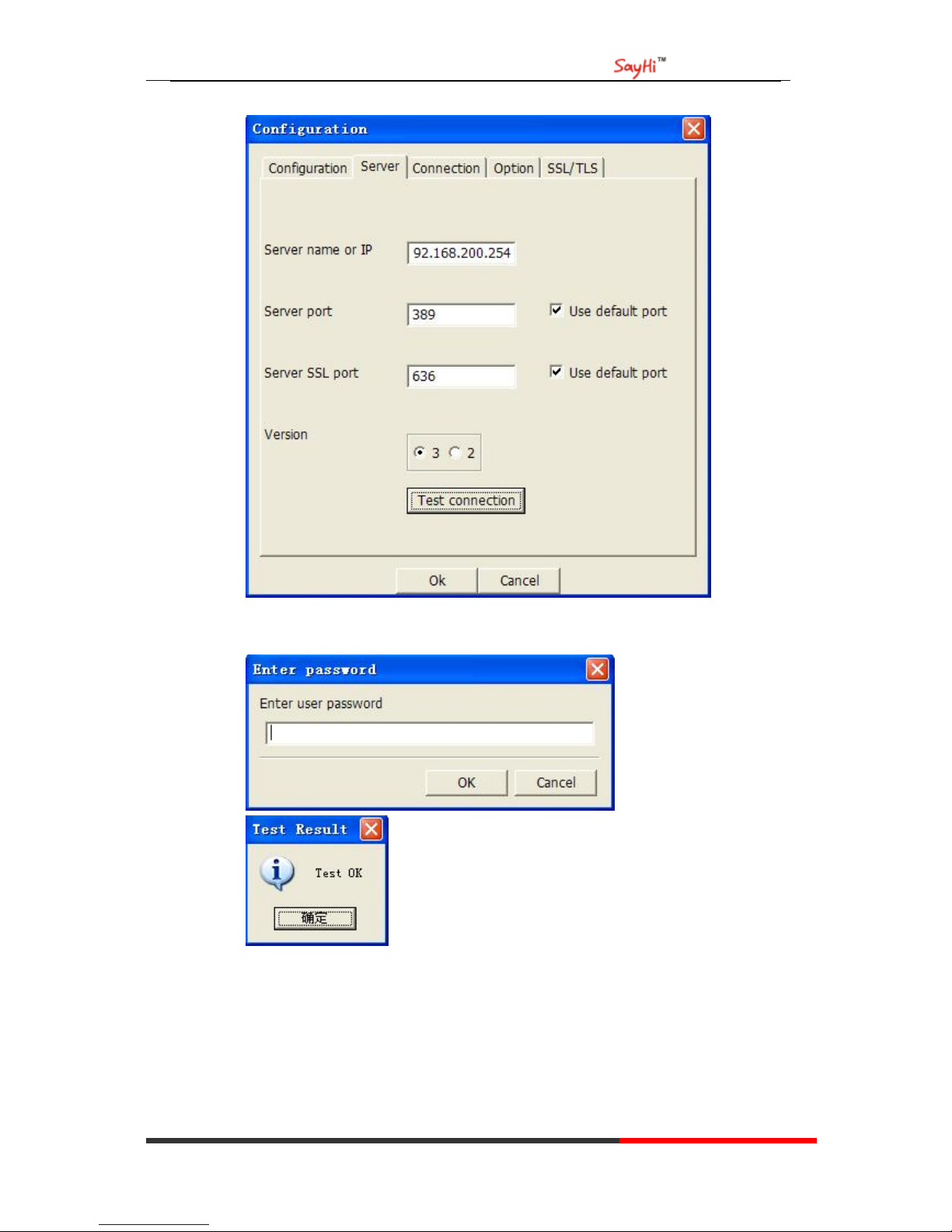

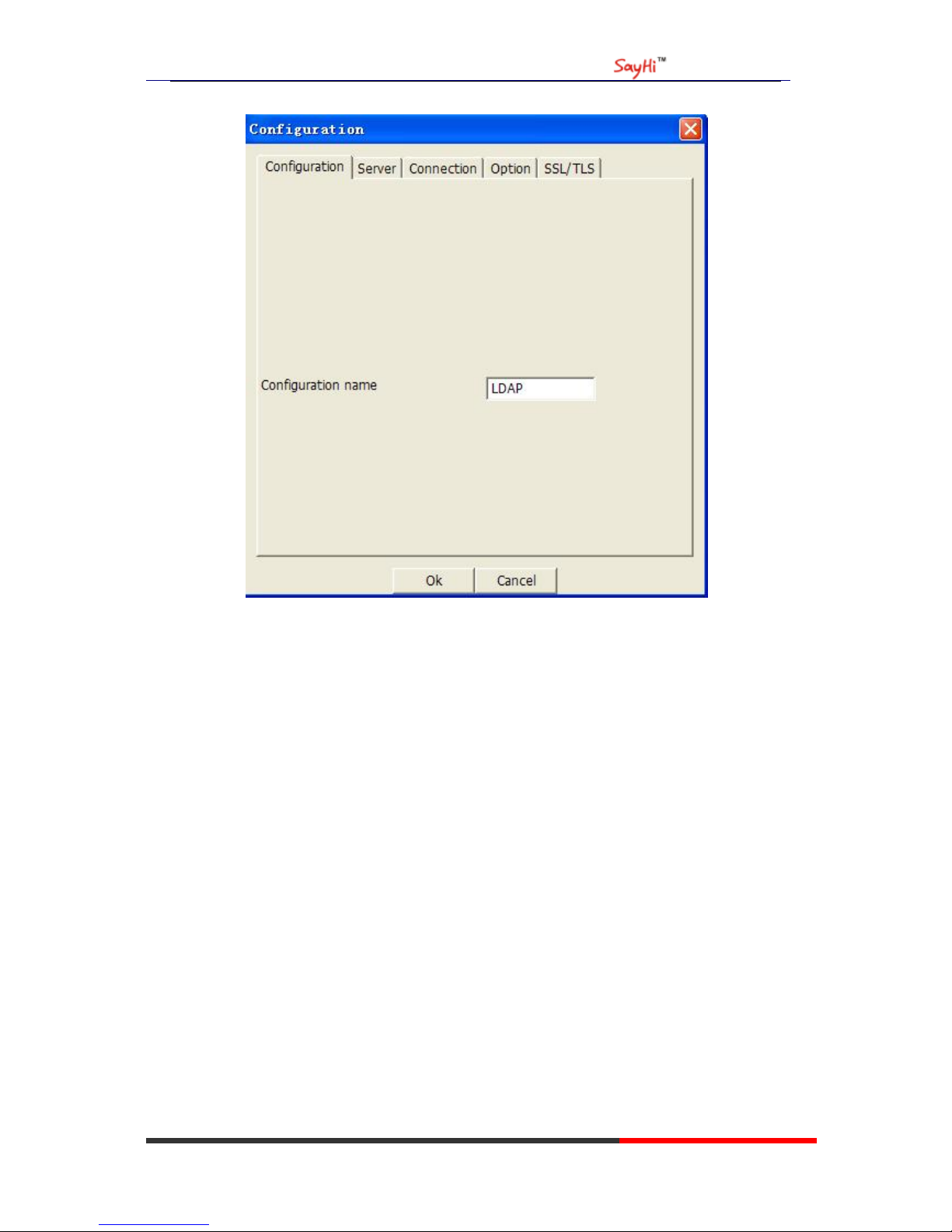

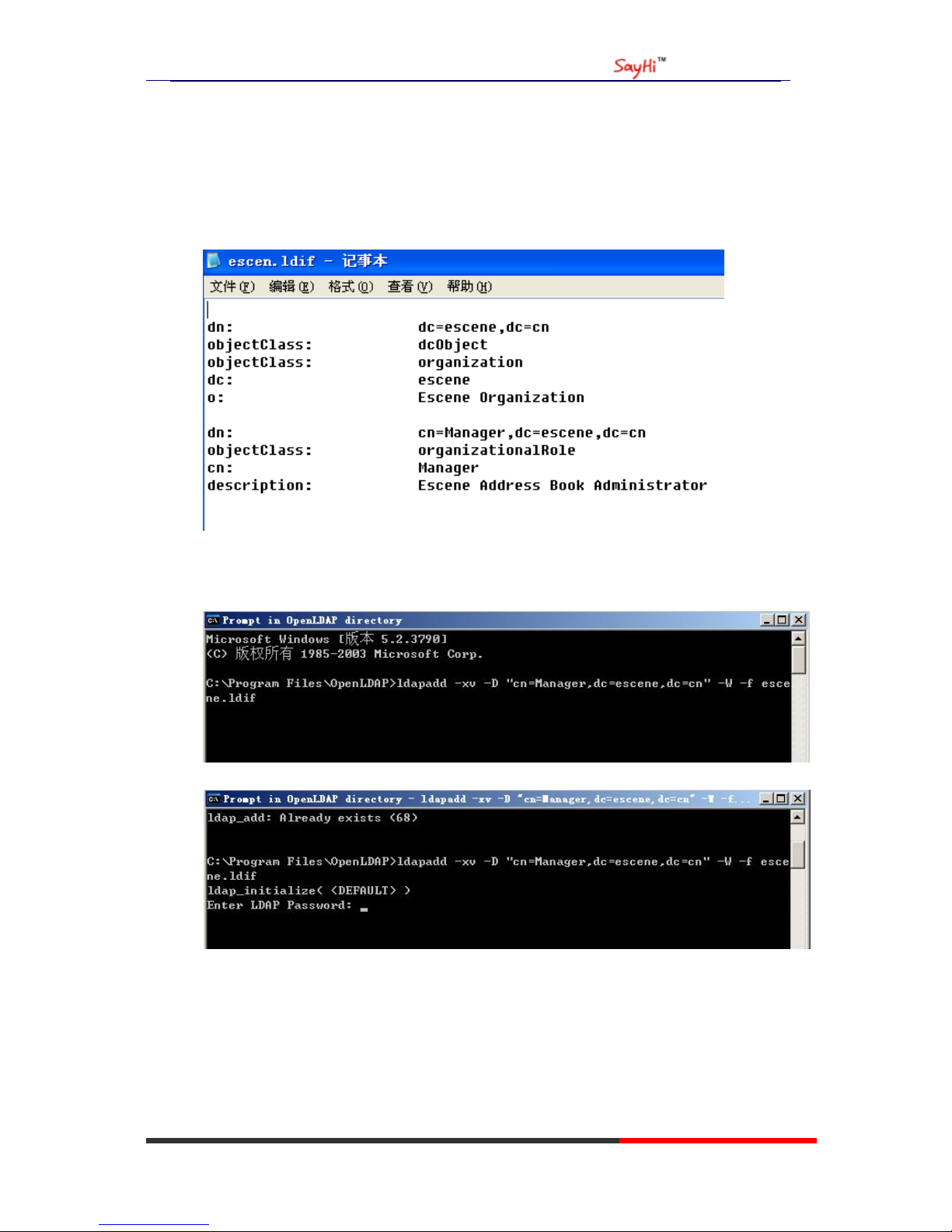

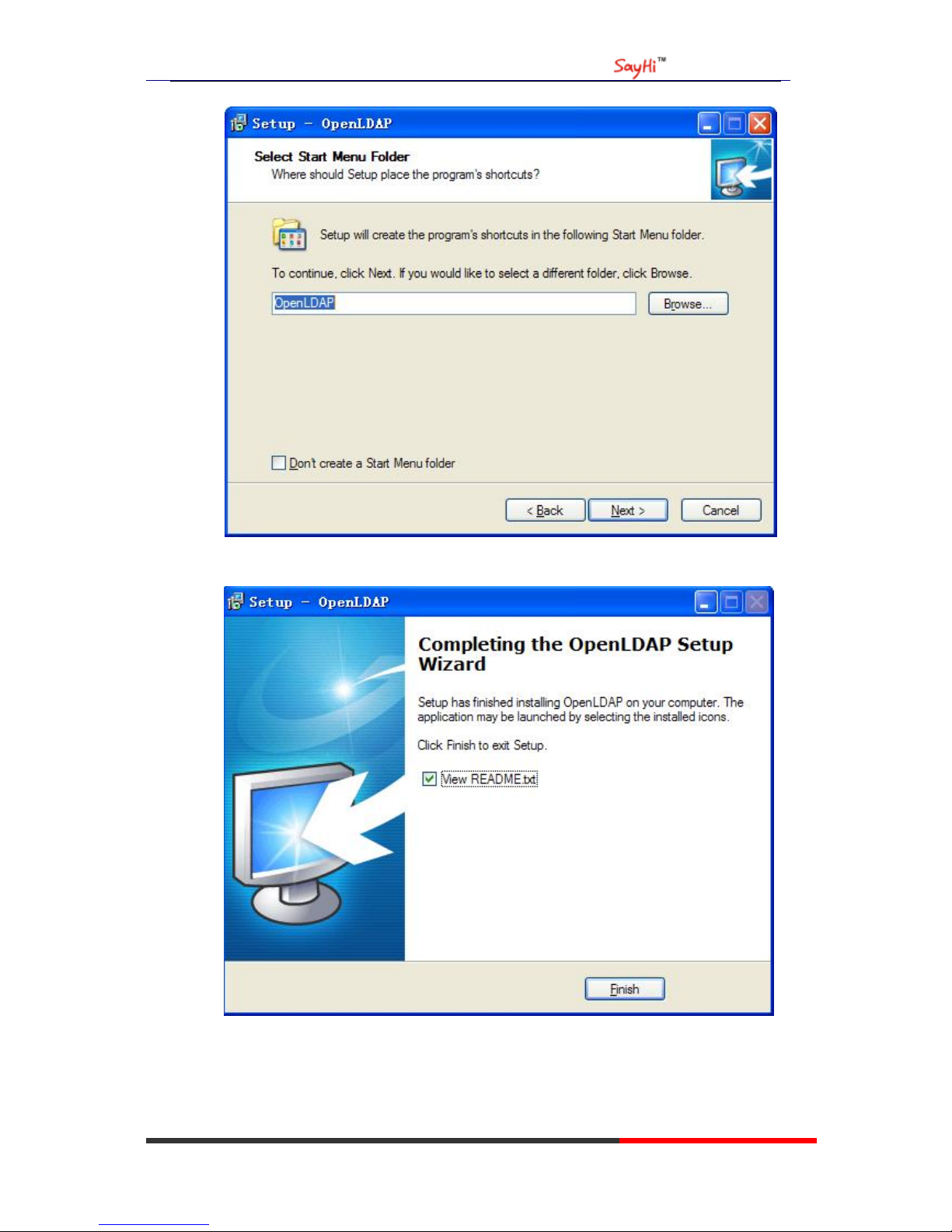

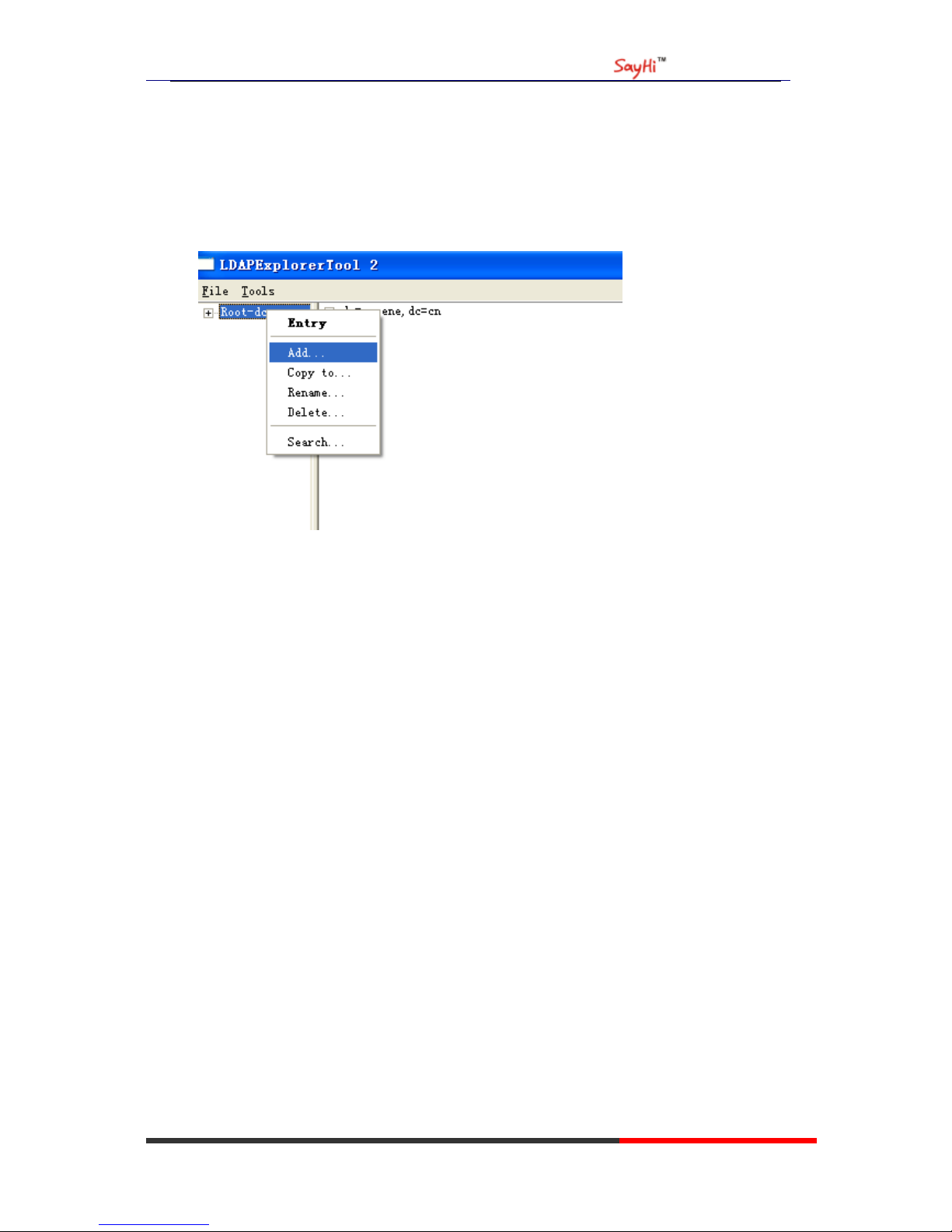

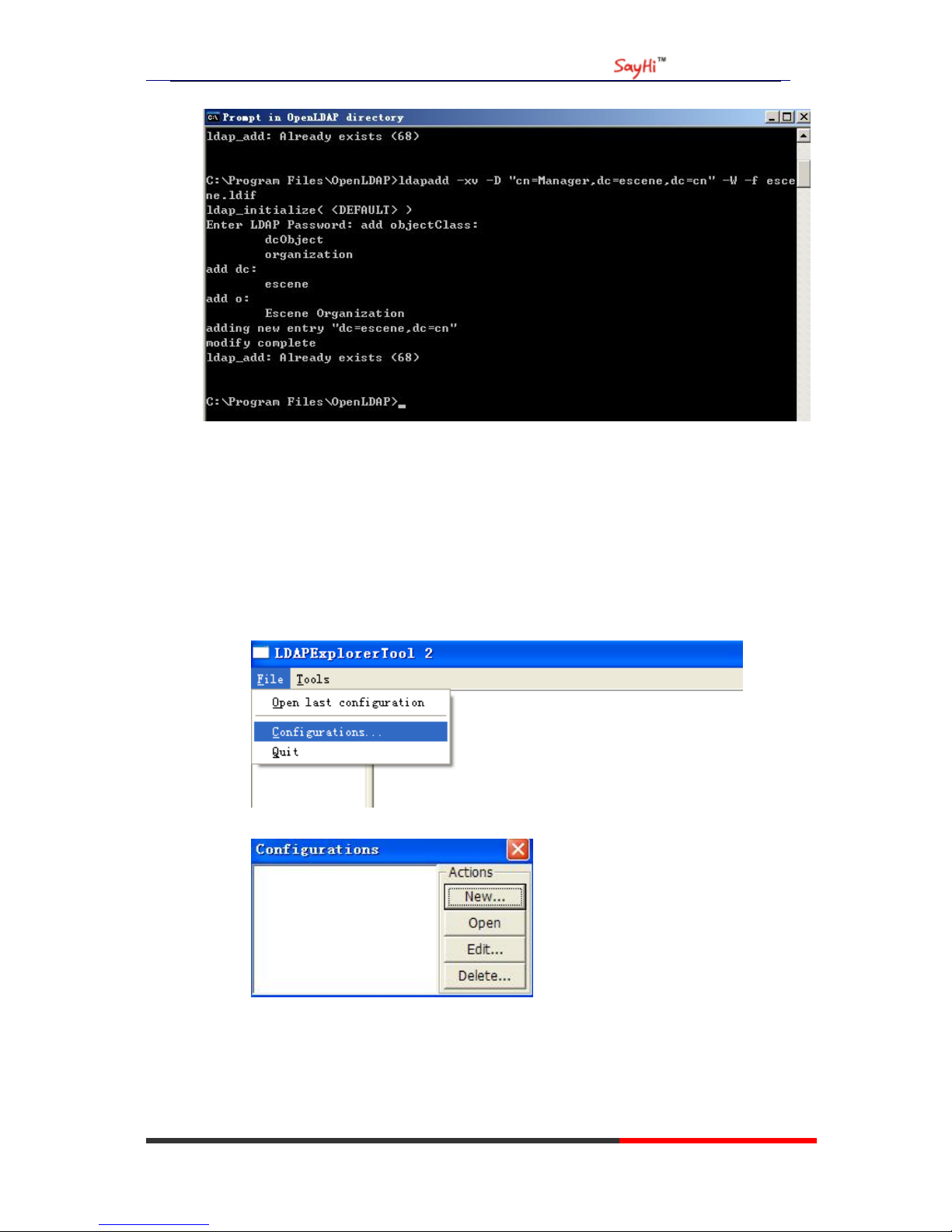

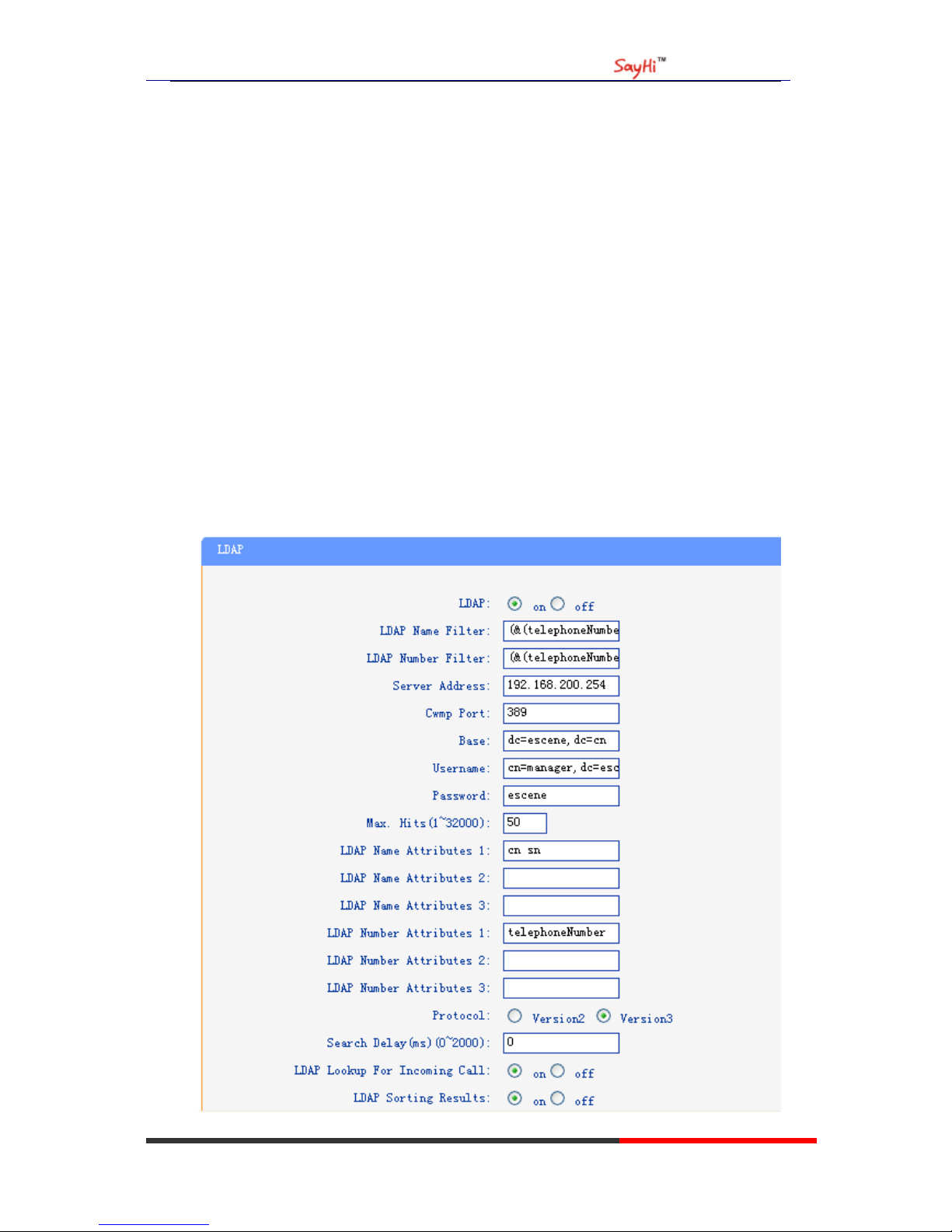

LDAP..............................................................................................................................25

BanList............................................................................................................................26

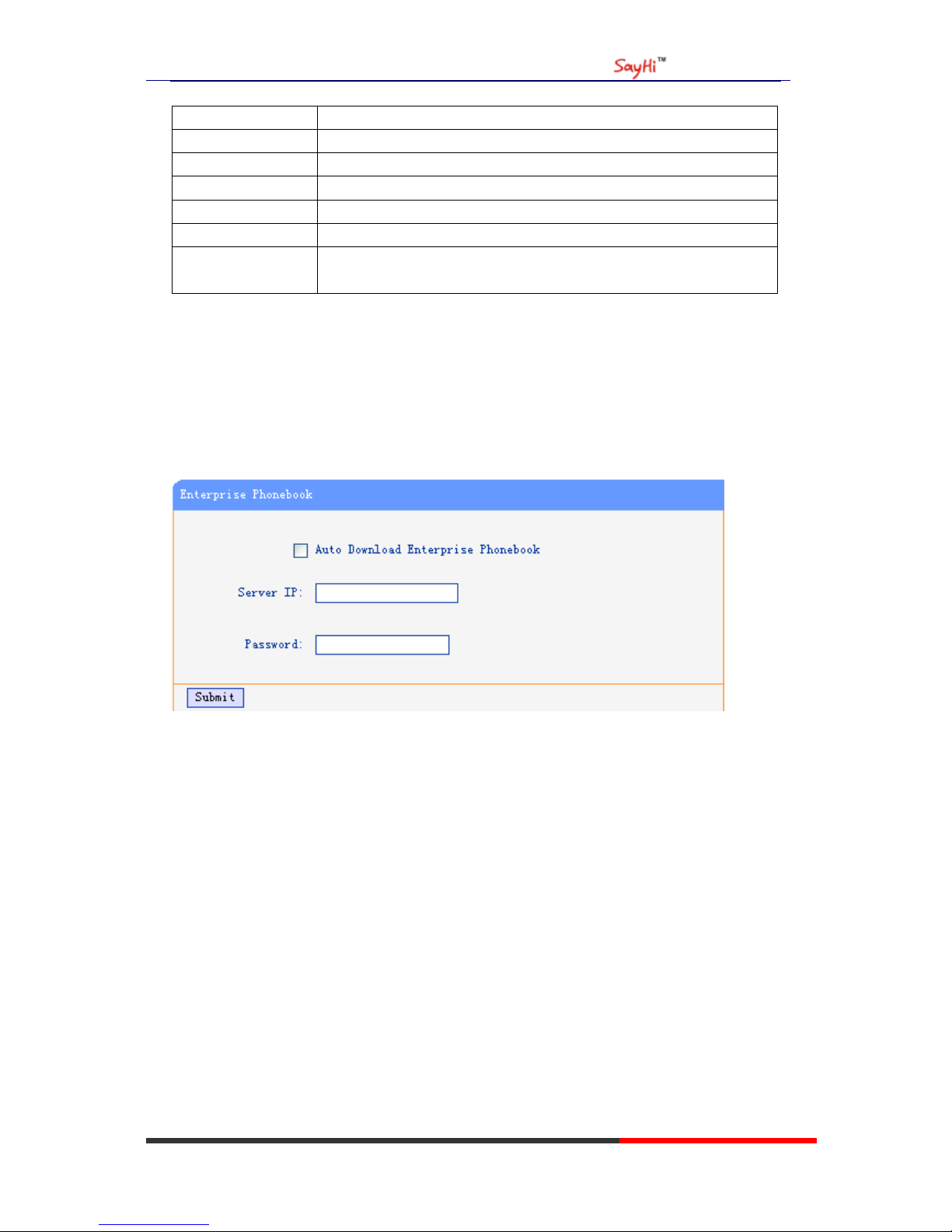

Enterprise Phonebook.....................................................................................................27

Advanced................................................................................................................................27

www.escene.cn/en

Escene Communication

Phone Setting..................................................................................................................27

VLAN Setting.................................................................................................................29

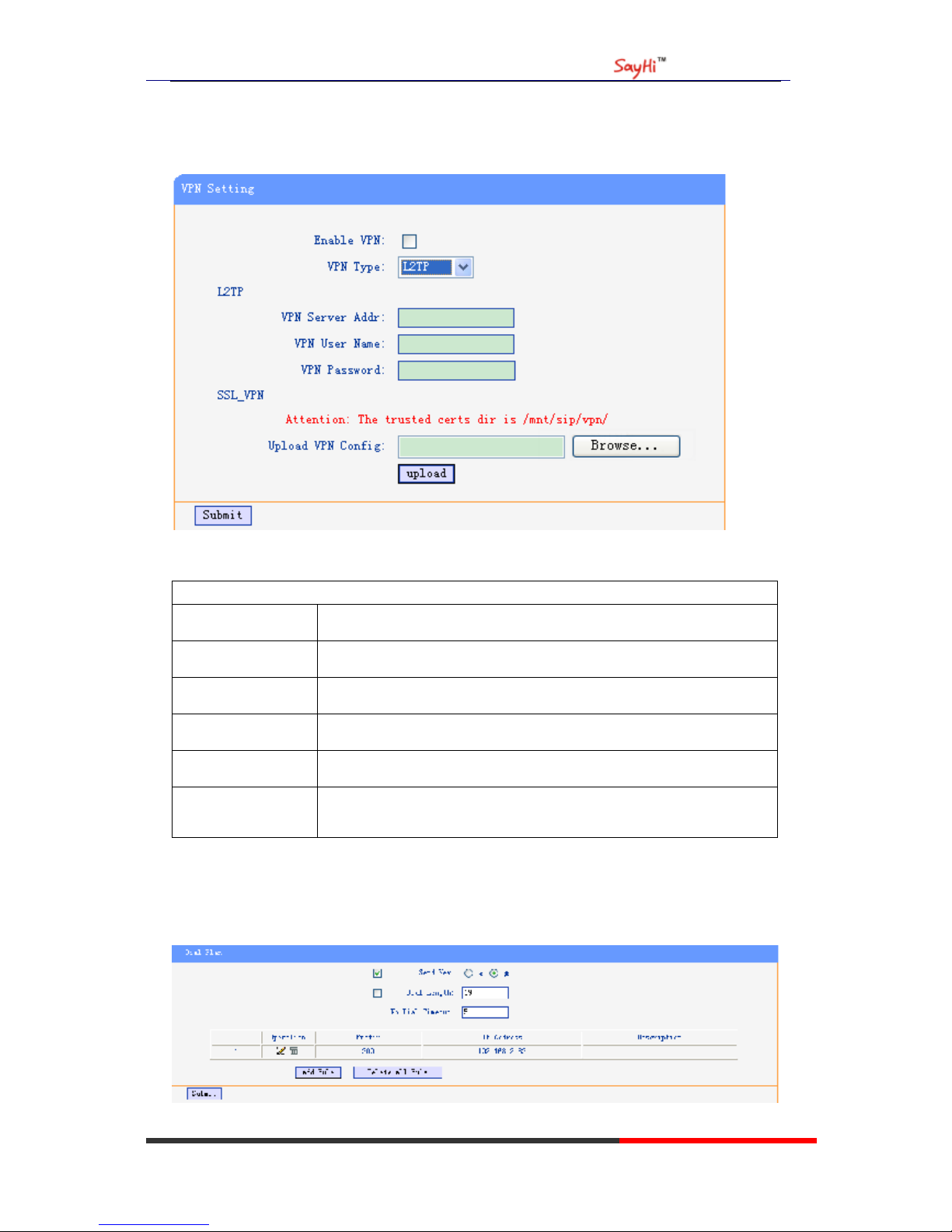

VPN Setting....................................................................................................................30

Dial Plan setting..............................................................................................................30

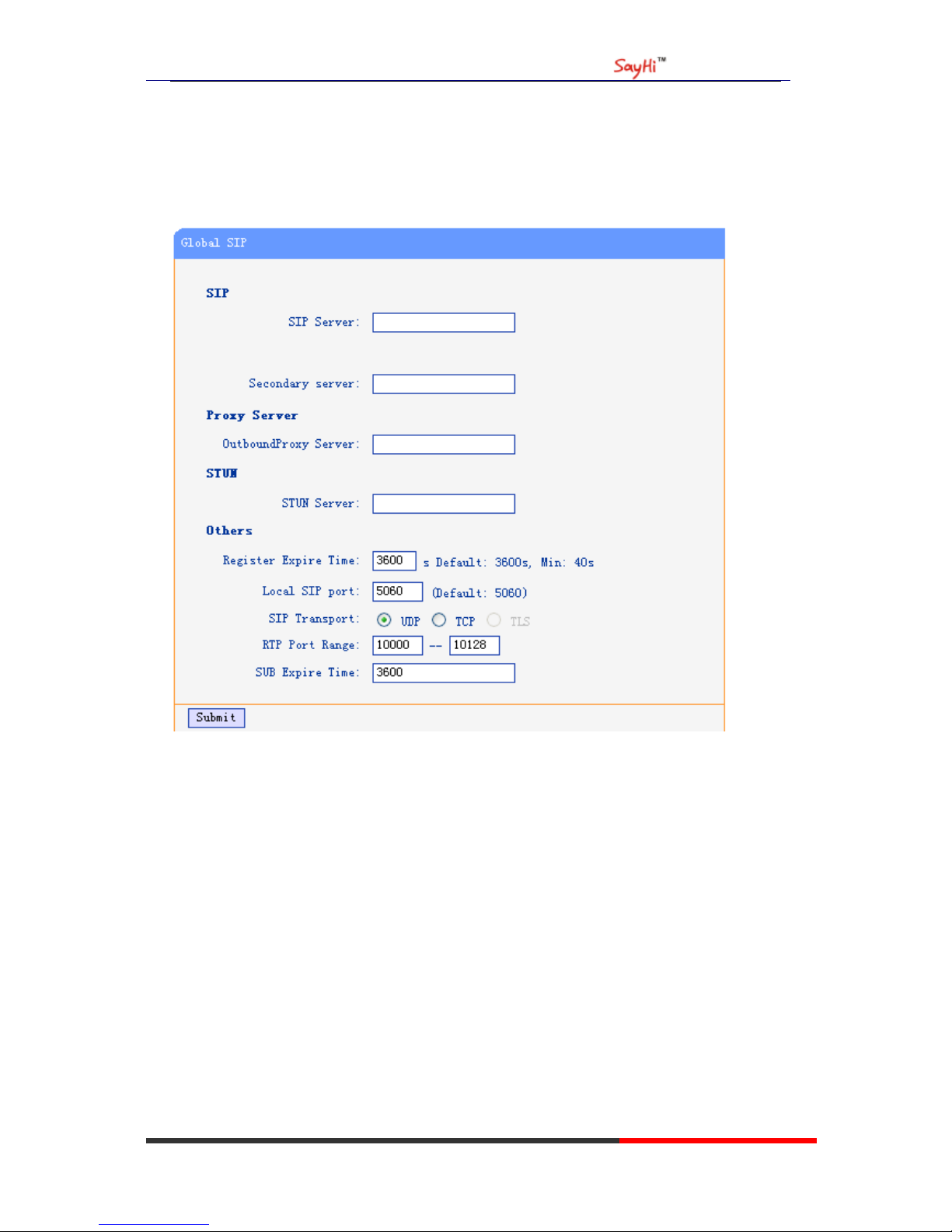

Global SIP.......................................................................................................................32

Phone Maintenance.................................................................................................................32

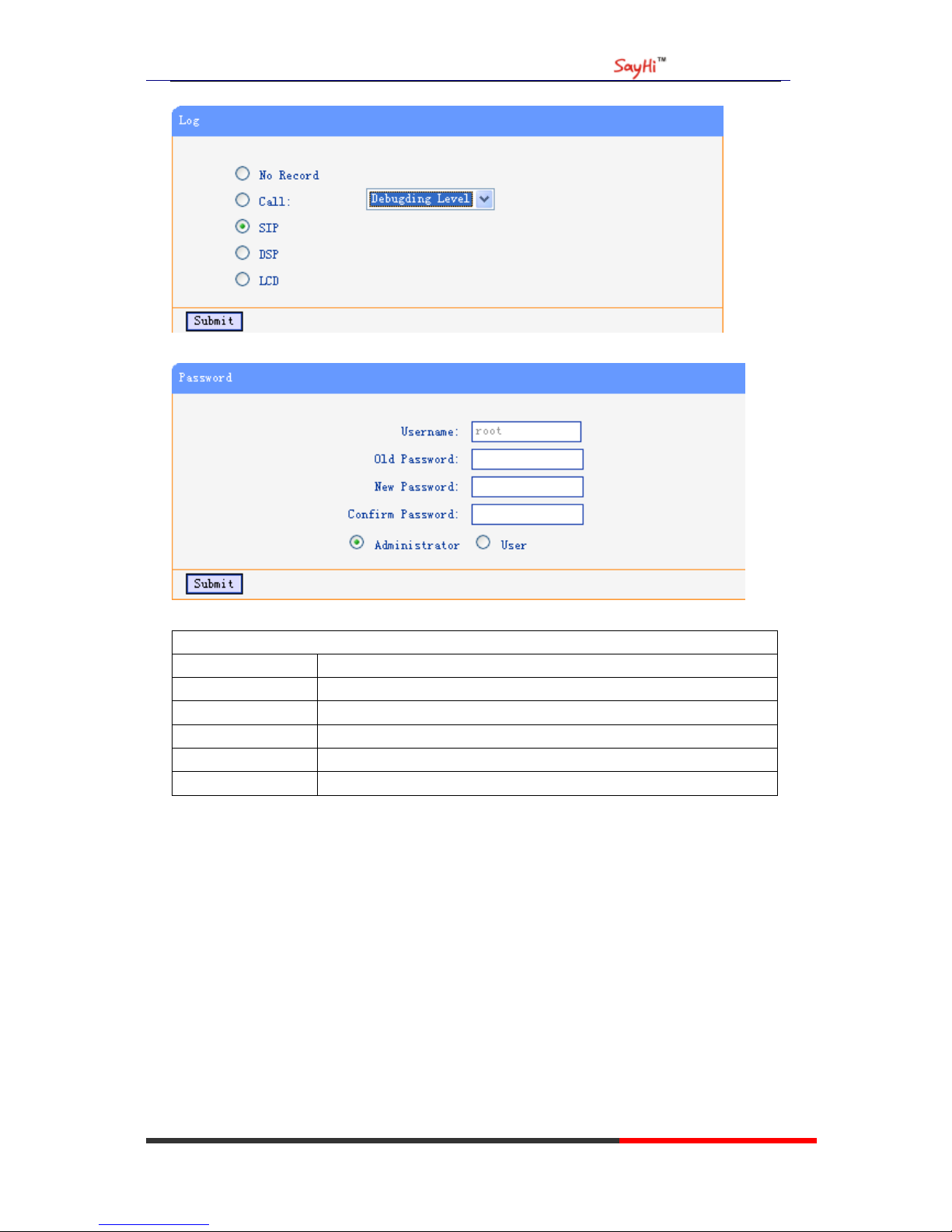

Log..................................................................................................................................32

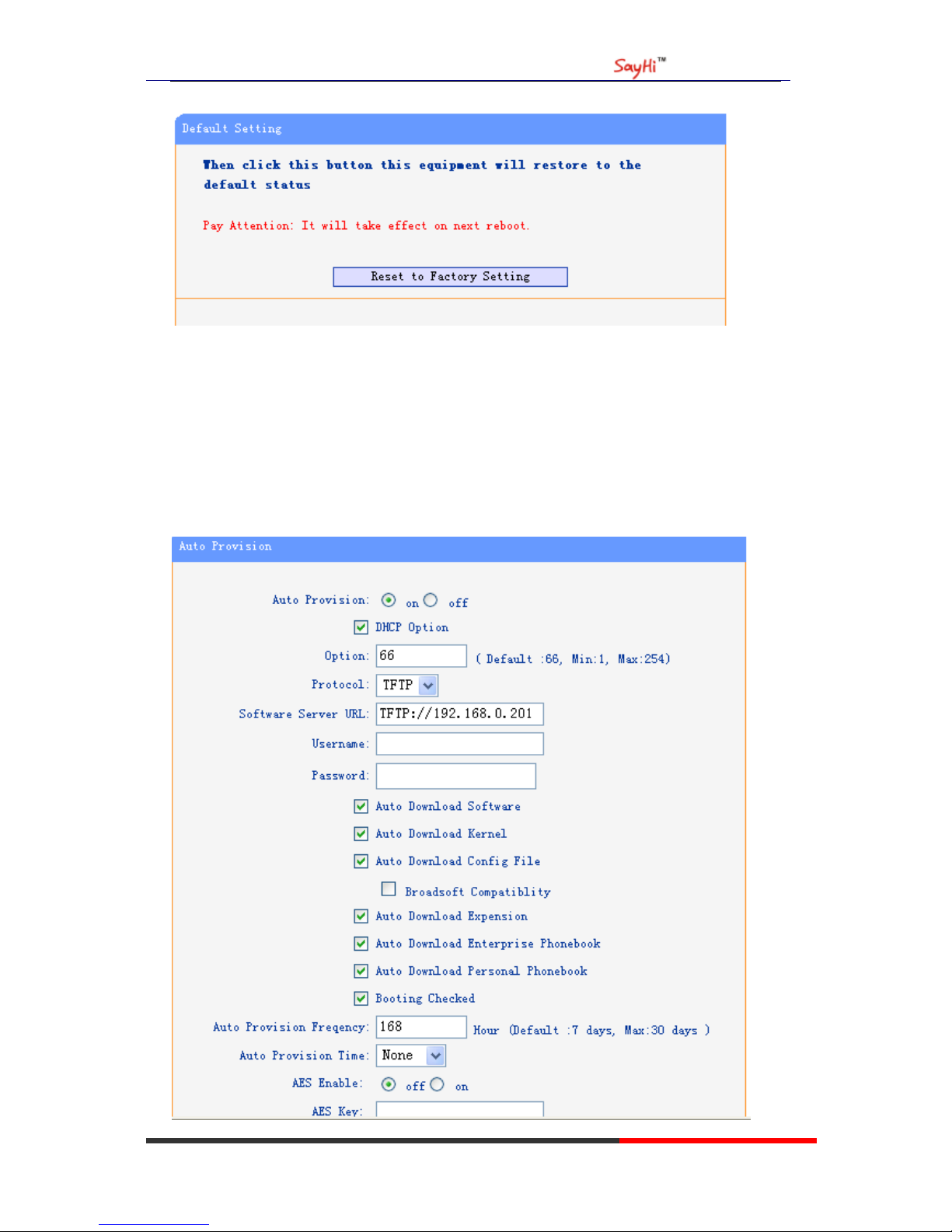

Default Setting................................................................................................................33

Auto Provision................................................................................................................34

FTP Upgrade...................................................................................................................35

TFTP Upgrade.................................................................................................................36

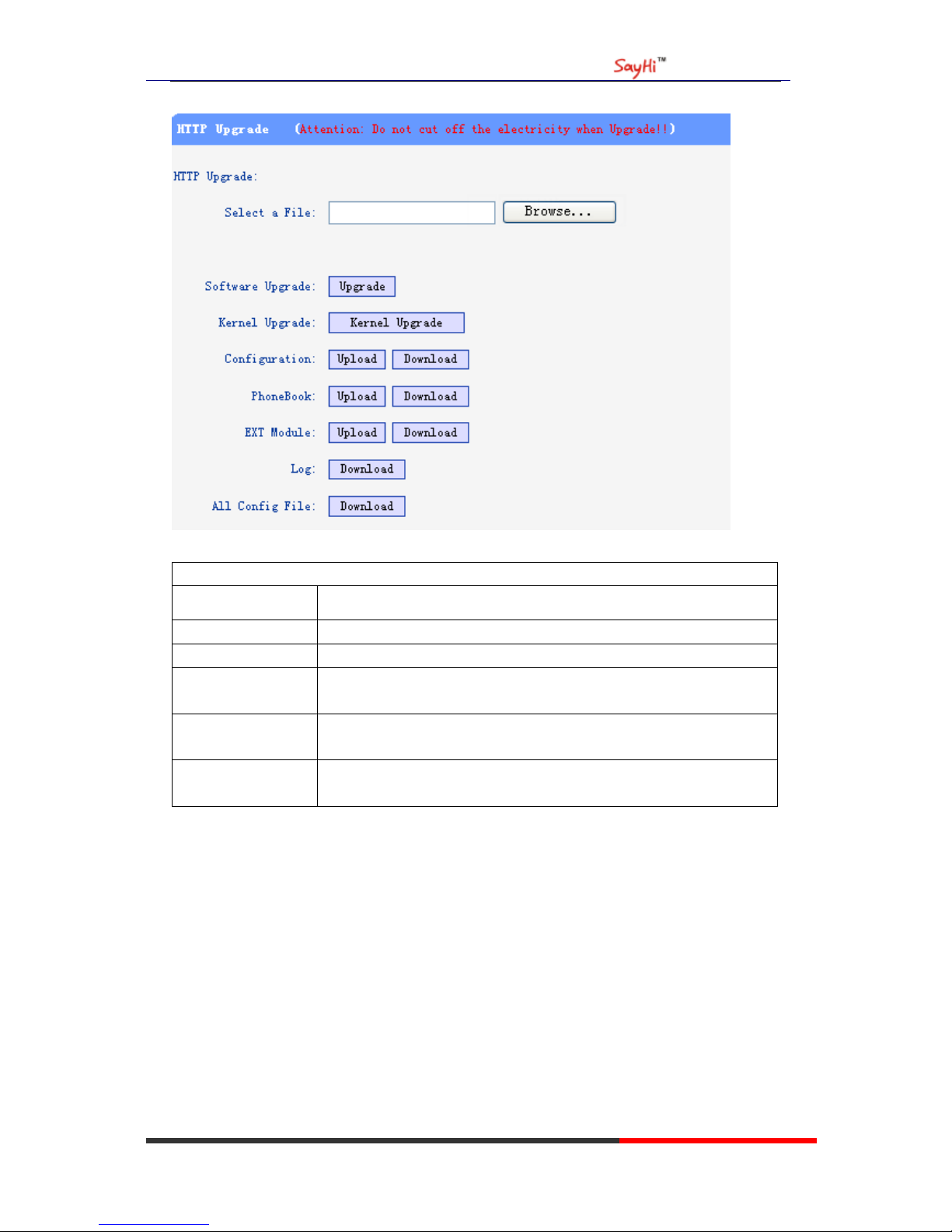

HTTP Upgrade................................................................................................................37

Reboot.............................................................................................................................38

Phone Status............................................................................................................................39

System Info.............................................................................................................................40

About......................................................................................................................................40

Appendix：.............................................................................................................................42

ES220 IP Phone

www.escene.cn/en

Escene Communication

1. Getting Started

About

ES220P is a popular type IP Phone in Sayhi phones series, with modern design, functional,

practical and voice clarity characteristics. It accomplished the powerful telephony features by
cooperating with the communications platform, such as call transfer, hotline, multi-party
conferences, voice mail, interruption-free, etc.

Feature Highlights:

l HD Voice: HD Codec
l Support unified maintenance and auto upgrade
l Support Plug and Play
l Enterprise Phone Book
l Support PSTN interface
l Support Headset interface
l Support PoE and AC power adapter

Technical Features

Item Technical Features

Graphic LCD with background light

Screen

16*2 characters

Language

Support Multi-Module

Line

2 VoIP Line

Function

Keys

6 Navigation keys (arrow button, OK button, C button)
Volume button (multiplex up and down keys)
Hands-free
Headset
Message
Hold
Redial
Conference
Transfer

VoIP

Protocol

SIP 2.0

Network

Protocol

HTTP、DHCP、TFTP、*IEEE 802.1Q、*IEEE 802.1X

ES220 IP Phone

www.escene.cn/en

Escene Communication

Codec

G.723.1 (5.3K 6.4K b/s)、G.729 A (8Kb/s)、G.711 A/U (64Kb/s), G.722

QoS

TOS, Jiffer Buffer, VAD, CNG, G.168 (32ms)

Network

2*RJ45 10/100M Ethernet interfaces(LAN/PC)
IP Assignment: Static IP 、DHCP、PPOE
VPN(L2TP、SSL_VPN)
DNS Clients (Primary and Secondary)

Speech

HD Voice: HD Codec/Handset/Speaker(Full-duplex)
Handset, Headset or Hand-free Mode,
Support call centre by headsets
9-levels volume adjustment

Call

Processing

Call Waiting, Call Queuing
Call Forward, Call Transfer, Call Holding, Call Pickup, Callback
Redial,Auto-answer
Phone directory speed dial, call record direct dial
3-way conference
DnD
Voice mail, Voice Prompt, Voice Message

Application

Enterprise phone directory
XML Phonebook
Private phone directory

Security

Password Login Web
Signaling encryption
Media encryption

Management

Upgrade: HTTP/TFTP/FTP Auto-provision/TR069
Configurations: Phone/Http/Auto provision/TR069
Debug: Telnet/Phone/Web

Power

Supply

Power adapter: AC100~240V input and DC 5V/1.2Aoutput
PoE (IEEE 802.af)

Specification

Storage Temperature: 0℃~60℃
Operating Humidity: 10%~90%
Size: 168mm*205mm*85mm

ES220 IP Phone

www.escene.hk

Escene Communication

2. Connecting Your Phone

Your system administrator will likely connect your new SayHi ES210 IP Phone to the corporate IP
telephony network. If that is not the case, refer to the graphic and table below to connect your
phone.

1) Open the box of ES210 IP Phone，carefully check the packing list as follow:

Item Counts

IP Phone 1
Handset 1
Handset Cord 1
Power adapter 1 (need to buy )
RJ45 cable 1
RJ11 cable 1 (ES2xx)
CD 1
Quick Installation 1
Quick User Guide 1
Product certification 1

2) As shown in figure 2.1，please plug Handset Cord into RJ11 interfaces (IP Phone and
Handset)，RJ45 cable into the LAN interface；IP Phone will automatically start if IP Phone with
POE function.

3) The phone must work together with power adapter without POE support.

4) If you want connect your computer into LAN at the same time, please connect your
computer to PC interface of the phone with a RJ45 cable.

Figure2.1 Interfaces of SayHi ES220

ES220 IP Phone

www.escene.cn/en

Escene Communication

3. Phone overview

Understanding Buttons and Hardware

You can identify buttons and hardware on your SayHi ES220 from figure 3.1.

Figure 3.1 SayHi ES220

○

6

Item Description

1

message button: when have new message in,

the light will blink red

2 Line 1

When you use this line ,the light is red

3

and PSTN

Headset button: Toggles the headset on or off.
When headset is on, the light is red .

○

15

○

17

○

18

○

1

○

2

○

3

○

4

○

5

○

9

○

10

○

11

○

12

○

13

○

19

○

14

○

16

○

7

○

6

○

8

ES220 IP Phone

www.escene.cn/en

Escene Communication

4 Line 2

When you use this line ,the light is red

5

0-9，*，#

Basic Call Handling: press “#” send out a call by default.

6 Navigation

button

Allows you to scroll through menus and highlight items. When the

phone is on-hook, it becomes a shortcut key as follow:

“Up”: Adjust ring volume，operate with the “ down” button
“Down”: Open “Missed Calls” list:
“Left”: Open “Received Calls” list;

“Right”: Open “Dialed Numbers” list.

7 OK OK button: To confirm the action, it also has a menu button

function; it allows you to scroll through menus.

8 C Back button: Return to the standby interface.

When in communication press ”C”, it has mute function.

9 CONFERENCE Conference button: Connect calling / called party to the conference.

10 TRANSFER

Transfer button：Transfer redirects a connected call.

11 HOLD/Pick up Hold button: Put a call on hold.

12 REDIAL Redial button: To dial the last number.

13 Speaker button Speaker button: Toggles the speakerphone on or off.

Red, steady: Pick up and enter normal call.

14 Speaker Sounds output when hands-free.

15 Handset

Use to sounds in/output.

16 Handset cord

Connects between handset and phone.

17 LCD screen

128*32 characters, grayscale LCD with background light.

18 Light strip

Red flashing: There are incoming call；
Red, steady: Missed Calls, or phone busy;

19 Hands-free

microphone

Sounds input when hands-free

ES220 IP Phone

www.escene.cn/en

Escene Communication

Understanding Phone Screen Features

This is what your main phone screen might look like:

Figure 3.3 SayHi ES220 Phone LCD

②

Screen displays Functions

1 Line status Show the phone line status:

1) : Disconnect into network.

2) : Only Peer-to-Peer call.

3) : Network connected normal, but the

line is not successfully registered.

4) : Network is OK and the line is available.

5) : Line is turned on DND.

2 Time and date Show current time and date（You can set with different sources，

the more 7. Web Setting)

○

1

ES220 IP Phone

www.escene.cn/en

Escene Communication

4. Basic Call Handling

You can perform basic call-handling tasks using a range of features and services. Feature
availability can vary; see your system administrator for more information.

Note: The bold type of the following text in table signifies the phone's button.

Placing a Call

Here are some easy ways to place a call on SayHi ES220 IP Phone:

If you want to... Then…

Place a call using
the handset

Pick up the handset

Place a call using
a speakerphone

Press Speaker button

Place a call using
a headset

Put on your headset,

active Headset button so
that the status light is

Red , and then do as
using speakerphone

--1) You can hear dial tone;

--2) Enter a number；

--3) Press # button (default)，

-or wait 5s (default), then it send the
number automatically.

Redial

--Press REDIAL button to dial the last number,

-or press Navigation button-Right (in Standby interface) > “Dialed
number”, select a number, then select Dial ,and press OK button.

Dial from a call

log

--1) Press OK button > “Call history”, you can select “Missed calls”,

“Received calls” and “Dialed numbers”,

- or press Navigation button (in Standby interface) > select “Missed
calls” (down), “Received calls” (left) and “ Dialed numbers” (right) )；

--2) Then press OK button .

Tips

• You can dial on-hook, without a dial tone (pre-dial). To pre-dial, enter a number, and then go
off-hook by lifting the handset or pressing Headset or Speaker button.

ES220 IP Phone

www.escene.cn/en

Escene Communication

• If you make a mistake while dialing, press C button to erase digits.

Answering a Call

You can answer a call by simply lifting the handset, or you can use other options if they are
available on SayHi ES220.

If you want to... Then...

Answer with a
handset

--Pick up the handset

Answer with the
speakerphone

(Non-headset mode)

--Press Speaker button

Answer with the a
headset

--1) Your phone ring;

--2) Light strip is Red
and flashing；

--Put on headset, press Headset button

so that the status light is Red , and
then do as using speakerphone

Auto-answer

--1) Press OK button > “Function setting” > “Auto answer”;

--2) Select “Enable”;

--3) Your phone answers incoming calls automatically after a few rings.

Tips

• Your system administrator configures Auto-answer to use either the speakerphone or a headset.

You might use Auto-answer if you receive a high volume of incoming calls.

Ending a Call

To end a call, hang up. Here are some more details.

If you want to... Then...

Hang up while using the
Handset

-- Return the handset to its cradle

Hang up while using the

-- Press Speaker button that is Red

ES220 IP Phone

www.escene.cn/en

Escene Communication

speakerphone

Hang up while using the
Headset

--Press Handset button, （Do not keep the headset mode)

Using Hold and Resume (Switch Calling Line)

You can hold and resume calls.

If you want to... Then...

Put a call on hold

Press HOLD button

Resume a call

Press line button

Tips

• Engaging the Hold feature typically generates music or a beeping tone.

Transfer Calls

Transfer redirects a connected call. The target is the number to which you want to transfer the call.

If you want to... Then...

Talk to the transfer
recipient before

transferring a call
(consult transfer)

--1) Press TRANSFER button;

--2) Enter number;

--3) press “#”（default) ,

-or wait five seconds(default)then transfer the call

Using Mute

With Mute enabled, you can hear other parties on a call but they cannot hear you. You can use
mute in conjunction with the handset, speakerphone, or a headset.

If you want to... Then...

Toggle Mute on

Press C button, when you are in communication, and want to set Mute

ES220 IP Phone

www.escene.cn/en

Escene Communication

function

Toggle Mute off

Press C button, then the mute off

Do Not Disturb

You can use the Do Not Disturb(DND) feature to block incoming calls on your phone with a busy
tone（Can also be set to their voice mail or other extension numbers, etc.).

If you want to... Then...

Enable DND on a line

--1) Press OK button > “Function setting” > “DND” > (select line)
“Enable”

--

2) All enabled line on the phone would changes to

status.

Disable DND

Press OK button > “Function setting” > “DND” >(select line)

“Disable”

3-way Conference

You can establish a three-party conference, during the conversation three phone parties can
communicate with each other.

If you want to... Then...

Invite the transfer
recipient into a

conference in a
transferring

--1) When the transfer recipient answer the call, press

CONFERCENCE button on your phone;

--2) Then the held one, transfer recipient and you will be into a

conference, and the LCD will display status.

Invite the third party

into a conference in
a active call

--1) Press CONFERENCE button in an active call;

--2) Enter the third party number；

--3) After connected the third party, press CONFERENCE button

again

ES220 IP Phone

www.escene.cn

Escene Communications

5. Advanced Call Handling

Using the Phone Book

You can store a large number of contacts in your phone's directory. You can add, edit, delete, dial,
or search for a contact in this directory. However, it only can configure the phone book on web
page in SayHi ES220. For details, you can refer to 7.Web Settings.

However, you can dial from Phone Book on the phone after setting phone book on web page.

If you want to…. Then……

Call from phone

book

--1) Press OK button> “Phone book”

--2) Select “Personal phone book”>“View ALL”

-or select a contact who are belong to different group

--3) Select a contact and a number, then press OK button

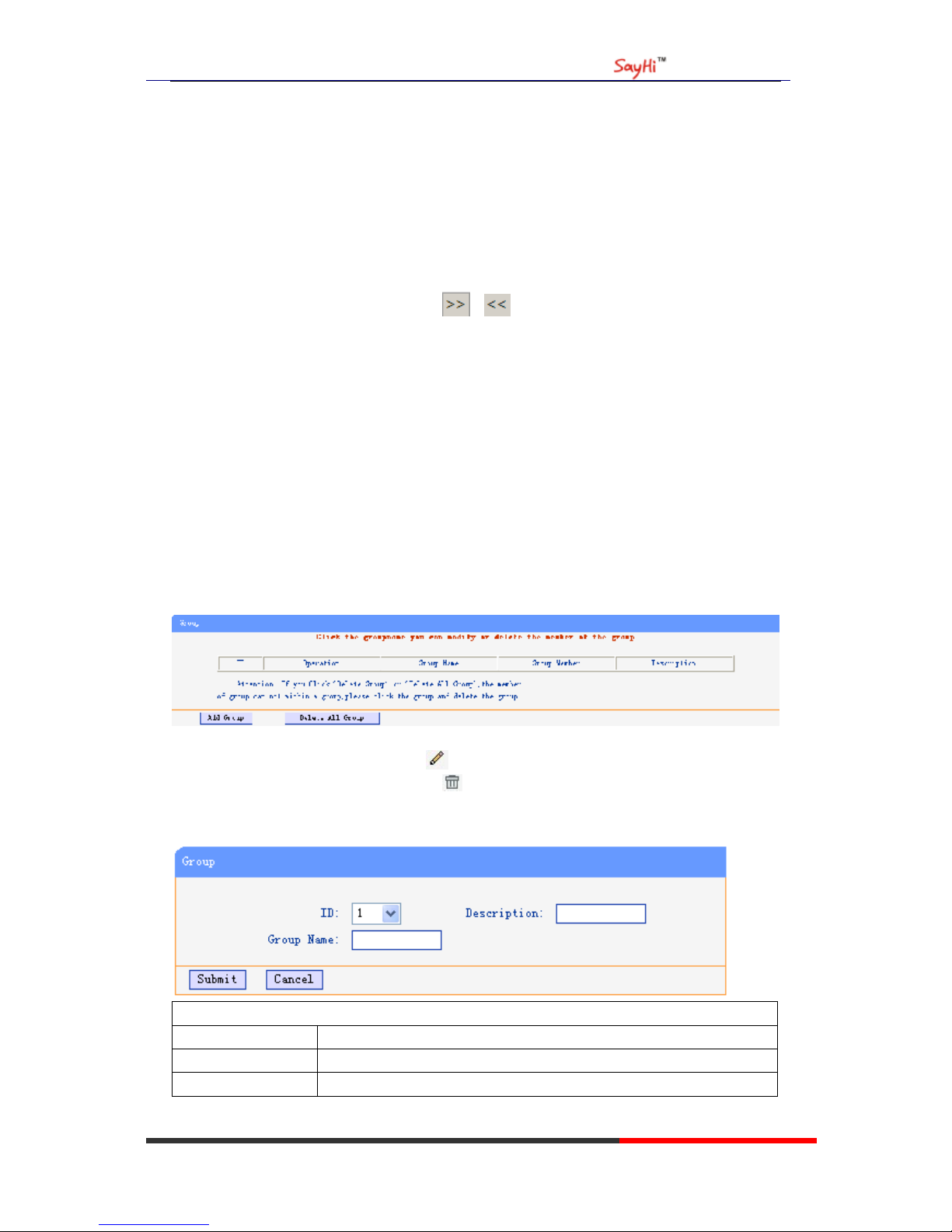

Add group

--1) Press OK button> “Phone book”

--2) Select “Personal phone book”>“Modify”

--3) Select the “Add group” then press OK button

--4) Use the navigation keys to select content, press OK button to set

and modify:

-Group name: name of the group

--5) Press “OK” to complete

Add Contacts

--1) Press OK button > “Phone book”

--2) ) Select “Personal phone book”>“Modify”

--3) Select “Add contact”, press OK button

--4) Use the navigation keys to select content, press OK button to set

and modify:

-Name: set the name of contact,

-NO.1-3: you can set up 3 contacts’ numbers:（Mobile、Office

Number、Other Number）

-Group: the contacts be divided into different user’s groups

ES220 IP Phone

www.escene.cn

Escene Communications

--5) Press “Save”to complete

--6) Press “Delete” to cancel your input.

Modify group

--1) Press OK button > “Phone book”

--2) Select “Personal phone book”>“Modify”

--3) Select “Modify Group”, press OK button

--4) Select the group you want to modify, press the OK button to set

and modify

--5) Press “OK” to save the change

Delete group

--1) Press OK button > “Phone book”

--2) Select “Personal phone book”>“Modify”

--3) Select “Modify Group”, press OK button

--4) Select a group you want to delete, press OK button

Find

--1) Press OK button > “Phone book”

--2) Select “Personal phone book”>“Find”

--3) input the ground name can find the ground

LDAP

--1) Press OK button> “Phone book”,

--2)Select“LDAP”, press the OK button.

--3)Select“Search name->name”, then input the name ,and press OK

or Back.

--4)Select “Search number->Number”, then input the number ,and

press OK or Back.

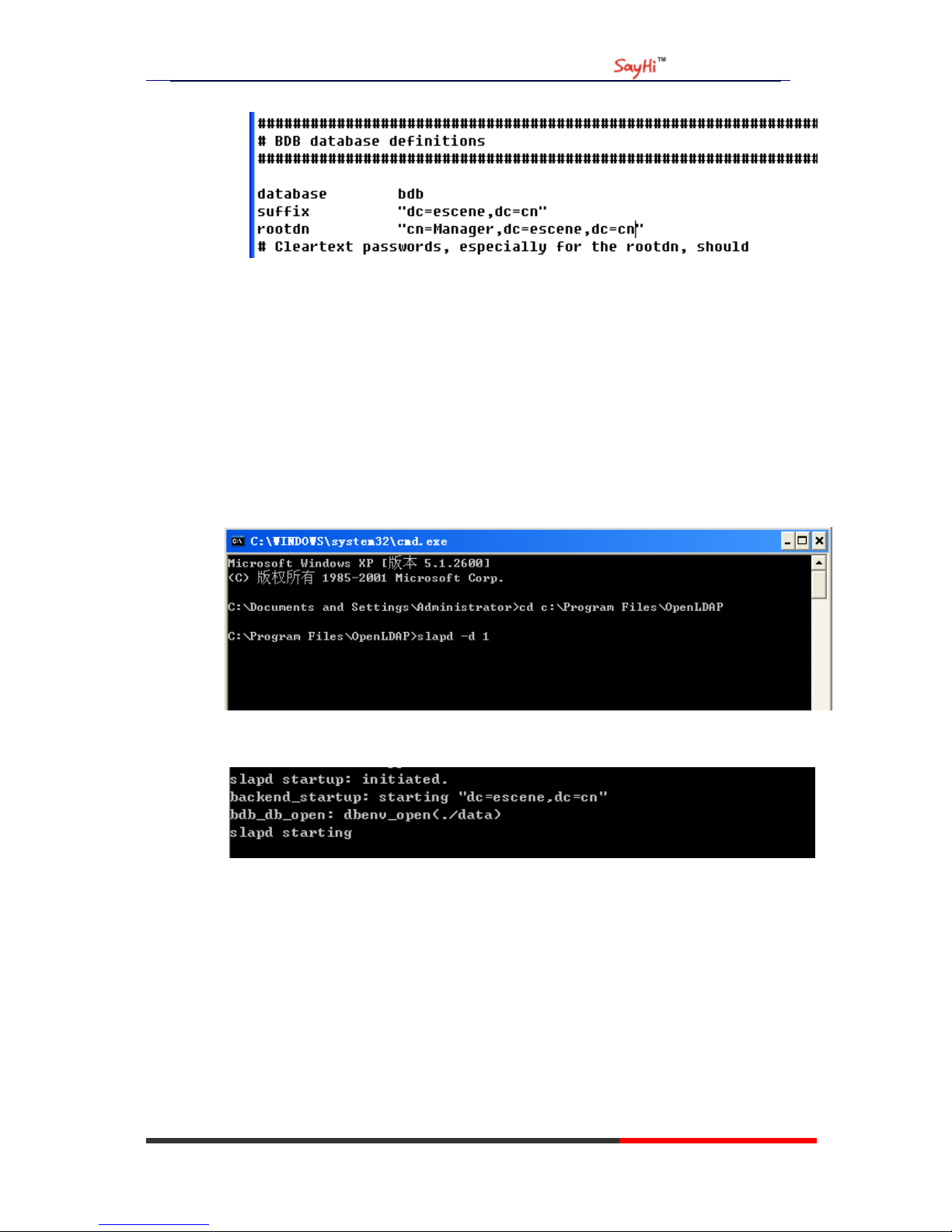

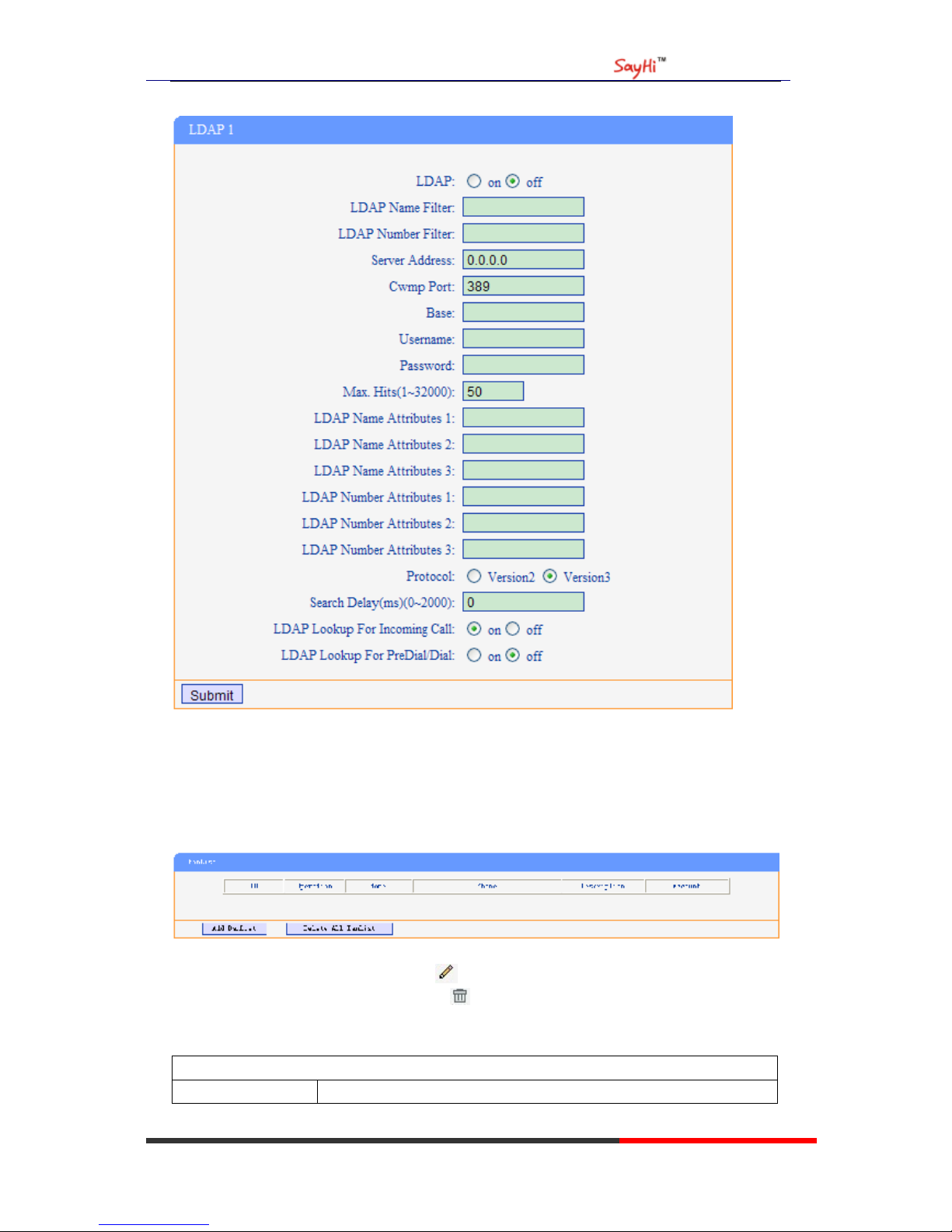

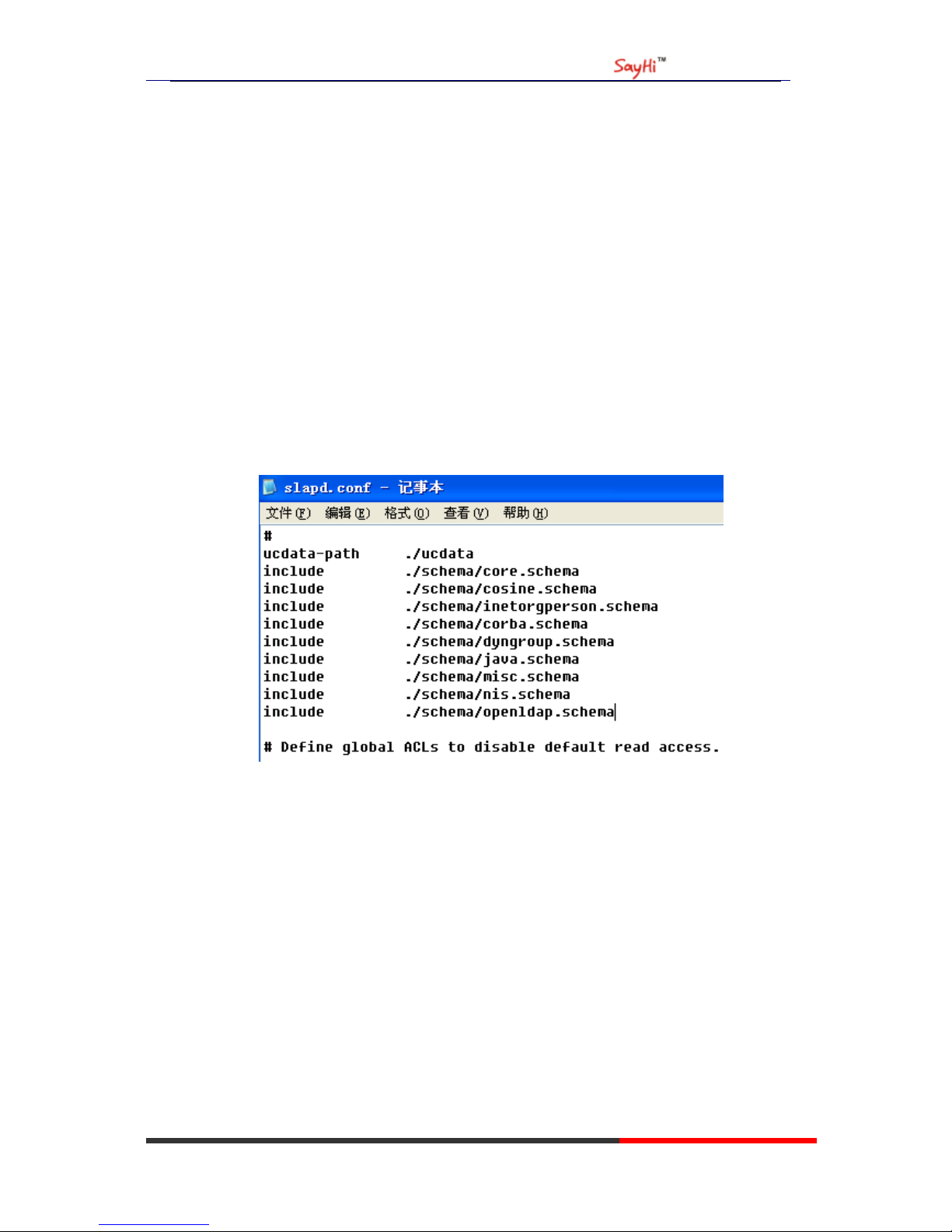

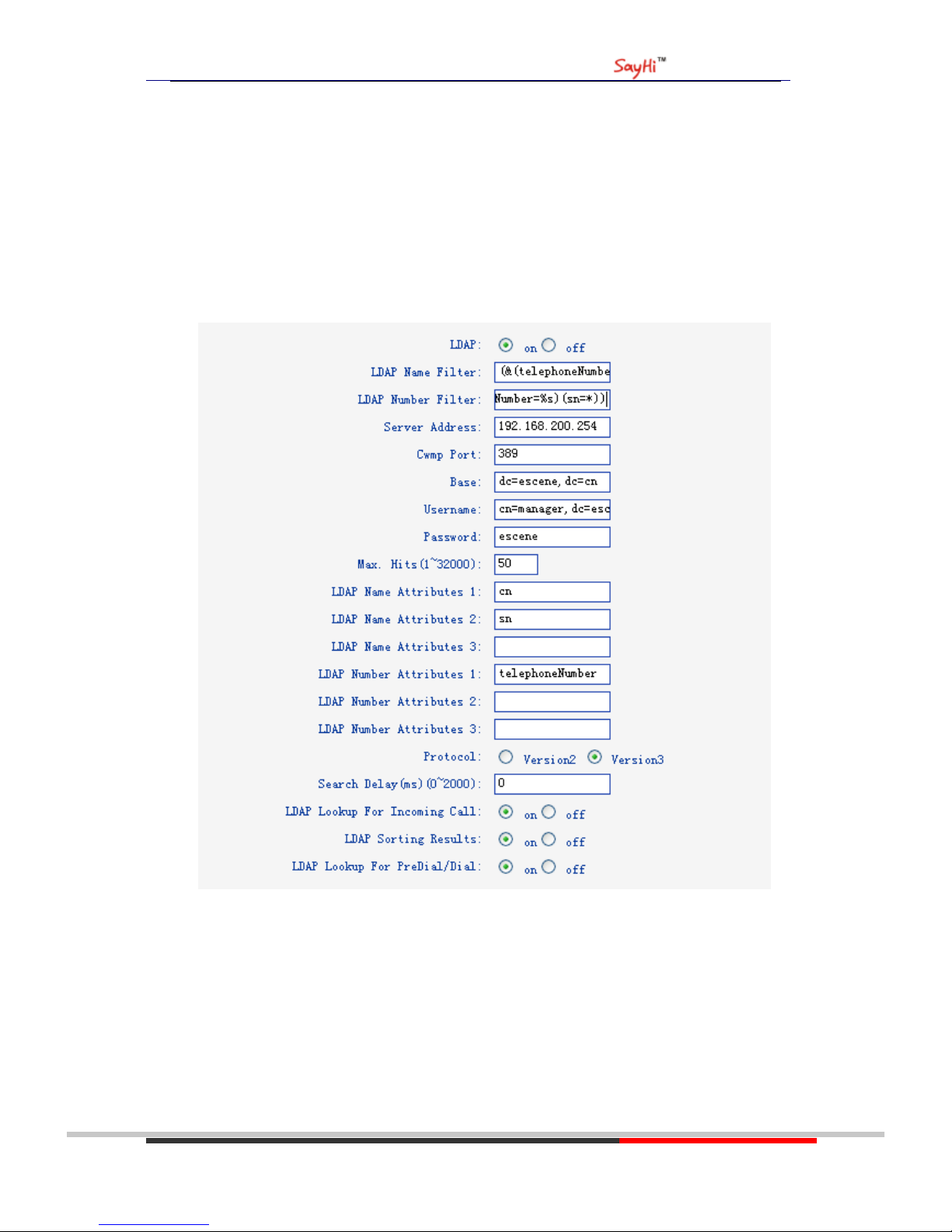

Pay attention: before you use LDAP function, you need to configure
LDAP rule in the web configure page.

ES220 IP Phone

www.escene.cn

Escene Communications

Using Call Logs

Your phone maintains records of your missed, placed, and received calls.

If you want to… Then…

View your call logs

--1) Press OK button > “Call history” > “Missed Calls”, “Received

Calls”, or “Dialed numbers”

--2) Use the navigation keys to view the call record information.

--)You can delete the information, Select “Delete all”

Dial from a call log Please refer to the previous part 4.Basic call handing – Placing a call.

Tips

• Each call log store up to 20 entries on SayHi ES220 IP phone.

ES220 IP Phone

www.escene.hk

Escene Communication

6. Keypad Instruction

SayHi series IP phones are can be configured in two ways. The first you can use the phone keypad
where you can settings for you IP phones, the other you can log in to User Options web pages
where you can settings for you IP phones.
Use phone keypad to setting. Press OK button to the main menu, Use the navigation keys to select
menu, press OK button to confirm menu selections, press C button to delete input information.

Tips

• When you want to type “.” in setting IP address with keypad, you can press * button.

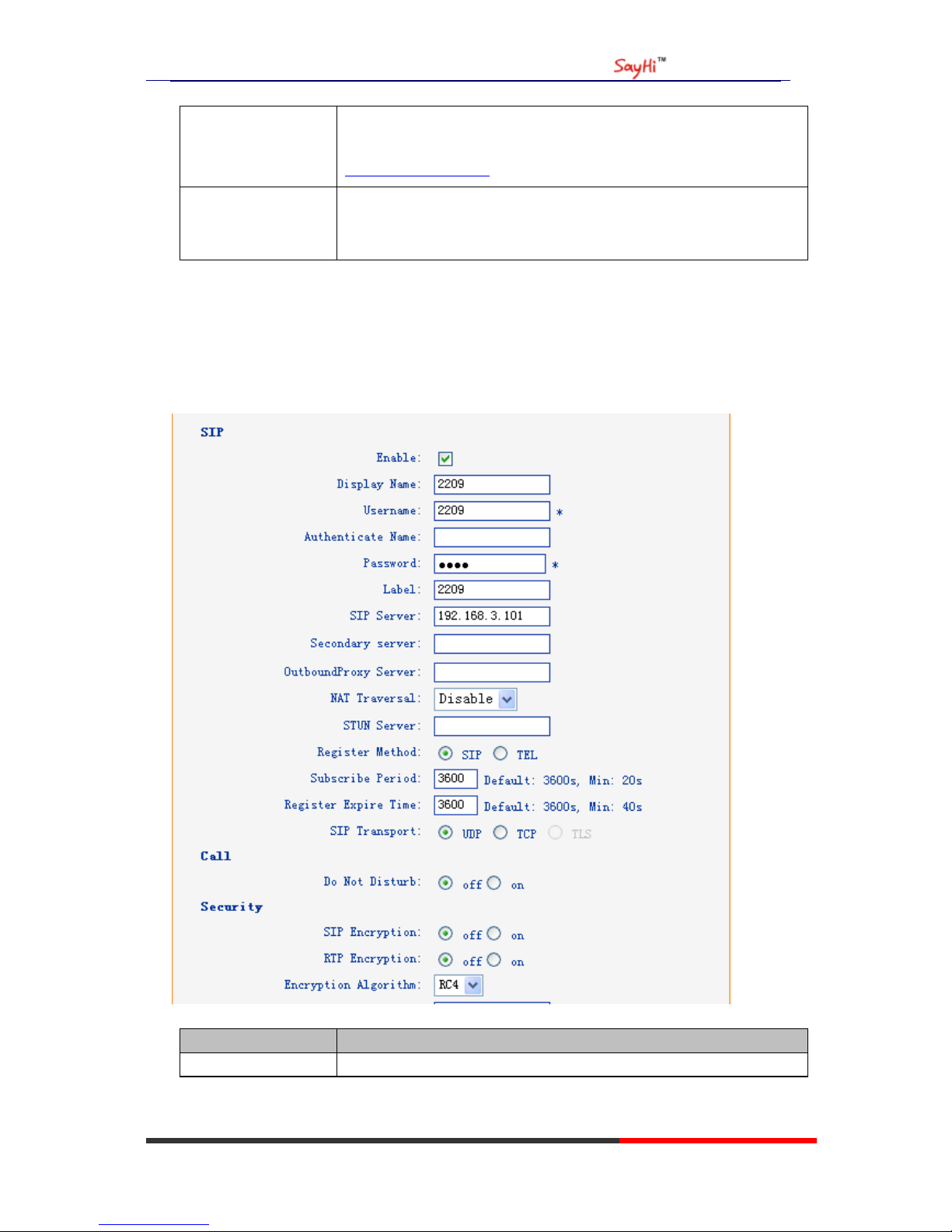

SIP Account Settings

SayHi ES220 series IP phone make calls based on sip accounts, sayHi ES220 series IP phones can
support 2 independent SIP account, Each account can be configured to different SIP server.

If you want to… Then...

Create an SIP account

--1) Select “System setting” > “Advanced setting”；

--2) Enter the password required（The default is empty) ；

--3) Select “SIP” > “Accounts SIP”；

--4) Select one of the account you want to setting, you can configure the

following parameters

-Enable account*: Select Enable

-Account mode : VOTP or PSTN, usually select VOTP

-Display Name: The name displayed on the screen

-Account*: the account matched with the SIP server.（extension

number) ,

-Authen user: the Authenticated users matched with the SIP server.

（The default With the same account)

-user pwd*: the user password matched with the SIP server

-Description: description of this account,

-SIP1*: the primary SIP server, By default all calls through the

server,

ES220 IP Phone

www.escene.hk

Escene Communication

-SIP2: the secondary SIP , When the primary server is

unavailable ,use the SIP server

-Refresh time: Registration refresh interval, the minimum value is

20 The default value is 3600.

-Con type :UDP or TCP, usually select UDP

-Amount of used line :the account use one line or two lines.

--5) Set up the above parameters, select “Save” to saves settings,

Complete the account creation.

* Note: the parameters with the * mark must be set.

Disable sip account

--1) Select “System setting” > “Advanced setting”；

--2) Enter the password required（The default is empty) ；

--3) Select “SIP” > “Account sip”；

--4) Select “Enable account” > “Disable”；

--5) Select “Save” to saves settings

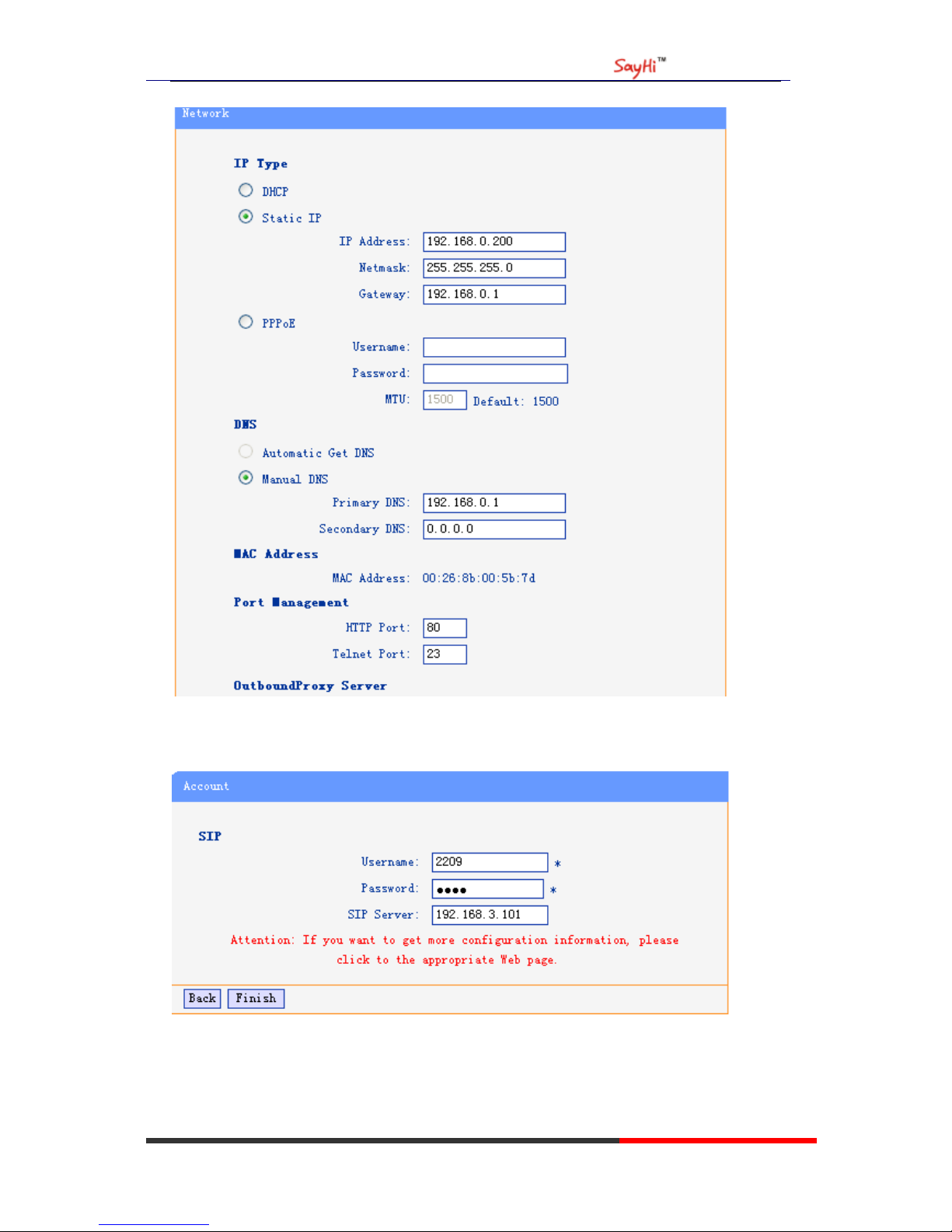

Network Setting

If you want to …

Then…

LAN Port --1) Select “System setting” > “Advanced setting”；

--2) Enter the password required（The default is empty) ；

--3) Select “Network>LAN Port”, you can configure the following

parameters:

-Type: static IP or DHCP or PPOE

-IP: enter IP address , Note: Do not duplicate the IP address with

other devices on the network

-Mask: enter appropriate sub mask

-GW: enter appropriate gateway

- DNS1: enter IP address of the primary DNS server

- DNS2: enter IP address of the secondary DNS server

-Web port: the default Web port is 80,if you change it(for example

ES220 IP Phone

www.escene.hk

Escene Communication

change it to 88),you must use IP and Web port to login the web page (for
example http://192.168.0.200:88).It will take effect on next reboot.

-Telnet port: the default Telnet port is 23, if you change it (for

example change it to 2003), you must use IP and Telnet port to login the

manage page (for example telnet 192.168.0.200:2003).It will take effect
on next reboot.

PC Port

--1) Select “System setting” > “Advanced setting”；

--2) Enter the password required（The default is empty) ；

--3) Select “Network>PC Port”, you can configure the following

parameters:

-Mode :you can select bridge or router

-4) Select “Save” to saves settings

Load default settings

If you want to... Then...

Load default settings

--1) Choose “System settings” > “Advanced
settings”；

--2) Enter the password required（The default is
empty) ；

--3) Select “load default settings”, and
press ”OK” then “Reboot” the phone.

Modify password

If you want to... Then...

Modify password

--1) Choose “System settings” > “Advanced

settings”；

--2) Enter the password required（The default is

ES220 IP Phone

www.escene.hk

Escene Communication

empty) ；

--3) Select “Modify password”, you can change

the “Advanced password”.

Language setting

ES220 support multiple language to choose ,such as :Chinese 、English、Russian、French、Polish、
Spanlish、Portuguese。

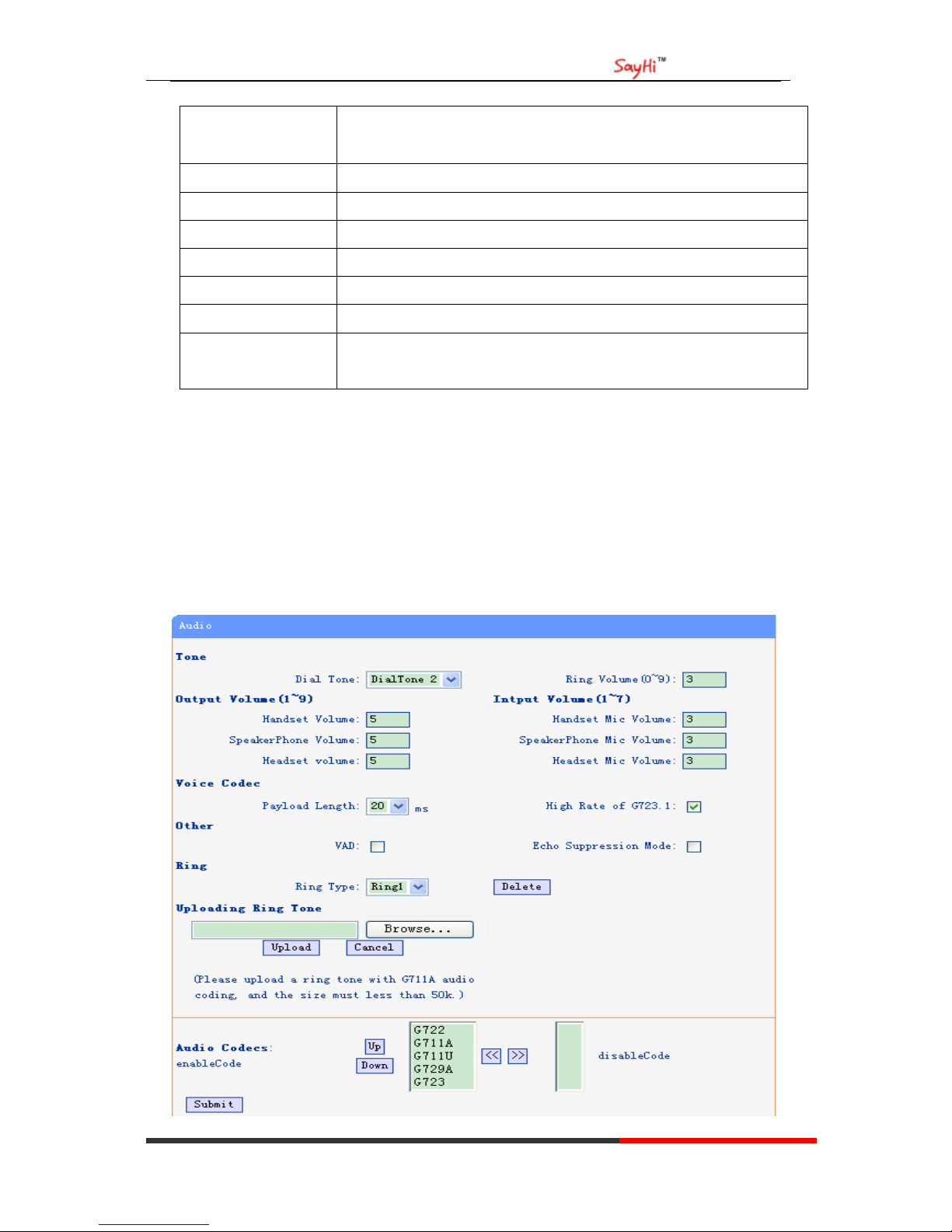

Customizing Rings and Volume

If you want to…

Then…

Change the ring
tone

--1) Select “System setting” > “Phone setting” > “Ring type”;

--2) Press navigation to Select ring tone

Adjust the volume
level

--1) Select “System setting” > “Phone setting” > “Volume setting”

--2) You can adjust the volume level of following types

-Ring volume: Phone call ring volume,

-Handset volume: Handle output volume,

-Handset mic volume: Handle input volume,

-Speaker volume: Hands-free speaker output volume,

-Speaker mic volume: Hands-free input volume,

-Headset volume: Headphone output volume,

If you want to… Then…

Change the language to English

--1) Select “System setting” > “Phone setting”

> “language”;

--2)select “English ”

Change the language to other language

--1) Select “System setting” > “Phone setting”

> “language”;

--2)select which you want to display

ES220 IP Phone

www.escene.hk

Escene Communication

-Headset mic volume: Headset microphone input volume

View status

If you want to ...... Then......

Network You can see the network detail information of

the phone
Lines You can see the SIP account
software It include phone Mode、software version、kernel

version、Upgrade date、Running time

Diagnose

If you want to check the phone hardware function, press OK button > “diagnose”, you can

check the phone item as below.

If you want to .... Then ....

Keys You can check the phone keys
LCD Press’OK’to start,press’C’to exit
Lights Press’OK’to start,press’C’to exit
Sound Press’OK’to start

ES220 IPPhone

www.escene.hk

Escene Communication

19

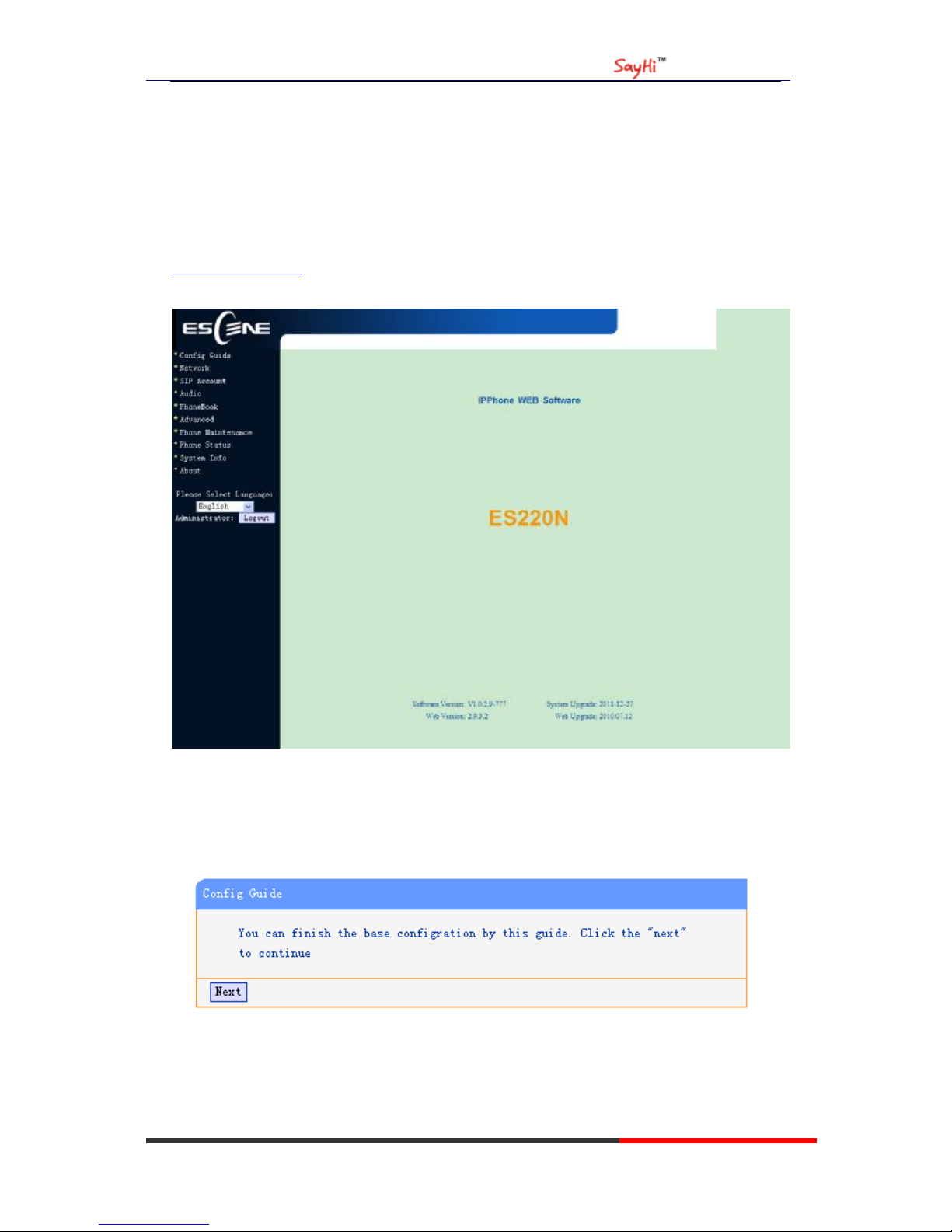

7. Web Settings

We can configure IP Phone more handy through web setting. Press OK button on the keypad of the
phone to enter the status page and find out the IP address of IP phone. Enter it (for example

http://192.168.0.200) into the address bar of web browser. The default login name and password

are both “root”.

Config Guide

You can finish the base configuration step-by-step by this guide.

When press “Next”, you can configure the Network parameters for the phone,

ES220 IPPhone

www.escene.hk

Escene Communication

20

After configure the network parameter, press next, then you can configure sip account for the
phone.

Press Finish, the base configuration of the phone is complete, now you can use the phone to call
with sip.

ES220 IPPhone

www.escene.hk

Escene Communication

21

Network

You can config the network parameters for the phone on the web page.

Choose network, you will find the following parameters:

Field

Description

DHCP

C

onfig the phone get ip in

fo from DHCP server

IP Address Config the ip manual for phone

Netmask

Config the netmask manual for phone

Gateway

Config the gateway manual for phone

Username (pppoe)

The pppoe username

Password (pppoe)

The pppoe password

MTU (pppoe)

The mtu for pp

poe,default is 1500

Primary DNS

The primary DNS server

Secondary

The secondary DNS server

MAC Address

Display the MAC of the phone

ES220 IPPhone

www.escene.hk

Escene Communication

22

HTTP Port The default web port is 80,if you change it(for example change it to88),

You must use IP and Web port to login the web page(for example

http://192.168.0.200:88). It will take effect on next reboot.

Telnet Port the default Telnet port is 23,if you change it(for example change it to

2003),you must use IP and Telnet port to login the manage page (for
example telnet 192.168.0.200:2003).It will take effect on next reboot.

SIP Account

The phone attempts to register to the SIP server using the account/registrar data provided by the
automatic or manual initialization.

Choose one Account, you will find the following parameters:

Field

Description

Enable

You can choose on/off to enable/disable the line.

ES220 IPPhone

www.escene.hk

Escene Communication

23

Account Mode You can choose VOIP

Display Name It is showed as Caller ID when making a phone call
Username It is a username provide by SIP Server
Authenticate Name It is authenticated ID for authentication
Password It is a password provide by SIP Server
SIP Server Server for registration, provided by administrator
Register Expire Time IP phone automatically registered every time
Amount Of Line

Account Used

The line key of account used,default is 1

Audio

The IP phone supports the following voice codecs: G.722, G.711A, G.711U, G.723, and G.729A.
You can enable/disable the desired codecs via Web interface. Please contact your system

administrator for more details about the codecs.
To enable/disable the codecs:

1) 1) Choose “Audio>Tone”, you can modify “Dial Tone, Ring Volume”

ES220 IPPhone

www.escene.hk

Escene Communication

24

2) Choose “Output volume”, you can modify “ Handset Volume, SpeakerPhone Volume, Headset
volume”

3)Choose “Input Volume ”,you can modify “ Handset Mic Volume, SpeakerPhone Mic Volume,
Headset Mic Volume”

4)Choose ”Voice codec” you can modify “payload Length”, normally is 20ms.

5)Choose ”Ring”, you can delete which you don’t want to use.

6)Choose “Upload Ring”, you can upload the music which you like,but upload G729 less than
30k.

7)Choose “Audio Codec”, Use the navigation keys to highlight the desired one in the

Enabled/Disable Codecs list, and press the / to move to the other list.

8)Choose “Submit” to save the change.
Of course, you can control the voice bulk in this choose.

PhoneBook

Group

You can add, edit and delete group in a phone book on web page of ES210.

1) Click “PhoneBook” > “Group”,

If you want to add a Group, you just ought to click ‘Add Group’ .

You can edit an existed Group by click .
You can delete an existed Group by click , if you want to delete all Groups, you just ought to
click ’Delete All Group’.

2) When you add a group or edit an existed group, you can set several parameters as follow:

Group
ID Serial number of a group
Description Description of a group
Group Name Name of a group

ES220 IPPhone

www.escene.hk

Escene Communication

25

Contact

You can add, edit and delete contact in a phone book on web page of ES210.
The phonebook can storage 300 contact entry.

1) Click “PhoneBook” > “Contact”,

If you want to add a Group, you just ought to click ‘Add Contact’.
You can edit an existed Contact by click .

You can delete an existed Contact by click , if you want to delete all Contacts, you just ought
to click ’Delete All Contact’.

2) When you add a Contact or edit an existed Contact, you can set several parameters as follow:

Contact
Serial Number Serial number of a contact
First Name The First Name of a contact
Last Name The Last Name of a contact
Mobile Number The Number1 phone number of a contact
Office Number The Number2 phone number of a contact
OtherNumber The Number3 phone number of a contact
Group You can assign a contact to a specific group. If there isn’t any group set

on the phone, the group is None by default.

Account Select a SIP account relating this contact, that is you can dial to the

contact from this SIP account.

LDAP

1).

Over

view

LDAP stands for Lightweight Directory Access Protocol which is a client-server protocol
for accessing a directory service. LDAP lets you locate organizations, individuals, and other
resources such as files and devices in a network, whether on the Internet or on a corporate
intranet, and whether or not you know the domain name, IP address, or geographic
whereabouts.

An LDAP directory can be distributed among many servers on a network, then replicated and
synchronized regularly.

2).

Con

figuration

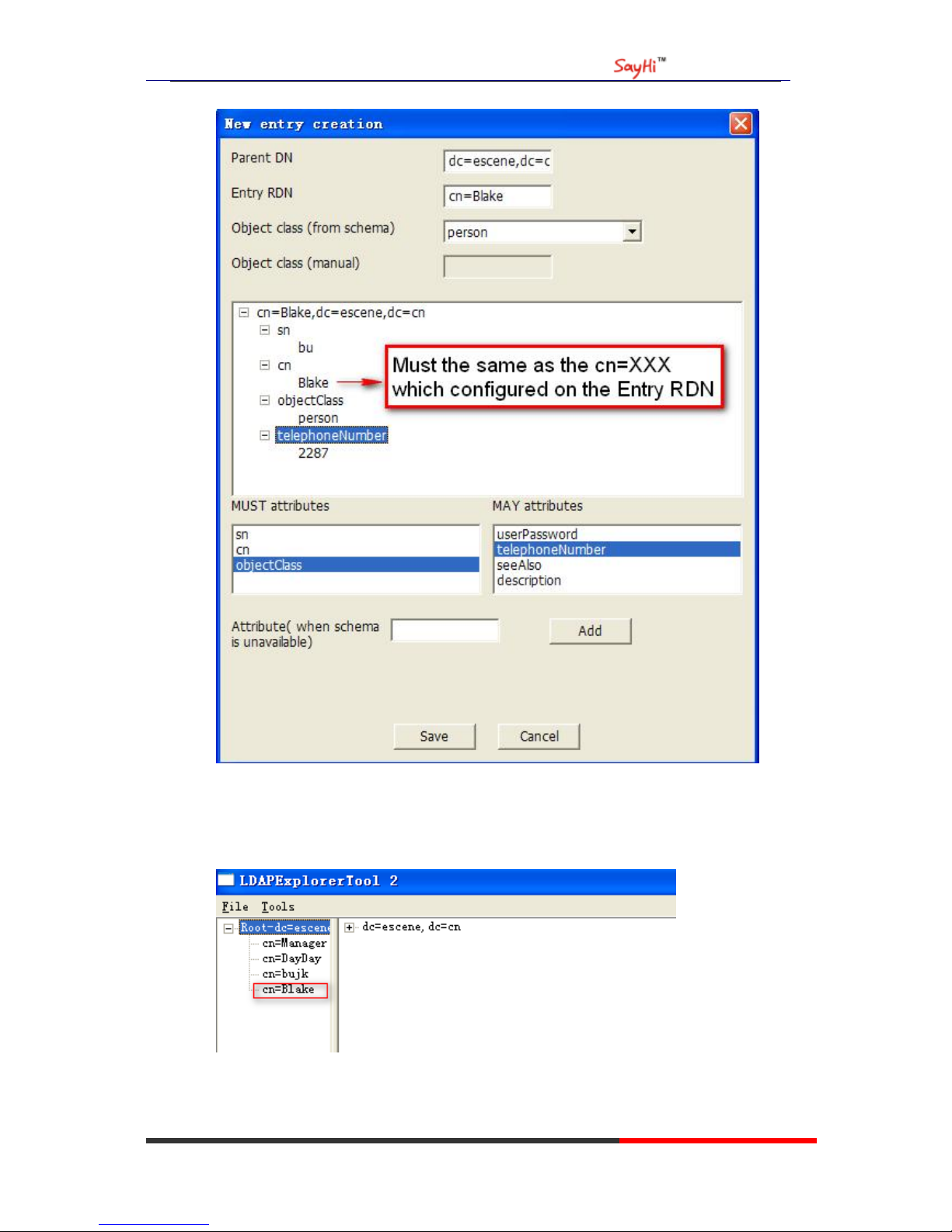

access to the web “PhoneBook>LDAP page, you can find the configured option is like
following picture. the detail configure in the appendix.

ES220 IPPhone

www.escene.hk

Escene Communication

26

BanList

You can add, edit and delete banlist in a phone book on web page of ES220..

1) Click “PhoneBook” > “BanList”,

If you want to add a BanList, you just ought to click ‘Add BanList’.
You can edit an existed BanList by click .

You can delete an existed BanList by click , if you want to delete all BanLists, you just ought
to click ’Delete All BanList’.

2) When you add a BanList or edit an existed BanList, you can set several parameters as follow:

BanList
Serial Number Serial number of a BanList

ES220 IPPhone

www.escene.hk

Escene Communication

27

Description Description of a BanList
First Name The First Name of a ban contact
Last Name The Last Name of a ban contact
Mobile Number The number1 phone number of a ban contact
Home Number The number2 phone number of a ban contact
Office Number The number3 phone number of a ban contact
Account Select a SIP account relating this ban contact, that is the ban contact

can’t dial to this SIP account.

Enterprise Phonebook

You can download Enterprise Phonebook from this web interface. But you should do second
develop on the sip server to enable this function completely.
If the sip server no add some function to hold this option ,this option can be userd.

Advanced

Phone Setting

You can use phone setting to set the time, qos, port Mirroring for the phone.

ES220 IPPhone

www.escene.hk

Escene Communication

28

ES220 IPPhone

www.escene.hk

Escene Communication

29

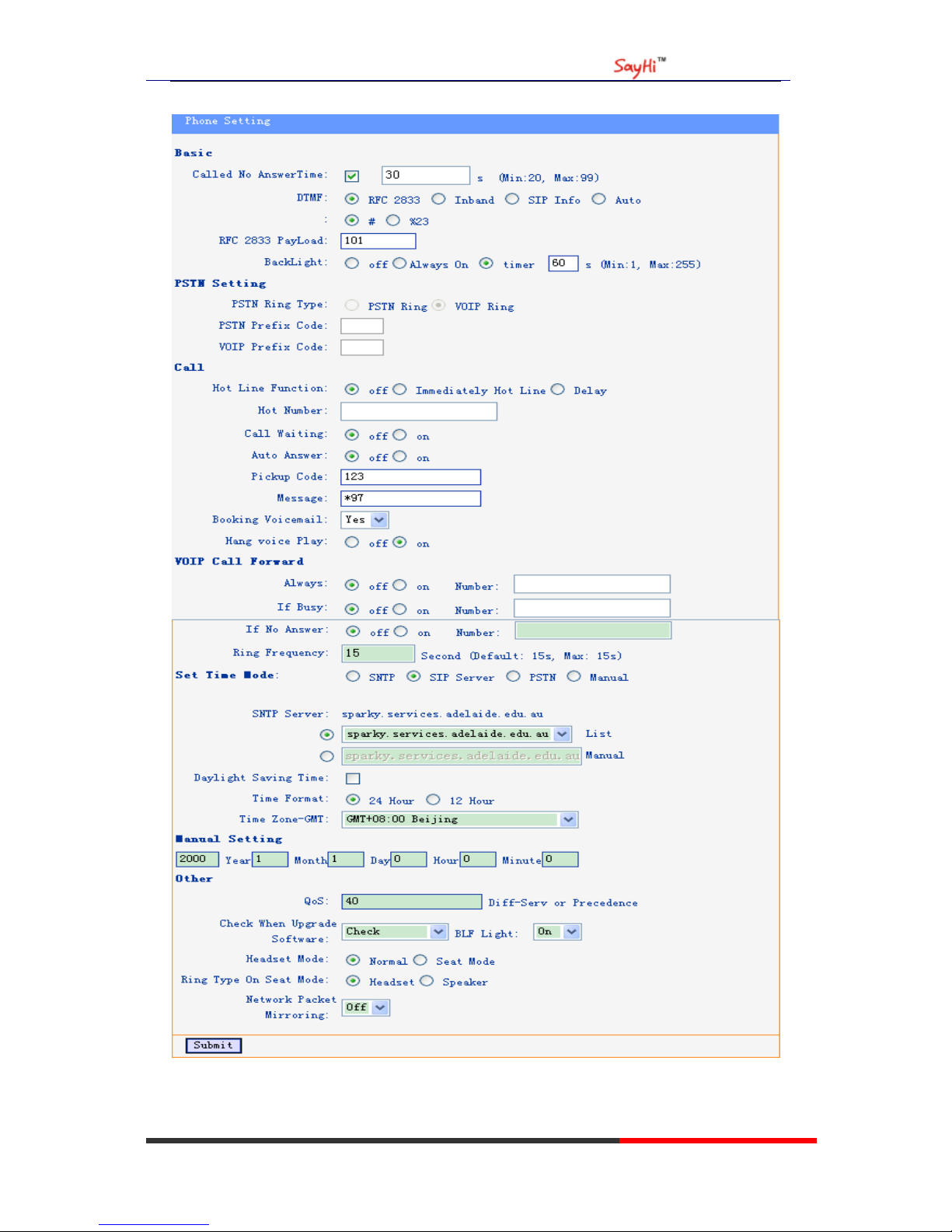

When used Phone Setting option, you can set several parameters as follow:

Phone Setting
DTMF The DTMF transmitted mode,include RFC 2833,Inband,SIP Info

BackLight The backlight of the phone LCD
Set Time Mode The mode of set time for phone,include SNTP/SIP Server/Manual

Daylight Saving
Time

Enable/disable the DST for the phone

Time Format You can use 24 hour time format or 12 hour time format
Time Zone-GMT You can select different time zone for the phone
Manual Setting This used to manual set time for the phone
QoS The qos priority,support diff-serv and precedence
Network Packet
Mirroring

When select on,then you can capture the phone’s packet use notebook
which connect to pc port of the phone

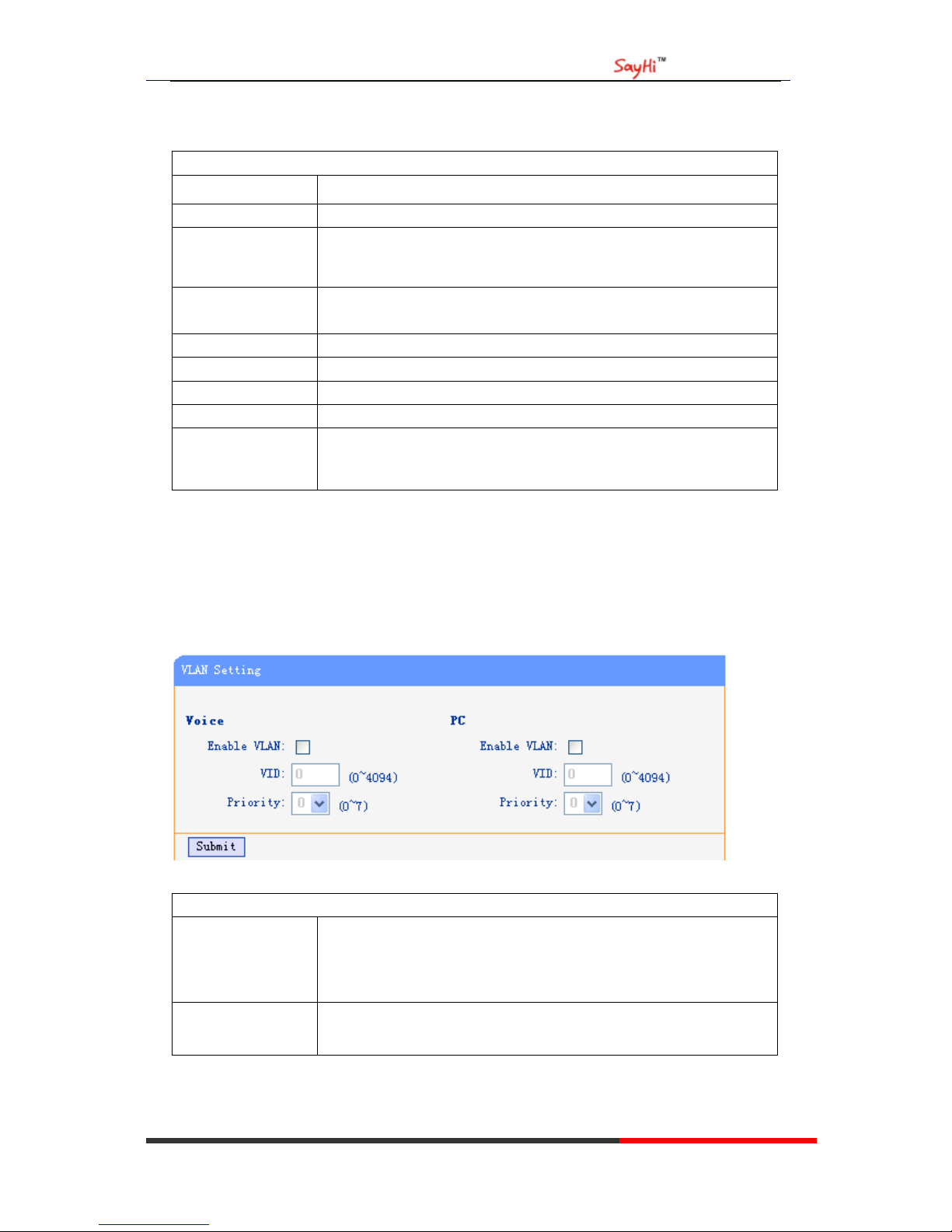

VLAN Setting

You can add the phone and PC to different VLAN used VLAN Setting option.

When used VLAN Setting option,you can set several parameters as follow:

VLAN Setting
Enable VLAN You can enable/disable vlan for phone and pc

VID The vlan you want the phone or pc to join

ES220 IPPhone

www.escene.hk

Escene Communication

30

VPN Setting

IF you need to setup a VPN Setting, you should fill below options.
When used VPN Setting option, you can set several parameters as follow:

VLAN Setting
Enable VPN You can enable/disable VPN for phone and pc

VPN Type: L2TP or SSL_VPN

VPN Server Addr VPN server's ip

VPN User Name VPN user's name

VPN password A password be use for authentication

SSL_VPN Upload VPN config

Dial Plan setting

If you want to setup a dial plan, you can click "Dial Plan".

ES220 IPPhone

www.escene.hk

Escene Communication

31

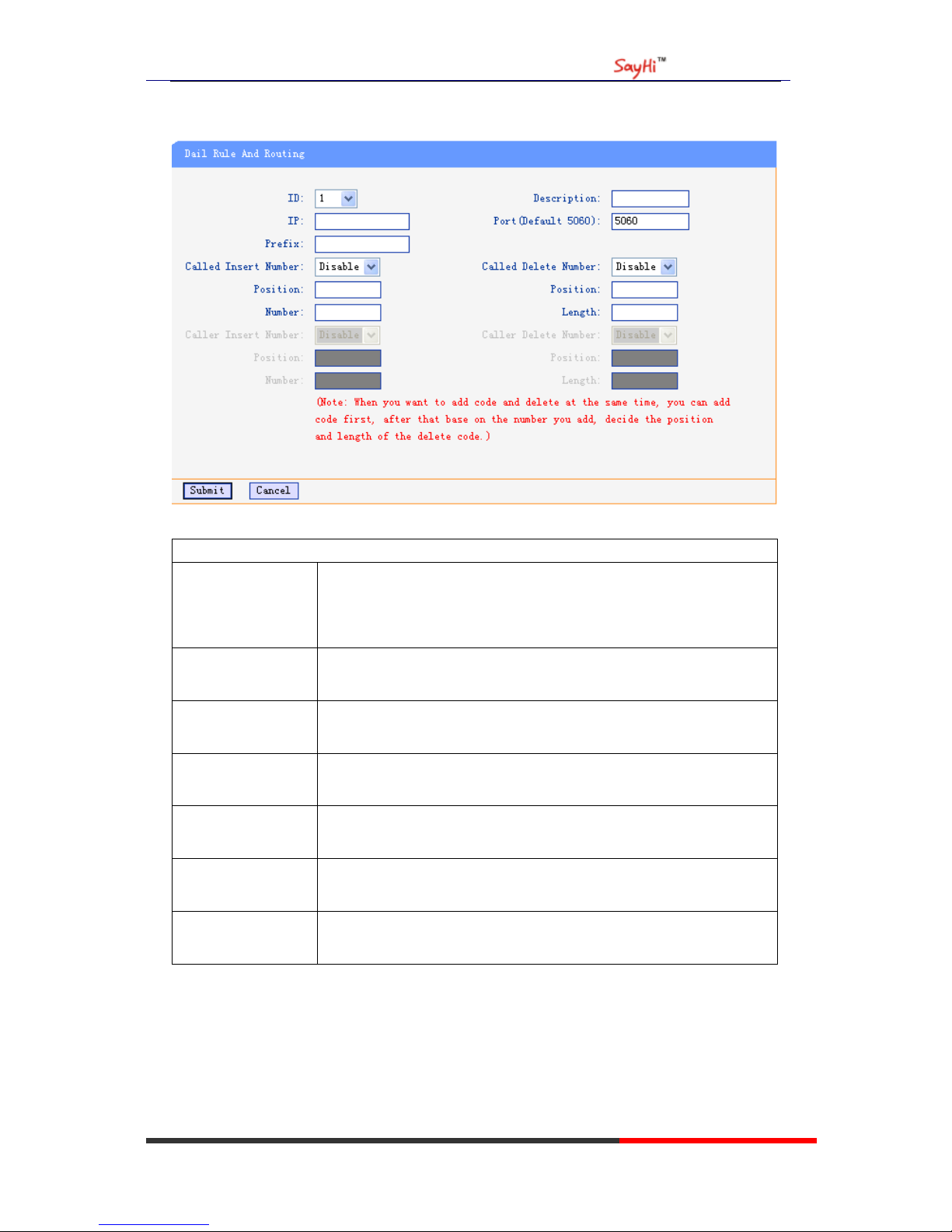

Click "add rule" to entry this interface.

Dial Plan Setting
ID Dial Plan ID

IP The ip of a phone which you want to call

prefix The number which you need to press actually if you want to call the

phone

Called Insert
Number

There have two option, Enable or Disable.

Position Which position you want insert the number

Number Waht number you want to insert

Called Delete
Number

There have two option, Enable or Disable.

Tips

(Note: When you want to add code and delete at the same time, you can add code first, after that
base on the number you add, decide the position and length of the delete code.)

ES220 IPPhone

www.escene.hk

Escene Communication

32

Global SIP

You also can setup the SIP server on Global SIP. If you set SIP server in global SIP ,then you don’t
need to set SIP server in account SIP.

Phone Maintenance

Log

If you need to catch a debuging Level log, you need setup on this interface.

ES220 IPPhone

www.escene.hk

Escene Communication

33

You can change the password used to login phone GUI in Password option.

In Password option, you can set several parameters as follow:

Password
Username The login username of the web page
Old Password The old password used to login of the web page
New Password The new password used to login of the web page
Confirm Password The new password used to login of the web page
Administrator Login phone web page used administrator privileged
User Login phone web page used general user privileged

Default Setting

You can load the phone to the factory default setting in default setting option.

ES220 IPPhone

www.escene.hk

Escene Communication

34

Press the ‘Reset to Factory Setting’ option,the phone will load to factory default setting on next
reboot.

Auto Provision

When you open the auto provision function, the phone will auto provision if the phone detect a
higher sofrwre or kernel which are put on the software server. The detail information about auto
provision you can see the appendix.

ES220 IPPhone

www.escene.hk

Escene Communication

35

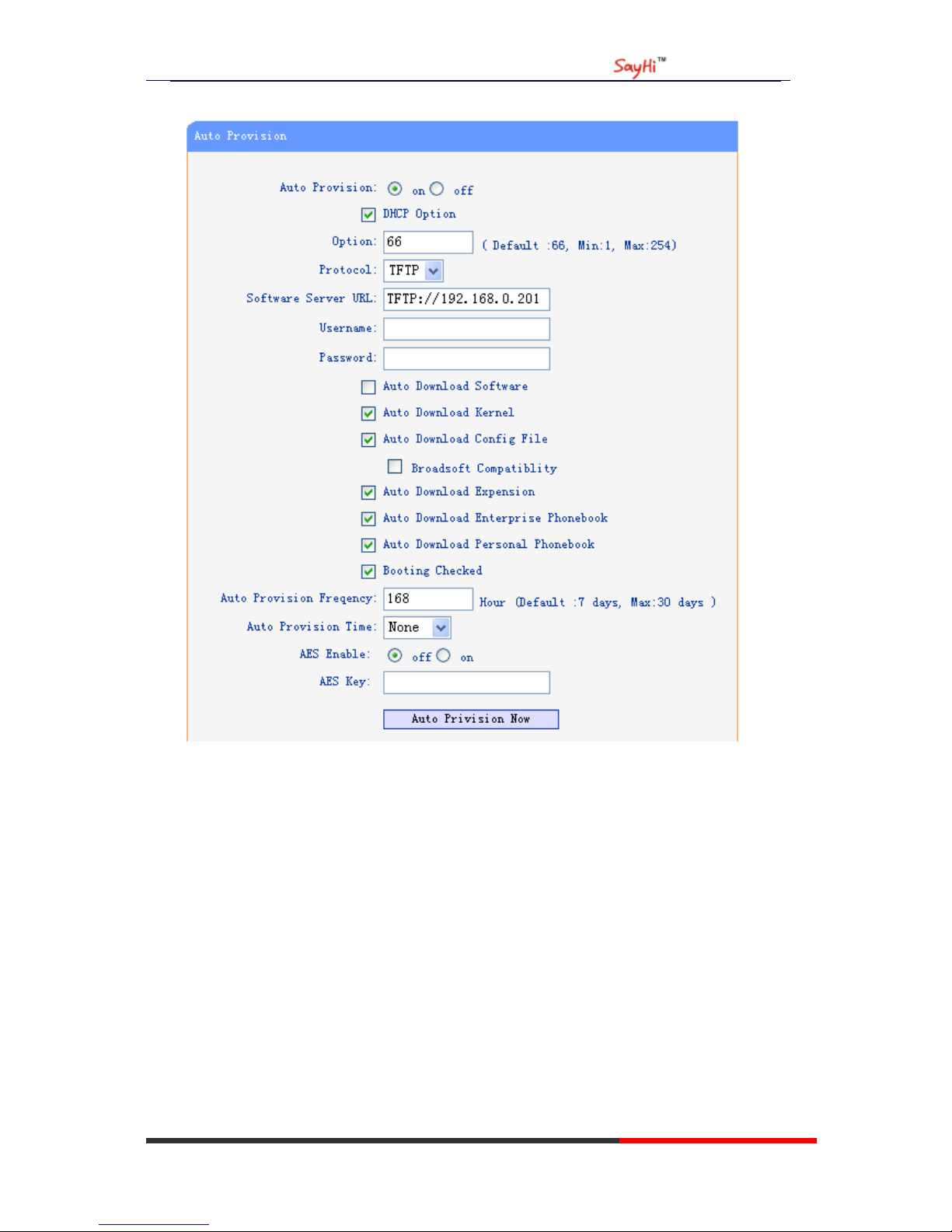

When use auto provision, you can set several parameters as follow:

Auto Provision
Auto Provision You can enable/disable auto provision by select on/off
Protocol The protocol use for auto provision,it include tftp/http/ftp
Software Server
URL

The server address of the auto provision

Username The username provide by provision server
Password The password provide by provision server
Auto Download
Software

This used to auto download software from server

Auto Download
Kernel

This used to auto download kernel from server

Auto Download
Config File

This used to auto download config file from server

Broadsoft
Compatiblity

This used to compatible the broadsoft format’s config file

Auto Download
Expension

This used to auto download expansion’s config from server

Auto Download
Enterprise
Phonebook

This used to auto download enterprise phone from server

Auto Download
Personal Phonebook

This used to auto download personal phonebook from server

Booting Checked This used to checked the auto provision when phone booting
Auto Provision
Freqency

This used to set the time interval for auto provision

Auto Provision Time This used to the specific time for auto provision
AES Enable You can enable/disable AES encrypt for auto provision
AES Key The key of the AES
Auto Provision Now This used to do auto provision immediately

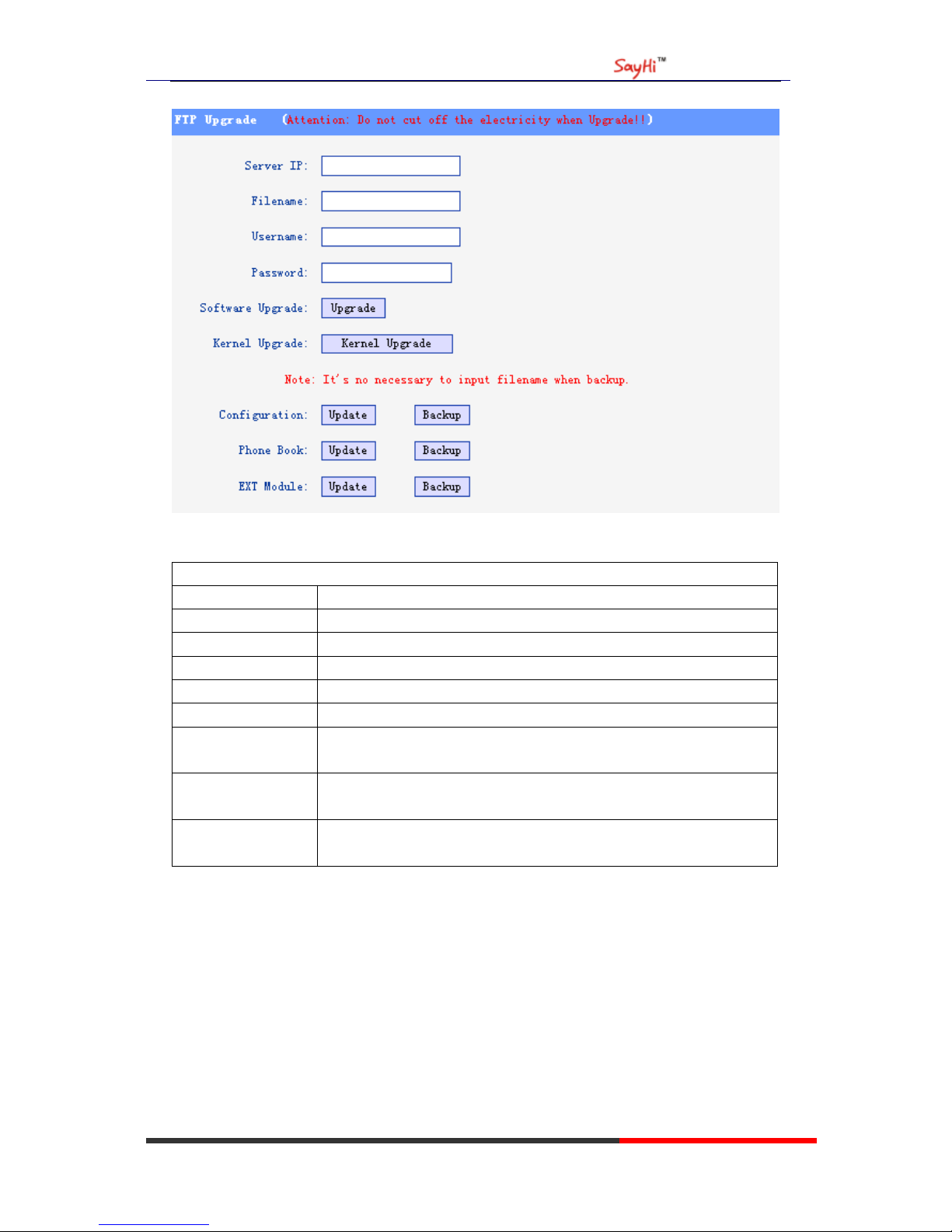

FTP Upgrade

You can upgrade the software,kernel and configure file for the phone use ftp.

ES220 IPPhone

www.escene.hk

Escene Communication

36

When use ftp upgrade, you can set several parameters as follow:

FTP Upgrade
Server IP The ip address of the ftp server
Filename The name of the file want to download from ftp server
Username The username provide by ftp server
Password The password provide by ftp server
Software Upgrade Used to upgrade the software of the phone
Kernel Upgrade Used to upgrade the kernel of the phone
Configuration You can used update/backup to update/backup the configure file of the

phone

Phone Book You can used update/backup to update/backup the phonebook of the

phone

EXT Module You can used update/backup to update/backup the expansion of the

phone

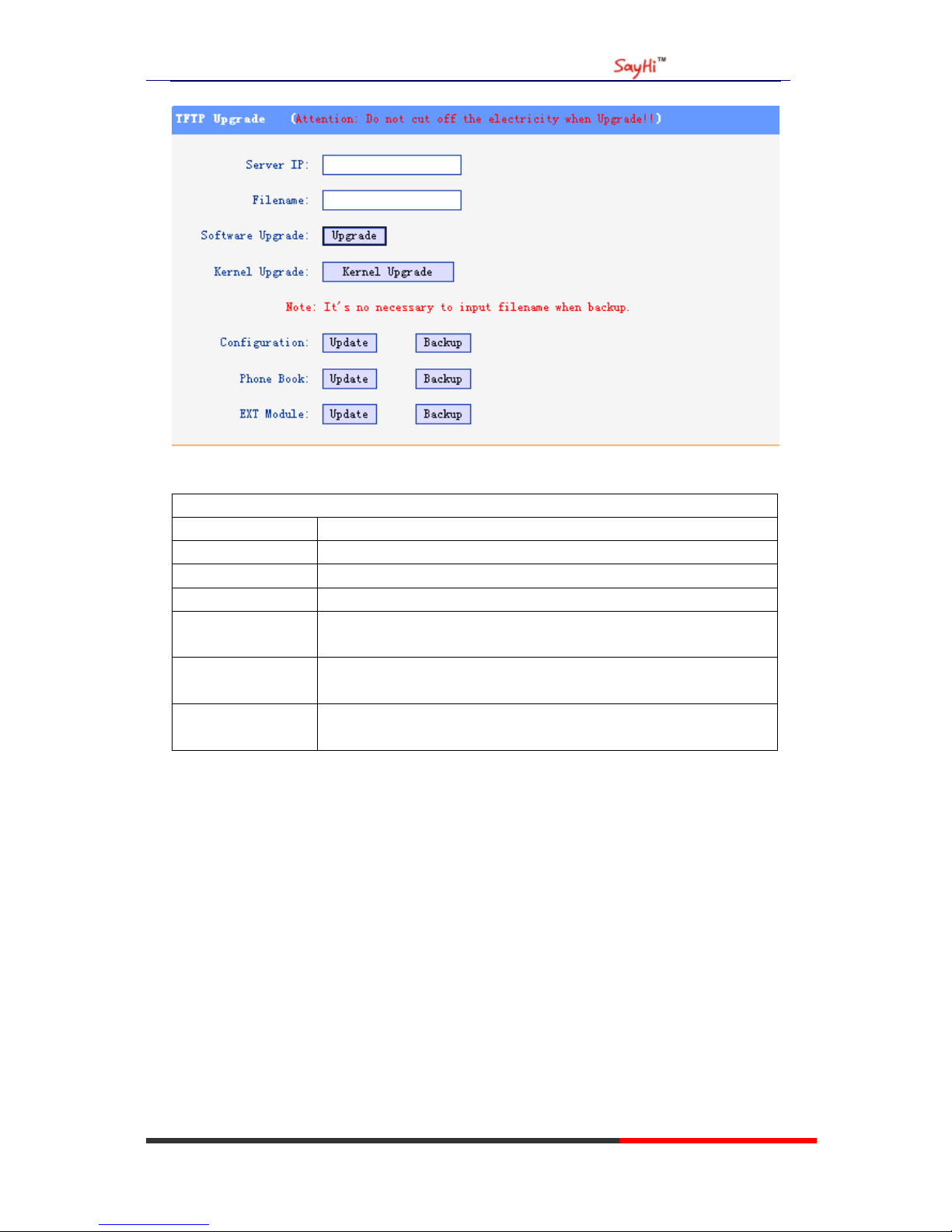

TFTP Upgrade

You can upgrade the software,kernel and configure file for the phone use tftp.

ES220 IPPhone

www.escene.hk

Escene Communication

37

When use tftp upgrade, you can set several parameters as follow:

TFTP Upgrade
Server IP The ip address of the tftp server
Filename The name of the file want to download from ftp server
Software Upgrade Used to upgrade the software of the phone
Kernel Upgrade Used to upgrade the kernel of the phone
Configuration You can used update/backup to update/backup the configure file of the

phone

Phone Book You can used update/backup to update/backup the phonebook of the

phone

EXT Module You can used update/backup to update/backup the expansion of the

phone

HTTP Upgrade

You can upgrade the software, kernel and configure file for the phone use http.

ES220 IPPhone

www.escene.hk

Escene Communication

38

When use http upgrade, you can set several parameters as follow:

HTTP Upgrade
Select a File Browse the software/kernel/config file you want to upgrade from http

Software Upgrade Used to upgrade the software of the phone
Kernel Upgrade Used to upgrade the kernel of the phone
Configuration You can used upload/download to upload/download the configure file

of the phone

Phone Book You can used upload/download to upload/download the phonebook of

the phone

*EXT Module You can used update/backup to update/backup the expansion of the

phone

* means it has not this function now.

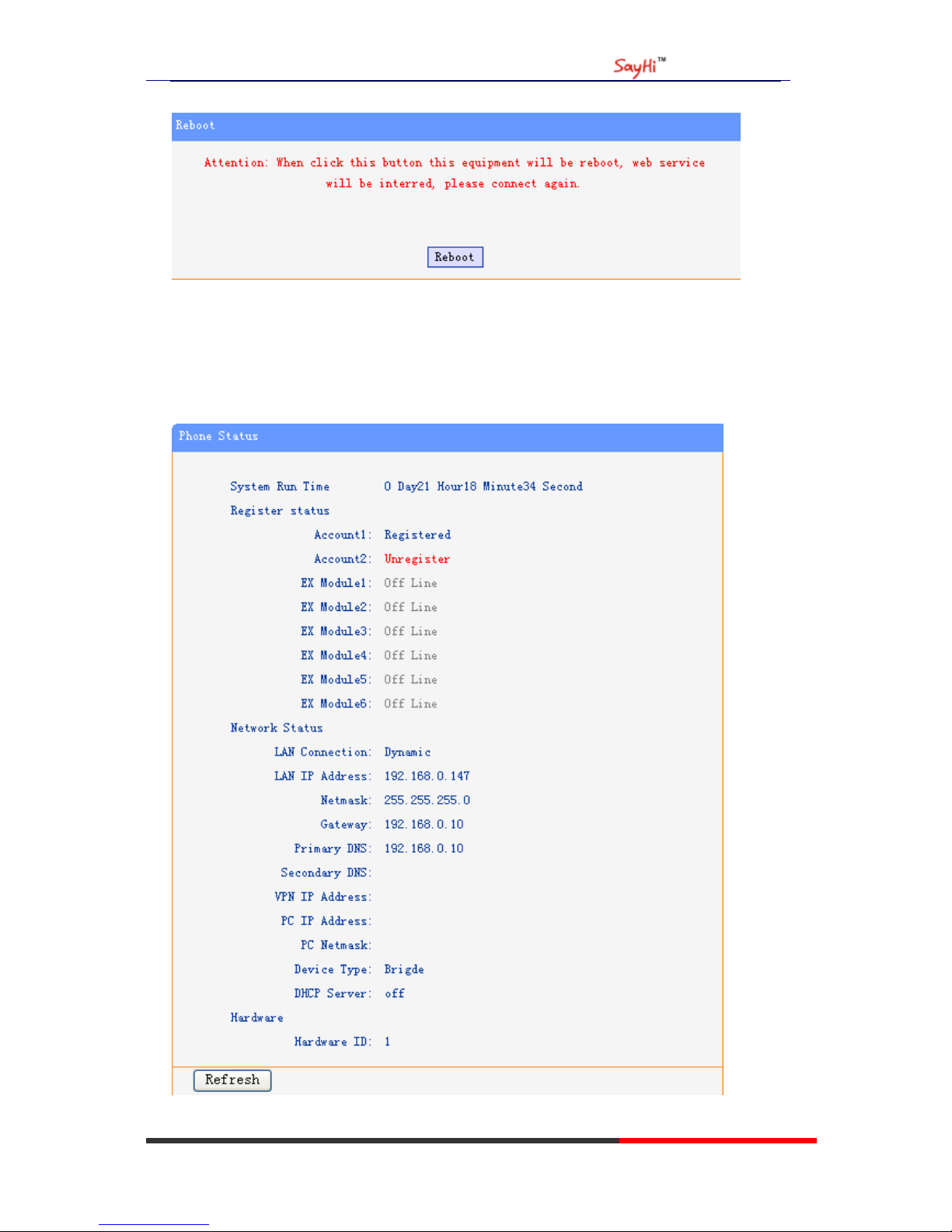

Reboot

You can use reboot option to reboot the phone.

ES220 IPPhone

www.escene.hk

Escene Communication

39

When you press ‘Reboot’,the phone will reboot.

Phone Status

You can see the currently status of the phone when use Phone Status option.

ES220 IPPhone

www.escene.hk

Escene Communication

40

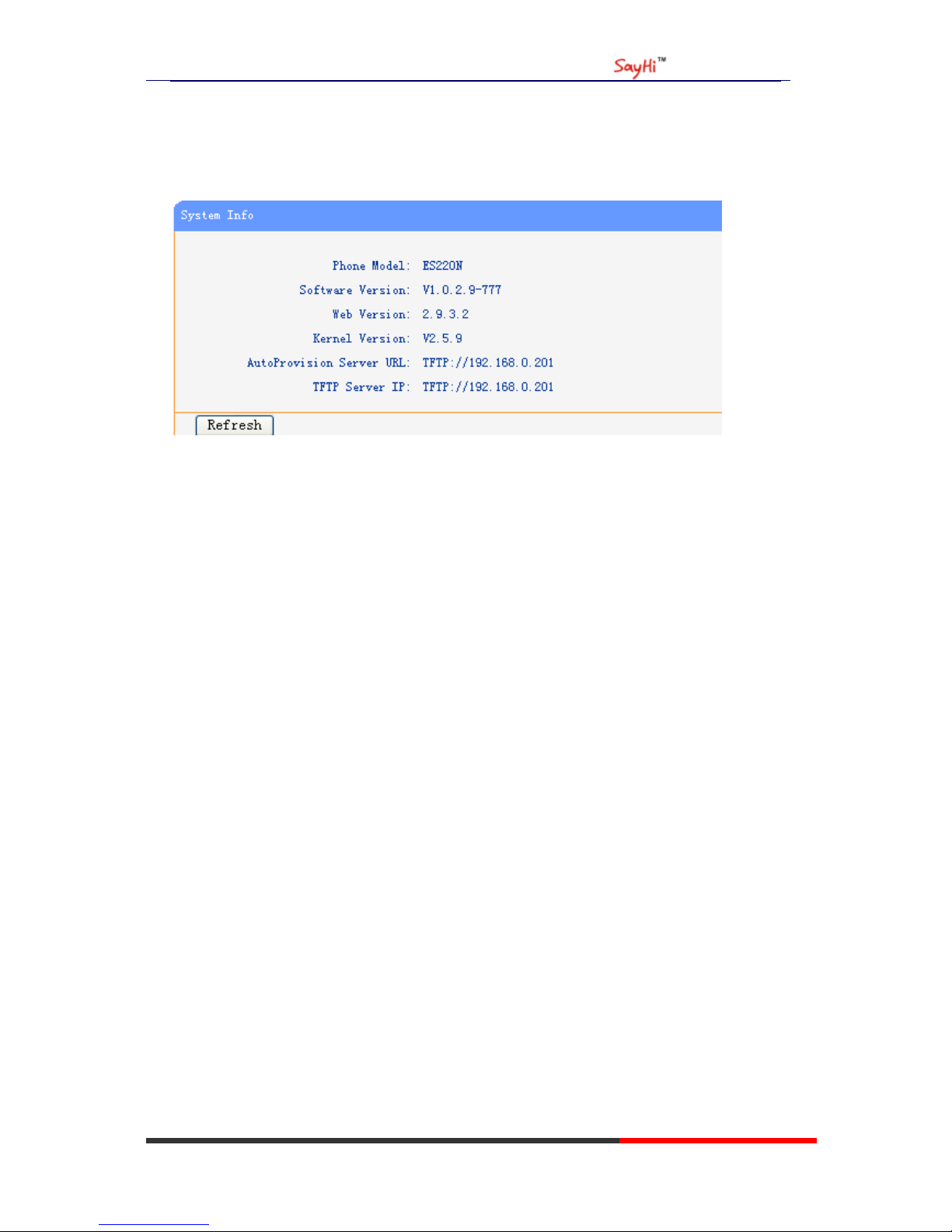

System Info

You can see the system information when used System Info option.

Attention:
On this interface ,you can see the software and kernel which we used for test and this user_manual
is written base on this software and kernel.
This software version is V1.0.2.9-777
This kernel version is v2.5.9

About

You can see the phone model when used About option.

ES220 IPPhone

www.escene.hk

Escene Communication

41

ES220 IPPhone

www.escene.hk

Escene Communication

42

Appendix：

Auto Provision

Pre-configuration on TFTP/HTTP/HTTPS/FTP Server

When the software or kernel auto-provision is enabled and want to run, IP Phone will

check the software and kernel version at first, so we need make some
pre-configuration on the provisioning server.

Auto Provision for Software:

1. Create a notepad file named“F000X00.cfg”(the “X” is decided by the model of

the IP phone you are using, for example, if the model is ES620, the file name is
“F000600.cfg”);

*Named rule of the file:

F00600.cfg: for ES620, ES610 and DS622;
F00400.cfg: for ES410 and DS412;
F00300.cfg: for ES310 and DS312;
F00200.cfg: for ES210 and DS212.

2. Open the notepad file “F000X00.cfg” and write the new software name in it, for

example,

S_ES6xx_version2.0.4.6: for ES620, ES610 and DS622;

S_ES410_version2.0.4.6: for ES410 and DS412;
S_ES310_version2.0.4.6: for ES310 and DS312;
S_ES210_version2.0.4.6: for ES210 and DS212

Write down the new version you want to upgrade and save it on your
provisioning server.

*Please note that if the version is not older than (and same as) the one on your phone,
auto-provision of your software would be not available.

3. After it, upload the new software to the TFTP/HTTP/HTTPS/FTP provisioning

server and complete the pre-configuration steps.

Auto Provision for Kernel:

1. Create a notepad file named“K000X00.cfg”(the “X” is decided by the model of

the IP phone you are using, for example, if the model is ES620, the file name is
“K000600.cfg”);

*Named rule of the file:

K00600.cfg: for ES620, ES610 and DS622;
K00400.cfg: for ES410 and DS412;
K00300.cfg: for ES310 and DS312;
K00200.cfg: for ES210 and DS212.

2. Open the notepad file “K000X00.cfg” and write the new kernel name in it, for

example,

K_uImage_600.bin_version2.1.6: for ES620, ES610 and DS622;

K_uImage_400.bin_version2.1.6: for ES410 and DS412;

ES220 IPPhone

www.escene.hk

Escene Communication

43

K_uImage_300.bin_version2.1.6: for ES310 and DS312;
K_uImage_200.bin_version2.1.6: for ES210 and DS212

Write the new version you want to upgrade and save it on your provisioning
server.

*Please note that if the version is not older than (and same as) the one on your phone,
auto-provision of your kernel would be not available.

3. After it, upload the new kernel to the TFTP/HTTP/HTTPS/FTP provisioning

server and complete the pre-configuration steps.

Configuration files on TFTP/HTTP/HTTPS/FTP Server

l Name of configuration file:

The configuration file on the provisioning server is named as the MAC address of IP
phone itself. Escene’s IP phones support two different configuration files for
auto-provision:

1. Normal Configuration file:
Normal Configuration file is the configuration file of your Escene IP phone. You can
download it from your phone (You can see the following chapter to see how to
download a configuration file from Escene IP hone) and modify by yourself. If the IP
phone’s MAC address is 00:11:22:33:44:55, the normal configuration file of it should
be 001122334455.xml.

2. Broadsoft Configuration files:
Broadsoft Configuration files support the format of Broadsoft IP-PBX. However, you
can use them for provisioning. There are two files should be set on your provisioning
server, they are also named by the MAC address of your phone

1) 001122334455.cfg: a configuration file for system settings, for example,

network, audio and so on.

2) 001122334455.txt: a configuration file for SIP accounts.

l Download a configuration file from your phone:

You can download a configuration file from your phone by HTTP as follow:

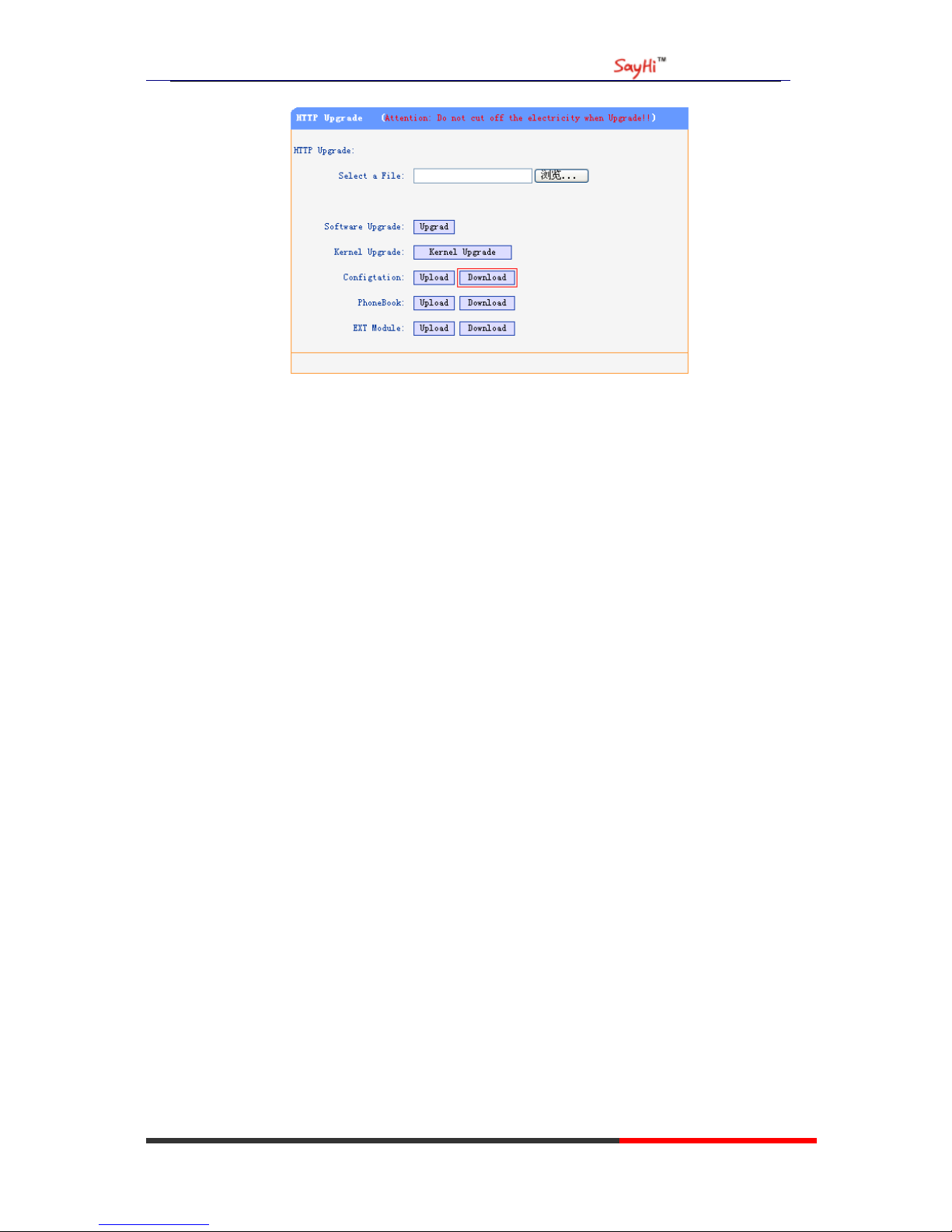

1. Open the web page of your IP phone, click “Phone Maintenance”>“HTTP

Upgrade”;

2. Then click “Download” of Configuration:

ES220 IPPhone

www.escene.hk

Escene Communication

44

3. If you want to use this file to auto-provision, you just need to modify it by

yourself and rename it to the MAC address of your IP Phone with .xml suffix.

Extern.xml file on TFTP/HTTP/HTTPS/FTP Server

The Extern.xml includes the settings of programmable buttons on the phone and all
Expansion Modules. All the phones can download the settings from a same file and
they will have the same settings (for example, Speed-dial, BLF and so on).

*You can’t rename the file on the provisioning server. The file name is fixed to
Account1_Extern.xml.(Account1 is the first account you register)

Phonebook on TFTP/HTTP/HTTPS/FTP Server

Escene IP phone supports Enterprise Phonebook and Personal Phonebook.

l Enterprise Phonebook:

Enterprise Phonebook is used for all staffs in your office. All phones will download a
common phonebook for all staffs. The file’s name must be
Enterprise_Phonebook.xml on your provisioning server and you can not rename it.

l Personal Phonebook:

Personal Phonebook is individual for each IP phone. The file on your provisioning
server is named by the first account of your IP phone. If the IP phone’s first account is
1287, the Personal Phonebook of this phone is 1287_Phonebook.xml.

Automatic Provisioning using DHCP Option 66

The following steps will descript auto-provision by TFTP. You also can use HTTP

and FTP for auto-provision with our phones.

DHCP Server: (Microsoft Windows 2003 server)

ES220 IPPhone

www.escene.hk

Escene Communication

45

1. Start up the “DHCP Management Console”;

2. Expand the DHCP scope which will contain the phones

3. Right-click on the “Scope Options” node

4. Select “Configure Options”

5. In the “General” tab, scroll down the list of options and identify the option

labeled “066 Boot Server Host Name”

6. Enable the “066 Boot Server Host Name” and enter the string value according to

the examples discussed previously

string value:

192.168.0.201(TFTP Server IP Address);

7. Click the “OK” button

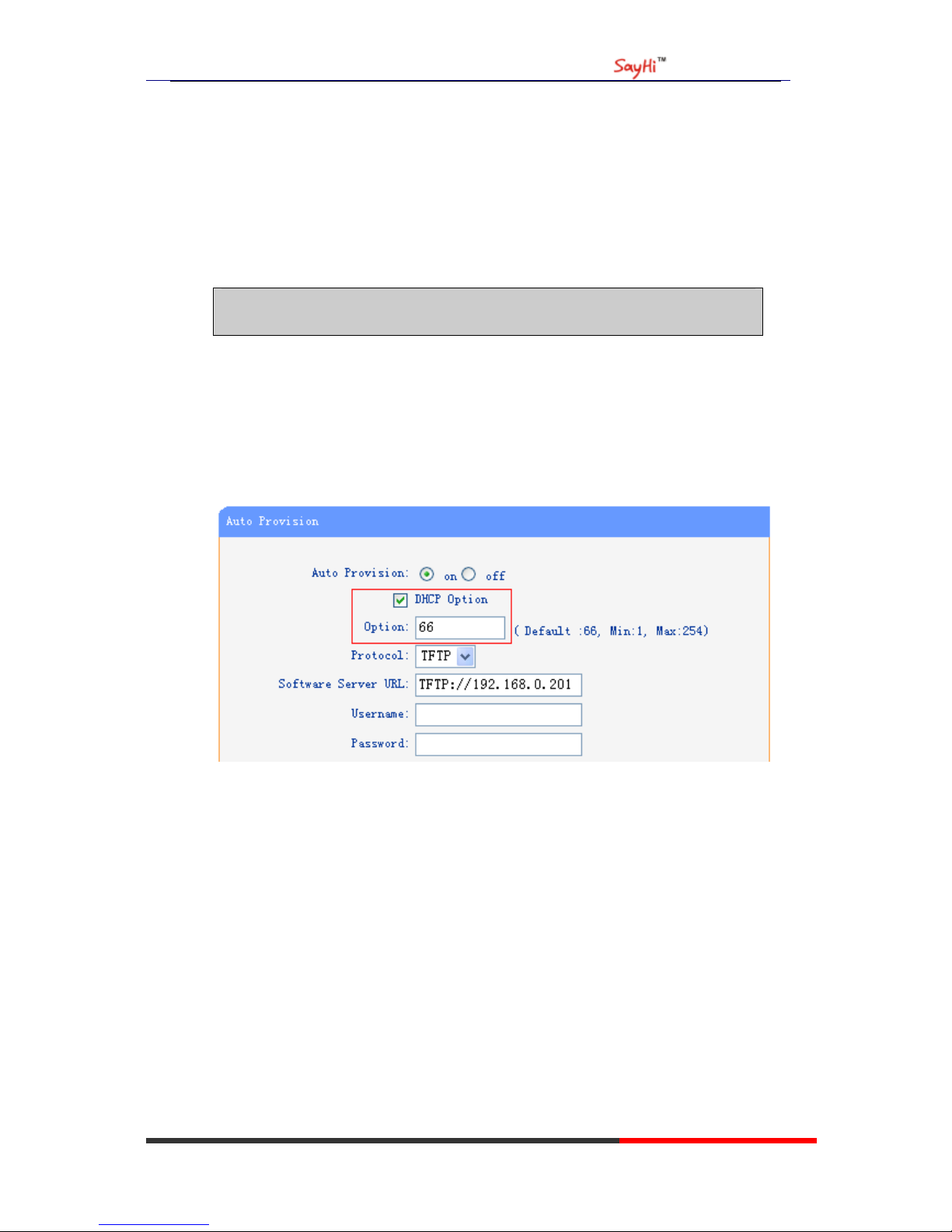

IP Phone:

1. Input the IP Phone’s IP Address in browser;

2. Enter user and password with “root” then open the web page;

3. Click “Phone Maintenance” and select “Auto Provision”;

4. Select like as follows:

5. Click “Submit” to save it.

Auto-Provision via fixable TFTP/HTTP/HTTPS/FTP Server

IP Phone:

1. Input the IP Phone’s IP Address in browser;

2. Enter user and password with “root” then open the web page;

3. Click “Phone Maintenance” and select “Auto Provision”;

4. select like as follows:

ES220 IPPhone

www.escene.hk

Escene Communication

46

It supports three protocols in Auto-Provision:TFTP,HTTP and FTP.
The format with provisioning server URL is:

TFTP:

TFTP://192.168.0.201(192.168.0.201 is the default Server IP address)

HTTP:

HTTP://192.168.0.201

HTTPS:

HTTPS://192.168.0.201

FTP:

FTP://192.168.0.201

Username: the user to login FTP/HTTP/HTTPS server

Password: the password of the user using to login FTP/HTTP/HTTPS server

*Username and password are available in FTP/HTTP/HTTPS only (unavailable in
TFTP).

ES220 IPPhone

www.escene.hk

Escene Communication

47

Auto Download Software:

Download software from server and upgrade it automatically.

Auto Download Kernel:

Download kernel from server and upgrade it automatically.

Auto Download Config File:

Download configuration file from server and update it automatically.

BroadsoftCompatibility:

If you select this function, you need to put two configuration files (with
Broadsoft format) on the provisioning server. Otherwise, you can download the
configuration file from your phone via HTTP (regarding the steps, you can refer to
“Download a configuration file from your phone” in this document.), modify it
and upload it to the server for auto-provision.

Auto Download Expansion:

Download configuration file of the Programmable buttons on your phone or

Expansion Modules automatically.

Auto Download Enterprise Phonebook:

Download Enterprise Phonebook from server and update it automatically.

Auto Download Personal Phonebook:

Download Personal Phonebook from server and update it automatically.

Booting Checked:

Check all items you had selected and upgrade/update them when the phone boot

Auto Provision Frequency:

The auto provision Frequency which you want.

Auto Provision Time:

The time you want to execute auto-provision.

Examples of Auto Provision Frequency and Time

1) When you set the Auto Provision Frequency and disableAuto Provision Time

(set to None), the Auto Provision function will work after the AutoProvision
Frequency;

2) When you set both Auto Provision Frequency and Auto Provision Time, for

example:
You set the AutoProvision Frequency to 24 hours, and the Auto Provision
Time to 2:00 at 8:00 today (1, Jan), it will pass 24 hours at first and work at the
nearest 2:00, it means that the Auto Provision function will work at 2:00 on the
day after tomorrow (3, Jan).
Therefore, if you want this function work at 23:00 tonight and it is 8:00 now, you
need to set the Auto Provision Frequency to 0 hours and the Auto Provision

Time to 23:00.

AES Encryption:

AES encryption is used for all the setting files of your phone (include configuration file,
Expansion file, Enterprise/Personal Phonebook etc. You just need to enable the AES Encryption

ES220 IPPhone

www.escene.hk

Escene Communication

48

function and input the AES Key matching the one on your server on.

1. Over

view

LDAP stands for Lightweight Directory Access Protocol which is a client-server protocol
for accessing a directory service. LDAP lets you locate organizations, individuals, and other
resources such as files and devices in a network, whether on the Internet or on a corporate
intranet, and whether or not you know the domain name, IP address, or geographic
whereabouts.

An LDAP directory can be distributed among many servers on a network, then replicated and
synchronized regularly.

2. Con

figuration

Please note that LDAP Phonebook support on ES620\ES410\ES330\ES320\ES310\ES210, the
version must be V2.2.3.1-2210 and higher, then access to the web UI￠ PhoneBook￠ LDAP
page, you can find the configured option is like following picture.

ES220 IPPhone

www.escene.hk

Escene Communication

49

We introduce each parameter attributes in following section.

3. Attributes

3.1Co

mmon Attribut

es

Abbrevation Name Description
cn commonName Full name of the user.
company company Company or organization

name

gn givenName Firstname also called

Christian name
homePhone homeTelephoneNumber Home Phone number
mobile mobileTelephoneNumber Mobile or cellular phone

number
o organizationName Organization name or even

organizational name
ou organizationalUnitName Usually department or any

sub entity of larger entity
pager pagerTelephoneNumber Pager telephone number
sn surname Surname,last name or

family name

- telephoneNumber Office phone number

3.2Attributes on Escene Configured Pa

ge

3.2.1 LDAP Name Filter
Description: LDAP name filter is the search criteria for name look ups. The format of the

search filter is compliant to
the standard string representations of LDAP search filters (RFC 2254). The name prefix

for search entered by the user
is represented by the “%” symbol in the filter.

Valid Values: Standard LDAP filters e.g. (&(sn=%)(telephoneNumber=%s))
Default Value:

<blank>

Examples:

￠

(&(telephoneNumber=%s)(sn=%))
Returns all LDAP records which have the “telephoneNumber” field set and

the “sn” field starts with the entered prefix.

￠

(|(cn=%s)(sn=%s))
Returns all LDAP records which have the “cn” or “sn” field starting with the entered

prefix.

ES220 IPPhone

www.escene.hk

Escene Communication

50

￠

(!(cn=%s))
Returns all LDAP records which “do not” have the “ cn” field starting with the entered

prefix.

3.2.2 LDAP N

umber Filter

Description: LDAP number filter is the search criteria for number look ups. The format of
the search filter is compliant to the standard string representations of LDAP search filters
(RFC 2254). The number prefix for search entered by the user is represented by the “%”
symbol in the filter.

Valid Values: Standard LDAP filters e.g.
(|(telephoneNumber=%s)(Mobile=%s)(ipPhone=%s))
Default Value:

<blank>

Examples:

￠

(|(telephoneNumber=%s)(Mobile=%s)(ipPhone=%s))
Returns all LDAP records which have the “telephoneNumber” or “Mobile” or
“ipPhone”field starting with the entered prefix.

￠

(&(telephoneNumber=%s)(sn=*))

Returns all LDAP records which have the “sn” field set and the

“telephoneNumber” field starts with the entered prefix.

3.2.3 Server Addr

ess
Description: This setting refers to the DNS name or IP address of the LDAP server.
Default Value:

0.0.0.0

Example:

￠

192.168.1.100

￠

ldap.company.com

3.2.4 Port
Description: This setting specifies the LDAP server port.
Default Value:

389

3.2.5 Base

Description: This setting specifies the LDAP search base (the distinguished name of

the search base object) which corresponds to the location in the directory from
which the LDAP search is requested to begin. The search base narrows
the search scope and decreases directory lookup time. If you have
multiple organizational units in your directory (for example, OU=Sales in
O=COMPANY and OU=Development in O=COMPANY), but the "OU=Sales"
organization never uses AOL AIM, you can restrict the lookup to the

ES220 IPPhone

www.escene.hk

Escene Communication

51

OU=Development subtree only by entering providing the following search base:
OU=Development, O=COMPANY. Other examples see below.
Default Value:

<blank>

Examples:

￠

o=UNIVERSITY OF NEW ORLEANS,c=US

￠

o=SFU,c=CA

￠

dc=escene,dc=cn

3.2.6 User Nam

e
Description: This setting specifies the bind “Username” for LDAP servers.
Most LDAP servers allow anonymous binds in which case the setting can be left

blank. However if the LDAP server does not allow anonymous binds, you will need to
provide the Username and Password allowed to query the LDAP server.

Default Value:

<blank>

3.2.7 Pa

ssword
Description: This setting specifies the bind “Password” for LDAP servers. Escene
phones use “simple” authentication scheme for bind requests. This setting can be left

blank in case the server allows anonymous binds. Otherwise you will need to provide
the Password along with the Username in order to access the LDAP server.

Default Value:

<blank>

3.2.8 Max.Hit

s(1~32000)

Description: This setting specifies the maximum number of search
results to be returned by the LDAP server. If Max.hits is 0 or blank the
LDAP server will return all search results. Please note that a very large value of the
“Max. Hits” will slow down the LDAP lookup, therefore the setting
should be configured according to the available bandwidth. The default
value for this setting is blank.

Default Value:

50

3.2.9 LDAP Nam

e Attributes
Description: This setting can be used to specify the “name” attributes of each record
which are to be returned in the LDAP search results. This setting compresses the
search results, as the server only returns the attributes which are requested

by the Escene phone. The setting allows the user to configure multiple
space separated name attributes. Please consult your system administrator

ES220 IPPhone

www.escene.hk

Escene Communication

52

regarding which name attributes are to be configured.
Valid Values: Space separated name attributes, see examples below.

Default Value:

<blank>

Examples:

￠

cn sn displayName
Requires “cn”, “sn” and “ displayName” fields for each LDAP record.

￠

givenName
Requires “givenName” field for each LDAP record.

￠

vorName nachName

Requires “vorName” and “ nachName” fields for each LDAP record.

3.2.10 LDAP N

umber Attribut

es
Description: This setting can be used to specify the “number” attributes of each
record which are to be returned in the LDAP search results by the LDAP server.

This setting compresses the search results, as the server only returns the attributes
which are requested. The user can configure multiple space separated number
attributes by using this setting. Please consult you system administrator regarding
which number attributes are to be configured.

Valid Values: space separated number attributes e.g. telephoneNumber Mobile ipPhone
Home

Default Value:

<blank>

Examples:

￠

Mobile telephoneNumber ipPhone
Requires “Mobile”, “telephoneNumber” and “ipPhone” fields for each LDAP record.

￠

Home Private Office

Requires “Home” , “Private” and “Office” fields for each LDAP record.

3.2.11 Prot

ocol
Description: Protocol is the protocol version for the phone when send the bind request to
the server. Please make sure your LDAP server support version 3/2 bind request.

Valid Values: version 3/version 2
Default Value:

version 3

3.2.12 Search

Delay(ms)(0~2000)

Description: This setting is for configuring the delay display time after search.
Valid Values: 0~2000
Default Value:

0

ES220 IPPhone

www.escene.hk

Escene Communication

53

3.2.13 LDAP Loo

kup

for Incoming Call

Description: This setting can be used to enable calling line identification
using LDAP. When the setting is turned

“Enable”, the phone performs an LDAP number search for the incoming number and
displays the name of the calling party accordingly.

Valid Values: <Enabled>, <Disabled>
Default Value:

Disabled

3.2.14 LDAP Sorting Result

s

Description: This setting is for sorting the search results, if make this option “Enabled”,
it will arrange in the first alphabetical of the name order if return the name display; if
only has the number return, it will list in numerical order. Valid Values: <Enabled>,
<Disabled>

Default Value:

Disabled

3.2.15

LDAP Lookup

for Pr

eDial/Dial

Description: This setting can be used to enable call out line identification using LDAP.
When the setting is turned

“Enabled”, the phone performs an LDAP number search for PreDial or Dial status.
Valid Values: <Enabled>, <Disabled>
Default Value:

Disabled

3.3 Example for Configuration

You can use the below settings as a starting point and adjust the filter and display attributes
according to your needs.

LDAP Name Filter:

(&(telephoneNumber=%s)(sn=%))

LDAP Number Filter: (&(telephoneNumber=%s)(sn=*))
Server Addr

ess: 192.168.200.254 #####this setting is relate with the server configuration.

Port: 389 #####this setting is relate with the server configuration.
Base: dc=Escene,dc=cn #####this setting is relate with the server configuration.
User Name:

cn=manager,dc=escene,dc=cn #####this setting is relate with the server

configuration.

Password: ***** #####this setting is relate with the server configuration.
Max.Hits: 50

LDAP Name Attributes: cn sn displayName
LDAP Number Attributes:

Mobile telephoneNumber ipPhone

ES220 IPPhone

www.escene.hk

Escene Communication

54

Protocol: Version 3 #####this setting is relate with the server configuration.
Search

Delay(ms)(0~2000): 0

LDAP Lookup

for Incoming Call: Enabled

LDAP

Sorting Results:

Enabled

LDAP Lookup

for Pr

eDial/Dial: Enabled

4. Configuration on

Escene Phon

e

5. LDAP Server Installation

5.1Install OpenLDAP

Server on Windows 2003 System

Install “openldap-2.2.29-db-4.3.29-openssl-0.9.8a-win32_Setup.exe” according to
default prompt,please remember the install path for next steps.

1. Double click the install program to run the installation.

ES220 IPPhone

www.escene.hk

Escene Communication

55

2. Please remember the install path. E.g. C:\Program Files\OpenLDAP.

ES220 IPPhone

www.escene.hk

Escene Communication

56

3. Choose the [Full installation] mode as picture.

ES220 IPPhone

www.escene.hk

Escene Communication

57

ES220 IPPhone

www.escene.hk

Escene Communication

58

5.2Configure OpenLDAP Server

5.2.1 Configur

e slapd

.conf file

1. Add “schema” in slapd.conf file
Access to the install path (for example,C:\Program Files\OpenLDAP),open
the file names slapd.conf,find the command

include ./schema/core.schema

Add the other commands like:

include ./schema/cosine.schema
include ./schema/inetorgperson.schema
include ./schema/corba.schema
include ./schema/dyngroup.schema
include ./schema/java.schema
include ./schema/misc.schema
include ./schema/nis.schema

include ./schema/openldap.schema

2. Modify the LDAP directory node
Access to the install path,open the file names slapd.conf,find the command
suffix “dc=my-domain,dc=com”
rootdn “cn=Manager,dc=my-domain,dc=com”
Please modify these two commands to following commands (please do not
have any space during the quotation marks “”):
suffix “dc=escene,dc=cn”
rootdn “cn=Manager,dc=escene,dc=cn”

ES220 IPPhone

www.escene.hk

Escene Communication

59

3. Modify the LDAP password
Access to the install path,open the file names slapd.conf,find the command
rootpw secret
Please modify it to the password you want to set.
rootpw escene

5.2.2

Run

slapd

serve

r

Cmd to OpenLDAP’s install path,for example,”cd c:\Program
Files\OpenLDAP” , then run the command “slapd –d 1”

If run the server successfully,you can find the command of “slapd starting”

NOTE:
Please do not close this window to make sure the LDAP Server keep running.

5.2.3 Add contact

Create a plain text named “escene.ldif” in install path.
Then put the content like following:

dn: dc=escene,dc=cn
objectClass: dcObject
objectClass: organization
dc: escene

ES220 IPPhone

www.escene.hk

Escene Communication

60

o: Escene Organization

dn: cn=Manager,dc=escene,dc=cn
objectClass: organizationalRole
cn: Manager

description: Escene Address Book Administrator

Cmd to execute command “ldapadd -xv –D “cn=Manager,dc=escene,dc=cn”

–W –f escene.ldif”.

Input the password you set,here is escene.

ES220 IPPhone

www.escene.hk

Escene Communication

61

6. Install LDAP Client t

ool in Windows System

6.1 Install LDAPExploreTool2
Install the LDAPExploreTool2 according to the prompt.

6.2 Create the Con

figuration

s in LDAPExploreTool2

1. Run the LDAPExploreTool2,access to File→Configurations.

2. Create the New Configuration

a. Fill in a name in Configuration option

ES220 IPPhone

www.escene.hk

Escene Communication

62

b. Input the server address on Server option.

ES220 IPPhone

www.escene.hk

Escene Communication

63

c. Press Test connection,the password is blank(no password),press ok,will

display Test OK.

NOTE:
Server name or IP\Server port\Version settings are relate with the settings on

escene phone.

d. Configure the “cn=Manager,dc=escene,dc=cn” on User DN,and tick the

Store password for protect your settings,enter the password which you
configure on the server.

ES220 IPPhone

www.escene.hk

Escene Communication

64

The Base DN will auto-configure if you press the [Guess value].

After the settings above,you can press [Test connection] to test your settings,if it
prompt warning message,please re-try the steps above again,we can continue the next
steps if the test is passed.

3. Choose the Action[LDAP],then press [Open] achieve the settings.

Then you can get the page like following picture. Please right click the

ES220 IPPhone

www.escene.hk

Escene Communication

65

action to add the contacts.

6.3 Add the Entry

1.Please right click the action to add the contacts.

2.Create new entry.

Parent DN: This setting will automatic generation according the Configuration
setting.
Entry RDN: The format is cn=XXX
Object Class(from schema): Select the structure class which entry belongs to,
each structure class has its own must attributes and may attributes. We select
[Person] for example here.
Must attributes: Double click attribute to add them to the entry node. If need
multi-cn, can be allow to repeat added.
May attributes: Double click attribute to add them to the entry node. If need
multi-Telphonenumber, can be allow to repeat added.

ES220 IPPhone

www.escene.hk

Escene Communication

66

Please notice the note label on the picture above.
After save the settings, you can find the new added entry at the left of the LDAP
catalogue.

3.You can add more contact entries by these steps.

ES220 IPPhone

www.escene.hk

Escene Communication

67

----------------------------------------------------------------------------------------------------------------------

EEsscceennee CCoommmmuunniiccaattiioonn CCoo..,,LLttdd

Address: Floor 4,Building C,Yuean Industrial Park,Huangcun Road No.51,Tianhe
District,Guangzhou,China.
Postal Code: 510660
Tel: [phone]
Fax: [phone]
http://www.escene.hk
Technical Support:
E-mail: [email protected]
