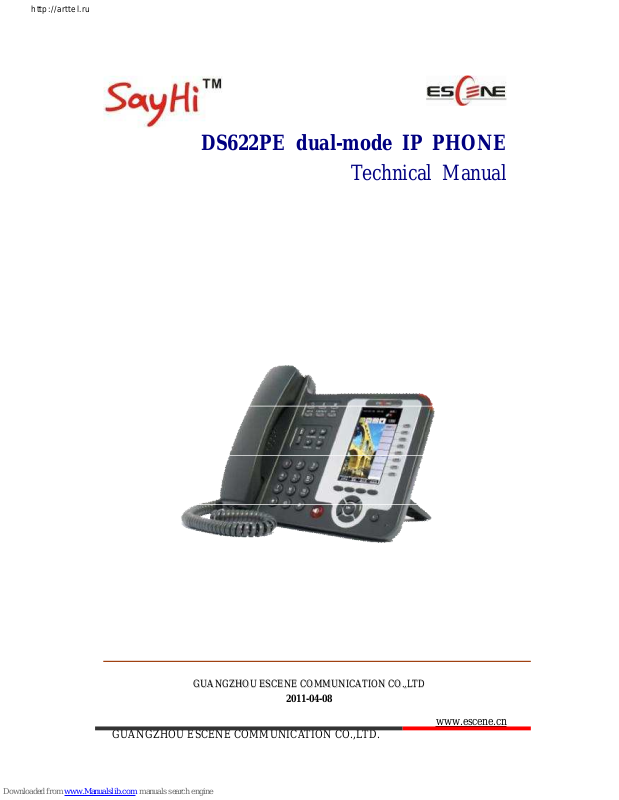

DS622PE dual-mode IP PHONE
Technical Manual
GGUUAANNGGZZHHOOUU EESSCCEENNEE CCOOMMMMUUNNIICCAATTIIOONN CCOO..,,LLTTDD
2011-04-08
http://arttel.ru
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
Content
1. General Comments ...................................................................................................................3
2. Product Appearance and models...............................................................................................4
3. Product Features: ......................................................................................................................5
4. Technical Features:...................................................................................................................5
http://arttel.ru
DS622PE IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
1. General Comments
ESCENE had bright out DS622PE dual-module ip phone for corporate customer. It provide
both VoIP and PSTN network to meet the high-end customers high avaiability demand and
efficient work.
DS622PE IP Phone is a fashionable, beautifully shaped and high-tech product. Its excellent
speech quality gives you an unprecedentedly comfortable talking and its rich function keys make
the operation very convenient. One key dial can be easily achieved with proper settings. 4.3 high
resolution LCD displayer provides you a friendly user interface. Benefit from which, more detail
information can be displayed. With the help of the integrated browser, users can access any XML
based information, and extend more commercials.
DS622PE IP Phone support multi account registering and multi call management. Call
Waiting, Call Queuing and Call Forward can be well implemented; meanwhile, it makes
conference to be created very quickly. No matter how busy the calls will be, DS622PE IP Phone
can easily satisfy the requirement.
DS622PE IP Phone supports 6 extend modules that totally contain 192 programming buttons.
With the Busy Lamp Field BLF!and Lines Share(BLA) function, operators can manage and
monitor the calls more efficiently. It provides headset jack that compatible with professional
microphone headsets, which will finely satisfy the call centre.
http://arttel.ru
DS622PE IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
2. Product Appearance and models

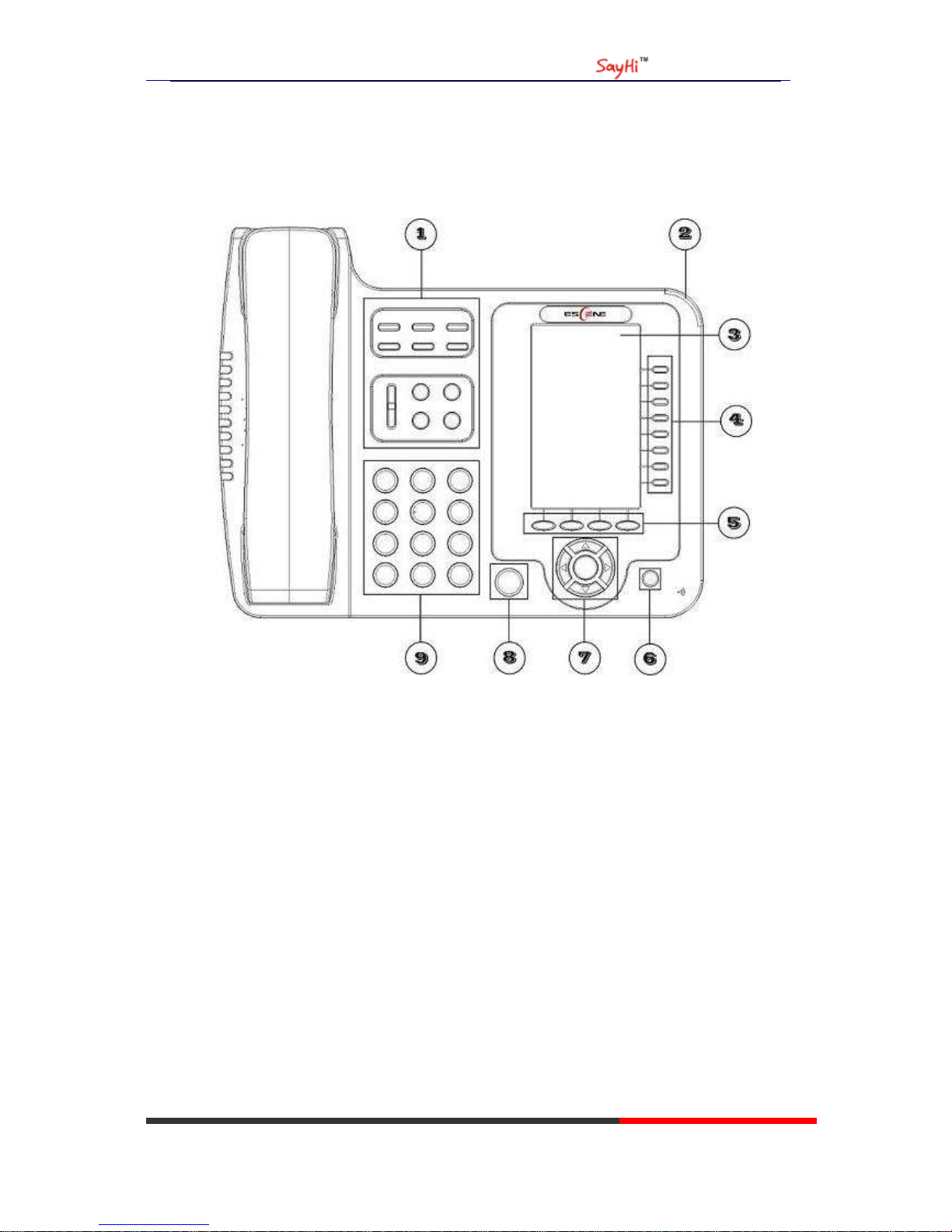

1!Product Appearance
Function Key(Simple, convenient, fast)
! Call instructions light
" Screen display 4.3 high resolution, Caller info, Phone status, etc!
# Line Keypad Line Status, Line Switch, Speed Dial, Call Queuing!
$ Software keypad(Operation screen shortcut, Speed Dial, Call Queuing)
% Delete key
& Navigation keypad(arrow keys, shortcut keys, determine key)
' Hands-free key
( Dial keypad(Figures, Chinese alphabet, English alphabet)
n Function keys include: closed-tone button, message button, directories ,menu
button, conference button, transfer key, redial key, hold key, service button.
n Navigation key areas"up, down, left, right, confirm key. The down key "missed call
list" shortcut key, the left key "received calls list" shortcut key, the right key
"telephone list" shortcut key.
http://arttel.ru
DS622PE IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
2!Model Rules Desciption
3. Product Features:
l Dual-module VoIP+PSTN!ports
DS622PE Dual-module IP PHONE can provide both PSTN and VOIP network work
together, and meet customers high avaiability demand and efficient work.
l 4.3 High Resolution Screen
480*272 Pixel high resolution color LCD gives you a sharp visual impact. Benefit from the
high resolution LCD, pictures can be displayed clearly, which may give convenience in
customizing advance applications.
l Clear Voice
DS622PE series through the unique voice processing technology that enables voice calls for
more clarity and realistic, and communication more fluid.
l Advance Call Process
Support 8 lines queuing, Call Sharing/Bridged Lines, multi programming function buttons
and Speed Dial buttons.
l Enterprise Address Book Application
Support business contacts and the private phone book applications, to help users quickly
find the number and a key to call.
l Value-added business applications
DS622PE series of phone can make use of Extensible Markup Language (XML) to quickly
access the server Web-based information access through the telephone can be easily
customized features or operating business enterprise.
l Extend Modules
Supports 6 extend modules that totally contain 192 programming buttons. With the Busy
Lamp Field function, operators can manage and monitor the calls more efficiently.
l PoE Support and AC power adapter
l Support HTTP/TFTP/FTP Auto-provision /TR069 upgrade software
4. Technical Features:
Item DS622PE
High-definition color LCD with Background light
Screen
480*272 pixel
DS622 -P E
E-ESM32 Expansion Module
P-POE
http://arttel.ru
DS622PE IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
Line
8 lines for VoIP and PSTN
Language
English Chinese
Function Keys
4 soft keys, 8 Line keys
6 Navigation keys(Arrow button, OK button, C button)
Volume adjust, Hands-free, Mute, Headset, Message, Menu
Directory, Service, Hold, Redial, Conference, Transfer
VoIP protocol
SIP 2.0
Network Protocol
HTTP , BOOTP , FTP , TFTP , IEEE 802.1Q , *IEEE 802.1X
Codec
G.723.1 , G.729 A/B , G.711 A/U , G.722
QoS
TOS#Jiffer Buffer#VAD#CNG#G.168 (32ms)
Netwrok
2"RJ45 10/100M Ethernet Interfaces (LAN/PC)
IP Assignment: static IP$DHCP$PPPoE
DNS Client, VPN(L2TP), VLAN
Speech
HD Codec, HD Handset
Handle, Headset and Hands-free mode available
Support call centre headsets and PC headsets
Separated 9 Level Volume Adjustment
Call Processing
Line Status Indicator Multi Account
Always Forward, Busy Forward, No-answer Forward
Hotline number (Immediately/Delay)
Call Waiting, Call Queuing, Line Switching
Call Forward, Call Transfer, Call Holding, Call Pickup, *Callback
One Key Dial, Redial
Phone directory speed dial, call record direct dial
3-way conference
DnD, *Blacklist
Voice mail, Voice Prompt, Voice Message
BLF, BLA
Expansion
Interface
EXT: ESM32 programmable Key module
*USB port
Application
Support PSTN and VoIP
Public phone directory
Private phone directory
* Built-in browser to access the server through the web information
Security
Login LCD by password
Login the website by password
Signaling encryption
Media encryption
Management
Upgrade: HTTP/TFTP/FTP Auto-provision/TR069
Configurations: Phone/HTTP/Auto-provision/TR069
Debug: Telnet/Phone/Web
Power Supply
PSTN line can work under no external power supply
http://arttel.ru
DS622PE IPPhone
www.escene.cn
GUANGZHOU ESCENE COMMUNICATION CO.,LTD.
Power adapter:AC100~240V input and DC12V/1A output
PoE (IEEE 802.af)
Specifications
Storage Temperature:0% ~ 60%
Operating Humidity:10% ~ 90%
Size:287mm*214mm*90mm
Net Weight:1.37kg
Package Features
Qty/CTN:10 PCS
N.W/CTN:13.7kg
G.W/CTN:14.2kg
Measurement:0.081CBM
Carton Meas: 470mm*450mm*290mm
Certifications
CE#FCC, RoHS
Note: !* Sign means function has not been published yet.
