Escatronic ESCADISTANCE Users manual

Test report no. 18011127 Page 1 of 1

EUT: ESCA DISTANCE
US/CA

FCC ID: 2ANW5­ESCADISTANCE

FCC Title 47 CFR Part 15

Date of issue: 2018-01-05

Date: 2017-09-07

Created: P9 Controlled: P4 Released: P1

Vers. no. 1.17

m. dudde hochfrequenz-technik

GmbH & Co. KG

Rottland 5a

51429 Bergisch Gladbach/ Germany

Tel: [phone]

Fax [phone]

Annex acc. to FCC Title 47 CFR Part 15

relating to

ESCATRONIC GmbH

ESCA DISTANCE US/CA

Annex no. 5

User Manual

Functional Description

Title 47 - Telecommunication

Part 15 - Radio Frequency Devices

Subpart C – Intentional Radiators

ANSI C63.4-2014

ANSI C63.10-2013

ESCA DISTANCE S3

Safety for Escalators

RADAR - Sensor to be used on escalators and walkways

certified due to performance level “d” according to

EN ISO 13849-1:2008 and certified according to EN115-1:2008

E 11.17

DISTANCE S3 Version.1.0EN Revisionsdatum: 09.11.2017 Erstellt: MRU Freigegeben: SPA

ESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. [phone], Fax [phone]

-1-

ESCA DISTANCE S3

Safety for Escalators

Table of contents

1. General description...........................................................................................................................3

2. Versions............................................................................................................................................3

3. Technical data...................................................................................................................................3

3.1 General.......................................................................................................................................3

3.2 Sensor.........................................................................................................................................4

3.3 Certification...............................................................................................................................4

3.4 Connection Options...................................................................................................................5

4. Installation........................................................................................................................................5

4.1 Mounting position......................................................................................................................5

4.2 Prescribed check of mounting position......................................................................................5

5. Output signal lines............................................................................................................................6

6. Fault tracking....................................................................................................................................6

6.1 Detection of malfunction...........................................................................................................7

6.2 Indication of errors or faults......................................................................................................7

7. DECLARATION OF CONFORMITY.............................................................................................8

8. Certificate.........................................................................................................................................9

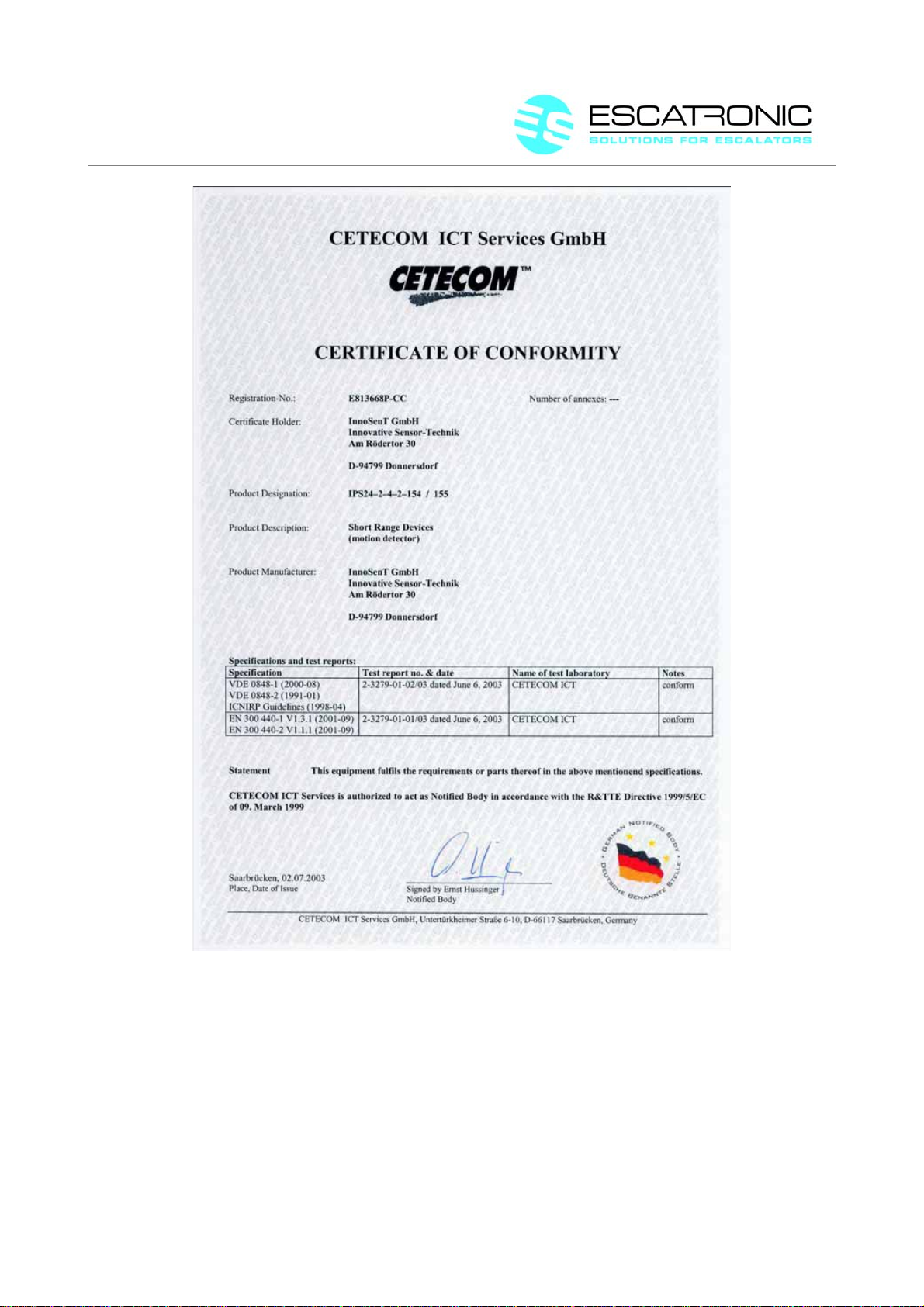

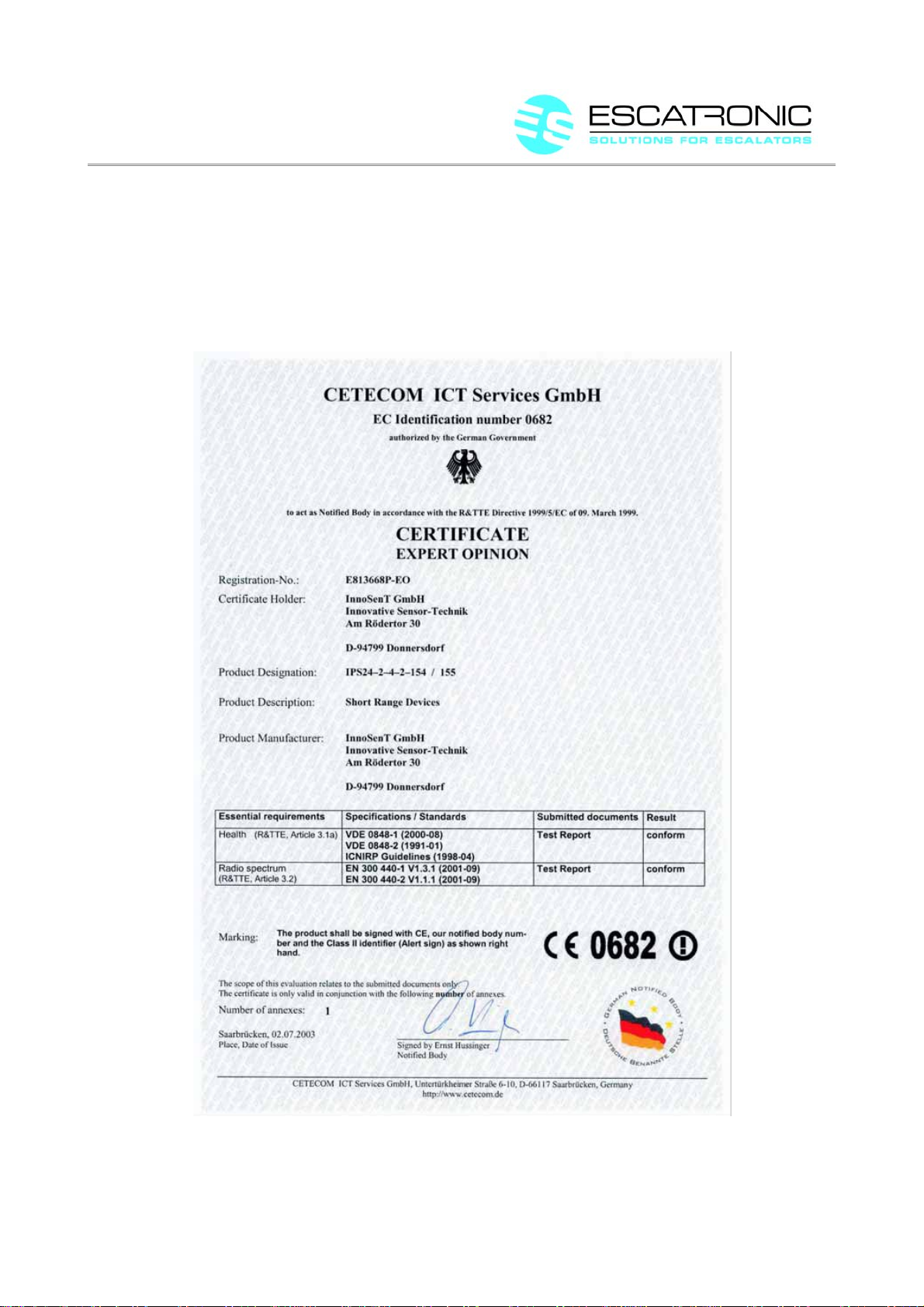

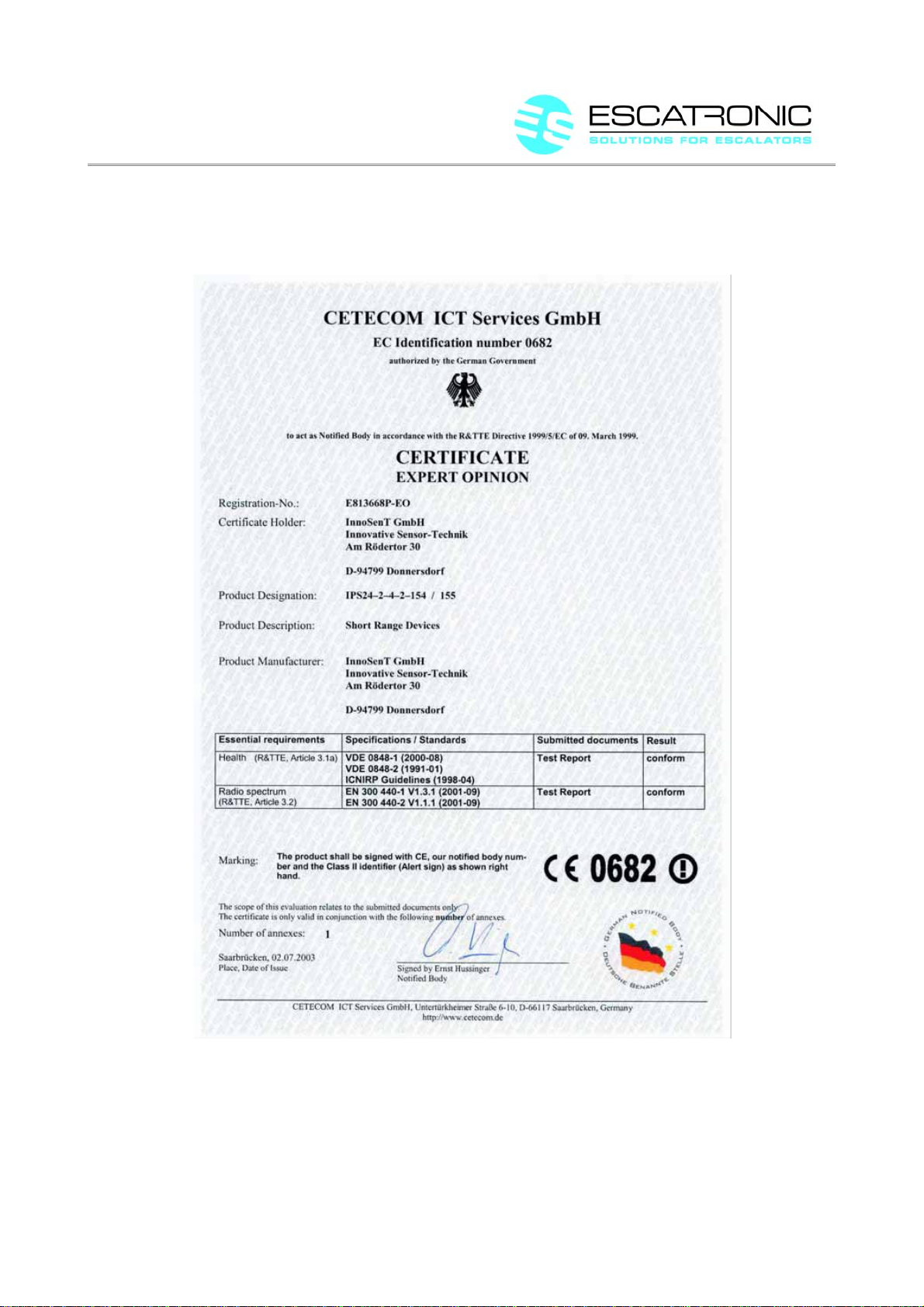

8.1 RADAR Module........................................................................................................................9

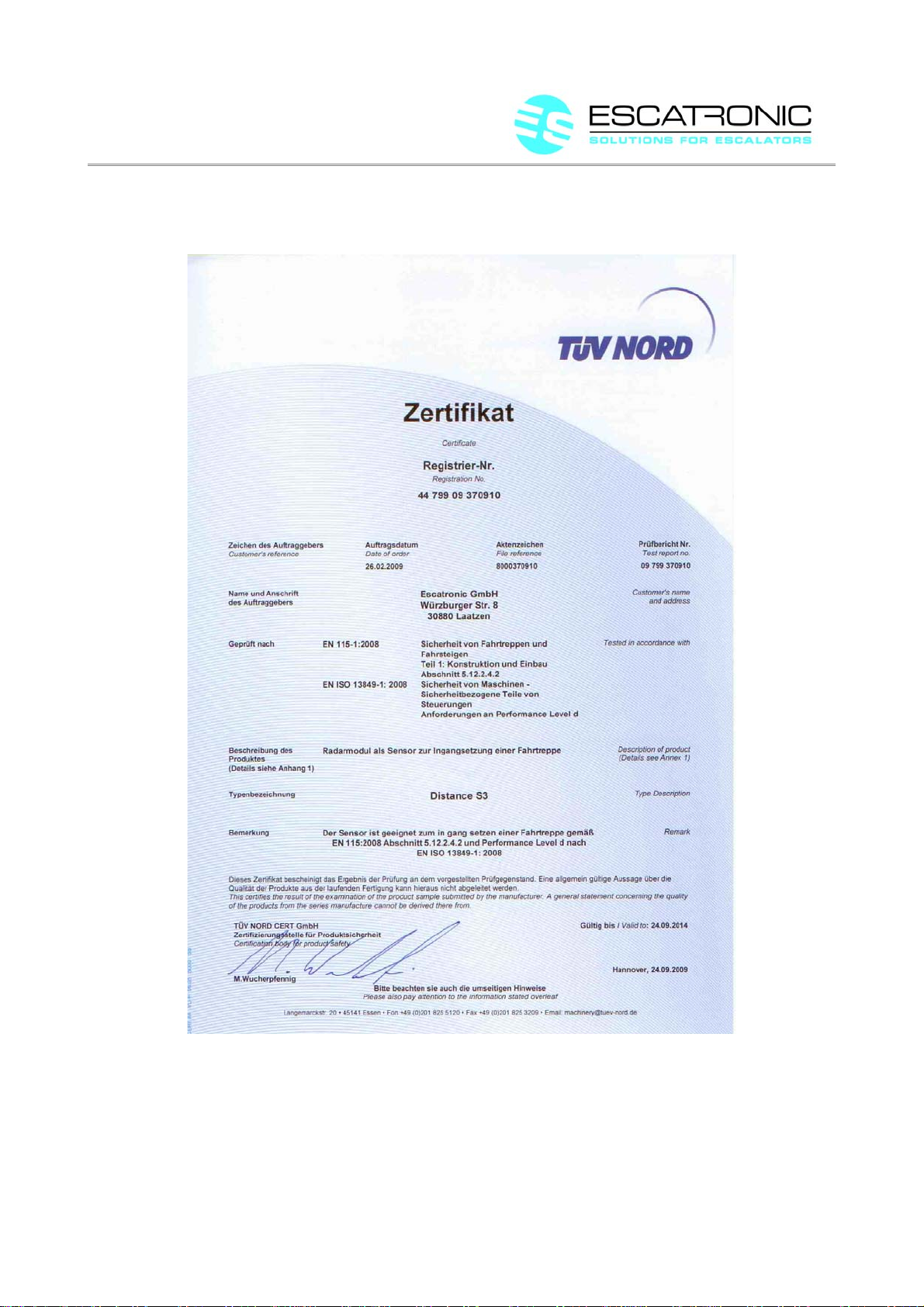

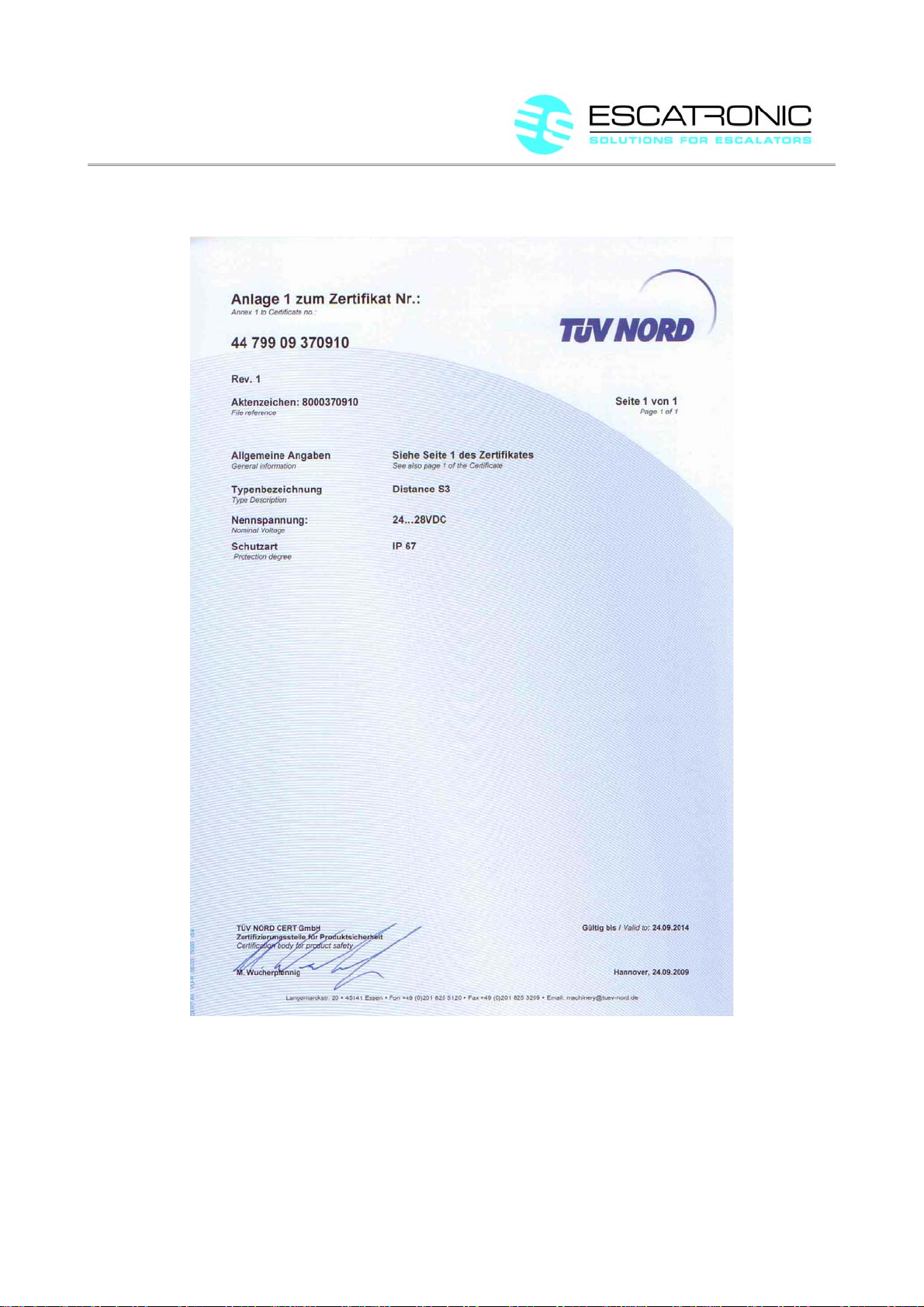

8.2 TÜV Certificate........................................................................................................................11

8.3. FCC.........................................................................................................................................13

DISTANCE S3 Version.1.0EN Revisionsdatum: 09.11.2017 Erstellt: MRU Freigegeben: SPA

ESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. [phone], Fax [phone]

-2-

ESCA DISTANCE S3

Safety for Escalators

1. General description

The Radar Sensor DISTANCE S3 has been designed to be used as contact less acting security device for

moving staircases (escalators). The sensor is acting as a Doppler-radar intrinsically safe according to
Performance Level d EN ISO13849-1:2008. His capture range covers the entrance area of the escalator

above the contact plate area. It detects slow moving passengers as well as passenger with low reflecting
surface to start-up the escalator according to EN115-1:2008.

2. Versions

The Radar-Sensor DISTANCE S3 is available in different Versions. They have different detection ranges of
the Sensor. There are also sensors that will only detect approaching persons or both approaching and

departing persons.

There are 2 different versions of outputs availlable:

V1 has one potential free Optocoupler output as opener.

V2 has two active 24V Outputs, which are phase-shifted 180°.

Als versions are in the following table:

Name Opening angel Output Range Approaching/Departing
DISTANCE S3-V1 70°H , 36°V V1 2,5 - 2,7m Approaching only
DISTANCE S3-V2 70°H , 36°V V2 2,5 - 2,7m Approaching only
DISTANCE S3-V2-120 70°H , 36°V V2 1,2 - 1,3m Approaching only
DISTANCE S3-V2-120-BD 70°H , 36°V V2 1,2 - 1,3m Approaching & Departing

3. Technical data

3.1 General

Supply voltage: 24V...28V
Current consumption: max. 50mA

Signal output: potential free optocoupler (OC)
Contact type: normally closed (opener)

Alternative contact type: 2 phase output, 180° phase shift.

DISTANCE S3 Version.1.0EN Revisionsdatum: 09.11.2017 Erstellt: MRU Freigegeben: SPA

ESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. [phone], Fax [phone]

-3-

ESCA DISTANCE S3

Safety for Escalators

Switching current: max. 50mA
Response time: ca.100ms

Max. voltage level: 70VDC
min. duty cycle (open contact): 0,5s

Dimensions (H*W*D) 46 x 56 x 20 mm

Temp. range: -20°C....+80°C

Protection class: IP67

3.2 Sensor

Transmitter frequency: 24,075...24,0175 GHz
Max. RF output power: 100mW

Angle of beam horizontal: 70°
Angle of beam vertical: 32°

Sensitivity range: 2,5...2,7m pre-set
Moving sense: towards sensor or toward and from sensor

Response time: < 0,1m/s

3.3 Certification

EN115-1:2008

EN13849-1:2008

EN12015
EN12016:2004

2006/42/EG from 29.12.2009
2011/65/EU ROHS

2014/35/EU
2014/30/EU

Radio spectrum

ETSI EN300400-1V1.3.1 (2001-09)

ETSI EN300440-2V1.1.1. (2001-09)

Health

VDE 0848 (08/2000) Part1
VDE 0848 (01/1991) Part 2

ICNIRP Guidelines (04/1998)

DISTANCE S3 Version.1.0EN Revisionsdatum: 09.11.2017 Erstellt: MRU Freigegeben: SPA

ESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. [phone], Fax [phone]

-4-

ESCA DISTANCE S3

Safety for Escalators

3.4 Connection Options

Cable 4 x 0,25mm², length 0,5m, M12 connector assembly

Pin assignment Dual-Different output (version 1):

Pin 1 +24VDC brown

Pin 2 Output 1 OC PNP white, 180° phase shift output compared to Pin 4.
Pin 3 GND blue

Pin 4 Output 2 OC PNP black, security controlled output

Pin assignment Single-Ended potential free output (Version 2):

Pin 1 +24VDC brown

Pin 2 Output OC out - white
Pin 3 GND blue

Pin 4 Output OC out + black

4. Installation

4.1 Mounting position

The recommended locations to install the sensor into the escalator:

- below of handrail entrance point

- into the balustrade base

- at the area of the contact-mat inside a protective housing

4.2 Prescribed check of mounting position

For each type of escalator it is once required to determine and document the selected mounting position.
It has be assured to cover the entrance area of the escalator by the sensor range and to make sure this

range/area can not be bypassed by any passenger. This procedure will secure a save start of the escalator.
The sensor should be protected from covering it by any metal parts.

To test the entrance area a metal sphere of 18cm diameter should be used to simulate repeatable an

approaching passenger.

The test using the metal sphere begins at a distance of 2.5m rolling the sphere slowly in direction of the

DISTANCE S3 Version.1.0EN Revisionsdatum: 09.11.2017 Erstellt: MRU Freigegeben: SPA

ESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. [phone], Fax [phone]

-5-

ESCA DISTANCE S3

Safety for Escalators

spirketing. The radar sensor has to activate the escalator in a distance of 1.6m from the spirketing. This
procedure has to be repeated for all possible passenger routes into the entrance area. If the sensor doesn't

recognise the movement of the sphere on a certain route, the mounting position of the radar sensor has to
be modified accordingly.

The escalator manufacturer or the service/refurbishment company is responsible for the correct check of the

sensor accordingly to the procedure shown above.

The radar sensor manufacture can not be held responsible for any loss or damage based on an inaccurate
selected mounting position or ambiance or coverage of the radar sensor.

5. Output signal lines

The output lines are different due to the configuration of the radar sensor module (please refer to
chapter 3.4). If a movement is detected by the radar sensor the output level is changed for about 0.5

seconds. The meaning for the possible status of the two different module versions are shown in table 1
below:

Version 1 (Dual-difference output) Version 2 (Single-ended potential free output)

Output 1 output 2 Meaning Output Meaning

low high No movement detected,

module in operation

high low Movement detected,

module in operation

low low Fault detected

high high Not valid

Table 1: Possible status of o utput li nes

low No movement detected,

module in operation

high Movement detected,

If permanent

: Fault detected inside

the module

6. Fault tracking

The radar sensor undergo periodic repeating internal self tests while he is in operation. The time interval for

this test are max 10 seconds. During these test cycles the radar receiver, as well as the internal controller
memory and the output lines are checked for error-free functionality. Some of the output errors can only be

DISTANCE S3 Version.1.0EN Revisionsdatum: 09.11.2017 Erstellt: MRU Freigegeben: SPA

ESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. [phone], Fax [phone]

-6-

ESCA DISTANCE S3

Safety for Escalators

detected when the output power is changed.

6.1 Detection of malfunction

If an internal malfunction is detected during these tests, the output of the radar sensor is permanently
disabled. It is impossible to reactivate the radar sensor again.

A cable break from the radar sensor to the escalator control results in an open output signal which forces the
escalator control to keep continuous operation for the current direction.

The status of the output signal lines after detection of a malfunction are described in chapter 4.

6.2 Indication of errors or faults

A LED points out the module status. The LED is visible on the side of the housing.

Possible faults are described in table 2:

Name Diagnostic Interval of execution Fault impac t Resetting Fault s ignal
No fault The green LED is on
Sensor fault Repeating the test

The radar modul is
checked after power-up for
a specific step-response­function.

every xx seconds Put the module out of

operation (secure situation
due to open output lines)

The red and the green
LED are flashing.

„Galpat“ fault The internal memory wil l

Program fault No successful restart

Output fault No successful restart

Watchdog fault

Current fault Repeat the tests

be tested using walking
„1“ and “0“ for error-free
operation.

Specific patterns are
stored into the internal
memory and tested by
comparison of the
checksum

The opto-coupler on the
output lines is tested for
error free operation (open)

The watch-dog and the
opto-coupler are t ested for
error free operation (open)

The current on the closed
output lines is read back.

every xx seconds Put the module out of

every xx seconds Put the module out of

If it is required to open t he
output line and during
power-up, if the current
test was successful

If it is required to open t he
output lines and while
power-up if the current test
was successful

If it is not required to open
the signal line and after
power-up.

operation (secure situation
due to open output lines)

operation (secure situation
due to open output lines)

Put the module out of
operation (secure situation
due to open output lines)

Put the module out of
operation (secure situation
due to open output lines)

Don't take module out of
operation. Continue t he
tests, event ually cable
break or out put signal line
not connected

No successful restart

Kein erneutes Anlaufen The red LED will show

Table 2: Indication of errors

The red LED will be
on all the time.

The red LED will be
on all the time

The red LED will show
the following
sequence: short­short-long

the following
sequence: long-long­short

The green LED is
flas hing

DISTANCE S3 Version.1.0EN Revisionsdatum: 09.11.2017 Erstellt: MRU Freigegeben: SPA

ESCATRONIC GmbH, D-31157 Sarstedt, Ludwig Erhard Ring 24, Tel. [phone], Fax [phone]

-7-
