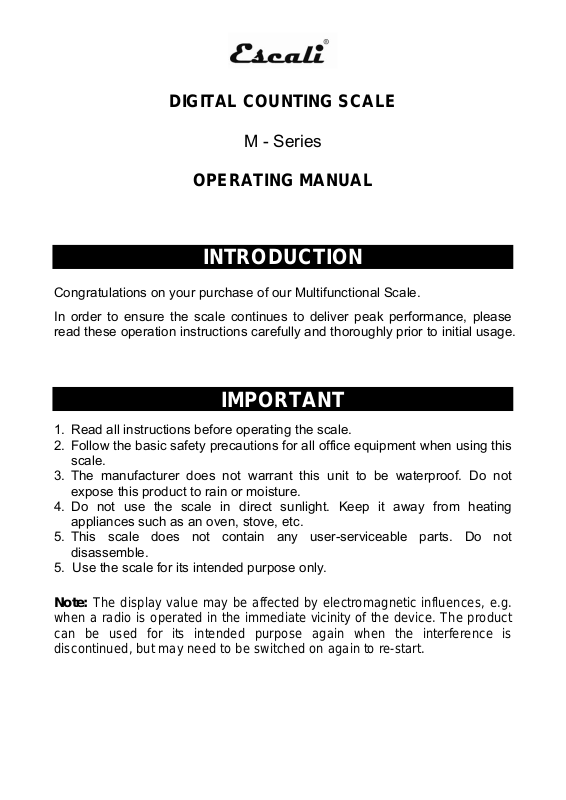

Escali M-Series User Manual

DIGITAL COUNTING SCALE

M - Series

OPERATING MANUAL

INTRODUCTION

Congratulations on your purchase of our Multifunctional Scale.

In order to ensure the scale continues to deliver peak performance, please
read these operation instructions carefully and thoroughly prior to initial usage.

IMPORTANT

1. Read all instructions before operating the scale.

2. Follow the basic safety precautions for all office equipment when using this
scale.

3. The manufacturer does not warrant this unit to be waterproof. Do not
expose this product to rain or moisture.

4. Do not use the scale in direct sunlight. Keep it away from heating
appliances such as an oven, stove, etc.

5. This scale does not contain any user-serviceable parts. Do not
disassemble.

5. Use the scale for its intended purpose only.

Note: The display value may be affected by electromagnetic influences, e.g.
when a radio is operated in the immediate vicinity of the device. The product
can be used for its intended purpose again when the interference is
discontinued, but may need to be switched on again to re-start.

BATTERY INSTALLATION

1. Turn the entire scale upside down and reset it securely on a firm, flat surface.

2. Open the battery door by loosing the battery door screw.

3. Install four UM2 size C batteries in the battery compartment, ensuring that the

positive/negative side is in the direction as shown in the cabinet.

4. Close the battery door and fasten it with the screw.

BATTERY STATUS

• When the battery is low, “Lo” will be displayed. Open the battery compartment and
replace the old batteries with new ones.

• Used batteries must not be disposed of as household waste. Do not incinerate
batteries because they might explode at high temperature. Contact your local authority
for information concerning reclamation and disposal of batteries.

• When replacing batteries, always use brand new batteries of the same type.

AC/DC ADAPTOR (Optional)

1. Open the Adaptor cabinet door.

2. Plug the adaptor jack into the socket.

3. Take out the adaptor and close the cabinet door.

4. Plug the adaptor to the AC main.

PART AND KEY DESCRIPTION

1) Stainless Steel Platform

2) Bubble Leveler

3) Liquid Crystal Display (LCD)

4) Keypad

5) Battery Door and Compartment

6) Main power On/off Switch

7) Adaptor door

8) AC/DC adaptor socket

9) AC/DC adaptor (optional)

10) Level adjusting feet

(1)
Stainless Steel

Bubble
Leveler

(2)

LCD
Display
(3)

Keypad
(4)

Platform

(6)

Main Power
On/Off Switch

(7)

Adaptor Door

(8)

AC/DC Adaptor

Socket

(9)

AC/DC adaptor

(10)

Level Adjusting

feet

(5)
Battery Door
and Compartment
