ESCALADE ESCORELCD Instructions And Rules

Download

Page 1

ESCORELCD

For Customer Service Call 1-800-526-0451

CPSIA#2 - ESCORELCD - - VJ

Page 2

ESCORELCD

For Customer Service Call 1-800-526-0451

Congratulations! We hope you will have many hours of enjoyable use with your new product!

INDEX

Index

…………………………………………………………………………….

Mounting Instruction

…………………………………………………………………………….

Descriptions

…………………………………………………………………………….

Operation Manual

…………………………………………………………………………….

Game Table

…………………………………………………………………………….

Game Instructions

…………………………………………………………………………….

Page 3

ESCORELCD

For Customer Service Call 1-800-526-0451

Thank you for purchasing this electronic dart game. Its computerized scoring system makes game playing easy and enjoyable. With 32 built-in games and 595 options / variations to choose from, both beginners and more advanced players will find games to suit them. Up to 8 players can play at on time. Please read the instructions before playing, and be sure to save them for future reference.

POWER INSTALLATION

This device is designed to be powered by 3 AAA batteries. The battery compartment can be opened from the back to install the batteries. To conserve batteries, this dartboard is equipped with an auto power-off mode. If the dartboard is not being used, it will automatically turn off after 30 minutes.

PROTECTIVE FILM

Please peel off the protective film at the display area before use.

IMPORTANT NOTES

1. This device is designed for use with finger or obtuse stick only. Do not attempt to use steel tip or other sharp points object to tap the pouch pad.

2. Electronic and mechanical reaction time is required between tap. If 2 tap occur too close together, please re-tap to properly record your score.

3. Under the environment with electrical fast transient the device may malfunction and

require use to reset the device.

Page 4

ESCORELCD

For Customer Service Call 1-800-526-0451

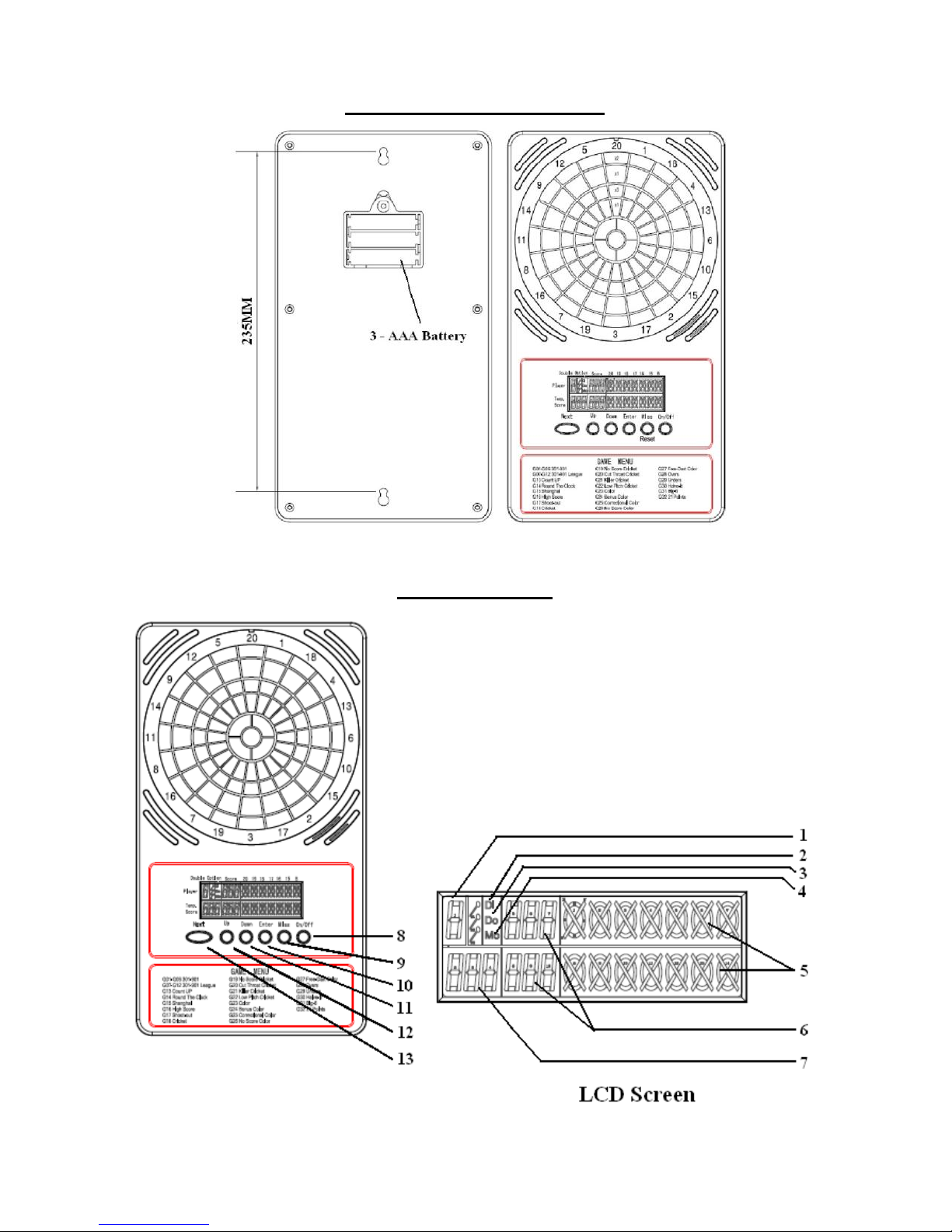

MOUNTING INSTRUCTION

DESCRIPTIONS

Player display

On/Off button

Di = Double in indicator

Miss & Reset button

Do = Double out indicator

10.

Enter button

Mo = Master out indicator

11.

Down button

Cricket display

12.

Up button

Score display

13.

Next button

Temporary ( Dart ) display

Page 5

ESCORELCD

For Customer Service Call 1-800-526-0451

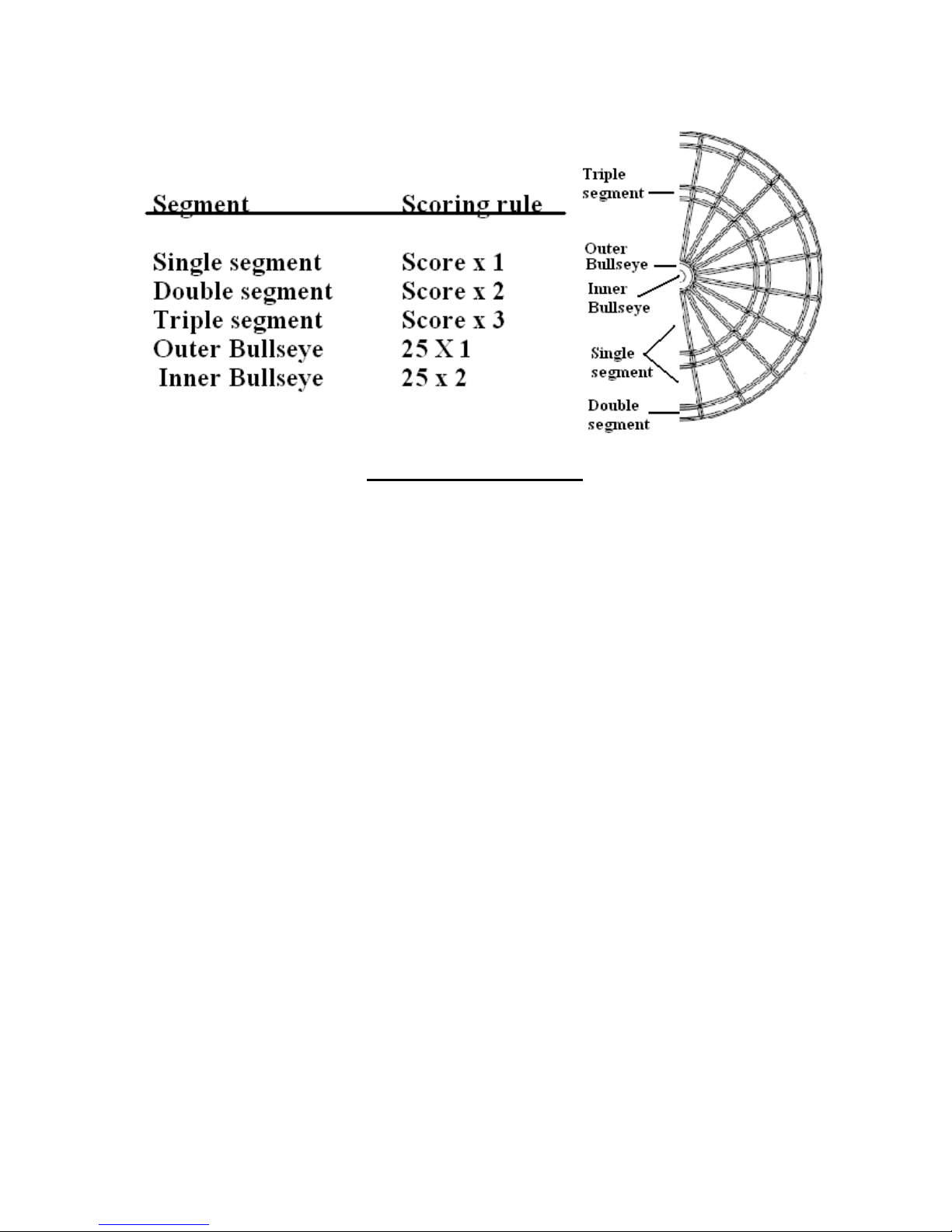

CALCULATING POINTS

OPERATION MANUAL

1. Press On/Off to turn on game and it will play a welcoming melody.

2. With the power turned on, some displays will light up with a welcoming melody. When the

sound goes off, the player display and score display will show “G01” and “301”

respectively.

3. Press Up or Down buttons to select games. The selection is shown on the player score

displays. Then press Enter to confirm the selection.

4. Press Up or Down buttons to select option and press Enter to confirm the selection.

5. In case of the selection of 301 or 301 league, press Up or Down to further select the Single / Double / Master options. Press Enter to confirm the selection.

L01: Single In/Single Out (All icon will be off during the game) L02: Double In/Single Out (Di icon will be on during the game) L03: Single In/Double Out (Do icon will be on during the game) L04: Double In/Double Out (Both Di and Do icon will be on during the game) L05: Single In/Master Out (Mo icon will be on during the game) L06: Double In/Master Out (Both Di and Mo icon will be on during the game)

6. Press Up or Down buttons to select number of players. There are total 9 selections of players from 1 player mode to 8 players mode plus a computer player mode. Press Enter to confirm the selection and start the game. For more than 2 players, some players will share the player score display.

7. If the option you selected and confirmed is at computer player mode, you will play against the computer. Press Up or Down to select the levels of the computer player and press Enter to start the game. The five levels of computer player are as follow:

C1: Beginner

Page 6

ESCORELCD

For Customer Service Call 1-800-526-0451

C2: Intermediate C3: Advanced C4: Expert C5: Professional

8. In case the game has 25/50 bull options, you can press Up or Down buttons to select and press Enter to confirm the selection. 25/50 (outer bull is 25 and inner bull is 50) and 50/50 (both inner and outer bull is 50).

9. During the game, when the computer announce “NEXT”, any pressure on the segments area will not activate the device. The player is required to remove all the darts and press Next for the next player‟s round. The device will automatically switch to the next player if the device has not been operated for roughly 10 seconds after the “NEXT” announcement.

10. Press MISS to score 0 and record one dart when a dart hits on the divider, dart catcher or misses the board altogether during the play of the game.

11. If you want to reset the game, push RESET button and hold for 2 second.

12. During the course of playing, you can press Enter to check the scores of other players.

13. Press and hold the On/Off button for 3 seconds to turn off the device. For energy saving purpose, the device is equipped with an auto power off feature. If the device has not been

operated in 30 minutes, the device will turn off automatically.

GAME TABLE

Game

Description

Display

Option / Variations

No. of Players

G01

301

3O1

6/ 12

1-8

G02

501

5O1

6/ 12

1-8

G03

601

6O1

6/ 12

1-8

G04

701

7O1

6/ 12

1-8

G05

801

8O1

6/ 12

1-8

G06

901

9O1

6/ 12

1-8

G07

301 League

3L1

6/ 48

1-8

G08

501 League

5L1

6/ 48

1-8

G09

601 League

6L1

6/ 48

1-8

G10

701 League

7L1

6/ 48

1-8

Page 7

ESCORELCD

For Customer Service Call 1-800-526-0451

G11

801 League

8L1

6/ 48

1-8

G12

901 League

9L1

6/ 48

1-8

G13

Count Up

CUP

9 / 18

1-8

G14

Round the Clock

rCL

1-8

G15

Shanghai

Shi 4 1-8

G16

High Score

HiS

12 / 24

1-8

G17

Shoot-out

S-0

1-8

G18

Cricket

Cri

3 / 6

1-8

G19

No Score Cricket

NSc

3 / 6

1-8

G20

Cut throat Cricket

CUc

3 / 6

1-8

G21

Killer Cricket

LLc

3 / 6

2-8

G22

Low Pitch Cricket

LPc

3 / 6

1-8

G23

Color

CL2

1-8

G24

Bonus Color

bC2

1-8

G25

Correctional Color

CC2

1-8

G26

No score Color

NC2

2-8

G27

Free-Dart Color

FdC

1-8

G28

Overs

orS

19 / 38

2-8

G29

Unders

Und

19 / 38

2-8

G30

Halve-it

HAL

1 / 2

1-8

G31

Big-6

biG

2-8

G32

21 points

21P

1-8

Page 8

ESCORELCD

For Customer Service Call 1-800-526-0451

GAME INSTRUCTIONS

G01 301 ( With option of 25/50 Bull )

The score will be deducted for each dart from 301 points. The first player who reaches exactly 0 will be the winner. When a player exceeds the score needed to reach exactly zero, the turn is a “bust” and the score reverts back to what it was before the turn.

L01 (Single In + Single Out): All LED light will be off during the game. The scoring begins and ends when any number is hit. The player can finish the game with a hit

on any number that reduces the score to exactly zero. L02 (Double In + Single Out): Di LED light will be on during the game. The scoring begins when a number in the double‟s ring or the Double Bull‟s Eye is hit. No score

will be counted until this condition is met. L03 (Single In + Double Out): Do LED light will be on during the game.

The player can finish the game with a hit on a number in the double‟s ring or the Double Bull‟s

Eye that reduces the score to exactly zero. When a player exceeds the score needed to reach

exactly zero or “1”, the turn is a “bust” and the score reverts back to what it was before the turn

(Remaining “1” score is also a bust, because there is no possibility to bring it to zero with a

double hit) L04 (Double In + Double Out): Both Di and Do LED light will be on during the game.

The scoring begins when a number in the double‟s ring or the Double Bull‟s Eye is hit and it ends

when a double‟s ring or the Double Bull‟s Eye is hit that reduces the score to exactly zero.

L05 (Single In + Master Out): Mo LED light will be on during the game.

The player can finish the game with a hit on a number in the double‟s or triple‟s ring or the

Double Bull‟s Eye that reduces the score to exactly zero.

L06 (Double In + Master Out): Both Do and Mo LED light will be on during the game.

The scoring begins when a number in the double‟s ring or the Double Bull‟s Eye is hit and it ends when a double‟s or triple‟s ring or the Double Bull‟s Eye is hit that reduces the score to exactly

zero. With an option of selecting 50/50 bull (both inner and outer bull is 50) or 25/50 bull (inner bull is

50 and outer bull is 25), there are total 12 variation can be selected. To make games more enjoyable, the game will also display the dart point averaging for each player to check the skill level.

G02 501 ( With option of 25/50 Bull )

Games and operations are same as “ 301 ” except starting from 501 points

G03 601 ( With option of 25/50 Bull )

Games and operations are same as “ 301 ” except starting from 601 points

Page 9

ESCORELCD

For Customer Service Call 1-800-526-0451

G04 701 ( With option of 25/50 Bull )

Games and operations are same as “ 301 ” except starting from 701 points

G05 801 ( With option of 25/50 Bull )

Games and operations are same as “ 301 ” except starting from 801 points

G06 901 ( With option of 25/50 Bull )

Games and operations are same as “ 301 ” except starting from 901 points

G07 301 LEAGUE ( With option of 25/50 Bull )

Similar to 301 Count-down but here the teams play against each other. If a member of the team reaches 0 exactly, his/her team has won. Apart from the 301 standard variations, this game also allows selection of the following 4 different team members

Options: 1C, 2C, 3C, Cyb 2C: 2 players in each team 3C: 3 players in each team 4C: 4 players in each team Cyb: 1 player in each team

G08 501 LEAGUE ( With option of 25/50 Bull )

Games and operations are same as “ 301 LEAGUE “ except starting from 501 points

G09 601 LEAGUE ( With option of 25/50 Bull )

Games and operations are same as “ 301 LEAGUE “ except starting from 601 points

G10 701 LEAGUE ( With option of 25/50 Bull )

Games and operations are same as “ 301 LEAGUE “ except starting from 701 points

G11 801 LEAGUE ( With option of 25/50 Bull )

Games and operations are same as “ 301 LEAGUE “ except starting from 801 points

G12 901 LEAGUE ( With option of 25/50 Bull )

Games and operations are same as “ 301 LEAGUE “ except starting from 901 points

Page 10

ESCORELCD

For Customer Service Call 1-800-526-0451

G13 Count Up ( With option of 100, 200, 300, …... 900, 25/50 Bull )

The objective is to beat the other players by being the first to reach a preset score. The score will be accumulated for each dart, the first player who reaches or goes over the set points will be

the winner. The set point options are 100, 200, 300 … 900.

G14 ROUND THE CLOCK ( With option of 105, 110, 115, 120, 205, 210, 215, 220, 305, 310, 315, 320 )

Hit in strict order of 1, 2, 3 …until 5, 10, 15 or 20s are reached with straight, double or triple shots depending on the performance level. The first player to reach the final score is the winner. Players start their next turn with the next correct number in the sequence. The computer will display the number that the player has to hit.

105,110,115,120: The last number is 5,10,15,20 respectively regardless of single, double or triple.

205,210,215,220: The last number is 5,10,15,20 respectively and only double is valid. 305,310,315,320: The last number is 5,10,15,20 respectively and only triple is valid.

G15 SHANGHAI ( With option of L01, L05, L10, L15 )

Each player has to proceed around the board to score from 1 through 20 and then the bull‟s eye. Throw a dart for each number and the player who gets the highest scores wins. Each player can score on any correct segments (single X 1, Double X 2, Triple X 3) and selections are varied as follows:

L01: the game starts from segment 1 L05: the game starts from segment 5 L10: the game starts from segment 10 L15: the game starts from segment 15

G16 HIGH SCORE ( With option of H03, H04, H05……H14, 25/50 Bull )

The rules are simple. Each player has to rack up the most points in 3, 4, 5…or 14 rounds (each

round 3 darts) to win. Doubles and triples count as 2X and 3X that segment‟s score

respectively.

H03, H04, H05 ….. H14 represent 3, 4, 5….. 14 rounds respectively

G17 SHOOT-OUT ( WITH OPTIONS OF -03, -04, -05, …….. -19, -20, -21 )

The computer will randomly display a score for the player to hit. One correct hit scores a point. The first player who hits 3, 4, 5, 6 …… 21 marks depending on the level of difficulty is the winner. If a player does not hit the board within 10 seconds, it will automatically change to another score for the player to hit and it counts as you hit the wrong number.

-03, -04, -05 ….. -21 represent 3, 4, 5….. 21 marks respectively.

Page 11

ESCORELCD

For Customer Service Call 1-800-526-0451

G18 CRICKET ( With option of C00, C20, C25, 25/50 Bull )

1. Following the standard rules, in Simple Cricket only the number 15-20 & bull‟s eye are used. All valid hits will be confirmed & displayed by the Cricket Display.

2. When a number has been hit 3 times by a player, it is then „open‟ to that player and any further hits will score points as thrown.

3. Once a number has been hit 3 times by all players, that number is then „closed‟ and can no longer be scored upon by any player.

4. A player who has „opened‟ a number can continue to score on that number until it becomes „closed‟.

5. A player wins the game when he first „closes‟ all the numbers and has equal or greater scores than the other players. However if players are tied on points, or have no points, the first player to „close‟ all numbers wins.

6. And if a player has „closed‟ all numbers first, but is behind on points, scoring continues on

„open‟ numbers. If that player has not accumulated the highest point total by the time

another player „closes‟, the player with the most points will be the winner.

000: hit & „open‟ the numbers 15-20 and bull‟s-eye at any order.

020: hit & „open‟ the number 20 first, then in order „open‟ numbers 19, 18, 17, 16, 15 &

bull‟s-eye.

025: hit & open the bull‟s-eye first, then in order open numbers 15, 16, 17, 18, 19 & 20

Cricket

One time

Two times

Open

Sign

Note:

1. Single segment : Count one time

Double segment : Count two times Triple segment : Count three times

2. The segment will be opened if already hit more than three times. It will be closed if all

players open the same segment

G19 NO SCORE CRICKET ( With option of 000, 020, 025, 25/50 Bull )

The game is played the same as Cricket EXCEPT no score is made. The winner is the player who first closed all the points.

000: hit & „open‟ the numbers 15-20 and bull‟s-eye at any order.

Page 12

ESCORELCD

For Customer Service Call 1-800-526-0451

020: hit & „open‟ the number 20 first, then in order „open‟ numbers 19, 18, 17, 16, 15 &

bull‟s-eye.

025: hit & open the bull‟s-eye first, then in order open numbers 15, 16, 17, 18, 19 & 20

G20 CUT THROAT CRICKET ( With option of 00C, 20C, 25C, 25/50 Bull )

Same basic rules as the standard cricket EXCEPT points are added to your opponents‟ total

once scoring begins. The player who first closes all segments with the fewest scores wins. This variation enables players to rack up scores for his opponents, digging them into a deeper hole.

00C: hit & „open‟ the numbers 15-20 and bull‟s-eye at any order.

20C: hit & „open‟ the number 20 first, then in order „open‟ numbers 19, 18, 17, 16, 15 &

bull‟s-eye.

25C: hit & open the bull‟s-eye first, then in order open numbers 15, 16, 17, 18, 19 & 20

G21 KILLER CRICKET ( With option of H00, H20, H25, 25/50 Bull )

The game is played the same as No Score Cricket. Except when you closed a point, and your opponents do not, you can eliminate opponent‟s marking by hitting the same number again. The winner is the player who closed all the points.

H00: hit & „open‟ the numbers 15-20 and bull‟s-eye at any order. H20: hit & „open‟ the number 20 first, then in order „open‟ numbers 19, 18, 17, 16, 15 &

bull‟s-eye.

H25: hit & open the bull‟s-eye first, then in order open numbers 15, 16, 17, 18, 19 & 20

G22 LOW PITCH CRICKET ( With option of E00, E20, E25, 25/50 Bull )

The game is played the same as Cricket. Except the points to be shot are changed from 15 to 20 and Bull to 1 to 6 and Bull.

E00: hit & „open‟ the numbers 1-6 and bull‟s-eye at any order. E20: hit & „open‟ the number 6 first, then in order „open‟ numbers 5, 4, 3, 2, 1 & bull‟s-eye. E25: hit & open the bull‟s-eye first, then in order open numbers 1, 2, 3, 4, 5 & 6

G23 COLOR ( With option of 100, 200, 300, 400, 500 )

To begin this game, each player must throw one dart to determine at which color (#20 color or #1 color) who will be shooting. (If the player hits a bull‟s eye with this dart, they must throw again to decide the color) The double and triple segments are considered to have the same color as the single segment . Each player then tries to hit their color target in order to add up to the total score. If a player throws a dart in an opponent‟s color, then the mark does not count. The bull‟s eye does count towards your total score. The first player to the pre-set final score wins.

100, 200…….500 represent 100 scores, 200 scores…….. 500 scores respectively.

Page 13

ESCORELCD

For Customer Service Call 1-800-526-0451

G24 BONUS COLOR ( With option of 100, 200, 300, 400, 500 )

This game is played the same as “COLOR” with the following exception. If a player throws their dart in an opponent‟s color, that opponent gets the points added towards his total score.

100, 200…….500 represent 100 scores, 200 scores…….. 500 scores respectively.

G25 CORRECTIONAL COLOR ( With option of 100, 200, 300, 400, 500 )

This game is played the same as “COLOR” with the following exception. If a player throws their

dart in an opponent‟s color, those points are deducted from the player‟s total score. 100, 200…….500 represent 100 scores, 200 scores…….. 500 scores respectively.

G26 NO SCORE COLOR ( With option of 003, 004, 005, 006, 007 )

This game is played the same as “COLOR” with the following exception. Each player tries to hit

their color target to make 1 point. If a player throws a dart in an opponent‟s color, one mark is removed from the player‟s total score and the player loses his turn. (The bulls‟ eye does count

towards your total score.) The winner will be the only player with marks remaining. 003, 004…. 007 represent 3 points, 4 points…. 7 points as the total points respectively.

G27 FREE DART COLOR ( With option of 005, 010, 015, 020 )

This game is played the same as “COLOR” with the following exception. Each player tries to hit

their color target to gain the highest possible score. If a player throws a dart in an opponent‟s color, it does not count towards the total score. (The bulls‟ eye does count towards your total

score.) The player with the highest total of points after all the darts are thrown is the winner. 005, 010, 015 and 020 represent 5 darts, 10 darts, 15 darts and 20 darts respectively.

G28 OVERS ( With option of O03, O04, O05……..O20, O21, 25/50 Bull )

The players have to take turns to throw 3 darts. If a player‟s score is less than the previous

player‟s score, one cricket light will turn off which means he loses one life. Before each player

shoots in each round, the text screen displays the record score. A player will be out of the game when all his lives are gone. The last surviving player is the winner.

O03 –O21 represents 3 lives to 21 lives.

G29 UNDERS ( With option of U03, U04, U05……..U20, U21, 25/50 Bull )

This game is played the same as “OVERS” with the following exception.

1. The leader‟s score is the lowest score for each turn.

2. A missed dart should be counted as 60 by pressing the MISS button.

U03-U21 represents 3 lives to 21 lives.

Page 14

ESCORELCD

For Customer Service Call 1-800-526-0451

G30 HALVE-IT ( With option of 25/50 Bull )

There are 12 rounds of three darts each in this game. The objective is to score as many points of the designated numbers as possible. The designated numbers for each round are:

Round

14 D 15

17 T 18

20 B Total

Player

D: Double T: Triple B: Bull Scoring occurs when the dart hits the designated area only. All hits are scored at face value.

Should all three of a player‟s darts miss the designated target area, his total score to those

points is cut in half. The highest score at the end is the winner.

G31 BIG-6 ( With option of b03, b04, b05……..b20, b21 )

Single 6 is the first target to hit when the game begins. Within the three throws, player 1 must hit

a 6 to “save” their life. After the current target is hit, the next dart thrown will determine the

opponent‟s target. If player 1 fails to hit the current target within 2 darts, he will lose a chance to

determine the next target for player 2. Player 2 will shoot for a new target generated by computer randomly. Singles, doubles and triples are all separate targets for this game.

The object of the game is to force your opponent into losing lives by selecting tough targets for your opponent to hit such as “Double Bull‟s eye” or “triple 20”. The last player with a life left is the winner.

b03 to b21 represents 3 to 21 lives respectively. The no. of lives left is displayed by the cricket display.

G32 21 POINTS ( With option of 005, 006, 007, 008, 009, 010, 011 )

The object of this game is to get the most marks. A player can get one mark in two ways:

1. Gets 21 points exactly with 1, 2 or 3 darts, or

2. Has the highest points up to 21 points (if no one gets 21 points in this round)

The player will „bust‟ when a score is over 21 points and the player cannot get a mark. After the game is over, the player with the most marks wins the game. 005, 006, 007….. 011 represent 5 rounds, 6 rounds, 7 rounds….. 11 rounds respectively.

Page 15

ESCORELCD

For Customer Service Call 1-800-526-0451

Page 16

ESCORELCD

For Customer Service Call 1-800-526-0451
