ESC G41T-M User Manual
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected
under international copyright laws, with all rights reserved. Neither this manual, nor
any of the material contained herein, may be reproduced without written consent of
the author.
Version 2.0
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and
specifically disclaims any implied warranties of merchantability or fitness for any
particular purpose. The manufacturer reserves the right to revise this publication and
to make changes from time to time in the content hereof without obligation of the
manufacturer to notify any person of such revision or changes.
Trademark Recognition
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel
Corporation.
Other product names used in this manual are the properties of their respective
owners and are acknowledged.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Shielded interconnect cables and a shielded AC power cable must be employed with
this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’ s
manufacturer could void the user’s authority to operate the equipment.
Preface
ii
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation
Canadian Department of Communications
This class B digital apparatus meets all requirements of the Canadian Interferencecausing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur
le matériel brouilieur du Canada.
About the Manual
The manual consists of the following:
Chapter 1
Introducing the Motherboard
Chapter 2
Installing the Motherboard
Chapter 3
Using BIOS
Chapter 4
Using the Motherboard Software
Describes features of the
motherboard.
Go to
Describes installation of
motherboard components.
Go to
Provides information on using
the BIOS Setup Utility.
Go to
Describes the motherboard software.
Go to
H
H
H
H
page 1
page 7
page 27
page 45
Preface
TT
ABLE OF CONTENTSABLE OF CONTENTS
T
ABLE OF CONTENTS
TT
ABLE OF CONTENTSABLE OF CONTENTS
Preface i
Chapter 1 1
Introducing the Motherboard 1
Introduction......................................................................................1
Feature...............................................................................................2
Motherboard Components.............................................................5
iii
Chapter 2
Installing the Motherboard 7
Safety Precautions............................................................................7
Choosing a Computer Case.............................................................7
Installing the Motherboard in a Case............................................7
Checking Jumper Settings...............................................................8
Setting Jumpers...................................................................8
Checking Jumper Settings...................................................9
Jumper Settings...................................................................9
Installing Hardware........................................................................10
Installing the Processor.....................................................10
Installing Memory Modules...............................................12
Expansion Slots.................................................................15
Connecting Optional Devices............................................17
Installing a Hard Disk Drive/CD-ROM/SAT A Har d Drive..19
Connecting I/O Devices................................................................21
Connecting Case Components.....................................................22
Front Panel Header...........................................................25
7 7
7
7 7
Chapter 3 27
Using BIOS 27
About the Setup Utility ................................................................ 27
The Standard Configuration..............................................27
Entering the Setup Utility...................................................27
Using BIOS......................................................................................28
Standard CMOS Setup......................................................29
Advanced Setup.................................................................31
Advanced Chi pset Setup....................................................33
Integrated Peripherals.......................................................34
Power Ma nagement Setup.................................................35
iv
PCI/PnP Setup...................................................................37
PC Health Status................................................................37
Frequency/Voltage Control................................................40
Load Default Settings.........................................................41
Supervisor Password.........................................................41
User Password...................................................................42
Save & Exit Setup...............................................................42
Exit Without Saving............................................................42
Updating the BIOS..............................................................43
Chapter 4
45 45
45
45 45
Using the Motherboard Software 45
About the Software CD-ROM......................................................45
Auto-installing under W indows V ista.........................................45
Running Setup....................................................................46
Manual Installation........................................................................50
Utility Software Reference............................................................50
Chapter 1
Introducing the Motherboard
Introduction
Thank you for choosing the G41T-M motherboard. This motherboard is a high
performance, enhanced function motherboard designed to support the LGA775 socket
®
Intel
CoreTM 2 Quad/CoreTM 2 Duo/Pentium® Dual-Core/Celeron® processors for
high-end business or personal desktop markets.
1
The motherboard incorporates the Intel® G41 Northbridge (NB) and Intel® ICH7
Southbridge (SB) chipsets.
quency of 1333/1066/800 MHz using a scalable FSB Vcc_CPU. The memory controller supports DDR2 memory DIMM frequencies of 800/667. It supports two
DDR2 sockets with up to maximum memory of 8 GB. DDR2 Maximum memory
bandwidth of 12.8 GB/s in dual-channel symmetric mode assuming DDR2 800 MHz.
High resolution graphics via one PCI Express slot, intended for Graphics Interface,
is fully compliant to the PCI Express* Gen 1.
The ICH7 Southbridge supports one PCI slot which is PCI v2.3 compliant. In addition, two PCI Express x1 slots are supported, fully compliant to the PCI Express
Base Specification revision 1.0a. It implements an EHCI compliant interface that
provides 480 Mb/s bandwidth for eight USB 2.0 ports (four USB ports and two USB
2.0 headers support additional four USB ports). One onboard IDE connector supports
two IDE devices in Ultra ATA100/66/33 mode. The Southbridge integrates a Serial
ATA host controller, supporting four SATA ports with maximum transfer rate up to
3.0 Gb/s each.
The motherboard is equipped with advanced full set of I/O ports in the rear panel,
including PS/2 mouse and keyboard connectors, COM, one VGA port, four USB
ports, one LAN port, and audio jacks for microphone, line-in and line-out.
The Northbridge supports a Front Side Bus (FSB) fre-
Introducing the Motherboard
2
Feature
Processor
The motherboard uses an LGA775 type of Intel® CoreTM 2 Quad/CoreTM 2 Duo/
®
Pentium
“Hyper-Threading” technology enables the operating system into thinking it’s
hooked up to two processors, allowing two threads to be run in parallel, both on
separate “logical” processors within the same physical processor.
Dual-Core/Celeron® processors that carries the following features:
• Intel® CoreTM 2 Quad/CoreTM 2 Duo/Pentium® Dual-Core/Celeron® processors
• Supports a system bus (FSB) of 1333/1066/800 MHz
• Supports “Hyper-Threading” technology CPU
This board supports CPU up to 95W TDP.
Chipset
The Intel® G41 Northbridge (NB) and Intel® ICH7 Southbridge (SB) chipsets are
based on an innovative and scalable architecture with proven reliability and
performance.
G41 (NB)
ICH7 (SB)
• Supports 36-bit host bus addressing, allowing the CPU
to access the entire 64 GB of the memory address
space
• 2 GB/s point-to-point Direct Media Interface (DMI) to
ICH7 (1 GB/s each direction)
• Supports 2-GB, 1-Gb, 512 Mb DDR2 DRAM technologies for x8 and x16 devices
• One, 16-lane (x16) PCI Express port intended for external device attach, fully compatible to the PCI Express* Gen 1
• An integrated graphics device (IGD) delivering cost
competitive 3D, 2D and video capabilities
• Microsoft DX10 and 128MB share memory are supported
• Enhanced DMA Controller , interrupt controller , and ti mer
functions
• Compliant with PCI Express Base Specification, Revision 1.0a
• Compliant with PCI v2.3 specification
• Integrated SATA 3.0 Gb/s Host Controller
• Integrated USB 2.0 Host Controller supporting up to
eight USB 2.0 ports
• Integrated IDE controller supports Ultra ATA 100/66/33
Memory
• Supports DDR2 800/667 DDR2 SDRAM with Dual-channel architecture
• Accommodates two unbuffered DIMMs
• Up to 4 GB per DIMM with maximum memory size up to 8 GB
Introducing the Motherboard
Onboard LAN (optional)
The onboard LAN controller provides either of the following features:
• Supports 10/100 Mbps Ethernet Transceiver
• Fully compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab
• Wake-On-LAN (WOL) by Magic Packet/Frame/Link Change
• Integrated PHY for 10/100/1000 Mbps
• IEEE 802.3x compliant flow control support
• Three power supplies: 2.5V, 1.8V and 1.2V
• PCI Express base 1.1 compliant
Audio (optional)
This motherboard may support either of the following Audio chipsets:
• 5.1 Channel High Definition Audio Codec
• Exceeds Microsoft Windows Logo Program (WLP) Requirements
• ADCs support 44.1K/48K/96K/192KHz sample rate
• Power Support: Digital: 3.3V; Analog: 5.0V
• 5.1 Channel High Definition Audio Codec
• ADCs support 44.1K/48K/96KHz sample rate
• Meet Microsoft WLP 3.08 Vista premium and mobile PCs audio
requirements
• Direct Sound 3DTM compatible
Expansion Options
The motherboard comes with the following expansion options:

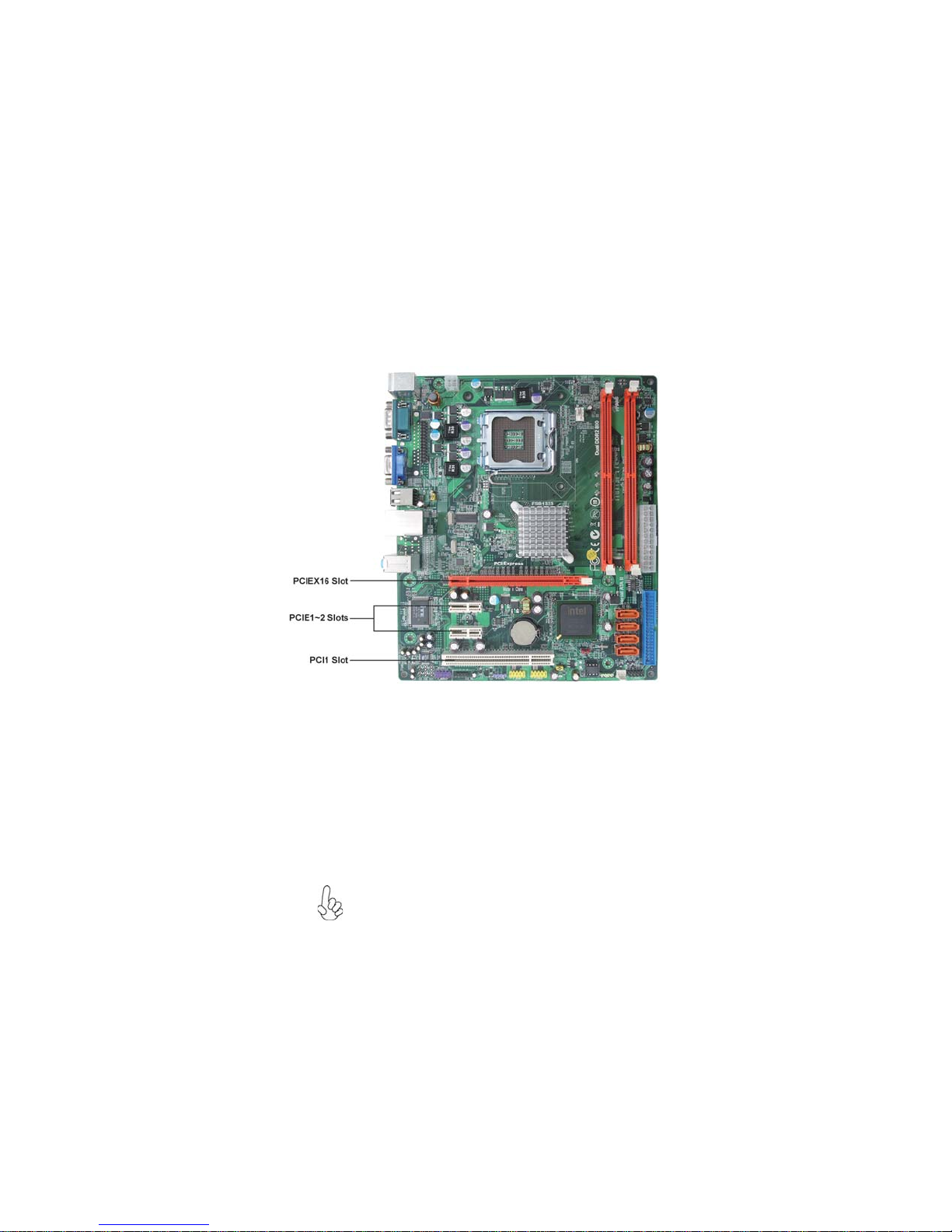

• One PCI Express slot for Graphic Interface
• Two PCI Express x1 slots
• One 32-bit PCI v2.3 compliant slot
• One IDE connector that supports two IDE devices
• Four 7-pin SATA connectors
3
Integrated I/O

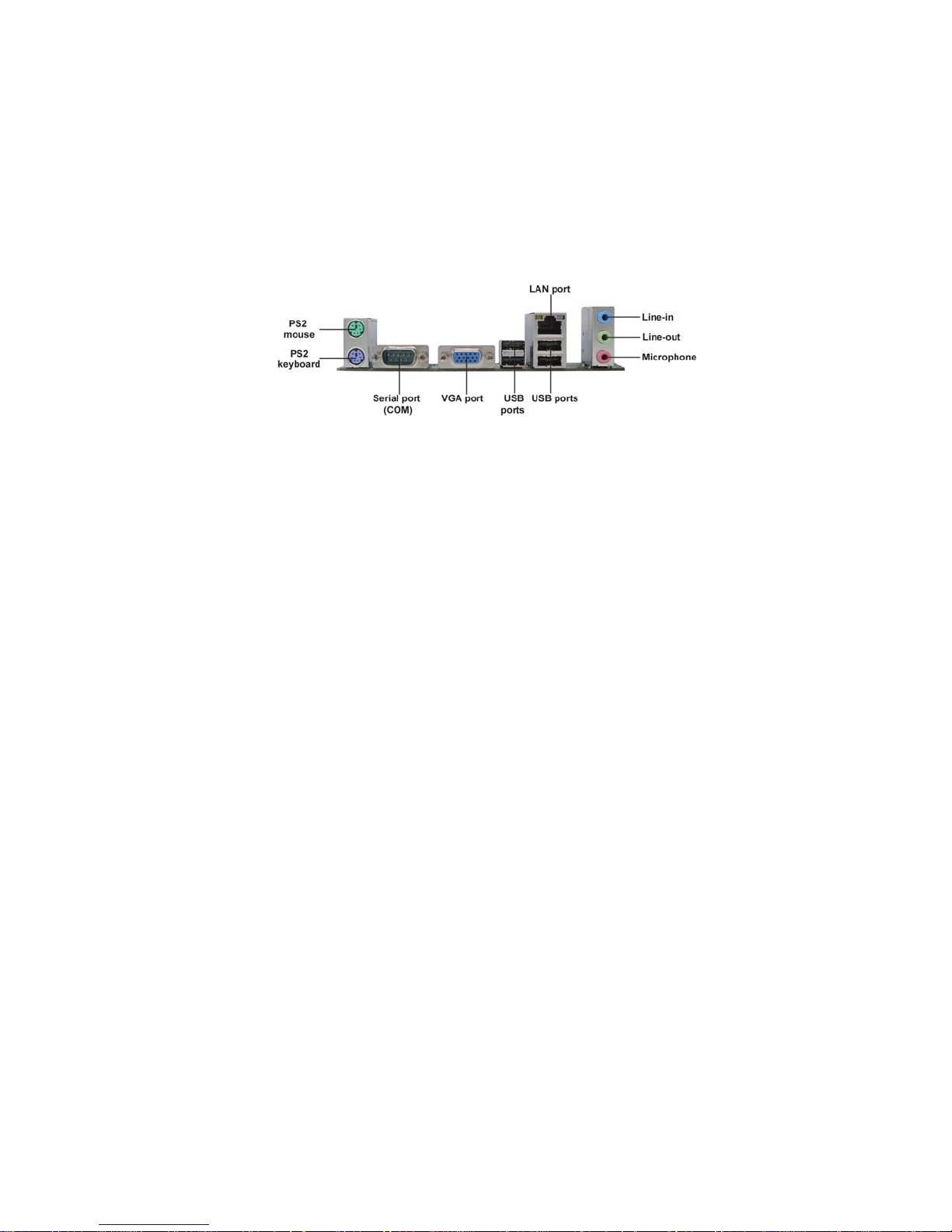

The motherboard has a full set of I/O ports and connectors:
• Two PS/2 ports for mouse and keyboard
• One serial port
• One VGA port
• Four USB ports
• One LAN port
• Audio jacks for microphone, line-in and line-out
Introducing the Motherboard
4
BIOS Firmware
This motherboard uses AMI BIOS that enables users to configure many system
features including the following:
• Power management
• Wake-up alarms
• CPU parameters
• CPU and memory timing
The firmware can also be used to set parameters for different processor clock
speeds.
1.Some hardware specifications and software items are subject to change
without prior notice.
2.Due to chipset limitation, we recommend that motherboard be operated in the ambiance between 0 and 50°C.
Introducing the Motherboard

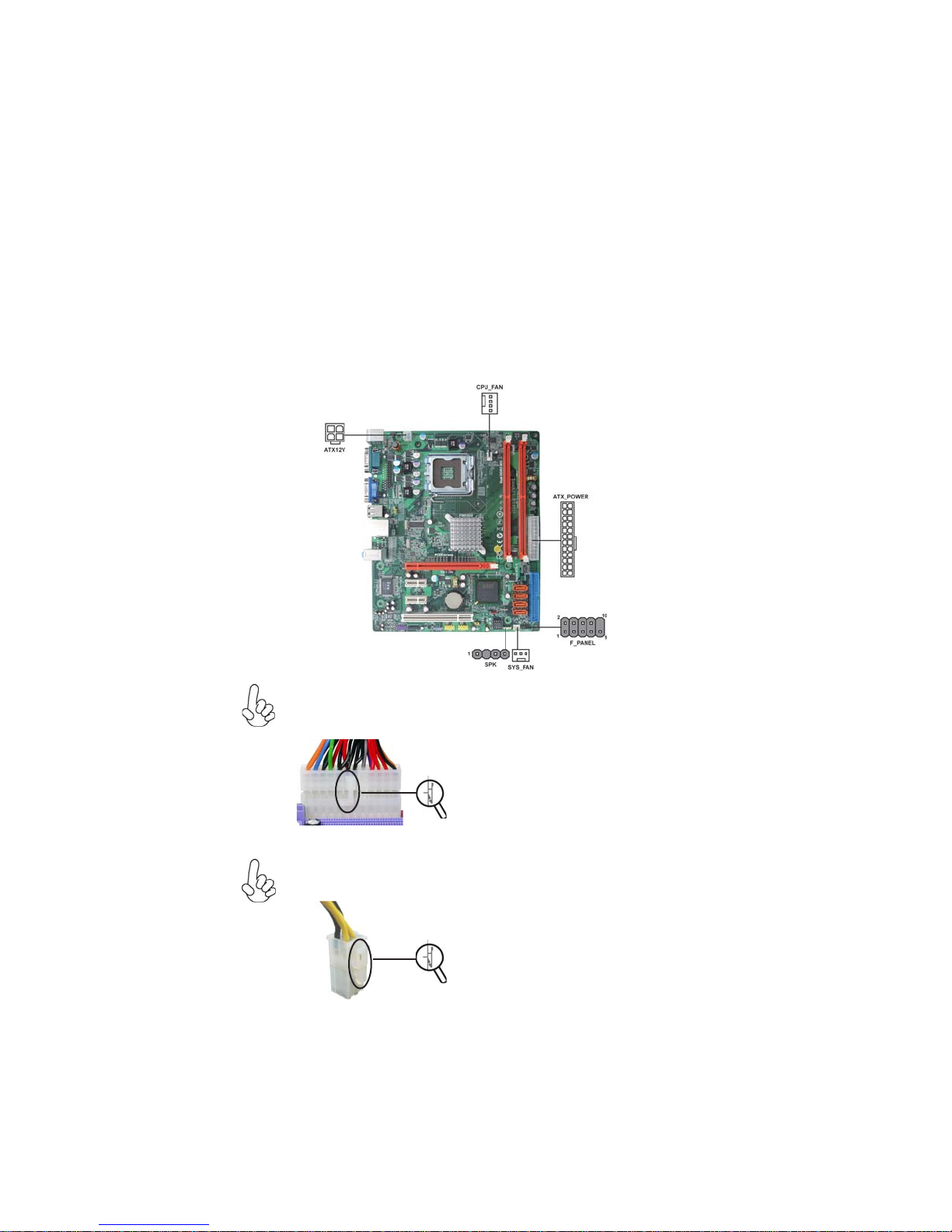

Motherboard Components
T
T
Table of Motherboard Components
5
LABEL COMPONENTS
1. CPU Socket
LGA775 socket for Intel
2 Duo/Pentium® Dual-core/Celeron® processors
®
Core
M
2 Quad/Core
M
2. CPU_FAN CPU cooling fan connector
3. DDR2_1~2 240-pin DDR2 SDRAM slots
4. ATX_POWER Standard 24-pin ATX power connector
5. SATA1~4 Serial ATA connectors
6. IDE Primary IDE channel

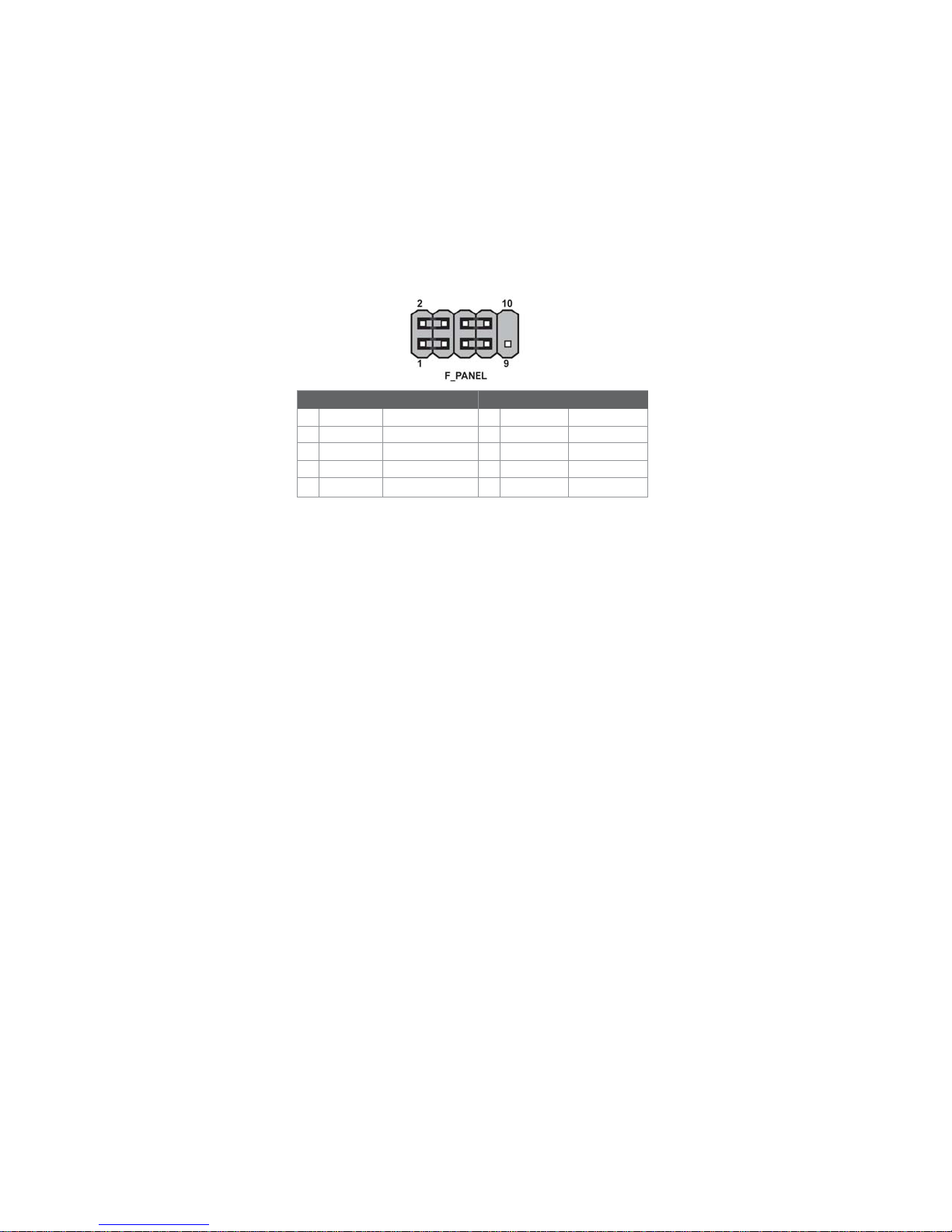

7. F_PANEL Front panel switch/LED header
8. SYS_FAN System cooling fan connector
9. SPK Speaker header
10. CLR_CMOS Clear CMOS jumper
11. USBPWR_F Front panel USB Power Select Jumper
12. F_USB1~2 Front panel USB headers
13. SPDIFO SPDIF out header
14. CD_IN Analog audio input header
15. F_AUDIO Front panel audio header
16. PCI1 32-bit add-on card slot
17. PCIE1~2 PCI Express x1 slots
18. PCIEX16 PCI Express x16 graphics card slot
19. USBPWR_R Rear panel USB PS/2 Power Select Jumper
20. LPT_H Onboard parallel port header
21. ATX12V 4-pin +12V power connector
This concludes Chapter 1. The next chapter explains how to install the motherboard.
Introducing the Motherboard
6
Memo
Introducing the Motherboard
Chapter 2
Installing the Motherboard
Safety Precautions
• Follow these safety precautions when installing the motherboard
• Wear a grounding strap attached to a grounded device to avoid damage from static electricity
• Discharge static electricity by touching the metal case of a safely
grounded object before working on the motherboard
• Leave components in the static-proof bags they came in
• Hold all circuit boards by the edges. Do not bend circuit boards
Choosing a Computer Case
There are many types of computer cases on the market. The motherboard complies
with the specifications for the Micro ATX system case. First, some features on the
motherboard are implemented by cabling connectors on the motherboard to indicators and switches on the system case. Make sure that your case supports all the
features required. Secondly, this motherboard supports two enhanced IDE drives.
Make sure that your case has sufficient power and space for all drives that you intend
to install.
Most cases have a choice of I/O templates in the rear panel. Make sure that the I/O
template in the case matches the I/O ports installed on the rear edge of the
motherboard.
This motherboard carries a Micro ATX form factor of 244 x 204 mm. Choose a case
that accommodates this form factor.
7
Installing the Motherboard in a Case
Refer to the following illustration and instructions for installing the motherboard in
a case.
Most system cases have mounting brackets installed in the case, which correspond
the holes in the motherboard. Place the motherboard over the mounting brackets
and secure the motherboard onto the mounting brackets with screws.
Ensure that your case has an I/O template that supports the I/O ports and expansion
slots on your motherboard.
Installing the Motherboard
8
Do not over-tighten the screws as this can stress the motherboard.
Checking Jumper Settings
This section explains how to set jumpers for correct configuration of the motherboard.
Setting Jumpers
Use the motherboard jumpers to set system configuration options. Jumpers with
more than one pin are numbered. When setting the jumpers, ensure that the jumper
caps are placed on the correct pins.
The illustrations show a 2-pin jumper.
When the jumper cap is placed on both
pins, the jumper is SHORT. If you remove the jumper cap, or place the jumper
cap on just one pin, the jumper is OPEN.
This illustration shows a 3-pin jumper.
Pins 1 and 2 are SHORT.
SHORT OPEN
Installing the Motherboard
Checking Jumper Settings
The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
Jumper Settings
9
Jumper
CLR_CMOS
USBPWR_F
USBPWR_R 3-pin
3-pin
3-pin
1. To avoid the system instability after clearing CMOS, we recommend
users to enter the main BIOS setting page to “Load Default Settings”
and then “Save and Exit Setup”.
2. Make sure the power supply provides enough 5VSB voltage before
selecting the 5VSB function.
3. It is required that users place the USBPWR_F & USBPWR_R cap onto
2-3 pin rather than 1-2 pin as default if you want to wake up the computer by USB/PS2 KB/Mouse.
Type
Description Setting (default)
1-2: NORMAL
Clear CMOS
Front Panel
USB Power
Select Jumper
Rear USB PS/2
Power Select
Jumper
2-3: CLEAR
Before clearing the
CMOS, make sure to
turn off the system.
Installing the Motherboard
1-2: VCC
2-3: 5VSB
1-2: VCC
2-3: 5VSB
1
CLR_CMOS
1
USBPWR_F
1
USBPWR_R
10
Installing Hardware
Installing the Processor
Caution: When installing a CPU heatsink and cooling fan make sure
that you DO NOT scratch the motherboard or any of the surfacemount resistors with the clip of the cooling fan. If the clip of the cooling
fan scrapes across the motherboard, you may cause serious damage
to the motherboard or its components.
On most motherboards, there are small surface-mount resistors near
the processor socket, which may be damaged if the cooling fan is
carelessly installed.
Avoid using cooling fans with sharp edges on the fan casing and the
clips. Also, install the cooling fan in a well-lit work area so that you
can clearly see the motherboard and processor socket.
Before installing the Processor
This motherboard automatically determines the CPU clock frequency and system bus
frequency for the processor. You may be able to change the settings in the system
Setup Utility. We strongly recommend that you do not over-clock processors or
other components to run faster than their rated speed.
Warning:
1. Over-clocking components can adversely affect the reliability of the
system and introduce errors into your system. Over-clocking can permanently damage the motherboard by generating excess heat in components that are run beyond the rated limits.
2. Always remove the AC power by unplugging the power cord from
the power outlet before installing or removing the motherboard or
other hardware components.
This motherboard has an LGA775 socket. When choosing a processor, consider the
performance requirements of the system. Performance is based on the processor
design, the clock speed and system bus frequency of the processor, and the quantity
of internal cache memory and external cache memory.
Installing the Motherboard
CPU Installation Procedure
The following illustration shows CPU installation components.
A. Read and follow the instructions shown
on the sticker on the CPU cap.
B. Unload the cap
· Use thumb & forefinger to hold the
lifting tab of the cap.
· Lift the cap up and remove the cap
completely from the socket.
C. Open the load plate
· Use thumb & forefinger to hold the
hook of the lever, pushing down and
pulling aside unlock it.
· Lift up the lever.
· Use thumb to open the load plate. Be
careful not to touch the contacts.
D. Install the CPU on the socket
· Orientate CPU package to the socket.
Make sure you match triangle marker
to pin 1 location.
E. Close the load plate
· Slightly push down the load plate onto
the tongue side, and hook the lever.
· CPU is locked completely.
11
F. Apply thermal grease on top of the CPU.
G. Fasten the cooling fan supporting base
onto the CPU socket on the motherboard.
H. Make sure the CPU fan is plugged to the
CPU fan connector. Please refer to the
CPU cooling fan user’s manual for more
detail installation procedure.
1. To achieve better airflow rates and heat dissipation, we suggest
that you use a high quality fan with 3800 rpm at least. CPU fan and
heatsink installation procedures may vary with the type of CPU fan/
heatsink supplied. The form and size of fan/heatsink may also vary.
2. DO NOT remove the CPU cap from the socket before installing a
CPU.
3. Return Material Authorization (RMA) requests will be accepted
only if the motherboard comes with the cap on the LGA775 socket.
Installing the Motherboard
Loading...
