ESAB TAE 800, TAE 1250 Spare parts list (Replacement parts)

TAE 800/1250

Svetslikriktare Svejseensretter Likeretter for sveising Hitsaustasasuuntaaja Welding rectifier Schweißgleichrichter Redresseur de soudage Lasgelijkrichter Rectificador de soldadura Raddrizzatore per saldatura Rectificador de soldagem

БнпсищфЮт ухгкьллзузт

Bruksanvisning Brugsanvisning Bruksanvisning Käyttöohjeet Instruction manual Betriebsanweisung

Manual d’instructions Gebruiksaanwijzing Instrucciones de uso Istruzioni per l’uso Manual de instruções

ПдзгЯет чсЮуещт

456 221--001 991123

Valid from Machine no 508 XXX--XXX

SVENSKA 3..............................................

DANSK 8................................................

NORSK 13................................................

SUOMI 18................................................

ENGLISH 23..............................................

DEUTSCH 28.............................................

FRANÇAIS 33.............................................

NEDERLANDS 38.........................................

ESPAÑOL 43..............................................

ITALIANO 48..............................................

PORTUGUÊS 53..........................................

ЕЛЛЗНЙКБ 58.............................................

Rätt till ändring av specifikationer utan avisering förbehålles. Ret til ændring af specifikationer uden varsel forbeholdes. Rett til å endre spesifikasjoner uten varsel forbeholdes. Oikeudet muutoksiin pidätetään. Rights reserved to alter specifications without notice. Änderungen vorbehalten. Sous réserve de modifications sans avis préalable. Recht op wijzigingen zonder voorafgaande mededeling voorbehouden. Reservado el derecho de cambiar las especificaciones sin previo aviso. Ci riserviamo il diritto di variare le specifiche senza preavviso. Reservamo--nos o direito de alterar as especificações sem aviso prévio.

ДйбфзсеЯфбй фп дйкбЯщмб фспрпрпЯзузт рспдйбгсбцюн ЧщсЯт рспейдпрпЯзуз.

-- 2 --

Inkopplingsanvisning Tilkoblingsvejledning Innkoblingsanvisning Kytkentäohje Connection instruction Anschlußanleitung Instructions de branchement Aansluitingsinstructies Instrucciones de conexión Istruzioni per il collegamento Instruções de ligação ПдзгЯет уэндеузт ПДЗГЙЕУ УХНДЕУЗУ

ba16c12a

-- 6 3 --

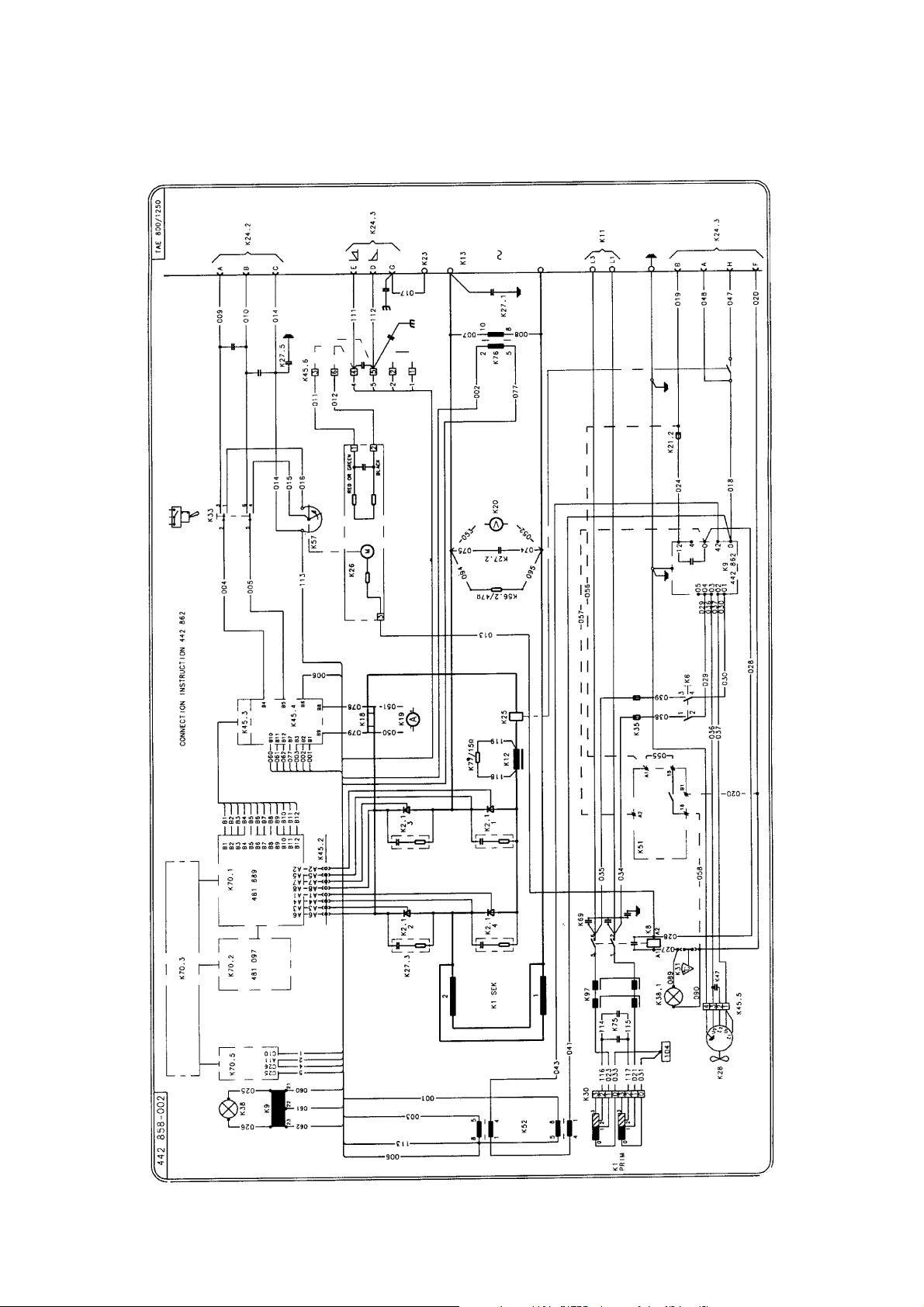

Schema Skema Skjema Johdotuskaavio Diagram Schaltplan Schéma Schema Esquema Schema Esquema Ó÷Þìб уэндеузт УЧЗМБ УХНДЕУЗУ

ba16e12a

-- 6 4 --

Reservdelsförteckning Reservedelsfortegnelse Reservedelsliste Varaosaluettelo Spare parts list Ersatzteilliste Liste de pièces détachées Reserveonderdelenlijst Lista de repuestos Elenco ricambi Lista de peças sobressalentes РЯнбкбт бнфбллбкфйкюн месюн РЙнбКБУ бнфбллбкфйкЩн месЩн

TAE 800 / TAE 1250

Edition 991123

Ordering no. Denomination Notes

0442851880 ®®®® 0442851882 TAE 800 0442852880 ®®®® 0442852882 TAE 1250

sparefram

-- 6 5 --

Item

Qty Ordering no. Denomination Notes

no.

0442851880 Welding power source TAE 800

0442851881 Welding power source TAE 800

0442851882 Welding power source TAE 800

1 1 0567200610 Spacer 2 1 0320289880 Volt-- and ammeter 3 1 0320746001 Main switch 4 1 0192576004 Indicating lamp 5 0192576304 Indicating lamp (yellow) 42 -- 48 V 6 1 0147866001 Switch 7 1 0218810781 Knob 8 2 0156388001 Handle

9 1 0481889880 PC--board 10 1 0481097884 Regulator 11 1 0442849880 Contactor 12 2 0319828001 Transformer 13 1 0442877001 Transformer 14 1 0319470015 Control transformer 1500 VA, 42/110 V 15 0486178880 PC--board (EMC) 16 0158115880 Cable inlet

s442851

-- 6 6 --

Item

Qty Ordering no. Denomination Notes

no.

1 2 0318042882 Coil (inductor)

2 1 0442906880 Coil (inductor)

3 1 0320951001 Fan

5 1 0442763880 Inductor

6 4 0442972001 Main thyristor

7 4 0041051606 Transient protection

8 4 0442993880 Thyristor bridge

9 1 0442719880 List complete

s442851

-- 6 7 --

Item

Qty Ordering no. Denomination Notes

no.

1 1 0319445001 Thermal switch

2 2 0442846001 Capacitor

3 1 0442717880 Main transformer

4 2 0442718880 Coil

5 1 0040887080 Current relay

s442851

-- 6 8 --

Item

Qty Ordering no. Denomination Notes

no.

0442852880 Welding power source TAE 1250

0442852881 Welding power source TAE 1250

0442852882 Welding power source TAE 1250

1 1 0192576004 Indicating lamp

3 0192576304 Indicating lamp (yellow) 42 -- 48 V

4 1 0147866001 Switch

5 2 0156388001 Handle

6 1 0218810781 Knob

7 1 0320746001 Main switch

8 1 0481889880 PC--board

9 1 0481097884 Regulator 10 1 0567200610 Fuse 16 A 11 1 0442849881 Contactor 12 2 0319828001 Transformer 13 1 0442877001 Transformer 14 1 0319470013 Control transformer 42/110 V

1 0319470014 Control transformer 42/110 V

1 0319470017 Control transformer 42/110 V 15 0486178880 PC--board (EMC) 16 0158115880 Cable inlet

s442852

-- 6 9 --

Item

Qty Ordering no. Denomination Notes

no.

1 1 0320951001 Fan 2 1 0442945880 Inductor 3 4 0041051606 Transient protection 4 4 0321427001 Main thyristor 5 4 0443065880 Thyristor bridge 6 1 0442719880 Connection board 7 1 0040887080 Current relay 8 2 0442906881 Coil (inductor)

s442852

-- 7 0 --

Item

Qty Ordering no. Denomination Notes

no.

1 2 0442846001 Capacitor 2 2 0442831880 Coil 220, 380, 415, 550V 3 1 0442717881 Main transformer 4 1 0319445001 Thermal switch 5 1 0551203080 Shunt

s442852

-- 7 1 --
