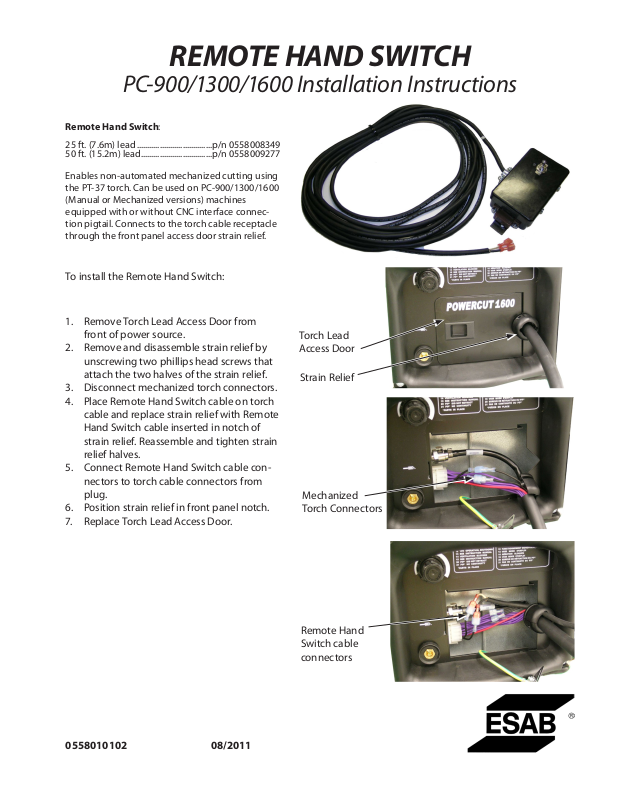

Remote Hand SwitcH
PC-900/1300/1600 Installation Instructions
Remote Hand Switch:
25 ft. (7.6m) lead ....................................p/n 0558008349
50 ft. (15.2m) lead ..................................p/n 0558009277
Enables non-automated mechanized cutting using
the PT-37 torch. Can be used on PC-900/1300/1600
(Manual or Mechanized versions) machines
equipped with or without CNC interface connection pigtail. Connects to the torch cable receptacle
through the front panel access door strain relief.
To install the Remote Hand Switch:
1. Remove Torch Lead Access Door from
front of power source.
2. Remove and disassemble strain relief by
unscrewing two phillips head screws that
attach the two halves of the strain relief.
3. Disconnect mechanized torch connectors.
4. Place Remote Hand Switch cable on torch
cable and replace strain relief with Remote
Hand Switch cable inserted in notch of
strain relief. Reassemble and tighten strain
relief halves.
5. Connect Remote Hand Switch cable connectors to torch cable connectors from
plug.
6. Position strain relief in front panel notch.
7. Replace Torch Lead Access Door.
Torch Lead
Access Door
Strain Relief
Mechanized
Torch Connectors
0558010102 08/2011
Remote Hand
Switch cable
connectors
