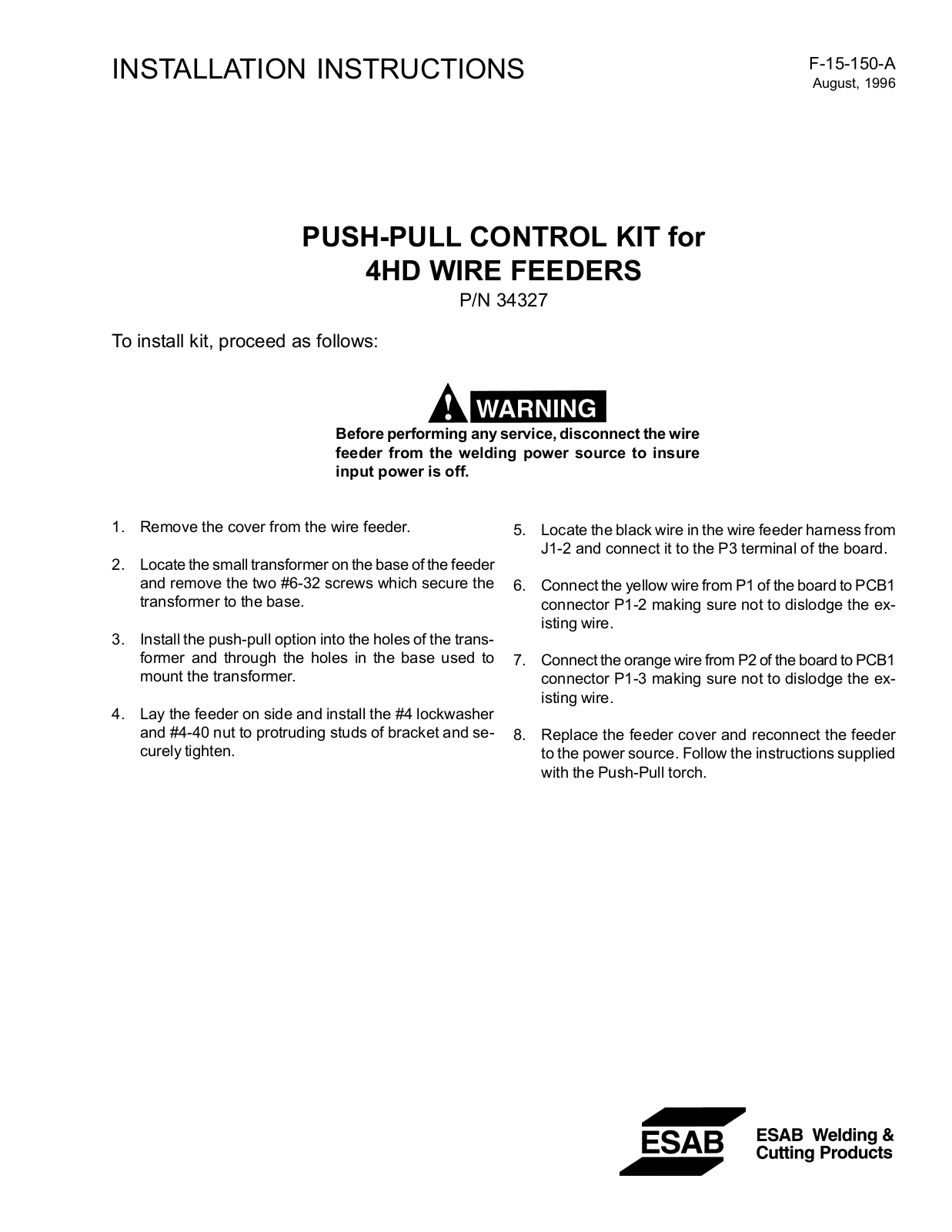

INSTALLATION INSTRUCTIONS

PUSH-PULL CONTROL KIT for

4HD WIRE FEEDERS

P/N 34327

To install kit, proceed as follows:

Before performing any service, disconnect the wire
feeder from the welding power source to insure
input power is off.

F-15-150-A

August, 1996

1. Remove the cover from the wire feeder.

2. Locate the small transformer on the base of the feeder
and remove the two #6-32 screws which secure the
transformer to the base.

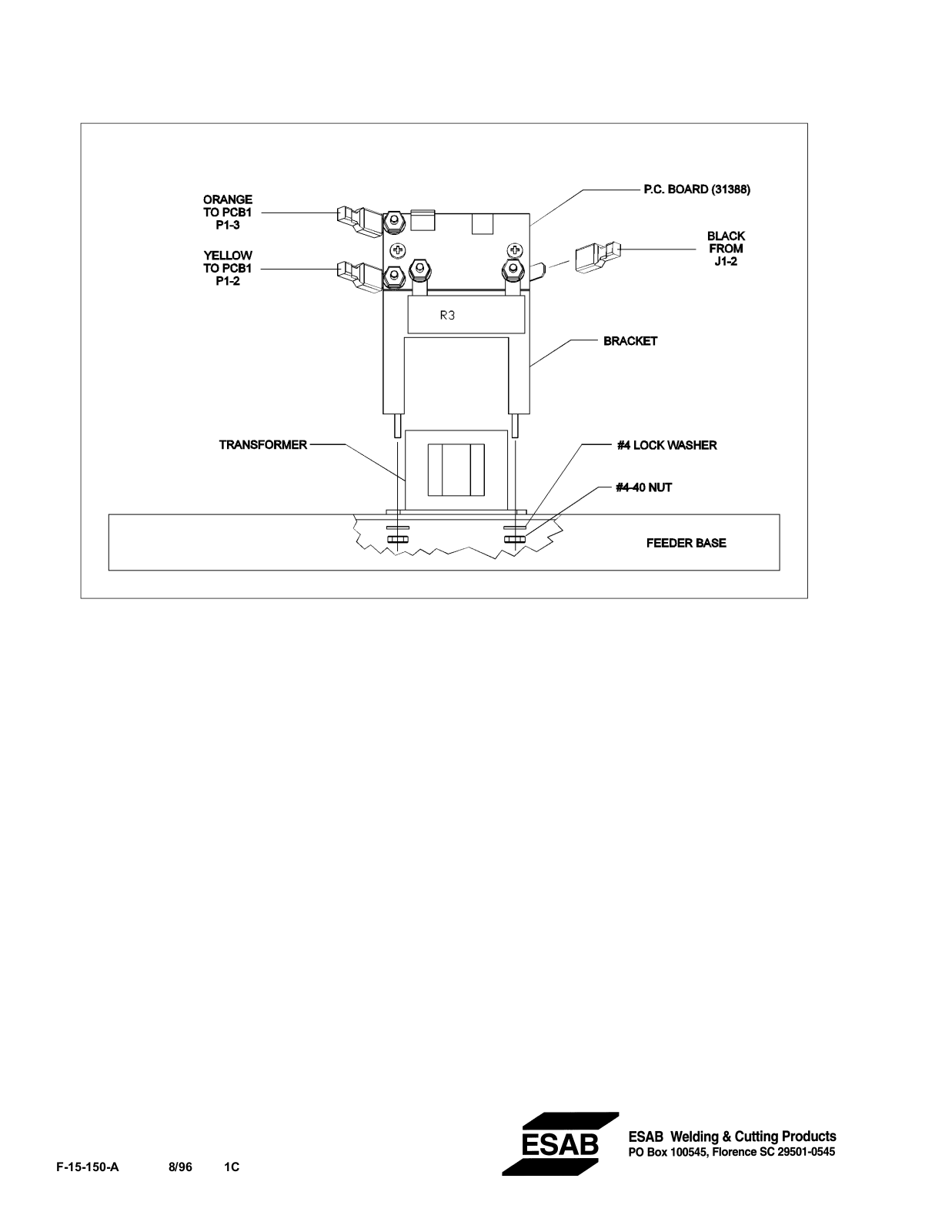

3. Install the push-pull option into the holes of the trans­former and through the holes in the base used to
mount the transformer.

4. Lay the feeder on side and install the #4 lockwasher
and #4-40 nut to protruding studs of bracket and se­curely tighten.

5. Locate the black wire in the wire feeder harness from
J1-2 and connect it to the P3 terminal of the board.

6. Connect the yellow wire from P1 of the board to PCB1
connector P1-2 making sure not to dislodge the ex­isting wire.

7. Connect the orange wire from P2 of the board to PCB1
connector P1-3 making sure not to dislodge the ex­isting wire.

8. Replace the feeder cover and reconnect the feeder
to the power source. Follow the instructions supplied
with the Push-Pull torch.

F-15-150-A 8/96 1C
