PUA 1
Programming manual
Aristo 320/450,
Aristo 320W/450W
104
0456 685 005 98.12.10
Valid for program version 2.0 ?A
ENGLISH
1 INTRODUCTION 4...................................................
1.1 Main menu 4...............................................................
1.3 Choice of language 5........................................................
1.4 Display 6...................................................................
1.5 Keys 7.....................................................................
1.6 Settings in general 7.........................................................
1.7 ENTER and QUIT 8.........................................................
2 MIG/MAG welding 9..................................................
2.1 The expression “wire“ 9......................................................
2.2 Synergic welding 9..........................................................
2.3 Basic settings 9.............................................................
2.4 Welding data settings 12......................................................
2.5 Start and stop settings 12.....................................................
2.6 Gas purge, cold wire feed and trigger latch 13....................................
2.7 MIG/MAG configuration 15....................................................
2.8 Setting--up example MIG/MAG 15..............................................
3 MMA weldin g 24......................................................
3.1 Synergic mode 24............................................................
3.2 Basic settings 24.............................................................
3.3 Welding data 25..............................................................
3.4 MMA--configuration 26........................................................
3.5 Setting--up example MMA 26..................................................
4 TIG welding 28.......................................................
4.1 Basic settings 28.............................................................
4.2 Welding data settings 29......................................................
4.3 TIG--configuration 31.........................................................
4.4 Setting--up example TIG 31....................................................
5 Arc air gouging 36....................................................
5.1 Synergic mode 36............................................................
5.2 Basic settings 36.............................................................
5.3 Welding data 36..............................................................
5.4 Setting--up example for arc air gouging 37.......................................
6 MEASURED VALUE DISPLAY 39.......................................
6.1 Description of measured value display 39........................................
6.2 Changing set values 40.......................................................
7MEMORY 41..........................................................
7.1 Store 41....................................................................
7.2 Delete 43...................................................................
7.3 Recall 44....................................................................
7.4 Copy 44.....................................................................
7.5 Remote control 46............................................................
8FASTMODE 47.......................................................
8.1 Description of fast mode 47....................................................
8.2 Configuring the fast mode keys 47..............................................
TOCe
-- 2 --
ENGLISH
9 AUXILIARY FUNCTIONS 48............................................
9.1 Memory card operations 48....................................................
9.2 Configuration 50.............................................................
9.3 Quality functions 61..........................................................
9.4 Production statistics 62.......................................................
9.5 Error log 63..................................................................
9.6 User--defined synergic lines for MIG/MAG 66....................................
9.7 Serial communication 69......................................................
9.8 Upgrading software 70........................................................
10 APPENDIX 73.........................................................
10.1 Setting ranges and setting steps 73.............................................
10.2 Menu structure 75............................................................
TOCe
-- 3 --
1 INTRODUCTION
ARISTO 2000 is one of the most practical welding power sources on the market.
In order to get the maximum benefit from your welding equipment we recommend
that you read this manual carefully.
You will find that there are many features to improve your work and make it easier.
All settings are made using the PUA 1 controller.
You will quickly find this very easy to use. To help you find the sections of the manual
that are of special interest see the following:
Section 1: Introduction and basics
Sections 2--5: MIG/MAG, MMA, TIG and arc-- air gouging, settings directly
related to these parameters.
Sections 6--8: Measured value display, using the memory and quick settings.
Sections 9--10: Auxiliary functions and appendix.
See also the menu structure on the last page of this manual.
1.1 Main menu
ESAB LUD 450
PROCESS: MIG/MAG
METHOD: DIP/SPRAY
WIRE TYPE: Fe
SHIELDING G AS: Ar+2O% CO2
WIRE DIMENSION: 1.2 mm
AUXILIARY FUNCTIONS
SET MEASURE MEMORY
FAST
MODE
ENTER
1.2 Using the controller
The controller can be said to consist of two units; the working memory and the
weld data memory.
COLLECT
WELD DATA
MEMORY
STORE
The working memory is used to store a complete set of welding parameters, which
can then be saved in the weld data memory.
WORKING
MEMORY
The welding process is always controlled by the contents of the working memory.
This also makes it possible to download a set of welding parameters from the weld
data memory to the working memory.
Note that the working memory always contains the last set of welding parameters
that were used, in other words the working memory is never empty or “initialised“.
bu10d12e
-- 4 --
1.3 Choice of language
The controller is programmed in up to four different languages, one of which is
always English.
Controller 456 290--881 Controller 456 290--882
English English
German Swedish
French Finnish
Italian Danish
Controller 456 290--883 Controller 456 290--884
English English
Dutch Hungarian
Spanish Polish
Portuguese
How to choose the language:
We start by pressing the MENU key to call up the m ain menu.
Using the arrow
keys, move the
cursor to the
line AUXILIARY
FUNCTIONS
and press
ENTER.
Position the cursor
on the line
CONFIGURATION
and press ENTER.
ESAB LUD 450
PROCESS: MIG/MAG
METHOD: DIP/SPRAY
WIRE TYPE: Fe
SHIELDING G AS: Ar+8%CO2
WIRE DIMENSION: 1.2 mm
AUXILIARY FUNCTIONS
SET MEASURE MEMORY
AUXILIARY FUNCTIONS
MEMORY CARDS OPERATIONS
CONFIGURATION
QUALITY FUNCTIONS
PRODUCTION STATISTICS
ERROR LOG
USER DEFINED SYNERGIC DATA
SERIAL COMMUNICATION
SOFTWARE UPDATE
"
FAST
MODE
ENTER
QUIT ENTER
-- 5 --bu10d12e
Press ENTER to
display the list of
options.
AUXILIARY FUNCTIONS -- CONFIGURATION
LANGUAGE: SVENSKA
LOCK FUNCTION: OFF
REMOTE CONTROLS
MIG/MAG DEFAULTS
MMA DEFAULTS
TIG DEFAULTS
GENERAL DEFAULTS
QUIT ENTER
Position the cursor on the line for
Choice of language in the list and press ENTER again.
Now we have set LANGUAGE = ENGLISH
ENGLISH
SVENSKA
SUOMI
DANISH
1.4 Display
ESAB LUD 450
PROCESS: MIG/MAG
METHOD: DIP/SPRAY
WIRE TYPE: Fe
SHIELDING G AS: Ar+2O%CO2
WIRE DIMENSION: 1.2 mm
AUXILIARY FUNCTIONS
FAST
SET MEASURE MEMORY
Cursor
The cursor is shown in this manual as a box around the selected text. The controller
cursor actually appears as a shaded field with the selected text highlighted in white.
MODE ENTER
Text boxes
At the bottom of the display are five boxes containing text that explains the current
functions of the five keys in a line below them.
Saver mode
To extend the life of the display illumination it is switched off after three minutes if
thereisnoactivity.
bu10d12e
-- 6 --

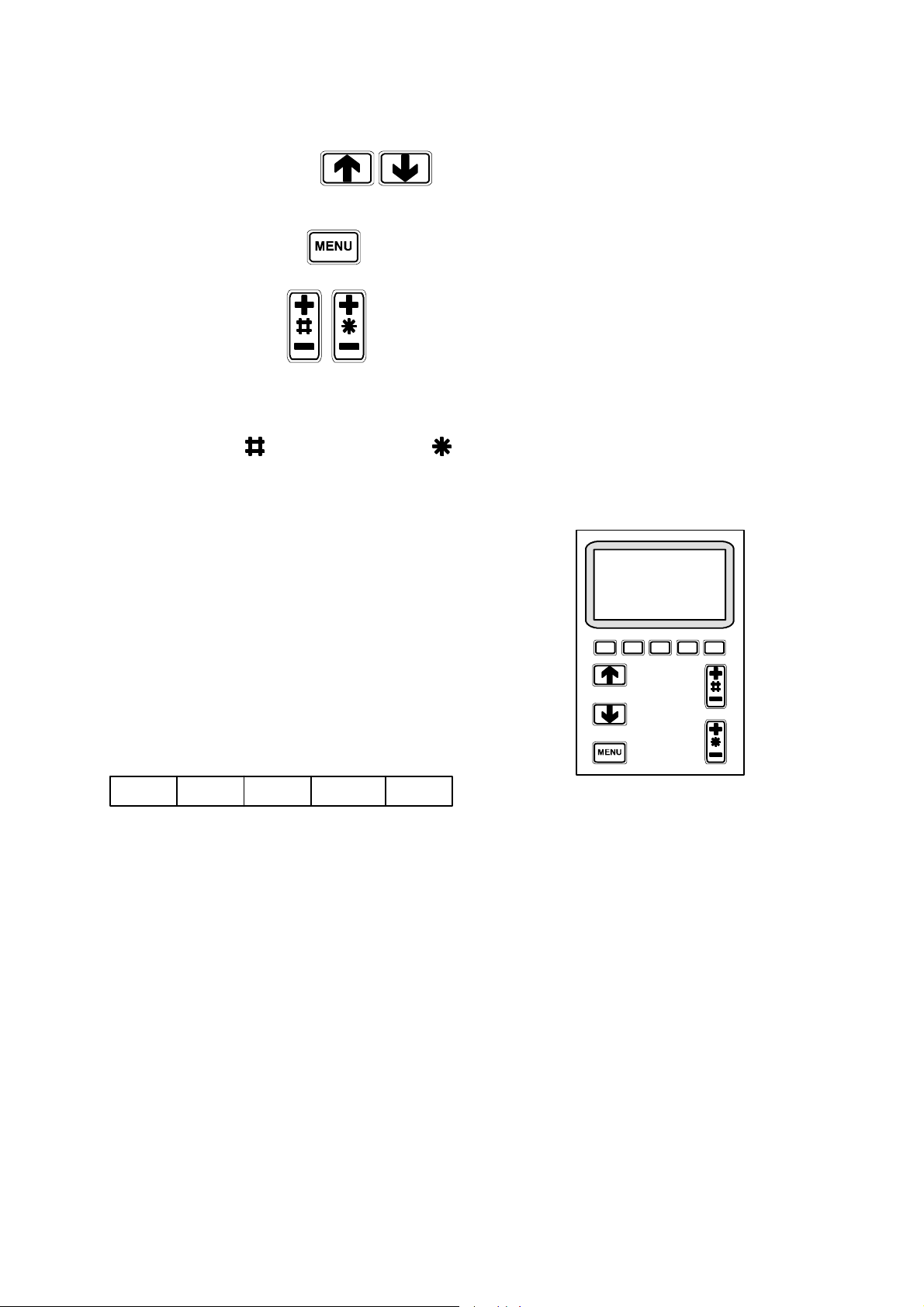

1.5 Keys
By using the cursor keys you can move the cursor to different lines in
the display.
Pressing the menu key always brings you back to the main menu.
The plus/minus keys are used to increase (+) or decrease (--) the value of
a setting.
The two plus/minus keys are each marked with their own symbol. Most settings can
be entered with either the plus or minus key, but certain settings must be made with
the key marked or the key marked (the symbols are visible in the display).
Pressing a key rapidly increases or decreases a setting in small steps. If the key is
held down for longer the size of the steps increases.
Soft keys
The five keys in a row under the display have
a variety of functions, these are “soft
keys“, i.e. they can have different functions
depending on which menu you are using. The
current functions of these keys are shown by
the text in the bottom line of the display
(when a function is active this is shown by a
white dot alongside the text).
CRATR
D
FILL
1.6 Settings in general
There are three main types of settings:
S Settings with numerical values
S Settings with fixed options
S Settings of the type ON/OFF or YES/NO
1.6.1 Numerical settings
To set a numerical value you use either the plus or minus key to increase or
decrease the existing setting.
-- 7 --bu10d12e
1.6.2 Settings with fixed options
Certain settings are made by selecting an alternative from a list. T he list might look
like this:
MIG/MAG
MMA
TIG
CARBON, ArcAir
Here the cursor is positioned on the line for MIG/MAG. By pressing the ENTER key
now you would select the MIG/MAG option.
If instead you wanted to choose another option then you would move the cursor to
the chosen line by moving up or down using the cursor keys . Then you press
the ENTER key.
If you wanted to exit the list without making a selection you would simply press the
QUIT key.
For some settings there are so many options that they cannot all be displayed at the
same time. An arrow at the top or bottom of the list indicates that more optio ns will
become visible if you scroll up or down using the cursor keys.
1.6.3 ON/OFF or YES/NO settings
With certain functions you can switch the setting to ON or OFF, or to YES or NO. The
synergic function in MIG/MAG and MMA welding is an example of such a function.
ON/OFF or YES/NO settings can be selected in either of two ways:
You can select ON or OFF or YES or NO from a list of options as described above.
Or you can use the plus/minus keys to select ON/OFF or YES/NO.
S + (plus) = ON or YES
S --(minus)=OFForNO
1.7 ENTER and QUIT
Both of the “soft“ keys at the bottom right are reserved for ENTER and QUIT.
S By pressing ENTER you confirm the selected option in a menu or list.
S By pressing QUIT you return to the previous menu or display.
bu10d12e
-- 8 --
2 MIG/MAG welding
2.1 The expression “wire“
In MIG/MAG welding you use an electrode that is wound on a reel (or drum). In this
manual this type of electrode is always referred to as wire.
2.2 Synergic welding
Each combination of wire type, wire diameter and gas mixture requires its own
unique combination of wire feed speed and voltage (arc length) in order to produce a
stable arc. ARISTO 2000 has several pre--programmed “ synergic lines“.
Once you have chosen the pre-- programmed synergic line that matches your choice
of wire type, wire diameter and gas mixture all you need to do is select a suitable
wire feed speed for the welding job. The voltage (arc length) automatically follows
the pre--programmed synergic line you have chosen, which makes it much easier to
find the right welding parameters quickly.
In MIG/MAG welding there is an option to use the welding power source in synergic
mode. This means that the user chooses a setting or value for:
S method
S wire type
S sh ielding gas
S wire diameter
On the basis of these basic settings and the selected value of wire feed speed a
microprocessor then selects appropriate values for the various welding parameters.
The values of these parameters are linked to the method you have chosen;
dip/spray or pulse. See also “Weld data settings“ under section 2.4.
It is also possible to weld with a combination of wire and shielding gas other than
those offered by the controller. This could however mean that the user will have to
set one or more parameters himself.
2.3 Basic settings
Basic settings are chosen from the controller’s main menu.
1. Welding process = MIG/MAG
2. Welding method
In the case of MIG/MAG welding you can choose between two different welding
methods.
S Dip/spray
S Short/Pulse
3. Wire type, shielding gas, wire size
The following tables show the combinations of wire type, shielding gas and wire
size that can be selected when the welding power source is in synergic mode.
-- 9 --bu10d12e
Wire type Shielding gas
Low alloy or unalloyed
wire (Fe)
Duplex stainless solid
wire (SS)
Stainless duplex wire
(Ss duplex)
Magnesium--alloyed
aluminium wire (AlMg)
Silicon--alloyed aluminium wire (AlSi)
Metal powder cored wire (Fe)
Rutile flux cored wire
(Fe)
Basic flux cored wire
(Fe)
Stainless flux cored wire (SS)
Duplex rutile flux cored
wire SS
Metal powder cored
stainless wire
DIP/SPRAY
Wire diameter (mm)
CO
2
Ar + 23% CO
Ar + 25% CO
Ar + 20% CO
2
2
2
Ar + 15% CO2+5%O
Ar +16% CO
Ar + 5%O2+5%CO
Ar + 8% CO
Ar + 2% CO
Ar + 2% O
Ar + 2%O
Ar + 2% CO
Ar + 3%CO2+1%H
Ar + 30%He + 1%O
2
2
2
2
2
2
2
2
2
2
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
Ar + 32%He + 3%CO2+1%H20,8 1,0 1,2 1,6
Ar + 2% O
2
Ar +30% He +1%O
2
1,0
1,0
Ar 1,0 1,2 1,6
Ar 1,0 1,2 1,6
Ar + 50% He 1,0 1,2 1,6
Ar + 20% CO
Ar+ 8% CO
CO
2
2
Ar + 20% CO
CO
2
Ar + 20% CO
Ar + 20% CO
Ar + 8% CO
2
2
2
2
2
1,0 1,2 1,4 1,6
1,0 1,2 1,4 1,6
1,2 1,4 1,6
1,2 1,4 1,6
1,0 1,2 1,4 1,6
1,0 1,2 1,4 1,6
1,2
1,2
SELF SHI ELDED 1,6 2,4
Ar + 20% CO
Ar + 2% O
Ar +2% CO
Ar +8% CO
2
2
2
Ar + 20% CO
2
2
1,2
1,2
1,2
1,2
1,2
bu10d12e
-- 1 0 --
PULSE
Wire type Shielding gas Wire diameter (mm)
Low alloy or unalloyed wi-
Ar + CO
2
0,8 1,0 1,2 1,6
re (Fe)
Ar + 20% CO
Ar + 23% CO
Ar +16% CO
Ar + 5%O2+5%CO
Ar + 8% CO
Ar + 2% CO
Ar + 2% O
Stainless wire (SS) Ar + 2%O
Ar + 2% CO
Ar + 30%He + 1%O
Ar +3% CO2+1%H
2
2
2
2
2
2
2
2
2
2
2
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
0,8 1,0 1,2 1,6
Ar + 32%He + 3%CO2+1%H20,8 1,0 1,2 1,6
Stainless duplex wire
Ar + 30%He +1%O
2
1,0
(SS Duplex)
Magnesium--alloyed alu-
Ar + 2% O
2
Ar 0,8 1,0 1,2 1,6
1,0
minium wire (AlMg)
Silicon--alloyed aluminium
Ar 1,0 1,2 1,6
wire (AlSi)
Ar + 50% He 1,0 1,2 1,6
Metal powder cored wire
Ar + 20% CO
2
1,0 1,2 1,4 1,6
(Fe)
Metal powder cored stainless wire (SS)
Ar + 8% CO
Ar + 2% O
Ar +2% CO
Ar +8% CO
2
2
2
2
1,2 1,2 1,4 1,6
1,2
1,2
1,2
Nickel alloy wire Ar 1,2 1,0
(Nickel base) Ar + 50% He 1,2 1,0
-- 1 1 --bu10d12e
2.4 Welding data settings
The following is an summary of the welding parameters that affect the welding
process when using MIG and MAG welding methods.
With the power source in synergic mode it is only necessary to set the wire feed
speed.
The voltage parameter may also be adjusted if required.
When the wire feed speed is adjusted the synergic control system automatically
adjusts certain other parameters to compensate. The parameters in italics remain
constant and are unaffected by changes in the wire feed speed.
Method DIP/SPRAY Method PULSING
S Wire feed speed S Wire feed speed
S Voltage S Voltage
S Inductance S Pulse current
S Control type S Pulse time
S Pulse frequency
S Background current
S Ka
S Ki
A table of parameter setting ranges is given in the APPENDIX see step 10.
2.5 Start and stop settings
The following settings affect the start and stop cycle dur ing MIG/MAG welding.
All the settings that affect the start/stop cycle and the way welding finishes are
described under the following headings.
Start settings Stop settings
S Gas pre--flow S Gas post--flow
S Creep start
S Hot start
S Hot start time
S Increase wire feed speed
(2 m/min unless stated
otherwise)
S Increase voltage (only
when not in synergic
mode)
S Burnback time
S Shake--off pulse (only for DIP/SPRAY
when not in synergic mode)
S Crater fill
S Crater fill time
S F inal wire feed speed
S F inal voltage (only when not in
synergic mode)
There are three different functions that are designed to meet special requirements at
the start and end of welding. These functions and auxiliary settings ar e made in the
start data menu and stop data menu.
bu10d12e
-- 1 2 --
Hot start
Hot start should be selected if you want a hotter arc at the start of the welding cycle
to prevent welding defects at the start of the weld.
Crater fill
The crater fill function makes it easier to avoid porosity, hot cracks and crater
cracking in the weld when you stop welding.
Creep start
The creep start function gives a lower wire feed speed and is suitable to use when
wanting to obtain the best possible start. The creep start speed is 50% of the set
wire feed speed. The function is activated on delivery.
TIP! The hot start, creep start and crater fill functions can be switched on or off using
the “soft keys“, see the section on “MIG/MAG configuration“ see step 9.2.4.2.
The start data and stop data menus are used to set the values for the following
parameters.
Gas pre-- and post--flow
The parameters gas pre--flow and gas post--flow specify the length of time that the
gas continues to flow before and after welding.
Burnback time
Burn--back time is used to adjust the electrode stick-- out at the end of welding.
2.6 Gas purge, cold wire feed and trigger latch
Like hot start and the others the following three functions can be controlled using the
soft keys. To find out how to do this see “MIG/MAG configuration“ see step 9.2.4.2.
Gas purge
The gas purge function is used to fill the gas hoses with shielding gas, or in order to
measure the gas flow rate. The gas flows when you press the key and stops when
you release it.
Cold wire feed
This function is used to feed wire out manually when fitting a new reel of wire. When
the key is pressed the wire is fed forward, and when it is released the wire stops.
Gun trigger mode
In MIG/MAG welding the torch switch can operate in two ways; with trigger latch off
or trigger latch on. Trigger latch off/on can be assigned to one of the soft keys.
The difference between having the tr igger latch off or on is illustrated in the following
diagrams, together with other functions in the start/stop cycle.
-- 1 3 --bu10d12e
Trigg er latch off (2--Stroke)
2
Craterfill stop data
1
Gas pre-flow
Hot
Start
Welding
Craterfill
Gas post-flow
With the trigger latch off the gas pre--flow (if set) begins when the gun trigger is
pressed (1). The welding parameters then rise to their set values or (if set) Hot start
values.
When the gun trigger is released (2) the crater fill period begins. After this has
elapsed the welding parameters drop to back zero and the gas post --flow (if set)
finishes the welding sequence.
TIP! If the gun trigger is pressed in again during the crater fill period then you can
continue welding using the final crater fill parameters for as long as required (dotted
line). Crater fill can also be cut short by pressing and releasing the gun trigger
quickly during the crater fill period.
Trigg er latch on (4--Stroke)
2
3
4
Craterfill stop data
1
Gas pre-flow
Hot
Start
Welding
Craterfill
Gas post-flow
When the trigger latch is on the gas pre-- flow begins when the gun trigger is pressed
(1). When the trigger latch is released (2) the welding parameters rise to their set
values. When the gun trigger is pressed again (3) the crater fill period begins. When
this has elapsed the values of the welding parameters drop to stop data.
The gas post--flow period begins when the gun trigger is released (4).
TIP! Crater fill stops when the gun trigger is released (4). If instead the trigger is held
in for longer then you can continue welding using the final crater fill parameters
(dotted line).
bu10d12e
-- 1 4 --
2.7 MIG/MAG configuration
See step 9.2.4.
2.8 Setting--up example MIG/MAG
The following is an example of how to set up the controller for MIG/MAG welding
using dip/spray transfer. Setting up for pulse welding is done in a similar way. The
example assumes that the power source is in synergic mode.
2.8.1 Basic settin g s
You use the main menu to make settings such as wire, method and material type.
We start by pressing the MENU key to call up the m ain menu.
We will make the following five settings:
S PROCESS = MIG/MAG
S METHOD = DIP/SPRAY
S WIRE TYPE = Fe
S SHIELDING GAS = Ar+8%CO2
S WIRE DIAMETER = 1.2 mm
Process
ESAB LUD 450
The first setting is
the type of welding
process. Use the
arrow keys to select
the line for
PROCESS. Press
ENTER to display
the list of options.
PROCESS: MIG/MAG
METHOD: PULSE
WIRE TYPE: AlSi
SHIELDING G AS: Ar+20%CO2
WIRE DIMENSION: 1.0 mm
AUXILIARY FUNCTIONS
SET MEASURE MEMORY
Position the cursor on the line for MIG/MAG in the
list and press ENTER again. Now we have set
PROCESS = MIG/MAG.
FAST
MODE
MIG/MAG
MMA
TIG
CARBON, ArcAir
ENTER
-- 1 5 --bu10d12e
Method
Position the cursor
on the line for
METHOD. Press
ENTER to display
the list of options.
ESAB LUD 450
PROCESS: MIG/MAG
METHOD: PULSE
WIRE TYPE: AlSi
SHIELDING G AS: Ar+20%CO2
WIRE DIMENSION: 1.0 mm
AUXILIARY FUNCTIONS
SET MEASURE MEMORY
Position the cursor on the line for DIP/SPRAY
in the list and press ENTER. We have now set the
METHOD = DIP/SPRAY.
Wire type
ESAB LUD 450
Position the cursor
on the line for WIRE
TYPE. Press ENTER
to display the list of
options.
PROCESS: MIG/MAG
METHOD: DIP/SPRAY
WIRE TYPE: AlSi
SHIELDING G AS: Ar+20%CO2
WIRE DIMENSION: 1.0 mm
AUXILIARY FUNCTIONS
SET MEASURE MEMORY
FAST
MODE
DIP/SPRAY
PULSE
FAST
MODE
ENTER
ENTER
Here is an example of a list that has so many options
that they cannot all be displayed at the same time.
The arrow in the bottom right cordown of the list
indicates that more options will become visible as you
scroll down the list.
Now position the cursor on the line for F e and press
ENTER.
We have now set the WIRE TYPE = F e.
bu10d12e
-- 1 6 --
Fe
Ss (Stainless)
Ss duplex
AlMg
AlSi
Metal cored Fe
Rutile FC Fe
Shielding gas
Position the cursor
on the line for
SHIELDING GAS.
Press ENTER to
display the list of
options.
ESAB LUD 450
PROCESS: MIG/MAG
METHOD: DIP/SPRAY
WIRE TYPE: Fe
SHIELDING GAS: Ar + 20% CO
WIRE DIMENSION: 1.0 mm
AUXILIARY FUNCTIONS
2
SET MEASURE MEMORY
Position the cursor on the line for Ar+8%CO2 and
press ENTER. We have now set the
SHIELDING GAS = Ar+8%CO2.
Wire dimension
ESAB LUD 450
Position the cursor
on the line for WIRE
DIMENSION. Press
ENTER to display
the list of options.
PROCESS: MIG/MAG
METHOD: DIP/SPRAY
WIRE TYPE: Fe
SHIELDING G AS: Ar8%CO2
WIRE DIMENSION: 1.0 mm
AUXILIARY FUNCTIONS
FAST
MODE
CO2
Ar+20 % CO2
Ar+2 % O2
Ar+5 % O2+5 % CO2
Ar+8 % CO2
Ar+23 % CO2
Ar+15%CO2+5%O2
ENTER
SET MEASURE MEMORY
Position the cursor on the line for 1.2 m m and press
ENTER. We have now set the WIRE DIMENSION =
1.2 mm.
bu10d12e
-- 1 7 --
FAST
MODE
0.8 mm
1.0 mm
1.2 mm
1.6 mm
ENTER
The next line in the main menu is AUXILIARY FUNCTIONS. You can read more
about these functions in the section “AUXILIARY FUNCTIONS“ see step 9.
ESAB LUD 450
PROCESS: MIG/MAG
METHOD: DIP/SPRAY
WIRE TYPE: Fe
SHIELDING G AS: Ar8%CO2
WIRE DIMENSION: 1.2 mm
AUXILIARY FUNCTIONS
"
SET MEASURE MEMORY
FAST
MODE
ENTER
2.8.2 Weld data settings
You can use the settings menu to set the values of various welding parameters, such
as voltage and wire feed speed. If you switch to synergic mode the microprocessor
will take care of severa l of these settings.
To start, we call up the main menu by pressing the MENU key. Then select the
settings menu by pressing the SET key. We will now make the following settings:
S WIRE FEED SPEED = 10.0 m/min
Wire feed speed
WELD DATA SETTING
Position the cursor
on the line
WIRE SPEED.
Setitto10.0m/min
using:
VOLTAGE: # 29.0 (+0.0) V
WIRE SPEED:
INDUCTANCE: 85 %
SYNERGIC MO DE ON
START DATA . . .
STOPDATA ....
10.0 m/min
*
QUIT
In the settings menu you can now also see the values that the microprocessor has
chosen for voltage and inductance.
The voltage parameter may also be adjusted if required.
bu10d12e
-- 1 8 --
2.8.3 Start data settings
Using the start data menu you can adjust the settings that affect the starting
sequence during MIG/MAG welding. We will set the following:
S GAS PRE--FLOW = 0.8 s
S CREEP START = YES
S HOT START = YES
S HOT START time = 1.0 s
S HOT START wire feed speed = +2.5 m/min
Start by opening the main menu, by pressing the MENU key.
Then go to the settings menu by pressing the SET key.
WELD DATA SETTING
Position the cursor
on the line START
DATA and press
ENTER.
VOLTAGE: # 29.0 ( +0.0) V
WIRE SPEED:
INDUCTANCE: 70 %
SYNERGIC MO DE ON
START DATA ..
STOPDATA ....
CRA TR
FILL
HOT
START
4-STROKE
10.0 m/min
*
QUIT
Gas pre--flow time
Here you enter the length of time you want the shielding gas to flow before welding
begins.
START DATA, SYNERGIC MODE
Position the cursor
on the line for GAS
PREFLOW. Set it to
0.8 s using one of
the plus/minus keys
GASPREFLOW: 0.8 s
CREEPSTART: YES
HOTSTART: NO
CRA TR
FILL
HOT
START
4-STROKE
QUIT
-- 1 9 --bu10d12e
Creep start
Here you simply choose whether you want to use the creep start function or not, i.e.
YES or NO. Wire feed speed and creep start time are preset and cannot be
changed.
START DATA, SYNERGIC MODE
Position the cursor
on the line CREEP
START. Set it to
YES by pressing
GASPREFLOW: 0.8 s
CREEPSTART: YES
HOT START: NO
one of the
plus/minus keys.
CRA TR
FILL
HOT
START
4-STROKE
QUIT ENTER
Hot start
To begin with you choose whether you want to use the hot start function or not. If you
decide to use the hot start function, you should then enter the hot start time and any
increase in the wire feed speed.
START DATA, SYNERGIC MODE
Position the cursor
on the line HOT
START. Choose
YES using one of
the plus/minus
keys.
GASPREFLOW: 0.8 s
CREEPSTART: YES
HOT START: YES
HOT START TIME: 1.5 s
WIRE SP: 2.0 m/min
CRA TR
FILL
HOT D
START
4-STROKE
QUIT ENTER
Position the cursor
on the line HOT
START TIME. Set
it to 1.0 s using one
of the plus/minus
keys.
bu10d12e
START DATA, SYNERGIC MODE
GASPREFLOW: 0.8 s
CREEPSTART: YES
HOTSTART: YES
HOT START TIME: 1.0 s
WIRE SP: 2.0 m/min
CRA TR
FILL
HOT D
START
-- 2 0 --
4-STROKE
QUIT
Position the cursor
on the line
WIRE SP.
Setitto2.5m/min.
START DATA, SYNERGIC MODE
GASPREFLOW: 0.8 s
CREEPSTART: YES
HOTSTART: YES
HOT START TIME: 1.0 s
WIRE SP: 2.5 m/min
CRA TR
FILL
HOT D
START
4-STROKE
QUIT
All the start settings have now been made.
START DATA, SYNERGIC MODE
Return to the
settings menu by
pressing QUIT.
GASPREFLOW: 0.8 s
CREEPSTART: YES
HOTSTART: YES
HOT START TIME: 1.0 s
WIRE SP: 2.5 m/min
CRA TR
FILL
HOT D
START
4-STROKE
QUIT
2.8.4 Stop d ata settings
The stop data menu is used to make the settings that affect the stop sequence
during MIG/MAG welding.
We will enter the following stop data:
S CRATER FILL = YES
S CRATER FILL TIME =1.5 s
S FINAL WIRE FEED SPEED = 3.0 m/min
S BURNBACK TIME =0.11 s
S GAS POST--FLOW =2.0 s
Position the cursor
on the line STOP
DATA and press
ENTER.
VOLTAGE: # 29.0 ( +0.0) V
WIRE SPEED:
INDUCTANCE: 70 %
SYNERGIC MO DE ON
START DATA . . .
STOP DATA . . .
CRA TR
FILL
HOT D
START
-- 2 1 --bu10d12e
WELD DATA SETTING
10.0 m/min
*
4-STROKE
QUIT ENTER
Crater fill
Begin by choosing whether you want to use the crater fill function or not. If you
choose to use crater fill you will then also have to set the crater fill time and wire feed
speed.
STOP DATA SYNERGIC MODE
Move the cursor to
the line CRATER
FILL and press
ENTER to display
the list of options.
Select YES.
CRATERFILL YES
TIME : 1.5 s
FIN. WIRE SPEED: 2.8 m/min
BURNBACKTIME: 0.12 s
GASPOSTFLOW: 0.5 s
CRA TR D
FILL
HOT D
START
4-STROKE
QUIT
Crater fill time
STOP DATA SYNERGIC MODE
Position the cursor
on the line TIME.
Setitto1.5susing
one of the
plus/minus keys
CRATERFILL YES
TIME: 1.5 s
FINAL WIRE SPEED: 2.8 m/min
BURNBACKTIME: 0.12 s
GASPOSTFLOW: 0.5 s
CRA TR D
FILL
HOT D
START
4-STROKE QUIT
Final wire feed speed
This is used to set t he wire feed speed that will be used when crater fill is com p lete.
Position the cursor
on the line FINAL
WIRE SPEED.
Setitto3.0m/min
using one of the
plus/minus keys.
bu10d12e
STOP DATA SYNERGIC MODE
CRATERFILL YES
TIME: 3.0 s
FINAL WIRE SPEED: 3.0 m/min
BURNBACKTIME: 0.12 s
GASPOSTFLOW: 0.5 s
CRA TR D
FILL
HOT D
START
-- 2 2 --
4-STROKE
QUIT
Burnback time
Position the cursor
on the line
BURNBACK TIME.
Setitto0.11susing
one of the
plus/minus keys.
STOP DATA SYNERGIC MODE
CRATERFILL YES
TIME: 3.0 s
FINAL WIRE SPEED: 4.0 m/min
BURNBACKTIME: 0.11 s
GASPOSTFLOW: 0.5 s
CRA TR D
FILL
HOT D
START
4-STROKE
QUIT
Gas post--flow
Use this to set the time for which the gas continues to flow after welding is complete.
STOP DATA SYNERGIC MODE
Position the cursor
on the line GAS
POST--FLOW. Set
it to 2.0 s using one
of the plus/minus
keys.
CRATERFILL YES
TIME: 1.5 s
FINAL WIRE SPEED: 3.0 m/min
BURNBACKTIME: 0.11 s
GASPOSTFLOW: 2.0 s
CRA TR D
FILL
HOT D
START
4-STROKE
QUIT
This completes the stop data settings and means that all the weld data settings for
MIG/MAG welding have been entered.
-- 2 3 --bu10d12e
Loading...
