ESAB PSE-10 Instruction manual

PSE-10

Instruction manual

0448 025 001  GB  20230315

TABLE OF CONTENTS

1 SAFETY

......................................................................................................................................

1.1 Meaning of symbols

1.2 Safety precautions

2 INTRODUCTION

.........................................................................................................................

2.1 Oven use and purpose

3 TECHNICAL DATA

4 INSTALLATION

4.1 Operation

ORDERING NUMBERS

WIRING DIAGRAM

.....................................................................................................................

...........................................................................................................................

......................................................................................................................

.........................................................................................................................

................................................................................................................................

ORDERING SPARE PARTS

....................................................................................................

......................................................................................................

................................................................................................

..................................................................................................................

4

4

4

4

4

5

5

5

5

6

7

0448 025 001

- 3 -

© ESAB AB 2023

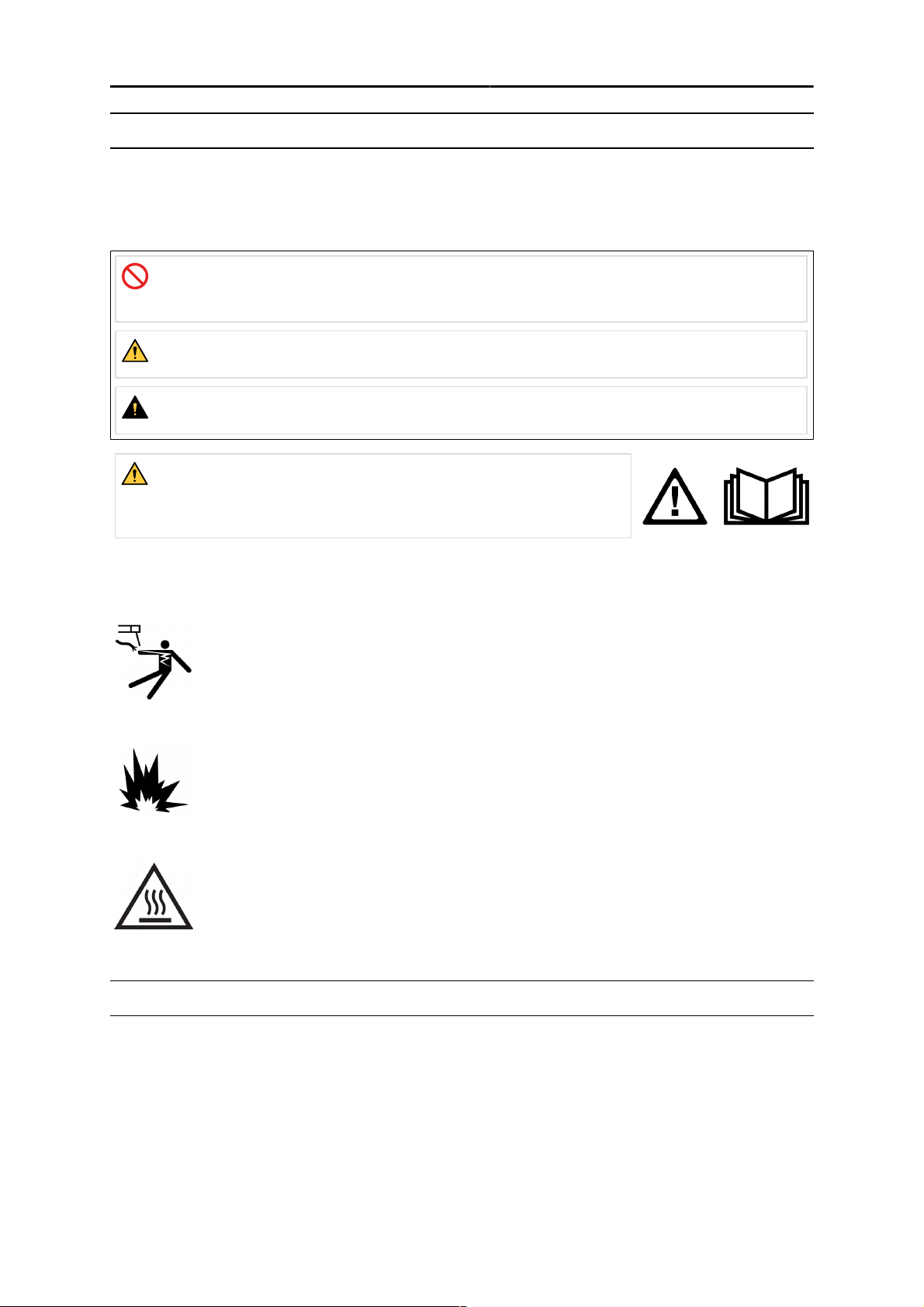

1  SAFETY

1 SAFETY

1.1 Meaning of symbols

As used throughout this manual: Means Attention! Be Alert!

DANGER!
Means immediate hazards which, if not avoided, will result in immediate, serious
personal injury or loss of life.

WARNING!
Means potential hazards which could result in personal injury or loss of life.

CAUTION!
Means hazards which could result in minor personal injury.

WARNING!

Before use, read and understand the instruction manual and
follow all labels, employer´s safety practices and Safety Data
Sheets (SDSs).

1.2 Safety precautions

ELECTRIC SHOCK - Can kill

• Do not touch live electrical parts or electrodes with bare skin, wet gloves
or wet clothing.

• Insulate yourself from work and ground.

• Ensure your working position is safe.

FIRE HAZARD

• Do not use if the power cord is broken or abnormal temperature variation
(not recommended as per manual/factsheet) seen on the oven as it may
can cause fire.

• Make sure that there are no inflammable materials nearby.

HOT SURFACE - Parts can burn

• Do not touch parts bare handed.

• Allow cooling period before handling or working with the equipment.

• To handle hot parts, use proper tools and/or insulated welding gloves to
prevent burns.

2 INTRODUCTION

2.1 Oven use and purpose

The PSE-10 oven model is designed to dry and store stick welding electrodes at a desired pre-set
temperature to remove moisture. Desired temperature can be set, based on the recommendation from
the electrode manufacturer to achieve correct drying, ensuring the moisture content and for storage.
This oven should only be used for its recommended setting and usage.

0448 025 001

- 4 -

© ESAB AB 2023

4  INSTALLATION

3 TECHNICAL DATA

PSE-10

Capacity Up to 10kg (22lbs.)

Voltage 240V (1ph)

Frequency 50/60Hz

Output 400W

Temperature 60-200°C (140-392°F)

Outer dimensions (Ø/height, cm) 22 × 60

Weight (Without electrodes) 8kg (17lbs.)

4 INSTALLATION

NOTE!

Make sure that the technical specification on the product corresponds to the electrical supply
in your network.

Check the voltage, frequency information and check that there is no fault that will affect the
operation of the product.

4.1 Operation

WARNING!

When the oven is not in use, remove the power cord plug from wall socket.

• Load welding electrodes in oven puller tray.

• Connect oven power cord plug to a power supply outlet as recommended in the
technical information. Make sure the power outlet socket matches the oven power
plug type.

• For thermostat available model - set the desired temperature using thermostat.

• The indicator lamp will turn ON and remain ON till the oven reaches the set
temperature.

• The indicator lamp will turn OFF when the oven has reached the desired set
temperature.

NOTE!

Make sure to remove the welding electrodes from their packages before putting them into
oven puller tray.

APPENDIX

ORDERING NUMBERS

Ordering number Denomination Type Notes

0700 100 127 Portable electrode storage PSE-10 Single phase 240 V AC 50/60 Hz

Technical documentation is available on the Internet at: www.esab.com

0448 025 001

- 5 -

© ESAB AB 2023

APPENDIX

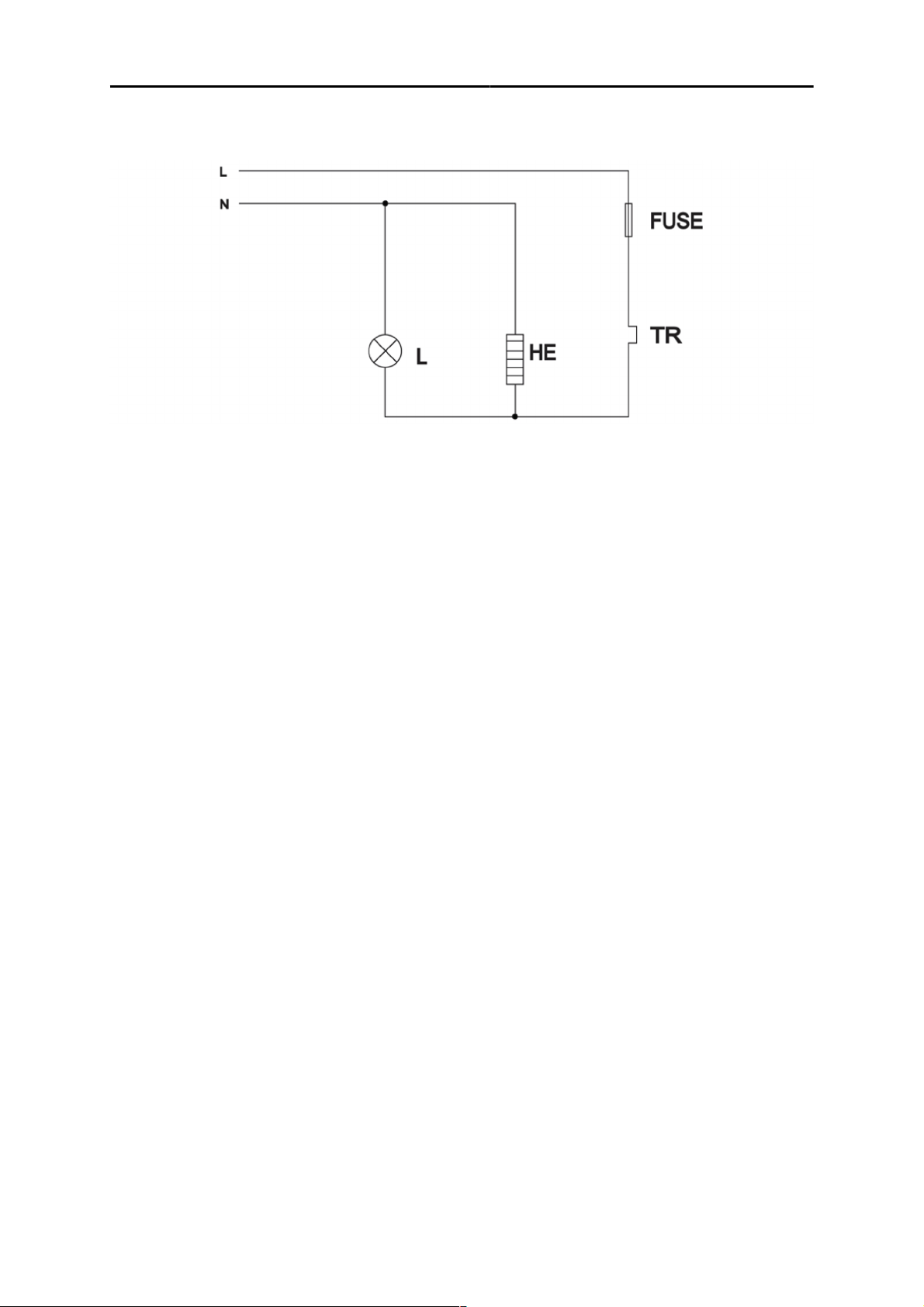

WIRING DIAGRAM

0448 025 001

- 6 -

© ESAB AB 2023

APPENDIX

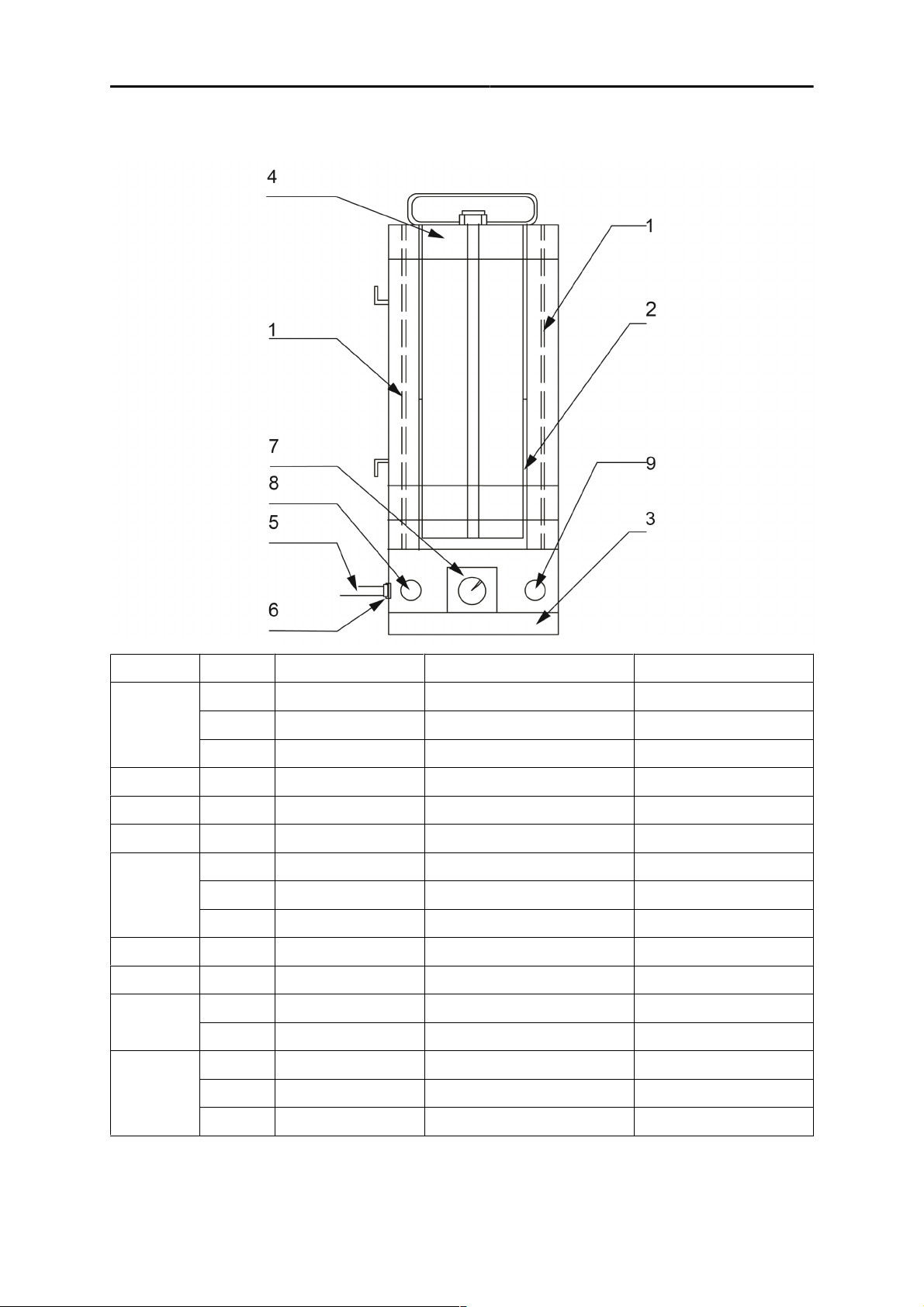

ORDERING SPARE PARTS

Item no. Qty. Ordering number Description Notes

2 0700 100 112 Heating element 230V

1

2 1 0700 100 133 Puller tray 10kg

3 1 0700 100 134 Bottom cover

4 1 0700 100 135 Top cover

5

6 1 0700 100 121 Cable gland

7 1 0700 100 032 Thermostat

8

9

2 0700 100 113 Heating element 110V

2 0700 100 114 Heating element 24V

1 0700 100 118 Power cord 230V with plug

1 0700 100 119 Power cord 110V with plug

1 0700 100 120 Power cord 24V with plug

1 0700 100 122 Fuse holder

1 0700 100 141 Fuse (glass) 5A

1 0700 100 124 Pilot lamp 230V

1 0700 100 125 Pilot lamp 110V

0448 025 001

1 0700 100 126 Pilot lamp 24V

- 7 -

© ESAB AB 2023
