ESAB OCIM RB25T, OCIM RB28T, OCIM RB36T, OCIM RB40T, OCIM RH302T, OCIM RH502T, OCIM RM552T Spare parts list (Replacement parts)

OCIM RB25T
OCIM RB28T
OCIM RB36T
OCIM RB40T
OCIM RH302T
OCIM RH502T
OCIM RM552T

Spare parts manual

© 2018 Tweco. All rights reserved. Excerpts and reprints not permitted. 07/ 2018

0463 621 001

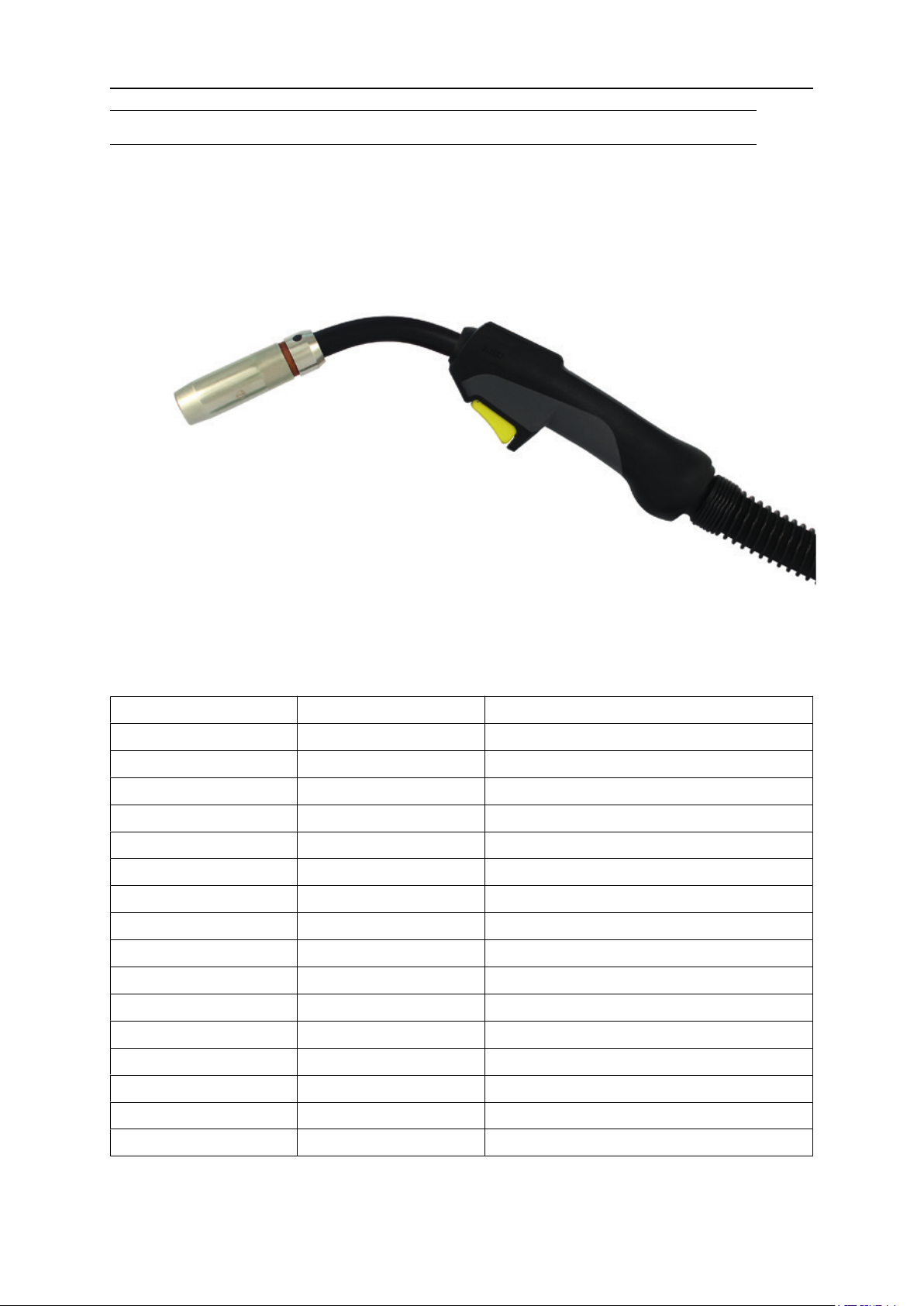

ORDERING NUMBERS

ORDERING NUMBERS

Ordering number Type Description

161050307TW OCIM RB25T Welding torch, 3m, Euro connection

161050407TW OCIM RB25T Welding torch, 4m, Euro connection

161100307TW OCIM RB28T Welding torch, 3m, Euro connection

161100407TW OCIM RB28T Welding torch, 4m, Euro connection

161130307TW OCIM RB36T Welding torch, 3m, Euro connection

161130407TW OCIM RB36T Welding torch, 4m, Euro connection

161120307TW OCIM RB40T Welding torch, 3m, Euro connection

161120407TW OCIM RB40T Welding torch, 4m, Euro connection

160110307TW OCIM RH302T Welding torch, 3m, Euro connection

160110407TW OCIM RH302T Welding torch, 4m, Euro connection

160100307TW OCIM RH502T Welding torch, 3m, Euro connection

160100407TW OCIM RH502T Welding torch, 4m, Euro connection

160100507TW OCIM RH502T Welding torch, 5m, Euro connection

159080307TW OCIM RM552T Welding torch, 3m, Euro connection

159080407TW OCIM RM552T Welding torch, 4m, Euro connection

0463 621 001 Spare parts manual

OCIM RB25T

Modello / Type Lungh. / Length

Connettore / Connector

Tweco OCIM RB25T 3 m Euro 161050307TW

Tweco OCIM RB25T 4 m Euro 161050407TW

Tipo di refrigerazione / Cooling
method / Mode de refroidissement /
Tipo de enfriamiento

Gas / gas / gaz / gas 200 A 220 A 60 % 0.8 - 1.0 mm

Punta guidafilo / Contact tips
M6 x 30

Ø 0.8, Cu 147010208

Ø 1.0, Cu 147010210

►

Ø 0.8, CuCrZr 147020208
Ø 1.0, CuCrZr 147020210

Ugello guidagas / Gas nozzle

NW 11
179109102

NW 16
179104102

Capacità di resistenza / Rating /

Capacité / capacidad de carga

Mix (M21)

CO2

Ciclo di funzionamento / Duty cycle /
Facteur de marche / Ciclo de trabajo

(10 min.)

116103108TW

118102117

101101102

NW 13

►

179105103

Diametro filo / Wire diam. /
Diamètre de fil / Diámetro de hilo

No. Codice / Part no.

Cavo ML

Coaxial cable ML

3 m: 108250302TW
4 m: 108250402TW

142105107TW

181106101TW

20402285

Guaina per fili / Wire guides m Ø 0.8 - 1.0 Ø 1.0 - 1.2

Guaina per fili acciaio

Liner for steel wire

Guaina PTFE / bronzo per fili alluminio

PTFE / bronze liner for aluminium

Guaina PE (Carbo) per fili alluminio

PE liner (Carbo) for aluminium

3 130020302TW 130050302TW

4 130020402TW 130050402TW

m Ø 0.8 - 1.0 Ø 1.0 - 1.2

3 – 134080302TW

4 134040402TW 134080402TW

4 134030402 134090402

20402287

blu / blue rossa / red

156101103TW

►

►

Kit impugnatura / Handle kit 137100110TW

20442289

20442288

© 2018 Tweco. All rights reserved. Excerpts and reprints not permitted. 03/ 2018© 2018 ESAB. All rights reserved. Excerpts and reprints not permitted. 07/ 2018
DOKP5M7010

► Standard / Standard

OCIM RB28T

Modello / Type Lungh. / Length

Connettore / Connector

Tweco OCIM RB28T 3 m Euro 161100307TW

Tweco OCIM RB28T 4 m Euro 161100407TW

Tipo di refrigerazione / Cooling
method / Mode de refroidissement /
Tipo de enfriamiento

Gas / gas / gaz / gas 220 A 260 A 60 % 0.8 - 1.2 mm

Punta guidafilo / Contact tips
M8 x 30

Ø 0.8, Cu 147010308

Ø 1.0, Cu 147010310

►

Ø 1.2, Cu 147010312
Ø 0.8, CuCrZr 147020308
Ø 1.0, CuCrZr 147020310
Ø 1.2, CuCrZr 147020312

Ugello guidagas / Gas nozzle

Capacità di resistenza / Rating /

Capacité / capacidad de carga

Mix (M21)

CO2

Ciclo di funzionamento / Duty cycle /
Facteur de marche / Ciclo de trabajo

(10 min.)

116103108TW

118102111

101101104

Diametro filo / Wire diam. /

Diamètre de fil / Diámetro de hilo

No. Codice / Part no.

NW 12
179109107

142105107TW

20402285

Guaina per fili / Wire guides m Ø 0.8 - 1.0 Ø 1.0 - 1.2

Guaina per fili acciaio

Liner for steel wire

Guaina PTFE / bronzo per fili alluminio

PTFE / bronze liner for aluminium

NW 18
179104105

181106101TW

156101103TW

20402287

blu / blue rossa / red

3 130020302TW 130050302TW

4 130020402TW 130050402TW

m Ø 0.8 - 1.0 Ø 1.0 - 1.2

3 – 134080302TW

4 134040402TW 134080402TW

►

►

NW 15,5

►

179105110

Kit impugnatura / Handle kit 137100110TW

20442289

Cavo ML

Coaxial cable ML

3 m: 108250302TW
4 m: 108250402TW

Guaina PE (Carbo) per fili alluminio

PE liner (Carbo) for aluminium

► Standard / Standard

4 134030402 134090402

20442288

© 2018 Tweco. All rights reserved. Excerpts and reprints not permitted. 03/ 2018© 2018 ESAB. All rights reserved. Excerpts and reprints not permitted. 07/ 2018
DOKP5M7020

OCIM RB36T

Modello / Type Lungh. / Length

Connettore / Connector

Tweco OCIM RB36T 3 m Euro 161130307TW

Tweco OCIM RB36T 4 m Euro 161130407TW

Tipo di refrigerazione / Cooling
method / Mode de refroidissement /
Tipo de enfriamiento

Gas / gas / gaz / gas 270 A 300 A 60 % 0.8 - 1.2 mm

Punta guidafilo / Contact tips
M8 x 40

Ø 0.8, Cu 147010108

Ø 1.0, Cu 147010110

►

Ø 1.2, Cu 147010112
Ø 0.8, CuCrZr 147020108
Ø 1.0, CuCrZr 147020110
Ø 1.2, CuCrZr 147020112

Ugello guidagas / Gas nozzle

Capacità di resistenza / Rating /

Capacité / capacidad de carga

Mix (M21)

CO2

Ciclo di funzionamento / Duty cycle /
Facteur de marche / Ciclo de trabajo

(10 min.)

116103114TW

118102119

101101105

Diametro filo / Wire diam. /

Diamètre de fil / Diámetro de hilo

No. Codice / Part no.

NW 13
179109124

142105107TW

20402285

Guaina per fili / Wire guides m Ø 0.8 - 1.0 Ø 1.0 - 1.2

Guaina per fili acciaio

Liner for steel wire

Guaina PTFE / bronzo per fili alluminio

PTFE / bronze liner for aluminium

NW 20
179104112

181106101TW

►

156101103TW

20402287

blu / blue rossa / red

3 130020302TW 130050302TW

4 130020402TW 130050402TW

m Ø 0.8 - 1.0 Ø 1.0 - 1.2

3 – 134080302TW

4 134040402TW 134080402TW

►

►

NW 16

179105115

Cavo ML

Coaxial cable ML

3 m: 108300302TW
4 m: 108300402TW

Kit impugnatura / Handle kit 137100107TW

20442289

Guaina PE (Carbo) per fili alluminio

PE liner (Carbo) for aluminium

► Standard / Standard

4 134030402 134090402

20442288

© 2018 Tweco. All rights reserved. Excerpts and reprints not permitted. 03/ 2018© 2018 ESAB. All rights reserved. Excerpts and reprints not permitted. 07/ 2018
DOKP5M7030

OCIM RB40T

Modello / Type Lungh. / Length

Connettore / Connector

Tweco OCIM RB40T 3 m Euro 161120307TW

Tweco OCIM RB40T 4 m Euro 161120407TW

Tipo di refrigerazione / Cooling
method / Mode de refroidissement /
Tipo de enfriamiento

Gas / gas / gaz / gas 340 A 360 A 60 % 1.0 - 1.6 mm

Punta guidafilo / Contact tips
M8 x 40

Ø 1.0, Cu 147010110

Ø 1.2, Cu 147010112

►

Ø 1.6, Cu 147010116
Ø 1.0, CuCrZr 147020110
Ø 1.2, CuCrZr 147020112
Ø 1.6, CuCrZr 147020116

Ugello guidagas / Gas nozzle

Capacità di resistenza / Rating /

Capacité / capacidad de carga

Mix (M21)

CO2

Ciclo di funzionamento / Duty cycle /
Facteur de marche / Ciclo de trabajo

(10 min.)

116103115TW

118102122

101101103

Diametro filo / Wire diam. /

Diamètre de fil / Diámetro de hilo

No. Codice / Part no.

NW 15,5
179109112

142105107TW

20402285

Guaina per fili / Wire guides

Guaina per fili acciaio

Liner for steel wire

Guaina PTFE / bronzo per fili alluminio

PTFE / bronze liner for aluminium

Guaina PE (Carbo) per fili alluminio

PE liner (Carbo) for aluminium

NW 21
179104108

181106101TW

NW 17

►

179105113

156101103TW

20402287

Ø 1.0 - 1.2 Ø 1.2 - 1.6

m

rossa / red gialla / yellow

3 130050302TW 130040302TW

►

►

4 130050402TW 130040402TW

3 134080302TW 134070302TW

4 134080402TW 134070402TW

Ø 0.8 - 1.0 Ø 1.2 - 1.6

m

4 134030402 134090402

Cavo XL

Coaxial cable XL

3 m: 108400302TW
4 m: 108400402TW

Kit impugnatura / Handle kit 137100111TW

20442289

20442288

► Standard / Standard

© 2018 Tweco. All rights reserved. Excerpts and reprints not permitted. 03/ 2018© 2018 ESAB. All rights reserved. Excerpts and reprints not permitted. 03/ 2018
DOKP5M7040

OCIM RH302T

Modello / Type Lungh. / Length

Connettore / Connector

Tweco OCIM RH302T 3 m Euro 160110307TW

Tweco OCIM RH302T 4 m Euro 160110407TW

Tipo di refrigerazione / Cooling
method / Mode de refroidissement /
Tipo de enfriamiento

Acqua / water / eau / agua 300 A 350 A 100 % 0.8 - 1.2 mm

Punta guidafilo / Contact tips
M8 x 40

Ø 0.8, Cu 147010108

►

Ø 1.0, Cu 147010110

Ø 1.2, Cu 147010112
Ø 0.8, CuCrZr 147020108
Ø 1.0, CuCrZr 147020110
Ø 1.2, CuCrZr 147020112

Ugello guidagas / Gas nozzle

NW 12
179109118

NW 18
179104109

Capacità di resistenza / Rating /

Capacité / capacidad de carga

Mix (M21)

CO2

101101104

►

NW 15

179105114

Ciclo di funzionamento / Duty cycle /
Facteur de marche / Ciclo de trabajo

(10 min.)

116116103TW

151105107

118103105

150112103

101106202 Ø 9.5

101106101
Ø 8.7

Portaguaina

Wire conduit

3 m: 17422131
4 m: 17422132

Cavo raff. rit. acqua

Water-power cable

3 m: 17422128
4 m: 17422129

Diametro filo / Wire diam. /

Diamètre de fil / Diámetro de hilo

No. Codice / Part no.

Tubo pass. acqua

Water hose

202080040TW

Tubo pass. gas

Gas hose

166080050TW

Cavo comandi

Control cable

3 m: 17422125
4 m: 17422126

Tubo di protezione

Fabric outer cover

175300280TW

150108101

142105119TW

181106101TW

20402285

Guaina per fili / Wire guides

Guaina per fili acciaio

Liner for steel wire

Guaina PTFE / bronzo per fili alluminio

PTFE / bronze liner for aluminium

Guaina PE (Carbo) per fili alluminio

PE liner (Carbo) for aluminium

20442290

20402287

Ø 0.8 - 1.0 Ø 1.0 - 1.2

m

ignuda /

blu / blue

3 130020302TW 189060302TW

4 130020402TW 189060402TW

blu / blue rossa / red

3 – 134080302TW

4 134040402TW 134080402TW

m Ø 0.8 - 1.0 Ø 1.2 - 1.6

4 134030402 134090402

►

►

not insulated

Fascio cavi completo

Cable assembly

3 m: 123040307TW
4 m: 123040407TW

Kit impugnatura / Handle kit 137100107TW

20442289

20442288

► Standard / Standard

© 2018 Tweco. All rights reserved. Excerpts and reprints not permitted. 03/ 2018© 2018 ESAB. All rights reserved. Excerpts and reprints not permitted. 03/ 2018
DOKP5M7050

OCIM RH502T

Modello / Type Lungh. / Length

Connettore / Connector

Tweco OCIM RH502T 3 m Euro 160100307TW

Tweco OCIM RH502T 4 m Euro 160100407TW

Tweco OCIM RH502T 5 m Euro 160100507TW

Tipo di refrigerazione / Cooling
method / Mode de refroidissement /
Tipo de enfriamiento

Acqua / water / eau / agua 450 A 500 A 100 % 1.0 - 1.6 mm

Punta guidafilo / Contact tips
M8 x 30

Ø 1.0, Cu 147010310

Ø 1.2, Cu 147010312

►

Ø 1.6, Cu 147010316
Ø 1.0, CuCrZr 147020310
Ø 1.2, CuCrZr 147020312
Ø 1.6, CuCrZr 147020316

Ugello guidagas / Gas nozzle

NW 15,5
179109112

NW 21
179104108

Capacità di resistenza / Rating /

Capacité / capacidad de carga

Mix (M21)

CO2

101101103

NW 17

►

179105113

Ciclo di funzionamento / Duty cycle /
Facteur de marche / Ciclo de trabajo

(10 min.)

116116102TW

151105106

118103106

150112102

101106202 Ø 9.5

101106101
Ø 8.7

Portaguaina

Wire conduit

3 m: 17422131
4 m: 17422132
5 m: 17422133

Cavo raff. rit. acqua

Water-power cable

3 m: 17422128
4 m: 17422129
5 m: 17422130

Diametro filo / Wire diam. /

Diamètre de fil / Diámetro de hilo

No. Codice / Part no.

Tubo pass. acqua

Water hose

202080040TW

Tubo pass. gas

Gas hose

166080050TW

Cavo comandi

Control cable

3 m: 17422125
4 m: 17422126
5 m: 17422127

Tubo di protezione

Fabric outer cover

175300280TW

150108101

181106101TW

20402285

Guaina per fili / Wire guides

Guaina per fili acciaio

Liner for steel wire

Guaina PTFE / bronzo per fili alluminio

PTFE / bronze liner for aluminium

Guaina PE (Carbo) per fili alluminio

PE liner (Carbo) for aluminium

20442290142105119TW

20402287

Ø 1.0 - 1.2 Ø 1.2 - 1.6

m

ignuda /

not insulated

3 189060302TW 189070302TW

►

4 189060402TW 189070402TW

►

5 189060502TW 189070502TW

►

rossa / red gialla / yellow
3 134080302TW 134070302TW
4 134080402TW 134070402TW
5 – 134070502TW
m Ø 0.8 - 1.0 Ø 1.2 - 1.6

4 134030402 134090402

6 – 134090602

ignuda /

not insulated

Fascio cavi completo

Cable assembly

3 m: 123040307TW
4 m: 123040407TW
5 m: 123040507TW

Kit impugnatura / Handle kit 137100111TW

20442289

20442288

© 2018 Tweco. All rights reserved. Excerpts and reprints not permitted. 03/ 2018© 2018 ESAB. All rights reserved. Excerpts and reprints not permitted. 03/ 2018
DOKP5M7060

► Standard / Standard

OCIM RM552T

Modello / Type Lungh. / Length

Connettore / Connector

Tweco OCIM RM552T 3 m Euro 159080307TW

Tweco OCIM RM552T 4 m Euro 159080407TW

Tipo di refrigerazione / Cooling
method / Mode de refroidissement /
Tipo de enfriamiento

Acqua / water / eau / agua 500 A 550 A 100 % 1.0 - 1.6 mm

Punta guidafilo / Contact tips
M8 x 30

Ø 1.0, Cu 147010310

Ø 1.2, Cu 147010312

►

Ø 1.6, Cu 147010316
Ø 1.0, CuCrZr 147020310
Ø 1.2, CuCrZr 147020312
Ø 1.6, CuCrZr 147020316

Ugello guidagas / Gas nozzle

179108102

Capacità di resistenza / Rating /

Capacité / capacidad de carga

Mix (M21)

CO2

119101103

116101106TW

151104104

118103103

Ciclo di funzionamento / Duty cycle /

Facteur de marche / Ciclo de trabajo

(10 min.)

101106202 Ø 9.5

127101103

151103104

135101103

101106101
Ø 8.7

Portaguaina

Wire conduit

3 m: 17422131
4 m: 17422132

Diametro filo / Wire diam. /

Diamètre de fil / Diámetro de hilo

No. Codice / Part no.

Tubo pass. acqua

Water hose

202080040TW

Tubo pass. gas

Gas hose

166080050TW

Cavo comandi

Control cable

3 m: 17422125
4 m: 17422126

NW 15,5
179109115

142105119TW

20402285

Guaina per fili / Wire guides

Guaina per fili acciaio

Liner for steel wire

Guaina PTFE / bronzo per fili alluminio

PTFE / bronze liner for aluminium

Guaina PE (Carbo) per fili alluminio

PE liner (Carbo) for aluminium

NW 17
179102102

181106101TW

150108101

103102102

►

NW 17

179105109

20442290

20402287

Ø 1.0 - 1.2 Ø 1.2 - 1.6

m

ignuda /

not insulated

3 189060302TW 189070302TW

►

►

4 189060402TW 189070402TW

rossa / red gialla / yellow

3 134080302TW 134070302TW

4 134080402TW 134070402TW

m Ø 0.8 - 1.0 Ø 1.2 - 1.6

4 134030402 134090402

ignuda /

not insulated

Cavo raff. rit. acqua

Water-power cable

3 m: 17422128
4 m: 17422129

Kit impugnatura / Handle kit 137100111TW

20442288

Tubo di protezione

Fabric outer cover

175300280TW

Fascio cavi completo

Cable assembly

3 m: 123040307TW
4 m: 123040407TW

20442289

► Standard / Standard

© 2018 Tweco. All rights reserved. Excerpts and reprints not permitted. 03/ 2018© 2018 ESAB. All rights reserved. Excerpts and reprints not permitted. 03/ 2018
DOKP5M7070

For contact information visit esab.com

http://manuals.esab.com
